Dermlite carbon User manual

~0.5”-1.0”
(~12-25mm)
~0.5” (~12mm)
1
2
Cross-
Polarization
Surface
Polarization
3
©2023byDermLiteLLC|01May2023|DLC-1701G
DLC

©2023 by DermLite LLC | 01 May 2023 | DLC-1701G
(English)
Instructions
Intended Use
This device is intended for medical pur-
poses to illuminate body surfaces. It is
used for non-invasive visual examination
of intact skin.
This battery-operated product is de-
signed for external examination only
within professional healthcare facilities
by medical professionals.
Check the correct operation of the de-
vice before use! Do not use the device if
there are visible signs of damage.
CAUTION: Do not look directly into the
LED light. Patients must close their eyes
during examinations.
In case of a serious incident with the use
of this device, notify DermLite imme-
diately and, if required by local regula-
tions, your national health authority.
CAUTION: Do not use the device in 󰘰re
or explosive risk area (e.g. oxygen-rich
environment).
WARNING: This product can expose
you to chemicals including methylene
chloride and hexavalent chromium,
which are known to the State of Cali-
fornia to cause cancer or reproductive
toxicity. For more information go to www.
P65Warnings.ca.gov.
Electromagnetic Compatibility
This device complies with the EMC
Emissions and Immunity level require-
ments of the standard IEC 60601-1-
2:2014. The emission characteristics of
this equipment make it suitable for use in
professional healthcare environment as
well as residential environment (CISPR
11 Class B). This equipment o󰘯ers ade-
quate protection to radio communication
service. In the rare event of interference
to the radio communication service, the
user might need to take mitigation mea-
sures, such as relocating or re-orienting
equipment.
WARNING: Use of this equipment adja-
cent to or stacked with other equipment
should be avoided because it could re-
sult in improper operation. If such use is
necessary, this equipment and the other
equipment should be observed to verify
that they are operating normally.
WARNING: Use of accessories other
than those provided by the manufac-
turer of this equipment could result in
increased electromagnetic emissions or
decreased electromagnetic immunity of
this equipment and result in improper
operation.
WARNING: Portable RF transmitters
should be used no closer than 30 cm (12
inches) to any part of the device. Other-
wise, degradation of the performance of
this equipment could result.

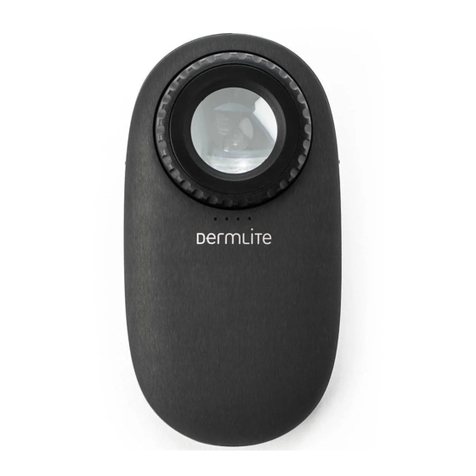

The DermLite carbon pocket derma-
toscope is designed for skin lesions
examination with magni󰘰cation and
cross-polarized or linearly polarized light.
Hold the DermLite so that the LEDs are
aimed in the direction of the lesion to be
examined. Place the DermLite approx-
imately 12 mm (1/2”) from the skin
(Fig. 1). If necessary, use your 󰘰ngers
to maintain optimum spacing or attach
the included spacer. Press the dome-
shaped button (Fig. 2) at the side of the
unit to activate the cross-polarized LEDs
and hold it down as long as you need
light. To see skin surface structures with
linearly polarized light, use the second
button. Look through the lens and move
the device closer or further away from
the lesion to obtain the desired image
focus.
Replacing the Battery (Fig. 3)
To change the battery, squeeze the
sides of the battery cap and remove it
and the battery. Insert a new battery of
the same type with the contacts facing
forward, then reattach the battery cap.
The DermLite uses a 2CR5 lithium
battery, which may be purchased from
DermLite, your DermLite dealer or an
electronic retailer.
Troubleshooting
Please check www.dermlite.com for the
most current troubleshooting informa-
tion. If your device requires servicing,
visit www.dermlite.com/service or con-
tact your local DermLite dealer.
Care and Maintenance
CAUTION: No modi󰘰cation of this equip-
ment is allowed.
Your device is designed for trouble-free
operation. Repairs shall be made only by
quali󰘰ed service personnel.
Cleaning
The exterior of your device, except the
optical parts, may be wiped clean with
isopropyl alcohol (70% vol.) prior to
use on a patient. The lens should be
treated as high-quality photographic
equipment and should be cleaned with
standard lens cleaning equipment and
protected from harmful chemicals. Do
not use abrasive material on any part of
the equipment or immerse the device in
liquid. Do not autoclave.
DermLite carbon includes:
Sixteen 3 mm white LEDs, 10x lens,
cross-polarization and linear polariza-
tion, 2CR5 lithium battery, removable
spacer, protective case with lanyard
Warranty: 5 years for parts and labor.
The battery is warranted for 1 year.
Disposal
This device contains electronics and a
lithium-ion battery that must be separat-
ed for disposal and may not be disposed
of with general household waste. Please
observe local disposal regulations.
Technical Description
Visit www.dermlite.com/technical or
contact your local DermLite dealer.
ENGLISH
