Desa JourneyMan HD-9260 User manual

ALL METAL MOTION SENSOR
QUARTZ LIGHT CONTROL
Model HD-9260
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
© 2000 DESA International 598-1007-02

-2-
598-1007-02
Contents
Introduction .................................................................................................. 3
Package Contents ..................................................................................... 4
Installation ..................................................................................................... 5
Wall Mount ............................................................................................... 5
Eave Mount ............................................................................................... 5
Universal Adaptor .................................................................................... 6
Standard Wiring ....................................................................................... 6
Controlling Non-Motion Sensing Fixtures ............................................. 7
Finish Mounting ....................................................................................... 8
Specifications ............................................................................................ 8
Test and Adjustment .................................................................................... 9
Expected Coverage .................................................................................10
Operation .................................................................................................... 12
Troubleshooting Guide.............................................................................. 13
JourneyMan®Lifetime Warranty ...............................................................14

-3-
598-1007-02
Introduction
Enhanced Performance Features
☞Rugged gripping teeth and finger screw provide full three-dimension adjustment of sensor head.
☞Eightsiliconrubbergasketssealinternalcomponentsandcontrolsfromsevereenvironmentalconditions.
☞Stainless steel screws to prevent rust and corrosion.
☞Built in 1.25 Mega Watt surge protection.
☞A.S.I.C. (Application Specific Integrated Circuit) design allows more reliable performance.
☞Range Boost option to extend range for those hard to cover areas.
☞Extremely wide angle coverage (up to 270°).
☞Easy to control other lights with your JourneyMan®fixture (up to 1000 Watts total load).
☞Expanded lens area receives more infrared light improving detection sensitivity.
☞Pulse count technology reduces false sensing from wind and rain for professional reliability.
☞Automatic photocell deactivates unit in daylight to save energy.
☞Power outage reset. Turns light off automatically if turned on by power interruption or electrical storm.
☞Selectable light timer to set the time lights stay on after motion has been detected.
☞Sensitivity control allows adjustment of coverage range.
☞Manual override to turn lights on/off at your convenience with existing indoor wall switch.
Dear Consumer:
We would like to thank you for purchasing this JourneyMan®product.We at Heath®/Zenith feel
that you have purchased the most durable motion sensor available today. This JourneyMan®product
will give you a lifetime worth of operation. We are so confident with the durability of this product that
we are backing it with a Lifetime Warranty.
Heath®/Zenith

-4-
598-1007-02
Package Contents
• Motion Sensor Light Fixture
• Lens shield
• Two 250 watt halogen lamps
• Manual
• Hardware Pack
1 Gasket
1 Hanger
1 Universal adaptor plate
4 Wire nuts
2 #6-32 X 3/4" (19 mm) screws
(for small rectangular boxes)
2 #8-32 X 3/8" (10 mm) screws
(fixture to universal adaptor)
4 #8-32 X 3/4" (19 mm) screws
(for circular or octagon boxes)
2 #10-24 X 1/2" (13 mm) screws
(for water tight boxes)
Additional Items Needed
• Phillips screwdriver
• Ladder
Fits All Junction Box Configurations
Circular
Horizontal rectangular
Vertical rectangular
Octagon

-5-
598-1007-02
Installation
If you want to use the Manual Override feature you will need to install the fixture on a circuit controlled
by a switch. The lamps are packed in boxes, inside the lampheads. Open the lampheads by removing
the screws at the top. Use a clean cloth or the foam packing around the lamps to keep your fingers off
the lamps. Install the lamps in the right side of the sockets first, then the left. Close the lampheads and
continue the installation as shown below.
❒Loosen the thumbscrews holding the sensor
head and lampheads.
❒Adjust the various parts so that the fixture
looks similar to this illustration.
❒Finger tighten the thumbscrews at this time.

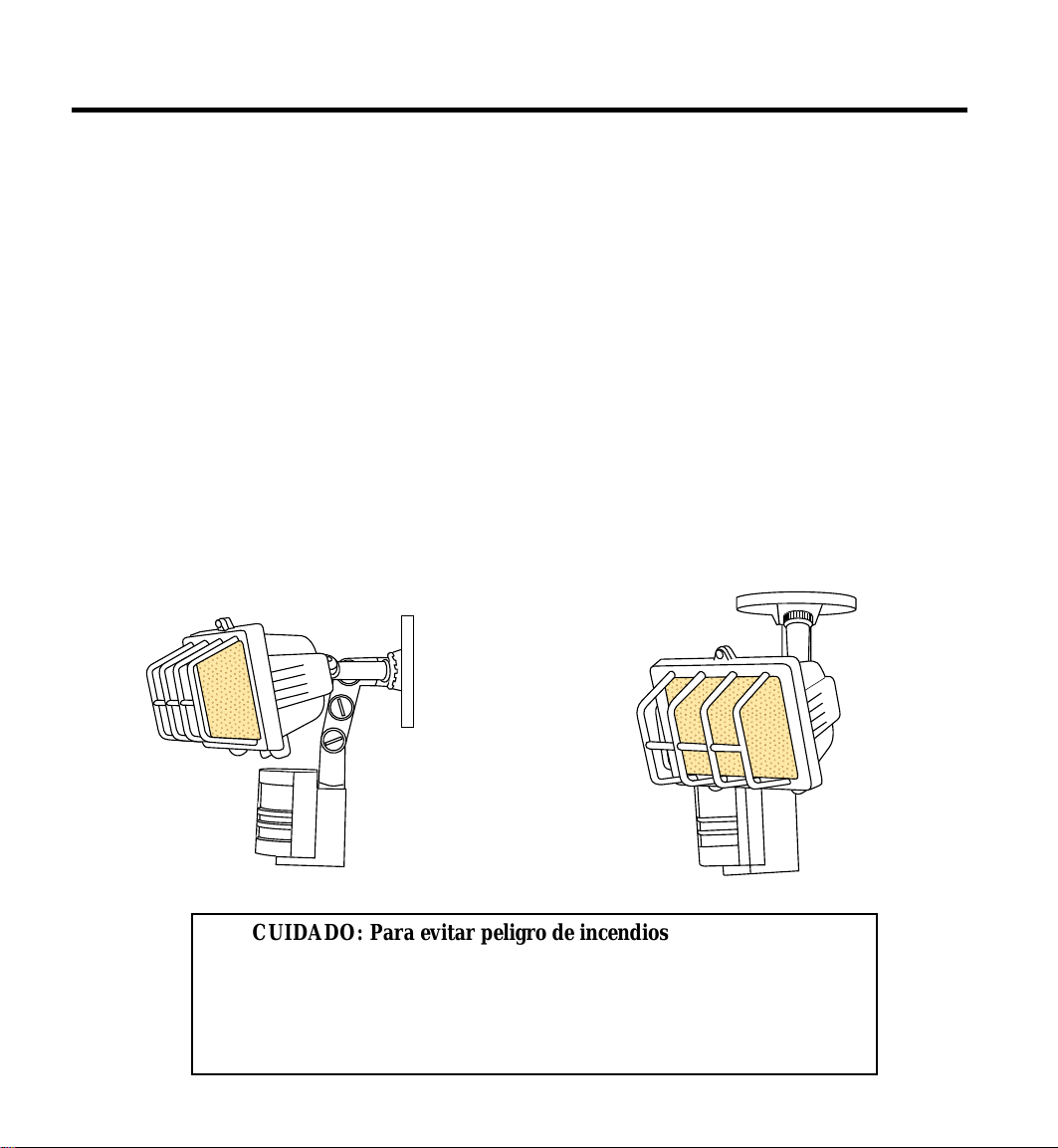

Wall Mount Eave Mount
❒Loosen the thumbscrews holding the sensor
head and lampheads.
❒Adjust the various parts so that the fixture
looks similar to this illustration.
❒Finger tighten the thumbscrews at this time.
CAUTION: To Avoid Fire Or Burn Hazards:
•Allow fixture to cool before touching. The bulb and the fixture
operate at high temperatures.
• Keep fixture at least 3" (76 mm) from combustible materials.
Do not aim at objects closer than 3' (1 m).
•Use onlytypeT250W(max.)tungstenhalogen120VAClamps.
CAUTION: BEFORE STARTING THE INSTALLATION, TURN THE POWER OFF AT THE
CIRCUIT BREAKER.
;;;
;;;
;;;
;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;

-6-
598-1007-02
CAUTION: If you have not already turned the
power off at the breaker or fuse, do so now.
Make sure the gasket is in place before connect-
ing any wires. You may find it convenient to use
the wire hanger provided to hold the fixture to the
junction box during the wiring process.
Connectthejunctionboxwiresto the fixturewires.
Twist together and secure with wire connectors.
CAUTION: If you are not controlling additional
fixtures from your JourneyMan®fixture, DO NOT
connect the RED wire.
If you are mounting the JourneyMan®fixture to a
small rectangular box, you will need to use the
universal adaptor as shown below. Other boxes
may require the adaptor adjusted differently.
If you are using a standard octagon or round box,
the adaptor is probably not required.
#6-32
screw
Use these holes and the #8-32
X 3/8" (10 mm) screws provided
to secure the fixture.
Horizontal Box #6-32
screws
Use these holes
and the #8-32 X
3/8" (10 mm)
screws provided
to secure the
fixture.
Vertical Box #6-32
screw
If the mounting holes in the fixture base still do
not line up with the threaded holes in the univer-
sal adaptor, you can (1) remove the adaptor and
flip it over or (2) remove the other pair of knock
outs in the fixture base.
StandardWiringUniversal Adaptor
Black to
Black
White to
White
Junction
Box
Green ground
wire to junction
box ground wire
RED, not
used in most
applications Gasket

-7-
598-1007-02
Controlling Non-Motion Sensing Fixtures
❒Whenwiring to additionalstandardfixture
only: Strip the motion sensor's red wire and
connect to the standard fixture's black wire.
Connect all white wires together. Total fixture
ratings must not exceed 1000W (8.3A).
NOTE:All wiring between fixtures should be run
inaccordancewiththeNationalElectrical Code
through conduit or another acceptable means.
Contactaqualifiedelectricianifthereisany
question as to the suitability of the system.
❒This fixture is provided with a sensor rated
for1000W. Sincethefixture is onlyrated500W,
500W of additional load may be controlled by
this sensor.
❒When determining what a fixture is rated for,
do not simply look at the rating on the lamp in
the fixture. Look at the marking which speci-
fies the maximum lamp wattage for which the
fixture is suitable.
❒Once you have selected the fixtures to be con-
nected and determined their maximum ratings,
add these ratings up. For instance, if you have
3 fixtures rated 100W, 150W, and 75W respec-
tively, you have a total load of 325W.
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
Wiring to a Motion Light & Standard Fixture
Standard
Fixture
RED from JourneyMan®to
BLACK from Fixture
BLACK from Switch to
BLACK from JourneyMan®
WHITE from Line to
WHITE from JourneyMan®
WHITE from Line to
WHITE from Fixture

-8-
598-1007-02
Finish Mounting
❒AligntheJourneyMan®baseplate, gasket, and
the junction box holes. Secure with mounting
screws that fit your junction box.
❒If not installed on a weatherproof box or if the
adaptor plate was used, caulk between the
base plate and mounting surface with sili-
cone weather sealant.
To obtain maximum lamp
life, keep the tubular
lamps horizontal.
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
Specifications
Range .............................. Up to 100feet(30.5m)with
Range Boost On; up to 70
feet (21 m) with Range
BoostOff. (Varieswith sur-
rounding temperature).
Sensing Angle................. Up to 270°
Fixture Load ................... 500wattsmax.,Incandescent
(250W each lamp holder)
Sensor Load Capacity ..... 1000 watts (8.3 amps), In-
candescent
Power Requirements....... 120 VAC, 60 Hz
Operating Modes ............ TEST,AUTOandMANUAL
MODE
Time Delay ..................... 1 , 5, 20 minutes
Sensitivity ....................... Adjustable
CAUTION:To Avoid Fire Or Burn Hazards:
•Allow fixture to cool before touching. The bulb and the fixture
operate at high temperatures.
• Keep fixture at least 3" (76 mm) from combustible materials.
Do not aim at objects closer than 3' (1 m).
•Use onlytypeT250W(max.)tungstenhalogen120VAClamps.

-9-
598-1007-02
Test and Adjustment
NOTES: When first turned on or when switching
from Manual to Auto mode wait 1 1/2
minutes for the unit to calibrate.
TestingwithRange Boost onduringday-
light may result in abnormal operation.
❒Turnonthe circuitbreakerand lightswitch.
❒Openthecontrolaccesscover(onbottomofunit)
by pulling down on the tab of the rubber cover.
❒Turn the sensitivity control to the center of its
adjustment, RANGE BOOST to OFF and the
ON-TIME to TEST position.

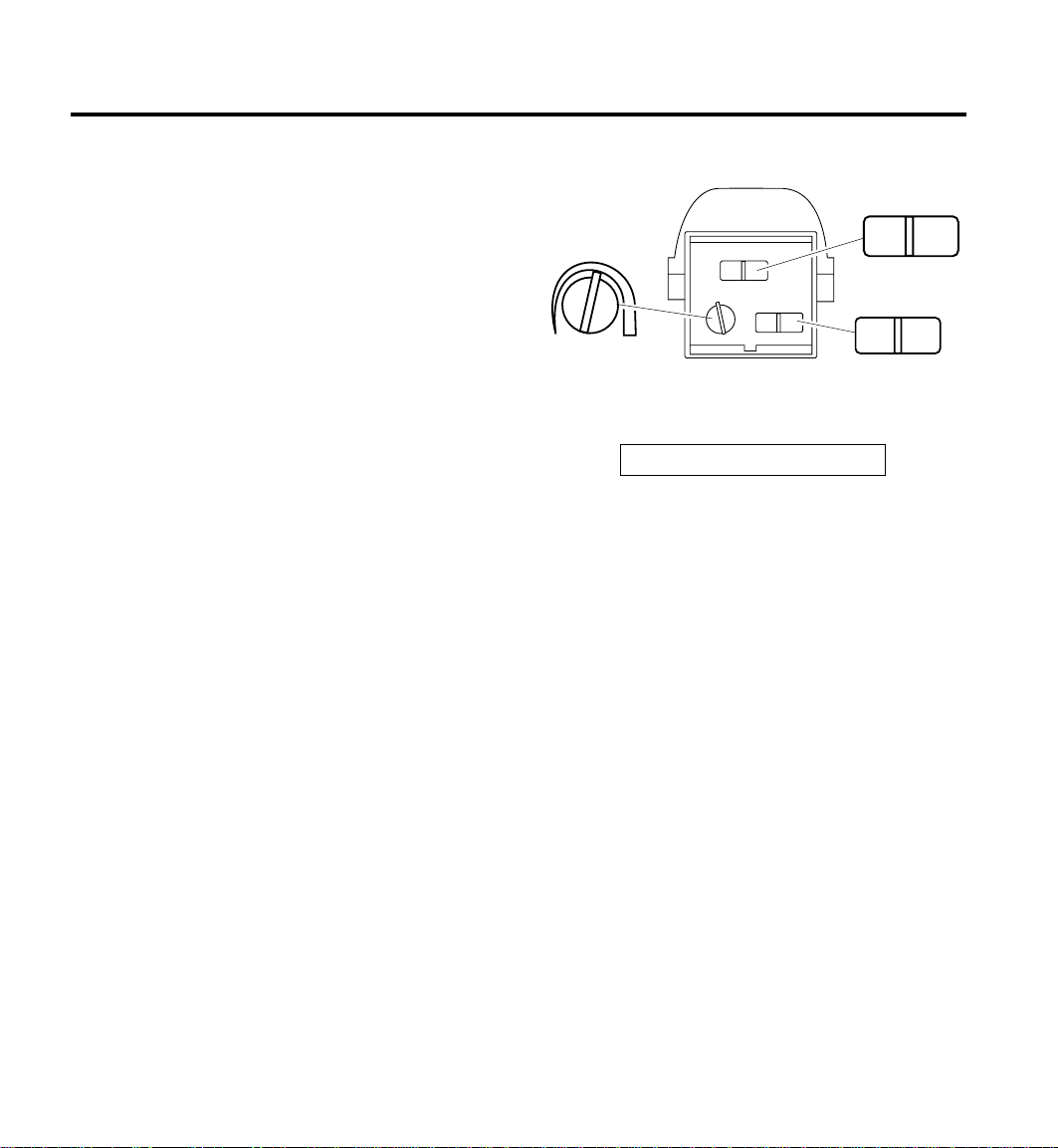

Sensor Bottom
Don't aim the control at:
• Objects that change temperature rapidly, such
asheatingventsand airconditioners,tohelp
avoid false triggering.
• Where pets or trafficmay trigger the control.
•Nearby large, light-colored objects reflect-
ing light may trigger the shut-off feature. Do
not point other lights at the sensor.
MIN. MAX.
SENSITIVITY
Range Boost
OFF ON
ON TIME
TEST 1 5 20

-10-
598-1007-02
Adjustments Continued . . .
Aim Sensor Down
for Short Coverage
❒Loosen the wing screws, estimate the direction to aim the sensor and
tighten the wing screws just enough to hold the sensor in place.
❒Walk through the coverage area noting where you are when the lights
turn on. Loosen the wing screws and readjust the sensor as necessary.
Tighten the wing screws (finger tight) when you are satisfied with the
coverage direction. Keep the sensor at least 1 inch (25 mm) from
lamps and keep the controls on the bottom.
❒Adjust SENSITIVITY as needed to increase or decrease the range. Too
much sensitivity may increase false triggering.
❒Set the amount of TIME (1, 5 or 20 minutes) you want the lights to stay
on after motion is detected at night.
❒If you need to detect objects more than 70 feet (21 m) away, turn Range
Boost on.
❒Replace the rubber cover to protect controls. Aim Sensor Out for
Long Coverage

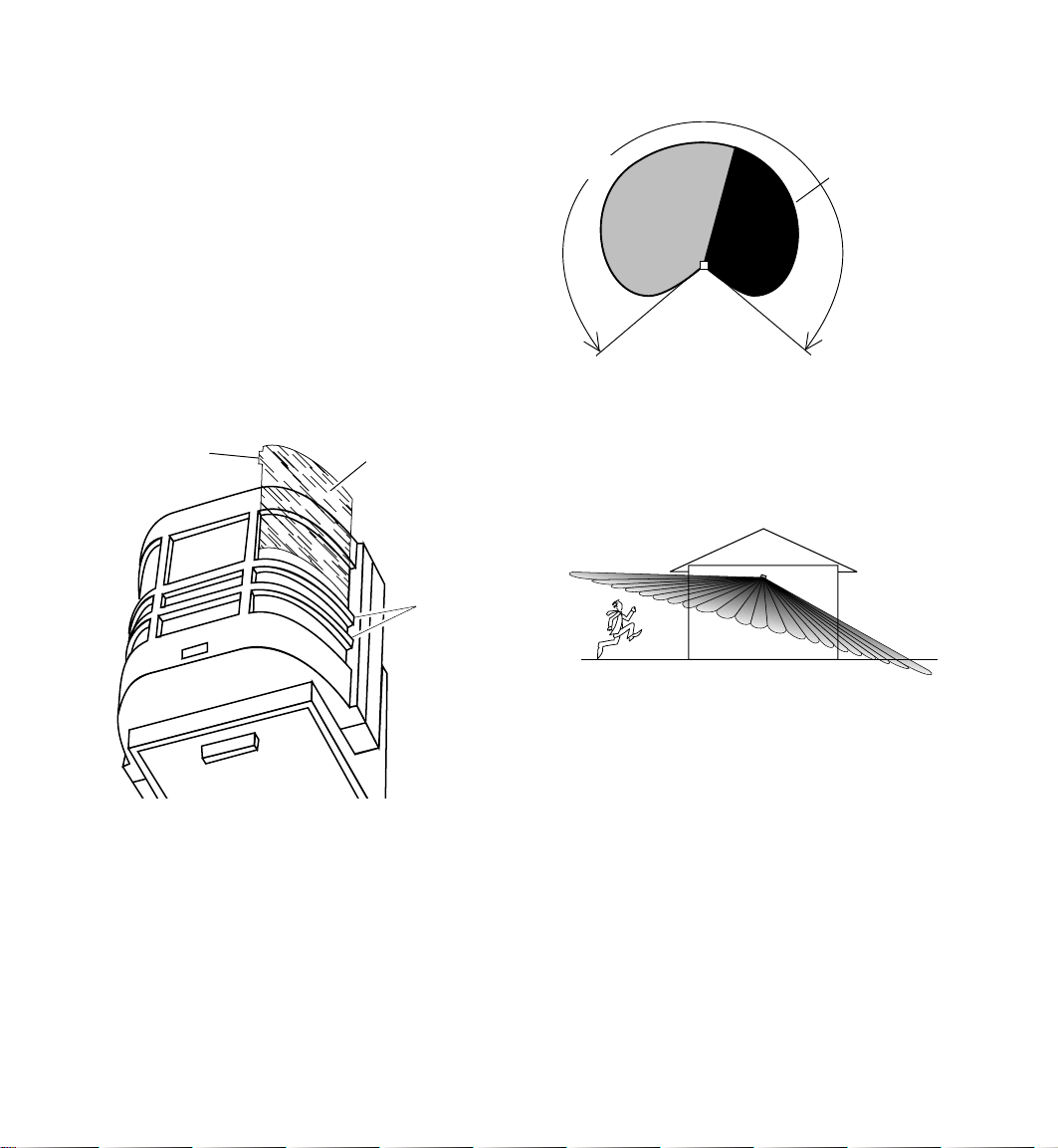

Expected Coverage
The sensor is less sensitive to motion directly
towards it, most sensitive to motion across its field
of view.
Motion
Sensor
Least Sensitive Most Sensitive
100 ft.
(30.5 m)
Boosted
Maximum Range
When mounted 8 feet (2.4 m) from the ground,
you may expect the range shown below. If
mounted much higher the sensor may miss ob-
jects near the ground. If mounted much lower the
sensor range may be reduced.
8 ft.
(2.4 m)
Motion
70 ft.
(21 m)
