Detection Systems DS7400Xi-AT User manual

Detection Systems, Inc. 130 Perinton Parkway
Fairport, New York, USA 14450-9199
[phone] • [phone] • Fax: [phone]
February, 2000
Copyright © 1995-2000 Detection Systems, Inc.
DS7400Xi-AT Reference Guide P/N: 39766B
Reference Guide
for the DS7400Xi-AT (Version 3+)
Control/Communicator

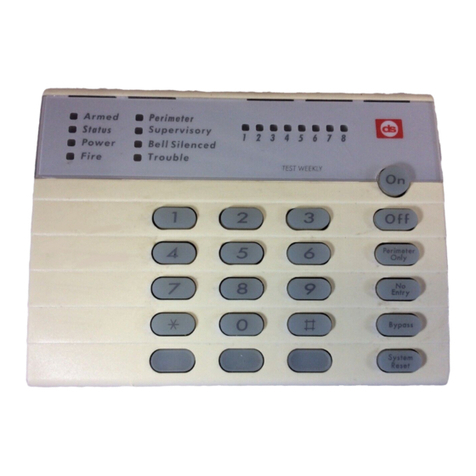

Turning On (arming) your System using the DS7445 or
DS7447 Keypad
Normal Arming [PIN] + [On]
Perimeter Arming, no entry delay [PIN] + [No Entry] +
[Perimeter Only]
Perimeter Arming, with entry delay [PIN] + [Perimeter Only]
Maximum Security Arming [PIN] + [No Entry] + [On]
Custom Arming [PIN]+[#][4]
Set Delayed Arming [PIN] + [#] [9] [9] and enter
number of hours from current
timetothedesiredarming time.
Extend Automatic Arming
during pre-arm time [PIN]+ [OFF]
Force Arming Enter an arming command
followed by [Bypass]
Zone Bypass [PIN] + [Bypass] followed by
the Zone number.
[PIN] +[Bypass] + [*] to clear
ALL Bypasses.
Turning Off (disarming) your System
Enter your [PIN] followed by [Off]
Commands for other System Features
Chime Mode [PIN]+[#][7]
System Walk Test [PIN]+[#] [8] [1]
Event History Readback [PIN]+[#] [8] [9]
BatteryTest [PIN] + [System Reset]
Communicator Test [PIN]+[#] [8] [2]
Fire Reset [PIN] + [System Reset]
Remote Program Dial-out [PIN]+[#][8] [3]
Remote Program Answer [PIN]+[#] [8] [6]
Battery/SounderTest [PIN] + [#][8][5]
Error Display [PIN]+[#] [8] [7]
Clear Error Display [PIN] + [System Reset]
Fire Walk Test [PIN]+[#] [9] [1]
Smoke Detector Test [PIN]+[#] [9] [2]
To Silence a Fire Trouble/Alarm [PIN]+ [Off]
To Clear a Fire Trouble Display [PIN] + [System Reset]
Access Control
Enter your [Access Control PIN] followed by [Off]
Keypad Quick Reference Guide

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 2
Table of Contents
KeypadQuick Reference Guide ........................................1
1.0 Specifications ..........................................................4
1.1 EnclosureHousing ..............................................4
1.2 Temperature.........................................................4
1.3 Power..................................................................4
1.4 Outputs ...............................................................4
1.5 Zones ..................................................................4
1.6 Keypads ..............................................................4
1.7 Communicator .....................................................4
1.8 Partitions.............................................................4
1.9 Users...................................................................4
1.10 LightningProtection.............................................4
1.11 Burglar/FireZone Inputs......................................4
1.12 FireSignal Initiating Circuit(2-wire mode) ...........4
1.13 MultiplexBus WiringRequirements .....................4
1.13.1 Multiplex Zone Loop Wiring.........................4
1.14 OptionBusWiringRequirements.........................4
1.15 Max.LoadCurrents .............................................5
1.16 Backup Battery Calculation .................................5
1.17 StandbyCurrentLoad..........................................5
1.18 Options................................................................6
2.0 Enclosure Installation .............................................8
2.1 Install the Enclosure ...........................................8
2.2 Installthe Control/Communicator ........................8
3.0 ControlTerminalWiring ..........................................9
4.0 Hardware Layout Example ....................................10
5.0 SystemWorksheet..................................................11
6.0 Glossary .................................................................15
6.1 GeneralControlProgramming ...........................15
6.2 ZoneFunction Programming .............................15
6.3 ZoneProgramming ............................................16
6.4 OutputProgramming .........................................17
6.5 PartitionControl Programming...........................18
6.6 KeypadAssignment Programming ....................18
6.7 EmergencyKey Programming ...........................18
6.8 CustomArming Programming ...........................18
6.9 ForceArming.....................................................18
6.10 GroundFault Detect Programming ....................18
6.11 CommercialFire Mode Programming ................18
6.12 Open/CloseReport Control Programming ........19
6.13 ReportProgramming .........................................19
6.14 PhoneNumber GeneralControl Programming ...20
6.15 PhoneAnswering Programming ........................20
6.16 FCCComplianceNotice ....................................20
6.17 FCCPhone Connection NoticeToUsers ...........21
6.18 CanadianDept. ofCommunications ..................21
6.19 For Installations in New Zealand .......................21
7.0 OperatingGuide.....................................................22
7.1 PersonalIdentification Numbers........................22
7.1.1 General Information.................................. 22
7.1.2 Removing a PIN ....................................... 22
7.1.3 Authority Levels ........................................ 22
7.2 Arming/DisarmingCommands...........................23
7.3 Changingthe Date.............................................23
7.4 ChangingtheTemporary PIN Expiration Date....23
7.5 ChangingtheTime ............................................24
7.6 DelayedArming.................................................24
7.7 Automatic Arming..............................................25
7.8 Disarmingthe System Under Duress ................26
7.9 AutomaticDisarming .........................................26
7.10 EmergencyProcedures .....................................27
7.10.1 Identifying Alarm Sounds ......................... 27
7.10.2 Silencing Alarms....................................... 27
7.10.3 A Cautionary Note .................................... 27
7.10.4 Use Common Sense ................................ 27
7.10.5 Caution When Entering A Building........... 27
7.10.6 Fire Alarms ............................................... 27
7.11 FireReset/FireTrouble ..........................................
27
7.11.1 Fire Reset ................................................. 27
7.11.2 Fire Trouble ............................................... 27
7.11.3 Dirty Chamber .......................................... 27
7.12 EmergencyKeypad Alarms ...............................28
7.13 Fire Safety ........................................................28
7.13.1 If Installed in Family Residences .............. 28
7.13.2 Having and Practicing an Escape Plan.... 28
7.13.3 Installation Considerations....................... 29
7.14 Testing...............................................................29
7.14.1 System Walk Test ...................................... 29
7.14.2 Fire Walk Test............................................ 29
7.14.3 Battery/SounderTest................................. 30
7.14.4 Communicator Test ................................... 30
7.14.5 Multiplex Smoke Detector Test ................. 30
7.14.6 Event History Readback ........................... 31
7.14.7 Remote Program Dial-out and Answer .... 31
7.14.8 Error Displays/Warnings........................... 32
8.0 Keypads ..................................................................33
8.1 TheMaster Keypad ...........................................33
8.2 Master Keypad Displays....................................33
8.3 Arming from the Master Keypad........................33
8.4 Disarmingfrom the Master Keypad ...................34
8.5 Single Partition Mode ........................................34
8.6 Volume and Backlight Controls .........................34
9.0 How to Program the Control Panel ......................35
9.1 Enteringthe Programmer’s Mode ......................35
9.2 Readingback aProgram Address .....................35
9.3 Entering a value in a Program Address .............35
9.4 HEX values .......................................................35
9.5 Defaults.............................................................35
9.6 Setting the Control to the Factory Default .........35
9.7 Exitingthe Programmer’s Mode ........................35
10.0 Understandingthe Programming Charts .............36
11.0 Programming .........................................................37
11.1 GeneralControlProgramming:
ProgramAddress (0000)....................................37
11.2 ZoneFunctionProgramming:
ProgramAddresses(0001-0015) .......................38
11.3 ZoneProgramming:
ProgramAddresses(0018-0145) .......................39
11.4 ZonePartition Assignment:
ProgramAddresses(1248-1311) .......................40
11.5 MultiplexZoneType:
ProgramAddress (0166)....................................40
11.6 ZoneBypass Programming:
ProgramAddresses(0016-0017) .......................41

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 3
11.7 OutputProgramming:
ProgramAddresses(0146-0148) .......................42
11.8 Output Partition Assignment:
ProgramAddresses(0149-0150) .......................42
11.9 PartitionControlProgramming:
ProgramAddress (0165)....................................43
11.10 RFReceiver Programming:
ProgramAddress (0168)....................................43
11.11 QuickArm Control Programming:
ProgramAddress (0169)....................................44
11.12 KeypadAssignment Programming:
ProgramAddresses(0173-0180) .......................44
11.13 KeypadPartition Assignment:
ProgramAddresses(0208-0215) .......................45
11.14 EmergencyKey Programming:
ProgramAddresses(0181-0182) .......................45
11.15 CustomArming Programming:
ProgramAddresses(0183-0184) .......................46
11.16 ForceArming and GroundFault Detect
Programming:ProgramAddress (0185).............46
11.17 CommercialFire Mode Programming:
ProgramAddress (0186)....................................47
11.18 Open/CloseReportControl Programming:
ProgramAddress (0187)....................................48
11.19 Open/Close& ZoneReport ControlProgramming:
ProgramAddress (0189)....................................48
11.20 ReportControlProgramming:
ProgramAddress (0190)....................................48
11.21 TimerProgramming: ProgramAddresses
(0191-0193,0195-0196) .....................................49
11.22 ACFail Report Delay Programming:
ProgramAddress (0197)....................................49
11.23 GeneralCode“Arm Only”Programming:
ProgramAddress(0198-0201) ...........................50
11.24 ArmingWarningProgramming:
ProgramAddresses(0202-0205) .......................50
11.25 DS7412RS232 InterfaceControl Programming:
ProgramAddress (0206)....................................51
11.26 DS7412RS232 InterfaceConfiguration
Programming:ProgramAddress (0207).............51
11.27 ReportProgramming: Program Addresses
(0256-0304and0320-0340) ...............................52
11.28 Phone/ARDISRouting Control:
ProgramAddresses(0494-0495) .......................54
11.29 AccountCode Programming:
ProgramAddresses(0496-0526) .......................55
11.30 PhoneNumber GeneralControl Programming:
ProgramAddress (0528)....................................56
11.31 PhoneNumber Format Programming:
ProgramAddresses(0529-0530) .......................56
11.31.1 Compatible Receivers .............................. 57
11.32 PhoneAnsweringProgramming:
ProgramAddress (0531)....................................57
11.33Programmer’s andMaster CodeProgramming:
ProgramAddresses(0532-0534) .......................58
11.34Octal RelayModule Output Programming:
ProgramAddresses(1456-1471) .......................58
11.34.1 Octal Relay Module Output Partition
Assignment: Program Addresses
(3725-3732).............................................. 59
11.35 OutputFunction Programming:
ProgramAddresses(1472-1516) .......................60
11.35.1 Output Function Partition Assignment:
Program Addresses (3733-3740)............. 61
11.36 DualPhone Line/Bell SupervisionModule Output
Programming:ProgramAddress (1520).............61
11.37 Call-OutTimerProgramming:
ProgramAddresses(1521-1524) .......................62
11.38 TestReportand RemoteProgrammer Call-Out
Programming:ProgramAddress (1525).............62
11.39 AlphaDescription Programming:
ProgramAddresses(1526-3701) .......................63
11.40 PhoneNumberProgramming:
ProgramAddresses (4028,4038, 4048) ............68
11.41 Pager DelayTime: ProgramAddress (3914) ......68
12.0 Installation Guide for U.L. Listed Systems ..........69
12.1 DS7400Xi U. L. Listings....................................69
12.1.1 U.L. System Configurations ...................... 69
12.2 InstallationConsiderations ................................70
12.3 ProgrammingtheDS7400Xi ..............................70
12.3.1 Household Fire Alarm using Digital Alarm
Communicator Transmitter with local bell.70
12.3.2 Grade A Household Burglary Alarm using
Digital Alarm Communicator Transmitter
with local bell ............................................ 70
12.4 GeneralSystem Requirements .........................70
12.4.1 Local Burglary Alarm ................................ 71
12.4.2 Police Station Connection ........................ 71
12.4.3 Central Station Burglary Alarm and
Proprietary ................................................ 71
12.5 CommercialFire Alarm......................................71
12.6 Wiringand Programming Information for
Installations Using the Ademco AB-12 Bell/
Housing .............................................................72
13.0 Report Programming.............................................73
13.1 4/2Format.........................................................73
13.2 BFSK Format ....................................................74
13.3 PersonalDialing andPager Format ...................75
13.4 PagerFormat.....................................................75
14.0 Report Programming -Values Sent ......................77
14.1 SIA Formats......................................................77
14.2 CIDFormats......................................................79
15.0 Multiplex Zone Addressing Guide ........................80
16.0 RF (Wireless) Programming Guide ......................81
16.1 ZoneProgramming ............................................81
16.2 TestingRF Zones ..............................................81
16.3 RemovingRF Zones .........................................82
16.4 RFZoneTroubles ..............................................82
16.5 ReceiverTrouble Displays .................................82
17.0 Troubleshooting Guide .........................................83
17.1 KeypadProblems ..............................................83
17.2 ReportingProblems...........................................84
17.3 ZoneProblems ..................................................84
17.4 GeneralSystem Problems ................................85
18.0 ProgramAddresses ...............................................89
Index .................................................................................92

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 4
1.0 Specifications
1.1 Enclosure Housing
The standard enclosure is manufactured from 20 Ga., cold-rolled
steel, and measures 12.5" Wide, by 14.5" High, by 3" Deep (31.8
cmx 36.8cmx 7.6 cm). A keyed lock is included, andthisenclosure
has a provision for an optional tamper switch (required for
commercial burglary applications) for monitoring the door.
1.2 Temperature
•Storage and Operating Temperature: +32° to +120°F
(0° to +49°C)
1.3 Power
The total current output capacity for all auxiliary devices,
including keypads and smoke detectors = 1.5 A standby,
2.5 A alarm. The following ratings are maximum values.
The total combined output cannot exceed the max. load
current.
•Input power: 18 VAC, 50 VA, 50 Hz./60 Hz.
•Auxiliary regulated power: 12 VDC, 1.0 A max.
•U. L. Listed Auxiliary power: 12 VDC, 1.0 A max.
•U. L. Listed Alarm Power Output: 12 VDC, 1.75 A max.
•Auxiliary power voltage range: 12 V special application
•Optional Standby battery (P334): 12 V, 7.0 AH - 35 AH max.
•Control panel current draw: 175 mA, Standby
250 mA, Alarm
1.4 Outputs
•Alarm Output 12 VDC, 1.75 A output. Can be
programmed for steady or pulsed
output.
•Programmable Output 1* Solid state current sink (1.0 A max.).
Shorts to Aux. negative when
activated. Connect device to Aux.
powerpositive. Canbeused foralarm,
armingstate,oraccesscontrol.**This
output is generally programmable.
•Programmable Output 2* Solid state voltage source (500 mA
max.). Can be used for alarm, arming
state, or access control.**This output
is generally programmable. For use
with such compatible devices as the
Listed DS250 with a 4-wire base.
* = Current draw should be subtracted from either maximum
auxiliary or maximum alarm current draw.
** = Not investigated to the requirements of UL294.
1.5 Zones
•8on-boardzones.Upto128totalzoneswith expansion modules.
•Zone Response Time: 300 ms.
1.6 Keypads
•Maximum # of keypads: 15 Keypads
•Maximum wire length each: 1000 feet (305 m)
•Maximum wire length total: 6000 feet (1830 m) in system
•Wire type: 4 conductor, unshielded, #22
AWG (0.8 mm) “Telephone
quad” or #18 AWG (1.0 mm)
quad wiring can be home-run
or daisy- chained.
No more than 2 keypads (#22 AWG) or 3 keypads (#18
AWG) are recommended on any 1000 foot (305 m) run.
Shared cable is not recommended for keypad, multiplex,
options bus, telephone, or siren wiring.
1.7 Communicator
Willreporttotwophonenumbers with full single, double and backup
reporting. Communicates in SIA (110 or 300 baud), 3/1, 3/1 Ext., 3/
1with Parity, 3/1 Ext.withParity,4/1, 4/2,BFSK,ContactID, Personal
Dialing and Pager formats.
FCC Registration Number is ESVUSA-75333-AL-E
The ringer equivalence is 0.1B
Commercial Fire CSFM Listing Number is 7165-1062:111
Residential Fire CSFM Listing Number is 7167-1062:111
1.8 Partitions
The system has the capacity for 8 independent partitions. One
partition may be a common area.
1.9 Users
The DS7400Xi system allows up to 90 individual users. Each user
will have his own PIN number (the 4 digit code entered at the
keypads) and his own authority level (to determine which functions
he may perform).
1.10 Lightning Protection
MOVs and spark gaps provide protection from lightning surges and
static discharges.
1.11 Burglar/Fire Zone Inputs
•Number of circuits: 8 Circuits on-board
•End-of-line resistor: 2.2 K Ω(P/N 25944, provided)
•Loop resistance tolerance: 60 ohms
1.12 Fire Signal Initiating Circuit (2-wire mode)
Fire circuit will work with 2- or 4-wire detectors and has optional
alarm verification.
•Number of circuits: 8 Circuits on-board
•Type of circuit: Class B, latching
•End-of-line resistor: 2.2 K Ω(P/N 25944, provided)
•Supervisory current: 5.5 mA
•Maximum short circuit current: 22 mA
•Maximum line resistance: 60 ohms
•Circuit voltage range: 8.5 to 14.1 VDC
•Total detector standby current: 2.5 mA
1.13 Multiplex BusWiring Requirements
•#22 AWG (0.8 mm). Up to 2000 feet (610 m) per system.
•#18 AWG (1.0 mm). Up to 5000 feet (1525 m) per system.
1.13.1 Multiplex Zone LoopWiring
•Maximum wire length not to exceed 500 feet (150m) regardless
of the wire gauge.
1.14 Option Bus Wiring Requirements
•Maximum wire length 1000 feet (305 m) per home-run.
Do not use twisted pair or sheilded cable for
multiplex bus wiring.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 5
1.15 Max. Load Currents
1.16 Backup Battery Calculation
•The following table is used to calculate the standby battery capacity required by NFPA when using the DS7400Xi:
1.17 Standby Current Load
•Battery AH - (20% Storage + 0.375 AH’s Alarm)
•The following table is the derated battery divided by hours minus the control standby (175 mA):
DeviceQuantityStandbyCurrent
PerDeviceTotalStandbyCurrent
(QuantityxStandby
CurrentPerDevice)
AlarmCurrent
PerDeviceTotalAlarmCurrent
(QuantityxAlarm
CurrentPerDevice)
10 mA+40 mA*10 mA+40 mA*
7mA
1mA
1mA
350 µA
50 mA
1mA
1mA
350 µA
20 mA20 mA
75 mA
100 mA75 mA
100 mA
DS7460 -DualZone
DS7465 -Input/Output
DS7480 -Bell Supervision
DS7481 -SingleLine Monitor
MX540 (DS7473)PIRDetector
MX835 TriTechMicrowave/PIRDetector
MX775 (DS7470)PIRDetector
DS7457 -SingleZone MultiplexInput
MX794 (DS7474)PIRDetector
DS7445 Keypad
DS7447 Keypad
MX950 (DS7476)TriTechMicrowave/PIR
2-WireSmokeDetectors
Bells,Horns,etc.
Othersensors
Other
MX934 (DS7471)PIRDetector
MX938 (DS7472)Ceiling MountPIR
DS7488 -OctalRelay*
DS7489 -SolidStateOutputModule
MX280 SeriesMultiplexSmokeDetectors
4-WireSmokeDetectors
10 mA750 mAmax**
500 µA560 µA
800 µA800 µA
6mA35 mA
200 µA200 µA
800 µA800 µA
200 µA
200 µA
200 µA200 µA
6mA35 mA
*=When calculating Standbyand AlarmCurrentforthe Octal-RelayModule,use10 mAplus40 mAforeachactivated relay.
Grand TotalGrand Total
** =Maximumcurrentdrawifusing DS7400Xipanelpowersupply.Totalofall outputscannotexceed 750 mA.
65 mA
10 mA
50 mA
127 mA
20 mA
65 mA
10 mA
65 mA
127 mA
140mA
DS7433 -8InputDirect
ARDISCommunicationsModule
DS7430 -MultiplexExpansion
DS7432 -8InputRemote
DS7420i-DualLine/Bell Supervision
DS7436 -DualMultiplexModule130 mA130 mA
DS7450,DS7452,DS7455 ContactPoints350 µA350 µA

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 6
1.18 Options
•DS7412: RS232 Serial Interface module. The DS7412 module
allowsthe panel to sendeventinformation, in anASCII
format, directly to a serial printer or computer. In
addition, the interface allows the direct connection of
a computer to the panel for programming via the
WDSRP programming software. The DS7412 Module
has not been investigated by Underwriters
Laboratories, Inc.
• Current Draw= 25 mA, 35 mA with LEDs on.
• DS7420i: Dual Phone Line/Bell Supervision Module (1 per
system).
The DS7420i allows the control to be used in NFPA
72 installations. It provides two supervised 12.0 VDC
signaling outputs, one Class A (Style D) input zone,
and dual phone line transmission and supervision.
•Current Draw = 20 mA, Standby. 140 mA, Alarm.
• DS7430: Multiplex Expansion Module (1 per system).
The DS7430 provides a two-wire multiplex bus for
the connection of additional remote zones. It also
supplies up to 200 mA for 4-wire multiplex devices
such as the DS7432.
•Current Draw = 65 mA, Standby. 65 mA, Alarm.
• DS7432: 8 Input Remote Module (up to 15 per system.
Requires a DS7430 Multiplex Expansion Module).
The DS7432 provides a means of monitoring
conventional Normally Open or Normally Closed
contacts. It reports their status to the control panel as
multiplex addresses. It occupies eight multiplex
zones on the system and can monitor up to eight
separateloops.Itwillsupport4-wiresmoke detectors.
•Current Draw = 10 mA, Standby. 10 mA, Alarm.
• DS7433: 8 Input Direct Module (1 per system. Can not be used
with the DS7430 or DS7436 Multiplex Expansion
Modules).
The DS7433 provides a means of expanding the
system to include eight additional hard-wired zones.
Each zone can support up to twenty 2-wire smoke
detectors (can also support 4-wire smoke detectors).
•Current Draw = 65 mA, Standby. 80 mA, Alarm.
Add 15 mA for each additional zone in alarm.
•DS7436: Multiplex Expansion Module (1 per system).
The DS7436 provides two two-wire multiplex buses
for the connection of up to 120 remote points. It also
supplies 250mA per bus.
•Current Draw = 130 mA, Standby or Alarm.
• DS7445: Control Station.
The DS7445 is an LED keypad which has LEDs
representingthefirst8zonesof the system. It displays
information on various control panel functions. A built
in sounder is used as an interior warning device and
to annunciate keystroke entries.
•Current Draw = 75 mA, Standby. 75 mA, Alarm.
• DS7447: Control Station.
The DS7447 is an Alpha-Numeric LCD keypad. It
displays information on various control panel
functions. A built-in sounder is used as an interior
warning device and to annunciate keystroke entries.
•Current Draw = 100 mA, Standby. 100 mA, Alarm.
•Keypad Access Output: The DS7447 Alpha Key
pad will provide a ten (10) second access relay
output if equipped with the optional K800 Relay.
The relay will energize at the keypad if the user has
a master, unlimited, general, or access PIN.
The output will change only if the user has access
to the partition assigned to the keypad. See the
DS7447 Keypad Installation Instructions (P/N
22235) for wiring information.
• DS7450: Flush Mount Single Multiplex Contact Point (requires
a DS7430 Multiplex Expansion Module).
The DS7450 is intended as a replacement for
conventional dry contacts, and to report an actual
multiplex address to the control panel. Occupies 1
zone.
•Current Draw = 350 µA, Standby. 350 µA, Alarm.
• DS7452: SurfaceMountSingle Multiplex Contact Point (requires
a DS7430 Multiplex Expansion Module).The DS7452
is intended as a replacement for conventional dry
contacts, and to report an actual multiplex address to
the control panel. Occupies 1 zone.
•Current Draw = 350 µA, Standby. 350 µA, Alarm.
• DS7455: SurfaceMountSingle Multiplex Contact Point (requires
a DS7430 Multiplex Expansion Module).The DS7455
is intended as a replacement for conventional dry
contacts, and to report an actual multiplex address to
the control panel. Occupies 1 zone.
•Current Draw = 350 µA, Standby. 350 µA, Alarm.
• DS7457: Single Zone Multiplex Input Module (requires a
DS7430 Multiplex Expansion Module).
The DS7457 provides a means of monitoring
conventional Normally Open or Normally Closed
contacts. It reports their status to the control panel as
multiplex addresses. It occupies one multiplex zone
on the system and can monitor one loop. It also
includes a tamper loop.
•Current Draw = 350 µA, Standby. 350 µA, Alarm.
• DS7460: Dual Zone Module (up to 60 per system. Requires a
DS7430 Multiplex Expansion Module).
The DS7460 provides a means of monitoring
conventional Normally Open or Normally Closed
contacts. It reports their status to the control panel as
multiplex addresses. It occupies two multiplex zones
on the system and can monitor up to two separate
loops.
•Current Draw = 1 mA, Standby. 1 mA, Alarm.
• DS7465: Input/OutputModule(up to 20 per system. Requires a
DS7430 Multiplex Expansion Module).
The DS7465 provides a Form “C” relay that may be
programmed to activate on system events, and an
input loop to monitor conventional Normally Open or
NormallyClosedcontacts.Itreportstheirstatustothe
control panel as multiplex addresses.
•Current Draw = 1 mA, Standby.1 mA, with relay
energized.
•Occupies 2 zones.
• DS7480: Bell Supervision Module (1 per system). The DS7480
provides a means of monitoring bells. It provides a
supervised(polarity reversing) output relay to activate
the bell. It also provides a Form “C” Bell Fault Output
to be connected to the control panel.
•Current Draw = 7 mA @ 12 VDC, Standby. 50 mA

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 7
@ 12 VDC, Alarm.
• DS7481: Single Phone Line Monitor (1 per system).
The DS7481 provides a means of monitoring a single
phoneline forfaultconditions. Whenafault isdetected,
the DS7481 automatically closes its Normally Open
relay contacts to provide a means of signaling the
fault.
•Current Draw = 20 mA, Standby. 20 mA, Alarm.
• DS7488: Octal Relay Module (2 per system).
The DS7488 provides 8 Form “C” relay outputs for
addition to the system. The outputs are fully
programmable and can be activated by system
events. Each output operates individually of the other
7 outputs for complete flexibility.
•Current Draw = 10 mA + 40 mA for each relay
when energized.
• DS7489: Solid State Output Module (2 per system).
The DS7489 is a Solid State Octal Driver Module that
provides 8 open collector transistor outputs. The
outputs are fully programmable and can be activated
by system events. Each output operates individually
of the other 7 outputs for complete flexibility. The
DS7489 Module has not been investigated by
Underwriters Laboratories, Inc.
•Current Draw: 10mA.
•Outputs: Provides a current sink (the output
shorts to common (-) when activated). The
maximum current draw for all 8 outputs combined
cannot exceed 750 mA.
•MX280: Multiplexed Photoelectric Smoke Detector (up to 120
detectors may be used per system. Requires a
DS7430 and occupies one multiplex zone). Detects
smoke and automatically determines the detector’s
sensitivity using the Detection Systems “Chamber
Check” feature. The MX280 Detector has not been
investigated by Underwriters Laboratories, Inc.
•Current Draw: 500 mA Standby, 560 mA Alarm.
•MX280TH: Multiplexed Photoelectric Smoke Detector with a
135°F (57°C) heat sensor (up to 120 detectors may
beused per system.Requiresa DS7430 andoccupies
one multiplex zone). Detects smoke and is equipped
with a 135°F (57°C) heat sensor for high temperature
alarms. The Detection Systems “Chamber Check”
feature automatically determines the detector’s
sensitivity. The MX280TH Detector has not been
investigated by Underwriters Laboratories, Inc.
•Current Draw: 500 µA Standby, 560 µA Alarm.
•MX280THL: Multiplexed Photoelectric Smoke Detector with a
135°F (57°C) heat sensor and a 45°F (7°C) freeze
alarm (up to 60 detectors may be used per system.
Requires a DS7430 and occupies two multiplex
zones). Detects smoke and is equipped with a 135°F
(57°C) heat sensor for high temperature alarms and
a 45°F (7°C) sensor for freeze alarms. Freeze alarms
are reported separately from smoke and high
temperature alarms. The Detection Systems
“Chamber Check” feature automatically determines
the detector’ssensitivity.TheMX280THLDetectorhas
not been investigated by Underwriters Laboratories,
Inc.
•Current Draw: 500 µA Standby, 560 µA Alarm.
•MX540: Passive Infrared (PIR) Intrusion Detector with a stan-
(DS7473) dardrange of40by 50feet(12 by15 meters).Requires
a DS7430 and occupies one multiplex zone.
• Current Draw = 800 µA Standby and Alarm.
•MX835: TriTech® Microwave/PIR Intrusion Detector with Pet
Immunity technology and a standard range of 35 x 35
feet(10.7x 10.7 m). Requires a DS7430andoccupies
one multiplex zone.
•Current Draw= 6 mA standby, 35 mA in “Trouble”
and walk test mode.
•MX775: Passive Infrared (PIR) Intrusion Detector with a stan-
(DS7470) dard range of 50 x 50 feet (15 x 15m). Requires a
DS7430 and occupies one multiplex zone.
•Current Draw= 200 µA standby, 2 mA in
walk test mode.
•MX794: The MX794 is a Long Range Multiplex PIR Intrusion
(DS7474) Detector with Self-test.Thestandardrangesare80ft.
by 50 ft. (24.0m by 15.0m) and 200 ft. by 10 ft.
(61.0 m by 3.1 m). Requires a DS7430 and occupies
one multiplex zone.
•Current Draw = 800 µA Standby and Alarm.
•MX934: Passive infrared (PIR) intrusion detector with a stan-
(DS7471) dard range of 35 by 35 feet (10.7m by 10.7m). Re-
quires a DS7430 and occupies one multiplex zone.
•Current Draw= 200 µA standby, 2 mA in
walk test mode.
•MX938: 360° Ceiling Mount Multiplex PIR Intrusion Detector
(DS7472) with a 60 foot (18.3m) diameter range. Requires a
DS7430 and occupies one multiplex zone.
•Current Draw= 200 µA standby, 2.5 mA in
walk test mode.
•MX950: TriTech® Microwave/PIR Intrusion Detector with
motion (DS7476) monitor and anti-mask features and
with a standard range of 50 x 50 feet (15 x 15m).
RequiresaDS7430andoccupiesonemultiplex zone.
•Current Draw= 6 mA standby, 35 mA in “Trouble”
and walk test mode.
• RF7434-ITI: 16 zone Wireless Receiver. Up to 2 RF7434-ITI re-
(60-731) ceivers may be used per system. Requires the use
of a DS7430 Multiplex Expansion Module. See ITI
Inguide P/N 466-1426 for installation information.
• Current Draw = 35 mA Standby and Alarm.
• Requires a DS7447 Keypad.
• RF7435-ITI: 120 zone Wireless Receiver. One RF7435-ITI re-
(60-731) ceiver may be used per system. Requires the use
of a DS7430 Multiplex Expansion Module. See ITI
Inguide P/N 466-1426 for installation information.
• Current Draw = 35 mA Standby and Alarm.
• Requires a DS7447 Keypad.
• ARDISSM Communications Module: This Communications
Module provides a means of communicating alarm
and supervision signals using the ARDIS radio
network. This can be a replacement for, or a
complement to, the standard digital communicator.
•Current draw: 127 mA Standby and Alarm.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 8
2.0 Enclosure Installation
The DS7400Xi control/communicator and the enclosure are
shipped together. The control, however, still needs to be installed
into the enclosure. Hardware for mounting the enclosure to a wall
and the control to the enclosure is located in a hardware pack.
2.1 Install the Enclosure
•Use the enclosure as a template and mark the top mounting
holes on the mounting surface.
•Pre-start the mounting screws for these two holes. Slide the
enclosure onto these mounting screws so that the screws move
up into the thinner section of the holes. Tighten the screws.
•Screwin theremainingtwo screwsineither setof bottommounting
holes.
•Knock out the desired wire entrances on the enclosure.
2.2 Install the Control/Communicator
The control is static sensitive. Make sure you touch
earth ground before handling the control. This will
discharge any static electricity in your body. Example:
Run the ground wire to the enclosure before handling
the control. Then keep holding the ground wire while
installing the control.
•Insert the three support posts into the control retainer holes as
shown in the diagram.
•Slide the top of the control into the retainer tabs (the slots under
the top frame).
•Onceinthe retainer tabs, the control will rest on the three support
posts.
•Secure the bottom of the enclosure by screwing the bottom three
holesthroughthe support posts and throughtothecontrol retainer
holes.
The control/communicator is also available in three package
formats. The packages include the following:
• DS7400XiF: DS7400Xi in large red enclosure (manufactured
from 18 Ga., cold-rolled steel, and measures 15.0"
Wide, by 20.75" High, by 4.25" Deep (38.1 cm W,
by 52.7 cm H, by 10.8 cm D)).
• DS7400XiFCP: DS7400XiF package with: DS7420i,
DS7447 and an AE-TR16
•DS7400XiCC: DS7400Xi in an Attack Enclosure.
When installing a U. L. Listed system, refer to
the Installation Guide for U. L. Listed Systems.
See Section 12.0.
Oncethecontrolisinstalled,be sure toconnect
itsgroundwiretothetop hinge oftheenclosure
(theunpaintedtab).

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 9
3.0 Control Terminal Wiring

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 10
4.0 Hardware Layout Example
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
Perimeter
Supervisory
Bell Silenced
Trouble
1 2 3 4 5 6 7 8 ®
DS7488 Octal
Relay Board
DS7400Xi
+–+–
PowerBus
DS7420iDualPhone
Line/Bell Supervision
Module
DS7447 and DS7445 Keypads
R
ARDISInterface Module
DS7450,DS7452 &DS7455 Series Contacts,
DS7460 InputModules,DS7465 Input/Output
Modules,MX540,MX775,MX794,MX835,MX934,
MX938,and MX950 motion detectorsand MX280
Smoke Detectors
DS7430
Keypads#11 -#15 mustbe connected to
the OptionsBus.Keypads#1 -#10 must
be connected tothe Keypad Bus.
®
Note:Ensureatleast1/4"separation
between batterywiresand all
othercabling.
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
®
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
®
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
®
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
®
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
®Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
Perimeter
Supervisory
Bell Silenced
Trouble
1 2 3 4 5 6 7 8 ®
Armed
Status
Power
Fire
1 2 3
4 5 6
7 8 9
0
*#
On
No
Entry
System
Reset
Bypass
Only
Perimeter
Off
Perimeter
Supervisory
Bell Silenced
Trouble
1 2 3 4 5 6 7 8 ®
B
G
Y
–+– –
–
–
Option
Bus
Battery
Bell Output
Auxiliary
Output
+
–
++
+
–
+
–
G
R
B
1
2
3
4
5
6
7
8
9
10
Y
1 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 2 7 28
BatteryBattery
RTRT T TR R TRTR
DS7432 8-Input
RemoteModules
4 7 K
Drycontactinputs
+–+–1 2 3 4 5 6 7 8
POWER BUS
+–+–1 2 3 4 5 6 7 8
POWER BUS
+–+–1 2 3 4 5 6 7 8
POWER BUS
+–+–1 2 3 4 5 6 7 8
POWER BUS
1 2 3 4 5
2G1-+
BUS
+
•Upto15 keypadsmaybe used.Keypads#1 -#10 connecttothe Keypad Busand Keypads#11 -#15
connecttothe Option Bus.One keypad mustbe designated askeypad #1 and connected tothe Keypad
Bus.See the DS7447 and DS7445 Installation Instructionsforfurtherdetails.
•ADS7420i(DualPhone Line/Bell Supervision Module)maybe connected tothe controlpanel,and
placed withinthe enclosure.Connecttothe OptionsBusofthe controlpanel.See the DS7420iInstallation
Instructionsforfurtherdetails.
•ADS7430 (MultiplexExpansion Module)maybe connected tothe controlpanelviathe expansion port.
Thiswill allowforthe connection ofadditionalzones.See the DS7430 Installation Instructionsforfurther
details.
•Upto15 DS7432s(8InputRemoteModules)maybe connected tothe DS7430.Connecttothe Power
and Busterminalsofthe DS7430.Thisallowsforameansofaddressing up to120 inputloopsofconventional
contactstothe controlpanel.See the DS7432 Installation Instructionsforfurtherdetails.
•ADS7488 (OctalRelayModule)maybe connected tothe controlpanel,and placed withinthe enclosure.
Connecttothe OptionsBusofthe controlpanel.Thisprovidesan additional8Form“C”relayoutputsfor
the controlpanel.See the DS7488 Installation Instructionsforfurtherdetails.
•ACommunicationsModulemaybe connected tothe controlpanelviathe OptionsBus.Thisallowsforconnection
tothe ARDISradionetwork.
•Upto128 zonesareavailableforthe connection ofSingle,Multiple,Input/Output, and Multiplexdevices.
•ADS7436 (MultiplexExpansion Module)maybe connected tothe controlpanelviathe expansion port.
Thiswill allowforthe connection ofadditionalzones.See the DS7436 Installation Instructionsforfurther
details.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 11
5.0 SystemWorksheet

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 12
5.0 System Worksheet (continued)

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 13
5.0 System Worksheet (continued)

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 14
5.0 System Worksheet (continued)

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 15
6.0 Glossary
6.1 General Control Programming
•Normal Arming - [PIN] + [On]: If programmed, arms the entire
system while allowing entry delays for entry/exit zones.
•Perimeter Instant Arming - [PIN] + [No Entry] + [Perimeter Only]:
If programmed, arms only the perimeter of the system and does
not allow entry delays for entry/exit zones.
•Perimeter Arming - [PIN] + [Perimeter Only]: If programmed,
armsonly the perimeter of the system while allowing entry delays
for entry/exit zones.
•Custom Arming -[PIN]+[#] + [4]: If programmed, allows custom
arming of the system and bypasses the zone functions specified
in data address 0183.
•Maximum Security Arming - [PIN] + [No Entry] + [On]: If
programmed, arms the entire system and does not allow an entry
delay for entry/exit zones.
•General“Arm-Only” Authority by Partition
A general (level 2) authority can be programmed to have arm-
only authority by partition. This is done at addresses 0198 and
0199.
-Arm-only access by partition allows someone with a General
Authority to arm and/or bypass zones in a partition he can not
disarm.
-This level can still be used to arm, disarm, and bypass zones
in the other partitions that it has access to.
•Closing Ring-Back: If programmed, the keypad sounders and
Bell will activate for 2 seconds after the system is armed and the
closing report is successfully sent. This requires Closing Ring-
Back and Closing Report to be programmed.
-If a closing report is not programmed, the control will test for a
dial tone when the system is armed. If the test passes, the
system will arm normally. If the test fails, the system will arm,
but will indicate a trouble condition.
-The DS7447 keypad will display “Communication Err” after [#]
[8] [7] is entered.
•Siren on Comm. Fail for Silent Zone: If programmed, a silent
zone will sound the alarm outputs if the zone is in an alarm
condition and the system fails to communicate with the central
station.
•Restore when Sounders Silence: Ifprogrammed, a zone sends
a restoral report and is ready to activate again only after the
burglary bell cut-off time expires or the bells are silenced.
-The zone can alarm multiple times per armed period.
•Restore when Zone Restores: If programmed, a zone sends a
restoral report and is ready to activate again as soon as it
physically restores.
-This zone can alarm multiple times per armed period.
•Restore when System Disarms: If programmed, a zone sends
a restoral report when the system is disarmed.
-It can only alarm once per armed period.
•Allow Swinger Shunts: If programmed, a zonecanonly alarm or
trouble up to three times per armed period. After the third alarm
or trouble, the zone will be bypassed and a trouble report will be
sent.
6.2 Zone Function Programming
•Zone Function
A Zone Function is the description of how a particular zone will
behave (e.g. steady alarm output, bypassing allowed, alarm on
short, trouble on open, perimeter instant).
-Zone functions may be custom made, but 8 default zone
functions already exist.
-There are many possible zone functions, but only up to 15
different zone functions are allowed per control.
-Each zone must be programmed as a specific zone function.
Any number and combination of zones may be programmed
as particular zone functions.
•Invisible Alarms: This is a zone programmed not to have an
alarm output or an alarm display at any keypad when activated.
An alarm signal will be sent, but the DS7447 keypad display will
read “Not Ready” while this zone is violated.
-Invisible Alarm zones are recommended for holdup alarms.
•Silent Alarms: This is a zone programmed to activate the visual
display at the keypad, but not audible signals.
-Ifthiszone is also an entry zone, an entry tone will sound when
this zone is activated.
•Bypassing Allowed: This is a zone programmed to allow
bypassing (shunting). This is done using the bypass command
or the force-arming sequence.
•Alarm on Short: Thisisa zone programmed to activateanalarm
when its loop is shorted.
•Alarm on Open: Thisisazoneprogrammedtoactivate an alarm
when its loop is opened.
•Trouble on Open: Thisis azone programmedtoactivateatrouble
when its loop is opened and the system is disarmed.
-Ifthesystem is armed, thiszonewillactivate an alarm ifshorted
or opened.
-For 24-hour zones, regardless of the arming state of the panel,
this always remains as a Trouble on Open.
•Trouble on Short: Thisis azone programmedtoactivateatrouble
when its loop is shorted and the system is disarmed.
-Ifthesystem is armed, thiszonewillactivate an alarm ifshorted
or opened.
-For 24-hour zones, regardless of the arming state of the panel,
this always remains as a Trouble on Short.
•Interior Delayed: This is a zone programmed to be ignored
duringtheentry/exitdelay period. If it is violated when the system
is armed, it will activate a delay for the programmed entry delay
time. The keypad pre-alert sounders will activate and the system
may be disarmed during this delay period. If the system is not
disarmedduringthis delay period, this zone will activateanalarm.
This zone is bypassed by Perimeter Instant or Perimeter Armed.
•Perimeter Instant: This is a zone programmed to activate an
alarm even during the entry/exit delay period.
•24-Hour: This is a zone programmed to activate when its loop is
faulted, even if the system is disarmed.
•Entry/Exit Delay #1: This is a zone programmed to be ignored
during the entry/exit delay period.
-If it is violated while the system is armed, it will activate a delay
for the amount of time programmed for entry delay time #1
(address 0191). The keypad pre-alert sounders will activate
and the system may be disarmed during this delay period.
-If the system is not disarmed during the entry period, this zone
will activate an alarm.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 16
•Entry/Exit Delay #2: This is a zone programmed to behave
identical to the Entry/Exit Delay #1 zone function except that it
uses entry delay time #2 (address 0192).
If both entry delays have been activated, the control will
use the shorter entry delay.
•Entry/Exit Delay Cancel Zone Functions: Entry/Exit Delay
Cancel 1 and Entry/Exit Delay Cancel 2 Zone Functions cause
the exit delay, for the partition the zone is in, to expire as soon as
the premises are vacated.
-If a zone is programmed as an Entry/Exit Delay Cancel zone,
and it is activated during the exit delay, the exit delay will expire
as soon as the zone has been restored.
-Entry/Exit Delay Cancel 1 follows entry delay 1.
-Entry/Exit Delay Cancel 2 follows entry delay 2.
-They are programmed at addresses 0001-0015.
•Interior Entry/Exit Follower: This is a zone programmed to be
ignored during an entry/exit delay and then become an interior
instant zone.
-If this zone is violated while the system is armed and no entry/
exit zones have been violated, it will activate an alarm.
-If this zone is violated after an entry/exit delay zone is violated,
it will follow that entry/exit delay time.
-Thiszone is bypassedbyPerimeter Instant or Perimeterarming.
•Interior Home/Away: This is a zone programmed to become an
interior instant zone if the system is armed and an entry/exit
delay zone is violated during the exit delay time.
-If the system is armed and an entry/exit delay zone is not
violated, this zone will be bypassed.
-Thiszone is bypassedbyPerimeter Instant or Perimeterarming.
•Interior Instant: This is a zone programmed to activate an alarm
even during the entry/exit delay periods.
-It is bypassed by Perimeter Instant or Perimeter arming.
•Day Monitor: This is a zone programmed to be a perimeter
instant zone when the system is armed.
-When the system is disarmed, any violation of this zone will
activate the keypad sounders which will sound continuously
until a disarm command sequence is entered.
-The alarm outputs for this zone will not activate and there will
be no report for this zone when the system is disarmed.
•Keyswitch Input: Thisis a zoneprogrammedto allow thesystem
to be armed or disarmed using a Normally Open momentary
keyswitch.
-Outputs for keyswitch LEDs and sounders are available using
the programmable outputs or the Octal relay outputs.
-An output is needed for each LED and sounder.
-A keyswitch will only control the partition that these zones are
assigned to unless programmed as a master, then they will
control all at once. See Program Address 0001, Data Digit 1.
-Keyswitches and keypads may be used in the same partition,
if desired.
•Fire Zone: Thisisazoneprogrammedtoactivateifthesystemis
armed or disarmed.
-It can be silenced (not reset) by entering a valid [PIN] + [Off].
-The display will indicate a Fire Alarm for this zone on all
keypads in every partition.
-Afire reset command must be entered after silencing the alarm
to re-enable this zone.
-If this zone is programmed for trouble on open and the loop
opens, the DS7447 keypad will display “Fire Trouble” and
“Control Trouble” and the keypad sounders will beep once
every ten seconds.
-If the system is a combination fire and burglar alarm, the fire
alarm has priority over the burglar alarm.
•Fire Zone withVerification: This zone is identical to a Fire Zone
exceptthatafterthefirstalarm,itwillperform a fire reset and then
wait up to two minutes for a second alarm.
-If a second alarm occurs within this two minute period, the
system will indicate a fire alarm.
-If there is no second alarm within this two minute period, the
control panel will reset back to its normal condition.
Use of this control’s alarm verification feature is not
permitted for applications in the state of California.
•Water Flow Zone: This is a zone programmed to operate like a
Fire Zone, but is specifically intended for water flow switches.
-An optional retard timer can be programmed to compensate
for changes in water pressure. If the timer is used, the water
flow zone must be activated for the complete time period; an
alarm will be initiated at the end of the timer period.
-The maximum combined water flow delay of the control panel
and the device must not exceed two minutes.
Any zone can be a water flow zone, but only zones 1
through 4 may be programmed as delayed water flow
zones.
•Supervisory Zone: Thisisazone programmed to accommodate
shut-off valves.
-It will indicate a supervisory condition at the keypads when
activated.
6.3 Zone Programming
•Zone
A Zone is an input to the DS7400Xi Control/Communicator.
-There are 8 hardwired zones on the main circuit board.
-Additional zones may be added by using the DS7433 (8 zone
expansion module), the DS7430 (multiplex loop module), and/
or other modules.
•Single Zone Input: This is an individual zone such as the zones
1-8 on the control, multiplex contacts, sensors, RF zones or a
DS7457.
•Multiple Zone Input: This is a zone connected to one of the 8-
Input Modules (DS7432 or DS7433), to a Dual Zone Module
(DS7460) or to one of the Wireless Receiver Modules (RF7434
or RF7435).
-The inputs are programmed separately (see the separate
Programming Addresses Worksheet, P/N 29802).
-When using the Dual Zone Module (DS7460), loop A is always
programmed as an odd numbered program address (ending
in 1, 3, 5, 7, or 9). Loop B is the even numbered program
address that follows loop A.
•DS7465: This is the input zone or the output relay on a DS7465.
The odd numbered zone is programmed for the input zone
function and the even numbered zone is programmed for the
output function.
•Multiplex Smoke: This is a multiplexed input zone (zones 9-
128) that is used with a MX280 series smoke detector.This zone
must have a Zone Function of Fire Zone and Trouble on Open
applied to the multiplex smoke zone.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 17
•Multiplex Smoke with LowTemperature: Thiszoneisusedwith
theMX280 series smoke detectors with a low temperature alarm.
Making this selection requires the programming of two zones as
follows:
-Smoke Alarm. This must be the odd numbered zone of the
zone pair required for these devices. The zone must be
programmed with a zone function that is set for Fire Zone and
Trouble onOpen.
-Low Temperature Alarm. This must be the even numbered
zone of the zone pair required for these devices. This zone
must be programmed with a zone function that is set as
Supervisory and Trouble on Open.
6.4 Output Programming
•Latch on Any Zone Alarm: This is an output programmed to
activate upon any zone alarm (including invisible zones) and
will latch until the system has been disarmed.
-If this output responds to a fire zone, it will remain latched until
the fire reset command is performed.
•ON during Entry Pre-Alert: This is an output programmed to
activate when an entry/exit zone is violated while the system is
armed.
-It will remain activated until the system is disarmed, or until the
entry delay time has expired.
•ON for 10 seconds after [PIN] + [System Reset] is entered: This
is an output programmed to activate for 10 seconds after the fire
reset command is entered at the keypad or if a Fire Zone with
Verification activates.
-This output is intended to be used to power 4-wire smoke
detectorsoranyotherdevicethatrequiresapowerinterruption
to reset an alarm condition.
When Programmable Output 2 is programmed this way, it
will normally supply auxiliary power and will turn OFF for
10 seconds when the fire reset command is entered.
•ON when System is Armed: This is an output programmed to
activate when the system is armed or partial armed.
-Armed Full: Ifselected,only fullyarming thesystemwill activate
the output.
-Armed Partial: If selected, only thefollowingarmingconditions
will activate the output: arming with bypasses, custom arming,
force arming, any form of partial arming and perimeter arming.
-Armed Any: Ifselected,any armingstate willactivate theoutput.
-The output will remain activated until the system is disarmed.
•Ground Start: This is an output programmed to activate for 3
seconds when the phone line is seized. It is intended for use with
ground start phone systems that require a momentary short to
ground to obtain a dial tone.
-Connect a separate 12 VDC, DPDT relay.
-Connect both relay contact commons to ground, and connect
the Normally Open of each contact to terminal positions 13
and 16 (one to terminal 13, the other to 16) of the DS7400Xi.
-This output follows all partitions regardless of how data digit 2
of the output programming address is programmed.
-Not intended for U. L. Listed systems. Not for use with phone
line monitors.
•System Status (ready to arm): Thisisan output programmed to
follow the Status LED of the keypad.
-It will activate when the system is ready to arm with no zones
violated.
•Zone Alarm: This is an output programmed to activate when a
zone is in an alarm condition.
-It will remain activated until the system is disarmed or the bell
cut-off time expires.
-This output is intended to activate alarm bells and sirens.
-This will not activate from Silent or Invisible Zones.
•Zone Alarm Delayed by 20 sec.: This is an output programmed
to wait 20 seconds after a zone enters an alarm condition to
activate.
-It will remain activated until the system is disarmed or the bell
cut-off time expires.
-This output is intended to activate alarm bells and sirens, but
provides a delay to allow the user to silence the system before
it activates.
•Output Functions
Output Functions can be programmed to follow system events or
to follow one or two specific zones in a “cross-matrix” fashion
(see Input/Output Cross-Matrixing).
-These Output Functions can be programmed to control Octal
Relay outputs or Multiplex Bus outputs.
-Output Functions are programmed at addresses 1472 through
1516.
•Input/Output Cross Matrixing
Input/Output Cross Matrixing allows Output Functions to follow
the status of specific input zones (zones 1 through 99 only).
-Outputs can be programmed to follow any combination of one
or two zones, open or closed, with the system armed or
disarmed.
-If programmed to latch, the output will latch until a valid PIN is
entered at the keypad.
•Keypad Sounder Output: Thisisan output programmed to follow
the keypad sounder.
-Activates during the entry pre-alert, during the exit warning
andduringany day monitor alarm. It does notfollowmomentary
keypad beeps such as keystrokes, chimes, etc.
•Access Output: Thisisanoutputprogrammed toactivatefor 10
seconds when an access control PIN is entered at the keypad.
-Not U. L. Listed for Access Control (UL294).
•Panic/Duress Output: All outputs, including the three on-board
outputs, the Octal Relays, and the Output Functions, support a
Panic/Duress function. To assign an output as a Panic/Duress
Output, program the first data digit as “*1”and data digit two for
the appropriate output: burglar, fire or both. This output will follow
Duress activations, Keypad Emergency Keys B and C, and
Invisible and Silent Zone alarms. It will reset after being
acknowledgedbya user or after theburglarybelltime-out expires.
•Multiplex Bus Outputs
The DS7400Xi supports up to 20 or 40 (when using a DS7436
Multiplex Module) DS7465 Input/Output Modules.
-Thesemodulesare connected to the multiplex bus and provide
one input loop and one Form “C” output relay.
-The input loop operates the same as all other multiplex inputs.
-Theoutput loop can beprogrammedto follow OutputFunctions.
-Multiplex Bus outputs can be bypassed using the bypass
function. If an output zone is bypassed while it is ON, it will turn
OFF.The bypass willnotbe removed whenthesystem is armed
andthendisarmed;itmust be cancelled by entering the bypass
command again or by cancelling all bypasses.
DS7465Moduleoutputs will not pulse,evenifprogrammed
to do so.
•Octal Relay Modules (DS7488)
The DS7400Xi can support two Octal Relay Modules.
-Each relay can be programmed to follow system-wide events
or Output Functions as described above.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 18
•Solid State Output Modules (DS7489)
The DS7400Xi can support two Solid State Output Modules.
-Each output can be programmed to follow system-wide events
or Output Functions as described above.
6.5 Partition Control Programming
•Partition Control Programming: Up to eight partitions may be
used. They are assigned (program address 0165) in order.
-For example: When using only one partition, it is partition one.
When using three partitions, they are partitions one, two, and
three.
-Partitioningallows the systemtoact asupto 8 differentsystems.
-Zones, keypads, outputs, and other items may be assigned to
particular partitions.
-Access to partitions may be through each partition’s keypad or
through a Master keypad (see the operating section for more
details).
•Common Area: Partition 1 can be programmed as a common
area, that is, common to other partitions. This allows it to be used
in an installation with one common entry area such as a foyer or
vestibule.
-When Partition 1 is programmed as a common area, it will only
arm when all the partitions it is common to are armed.
-The common area will disarm when any of the partitions it is
common to are disarmed - only if the user has access to the
common area.
-When using a common area, a Master keypad should be used
and assigned to the common area (see keypad assignment
programming).
6.6 Keypad Assignment Programming
•Keypad Assignment: The keypad type and the partition it is
assigned to must be programmed.
-Eachprogramaddress(0173-0180)programsthekeypad type
for two keypads. For example: data digit 1 of address 0173 is
for keypad 1, data digit 2 of address 0173 is for keypad 2.
-Each program address (0208-0215) programs the partition
assignment for two keypads. For example: data digit 1 of
address 0208 is for the partition assignment of keypad 1, data
digit2ofaddress0208isforthepartitionassignmentofkeypad
2.
-Usersmusthaveaccessto the partition the keypad is assigned
to in order to use the keypad.
•Master Keypad Programming : A Master keypad can be used
to access all the partitions.
-It will display the arm/disarm status of all the partitions and can
beusedtoindividuallycontroleachpartition(seetheoperating
section for an explanation of the keypad displays).
-A Master keypad can be assigned to any of the partitions.
-Any number of the 15 allowable keypads can be a Master
keypad.
-When using the common area, it is suggested that a Master
keypad be used and that it is assigned to the common area.
6.7 Emergency Key Programming
Do not label these keys if they are unprogrammed. Only
the “A” key may be programmed and labeled as the Fire
key. These keys are not intended to substitute for Listed
manual pull boxes.
•Fire Key: The emergency key (key A) at the bottom left of the
keypad entry area is the Fire Key. If programmed, the key will
activate a fire alarm when pressed for 2 seconds.
-It may be programmed for a steady or pulsed alarm.
The Fire Key will generate the fire alarm sounders in the
partition that activated the Fire Key. Any other partitions in
use will only have their keypad sounders activated. All
keypad displays will be the same.
•Special Emergency Key: The emergency key (key B) at the
bottom center of the keypad entry area is the Emergency Key.
-If programmed, the key will activate a supplementary or an
auxiliary type alarm when pressed for 2 seconds.
-It may be programmed for a silent, steady, or pulsed alarm.
•Panic Key: The emergency key (key C) at the bottom right of the
keypad entry area is the Panic Key.
-Ifprogrammed, the keywillactivate a panicalarmwhen pressed
for 2 seconds; nothing will display at the keypad to indicate an
alarm.
-It may be programmed for a silent, steady, or pulsed alarm.
The Special Emergency Key and the Panic Key will
generate the alarm sounders only in the partition of the
keypad that activated that Key.
6.8 Custom Arming Programming
•Custom Arming - [PIN ] + [#] [4]: If programmed, the [PIN] + [#]
+[4]commandsequencemaybeusedtocustomarmthesystem
by arming only certain zone functions.
-For example: All interior zones plus some perimeter zones
may be bypassed while leaving some of the perimeter armed.
6.9 Force Arming
•Force Arming: Ifprogrammed, allows violated zones to be force
armed. When force arming, the user must enter the usual arming
command followed by the [Bypass] key. This automatically
bypasses zones that are violated and programmed as
bypassable.
-Fire zones, supervisory zones, keyswitch zones, and non-
bypassable zones can not be force armed.
-Not available in U. L. Listed systems.
-See Program Address 0185.
6.10 Ground Fault Detect Programming
•Ground Fault: If programmed, this function will allow the system
to detect ground faults. This function is required for fire panels
and will be forced on when the panel is in the commercial fire
mode.
-See Program Address 0185.
6.11 Commercial Fire Mode Programming
In a system that includes both fire alarm and burglar alarm
devices, the system must produce distinct sounds for fire
and burglar alarm conditions either by using different
indicating appliances or by using distinct cadences for
the same appliance.
•Commercial Fire Mode: When in Commercial Fire Mode, the
control panel will perform some functions (e.g. communications)
differently to conform with commercial fire regulations.
-See Commercial Fire Mode Programming, program address
0186.
•Water Flow Zone Delay: This is the amount of time a water flow
zone must be violated before the control panel will initiate an
alarm.
-The delay is necessary to accommodate normal changes in
water pressure.
-If the water flow initiating device incorporates its own time
delay, do not program the control panel unit to exceed 120
seconds combined time delay.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 19
•Pulsing Fire Zone: This is a zone programmed to output a pulse
forafire alarm in thenormalmanner(one second ON, onesecond
OFF).
•California MarchTime: This is a zone programmed to output a
pulse for a fire alarm in the California Time cadence (ten 1/2
second pulses, followed by one second of quiet time).
•Temporal: This is a zone programmed to output a pulse for a fire
alarmintheTemporal cadence (three1/2second pulses,followed
by one second of quiet time).
•Single Keypad Use: The keypad should be used on the keypad
bus and be mounted to the front of the control enclosure OR if
within the same room as the control equipment with the wire run
in conduit (or equivalently protected against mechanical injury)
within 20 ft. (6.1 m) of the control equipment.
-This keypad should be assigned as address 1.
•Multiple Keypad Use: One keypad only must be used on the
option bus, at any address from 11 - 14, and must meet the
following requirements:
-The keypad must be mounted to the front of the control
enclosure OR mounted within the same room as the control
equipment and the wire is run in conduit (or equivalently
protected against mechanical injury) within 20 ft. (6.1 m) of the
control equipment.
-All other keypads should be connected to the keypad bus and
may be placed as needed (within the noted wiring limitations
in the installation manual).
-One keypad must be assigned as address 1.
6.12 Open/Close Report Control Programming
•Open and Close Reports: Ifprogrammed, thesereportsaresent
when the system is armed or disarmed. They may be sent
independently for the opening and closing of each partition, or
the first partition to open and the last partition to close may send
the reports.
•Alternate between both Phone Numbers: Ifprogrammed, open
and close reports will be sent to phone number one first. If phone
number one does not pick-up, the control panel will alternate to
phone number two. If phone number two does not pick-up, the
control panel will alternate back to phone number one. It will
alternate between both phone numbers until successful.
6.13 Report Programming
•Reports: Forpulseformats,reportsareprogrammedbyentering
data in the reporting and extended digits. The report will send the
data programmed for each event. For SIA and Contact ID, the
report formats are fixed and may be activated by placing a 1 in
the reporting digit.
-To disable a report, enter a 0 in the reporting digit.
-To send the Man No. along with Open and Close reports,
program an "F" (enter [*] [5] at the keypad) in the extended
digit.
•Keypad Fire Alarm: This report is sent when a fire alarm has
been activated by the “A” emergency key.
•Keypad Fire Restoral: This report is sent when a keypad fire
alarm has been restored using the [System Reset] command.
•Keypad Emergency Alarm: This report is sent when an
emergency alarm has been activated using the “B” emergency
key.
•Keypad Panic: This report is sent when an emergency alarm
has been activated using the “C” emergency key.
•Keypad Tamper: For keypads fitted with a wall tamper switch,
this report is sent when the keypad is removed from the wall.
•KeypadTamper Restoral: For keypads fitted with a wall tamper
switch, this report is sent when the keypad is properly replaced
after experiencing a tamper condition.
•Zone Function Alarm: An alarm report is sent when a zone
alarm occurs. Alarm reports are enabled by zone function.
Program this report for any zone functions you wish to send an
alarm report about. For local zones (no reports), do not program
an alarm report. The zone number will automatically be sent for
this report in SIA or Contact ID format.
•Zone Function Restoral: Thisreportissent whenthe zonealarm
is cleared. The zone number will automatically be sent for this
report in SIA or Contact ID format.
•Zone Function Trouble: This report is sent when a zone trouble
condition occurs. This can be an open circuit, if the zone is
programmed for “trouble on open”, a multiplex tamper switch
being activated, or a multiplex zone not communicating with the
control panel.The zone number will automatically be sent for this
report in SIA or Contact ID format.
•Zone FunctionTrouble Restoral: This report is sent when the
trouble condition is cleared. The zone number will automatically
be sent for this report in SIA or Contact ID format.
•Zone Function Bypass: This report is sent when a zone is
bypassed. (Note: Fire zones can never be bypassed.) Zone
bypass reports for non-24 hour zones are sent with the closing
report. Bypass reports for 24 hour zones are sent when the zone
is bypassed. If a zone is force armed, the bypass report is sent
with the partial close report. If a 24 hour or non-24 hour zone is
custom armed, the bypass report is sent with the partial close
report.
•Zone Function Bypass Restoral: This report is sent when the
zone bypass is cleared. For non-24 hour zones the bypass
restoral is sent with the open report. Bypass restoral reports for
24 hour zones are sent when the zone is manually restored.The
bypass restoral report for a zone that was force armed is sent
when the zone is restored. If a 24 hour or non-24 hour zone was
custom armed, the bypass restoral is sent with the open report.
•Open: Thisreport is sent whenthesystemhas been disarmed.In
SIA or Contact ID formats, the user number for the person who
disarmedthesystem will be sent with this report.Tosend the user
number along with an Open report in other formats, program the
extendeddigit of thereportas *5. InContactID format, thepartition
number will also be sent along with this report. The Open report
will only be sent if a Close report was sent previously.
•Close: This report is sent when the system has been armed. In
SIA or Contact ID formats, the user number for the person who
armed the system will be sent with this report. To send the user
number along with a Close report in other formats, program the
extendeddigit of thereportas *5. InContactID format, thepartition
number will also be sent along with this report.
•Duress: This report is sent when the system is disarmed using a
duress code. The user number is not sent with this report.
•Partial Close: This report is sent when the system is armed
partially, or force armed.
•First Open After Alarm: This report is sent when the system is
disarmed after an alarm has occurred.
•Low Battery: This report is sent when a low battery condition
occurs.

DS7400Xi-AT (Ver. 3+) Reference Guide Copyright © 1995-2000 Detection Systems, Inc. Page 20
•Battery Restoral: Thisreport issent whenalowbatterycondition
restores.
•AC Fail: This report is sent when an AC failure condition occurs.
This report may be delayed in address 0197.
•AC Failure Report Delay
The AC power loss report can be programmed to delay for up to
254 minutes (see address 0197). (The same delay would also
apply to the AC restoral report.)
-If another report is sent during this delay period, the AC fail
report will be sent along with this report.
-If the AC power restores during this delay period, the AC loss
report will not be sent.
-Programmingaddress 0197 as FF causes the report to be sent
at a random interval of at least 15 minutes, but no more than 2
hours after the AC failure occurs.
•AC Restoral: This report is sent when an AC failure condition
restores.
•CommunicatorTest/System Normal: This report is sent at the
24-hour check-in time if there is not a control trouble, an active
fire alarm that has not been acknowledged, a fire trouble, or a
supervisory condition. Note: To send a CommunicatorTest even
if one of these conditions exists, program the Communicator
Test/System Off Normal.
•Remote Program Successful: Thisreport issentafter aRemote
Program session if the session was terminated properly.
•Remote Program Unsuccessful: This report is sent after a
Remote Program session if some error has occurred or the
session did not terminate properly.
•Local Program Successful: This report is sent when local
programmer’s mode is exited and there is no error associated
with the programming.
•Local Program Unsuccessful: This report is sent when local
programmer’s mode is exited and there has been some error
associated with the programming.
•System Trouble: This report is sent when a control trouble
condition occurs. System Trouble must be programmed to send
RF (wireless) trouble reports.
•System Trouble Restoral: This report is sent when all system
trouble conditions restore.
•CommunicatorTest/System Off Normal: This report is sent at
the 24-hour check-in time if there is a control trouble, an active
fire alarm that has not been acknowledged, a fire trouble, or a
supervisory condition.
•Exit Error: This report is sent if an exit error occurs. An exit error
occurs when an entry/exit zone is still violated at the end of the
exit delay. If this happens, the entry delay will begin. If the system
is not disarmed before the entry delay expires, an alarm report
for the effected zone will be sent and the Exit Error report will be
sent. If this report is not programmed, the control will not sound
the exit error warning.
•Recent Closing: Thisreport issent, alongwithanyalarmreports,
whenthere is an alarmwithinthe first fiveminutesafter the system
has been armed.
•System Walk Test: This report is sent when a system test has
been started ([#] [8] [1] key sequence). Zone reports are sent
during a system test.
•SystemWalkTest Restoral: Thisreport is sent when the system
test has been completed or has timed-out.
•FireWalkTest:Thisreport issentwhenaFire WalkTest hasbeen
started([#][9] [1] key sequence). Zone reportsarenotsentduring
a Fire Walk Test.
•Fire Walk Test Restoral: This report is sent when the Fire Walk
Test has been completed or has timed-out.
•Mux. Smoke LowTemperature Report: This supervisory report
is sent when a MX280 Series smoke detector with a low
temperature feature detects a temperature of 45°F (7.5°C) or
less for a period of 10 minutes or more.
•Mux. Smoke Low Temperature Restoral: This report is sent
when a MX280 Series smoke detector with a low temperature
alarm determines that the temperature has risen above 45°F
(7.5°C).
•Dirty Chamber Report:This report is sentwhena MX280 Series
smoke detector fails to pass the “Chamber Check” sensitivity
test.
•Dirty Chamber Restoral: This report is sent when a MX280
Series smoke detector has been returned to normal operation
after service.
6.14 Phone Number General Control
Programming
•Enable Remote Programmer Callback: If programmed, when
the remote programmer tries to initiate a session with the panel,
the panel will hang up and call the remote programmer phone
number.
-This ensures the correct remote programmer is initiating the
call.
•Dial Pulse on all Phone Numbers: Ifprogrammed, the panelwill
dial phone number 1, 2, and the remote programmer phone
number 3 using the pulse format.
•DialTone on all Phone Numbers: If programmed, the panel will
dial phone number 1, 2, and the remote programmer phone
number 3 using the tone format.
6.15 Phone Answering Programming
•Answering Machine Bypass: This feature allows the panel to
answer incoming calls when answering machines are used. If
the line rings, stops ringing, then rings again within one minute,
the panel will seize the phone line on the first ring.
•Phone Answering Programming: The panel can be
programmed to answer the phone after a selected number of
ringsfor remote programming access.Itcan also beprogrammed
to answer the phone after a different number of rings when in
armed or disarmed states.
-This can be used to call the panel location and determine its
arming state.
6.16 FCC Compliance Notice
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
