Detecto 6868 User manual

0065-M502-O1 Rev C 6868 & 6868KGEU 1
Digital Stand-On
Sit-Down Scale
Models 6868 & 6868KGEU
Operating Instructions
Technical Support: Ph: 866-254-8261 tech[email protected]

0065-M502-O1 Rev C 6868 & 6868KGEU
2

0065-M502-O1 Rev C 6868 & 6868KGEU 1
PRECAUTIONS
Before using this instrument, read this
manual and pay special attention to all
"NOTIFICATION" symbols:
IMPORTANT
FCC COMPLIANCE STATEMENT
This equipment generates uses and can radiate radio frequency and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications.
It has been tested and found to comply with the limits for a Class A computing device
pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable
protection against such interference when operated in a commercial environment. Operation
of this equipment in a residential area may cause interference in which case the user will be
responsible to take whatever measures necessary to correct the interference.
You may find the booklet "How to Identify and Resolve Radio TV Interference Problems"
prepared by the Federal Communications Commission helpful. It is available from the U.S.
Government Printing Office, Washington, D.C. 20402. Stock No. 001-000-00315-4.
PROPER DISPOSAL
When this device reaches the end of its useful life, it must be properly disposed of. It must not
be disposed of as unsorted municipal waste. Within the European Union, this device should
be returned to the distributor from where it was purchased for proper disposal. This is in
accordance with EU Directive 2002/96/EC. Within North America, the device should be
disposed of in accordance with the local laws regarding the disposal of waste electrical and
electronic equipment.
It is everyone’s responsibility to help maintain the environment and to
reduce the effects of hazardous substances contained in electrical and
electronic equipment on human health. Please do your part by making
certain that this device is properly disposed of. The symbol shown to the
right indicates that this device must not be disposed of in unsorted
municipal waste programs.
COPYRIGHT
All rights reserved. Reproduction or use, without expressed written permission, of editorial or
pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein.
DISCLAIMER
While every precaution has been taken in the preparation of this manual, the Seller assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from use of the information contained herein. All instructions and diagrams have been
checked for accuracy and ease of application; however, success and safety in working with
tools depend to a great extent upon the individual accuracy, skill and caution. For this reason
the Seller is not able to guarantee the result of any procedure contained herein. Nor can they
assume responsibility for any damage to property or injury to persons occasioned from the
procedures. Persons engaging the procedures do so entirely at their own risk.
Serial Number_______________________
Date of Purchase ____________________
Purchased Form_____________________
___________________________________
___________________________________
RETAIN THIS INFORMATION FOR FUTURE USE

0065-M502-O1 Rev C 6868 & 6868KGEU
2
DIGITAL STAND-ON / SIT-DOWN SCALE
Thank you for purchasing our Model 6868 / 6868KGEU Digital Stand-On / Sit-Down Scale.
It has been manufactured with quality and reliability at our factory in Webb City, MO USA.
Your scale has been tested before leaving our factory to insure accuracy and dependability for
years to come.
This manual is provided to guide you through the operation of your scale. Please read it
thoroughly before attempting to operate your scale and keep it handy for future reference.
SPECIFICATIONS
Model 6868
Capacity: 1000 lb x 0.2 lb (360 kg x 0.1 kg)
Platform Size: 32”W x 34”D (81cm W x 86cm D) with non-slip rubber mat
Display: Six digit, Seven segment, 0.7 inch (17.8 mm) high LCD
Power: 6 “AA” size Alkaline, Ni-Cad or NiMH batteries (not included) OR an
optional 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed
AC power adapter (Cardinal part number 6800-1045)
Keyboard: Membrane type with 5 keys, On/Off, Lock/Release, Units, Zero,
BMI/Enter and 4 directional arrows
Model 6868KGEU
Capacity: 360 kg x 0.1 kg
Platform Size: 81cm W x 86cm D (32”W x 34”D) with non-slip rubber mat
Display: Weight: Five digit, seven segment, 1/2" high LCD
Height: Four digit, seven segment, 3/8" high LCD
Power: 6 “C” cell Ni-Cad or NiMH batteries (not included) OR an optional 100 to
240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power
adapter (Cardinal part number 6800-1045)
Keyboard: Membrane type with 19 keys, On/Off, Lock/Release, Units, Zero,
Net/Gross, Tare ID/Height, Print/Enter and 0-9 Numeric Keys
UNPACKING INSTRUCTIONS
Remove staples or cut along bottom of carton. Lift carton off pallet.
Check for any damage incurred in shipping. If scale has been damaged, place a claim with
the carrier. It is the responsibility of the purchaser to file all claims for any damages or loss
incurred during transit. Use the original carton and shipping material to return the scale.
Cut packing straps securing scale to pallet.
To remove scale from pallet, at the back of the scale lift up with equal force from the
column and at the platform base near the wheels on the scale. Set gently on floor.
Remove all plastic wrapping, foam fillers and cardboard material from the scale.
Remove and unpack the AC power adapter, if the scale was ordered with this option.
CARE AND CLEANING OF SCALE
DO NOT subject the platform to sudden shocks.
DO NOT spray water directly on the display.
DO avoid areas where the scale might be exposed to moisture.
DO NOT use abrasive cleaners on this instrument.
DO NOT use acetone or other volatile solvents for cleaning.
DO clean the scale using a damp soft cloth and mild detergent.

0065-M502-O1 Rev C 6868 & 6868KGEU 3
OPERATING INSTRUCTIONS
Model 6868 with 750 Indicator
(Shown with Seat in Stand-On Position)
NOTE! For more information on installing the batteries, the AC power adapter,
mounting the indicator on the scale bracket, or connecting the load cell cable
refer to the 750 Owner’s Manual, 8555-M483-O1.
1. Install six (6) “AA” size batteries or if ordered with the scale, plug the small connector end
of the AC power adapter cord into the power jack located in the bottom right corner at the
back of the indicator, then plug the power adapter into an appropriate power receptacle.
IMPORTANT! The AC power adapter is also used to recharge the batteries,
when the 750 is operated from Ni-Cad or NiMH batteries. DO NOT connect the
AC power adapter to the 750 if using Alkaline batteries.
2. Install the indicator on the scale bracket and then connect the load cell cable.
3. Place the scale on any hard, level, flat surface or low-cut carpet.
4. With no weight on the scale, press the [ ON/OFF ] key. After a second or so the display
should indicate a zero weight with the ZERO annunciator turned on. If the display does
not indicate zero, press the [ ZERO ] key to zero the weight display.
5. When using as a Stand-On scale (Seat in the upright position), have the patient step on
the scale and remain motionless for several seconds until the scale display shows their
weight.
6. If using the scale as a Sit-Down scale (Seat in the down position), set the patient on the
scale seat and have them remain motionless for several seconds until the scale display
shows their weight.
7. To re-zero the scale, remove the patient from the scale and press the [ ZERO ] key.
Model 750
Indicator
Platform
Flip-Up
Seat
Optional
AC Power
Adapter

0065-M502-O1 Rev C 6868 & 6868KGEU
4
OPERATING INSTRUCTIONS, CONT.
Model 6868KGEU with 758CSV Indicator
(Shown with Seat in Sit-Down Position)
NOTE! For more information on installing the batteries, the AC power adapter,
mounting the indicator on the scale bracket, or connecting the load cell cable
refer to the 758CSV Owner’s Manual, 8555-M433-O1.
1. Install six (6) “C” size (Ni-Cad or NiMH only) batteries or if ordered with the scale, plug the
small connector end of the AC power adapter cord into the power jack located on the back
of the indicator, then plug the power adapter into an appropriate power receptacle.
2. Install the indicator on the scale bracket and then connect the load cell cable.
3. Place the scale on any hard, level, flat surface or low-cut carpet.
4. With no weight on the scale platform, press the [ ON/OFF ] key. After a second or so the
display should indicate a zero weight with the ZERO annunciator turned on. If the display
does not indicate zero, press the [ ZERO ] key to zero the weight display.
5. When using as a Stand-On scale (Seat in the upright position), have the patient step on
the scale and remain motionless for several seconds until the scale display shows their
weight.
6. If using the scale as a Sit-Down scale (Seat in the down position), set the patient on the
scale seat and have them remain motionless for several seconds until the scale display
shows their weight.
7. To re-zero the scale, remove all weight from the platform and press the [ ZERO ] key.
Flip-Up
Seat
Platform
Model 758CSV
Indicator
Optional
AC Power
Adapter

0065-M502-O1 Rev C 6868 & 6868KGEU 5
ERROR and STATUS DISPLAYS
Model 6868 (750 Indicator)
Display Meaning
-Err- General error, invalid keypad entry was attempted.
-OF- Attempting to display a negative number greater than –9,999 or a
positive number greater than 99,999.
-trL- Indicates an attempt to zero a weight outside scale zero range.
-UnS- Motion is present when indicator is attempting to perform one of the
following operations: Power Up Zero or Zero Weight Display.
CALib Indicates calibration is necessary.
AdErr
ErrAL
ErrAH
Consult your scale service representative.
OCAP Scale weight exceeds scale capacity.
OFF Displayed to indicate indicator is turning off.
Model 6868KGEU (758CSV Indicator)
Display Meaning
-Err- General error, invalid keypad entry was attempted.
-OF- Attempting to display a negative number greater than –9,999 or a
positive number greater than 99,999
-trL- Indicates an attempt to zero a weight outside scale zero range.
(See Four Percent Zero Tracking Range Limit).
-UnS- Motion is present when indicator is attempting to perform one of the
following operations: Power Up Zero or Zero Weight Display
CALib Indicates calibration is necessary.
AdErr
ErrA
ErrAL
ErrAH
EE Err
Consult your scale service representative.
OCAP Scale weight exceeds scale capacity

0065-M502-O1 Rev C 6868 & 6868KGEU
6

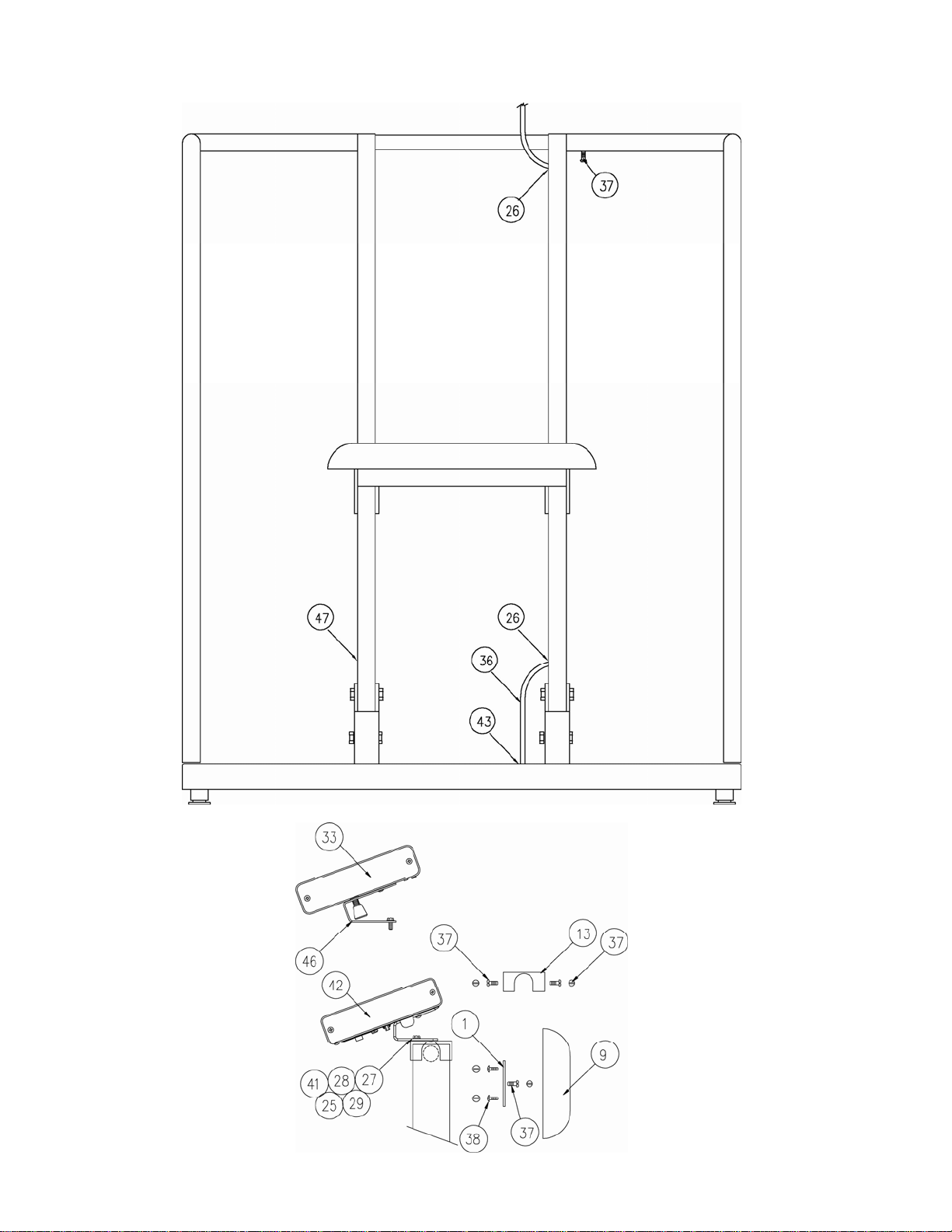

PART IDENTIFICATION
Load Cell and
Foot Mounting
Detail

0065-M502-O1 Rev C 6868 & 6868KGEU 7
PART IDENTIFICATION, CONT.

0065-M502-O1 Rev C 6868 & 6868KGEU
8
PART IDENTIFICATION, CONT.

0065-M502-O1 Rev C 6868 & 6868KGEU 9
PART IDENTIFICATION, CONT.

0065-M502-O1 Rev C 6868 & 6868KGEU
10
PART IDENTIFICATION, CONT.
ITEM # QTY PART NUMBER DESCRIPTION
1 1 0065-B416-0A CHAIR BACK SILKSCREENED
2 - --- ---
3 4 0065-B430-08 LOAD CELL MOUNT 6868
4 1 0065-B431-0A J-BOX COVER ASSY
5 1 0065-B435-08 MAT, RUBBER
6 2 0065-B436-08 AXLE
7 2 0065-B454-08 SHAFT, SEAT
8 1 0065-C414-08 SEAT, PADDED
9 1 0065-C415-08 BACK, PADDED
10 1 0065-C419-08 SEAT, SUPPORT
11 1 0065-C424-0A SEAT SUPP. FRAME
12 1 0065-C428-0A SEAT BOTT. COVER SILKSCREENED
13 1 0065-C429-08 IND. MTG. BRACKET
14 1 0065-D418-0A BASE WELDMENT
15 1 0065-D420-0A HANDRAIL R/H
16 1 0065-D422-0A HANDRAIL L/H
17 4 LFB-250M LOAD CELL
18 4 0065-B108-08 ALUM. FOOT
19 8 6021-0106 SCW PAN HEAD 6-32x3/8 S.S. TYPE F PHIL DR
20 4 6540-1122 RUBBER FOOT
21 4 1930-B205-08 SHIM
22 8 399R1048 PUSH NUT
23 2 6540-1205 WHEEL
24 1 593GR986 SERIAL TAG
25 5 0033-B110-08 DISK UHMW

0065-M502-O1 Rev C 6868 & 6868KGEU 11
PART IDENTIFICATION, CONT.
ITEM # QTY PART NUMBER DESCRIPTION
26 2 6980-1035 BUSHING 1/4” I.D.
27 1 6021-1454 SCW HEX HEAD 1/4-20 x 3/4”
28 1 6024-0003 WASHER 1/4”
29 1 391RV204 NUT ELASTIC STOP 1/4-20
30 4 6007-0051 SCW HEX HEAD 3/8-16 x 2”
31 4 6013-0070 NUT ELASTIC STOP 3/8-16
32 4 6610-5007 CLIP
33 REF 750 INDICATOR FOR 6868
34 8 6021-1706 SCW FLAT HEAD 1/4-20 x 5/8”
35 2 6540-1070 RUBBER GRIP
36 1 1930-B428-0A INDICATOR CABLE
37 14 6021-0982 SCW PAN HEAD #10-32 x 3/8” TYPE F
38 22 6021-1509 SCW PAN HEAD #8 x .75 PHIL DRV. Z/P
39 4 6021-1105 SCW PAN HEAD #12 x 1.75
40 8 6021-2063 SCW SOC HEAD 3/8-24 x 1”
41 1 0033-B164-08 758CSV INDICATOR MOUNTING
42 REF 758CSV INDICATOR FOR 6868KGEU
43 1 6680-0164 GROMMET .43 THK x .25 I.D. FOR 1/4” PANEL
44 1 6690-0001 LEVEL BUBBLE
45 A/R 6560-1072 LOCTITE ADHESIVE
46 1 0033-B438-0A 750 INDICATOR MOUNTING
47 2 6540-0021 HOLE PLUG
48 A/R 6560-0009 ADHESIVE
49 8 6024-0009 WASHER FLAT 3/8”
6800-1045 OPTIONAL AC ADAPTER: 100-240VAC/12VDC @ 1A
NOT SHOWN

0065-M502-O1 Rev C 6868 & 6868KGEU
12
STATEMENT OF LIMITED WARRANTY
Detecto Scale warrants its equipment to be free from defects in
material and workmanship as follows: Detecto warrants to the
original purchaser only that it will repair or replace any part of
equipment which is defective in material or workmanship for a period
of one (1) year from date of shipment. Detecto shall be the sole
j
udge of what constitutes a defect.
During the first ninety (90) days Detecto may choose to supply all
necessary replacement parts and service during normal weekday
working hours at no charge to the buyer.
After the first ninety (90) days Detecto will supply parts and
service at the job site provided the owner agrees to pay the Dealer
for all travel time, including mileage and test equipment, as well as
any expenses incurred over the direct labor of the technician at the
j
ob site. This limited warranty honors only labor performed by
Detecto authorized dealers.
This warranty does not apply to peripheral equipment not
manufactured by Detecto; this equipment will be covered by certain
manufacturer’s warranty only.
This warranty does not include replacement of expendable or
consumable parts. This does not apply to any item which has
deteriorated or damaged due to wear, accident, misuse, abuse,
improper line voltage, overloading, theft, lightning, fire, water or acts
of God, or due to extended storage or exposure while in purchaser’s
possession. This warranty does not apply to maintenance service.
Purchased parts will have a ninety (90) day repair or replacement
warranty only.
Detecto may require components be returned to the factory; they
must be properly packed and shipping charges prepaid. A return
authorization number must be obtained for all returns and marked on
the outside of all returned packages. Detecto accepts no
responsibility for loss or damage in transit.

0065-M502-O1 Rev C 6868 & 6868KGEU 13
STATEMENT OF LIMITED WARRANTY
Conditions Which Void Limited Warranty
This warranty shall not apply to equipment which:
A
.) Has been tampered with, defaced, mishandled or have had
repairs and modifications not authorized by Detecto.
B.) Has had serial number altered, defaced, or removed.
C.) Has not been grounded according to Detecto’s recommended
procedure.
Freight Carrier Damage
Claims for equipment damaged in transit must be referred to the
freight carrier in accordance with freight carrier regulations.
This warranty sets forth the extent of our liability for breach of any
warranty or deficiency in connection with the sale or use of the
product. Detecto will not be liable for consequential damages of any
nature, including but not limited to, loss of profit, delays or expenses,
whether based on tort or contract. Detecto reserves the right to
incorporate improvements in material and design without notice and
is not obligated to incorporate improvements in equipment
previously manufactured.
The foregoing is in lieu of all other warranties, express or implied
including any warranty that extends beyond the description of the
product including any warranty of merchantability or fitness for a
particular purpose. This warranty covers only those Detecto
products installed in the forty-eight (48) contiguous continental
United States.
02/06
Printed in USA
D268-WARRANTY-DET

0065-M502-O1 Rev C 6868 & 6868KGEU
14
