ELX Series
Installation Manual
Overhead Electric Infrared Heater with Interchangeable Elements
1, 2, and 3 Lamp Units
WARNING
!
!
All persons involved with the installation, operation, and maintenance of the heater
system must read and understand all the information in this manual.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read and understand the installation, operating,
and maintenance instructions thoroughly before installing or servicing this
equipment.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ______________________ Serial #: _____________________________
(located on rating label)

2
Contents
1.0 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Applications ........................................................................ 3
Model Number Designation Chart................................................... 4
AvailableModelsandSpecications ................................................ 4
Clearances to Combustibles ........................................................ 7
Safety Labels and Their Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Standards,Certications,andGovernmentRegulations ...........................10
2.0 Installation ........................................................................... 11

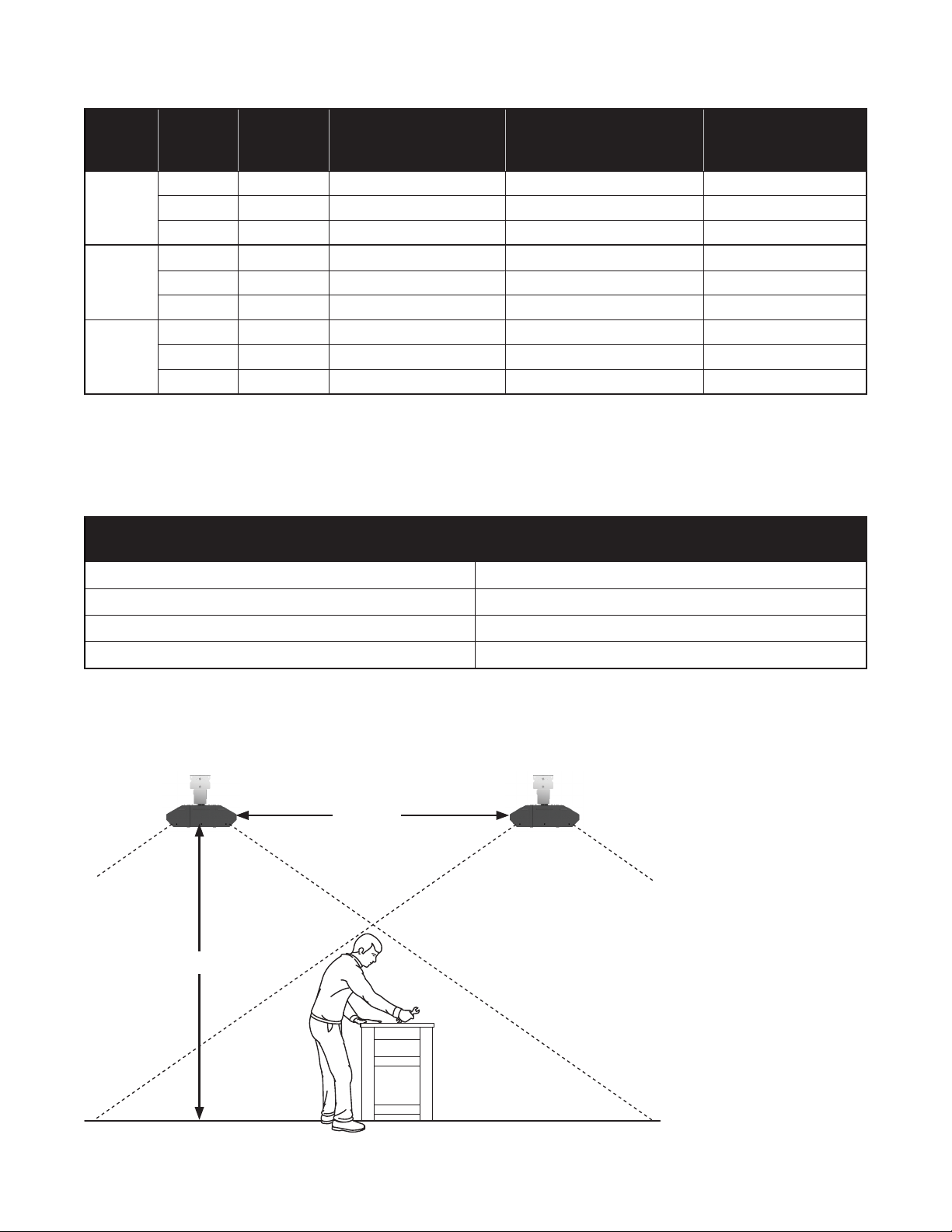

Design .............................................................................11

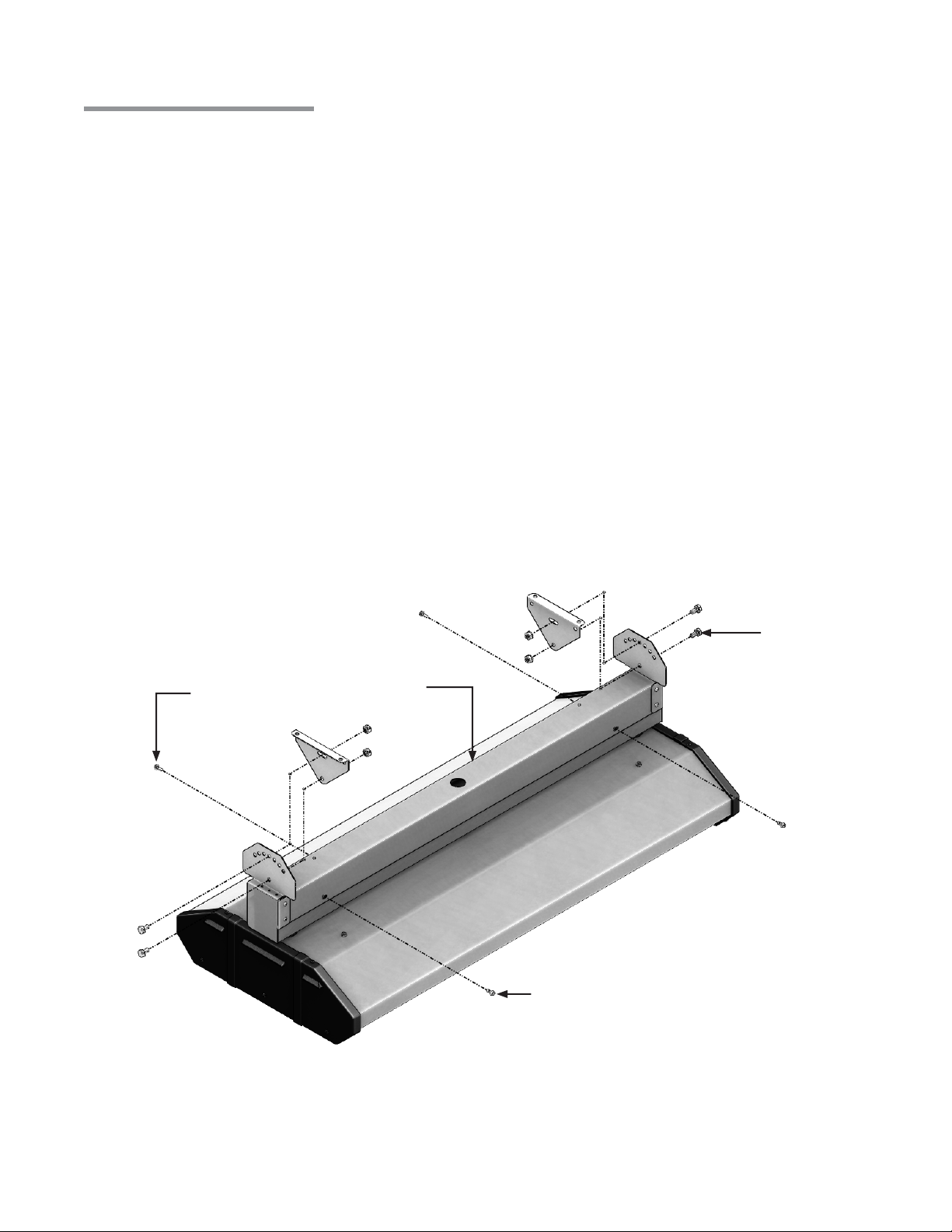

Heater Mounting ...................................................................13

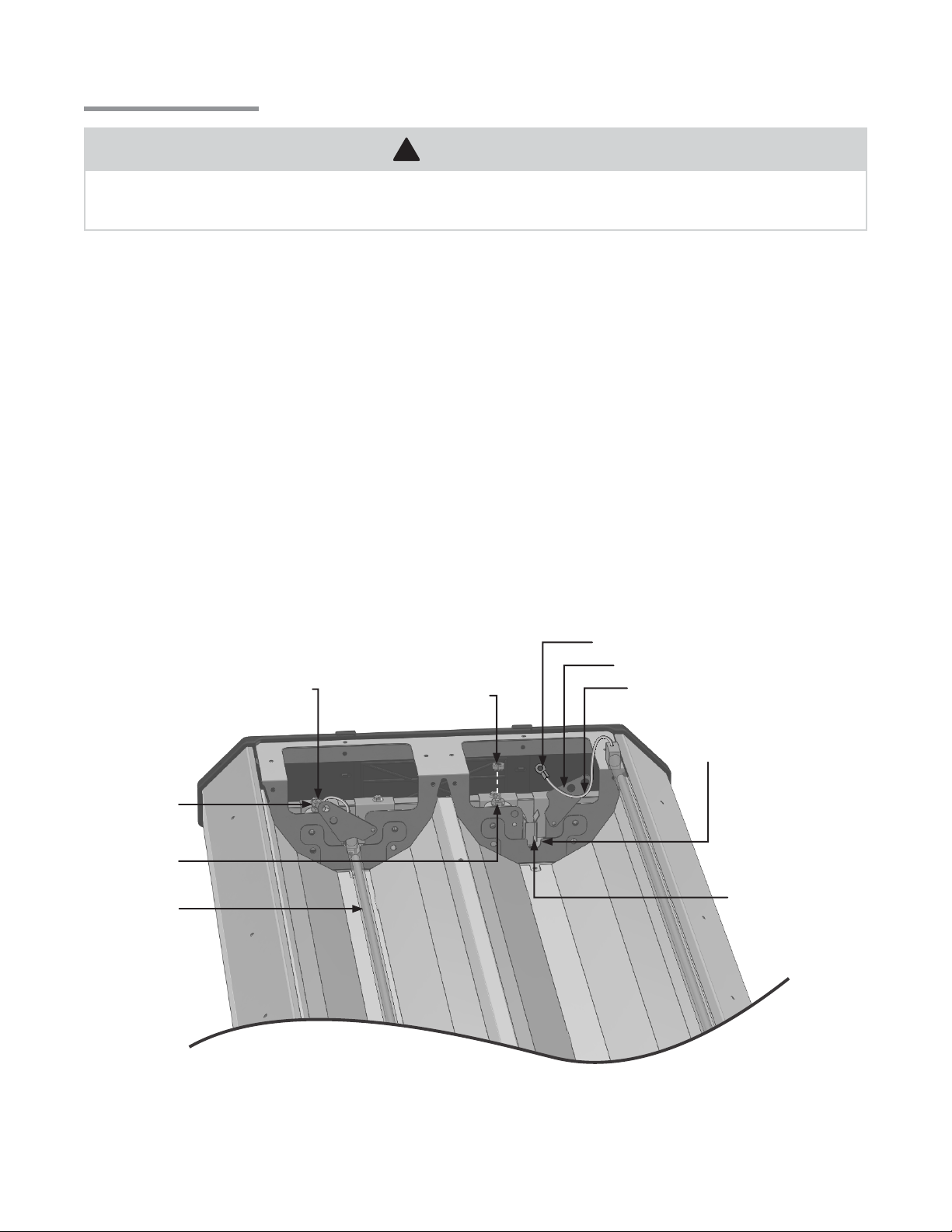

Lamp Installation...................................................................15

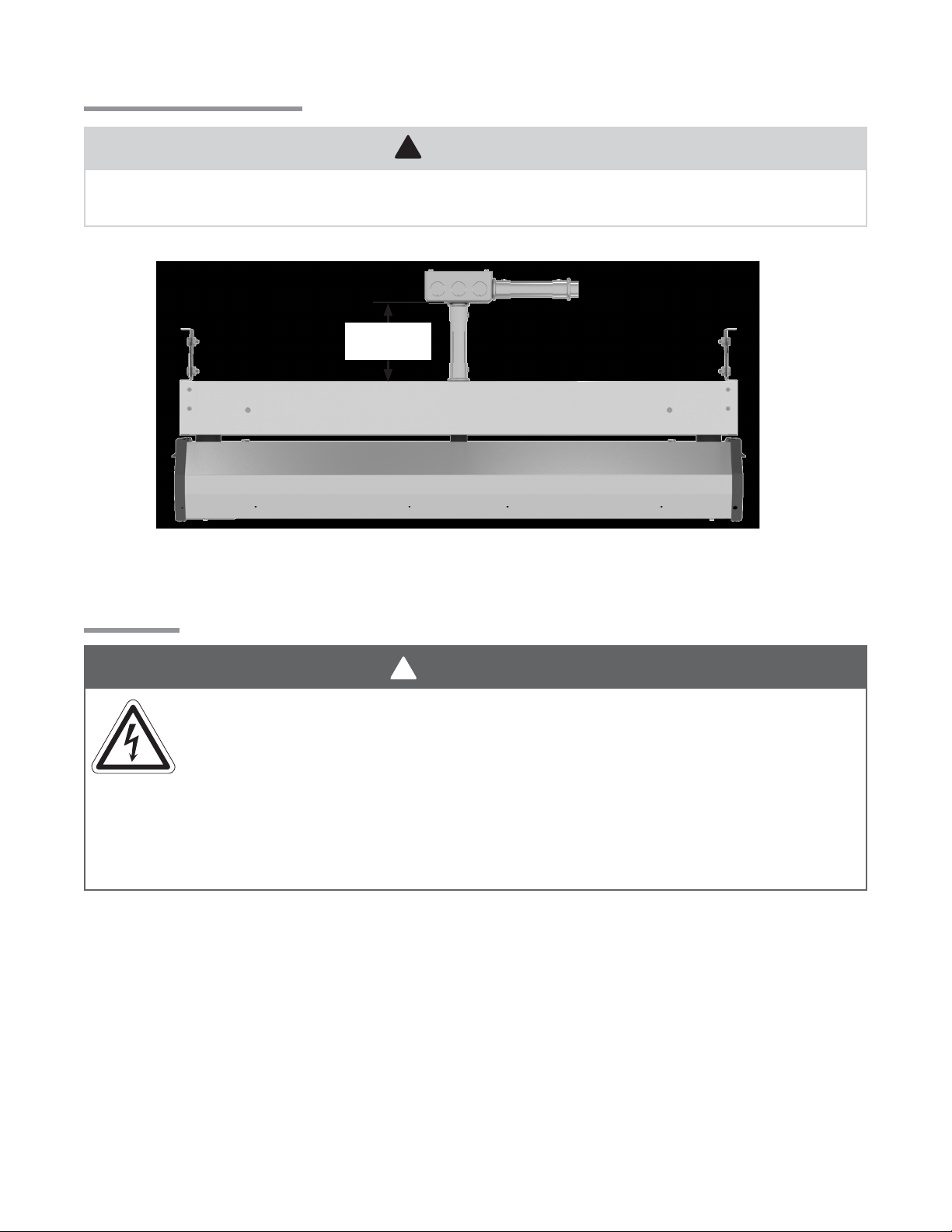

Outdoor Application ...............................................................16

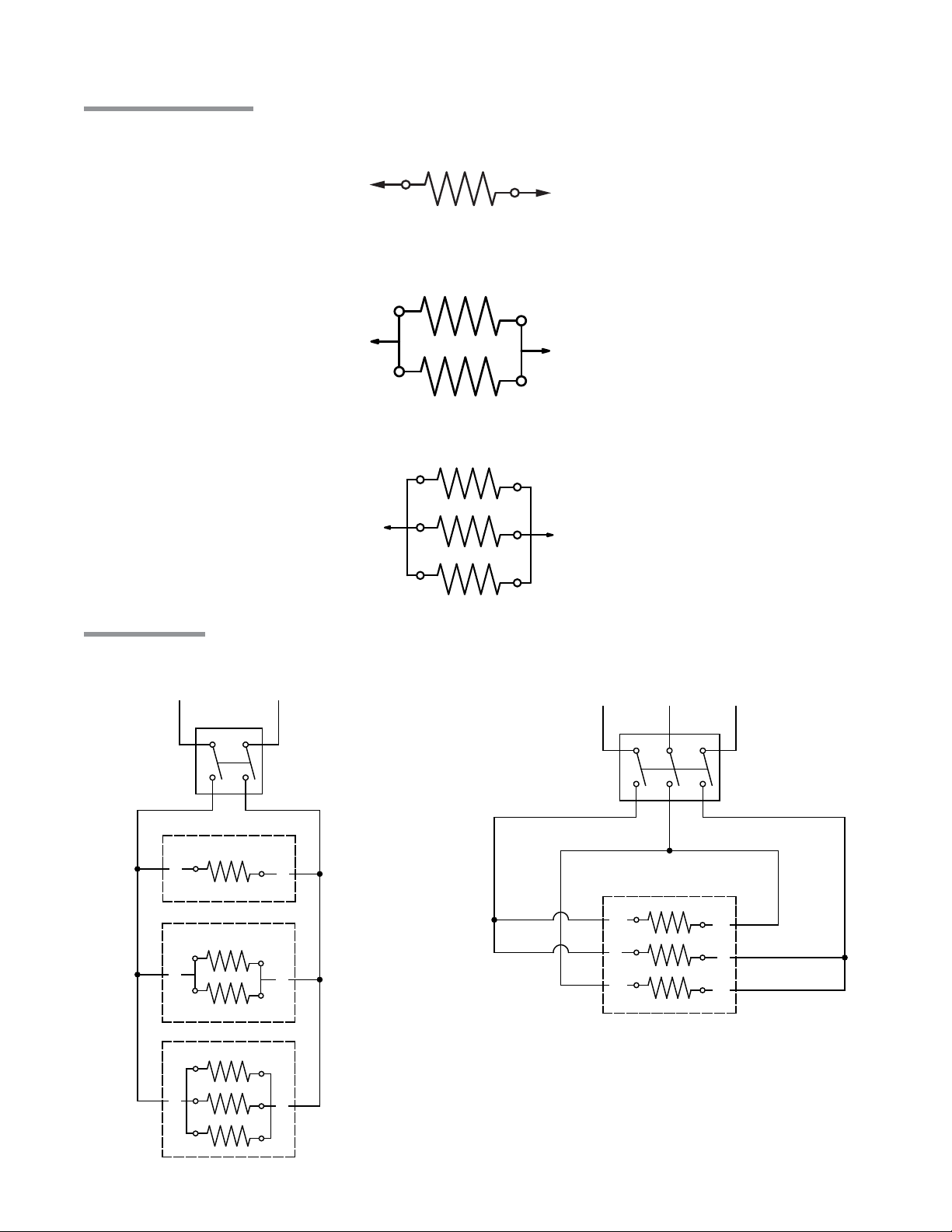

Electrical Wiring....................................................................16
3.0 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TroubleshootingGuide .............................................................19
Heater Assembly Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parts List...........................................................................21
4.0 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
WARNING
!
California Proposition 65
This product can expose you to chemicals including lead, which is known to the State of California to
cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.

3
Safety Symbols
Safety is the most important consideration during installation, operation, and maintenance of the
infrared heater. You will see the following symbols and signal words when there is a hazard related to
safety or property damage.
1.0 Safety •Safety Symbols •Applications
Applications
This is not an explosion proof heater. No ELX series heater may be used in a Class 1 or Class 2
ExplosiveEnvironment.Consultyourlocalremarshal,insurancecarrier,andotherauthoritiesfor
approval if the proposed installation is in question.
Commercial / Industrial (Indoors & Outdoors)
Infraredheatersaredesignedandcertiedforuseinindustrialandcommercialbuildingssuchas
warehouses, manufacturing plants, aircraft hangars, and vehicle maintenance shops. For maximum
safety, the building must be evaluated for potential hazards before installing the heater system. A critical
safety factor to consider before installation is the clearances to combustibles.
Outdoor Residential Only
This heater is NOT approved for use in an indoor residential application. This includes, but is not limited
to,attachedgarages,livingquarters,solariums,etc.Consultthelocalremarshaland/orinsurance
provider if unsure of your application.
1.0 Safety
Not For Residential Use.
Installation of this infrared heater system in residential indoor spaces, RVs,
mobilehomes,etc.mayresultinpropertydamage,re,seriousinjury,or
death.
Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or injury.
Caution indicates a potentially hazardous
situation which, if not avoided, could result in
minor or moderate injury.
Notice indicates a potentially hazardous situation
which, if not avoided, could result in property
damage.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, serious injury, or death. Read and understand the installation,
operating, and maintenance instructions thoroughly before installing or servicing this
equipment.Onlytrained,qualiedpersonnelwithproperelectricalexperiencemay
install or service this equipment.
WARNING
!
NOTICE
CAUTION
!
WARNING
!
!
WARNING
!
!

4
Series Material Type Lamp Quantity Voltage
1.0 Safety •Model Number Designation Chart • Available Models
ELX-24
ELX-33
ELX-46
B = Black Powder Coat with Black Nylon End Caps
or
S = Stainless Steel with Black Nylon End Caps
1120
208
240
277
480
575
2
3
Chart 1.1 • Model Number Designation Chart
Model Con iguration Examples: ELX-24B1-120 or ELX-33S2-277
* Heaters are configured at the factory for single phase wiring. If three phase service is desired, it must
be wired as such in the field by a trained installer / electrical contractor.

5
Combustible Items Include: Moving Objects Include:
• Wood • Overhead doors
• Paper • Vehicles on lifts
• Fabric • Cranes
• Chemicals • Hoists
• Wall or roof insulation
• Plastics
When installing the infrared heater system, the minimum clearances to combustibles must be
maintained. These distances are shown in Chart 1.5 and on the heater. If you are unsure of the potential
hazards,consultyourlocalremarshal,reinsurancecarrier,orotherqualiedauthoritiesonthe
installation of infrared heaters for approval of the proposed installation.
A critical safety factor to consider before installation is the clearances to combustibles. Clearance to
combustiblesisdenedas
the minimum distance you must have between the indicated surface and
the combustible item
. Considerations must also be made for moving objects around the infrared heater.
The following is a partial list of items to maintain clearances from:
Hazards Include:
For maximum safety the building must be evaluated for hazards before installing the heater system.
Examples include, but are not limited to:
• Gasandelectricallines
• Combustible and explosive materials
• Chemical storage areas
• Areas of high chemical fume concentrations
• Provisions for accessibility to the heater
• Adequate clearances around air openings
• Vehicle parking areas
• Vehicles with lifts or cranes
• Storage areas with stacked materials
• Lights
• Sprinkler heads
• Overhead doors and tracks
• Dirty, contaminated environment
Signs shall be posted specifying the maximum permissible stacking height in order
to maintain clearances to combustibles.
Placementofexplosiveobjects,ammableobjects,liquids,
andvaporsclosetotheheatermayresultinexplosion,re,
property damage, serious injury, or death. Do not store or use
explosive objects, liquids, or vapors in the vicinity of the
heater.
Failure to comply with the published clearances to combustibles could result in personal injury, death,
and/or property damage.
The outside surfaces of the heater are hot during operation and after operation. If contact is made,
permanent skin damage may occur. Do not move, handle, or service the unit during operation or while
hot.
1.0 Safety •Clearances to Combustibles
Clearances to Combustibles
WARNING
!
CAUTION
!

6
1.0 Safety •Clearances to Combustibles
* Heaters mounted on an angle between 0° and 45° must maintain clearances posted for 0° or 45°,
whichever is greater.
** Clearances to combustibles must be maintained when using recessed mount kits (P/N: ELx-FRxx). For
additional information, refer to form # LSH123a - Recessed Mounting Frame Installation Instructions
or contact the factory.
NOTE: Ensure that building materials with a low heat tolerance (i.e, awnings, fabrics, plastics, sprinklers,
insulation, etc.) are protected against degradation. This may require the heater to be mounted at a
distance in excess of the published clearances to combustibles. Contact the material manufacturer for
specicdetails.
Figure 1.1 •Clearances to Combustibles
SIDESIDE
BELOW
TOP
TOP VIEW
0° Mounting Angle
END END
FRONT
BELOW
BEHIND
TOP
Chart 1.5 • Clearances to Combustibles in Inches (Millimeters) - see Figure 1.1
END VIEW
45° Mounting Angle
END VIEW
0° Mounting Angle
Length
Mounting
Angle
Side
End To p Below
Min. Mtg.
HeightFront Behind
Single Element
24’’
33’’
46’’
0° 16 (407) 16 (407) 12 (305) 6 (153) 56 (1423) 8 ft.
8 ft.
10 ft.
45° 47 (1194) 4 (102) 12 (305) 10 (254) 40 (1016)
Double Element
24’’
33’’
46’’
0° 28 (712) 28 (712) 26 (661) 6 (153) 86 (2185) 8 ft.
10 ft.
10 ft.
45° 86 (2185) 4 (102) 26 (661) 10 (254) 86 (2185)
Triple Element
24’’
33’’
46’’
0° 31 (788) 31 (788) 34 (864) 9 (229) 105 (2667) 10 ft.
12 ft.
12 ft.
45° 105 (2667) 4 (102) 34 (864) 10 (254) 105 (2667)

7
Clearances to combustibles must be maintained at
all times in order to prevent the ignition of
combustible materials. In locations used for the
storage of combustible materials, signs must be
posted to specify the maximum permissible stacking height to
maintain the required clearances from the heater to the
combustibles. Signs must either be posted adjacent to the
heater’s thermostats or, in the absence of such thermostats, in a
conspicuous location. Clearances are provided on the heater’s
safety label and in the heater’s Installation, Operation, and
Maintenance manual. Product installation and operation must
comply with applicable standards, codes, and regulations. Post
this tag adjacent to the heater’s thermostat or controls before
operating the heater.
- INSTALLER: READ AND POST THIS NOTICE -
LL001-XM-07/18 (CDS)
This product can
expose you to
chemicals including
lead and carbon
monoxide, which are known to the
State of California to cause birth
defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.
WARNING
!
Avoid Serious Injury, Death, or Property Damage.
Maintain Clearances to Combustible to Prevent the Risk of Fire.
California Proposition 65
Safety Labels and Their Locations
It is important to provide warnings to alert individuals to potential hazards and safety actions. Signs
should state the hazards for the particular application and be legible to the building occupants. Consult
the factory or a factory representative for additional information on signage compliance.
Safety warning labels must be maintained on the infrared heater. Illustrations of the safety labels and
their locations are pictured below. When no longer legible, they must be replaced. Contact either your
local distributor or the product manufacturer for obtaining replacement signs or labels.
1.0 Safety •Safety Labels and Their Locations
Top View
Rating Plate
F/N: LL001 - Clearance Safety Tag
(Axadjacenttoheater’scontroller)
ELECTRIC INFRARED HEATER
INFRAROUGE A CHAUFFE AU ELECTRIQUE
50/60
120 750-1600
10’ 0° 45°
Single 01/20
ELX-24B1-120 2002DETRXXXXXX 0001
MODEL NUMBER
NUMÉRO DE MODÉLE SERIAL NUMBER NUMÉRO DE SÉRIE
FREQUENCY
FRÉQUENCE
VOLTAGE
TENSION WATTAGE RANGE PLAGE DE PUISSANCE
MIN. MOUNTING HEIGHT
HAUTEUR MINIMALE DE MONTAGE MIN. MOUNTING ANGLE MIN. ANGLE DE SUPPORT
THIS DESIGN COMPLIES WITH STANDARDS:
COMPLES DE CETTE CONCEPTION AVEC LA NORME:
THIS HEATER WAS INSTALLED
WITH THE FOLLOWING
ELEMENTS:
CET APPAREIL DE CHAUFFAGE
A ÉTÉ INSTALLÉ AVEC LES
ÉLÉMENTS SUIVANTS:
FOR COMMERCIAL, INDUSTRIAL, AND OUTDOOR RESIDENTIAL USE.
FOR INDOOR OR OUTDOOR USE.
MADE IN USA.
Detroit Radiant Products Company
21400 Hoover Road, Warren, MI 48089
[phone] www.reverberray.com
MAX. MOUNTING ANGLE
MAX. ANGLE DE SUPPORT
PHASE
Hz
VERSION
UL 2021 - Edition 6 (revision 2018) CSA C22.2 46-13 (R2018)
Element Part Number:
Output Wave:
Amps per Lamp / Total Amps:
Watts per Lamp / Total Watts:
EL-MW-A24
Medium
6.25 / 6.25
750 / 750
EL-HO-A24
H.O. Medium
11.30 / 11.30
1360 / 1360
EL-SC-A24
Short - Clear
12.50 / 12.50
1500 / 1500
EL-SR-A24
Short - Ruby
12.50 / 12.50
1500 / 1500
F/N: LLECL001a - Clearances to Combustibles Label
Electrical Label
(Located inside the raceway)
0°
45°
31 (788)
105 (2667)
31 (788)
4 (102)
34 (864)
34 (864)
9 (229)
10 (254)
105 (2667)
105 (2667)
CLEARANCES TO COMBUSTIBLES - Inches (Millimeters)
LLECL001a-1x-07/20 (XXX)
AVOID EQUIPMENT
FAILURE. Use supply
wires suitable for 200°C
or equivalent.
ÉVITEZ LES PANNES
D'ÉQUIPEMENT. Employer des fils
d'alimentation adéquats pour
200°C.
Apply proper voltage.
Read and understand the installation, operating, and maintenance
instructions thoroughly before installing or servicing this equipment. Failure
to properly apply product may result in property damage, injury, or death.
SHOCK HAZARD. Disconnect all
supplies before working on any
circuit.
RISQUE D’ÉLECTROCUTION. Débrancher
toutes les alimentations avant d'exécuter des
travaux sur un circuit quelconque.
Heater MUST be properly
grounded prior to operation.
HOT. Do not touch any part of
the heater while in operation.
Length Angle Front Behind End Top Below
FIRE HAZARD. Always maintain published clearances to
combustibles. In locations used for the storage of combustible
materials, signs must be posted.
DANGER D’INCENDIE. Toujours maintenir un dégagement
publié à combustibles. Dans les endroits utilisés pour le stockage
de matériaux combustibles, panneaux doivent être installés.
Mounting Side
END VIEW - 0°SIDE VIEW - 0°
EndEnd
END VIEW - 45°
Below
Front
To p
Behind
Side
To p
Side
Below
ELX Series Triple Element
24”
33”
46”
0°
45°
28 (712)
86 (2185)
28 (712)
4 (102)
26 (661)
26 (661)
6 (153)
10 (254)
86 (2185)
86 (2185)
ELX Series Double Element
24”
33”
46”
0°
45°
16 (407)
47 (1194)
16 (407)
4 (102)
12 (305)
12 (305)
6 (153)
10 (254)
56 (1423)
40 (1016)
ELX Series Single Element
24”
33”
46”
Heaters mounted on an angle between 0° and 45° must maintain clearances posted for 0° or 45°, whichever is greater.
SAMPLE

8
1.0 Safety •Standards,Certications,andGovernmentRegulations
Standards, Certications, and Government Regulations
Installation of this infrared heater must comply with all applicable local, state, and national
specications,regulations,andbuildingcodes.Contactthelocalbuildinginspectorand/orremarshal
for guidance.
The heater must be electrically grounded in accordance with the following codes:
United States: Refer to National Electrical Code®, ANSI/NFPA 70 (latest edition).
Wiring must conform to the latest edition of National Electrical
Code®, local ordinances, and any special diagrams from the manufacturer.
Canada: Refer to Canadian Electrical Code CSA C22.1 Part 1 (latest edition).
Detroit Radiant Products Company units comply with or are certied by one or more of the
following organizations or standards:
• CSA 22.2 #46 - M1988
• UL 2021

9
2.0 Installation •Design
Read and understand the installation, operation, and maintenance instructions
thoroughly before installing or servicing this equipment.
Design
To ensure a safe, properly designed heating system, a layout should be developed for the correct
placement of the infrared heater(s).
Aside from safety factors such as clearances to combustibles (see Chart 1.5 on page 8), consideration
should also be given to factors such as the environment (e.g., cold/drafty, average, protected), heat
coverage (sq. ft.) needed, heater centers, the distance behind a person or work station(s), etc. Also, the
eectiveinfraredsurfacetemperatureofapersonorobjectmaybediminishedwithwindabove5mph.
Wind barrier(s) may be required. Most importantly, clearances to combustibles must always be
maintained! Refer to hazards on page 7.
When positioning the heaters, keep in mind the location of combustible materials, lights, sprinkler
heads, overhead doors, storage areas with stacked materials, gas and electrical lines, parked vehicles,
cranes, etc. Refer to page 6 for minimum clearances to verify that a safe installation exists.
This installation manual, along with national, state, provincial, and local codes, addresses these issues. It
is critical that you read, understand, and follow all guidelines and instructions. Always inspect and
evaluate the mounting conditions, application, and wiring.
When heated, materials high in hydrocarbons (solvents, paint thinner, mineral spirits, formaldehydes,
etc.) can evaporate and/or degrade. This may result in odors or fumes being emitted into the
environment. To correct this problem, clean the area and/or introduce additional ventilation. Heaters
installed and serviced in accordance with the installation manual do not emit foul odors into the
environment.
IMPORTANT: Fire sprinkler heads must be located at an appropriate distance from the heater to avoid
an inadvertent discharge. This distance may exceed the published clearances to combustibles. Certain
applications may require the use of high temperature sprinkler heads or relocation of the heaters.
Firesprinklersystemscontainingpropyleneglycol,antifreeze,orotherpotentiallyammable
substances shall not be used in conjunction with this heater without careful consideration for, and
avoidance of, inadvertent discharge hazards. For further information consult applicable NFPA codes.
Always observe applicable state and local codes.
CAUTION
!
2.0 Installation
WARNING
!

10
2.0 Installation •Design
Figure 2.1 • Heating Application
Dim A
Dim B
When comfort heating people, two heaters should be used to heat both sides of the individual. Heater
installation shall comply with all IOPM, NEC, ANSI/NFPA-70, CEC, and local restrictions.
* Clearances to combustibles published in this manual and on safety labels must be maintained at all
times. Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted
too low or too high, they may result in discomfort or lack of heat.
Type of Building
Watts Required per Square
Foot at Floor Level
Insulated 10
Uninsulated 16
Outdoor Sheltered 25 to 30
Outdoor Unsheltered 30 to 45
Chart 2.2 • Estimating Required Load
Chart 2.1 • Heating Application Chart
Series
Lamp
Quantity
Minimum
Mounting
Height (Ft.)
Recommended
Mounting Height (Ft.)*
[Dim. A]
Recommended Distance
Between Heaters (Ft.)
[Dim. B]
Approximate
Square Foot
Coverage
ELX-24
1 8 10 to 12 5 to 10 400
2 8 10 to 12 6 to 12 400
310 12 to 14 7 to 14 600
ELX-33
1 8 10 to 12 6 to 12 400
210 12 to 14 7 to 14 600
310 12 to 14 8 to 16 600
ELX-46
110 12 to 14 7 to 14 600
212 14 to 16 8 to 16 850
312 14 to 16 9 to 18 850

11
2.0 Installation •Heater Mounting
Heater Mounting
The heater can be suspended with chains or rigid threaded rod. Local codes, or conditions that would
cause the unit to move (e.g., wind drafts, blowers, crane rails, etc.), may require rigid threaded rod.
Consult all applicable codes before installation.
Clearances to combustibles must be maintained when using recessed mount kits (P/N: ELx-FRxx). For
additional information, refer to form # LSH123a - Recessed Mounting Frame Installation Instructions or
contact the factory.
The heater must be level from end to end and may be 0° to 45° on horizontal. Refer to Figures 2.2 and
2.3.
Figure 2.2 •Heater Dimensions
Chart 2.3 • Physical Dimensions (inches)
Figure 2.3 •Mounting Centers
11.625”
B
4.75”
C
Mount Heater Level
- End to End -
(Center of Mounts)
Model No. ABC
ELX-24X1 23.50 9.625 24.50
ELX-24X2 23.50 15.25 24.50
ELX-24X3 23.50 21.00 24.50
ELX-33X1 32.50 9.625 33.50
ELX-33X2 32.50 15.25 33.50
ELX-33X3 32.50 21.00 33.50
ELX-46X1 45.50 9.625 46.50
ELX-46X2 45.50 15.25 46.50
ELX-46X3 45.50 21.00 46.50
WARNING
!
Improper suspension of the infrared heater may result in collapse and being crushed.
Always suspend from a permanent part of the building structure that can support the
total force and weight of the heater.
Failuretomaintainminimumclearancetocombustiblesmayresultinreand/or
explosion, property damage, serious injury, or death. Always maintain minimum
clearancesandpostsignsorprovidedtags(F/N:LL001)adjacenttoheater’scontroller.
Signs should state the hazards for the particular application and be legible to the
building occupants. Consult the factory or a factory representative for additional
information on signage compliance.
3.75”
A

12
2.0 Installation •Top Channel Assembly
Top Channel Assembly
1 Attach the mounting brackets to the top wire raceway. On each end, place (1) ¼” x ½” bolt through
the bottom hole of the mounting bracket and through the bottom hole of the top wire raceway. Place
(1) ¼” lock nut on each bolt. Do not tighten completely. Refer to Figure 2.4.
NOTE: The mounting brackets are NOT required for chain suspension.
2 Adjust wire raceway to desired mounting angle.
3 On each side, place (1) ¼” x ½” bolt through slot in the mounting bracket and the hole in the top wire
raceway. Place (1) ¼” lock nut on each bolt and tighten.
4 Tighten lock nuts from Step 1.
5 Hook heater body into mounted wire raceway. Unit will hang freely by the “T” hinge, leaving both
hands free to wire unit. Refer to Figure 2.4.
6 Runsuppliedhightemperaturewiresouttoeldsuppliedjunctionbox.DO NOT make connections
inside the wire raceway.
7 Closewireracewayusingthe(4)#8-32x”groundingscrewsprovidedinhardwarepack.
Figure 2.4 •Top Channel Assembly
Wire Raceway
#8-32x”
Screw
¼” x ½” Bolt
#8-32x”GroundingScrew

13
2.0 Installation •Lamp Installation
NOTE: ELX series heaters are designed for use with quartz lamp infrared heating elements only. They
are NOT intended to be used with straight metal rod heating elements. Replace lamps with parts
from Detroit Radiant Products Company only!
Lamp Installation
1Ensure appliance is OFF and is cool to the touch.
2Remove both service access panels using a ¼” nut driver.
3Open lamp retainers by rotating the retainers on both sides of the unit (see Figure 2.5).
4Positionheatingelementsin“U”slotsandrmlypresstheceramicconnectorendintotheclip(s),
one end at a time. Avoid handling the quartz glass as much as possible.
5Remove the top element wire retaining nut. Slide the ring terminal over the bolt until it meets the
bottom retaining nut. Replace top retaining nut and torque to 15 in.-lbs. Do not overtighten.
6Rotate the lamp retainer into closed position.
7Repeat steps 3 through 6 until all heating elements have been installed.
8After heating elements have been installed, the quartz glass should be wiped down with alcohol
using a clean cloth.
9Reinstall the service access panels.
Figure 2.5 •Lamp Installation
Disconnect power prior to installing or replacing supplied quartz lamp(s). The elements can and
should be installed prior to mounting the heater.
CAUTION
!
Bottom
Retaining Nut
Bolt
To p
Retaining Nut
Element
Top Retaining Nut
“U” Slots
Lamp Retainer
Element Wire
Ceramic lamp clips
must be secure in
holder.
Ring Terminal

14
Thisxtureisequippedwithhightemperaturesiliconeleadwirestomakeconnectionstobranchcircuit.
Remove the wire ties prior to making electrical connections.
Wiring connections should always be through one of the knockouts in the top wire raceway. Wire
connectionsmustalsobemadeoutsideofthetopofthewireraceway.Consultthefactoryoraqualied
electrician for details on staging.
Supplywiresmustbeacopperconductortypewithaminimumsizeof10AWGsuitableforatleast
200°C.
The heater must be connected to the earthing conductor (green wire) installed by the factory.
Reference top of page 16 for use in outdoor applications.
Electrical
2.0 Installation •Outdoor Applications • Electrical
Outdoor Applications
Figure 2.6 • Outdoor Application
NOTE: Allconduit,conduitttings,andjunctionboxesareeldsupplied.MustbeNEMAType4Xor
equivalent. Heater must be suspended from mounting brackets.
6”
Minimum
CAUTION
!
For totally exposed outdoor applications (not ceiling protected) ensure connections are made as
illustrated in Figure 2.6.
WARNING
!
Electric Shock
Field wiring to the heater must be connected and grounded in accordance with national,
state, provincial, and local codes, and to the guidelines in the this manual. In the United
States, refer to the most current revisions to the ANSI/NFPA 70 Standard and in Canada,
refer to the most current revisions the CSA C22.1 Part I Standard.
Disconnect power to heater before servicing.
Failure to follow these instructions can result in death or electrical shock.

15
2.0 Installation •Wiring Diagrams
Wiring Diagrams
Field Wiring
Figure 2.7 • Wiring Diagram for Units with 1 Lamp
Figure 2.10 • Single Phase Service Figure 2.11 •Three Phase Service
Figure 2.8 •Wiring Diagram for Units with 2 Lamps
Figure 2.9 •Wiring Diagram for Units with 3 Lamps
LAMP NO. 1
L1 L2
LAMP NO. 1
L1 L2
LAMP NO. 2
LAMP NO. 1
L1 L2
LAMP NO. 2
LAMP NO. 3
SINGLE LAMP UNIT
DOUBLE LAMP UNIT
TRIPLE LAMP UNIT
CONTROL
DEVICE
L1 L2
L1
L1
L1 L2/
N*
L2/
N*
L2/
N*
TRIPLE LAMP UNIT
CONTROL
L1 L3
L1 L3
L1 L2
L2 L3
DEVICE
L2
Heaters are built as single phase.
*N for 120 V
and 277 V
Fieldcongured.

16
3.0 Maintenance
It is recommended that the following become a standard yearly procedure to obtain maximum
operatingeciencyandtrouble-freeoperation.
During long periods of non-usage, remove or cover heater with a polyethylene bag and disconnect from
power supply. If further service to the heater is desired, contact your representative or the factory.
1Cleanreectorsurfacewithadampcloth.
2Ensure heater is secure on all hanging points.
3Maintain clearances to combustibles at all times. Immediately remove objects in violation of any of
the published clearances to combustibles.
4Check electrical wires and connections for wear or any kind of damage.
3.0 Maintenance •Maintenance Log
Date Maintenance Performed Replacement Parts Required
Maintenance Log

17
3.0 Maintenance •TroubleshootingGuide
Is there too much heat?
Troubleshooting Guide
Turn Heater on from power source.
Does the heating
lamp(s) turn on?
Are the heating lamps
physically damaged?
Are the heating lamps
wired as indicated in
the manual?
Find the source of the electrical problem between panel and heater.
No
No
Ye s
Ye s
Isthereasucient
amount of heat? Is the supply voltage correct for the
model type on the rating label?
Is the heater mounted within the
recommended height?
No
No
Mount heater within the
recommended mounting heights.
Yes
No
No
Yes
Yes
No
Yes
Replace heating lamp(s).
Rewire lamps as indicated
in this manual.
Supply correct voltage.
Heater size and/or quantity of
heaters, may be incorrect for
application.
Troubleshooting ends.
Yes
Key
Start
Question
Process
Question
Corrective
Action

18
3.0 Maintenance •Heater Assembly Components
Heater Assembly Components
For complete information on ELX series replacement parts, visit the online replacement parts library at
www.reverberray.com/shop. For discontinued models, consult the factory.
Figure 3.1 • Components
1002A
1003A
1004A
1106, 1107, 1108
1206, 1207, 1208
1306, 1307, 1308
EL-HO-XXX, EL-MW-XXX,
EL-SC-XXX, EL-SR-XXX
1057
1058
1059
033
034
035
1037
039 040 039
1037
016
155A
255A
355A
1052A
1160A
1260A
1360A 1152, 1153, 1154
1252, 1253, 1254
1352, 1353, 1354
1161
1261
1361

19
3.0 Maintenance •Parts List
Parts List
Chart 3.1 • General Parts
Part No. Description Part No. Description
EL-0161Mounting Brackets (set of 2) Double Element Model-Specic Parts
EL-033 12GaugeWireLengthfor33”(specifycolor) EL-255A Chassis Assembly with Lamp Stopper
EL-034 12GaugeWireLengthfor24”(specifycolor) EL-1003A Service Access Panel - Vented
EL-035 12GaugeWireLengthfor46”(specifycolor) EL-1206 Reector,24”Model
EL-039 Large Rubber Spacer (End - 2 per heater) EL-1207 Reector,33”Model
EL-040 Small Rubber Spacer (Center) EL-1208 Reector,46”Model
EL-1037 Wire Bushing EL-12521Shell Assembly, 24” Model
EL-1052A Element Connector Assembly EL-12531Shell Assembly, 33” Model
EL-10571Wire Raceway Assembly, 24” Model EL-12541Shell Assembly, 46” Model
EL-10581Wire Raceway Assembly, 33” Model EL-1260A Rain Shield - Vented
EL-10591Wire Raceway Assembly, 46” Model EL-1261 Nylon End Panel
Single Element Model-Specic Parts Triple Element Model-Specic Parts
EL-155A Chassis Assembly with Lamp Stopper EL-355A Chassis Assembly with Lamp Stopper
EL-1002A Service Access Panel - Vented EL-1004A Service Access Panel - Vented
EL-1106 Reector,24”Model EL-1306 Reector,24”Model
EL-1107 Reector,33”Model EL-1307 Reector,33”Model
EL-1108 Reector,46”Model EL-1308 Reector,46”Model
EL-11521Shell Assembly, 24” Model EL-13521Shell Assembly, 24” Model
EL-11531Shell Assembly, 33” Model EL-13531Shell Assembly, 33” Model
EL-11541Shell Assembly, 46” Model EL-13541Shell Assembly, 46” Model
EL-1160A Rain Shield - Vented EL-1360A Rain Shield - Vented
EL-1161 Nylon End Panel EL-1361 Nylon End Panel
1Orderpartnumberasisforblacknishoradd-SSforstainlesssteelnish.Ex:EL-016forblackmounting
brackets and EL-016-SS for stainless steel mounting brackets.
Visit our online parts reference library at www.reverberray.com/shop for further technical data related to parts.

20
3.0 Maintenance •Parts List
Chart 3.2 • Elements
Part No. Description Part No. Description
Short Wave - Clear High-Output Medium Wave
EL-SC-A24 120 V, 1500 W, 24” Long EL-HO-A24 120 V, 1360 W, 24” Long
EL-SC-B24 208 V, 1600 W, 24” Long EL-HO-B24 208 V, 1360 W, 24” Long
EL-SC-C24 240 V, 1600 W, 24” Long EL-HO-C24 240 V, 1360 W, 24” Long
EL-SC-D24 277 V, 1600 W, 24” Long EL-HO-D24 277 V, 1360 W, 24” Long
EL-SC-G24 480 V, 1600 W, 24” Long EL-HO-G24 480 V, 1360 W, 24” Long
EL-SC-B33 208 V, 2500 W, 33” Long EL-HO-B33 208 V, 2125 W, 33” Long
EL-SC-C33 240 V, 2500 W, 33” Long EL-HO-C33 240 V, 2125 W, 33” Long
EL-SC-D33 277 V, 2500 W, 33” Long EL-HO-D33 277 V, 2125 W, 33” Long
EL-SC-G33 480 V, 2500 W, 33” Long EL-HO-G33 480 V, 2125 W, 33” Long
EL-SC-D46 277 V, 3200 W, 46” Long EL-HO-D46 277 V, 3200 W, 46” Long
EL-SC-G46 480 V, 3650 W, 46” Long EL-HO-G46 480 V, 3200 W, 46” Long
EL-SC-H46 575 V, 3800 W, 46” Long EL-HO-H46 575 V, 3200 W, 46” Long
Short Wave - Ruby Medium Wave
EL-SR-A24 120 V, 1500 W, 24” Long EL-MW-A24 120 V, 750 W, 24” Long
EL-SR-B24 208 V, 1600 W, 24” Long EL-MW-B24 208 V, 750 W, 24” Long
EL-SR-C24 240 V, 1600 W, 24” Long EL-MW-C24 240 V, 750 W. 24” Long
EL-SR-D24 277 V, 1600 W, 24” Long EL-MW-D24 277 V, 750 W, 24” Long
EL-SR-G24 480 V, 1600 W, 24” Long EL-MW-A33 120 V, 1250 W, 33” Long
EL-SR-B33 208 V, 2500 W, 33” Long EL-MW-B33 208 V, 1250 W, 33” Long
EL-SR-C33 240 V, 2500 W, 33” Long EL-MW-C33 240 V, 1250 W, 33” Long
EL-SR-D33 277 V, 2500 W, 33” Long EL-MW-D33 277 V, 1250 W, 33” Long
EL-SR-G33 480 V, 2500 W, 33” Long EL-MW-B46 208 V, 2000 W, 46” Long
EL-SR-D46 277 V, 3200 W, 46” Long EL-MW-C46 240 V, 2000 W, 46” Long
EL-SR-G46 480 V, 3650 W, 46” Long EL-MW-D46 277 V, 2000 W, 46” Long
EL-SR-H46 575 V, 3800 W, 46” Long EL-MW-G46 480 V, 2000 W, 46” Long
EL-MW-H46 575 V, 3000 W, 46” Long
