DeVilbiss Healthcare Drive R8RDHA User manual

Height Adjustable Rollator
Instruction manual

Introduction
Thank you for purchasing this rollator. These instructions should be read
carefully before assembling or using the rollator for the first time. For
assistance in setting up, use, maintenance, to report unexpected
operation of the rollator or for any service, warranty, sales or customer
service information, please contact your dealer. If in doubt, contact Drive
DeVilbiss Healthcare Ltd. (Contact details are on the back cover.)
Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company. For
more details about our products please see your local dealer.

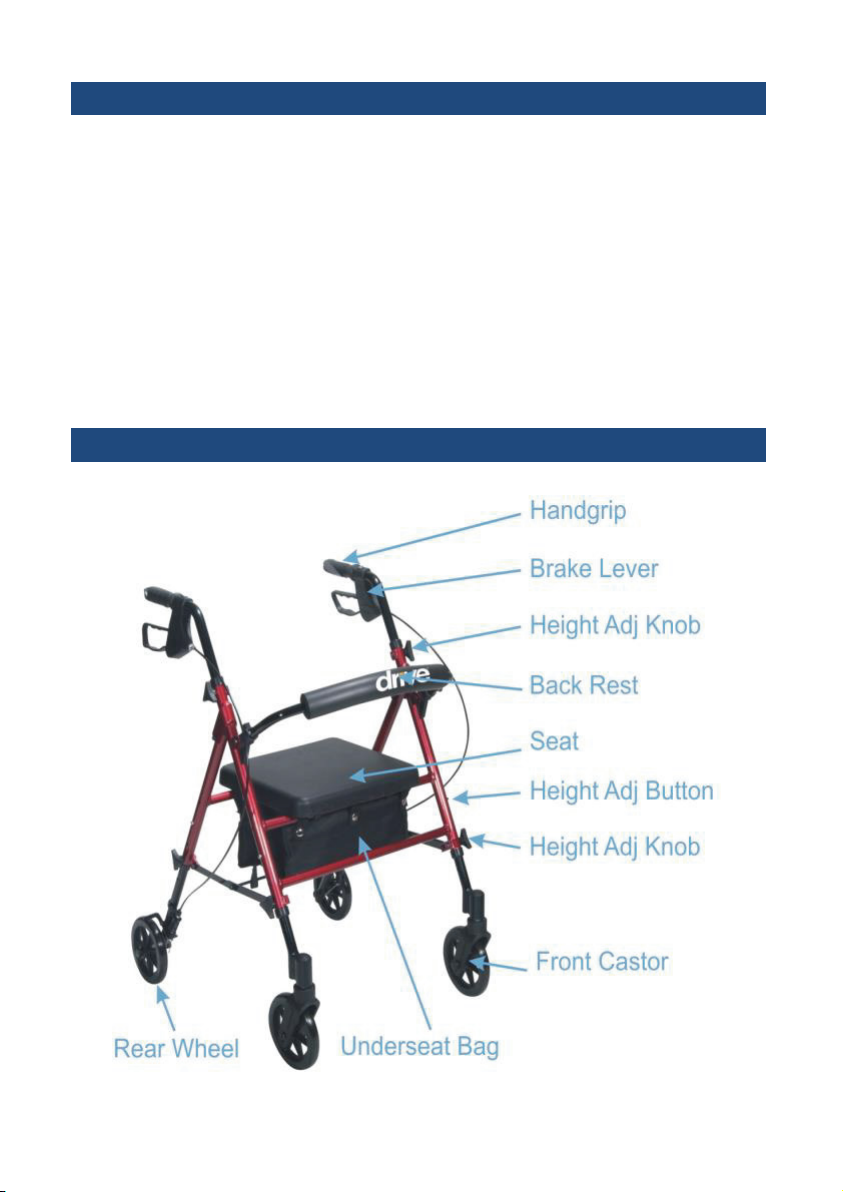

Parts Description

symbolsProduct Description
Intended purpose – A walking device manipulated by both arms to assist a
person to maintain stability and balance whilst walking.
Environment of use – indoor and outdoor use.
Intended users – Any individual who has diculty in walking and / or has
reduced mobility.
Indications – To provide support to a user who has diculty in walking and /
or who has reduced mobility.
Contraindications
• Unable to weight bear.
• Unable to adequately manoeuvre the rollator or apply the brakes.
• Users with Hemiplegia.
• Users with only one arm.
• Users who weigh in excess of 135 kg.
Other contraindications may be relevant which are specific to the user or
environment.
Features
• Aluminium frame and handlebars
• Adjustable seat and handle height
• Loop handle brakes
• Padded seat with under-seat bag
• Non-marking solid tyres
symbolsPreparing for Use
These instructions should be read carefully before using the rollator. This
product does not have a service manual. Instructions for user assembly are
included and should be completed by a competent person.
A risk assessment must also be performed to assess suitability of the device
for the user. This assessment should include, but not be limited to:
• Small adults (and children)
• Users (and attendants) who lack capacity
• Very active occupants
• Unauthorised access to the rollator
Independent users and attendants are responsible for determining that they
are both mentally and physically capable of using the rollator with minimal
risk of harm.

Personal Safety
!
Before using the rollator, read the safety notices below;
• Only use the rollator as a walking aid, to assist with mobility.
Do not use as a transportation device.
• Ensure that the latest health and safety practice is used for
carrying and lifting items.
• Dispose of all packaging materials correctly. To avoid risk of
suocation to children or animals, dispose of all plastic bags.
• The rollator is only suitable for single occupancy.
• Ensure the rollator is always fully folded out before using.
• Do not exceed the 7º maximum gradient (1 in 8). Use slow
speeds and do not reverse down a gradient.
• Do not use on escalators.
• Ensure that all the wheels are stable on the ground and the
brakes work adequately. Test the brakes before each use.
• When stationary, the brakes should always be applied.
• Ensure that fingers and objects do not get caught in the wheel
spokes or any other moving parts during use and assembly.
• Users should sit in the centre of the seat at all times. Do not
move your centre of gravity out of the seating area.
• Ensure that the brakes are always locked on when sitting on
or getting o the seat.
• For user health and comfort, adopt a comfortable posture
which allows each user to operate the brakes with ease. Adjust
handles and legs to equal heights and lock securely in position.
• Be aware of hazards in your environment, such as narrow
doorways, steps, household appliances, children’s toys, etc.
• A risk assessment must be performed by a competent person
to ensure the rollator is suitable for each user. We recommend
you consult a healthcare professional before using any
assistive medical devices.
• Keep away from heating and ignition sources which may raise
surface temperatures or cause a fire.
In case of doubt in regards to the assembly, operation or maintenance of this
rollator, please consult your original equipment provider.

Assembly
1. Remove all contents from carton. Check you have all of the parts and
attachments for this product.
2. Open the frame and place up-side-down on the floor. Attach the front
legs, with the castors on, to the front of the rollator by pushing in the
Height Adjustment Button and inserting the leg into the receptacle, to
the required height.
3. Attach the back legs (with brakes) using the same process. The left and
right legs are labelled as 3 & 4 respectively.
4. Ensure that all the legs are set at the same height and secure by
screwing in a Height Adjustment Knob into the hole at the bottom of
each receptacle.

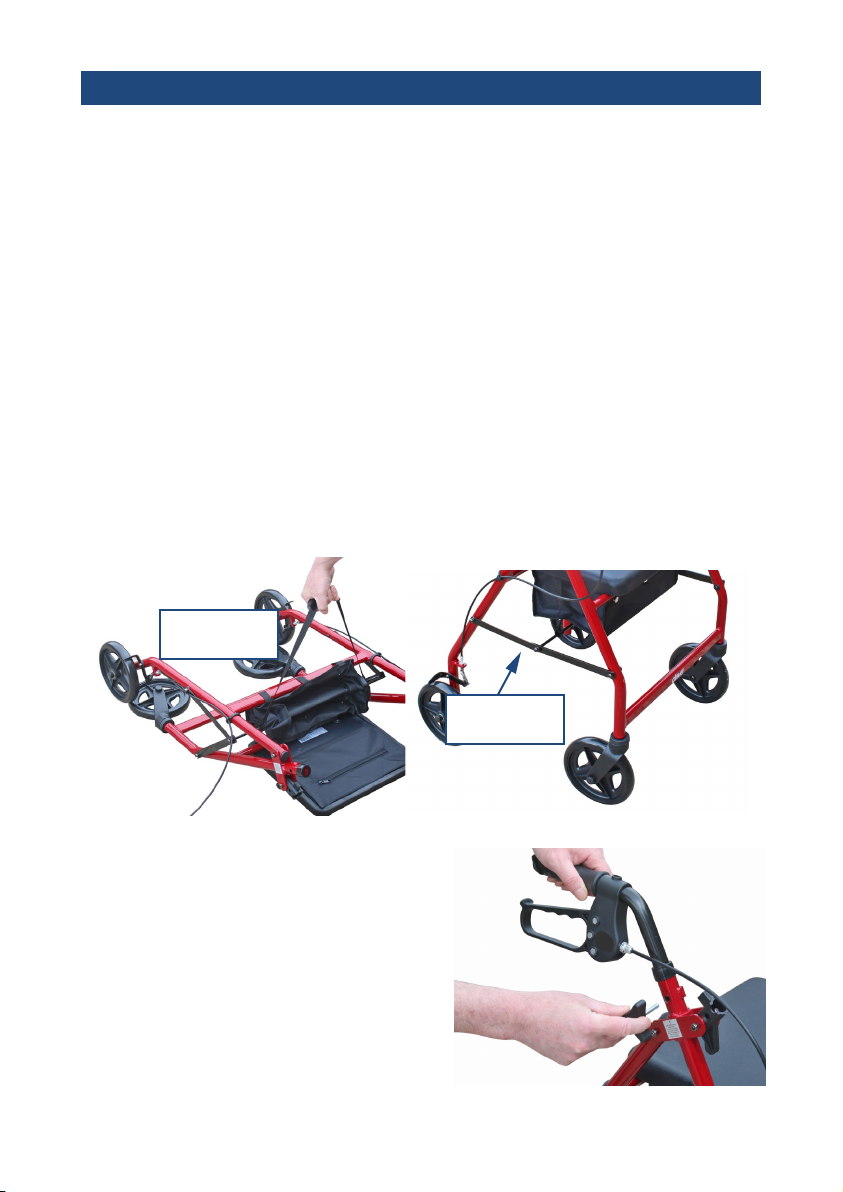

5. To unfold the rollator, lift using the lifting strap which is located under
the seat. (See Lifting strap image.) Lower the rollator down onto its
wheels and push down on the central bar to fully open. Always ensure
each Side brace is fully down before use.
Handlebar
Brake
cable
Tightening
handle
6. Insert the handle into the frame
and set to the desired height.
Screw in the Height Adjustment
Knob into the hole at the top of
the frame receptacle to secure.
Repeat for the second handle,
ensuring both handles are set at
the correct height. Turn clockwise
to tighten both handles.
Lifting strap
Side brace

Assembly

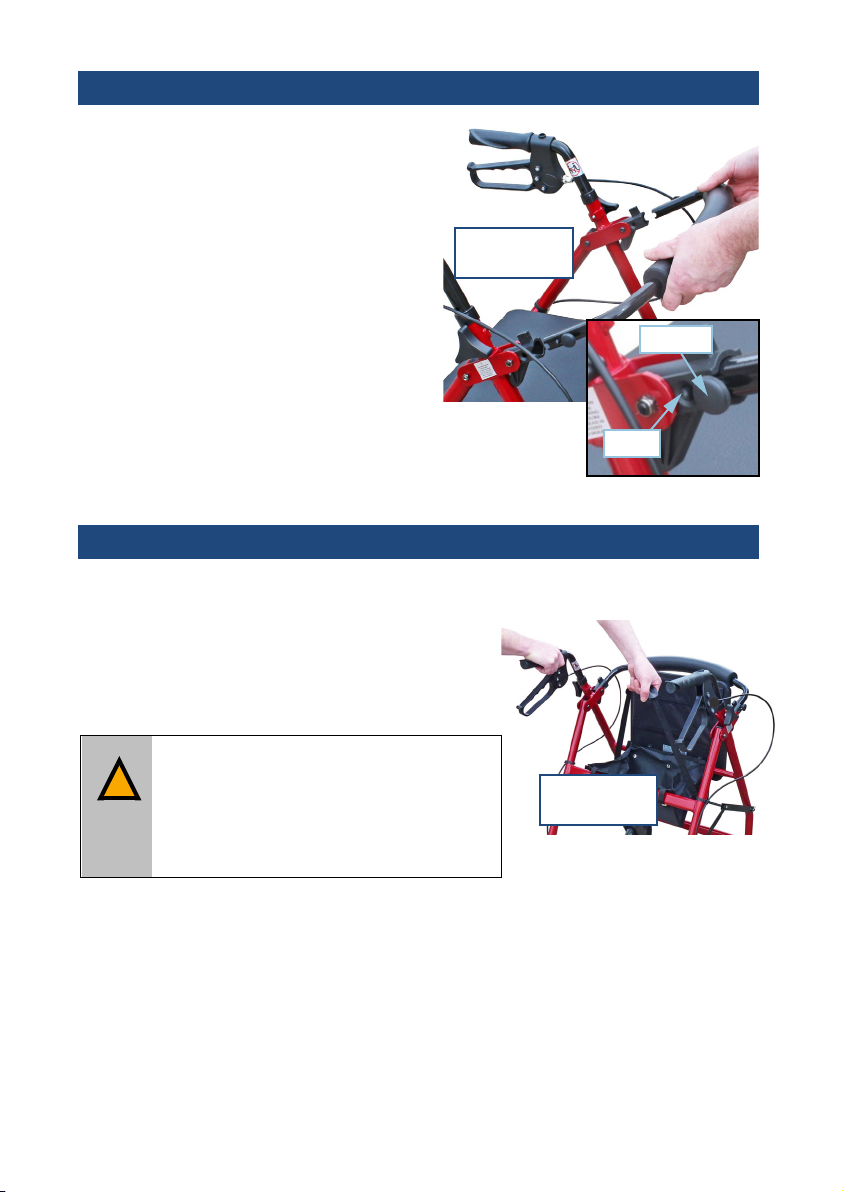

Folding and Storage
To fold the rollator for transporting, lift
up the seat and pull the black strap
(shown in Folding the rollator) whilst
holding the rollator handles, lifting the
rollator at the same time.
To unfold the rollator before use, lift the rollator by the handles and strap then
lower the rollator onto its wheels. Push down on the central bar until the side
braces are horizontal. The back rest will flip up for storage, when not in use.
The rollator should be stored in a dry environment, away from direct sunlight.
Ensure that it is clean and dry before storing.
!
Warning
• Keep hands away from the side
braces when folding the rollator.
• Ensure the brakes are locked on
before folding/storing the rollator.
7. Attach the padded back rest by
pressing in the black thumb
buttons and sliding the frame
into the plastic back rest
receivers.
Ensure the ‘pins’ are fully
located in the holes (see Fitting
the back rest).
To remove the backrest, push
both ‘buttons’ in and remove
the backrest from the brackets.
Pin
Button
Fitting the
back rest
Folding the
rollator

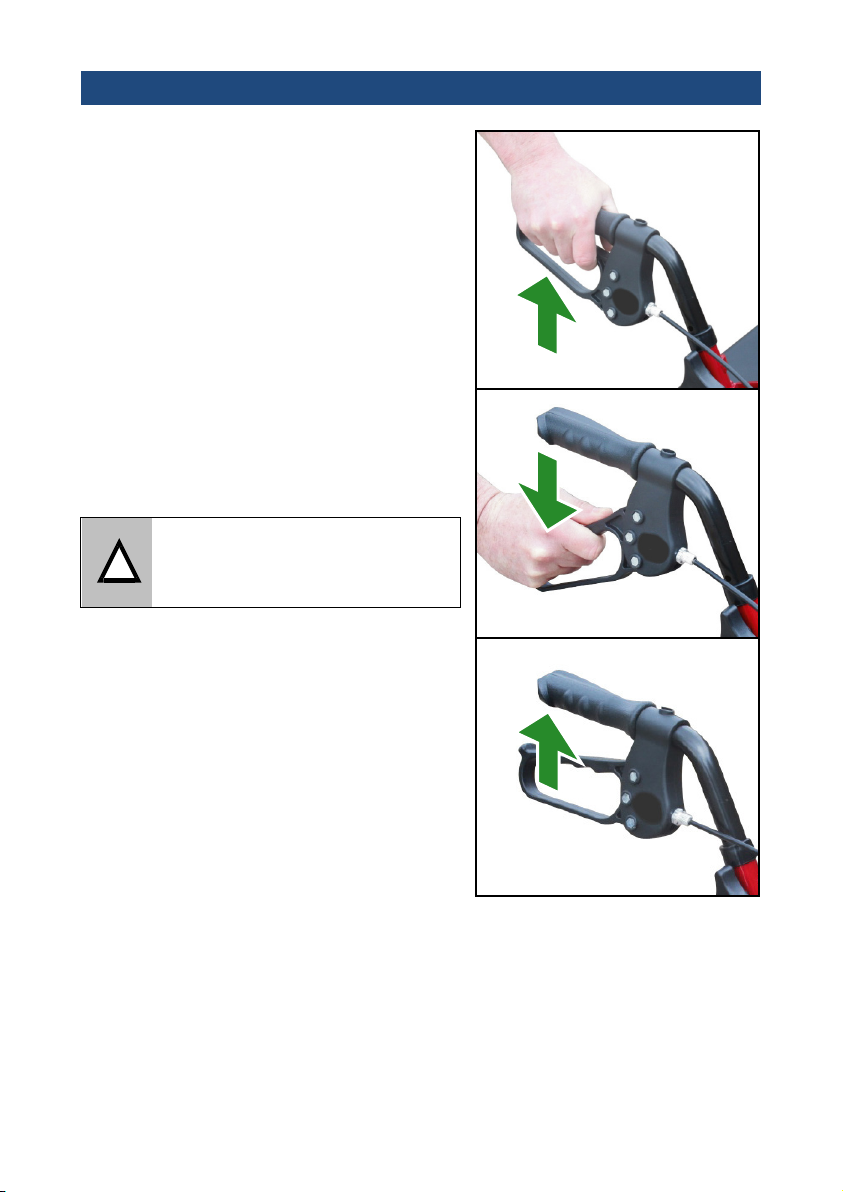

Brake Operation
To operate the brakes, squeeze the
brake levers up and hold in position
(as shown by the green arrow).
Release the levers to release the brakes.
Brakes
engaged
To lock the brakes, push down on the
brake levers until it locks and stays
down in position (as shown by the
green arrow).
Brakes
locked
Brakes
unlocked
To unlock the brakes, pull up on the
brake lever until the lock removes
(as shown by the green arrow).
NOTE: The brakes on rollators are factory set and should not require
adjustment. For technical assistance on the brakes, contact your provider.
When stationary, the brakes should always be applied.
!
Important
Ensure that the brakes are
locked before sitting on the seat.

Adjustments for Comfort
Handle height
To adjust the height of the rollator
handles, unscrew and remove the
Height Adjustment Knobs at either
side of the rollator, turning
anti-clockwise.
Adjust the height of the rollator
handles to suit the user, re-insert
the knobs and then tighten by
turning the knobs clockwise to
secure (as shown in Adjusting
handle height photo).
Ensure that the height adjustment
knobs and cable brakes are fitted
on the outside of the rollator.
Adjusting
handle height
Adjusting
handle height
Unscrew
Tighten

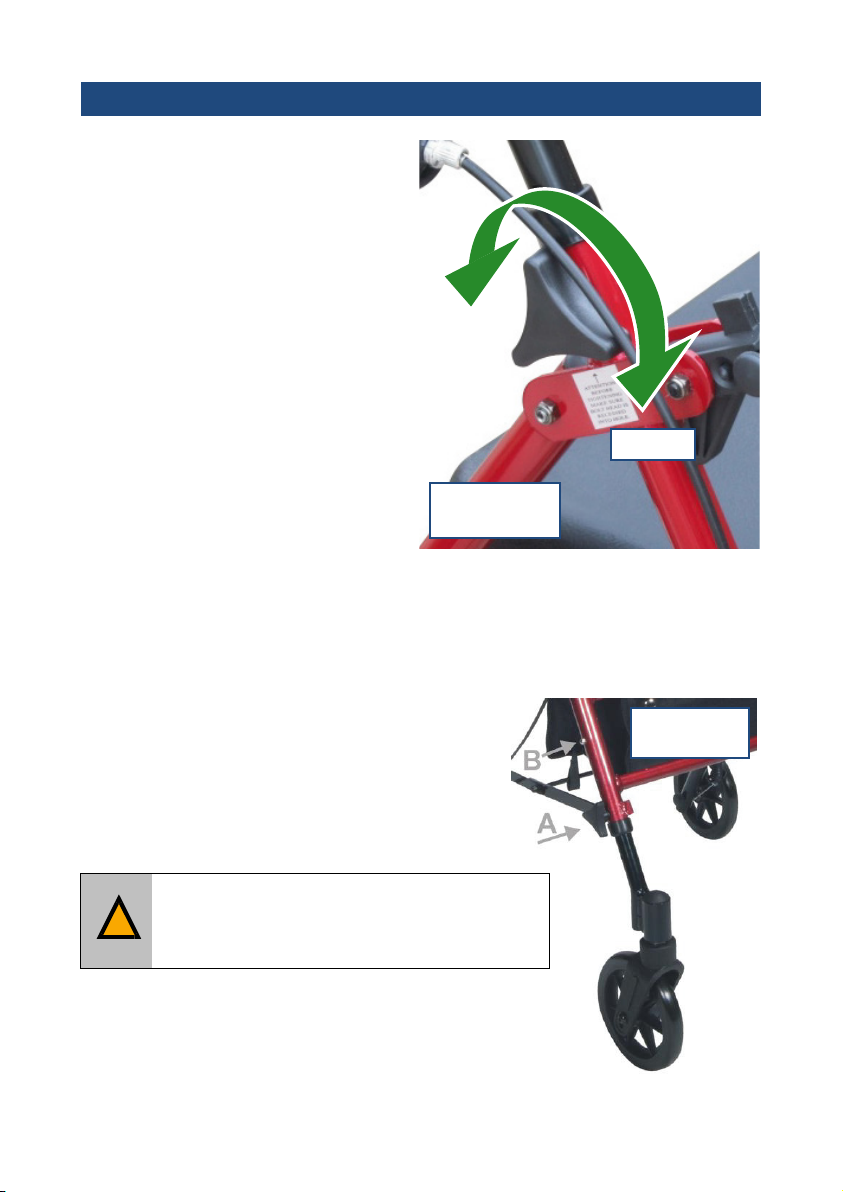

Seat Height
The seat height is set by the position of the legs on the rollator.
1. Remove the Height Adjustment Knob (A) by turning anticlockwise.
2. Press the Height Adjustment Button (B) and adjust the leg until it locks to
the required height. Ensure the button ‘clicks’
into one of the holes.
3. Re-insert the Height Adjustment Knob (A) into
the original hole and turn clockwise to secure.
4. Repeat the procedure for the other 3 legs,
ensuring they are all set at the same height.
Adjusting
seat height
!
Warning
Ensure handles and legs are at equal
heights and securely locked in position.

Care and Maintenance
Do not use a damaged or badly worn rollator. Users should routinely check
for any malfunctions or changes in performance. If parts are not correctly
adjusted, contact your provider for advice.
• Brakes, tyres and moving parts should be checked regularly. Check the
front castor wheel(s) swivels freely and all moving parts (e.g. wheels and
castors) operate freely without excessive movement or play.
• The rollator should be kept clean and dust free. Wipe with a duster or
damp cloth on a regular basis. Avoid neat bleach or abrasive surface
cleaners. Leave to fully dry before reuse.
• Ensure that the hand operated cable brakes are functioning correctly.
When squeezed or locked on, the rear wheels should not be able to turn.
• All the fasteners (screws, nuts and bolts) are to be checked regularly to
ensure they are securely tightened.
• Periodically spray the brake cables with a water dispersing lubricant to
ensure that they continue to work smoothly.
• The rollator should be serviced annually, or more frequently when used in
a multi-user environment (such as in communal housing). Drive DeVilbiss
Healthcare Ltd recommends that servicing, maintenance and repairs are
done by a competent person (such as an approved service engineer).
• When the product reaches the end of its useful life, follow local recycling
and disposal policies, or return to the original equipment provider.
Spare parts are also available for maintaining your rollator. To order these
parts, contact your provider. Visit www.drivedevilbiss.co.uk to find your local
stockist. Only use parts approved by Drive DeVilbiss Healthcare Ltd.
Cleaning
Ensure the rollator is kept clean on a regular basis.
• Wipe down the rollator with a damp cloth. Extra care should be taken
around areas where excess dirt or dust may gather. The cloth should be
changed during the cleaning process if it becomes soiled.
• Where necessary wipe down with a clean cloth moistened with a mild
detergent and diluted with warm water (40°C).
• Rinse with cold, clean water and a clean cloth, and allow to fully dry
before use.
• Do not use any abrasive detergents. Solvents can damage the coating
and surface of plastic parts.

Specification
Model R8RDHA
(Red)
R8BLHA
(Blue)
Unfolded length 68-79 cm / 27”-31”
Unfolded width 62 cm / 24.5”
Unfolded height 79-99 cm / 31”-39”
Folded length 95-119 cm / 37.5-47”
Folded width 62 cm / 24.5”
Folded height 31 cm / 12”
Seat height 49-59 cm / 19”-23”
Weight 7.3 kg / 16 lb
Safe Working Load — Bag 5 kg / 11 lb
Maximum User Mass 135 kg / 21 stone
Symbol Definition
The following symbols are found on the rollator:
Manufacturer
Date of Manufacture
Consult the Instructions for Use
Medical Device
MD
Catalogue Number
REF
Serial Number
SN
European Representative
Importer

Warranty
To improve the safety and lifespan of your walker, it is recommended that you have it
serviced on a regular basis. Recommended Service Schedules for walkers are
available to service agents.
There is a comprehensive twelve-month warranty from the date on which your new
walker is delivered. The warranty covers the walker for repairs or replacement during
this period. For more detail, please see the warranty conditions below:
1. Any work or replacement part installation must be carried out by an
authorised Dealer / service agent.
2. To apply the warranty should your walker require attention please contact
the outlet from which you purchased the walker.
3. Should any part of the walker require repair or full or part replacement, as
a result of a manufacturing or material defect within the warranty period, parts
will be supplied free of charge. Note: The guarantee is not transferable.
4. Any repaired or replaced parts will be covered by the balance of the
warranty period on the walker.
5. Parts replaced after the original warranty has expired will be covered by a
three-month warranty.
6. Consumable items supplied will not generally be covered during the normal
warranty period unless such items require repair or replacement clearly as a direct
result of a manufacturing or material defect. Such items include (among others):
upholstery and tyres.
7. The above warranty conditions apply to brand new walkers. If you are unsure
whether your walker is covered contact your dealer.
8. Under normal circumstances, no responsibility will be accepted where the walker
has required assistance as a direct result of:
a. the walker part not having been maintained in accordance with the
manufacturer’s recommendations
b. failure to use the manufacturer’s specified parts
c. the walker or part having been damaged due to neglect, accident or improper use
d. the walker or part having been altered from the manufacturer’s specification or
repairs having been attempted before the dealer is notified
In the event of your walker requiring attention, please contact your service agent /
dealer and give all relevant details so they can act quickly.
This warranty is issued free of charge by the manufacturer to the original retail
purchaser of the device. This does not aect your statutory rights.
Drive DeVilbiss Healthcare Ltd. reserves the right to alter without notice any weights,
measurements, or other technical data shown in this manual. All figures,
measurements and capacities shown in this manual are approximate and do not
constitute specifications.

Issue 2020-12 Rev1
Support
For more information, or assistance with use and maintenance, please
contact your provider. Users with visual, reading or cognitive disabilities
should seek advice from their provider or a professional care provider for an
appropriate format. For the latest version of this document, contact Drive
DeVilbiss Healthcare Ltd using the details below, or check our website.
Any serious incident that has occurred in relation to the device should be
reported to the manufacturer and the competent authority of your Member
State. Please quote the product serial code on all correspondence, which can
be found under the seat.
Jiangyin Huashi Medical Equipment Co., Ltd.
No. 589, Hualu Road, Huashi Town,
Jiangyin, Jiangsu Province, 214420 CN
SUNGO Europe B.V.
Olympisch Stadion 24,
1076DE Amsterdam, NL
GB
Drive DeVilbiss Healthcare Ltd
Sidhil Business Park, Holmfield, Halifax
West Yorkshire, HX2 9TN, GB
Drive DeVilbiss Healthcare Ltd provide these
instructions for use and product markings.
[email protected]
www.drivedevilbiss.co.uk
Service & Maintenance Spares Customer Service
Tel: [phone] Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
Dealer stamp
