Devine Onyx Passive 12S User manual

Onyx Passive 12S / 15S / 18S
Passive subwoofer
User manual
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Introduction
Thank you for purchasing this Devine Onyx passive subwoofer. We advise that you read this user manual in
its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that
this product has to offer. Please be sure to check that all of the parts and accessories listed below under box
contents are included in the package. In the event that the product does not function properly, or if you have
any issues while operating it, please remove the plug from the power socket and contact your dealer for
assistance.
Box contents
– Devine Onyx passive subwoofer , in 12, 15 or 18 inches
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
product you receive.
Contact
Devine Pro Audio Products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repair or for a refund, please contact your dealer for an RMA
Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Safety instructions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that need to be repaired or replaced by the user. Should maintenance
or repairs be necessary, they must be handled by a qualified technician.
Important information regarding health and safety
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up, and any hardware or software that may be present should not be
modified.
- To achieve optimal performance, inputs on this device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water, rain and moisture should always be avoided.
Do not place any objects containing liquids on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids, gasses
or objects.
- Disconnect this device from the power supply if it will not be used for a longer period of time, if maintenance
is necessary, or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector, as this could cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device, which could lead to electric
shocks.
Guidelines and operation of this device
- This device is intended for adult use only.
- This device is not suitable for use by children, and should always be operated by an adult.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present, or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impacts and collisions during use and transport. Do not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -
WARNING!
Keep this device away from moisture, water and rain to avoid the chance of electric shocks.

- Should the device not be used in the manner described in this user manual, damages or even injuries could
occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use
of this product.
Storage and transport
- This product is designed for mobile use. It can be transported separately as long as it’s well-protected
against shocks and collisions.
- This device is not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time, it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device s housing frequently, and always just before use. Avoid operating the device if there are
large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should
increase.
Symbol explanation
WEEE Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Only suitable for indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

2
1
5
4
63

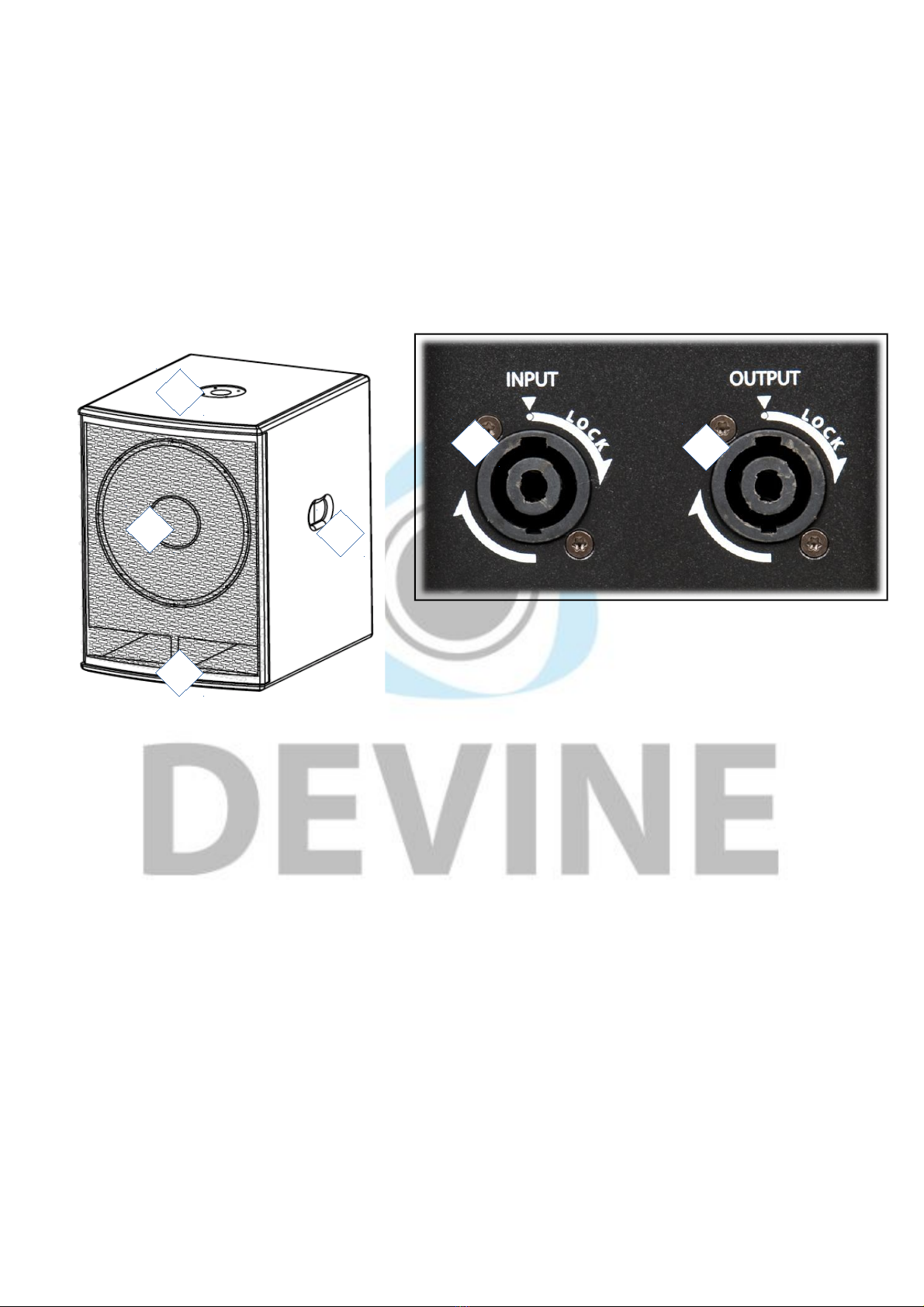

Guidelines and operation of this device
1. speaker input via 4-pin lockable speaker connector
2. speaker parallel output via 4-pin lockable speaker connector
3. handle (varies per model)
4. M20 screw thread flange for speaker pole
5. bass reflex ports
66. low tone speaker
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Operating the device
The Onyx speakers can be used for different purposes, but it s important to be aware of the following
information beforehand in order to achieve optimal performance.
WARNING
The Devine Onyx passive subwoofers are not equipped with a built-in filter or crossover. These subwoofers
are not suitable for full-frequency (20 - 20,000 Hz) reproduction.
Always use an external signal processor or crossover to ensure that only low frequencies are sent to these
subwoofers.
Devine Onyx passive subwoofers perform best with frequencies between 30 and 350 Hz approximately.
Because each setup is likely to be slightly different, it s worth experimenting a little with various crossover
settings to see which one gives best results.
General use
Housing
The Onyx subwoofer has a robust housing with a wooden frame and internal bracing to give it added
strength. The exterior has been given a special coating to protect it from light impacts and help prevent
scratches.
During use, storage and transport, ensure that the subwoofer cannot fall or be damaged by nearby objects
that could fall or move.
Handles
The Onyx subwoofers are equipped with handles on the side. With the exception of the 18-inch model, they
have one handle on each side. Due to its size and weight, the 18-inch subwoofer is equipped with two
handles on each side.
The handles make it easier to pick up and move the subwoofer. It s possible to stack up to two subwoofers
on top of another one for a maximum stack of 3. It s possible to use harnesses or tension straps when
moving the subwoofer but please be aware that this may damage the finish on the handles.
Wheels
The 15-inch and 18-inch subwoofers are equipped with screw threads and bolts for mounting wheels.
Standard 80 or 100 mm wheels from any reputable supplier can be used so long as they have bolt holes
measuring 80 x 60 mm. Fixed or swivel castors are both suitable, with or without brakes. We recommend the
use of wheels with brakes so that the subwoofer won t move and possibly make unnecessary noise during
use.
Whenever the subwoofer is transported in a vehicle like a car, bus or truck, we recommend placing it on its
feet to prevent it from moving.
If you do not want to attach wheels to the subwoofer (because it will be placed in a permanent location, for
instance), we recommend leaving the bolts in place to prevent holes in the housing which will cause
additional air displacement.
Protection during transport
While the Onyx speakers can be transported, they are not waterproof and caution is therefore advised if they
taken outside during rain or in adverse weather conditions. If they are exposed to moisture in any form,
ensure that they are completely dry again before use. Failure to do so may result in a short circuit which
could cause permanent damage or injury. Exposure to moisture can also cause visible or invisible corrosion
which may cause damage in the long term.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Grille
The Onyx subwoofers are equipped with a metal grille on the front to protect the speaker components
behind. There is also acoustic foam behind the grille to prevent any unwanted matter from getting inside the
speaker. The grille should therefore not be removed.
Speaker pole mount
The Devine Onyx subwoofers are equipped with a pole mount with an M20 screw thread. This means that a
suitable speaker pole can be screwed in securely to provide a stable platform for mounting a full-range
speaker on top. Due to a subwoofer s heavier weight and larger dimensions, this setup is space-saving as
well as stable. Naturally, the subwoofer needs to be placed on a flat surface that is capable of holding the
weight of the subwoofer with a speaker on top.
Audio technology
The Onyx speaker series features the very latest in audio technology. By adhering to the following tips and
instructions, you can make the most of everything this speaker has to offer for the very best audio and
performance quality possible.
Using with external equipment
It s possible to use the Onyx subwoofer with external equipment like crossovers, equalisers and speaker
management systems. Bear in mind that using external equipment may change the character of the
speaker s sound.
Using together with a speaker
The Onyx subwoofers are ideal for use with Onyx speakers. For optimal results, it s best to choose a
subwoofer that s a size bigger than your speaker.
Bear in mind that you may need additional equipment in order to set up a complete speaker system. Consult
your dealer for advice. A passive speaker system generally consists of two passive full-range speakers, one
or two passive subwoofers, two amplifiers and a crossover. The crossover separates the frequencies from
the source signal (mixer, DJ controller, tablet, computer etc.) before amplification. Low frequencies are sent
to one amplifier and then passed on the subwoofer(s), while the higher frequencies are sent to the other
amplifier and then passed on to the full-range speakers. Splitting the frequencies in this way gives you the
most efficient and best-sounding results from a passive speaker system.
Using additional equipment like a speaker processing system gives you additional possibilities when it comes
to tweaking the sound and making adjustments that are appropriate for your situation.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Speaker troubleshooting guide
If you have a problem with your speaker, please consult this troubleshooting section for possible solutions. If,
after consulting this section, the problem remains unresolved, please contact your dealer for more
information and/or help.
This troubleshooting section contains information on how to solve the most common speaker problems, but it
does not and cannot cover every eventuality. It is possible that you won t find your problem, cause and
solution in this section due to differences between products.
Problem Possible cause Solution
No sound via one of the inputs Cable not connected properly Make sure that the cable is
properly connected to both the
speaker and the amplifier.
Defective cable Try using another cable to
determine whether the cable is the
problem.
No sound Volume control is not turned up Turn up the volume control on the
signal source and/or amplifier to a
sufficient level.
Red Clip Limiter LED lights up
often or continually
Volume is too high Lower the volume of the input
signal or the amplifier. Overloading
the subwoofer can cause
permanent damage.
Distorted, clipping, crackling sound Source device is transferring a
distorted signal
Check if any of the connected
source devices is transferring a
distorted signal and turn down the
volume on the device if necessary.
Volume control is too loud Turn the volume down
The tone controls for treble and/or
bass are too high or too low.
Turn the tone control back to 12
o clock and listen to see clipping is
still audible.
Woofer or tweeter is defective If a speaker is exposed to a loud,
distorted, or clipped signal for a
longer period of time, this can
cause permanent damage to its
internal components. If you
suspect that the woofer or tweeter
is damaged, contact your local
dealer for assistance.
Subwoofer sound fades or is very
prominent in certain places
Incorrect positioning/acoustics Try repositioning the subwoofer or
using the phase button to see if
that resolves the problem. If the
problem is caused by the
acoustics of the room or
frequencies interfering with one
another, these solutions should
help.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -

Specifications
General specifications for all models
– robust subwoofer in strong plywood housing
– available in 12, 15 and 18 inches
– metal grille
– acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker
– grille covers the front of the subwoofer for optimal protection
– high-quality finish with black scratch-resistant finish
– rubber feet
– M20 pole mount
- connectors: 1x lockable speaker input, 1x lockable speaker output
Technical specifications per model
Model Onyx 12S Onyx 15S Onyx 18S
Frequency range 40 Hz – 150 Hz 35 Hz – 150 Hz 30 Hz – 150 Hz
Power capacity (RMS /
Peak)
450 W / 1800 W 600 W / 2400 W 600 W / 2400 W
Impedance 8 ohms
maximum SPL 120 dB 126 dB 136 dB
Low tone speaker 12-inch woofer with 3-
inch voice coil
15-inch woofer with 4-
inch voice coil
18-inch subwoofer with 4-
inch voice coil
Prepared for wheel
mounts
No Yes Yes
Dimensions 495 x 590 x 540 mm 530 x 700 x 625 mm 610 x 745 x 680 mm
Weight per speaker 23 kg 32 kg 38 kg
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -
