DEVOLA DV12L User manual

Instruction Manual

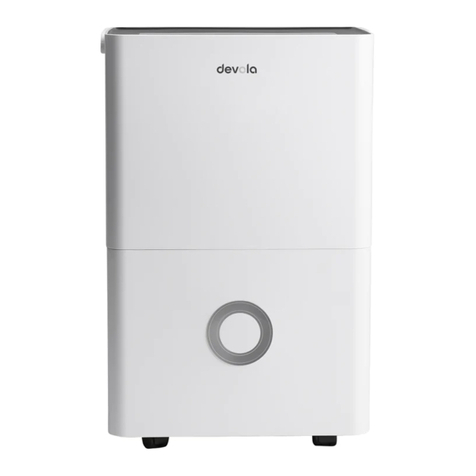

Devola 12L
Compressor Dehumidifier
DV12L | DV12LWF
devola.co.uk

CONTENT
1. BEFORE YOU BEGIN.............................................................................1-2
2. FOR YOUR SAFETY...............................................................................3-7
3. PRODUCT OVERVIEW...........................................................................8-9
4. INSTALLATION....................................................................................10-11
5. OPERATION........................................................................................12-16
6. MAINTENANCE.......................................................................................17
7. TROUBLESHOOTING.............................................................................18
8. DECOMMISSIONING...............................................................................19

- 1 -
1. BEFORE YOU BEGIN
Please read the operating instructions carefully before using your
dehumidifier for the first time.
1.1 PRODUCT DESCRIPTION
The dehumidifier is used to remove excessive moisture from the air. The
resulting reduction in relative humidity protects buildings and their contents
from the adverse effects of excess humidity.
The environmentally friendly R290 is used as the refrigerant. R290 has no
damaging influence on the ozone layer (ODP), a negligible greenhouse effect
(GWP) and is available worldwide. Because of its efficient energy properties,
R290 is highly suitable as a coolant for this application. Special precautions
must be taken into consideration due to the coolant's high flammability.
SYMBOLS FROM THE UNIT AND USER MANUAL
warning
This unit uses a flammable refrigerant.
If refrigerant leaks and comes in contact with fire or heating
part, it will create harmful gas and there is risk of fire.
Read the USER MANUAL carefully before operation.
Further information is available in the USER MANUAL,
SERVICE MANUAL, and the like.
Service personnel are required to carefully read the USER
MANUAL and SERVICE MANUAL before operation.

- 2 -
1.2 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
This appliance is intended to be used by expert or trained users in shops,
in light industry and on farms, or for commercial use by lay persons.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
The unit is designed only for use with R-290(propane) gas as the
designated refrigerant.
The refrigerant loop is sealed. Only a qualified technician should attempt
to service!
Do not discharge the refrigerant into the atmosphere.
R-290 (propane) is flammable and heavier than air.
It collects first in low areas but can be circulated by the fans.
If propane gas is present or even suspected, do not allow untrained
personnel to attempt to find the cause.
The propane gas used in the unit has no odor.
The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from the store,
ventilate the room and contact the local fire department to advise them
that a propane leak has occurred.
Do not let any persons back into the room until the qualified service
technician has arrived and that technician advises that it is safe to return
to the store.
No open flames, cigarettes or other possible sources of ignition should
be used inside or in the vicinity of the units.
Component parts are designed for propane and non-incentive and
non-sparking. Component parts shall only be replaced with identical
repair parts.
FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH,
INJURY AND PROPERTY DAMA

- 3 -
2. FOR YOUR SAFETY
Your safety is the most important thing we concerned!
Please read this manual carefully and fully understand before operating
your dehumidifier.
2.1 OPERATIONAL PRECAUTIONS
WARNING- to reduce the risk of fire, electric shock or injury to persons or property:
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
The A-weighted sound pressure level is below 36 dB.
The appliance shall be disconnected from its power source during
maintenance.
Always operate the unit from a power source of equal voltage, frequency
and rating as indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the unit.
Do not immerse or expose the unit to rain, moisture or any other liquid.
Do not leave the unit running unattended. Do not tilt or turn over the unit.
Do not unplug while the unit is operating.
Do not unplug by pulling on the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or showing signs of
product malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive objects.

- 4 -
The unit shall be installed in accordance with national wiring regulations.
Do not use means to accelerate the defrosting process or to clean, other
than those recommended by the manufacture.
The appliance shall be stored in a room without continuously operation
sources (for example: open flames, an operating gas appliance or an
operating electric heater).
The appliance shall be stored so as to prevent mechanical damage from
occurring.
Do not piece or burn, even after use.
Be aware that refrigerants may not contain an odour.
Pipe-work shall be protected from physical damage and shall not be
installed in an unventilated space, if that space is smaller than 4m².
Compliance with national gas regulations shall be observed.
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes their competence
to handle refrigerants safely in accordance with an industry, recognized
assessment specification.
Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent
in the use of flammable refrigerants.
If you don't understand something or need help, please contact the dealer
services

- 5 -
PLEASE MAKE SURE THE MACHINE WILL KEEP
STANDING UPRIGHT FOR 24 HOURS BEFORE YOUR FIST
TIME USAGE , OR ELSE , IT MAY DAMAGE THE
COMPRESSOR OF DEHUMIDIFIER
2.2 SAFETY PRECAUTIONS ON SERVICING
Please follow these warnings when to undertake the following when servicing
a dehumidifier with R290.
2.2.1 Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimized. For repair
to the refrigerating system, the following precautions shall be complied with
prior to conducting work on the system.
2.2.2 Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the
risk of a flammable gas or vapor being present while the work is being
performed.
2.2.3 General work area
All maintenance staff and others working in the local area shall be instructed
on the nature of work being carried out. Work in confined spaces shall be
avoided. The area around the workspace shall be sectioned off. Ensure that
the conditions within the area have been made safe by control of flammable
material.
2.2.4 Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and
during work, to ensure the technician is aware of potentially flammable
atmospheres. Ensure that the leak detection equipment being used is suitable
for use with flammable refrigerants, i.e. no sparking, adequately sealed or
intrinsically safe.
2.2.5 Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available to

- 6 -
hand. Have a dry powder orCO2 fire extinguisher adjacent to the charging
area.
2.2.6 No ignition sources
No person carrying out work in relation to a refrigeration system which involves
exposing any pipe work that contains or has contained flammable refrigerant
shall use any sources of ignition in such a manner that it may lead to the risk of
fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing,
removing and disposal, during which flammable refrigerant can possibly be
released to the surrounding space. Prior to work taking place, the area around
the equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. “No Smoking” signs shall be displayed.
2.2.7 Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation
shall continue during the period that the work is carried out. The ventilation
should safely disperse any released refrigerant and preferably expel it
externally into the atmosphere.
2.2.8 Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the
purpose and to the correct specification. At all times the manufacturer’s
maintenance and service guidelines shall be followed. If in doubt consult the
manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable
refrigerants:
– The charge size is in accordance with the room size within which the
refrigerant containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are not
obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be
checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and
signs that are illegible shall be corrected;
– refrigeration pipe or components are installed in a position where they are
unlikely to be exposed to any substance which may corrode refrigerant
containing components, unless the components are constructed of materials

- 7 -
which are inherently resistant to being corroded or are suitably protected
against being so corroded.
2.2.9 Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety
checks and component inspection procedures. If a fault exists that could
compromise safety, then no electrical supply shall be connected to the circuit
until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall
be used. This shall be reported to the owner of the equipment so all parties are
advised.
Initial safety checks shall include:
-those capacitors are discharged: this shall be done in a safe manner to avoid
possibility of sparking;
-that there no live electrical components and wiring are exposed while
charging, recovering or purging the system;
-that there is continuity of earth bonding

- 8 -
3. PRODUCT OVERVIEW
3.1 FRONT VIEW
Air Outlet
Control Panel
Front shell
Castors
Back Shell
Continuous drainage hole
Air Filter
Water tank
3 Color indicator light
Power cord

- 9 -
4. INSTALLATION
4.1 LOCATION
1. Place the unit on a firm, level surface in an area with at least 30cm of free
space around it to allow for proper air circulation.
2. Never install the unit where it could be subject to：
Heat sources such as radiators, heat registers, stoves or other products
that products that produce heat.
In an area where oil or water may be splashed
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinet or bookcase
Uneven surface
WARNING
Do not install the unit in a place where inflammable gas may leak.
NOTE
The manufacture may provide other suitable example or may provide
additional information about the refrigerant odour.

- 10 -
4.2 OPERATING THE DEVICE SAFELY
Check the device after unpacking for any damages or scratches on it.
Operate this unit in an ambient temperature from 5°C to 35°C.
Do not use in the outdoors. This dehumidifier is intended for indoor
residential applications only.
Do not operate in close proximity to walls, curtains, or other objects that
may block inlet and outlet.
Keep the air inlet and outlet free of obstacles.
Adjusting the wind deflector in the upward direction prior to start up.
If tipped more than 45°, allow the unit to set upright for at least 6 hours
before start up.
Keep doors and windows close for better energy saving.
Do not operate or store the unit in direct sunlight or rain.
It is normal for air outlet to feel warm to touch after continuous operation on
hot days.
Empty the water tank before moving the device.
Make sure the Water tank is correctly fitted otherwise the unit will not
operate properly.
The dehumidifier starts up in the mode selected when the unit was last
used.
The dehumidifier starts dehumidifying if the room humidity is 3% higher
than the selected humidity.
There is a protective 3-minutes time delay of the compressor. Wait 3
minutes for the dehumidifier to resume dehumidify

- 11 -
5. OPERATION
5.1 CONTROL PANEL
POWER button
Press the power button to turn on the machine, the running indicator lights will
be on and the machine will enter common mode automatically
Press the power button again to turn off the machine, the running indicator
lights will be off and the compressor will stop immediately,the fan will also stop
after 30 seconds later.
MODE button
The machine has 3 modes : Common mode , Continuously dehumidify mode,
Sleeping mode
Press mode button to switch from one to another, the corresponding mode
indicator light will be on after you choose one mode
●Common mode:
Under this mode, the default humidity setting data is 50%RH
When room humidity ≥ setting humidity data +3%, the fan will start working and
compressor will start working after 3 seconds later.
When room humidity ≤ setting humidity data -3%, the compressor will stop
working and fan will stop working after 30 seconds later.
The fan speed setting function and humidity setting function is effective , you
can set fan speed and humidity data under this mode

- 12 -
●Continuously dehumidify mode:
Under this mode, the machine will continuously dehumidify in high fan speed,
The humidity setting function and fan speed setting function is ineffective . You
can not set humidity data and fan speed under this mode.
●Sleeping mode:
Under this mode,the fan speed will automatically switch to low fan speed ,and
after no operation for 10 seconds,besides sleeping mode indicator light , powe
button light and child lock button , other the indicator lights ,like water tank full
alarming indicator and display screen will be off .
When room humidity ≤ 57%RH，the compressor will stop working and the fan
will stop working after 30 seconds later
When room humidity ≥ 63%RH，the fan will start working and compressor will
start working after 3 seconds later.
The fan speed setting function and humidity setting function is ineffective
under this mode, you can not set humidity data and fan speed
Under sleeping mode, when the water tank is full , the machine will not alarm ,
but the water tank full indicator light will be on (red color) to remind you the
water tank is full and you need to clean the water tank
TIMER button
Press timer button to timing the machine when to turn on or turn off for 1~12
hours. 1 hour for one step and press the button one time to plus 1 hour timing,
the display screen will show the setting timing value . and if you want to cancel
the timing function ,set the valve to “00” .
When the machine is under running status, set timing data for when to turn off
the machine;
When the machine is under stand by status, set timing data for when to turn on
the machine.
Humidity setting button
Press humidity setting button to set the humidity data you want from 30% RH

- 13 -
to 80%RH , and 5%RH for one step. The humidity setting will cycle like below :
30%RH- 35%RH - 40%RH - 45%RH - 50%RH - 55%RH- 60%RH - 65%RH
-70%RH - 75%RH- 80%RH-30%RH
The humidity setting function is effective under Common mode, and ineffective
under continuously dehumidify mode and sleeping mode . You can not set
humidity data under continuously dehumidify mode and sleeping mode .
Long press humidity setting button for 3 seconds , the display screen will show
the current room temperature.
Fan Speed button
The machine has two fan speed : High fan speed and low fan speed. Press
this button to switch the fan speed between high fan speed and low fan speed ,
and then the corresponding indicator light will be on.
Fan speed setting function is just effective only under common mode ,and
ineffective under continuously dehumidify mode and sleeping mode . You just
can set fan speed under common mode.
Child-lock button
Long press the child-lock button for 3 seconds to turn on the child-lock
function , the child- lock indicator light will be on ,and you can not operate any
other button under child-lock status .
Press this button again for 3 seconds to turn off the child-lock function, the
child-lock indicator light will be off
Three colors indication function
When the room humidity< 45%RH ,the indicator light will show blue color
When 45%RH≤ room humidity≤65%RH,the indicator light will show green color
When the room humidity>65%RH, the indicator light will show red color
Water Tank Full Indicator
When the water tank is full for 5 seconds, the water tank indicator light will be
on ( turns red color) and the machine will buzze for 5 times to alarm to remind

- 14 -
you to clean the water tank
Clear the water tank full alarm
When the machine alarm for water tank full , press any button to stop the alarm.
You can not operate the machine when machine alarm until you empty the
water tank and return it back to right position of machine body
Information on the App “Smart Life-Smart Living”
The “Smart Life-Smart Living” app is available for android and iOS.
Scan the corresponding QR code to get directly to the download.
Note:
Depending on the provider, there may be costs involoved in downloading the app.
Information on How to Use the App
This appliance allows you to operate the appliance via your home net-work. A prerequisite
is a permanent Wi-Fi connection to your router and the free app “Smart Life-Smart
Living”.
We recommend disconnecting the appliance from the power supply when you are away
from home to prevent unintentional switching on while you are on the road!
Systerm Requirement for Use of the App
iOs 8.0 or higher
Android 4.1 or higher
Commissioning via the App
1. Install the “Smart Life-Smart Living” app. Create a user account.
2. Activate the Wi-Fi function in the settings of your appliance.
3. Place the appliance at a distance of about 5 meters to your router.
4. Press and hold the Timer button for about 5 seconds. The Wi-Fi lamp will flash rapidly.
5. Launch the app and select ”+”.
6. Select the “Air Conditioner” menu and follow the instructions on the display.
7. Once the appliance has been successfully connected, the Wi-Fi lamp lights up. Now you

- 15 -
can operate the appliance using the app.
8. Press and hold the Timer button for about 5 seconds, the appliance disconnect, the
Wi-Fi lamp lights off.
5.2 DRAINAGE
There are two ways of removal collected water produced by the machine
A. Manual drainage by water tank
B. Continuous drainage by connecting water hose to continuous drainage hole
5.2.1 EMPTYING THE WATER TANK
The machine will stop working when the water tank is full , and it will go on
working again once you empty the water tank and return it to machine body
properly
When the water tank is full, The machine will make buzz sound, and the
“Water tank Full” indicator light will be on.
Press the POWER button to turn off the unit.
Pull on the water tank and simply slide out of the body of the dehumidifier.
Empty the water
Clean the inside of the tank as well as the outside.
Return the empty tank back into the machine body correctly
Press the POWER button to resume operating.
If the “Water tank Full “ indicator light does not extinguish,please check the
water tank whether is returned to machine body correctly

- 16 -
5.2.2 CONTINUOUS DRAINAGE
For continuous operation or unattended dehumidification, please connect the
water hose to the machine for continuous drainage. Condensate
water can be automatically flow into a bucket or drain by gravity.
Set the unit in a horizontal surface and stable position.
Switch off the unit before operating.Take out the water tank.
Securely and properly connect the drain hose and make sure it is not
kinked and clear of obstruction.
Place the outlet of hose over a drain or bucket and ensure that water could
freely flow out of the machine.
Do not submerge the end of hose into water; otherwise it can cause "Air Lock"
in the hose,which may result to water leakage
To avoid water spillage:
•As the negative pressure of condensate drain pan is large, tilt the drain
hose downward toward the floor. It is appropriate that the degree of
inclination should exceed 20 degrees.
Straighten the hose to avoid a trap existing in the hose.

- 17 -
6. MAINTENANCE
•CLEANING THE AIR FILTER
Dust collects on the filter and restricts the airflow. The restricted airflow
reduces the efficiency of the system and if it becomes blocked it can cause
damage to the unit.
The air filter requires regular cleaning. The air filter is removable for easy
cleaning. Do not operate the unit without an air filter, or the evaporator may be
contaminated.
1.Remove the filter frame and take off the filter.
2.Use a vacuum cleaner to gently absorb the dust on the surface.
If the filter is very dirty, wash it with water and a soft detergent and dry it
thoroughly afterwards.
Please notice the air filter is Nylon air filter , Additional active carbon filter can
not be washable
3.Put the filter back.
