Preface 5
devolo dLAN 1200+
1Preface
Thank you for placing your trust in this dLAN 1200+.
The dLAN 1200+ allows you to set up your own
home network with almost no effort. Because the
clever dLAN technology transmits the data over the
household electrical wiring, you do not have to lay
any new cables.
1.1 About this manual
Carefully read all instructions before setting up the de-
vice and store the manual and/or installation guide for
later reference.
After a brief introduction to "dLAN" and "Green IT" ba-
sics and a presentation of the dLAN 1200+ in Chapter
2, Chapter 3 will cover successfully setting up your
dLAN 1200+. Chapter 4 explains how to configure
your dLAN network. Tips for bandwidth optimization,
information of environmental compatibility of the de-
vice and our warranty conditions can be found in
Chapter 5 and conclude the manual.
Description of the symbols
Here we briefly describe the meaning of the symbols
used in this manual.
Very important note. Failure to ob-
serve this note may result in damage.
Important note that should be obser-
ved.
Additional information, background mate-
rial and configuration tips for your device.
1.1.1 Intended use
Use the adapter as described in these instructions to
prevent damage and injuries.
1.1.2 CE conformity
This product complies with the technical requirements
of the EMC directive 2004/108/EC and the other rele-
vant provisions of the FTEG, and it is designed for use
in the EU, Norway and Switzerland. The product is
class B equipment.
The CE declaration of this product is separately inclu-
ded (in print).
1.1.3 Safety notes
It is essential to have read and understood all safety
and operating instructions before the devolo device is
used for the first time; keep them safe for future refe-
rence.

6 Preface
devolo dLAN 1200+
DANGER due to electricity
Users should never open devolo devices. Opening
the device poses a risk of electric shock!
Users do not need to carry out any maintenance on de-
volo devices. In the event of damage, disconnect the
devolo device from the mains supply by pulling it or its
plug out of the power outlet. Then contact qualified
specialist personnel (after-sales service) exclusively.
Damage is deemed to have occurred, for example,
쎲if the power cable or plug is damaged
쎲if the devolo device has been showered with
liquid (e.g. rain or water).
쎲if the devolo device is inoperable.
쎲if the housing of the devolo device is damaged.
devolo devices may only be operated using a mains
power supply, as described on the nameplate.
To disconnect devolo devices from the mains supply,
pull the device itself or its mains plug from the power
outlet. The power outlet and all connected net-
work devices should be easily accessible so that
you can pull the mains plug quickly if needed.
devolo devices are designed for indoor use only.
Only use devolo devices at a dry location.
Disconnect devolo devices from the mains sup-
ply to clean! Avoid solvent cleaning agents since they
can cause damage to the housing. Only use a dry towel
for cleaning.
DANGER due to overheating
Batteries should never be exposed to large amounts
of heat, such as direct sunlight, fire or other heat sour-
ces.
Multiple devolo devices must not be interlocked.
devolo devices should only be installed at locations
that guarantee adequate ventilation. Slots and ope-
nings on the housing are used for ventilation:
쎲Do not cover devolo devices when operating.
쎲Do not place any objects on devolo devices.
쎲Do not insert any objects into the openings of
devolo devices.
쎲devolo devices must not be placed directly next
to an open flame (such as fire or candles).
쎲devolo devices must not be exposed to direct
heat radiation (e.g. radiator, direct sunlight).

Preface 7
devolo dLAN 1200+
1.2 devolo on the Internet
For detailed information on our products or "dLAN",
visit www.devolo.com. The Service Centre area con-
tains downloadable product descriptions and docu-
mentation, as well as updates to devolo software and
device firmware.
If you have any further ideas or suggestions related to
our products, we would be delighted to hear from you
at [email protected]!

8 Preface
devolo dLAN 1200+

Introduction 9
devolo dLAN 1200+
2 Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical-
ly via your household electrical wiring, without the
need for complex and expensive dedicated cabling.

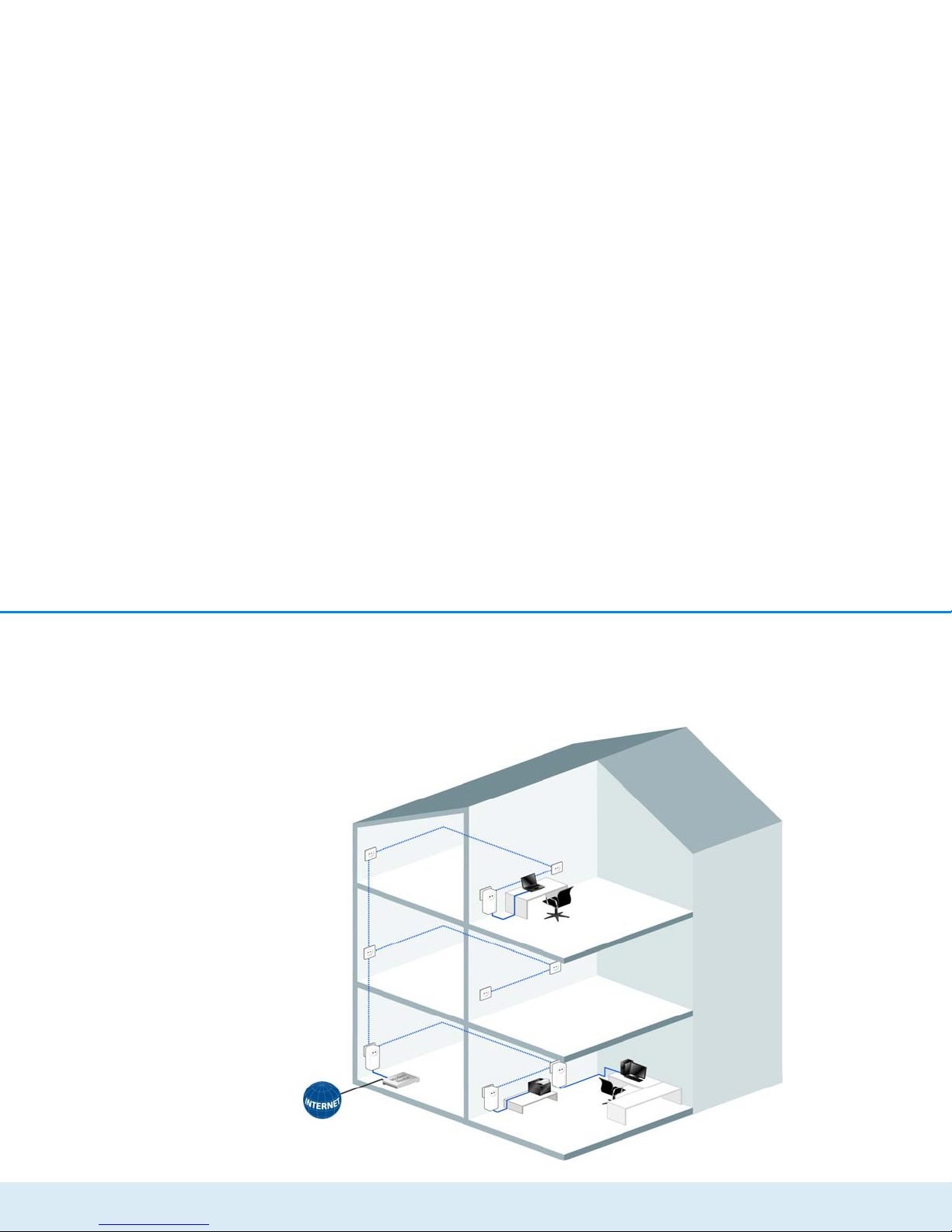

Fig. 1
