DeWalt DXPW3425 User manual

DXPW3425
Pressure Washer
Laveuse à pression
Lavadora a presión
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE
GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE
USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-877-FNA-GAS1 (1-877-362-4271)•www.dewaltpw.com

2
English
A. Panel assembly
B. Nozzle holder
C. Professional spray gun
D. Wheel
E. Quick-connect
spray wand
F. Frame
G. Engine dipstick/oil plug
H. Engine switch
I. Starter grip
J. Engine
K. Throttle control lever
L. Choke control
M.Fuel valve lever
N. Gas cap
O. Handle assembly
P. High pressure hose
Q. High pressure pump
DXPW3425 PRESSURE WASHER
Engine
Refer to the engine instruction manual for location and
operation of other engine controls.
Pump
For best results, pump oil designed specifically for
pressure washers is recommended, as these contain a
rust inhibitor and an anti-foaming agent. If this oil is not
available, an SAE 15W-40 oil may be used.
FIG. 1
J
C
E
AB
Q
N
D
F
O
P
H
G
K
L
MI

3
English
Denitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to these
symbols.
DANGER: Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS
CONTACT US AT: www.dewaltpw.com or 1-877-FNA-GAS1
(1-877-362-4271)
Specications
MODEL WEIGHT HEIGHT WIDTH LENGTH PSI* GPM* ENGINE
DXPW3425 82 lbs
(37.2 kg)
22"
(55.9 cm)
21"
(53.3 cm)
34"
(86.4 cm)
3400
(23442 kPa)
2.5
(9.5 L/min))
HONDA** GX200
196 cc
* Rated Pressure and Rated Water Flow is within manufacturing tolerance of (+/- 10%)
** HONDA™ is a registered trademarks of the HONDA MOTOR CO., LTD used under license from AMERICAN HONDA MOTOR CO. INC.
Important Safety Instructions
DANGER: Carbon Monoxide. Using an engine indoors can kill
you in minutes. Engine exhaust contains high levels of carbon
monoxide (CO), a poisonous gas you cannot see or smell. You
may be breathing CO even if you do not smell engine exhaust.
WARNING: This product and its exhaust contain chemicals
known to the State of California to cause cancer, and birth
defects and other reproductive harm.
 NEVER use an engine inside homes, garages, crawlspaces or
other partly enclosed areas. Deadly levels of carbon monoxide can
build up in these areas. Using a fan or opening windows and doors
does NOT supply enough fresh air.
 ONLY use outdoors and far away from open windows, doors and
vents. These openings can pull in engine exhaust.
            
home. ALWAYS use a battery-powered or battery backup CO
alarm in your house. Read and follow all directions for CO
alarm before using. If you feel sick, dizzy or weak at anytime,
move to fresh air immediately. See a doctor. You could have carbon
monoxide poisoning.

4
English
WARNING: Do not operate this unit until you read this instruction
manual and the engine instruction manual for safety, operation and
maintenance instructions.
WARNING: When using this product basic precautions should
always be followed, including the following:
1. Read all instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when a
product is used near children.
3. Know how to stop the product and bleed pressures quickly. Be
thoroughly familiar with the controls.
4. Stay alert–watch what you are doing.
5. Do not operate the product when fatigued or under the influence of
alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support. Keep good
footing and balance at all times.
8. Follow the maintenance instructions specified in the manual.
DANGER: RISK OF INJECTION OR SEVERE INJURY. KEEP
CLEAR OF NOZZLE. DO NOT DIRECT DISCHARGE STREAM
AT PERSONS. THIS PRODUCT IS TO BE USED ONLY BY
TRAINED OPERATORS.
WARNING: This product may not be equipped with a spark-
arresting muffler. If the product is not equipped and will be used
around flammable materials or on land covered with materials such
as agricultural crops, forest, brush, grass or other similar items,
then an approved spark arrester must be installed and is legally
required in the state of California. It is a violation of California statutes
section 130050 and/or sections 4442 and 4443 of the California
Public Resources Code, unless the engine is equipped with a spark
arrester, as defined in section 4442, and maintained in effective
working order. Spark arresters are also required on some U.S. Forest
Service land and may also be legally required under other statutes and
ordinances.
WARNING: This product and its exhaust contain chemicals
known to the State of California to cause cancer, and birth
defects or other reproductive harm. In addition, some cleaning
products and dust contain chemicals known to the State
of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
SAVE THESE INSTRUCTIONS
DANGER: RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Spilledgasolineandit’s
vapors can become ignited
from cigarette sparks,
electrical arcing, exhaust
gases and hot engine
components such as
the muffler.
 • Shutoffengineandallow
it to cool before adding fuel
to the tank.
 • Usecareinfillingtankto
avoid spilling fuel. Move
pressure washer away
from fueling area before
starting engine.
 • Heatwillexpandfuelinthe
tank which could result in
spillage and possible fire
explosion.
 • Keepmaximumfuellevel
1/2" (12.7 mm) below
bottom of filler neck
to allow for expansion.

5
English
 • Operatingthepressure
washer in an explosive
environment could
result in a fire.
 • Operateandfuelequipment
in well-ventilated areas free
fromobstructions.Equip
areas with fire extinguisher
suitable for gasoline fires.
 • Materialsplacedagainstor
near the pressure washer
can interfere with its proper
ventilation features causing
overheating and possible
ignition of the materials.
 • Neveroperatepressure
washer in an area containing
dry brush or weeds.
 • Mufflerexhaustheatcan
damage painted surfaces,
melt any material sensitive
to heat (such as siding,
plastic, rubber, vinyl or the
pressure hose, itself), and
damage live plants.
 • Alwayskeeppressure
washer a minimum of 4'
(1.2m) away from surfaces
(such as houses, automo-
biles or live plants) that could
be damaged from muffler
exhaust heat.
 • Improperly stored fuel could
lead to accidental ignition.
Fuel improperly secured
could get into the hands of
childrenorotherunqualified
persons.
 • StorefuelinanOSHA
approved container, in a
secure location away from
work area.
 • Useofacids,toxicor
corrosive chemicals,
poisons, insecticides, or any
kind of flammable solvent
with this product could
result in serious injury or
death.
 • Donotsprayflammable
liquids.
DANGER: RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Breathingexhaustfumes
will cause serious injury
or death! Engine exhaust
contains carbon monoxide,
an odorless and deadly gas.
 • Operatepressurewasherin
a well-ventilated area. Avoid
enclosed areas such as
garages, basements, etc.
 • Neveroperateunitinornear
a location occupied by
humans or animals.
 • Somecleaningfluids
contain substances which
could cause injury to skin,
eyes or lungs.
 • Useonlycleaningfluids
specifically recommended
for high pressure washers.
Follow manufacturers
recommendations. Do not
use chlorine bleach or any
other corrosive compound.

6
English
 • Do not allow hose to contact
muffler.
 • Neverattachorremove
wand or hose fittings while
system is pressurized.
 • Whenusingreplacement
lances or guns with this
pressure washer, DO NOT
use a lance and/or lance/
gun combination that
is shorter in length than
what was provided with
this pressure washer as
measured from the nozzle
end of the lance to the gun
trigger.
 • Injuriescanresultifsystem
pressure is not reduced
before attempting
maintenance or
disassembly.
 • Torelievesystempressure,
shut off engine, turn off
water supply and pull gun
trigger until water stops
flowing.
 • Use only accessories rated
equaltoorhigherthan
the rating of the pressure
washer.
DANGER: RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Yourpressurewasher
operates at fluid pressures
and velocities high enough
to penetrate human and
animal flesh which could
result in amputation or
other serious injury. Leaks
caused by loose fittings or
worn or damaged hoses
can result in injection
injuries. DO NOT TREAT
FLUID INJECTION AS
A SIMPLE CUT! See a
physician immediately!
 • Inspectthehighpressure
hose regularly. Replace
the hose immediately if it is
damaged, worn, has melted
from contacting the engine,
or shows any signs of
cracks, bubbles, pinholes, or
other leakage. Never grasp a
high pressure hose that
is leaking or damaged.
 • Nevertouch,graspor
attempt to cover a pinhole or
similar water leak on the high
pressure hose. The stream of
water IS under high pressure
and WILL penetrate skin.
 • Neverplacehandsinfront
of nozzle.
• Directsprayawayfromself
and others.
 • Makesurehoseandfittings
are tightened and in good
condition. Never hold onto
the hose or fittings during
operation.

7
English
DANGER: RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
 • High-velocity fluid spray
can cause objects to break,
projecting particles at high
speed.
 • AlwayswearANSI-approved
Z87.1 safety glasses. Wear
protective clothing to protect
against accidental spraying.
 • Neverpointwandator
spray people or animals.
 • Lightorunsecuredobjects
can become hazardous
projectiles.
 • Alwayssecuretriggerlock
when wand is not in service
to prevent accidental
operation.
 • Neverpermanentlysecure
trigger in pull-back (open)
position.
DANGER: RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Unsafeoperationofyour
pressure washer could lead
to serious injury or death to
you or others.
 • Donotusechlorine
bleach or any other
corrosive compound.
 • Becomefamiliarwiththe
operation and controls of
the pressure washer.
 • Keepoperatingareaclear
of all persons, pets and
obstacles.
 • Donotoperatetheproduct
when fatigued or under the
influence of alcohol or drugs.
Stay alert at all times.
 • Nevercompromisethe
safety features of this
product.
 • Donotoperatemachine
with missing, broken or
unauthorized parts.
 • Neverleavewand
unattended while unit
is running.

8
English
 • Ifproperstartingprocedure
is not followed, engine can
kickback causing serious
hand and arm injury.
 • Ifenginedoesnotstartafter
twopulls,squeezetrigger
of gun to relieve pump
pressure. Pull starter cord
slowly until resistance is felt.
Then pull cord rapidly to
avoid kickback and prevent
hand or arm injury.
 • Thespraygun/wandis
a powerful cleaning tool
that could look like a toy
to a child.
 • Keepchildrenawayfromthe
pressure washer at all times.
 • Reactiveforceofspray
will cause gun/wand to
kickback, and could cause
the operator to slip or fall
or misdirect the spray.
Improper control of gun/
wand can result in
injuries to self and
others.
 • Donotoverreachorstand
on an unstable support.
 • Donotusepressurewasher
while standing on a ladder.
 • Gripgun/wandfirmlywith
both hands. Expect the
gun to kickback when
triggered.
DANGER: RISK OF INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Fueloroilcanleakorspill
and could result in fire or
breathing hazard. Serious
injury or death can result.
Fuel or oil leaks will damage
carpet, paint or other
surfaces in vehicles
or trailers.
 • Oilcouldfillthecylinderand
damage the engine if the unit
is not stored or transported
in an upright position.
 • Ifpressurewasheris
equippedwithafuelshut-
off valve, turn the valve to
the OFF position before
transporting to avoid fuel
leaks. If pressure washer is
notequippedwithafuelshut-
off valve, drain the fuel from
tank before transporting. Only
transport fuel in an OSHA-
approved container.
Always place pressure
washer on a protective mat
when transporting to protect
against damage to vehicle
from leaks.
Always transport and store
unit in an upright position.
Remove pressure washer
from vehicle immediately
upon arrival at your
destination.

9
English
DANGER: RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Spraydirectedatelectri-
cal outlets or switches, or
objects connected to an
electrical circuit, could result
in a fatal electrical shock.
 • Unpluganyelectrically
operated product before
attempting to clean it. Direct
spray away from electric
outlets and switches.
DANGER: RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Useofacids,toxicor
corrosive chemicals,
poisons, insecticides, or any
kind of flammable solvent
with this product could result
in serious injury or death.
 • Donotsprayacids,gasoline,
kerosene, or any other
flammable materials with this
product. Use only household
detergents, cleaners and
degreasers recommended
for use with pressure
washers.
 • Wearprotectiveclothing
to protect eyes and skin
from contact with sprayed
materials.
WARNING: RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Over inflation of tires could
result in serious injury and
property damage.
 • Useatirepressuregauge
to check the tires pressure
before each use and while
inflating tires; see the tire
sidewall for the correct tire
pressure.
NOTE: Air tanks,
compressors and similar
equipmentusedtoinflate
tires can fill small tires similar
to these very rapidly. Adjust
pressure regulator on air
supply to no more than the
rating of the tire pressure.
Add air in small increments
andfrequentlyusethe
tire gauge to prevent over
inflation.

10
English
 • High-velocityfluidspray
directed at pneumatic tire
sidewalls (such as found on
automobiles, trailers and
the like) could damage the
sidewall resulting in serious
injury.
 • Onpressurewashers
rated above 1600 psi
(11032kPa) use the widest
fan spray (40º nozzle) and
keep the spray a minimum
of 8" (200 mm) from the
pneumatic tire sidewall. Do
not aim spray directly at the
joint between the tire and
rim.
WARNING: RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Contactwithhotsurfaces,
such as engines exhaust
components, could result in
serious burn.
 • Duringoperation,touch
only the control surfaces
of the pressure washer.
Keep children away from
the pressure washer at all
times. They may not be able
to recognize the hazards of
this product.
WARNING: RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
 • Seriousinjurycanresult
from attempting to lift too
heavy an object.
 • Thepressurewasheristoo
heavy to be lifted by one
person. Obtain assistance
from others before lifting.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
INSTALLATION
Pressure Washer Assembly (Fig. 1–6)
1. Place handle (O) onto frame (F) and
R
F
O
R
FIG. 2
secure with saddle bolts and knobs
(R).
CAUTION: Risk of personal injury.
Avoid placing hands between handle
and frame when assembling to prevent
pinching.

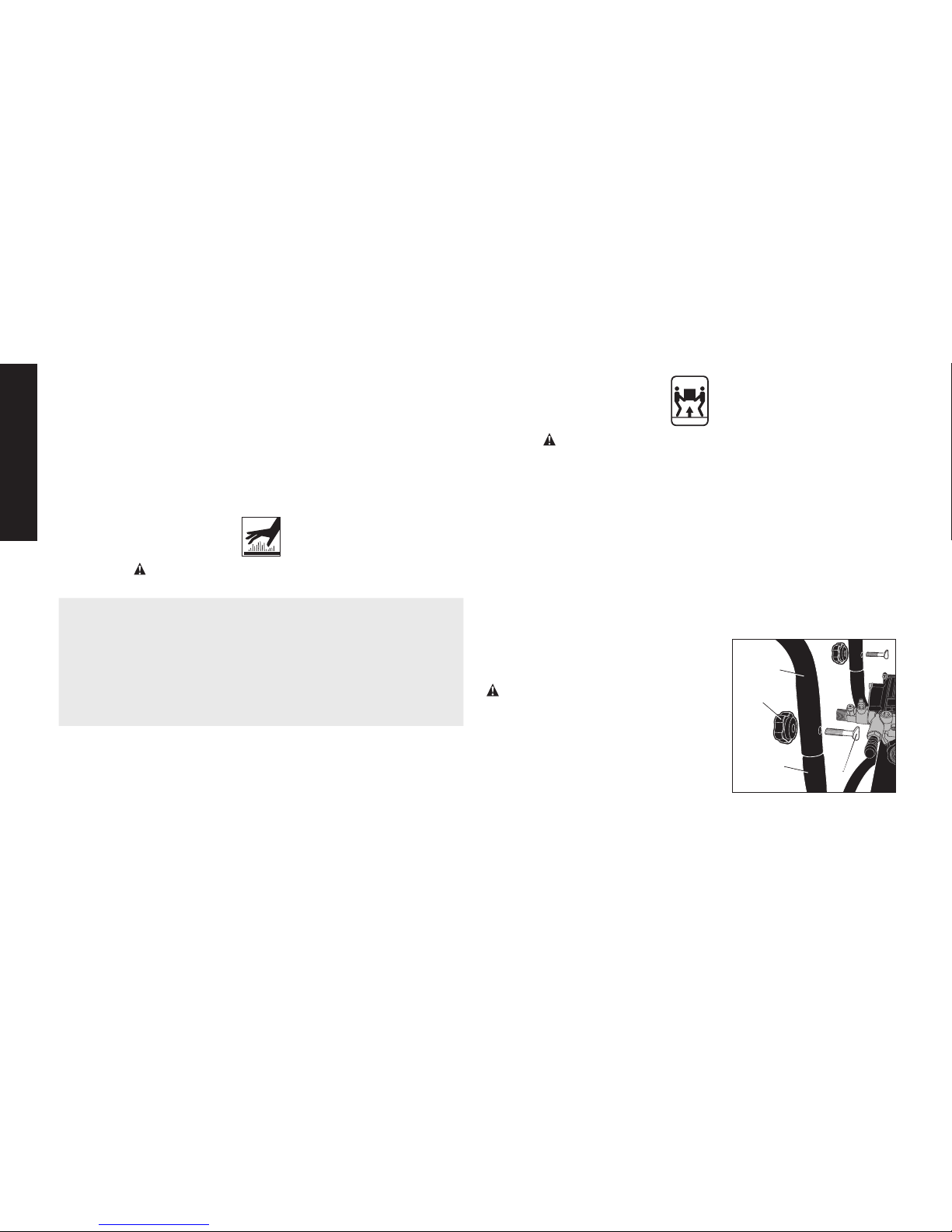

2. Attach high pressure hose (P) to
spray gun. Make sure it is secure.
3. Connect wand (E) to spray gun.
Make sure connection is secure.

11
English
NOTE: Air tanks, compressors and similar equipment used to
inflate tires can fill small tires similar to these very rapidly. Adjust
pressure regulator on air supply to no more than the rating of the
tirepressure.Addairinsmallincrementsandfrequentlyusethe
tire gauge to prevent over inflation.
OPERATION
Pressure Adjustments
The pressure setting is preset at the factory to achieve optimum
pressure and cleaning. To lower the pressure, follow these instructions.
1. Back away from the surface to be cleaned. The further away you
are, the less the pressure will be on the surface to be cleaned.
2. Change to the 40˚ nozzle (white). This nozzle delivers a less
powerful stream of water and a wider spray pattern. Refer to
Spray Wand Nozzles.
NOTICE: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage the pump.
Spray Wand Nozzles (Fig. 1, 7)
The nozzles for the spray wand are stored in the nozzle holder (B) on the
panel assembly (A). Colors on the panel identify nozzle location and spray
pattern. Refer to the following chart to choose the correct nozzle for
the job to be performed.
FIG. 3
E
P
FIG. 4
4. Place the nozzle holder (B) onto the panel assembly (A) and push
each nozzle holder into place.
 5.Removethefivecoloredquick-connectnozzlesfromtheplasticbag
and insert them into correct grommet on the nozzle holder. Nozzles
are color coded to match colored nozzles on panel assembly.
B
A
FIG. 5 FIG. 6
NOTE: The high pressure pump was filled with oil at the factory.
Always check oil level before using (refer to Maintenance for more
information).
WARNING: Risk of bursting. Use a tire pressure gauge to check the
tires pressure before each use and while inflating tires; see the tire sidewall
for the correct tire pressure.

12
English
Nozzle Color Spray Pattern Uses Surfaces***
Red
0˚ powerful
pinpoint for very
intense cleaning
metal or
concrete;
DO NOT use on
wood
Yellow
15˚ intense cleaning
of small areas
metal, concrete
or wood
Green
25˚intense cleaning
of larger areas
metal, concrete
or wood
White
40˚covers wide
areas of
cleaning
metal, concrete,
wood or vinyl
Black
low pressure applies cleaning
solutions
metal, concrete,
wood or vinyl
*** NOTICE: The high pressure spray from your pressure washer
is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, delicate objects such
as flowers and shrubs. Before spraying, check the item to
be cleaned to assure yourself that it is strong enough to resist
damage from the force of spray.
CHANGING NOZZLES ON SPRAY WAND (FIG. 7)
DANGER: Risk of fluid injection. Do not direct discharge stream
toward persons, unprotected skin, eyes or any pets or animals.
Serious injury will occur.
WARNING: Flying objects could cause risk of serious injury. DO
NOT attempt to change nozzles while pressure washer is running. Turn
engine off before changing nozzles.
 1.Pullquick-connectcouplerbackandinsert FIG. 7
nozzle.
 2.Release quick-connect coupler and twist
nozzle to make sure it is secure in coupler.
WARNING: Flying object could cause risk
of serious injury. Ensure nozzle is completely
inserted in quick-connect socket and quick-
connect collar is fully engaged (forward) before
squeezing gun trigger.
Chemicals and Cleaning Solvents
Applying chemicals or cleaning solvents is a low-pressure operation.
NOTE: Use only soaps and chemicals designed for pressure washer
use. Do not use bleach.
TO APPLY CHEMICALS AND SOLVENTS (FIG. 8)

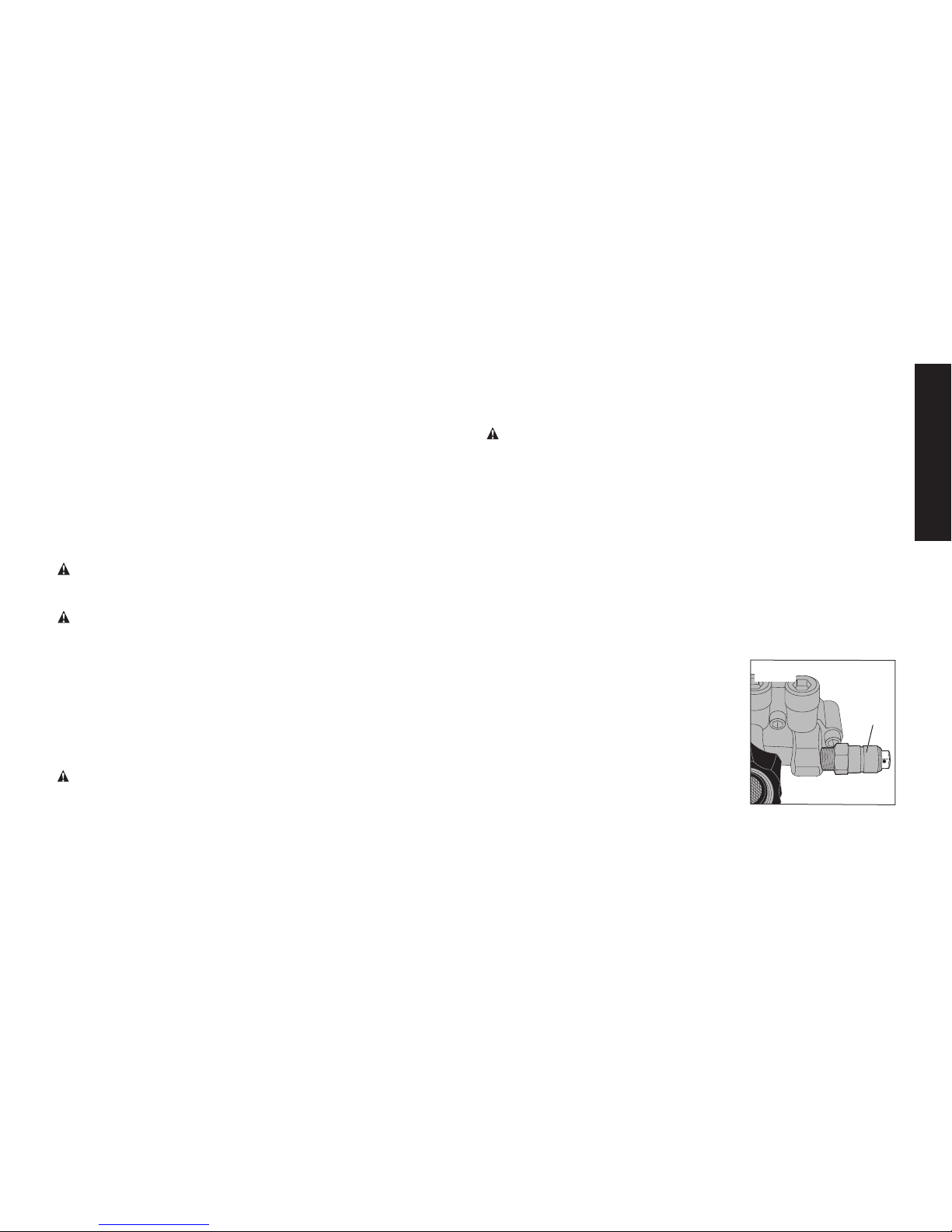

1. Press chemical hose (S) onto barbed
S
FIG. 8
fitting located near high pressure hose
connection of pump as shown.
2. Place the other end of chemical hose
with filter into the container holding
chemical/cleaning solution.
NOTE: For every 10 gallons (38 liters)
of water pumped 1 gallon (3.8 liters) of
chemical/cleaning solution will be used.

13
English
 3.Install low-pressure(black) nozzle intoquickconnectfittingof spray
wand, refer to Spray Wand Nozzles.
NOTE: Chemicals and soaps
will not siphon if the black soap nozzle is not installed on the spray
wand.
4. After use of chemicals, place chemical hose into container of clean
water and draw clean water through chemical injection system to rinse
system thoroughly.
NOTICE: Risk of property damage. Failure to do so could cause
damage to the pump.
Pumps damaged due to chemicals will not be covered under
warranty.
Starting
WARNING: To reduce the risk of injury, read the pressure washer
instruction manual and the engine instruction manual before starting
pressure washer.
DANGER: Risk of fluid injection and laceration. When using the
high pressure setting, DO NOT allow the high pressure spray to come
in contact with unprotected skin, eyes, or with any pets or animals.
Serious injury will occur.
         
enough to penetrate human and animal flesh, which could result
in amputation or other serious injury. Leaks caused by loose
fittings or worn or damaged hoses can result in injection injuries.
DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a
physician immediately!
DANGER: Carbon Monoxide. Using an engine indoors can kill
you in minutes. Engine exhaust contains high levels of carbon
monoxide (CO), a poisonous gas you cannot see or smell. You
may be breathing CO even if you do not smell engine exhaust.
         
Engine exhaust contains carbon monoxide, an odorless and
deadly gas.
        
enclosed areas such as garages, basements, etc.
 
animals.
WARNING: Risk of fire, asphyxiation and burning. Never fill fuel tank
when engine is running or hot. Do not smoke when filling fuel tank.
  fill fuel tank completely. Fill tank to 1/2" (12.7 mm) below
bottom of filler neck to provide space for fuel expansion. Wipe any
fuel spillage from engine and equipment before starting engine.
 DO NOT let hoses come in contact with very hot engine
muffler during or immediately after use of your pressure
washer. Damage to hoses from contact with hot engine
surfaces will NOT be covered by warranty.
NOTICE:         
This could damage hose and/or pump inlet.
 DO NOT use hot water, use cold water only.
  turn water supply off while pressure washer engine is
running or damage to pump will result.
 DO NOT stop spraying water for
T
FIG. 9
more than two minutes at a time.
Pump operates in bypass mode
when spray gun trigger is not
pressed. When the temperature
inside the pump rises too high the
thermal relief valve (T, Fig. 9) will open
and release a gush of water in an
effort to lower the temperature inside
the pump. The thermal relief valve will
then close. If pump is left in bypass mode for more than two
minutes internal components of the pump can be damaged.

14
English

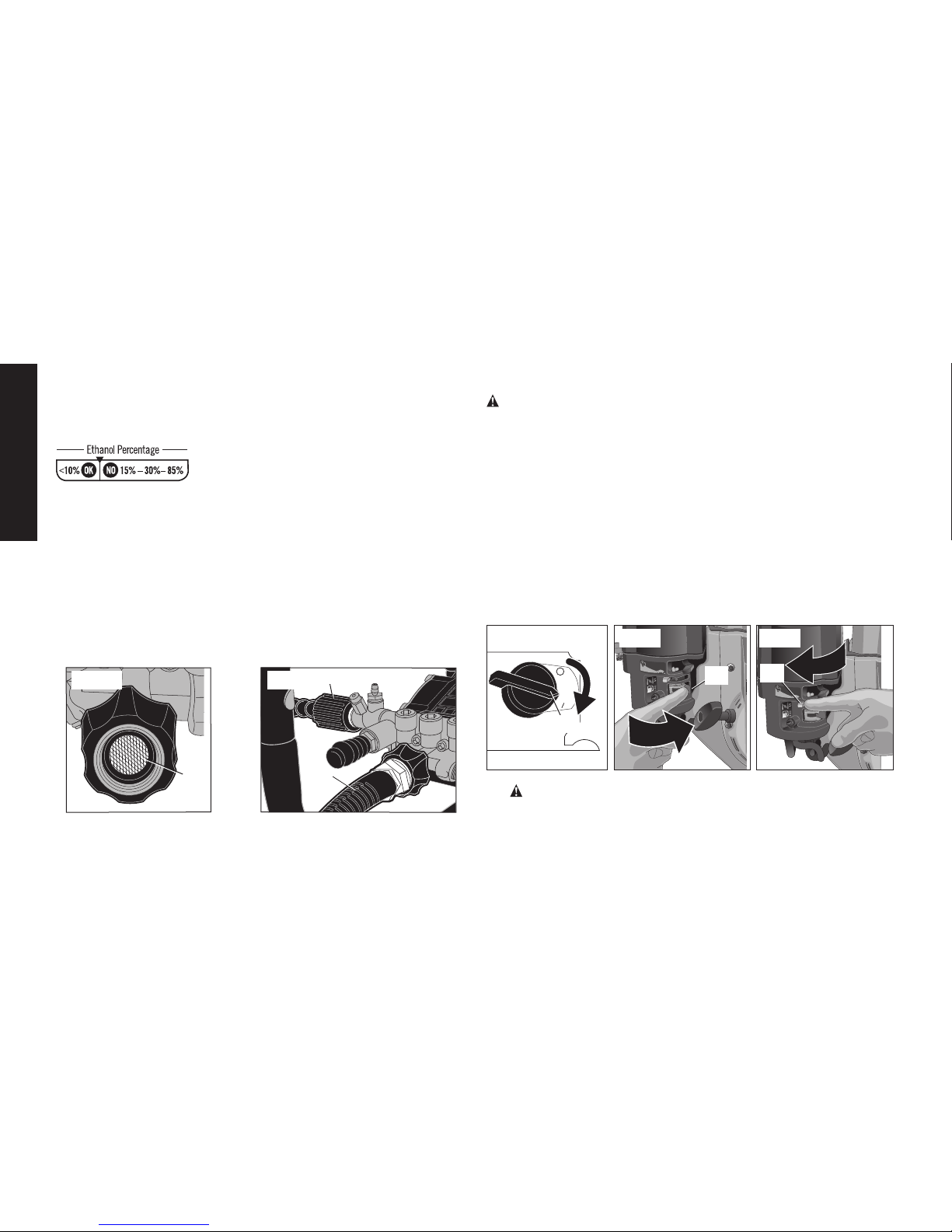

START-UP PROCEDURE (FIG. 1, 10–16)
 1.In a well-ventilated outdoor area, add fresh, high-quality, unleaded
gasoline with a pump octane rating of 86 or higher. Do not overfill.
Wipe up spilled fuel before starting the engine. Refer to engine
instruction manual for correct procedure.
NOTICE: Use of fuels with greater than 10%
ethanol are not approved for use in this
product per EPA regulations and will damage
the unit and void the warranty.
2. Check engine oil level. Refer to the engine instruction manual for
correct procedure.
3. Check pump oil level. The oil level should come to the dot in the
middle of the sight glass. Refer to the Pump paragraph under
Maintenance.
4. Connect the water hose to the water source. Turn the water source
on to remove all air from the hose. When a steady stream of water is
present, turn the water source off.
5. Verify the filter screen (U) is in water inlet of pump. The convex side
faces out.
UV
P
FIG. 10 FIG. 11
6. Connect the cold water source (V) to pump inlet.
NOTE: Water source must provide a minimum of 5 gallons per minute
at 20 psi (138 kPa).
WARNING: To reduce the possibility of contamination always
protect against backflow when connected to a potable water system.
7. Connect high pressure hose (P) to pump outlet.
8. If applying a chemical or cleaning solution, refer to Chemicals and
Cleaning Solvents.
9. Turn the water source on.
NOTICE: Risk of property damage. Failure to do so could cause
damage to the pump.
10. Remove all air from the pump and high pressure hose by depressing
trigger until a steady stream of water is present.
11. Turn the engine ON/OFF switch (H) to the ON position.
12. Place the fuel valve lever (M) in the ON position.
13.
If the engine is cold, move the choke (L) to the CLOSED position
as shown.
OFF
ON
M
H
L
FIG. 12 FIG. 13 FIG. 14
14. WARNING: Risk of unsafe operation. Pull starter grip slowly
until resistance is felt. Then pull starter grip (I) rapidly to avoid
kickback and prevent hand or arm injury.
NOTE: Do not allow the starter grip to snap back. Return it gently by
hand.

15
English
WARNING: Risk of unsafe operation. If engine does not start after
two pulls, squeeze trigger of gun to relieve pump pressure. Pull starter
cord slowly until resistance is felt. Then pull cord rapidly to avoid
kickback and prevent hand or arm injury.
NOTE: If the oil level in the engine is low, the engine will not start. If
the engine does not start, check the oil level and add oil as needed.
15. As the engine warms up, move the choke to the OPEN position.
FIG. 15
X
FIG. 16
16. Depress trigger on gun to start water flow.
WARNING: Risk of unsafe operation. Stand on a stable surface
and grip gun/wand firmly with both hands. Expect the gun to kickback
when triggered.
17. Release trigger to stop water flow.
DANGER: Risk of injury from spray. Engage the trigger lock (X)
when gun is not in use to prevent accidental spraying.
18.Adjust spray for the task being performed by changing quick
connect nozzle. Refer to Spray Wand Nozzles.
Shutting Down (Fig. 17, 18)
1. If chemicals were applied, place the chemical hose into a container
of clean water and draw clean water through chemical injection
system to rinse system thoroughly.
NOTICE: Risk of property damage Failure to do so could cause
damage to the pump.
2. Place the engine ON/OFF switch (H) to the OFF Position.
3. Place the fuel valve lever (M) in the OFF position.
OFF
ON
H
FIG. 17 FIG. 18
NOTICE: Risk of property damage.  turn water supply off while
pressure washer engine is running or damage to pump will result.
4. Turn water source off.
5. Pull trigger on spray gun to relieve any water pressure in hose or
spray gun.
6. Refer to Storage for proper storage procedures.
MAINTENANCE
WARNING: Risk of burning. When performing maintenance, you
may be exposed to hot surfaces, water pressure or moving parts that
can cause serious injury or death.
WARNING: Risk of fire. Always disconnect, spark plug wire, let
the engine cool and release all water pressure before performing any
maintenance or repair. The engine contains flammable fuel. Do not
smoke or work near open flames while performing maintenance.

16
English
To ensure efficient operation and longer life of your pressure washer,
a routine maintenance schedule should be prepared and followed.
If the pressure washer is used in unusual conditions, such as high
temperaturesordustyconditions,morefrequentmaintenancechecks
willberequired.
Engine
Consult the engine instruction manual for the manufacturer's
recommendations for any and all maintenance.
NOTE:Thepressurewasherframeisequippedwithanoildrainhole
to help make changing the engine oil easier.
Pump (Fig. 19)
NOTE: The Pump was filled with oil at the factory. The preferred oil is
SIMPSON®Premium Pump Crankcase Oil. If this oil is not available,
an SAE 15W-40 oil may be used. Change the pump oil after the
first 50 hours of operation and every 100 hours thereafter, or every
3months.
TO CHECK OIL
The oil level should come to the dot in the middle of the sight glass
(AA).
HOW TO CHANGE PUMP OIL
1. Loosen pump oil fill plug (BB).
2. Place a container under the pump oil drain plug (CC).
3. Remove pump oil drain plug.
4. After oil is drained, replace pump oil drain plug. Tighten securely.
5. Refill pump using SIMPSON®Premium Pump Crankcase Oil. If this
oil is not available, an SAE 15W-40 oil may be used.
6. Replace pump oil fill plug and tighten securely.
BB
CC
AA
FIG. 19
Nozzle Cleaning (Fig. 20–21)
If the nozzle becomes clogged with foreign materials, such as dirt,
excessive pressure may develop. If the nozzle becomes partially
clogged or restricted, the pump pressure will pulsate. Clean the
nozzle immediately using the nozzle kit supplied and the following
instructions:
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on gun handle to relieve any water pressure.
3. Disconnect the spray wand from the gun.
4. Remove the high pressure nozzle from the spray wand. Remove
any obstructions with the nozzle cleaning tool (Y) provided and
back flush with clean water.
Y
FIG. 20 FIG. 21

17
English
5. Direct water supply into spray nozzle to back flush loosened
particles for 30 seconds.
6. Reassemble the nozzle to the wand.
7. Reconnect spray wand to gun then turn on water supply.
8. Start pressure washer and place spray wand into high pressure
setting to test.
To Clean the Water Inlet Filter (Fig. 10)
This filter screen (U) should be checked periodically and cleaned if
necessary.
1. Remove the filter screen (U) by grasping the end and removing it
from water inlet of pump.
2. Clean filter by flushing it with water on both sides.
3. Reinsert filter into water inlet of pump. C
onvex side faces out.
NOTE: Do not operate pressure washer without filter properly
installed.
STORAGE
Engine
Consult the engine instruction manual for the manufacturer's
recommendations for storage.
Pump
The manufacturer recommends using SIMPSON®/ POWERWASHER®
Pump Guard or equivalent when storing the unit for more than 30
days and/or when freezing temperatures are expected. SIMPSON®/
POWERWASHER® Pump Guard is environmentally friendly.
NOTE: Using pump guard helps provide proper lubrication to the
internal seals of the pump regardless of temperature or environment.
NOTICE: Risk of property damage. Use only SIMPSON®/
POWERWASHER® Pump Guard or equivalent. Other products could
be corrosive and/or contain alcohol which may cause pump damage.
1. Turn off pressure washer and disconnect hoses from pump.
2. Unscrew bottle valve from Pump Guard bottle and remove seal.
3. Screw bottle valve back onto bottle.
4. Attach bottle to water inlet of pump.
 5.Squeezebottletoinjectcontentsintopump.
6. With ignition switch off, simultaneously pull starter rope and
squeeze bottle. Repeat until protector fluid exits pump outlet.
NOTE: Thisstepmayrequiretwopeople.
Pressure Washer
1. Drain all water from high pressure hose, coil it and store it in
cradle of the pressure washer handle.
2. With nozzle pointed down and the spray gun and wand in a
verticalposition,squeezetriggertodrainallwaterfromspraygun
and wand. Store in gun holder.
3. Store chemical hose so it is protected from damage.
CAUTION: Risk of personal injury. Avoid placing hands between
handle and frame when assembling to prevent pinching.
NOTICE: Risk of property damage. Always store and transport unit
in an upright position.
ACCESSORIES
Recommended accessories for use with your tool are available for
purchase from your local dealer or authorized service center. If you
need assistance in locating any accessory for your tool, please contact
the FNA Group at www.dewaltpw.com, 1825 Greenleaf Avenue, Elk
Grove Village, Il 60007, or call (877) FNA-GAS1.

18
English
DANGER: Risk of fluid injection. When using replacement lances
or guns with this pressure washer, DO NOT use a lance and/or lance/
gun combination that is shorter in length than what was provided with
this pressure washer as measured from the nozzle end of the lance to
the gun trigger.
WARNING: The use of any other accessory not recommended
for use with this tool could be hazardous. Use only accessories rated
equal to or higher than the rating of the pressure washer.
SERVICE INFORMATION
Please have the following information available for all service calls:
Model Number ____________ Serial Number ___________
Date and Place of Purchase ___________________________________
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by a FNA factory service center,
aFNAauthorizedservicecenterorotherqualifiedservicepersonnel.
Always use identical replacement parts.
Limited Warranty
The manufacturer of this product agrees to repair or replace designated
parts that prove defective within the warranty period listed below at the
manufacturer’s sole discretion. Specific limitations/extensions and
exclusions apply.
This warranty covers defects in material and workmanship and not
parts failure due to normal wear, depreciation, abuse, accidental
damage, negligence, improper use, maintenance, water quality or
storage. To make a claim under the terms of the warranty, all parts said
tobedefectivemustberetainedandavailableforreturnuponrequest
to a designated Warranty Service Center for warranty inspection. The
judgments and decisions of the manufacturer concerning the validity
of warranty claims are final.
These warranties pass through to the end user and are non-
transferable. As a factory authorized and trained Warranty Service
Center, the factory will honor the terms of all component warranties
and satisfy claims of the appropriate warranty provisions.
Normal wear items include, but are not limited to, valves and seals,
which are not covered by this warranty.
This warranty replaces all other warranties, express or implied,
including without limitation any warranties of merchantability or fitness
for a particular purpose and all such warranties are hereby disclaimed
and excluded by the manufacturer. The manufacturer’s warranty
obligation is limited to repair and replacement of defective products as
provided herein and the manufacturer shall not be liable for any further
loss, damages, or expenses – including damages from shipping,
accident, abuse, acts of God, misuse, or neglect. Neither is damage
from repairs using parts not purchased from the manufacturer or
alterations performed by non-factory authorized personnel. Failure to
installandoperateequipmentaccordingtotheguidelinesputforthin
the instruction manual shall void warranty.
This warranty does not cover the following: machines used for
rental purposes, damage resulting from shipping (claims must be
filed with freighter), accident, abuse, act of God, misuse, or neglect.
Neither is damage from repairs or alterations performed by non-
factoryauthorizedpersonnelorfailuretoinstallandoperateequipment
according to the guidelines put forth in the instruction manual.
Themanufacturerwillnotbeliabletoanypersonsforconsequential
damage, for personal injury, or for commercial loss.
WARRANTY DOES NOT APPLY TO FAILURES DUE TO:
 • Freightdamage

19
English
 • Damage due to chemical deterioration, scale build up, rust,
corrosion or thermal expansion
 • Freezedamage
 • Damage caused by parts or accessories not obtained from an
authorized dealer or not approved by the manufacturer.
 • Normalwearofmovingpartsorcomponentsaffectedbymoving
parts.
ENGINE
Covered by engine manufacturer warranty. See engine manual.
HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND
WORKMANSHIP)
Five (5) years from date of purchase.
FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)
Ten (10) year from date of purchase.
OTHER COMPONENTS (DEFECTS IN MATERIAL AND
WORKMANSHIP)
Includes nozzles, hoses, spray guns, wands, tires, feet
Ninety (90) days from date of purchase.
Glossary
Bypass mode: Allows water to re-circulate within pump when the gun
trigger is not pulled.
Chemical hose: Feeds cleaning agents into the pump to mix with the
water. Refer to Chemicals and Cleaning Solvents.
Chemical injection system: Mixes cleaners or cleaning solvents with
water to improve cleaning effectiveness.
Choke control: Opens and closes carburetor choke valve.
CU: Cleaning Units. GPM multiplied by psi. (GPM x PSI = CU)
Fuel valve lever: Opens/closes connection between fuel tank and
carburetor.
GPM: Gallons Per Minute. The unit of measure for the flow rate of
water.
PSI:PoundsperSquareInch.Theunitofmeasureforwaterpressure.
Also used for air pressure, hydraulic pressure, etc.
kPa (kilopascal): Metricpressuremeasurement.1 kilopascalequal
1000 pascals.
Quick-connect spray wand: Allowstheusertoquicklychangeout
high pressure nozzles. Refer to Spray Wand Nozzles.
Thermal relief valve: When the temperature inside the pump rises
too high the valve will open and release a gush of water in an effort
to lower the temperature inside the pump. The valve will then close.
Water supply: All pressure washers must have a source of water. The
minimumrequirements for awatersupplyare20 psi(138kPa)and
5gallons per minute.

20
English
Troubleshooting Guide
Thissectionprovidesalistofthemorefrequentlyencounteredmalfunctions,theircausesandcorrectiveactions.Theoperatorormaintenance
personnelcanperformsomecorrectiveactions,andothersmayrequiretheassistanceofaqualifiedFNAtechnicianoryourdealer.
Problem Code
Engine will not start ........................................................................................................1, 2, 3, 4, 5, 6, 7, 8, 36
(refer to the engine's instruction manual for further engine troubleshooting)
No or low pressure (initial use) ........................................................................................9, 10, 11, 12, 13, 14, 15, 16
Will not draw chemicals ..................................................................................................16, 17, 18, 19, 20, 21
No or low pressure (after period of normal use) ..............................................................22, 23, 24
Water leaking at gun/spray wand connection .................................................................25, 26
Water leaking at pump....................................................................................................25, 26, 27, 28
Oil leaking at pump .........................................................................................................29, 30, 31, 32, 33, 34, 35
Pump Pulsates................................................................................................................12
Troubleshooting Codes
CODE POSSIBLE CAUSE POSSIBLE SOLUTION
1No fuel. Add fuel.
2Low oil. Addrequiredamountofoil.
3Pressure builds up after two pulls on the recoil starter or after
initial use. Squeezeguntriggertorelievepressure.
4Choke lever in the NO CHOKE position. Move choke to the CHOKE position.
5Spark plug wire not attached. Attach spark plug wire.
6Engine ON/OFF switch in OFF position. Place engine ON/OFF switch in ON position.
7Choke lever in the CHOKE position on a hot engine or an engine
that has been exposed to thermal heat for a long period of time. Move choke to the NO CHOKE position.
8Fuel valve CLOSED. Move the fuel valve lever to the OPEN position.
9Spray wand not in high pressure. See Spray Wand Nozzles under Operation.
