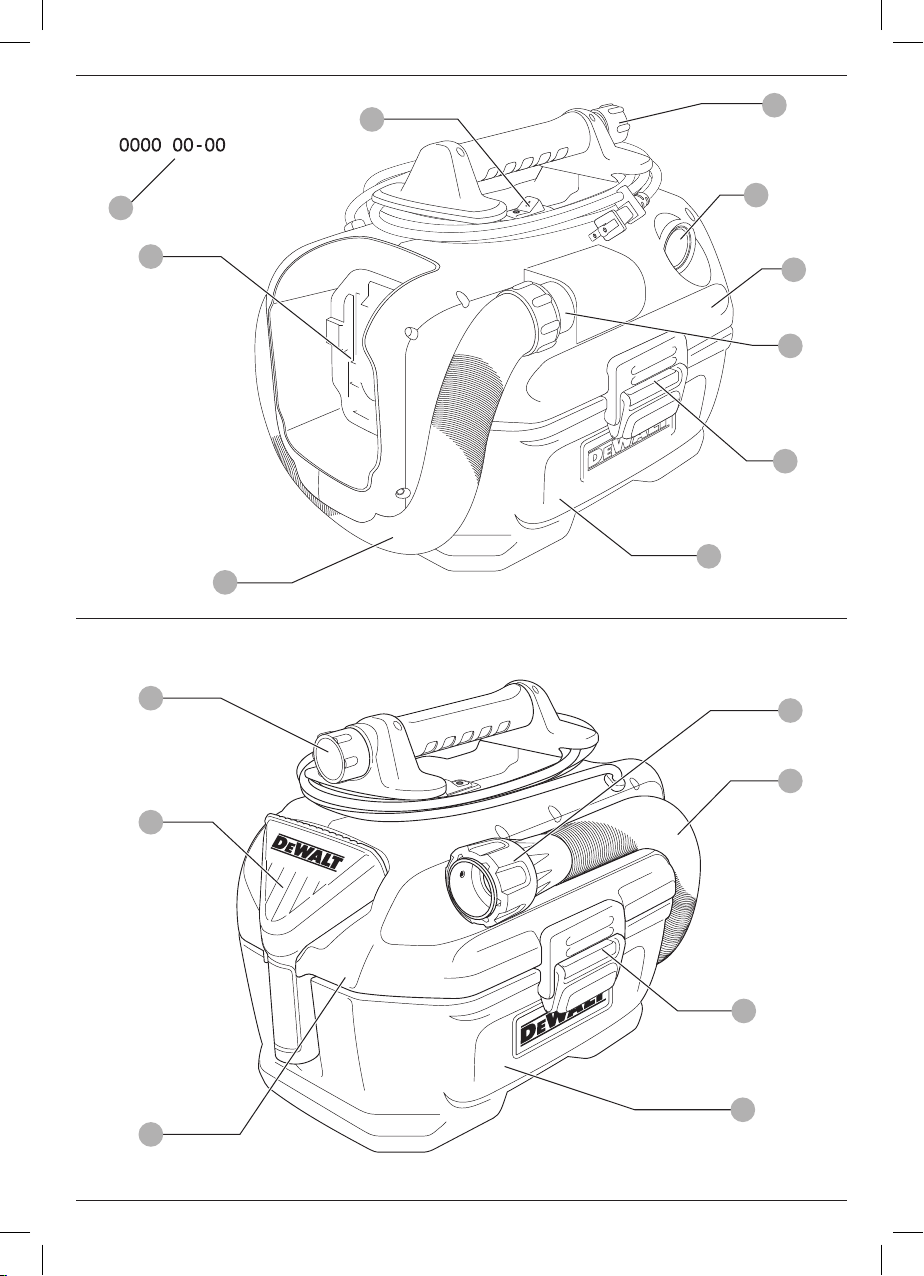

Fig. A
Fig. B
10
18
5
2
4
6
3
9
11
9
6
3
2
7
8
20

2
Fig. D Fig. E
Fig. C
13
10
14
15 11
4
15
5
15
11
12
19

3
Fig. G
Fig. F
3
2
16
6
16
18
17

4
ENGLISH
Battery pack DCB141 DCB142
Battery type Li-Ion Li-Ion
Voltage VDC 14.4 14.4
Capacity Ah 1.5 4.0
Weight kg 0.30 0.54
Battery pack DCB143 DCB144 DCB145
Battery type Li-Ion Li-Ion Li-Ion
Voltage VDC 14.4 14.4 14.4
Capacity Ah 2.0 5.0 1.3
Weight kg 0.30 0.52 0.30
Battery pack DCB181 DCB182
Battery type Li-Ion Li-Ion
Voltage VDC 18 18
Capacity Ah 1.5 4.0
Weight kg 0.35 0.61
Battery pack DCB183/B DCB184/B DCB185
Battery type Li-Ion Li-Ion Li-Ion
Voltage VDC 18 18 18
Capacity Ah 2.0 5.0 1.3
Weight kg 0.40/0.45 0.62/0.67 0.35
Battery pack DCB546
Battery type Li-Ion
Voltage VDC 18/54
Capacity Ah 6.0/2.0
Weight kg 1.05
Charger DCB107
Mains voltage VAC 230
Battery type 10.8/14.4/18 Li-Ion
Approx. charging time of
battery packs
min 60 (1.3 Ah) 70 (1.5 Ah) 90 (2.0 Ah)
140 (3.0 Ah) 185 (4.0 Ah) 240 (5.0 Ah)
Weight kg 0.29
Charger DCB112
Mains voltage VAC 230
Battery type 10.8/14.4/18 Li-Ion
Approx. charging time of
battery packs
min 40 (1.3 Ah) 45 (1.5 Ah) 60 (2.0 Ah)
90 (3.0 Ah) 120 (4.0 Ah) 150 (5.0 Ah)
Weight kg 0.36
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough
product development and innovation make
DeWALT
one of the
most reliable partners for professional vacuum cleanerusers.
Technical Data
DCV584L
Type 1
Power source AC / DC
Mains voltage VAC 230
UK & Ireland VAC 230 / 115
Battery voltage VDC 14,4/18
Power W300
Tank volume L7.5
Max. airflow l/s 15.9
Negative pressure (per EN60335-2-69) mbar 70
Protection class IPX4
Hose nozzle diameter mm 32
Weight (without battery pack) kg 4.8
Noise values and vibration values (triax vector sum) according to EN60335
LPA (sound pressure) dB(A) 76
KPA (sound pressure uncertainty) dB(A) 3
LWA (sound power) dB(A) 87
KWA (sound power uncertainty) dB(A) 3
Vibration emission value a
h
= m/s20.6
Uncertainty K = m/s21.5
The vibration emission level given in this information sheet
has been measured in accordance with a standardised test
given in EN60335-2-69 and may be used to compare one
vacuum cleaner with another. It may be used for a preliminary
assessment ofexposure.
WARNING: The declared vibration emission level
represents the main applications of the vacuum cleaner.
However if the tool is used for different applications, with
different accessories or poorly maintained, the vibration
emission may differ. This may significantly increase the
exposure level over the total workingperiod.
An estimation of the level of exposure to vibration should
also take into account the times when the tool is switched
off or when it is running but not actually doing the job.
This may significantly reduce the exposure level over the
total workingperiod.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool
and the accessories, keep the hands warm, organisation
of workpatterns.
English (original instructions)
CORDED/CORDLESS WET/DRY VACUUM CLEANER
DCV584L

5
ENGLISH
Charger DCB113
Mains voltage VAC 230
Battery type 10.8/14.4/18 Li-Ion
Approx. charging time of
battery packs
min 30 (1.3 Ah) 35 (1.5 Ah) 50 (2.0 Ah)
70 (3.0 Ah) 100 (4.0 Ah) 120 (5.0 Ah)
Weight kg 0.4
Charger DCB115
Mains voltage VAC 230
Battery type 10.8/14.4/18 Li-Ion
Approx. charging time of
battery packs
min 22 (1.3 Ah) 30 (1.5 Ah) 40 (2.0 Ah)
55 (3.0 Ah) 70 (4.0 Ah) 90 (5.0 Ah)
Weight kg 0.5
Charger DCB118
Mains voltage VAC 230
Battery type 18/54 Li-Ion
Approx. charging time of
battery packs
min 22 (1.3 Ah) 22 (1.5 Ah) 30 (2.0 Ah)
45 (3.0 Ah) 60 (4.0 Ah) 75 (5.0 Ah)
60 (6.0 Ah)
Weight kg 0,66
The DCB107, DCB112, DCB113 and DCB115 chargers accept
10.8V, 14.4V, 18V Li-Ion XR and XRFLEXVOLTTM battery packs
(DCB123, DCB127, DCB141, DCB142, DCB143, DCB144, DCB145,
DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B,
DCB185 and DCB546) batterypacks.
The DCB118 charger accepts 18V Li-Ion XR and XRFLEXVOLTTM
battery packs (DCB181, DCB182, DCB183, DCB183B, DCB184,
DCB184B, DCB185 and DCB546).
Fuses:
Europe 230V tools 10 Amperes. mains
U.K. & Ireland 230V tools 3 Amperes. in plugs
EC-Declaration of Conformity
Machinery Directive
Corded/Cordless Wet/Dry Vacuum Cleaner
DCV584L
DeWALT
declares that these products described under
Technical Data are in compliance with:
2006/42/EC, EN 60335-1:2012, EN60335-2-69:2012.
These products also comply with Directive 2014/30/EU and
2011/65/EU. For more information, please contact
DeWALT
at
the following address or refer to the back of themanual.
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf of
DeWALT
.
Markus Rompel
Director Engineering
DeWALT
, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
20.05.2016
WARNING: To reduce the risk of injury, read
the instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
General Safety Warnings
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
BEFORE USING THIS APPLIANCE, READ
AND FOLLOW ALL INSTRUCTIONS.
WARNING: Operators shall be adequately instructed on
the use of theseappliances.
WARNING: To reduce the risk of electric shock. Do not
expose to rain. Storeindoors.
• Before use, operators shall be provided with information,
instruction and training for the use of the appliance and
the substances for which it is to be used, including the safe
method of removal and disposal of the materialcollected.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or mental
abilities; lack of experience, knowledge or skills unless they are
supervised by a person responsible for their safety. Children
should never be left alone with thisproduct.

6
ENGLISH
• Operators should observe any safety regulations appropriate
to the materials beinghandled.
• Do not leave the appliance when it is connected to a power
source. Unplug it from outlet and remove battery pack when
not in use and beforeservicing.
• Do not allow the appliance to be used as a toy. Pay close
attention when the appliance is used by or nearchildren.
• Use this appliance ONLY as described in the manual. Use only
D
e
WALT recommendedattachments.
• Do not use this appliance with a damaged cord or plug. If the
appliance is not working correctly, or if it has been dropped,
damaged, left outdoors, or dropped in water, return it to a
servicecentre.
• Do not pull or carry this appliance by the cord, use the cord
as a handle, close a door on the cord, or pull the cord around
sharp edges or corners. Do not run the appliance over the cord.
Keep cord away from heatedsurfaces.
• Do not unplug this appliance by pulling on the cord. To
unplug, grasp the plug, not thecord.
• Do not handle the plug, battery pack, or appliance with
wethands.
• Do not put any objects into the openings of the appliance. Do
not use the appliance with any opening blocked; keep free of
dust, lint, hair and anything else that may reduce airflow.
• Keep hair, loose clothing, fingers, and all body parts away from
the openings and movingparts.
• Turn off all controls before unplugging appliance or removing
the batterypack.
• Use extra care when cleaning onstairs.
• Do not use the appliance to pick up flammable or combustible
liquids, such as gasoline, or use in areas where flammable or
combustible liquids arepresent.
• Static shocks are possible in dry areas or when the relative
humidity of the air is low. This is only temporary and does not
affect the use of thevacuum.
• To avoid spontaneous combustion, empty tank contents after
eachuse.
SAVE THESE INSTRUCTIONS
Additional Safety Rules
• Do not pick up anything that is burning or smoking, such as
cigarettes, matches or hotashes.
• This tool is splashproof according to protection class IPX4. Do
not submerge the tool inwater.
• Do not use to vacuum combustible explosive materials, such
as coal, grain or other finely divided combustiblematerial.
• For dust extractors it is necessary toprovide for an adequate
air changerate L in the room if the exhaust air isreturned to the
room. Reference to National Regulations isnecessary.
• Do not use to vacuum hazardous, toxic or carcinogenic
materials, such as asbestos orpesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel,
heating oil, paint thinner, etc.), acids orsolvents.
• Do not use vacuum without filters inplace.
• Some wood contains preservatives which can be toxic. Take
extra care to prevent inhalation and skin contact when
working with these materials. Request and follow any safety
information available from your materialsupplier.
• Do not use vacuum as a stepladder.
• Do not place heavy objects onvacuum.
Residual Risks
In spite of the application of the relevant safety regulations
and the implementation of safety devices, certain residual risks
cannot be avoided. These are:
• Risk of pinching or crushing offingers.
• Risk of inhaling fumes when working withadhesives.
• Risk of inhaling hazardousdust.
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the battery pack voltage corresponds to the
voltage on the rating plate. Also make sure that the voltage of
your charger corresponds to that of yourmains.
Your
DeWALT
charger is double insulated in
accordance with EN60335; therefore no earth wire
isrequired.
WARNING: 115 V units have to be operated via a fail-safe
isolating transformer with an earth screen between the
primary and secondarywinding.
If the supply cord is damaged, it must be replaced by a
specially prepared cord available through the
DeWALT
serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 3A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data). The
minimum conductor size is 1mm2; the maximum length
is30m.
When using a cable reel, always unwind the cablecompletely.
SAVE THESE INSTRUCTIONS
Chargers
DeWALT
chargers require no adjustment and are designed to be
as easy as possible tooperate.

7
ENGLISH
Important Safety Instructions for All
Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for compatible battery
chargers (refer to TechnicalData).
• Before using charger, read all instructions and cautionary
markings on charger, battery pack, and product using
batterypack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only
DeWALT
rechargeable batteries. Other types of
batteries may burst causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that
they do not play with theappliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting to clean
• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual. The charger
and battery pack are specifically designed to worktogether.
• These chargers are not intended for any uses other than
charging
DeWALT
rechargeable batteries. Any other uses
may result in risk of fire, electric shock orelectrocution.
• Do not expose charger to rain orsnow.
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk ofdamage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk
of fire,electric shock, orelectrocution.
• Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source. The
charger is ventilated through slots in the top and the bottom
of thehousing.
• Do not operate charger with damaged cord or plug—
have them replacedimmediately.
• Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take it
to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised
service centre when service or repair is required. Incorrect
reassembly may result in a risk of electric shock, electrocution
orfire.
• In case of damaged power supply cord the supply cord must
be replaced immediately by the manufacturer, its service agent
or similar qualified person to prevent anyhazard.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect two chargerstogether.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.

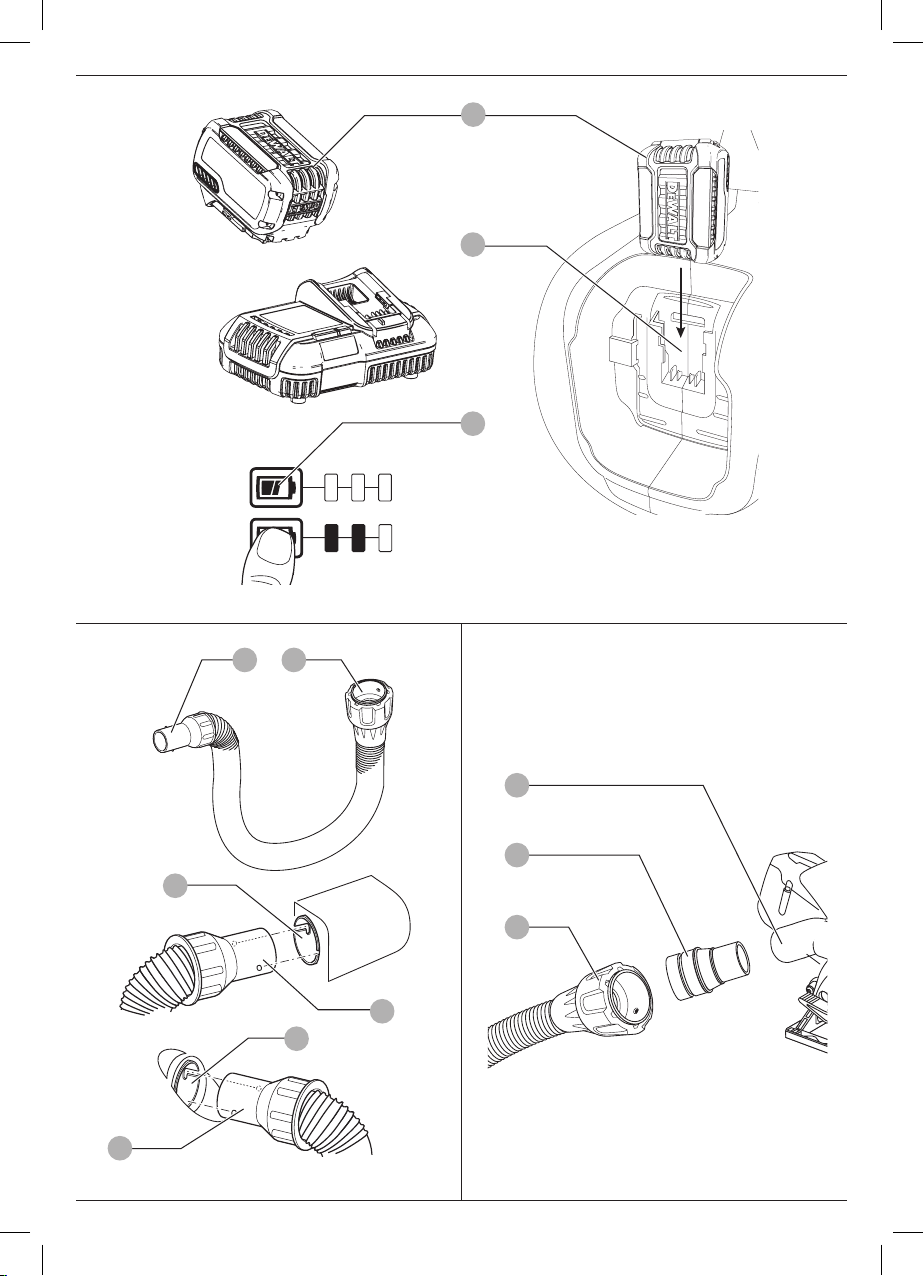

Charging a Battery (Fig. C)
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack 13 into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button on the batterypack.
NOTE: To ensure maximum performance and life of lithium-ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
Charge Indicators
Charging
Fully Charged
Hot/Cold Pack Delay*
*The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing to light or by
displaying problem pack or charger blinkpattern.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the

8
ENGLISH
pack charging mode. This feature ensures maximum battery
packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan designed
to cool the battery pack. The fan will turn on automatically
when the battery pack needs to be cooled. Never operate the
charger if the fan does not operate properly or if ventilation slots
are blocked. Do not permit foreign objects to enter the interior
of thecharger.
Electronic Protection System
XR Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection
System engages. If this occurs, place the lithium-ion battery
pack on the charger until it is fullycharged.
Wall Mounting
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate the
charger within reach of an electrical outlet, and away from a
corner or other obstructions which may impede air flow. Use
the back of the charger as a template for the location of the
mounting screws on the wall. Mount the charger securely using
drywall screws (purchased separately) at least 25.4mm long
with a screw head diameter of 7–9mm, screwed into wood to
an optimal depth leaving approximately 5.5mm of the screw
exposed. Align the slots on the back of the charger with the
exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using a
cloth or soft non-metallic brush. Do not use water or any
cleaning solutions. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.
Battery Packs
Important Safety Instructions for All
Battery Packs
When ordering replacement battery packs, be sure to include
catalog number andvoltage.
The battery pack is not fully charged out of the carton. Before
using the battery pack and charger, read the safety instructions
below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery from the charger may
ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non-compatible
charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in
DeWALT
chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or exceed
40 ˚C (104 ˚F) (such as outside sheds or metal buildings
in summer).
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium-ion battery packs areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open eye
for 15 minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of
liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persists, seek
medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark orflame.
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys, etc.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from materials
that could contact them and cause a shortcircuit.
DeWALT
batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous Goods
(IMDG) Regulations, and the European Agreement Concerning

9
ENGLISH
The International Carriage of Dangerous Goods by Road (ADR).
Lithium-ion cells and batteries have been tested to section 38.3
of the UN Recommendations on the Transport of Dangerous
Goods Manual of Tests andCriteria.
In most instances, shipping a
DeWALT
battery pack will be
excepted from being classified as a fully regulated Class 9
Hazardous Material. In general, only shipments containing a
lithium-ion battery with an energy rating greater than 100 Watt
Hours (Wh) will require being shipped as fully regulated Class 9.
All lithium-ion batteries have the Watt Hour rating marked on
the pack. Furthermore, due to regulation complexities,
DeWALT
does not recommend air shipping lithium-ion battery packs
alone regardless of Watt Hour rating. Shipments of tools with
batteries (combo kits) can be air shipped as excepted if the Watt
Hour rating of the battery pack is no greater than 100Whr.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’s responsibility to ensure that its
activities comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The
DeWALT
FLEXVOLTTM battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in
a
DeWALT
18V product, it will operate as an 18V battery. When
the FLEXVOLTTM battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54Vbattery.
Transport Mode: When the cap is attached to the FLEXVOLTTM
battery, the battery is in transport mode. Keep the cap for
shipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack
resulting in 3 batteries with a
lower Watt hour (Wh) rating as compared to 1 battery with a
higher Watt hour rating. This increased quantity of 3 batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
Transport Wh rating
indicates 3x36 Wh,
meaning 3 batteries of
36 Watt hours each. The
Use Wh rating indicates
108 Watt hours (1 battery
implied).
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
example of use and transport label marking
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other
than the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
Use: Use without transportation cap, Wh rating
indicates 108 Wh (1 battery with 108 Wh).
Transport: Transport with built-in transport cap, Wh
rating indicates 3 x 36 Wh (3batteries of 36 Wh).
Battery Type
The DCV584L operates on an 14.4, 18V XR or 18V/54V
FLEXVOLTTMXR batterypack.
These battery packs may be used: DCB141, DCB142, DCB143,
DCB144, DCB145, DCB181, DCB182, DCB183, DCB183B, DCB184,

10
ENGLISH
DCB184B, DCB185, DCB546. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
1 Vacuum cleaner
1 Vacuum hose
1 Wide nozzle
1 Crevice tool
1 Dust extraction adapter
1 Filter
1 Instruction manual
• Check for damage to the appliance, parts or accessories which
may have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Vacuum
The following pictograms are shown on the appliance:
Read instruction manual beforeuse.
WARNING: This appliance contains harmful dust. The
emptying and maintenance, including the removal of
the dust bag, may only be executed by trained personnel
wearing suitable protection equipment. Do not switch on
until the complete filter system has beeninstalled.
Class L dust extractors are suitable to extract dry, non-
combustable dusts with workpace limit values of >1mg/m³.
Date Code Position (Fig. A)
The date code 20, which also includes the year of manufacture,
is printed into thehousing.
Example:
2016 XX XX
Year of Manufacture

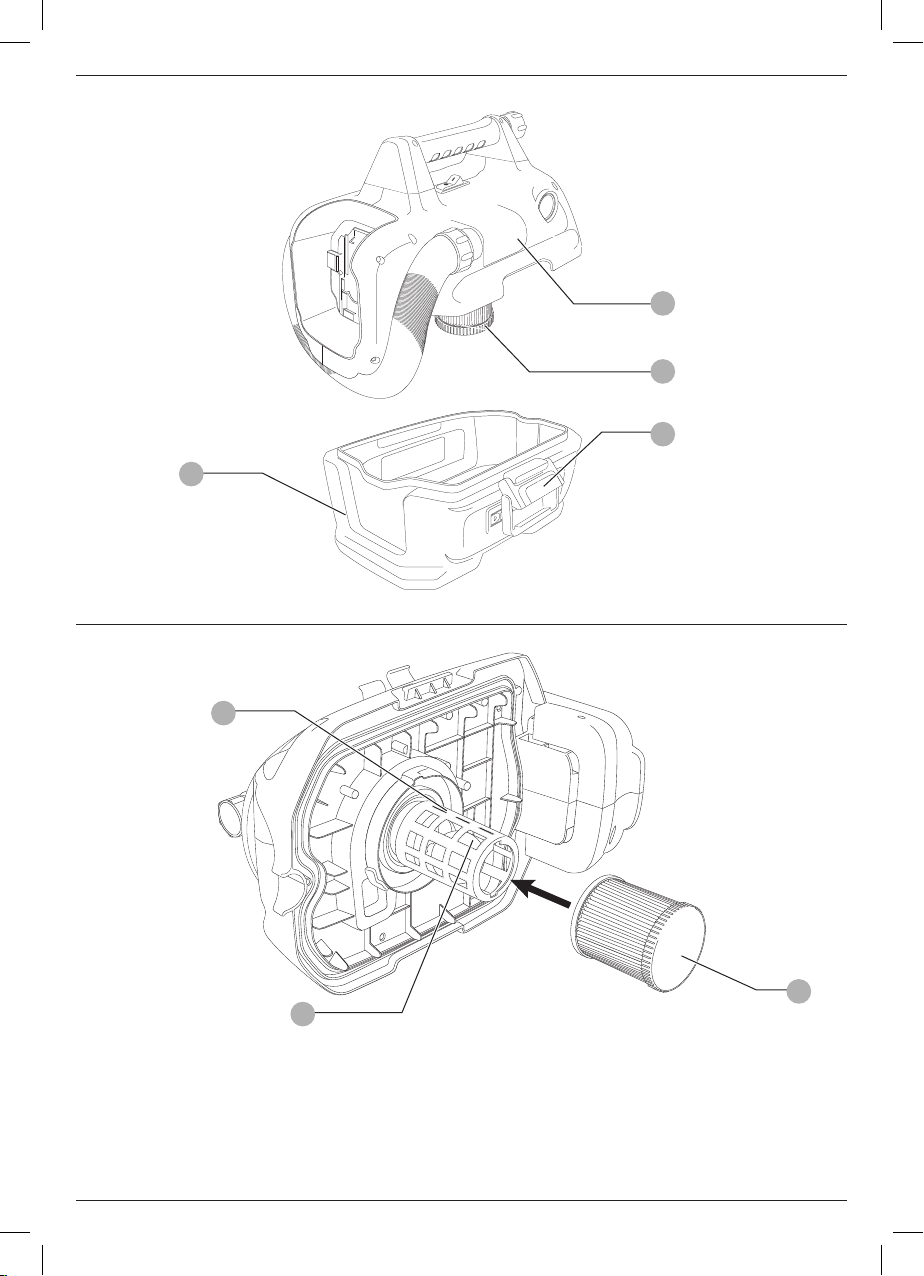

Description (Fig. A, B, E)
WARNING: Never modify the vacuum cleaner or any part
of it. Damage or personal injury couldresult.
1 On/off switch
2 Power head
3 Tank
4 Vacuum inlet
5 Blow outlet
6 Latch
7 Wide nozzle
8 Crevice tool
9 Hose
10 Battery port
11 Air-lock connector
12 Dust extraction adaptor (Fig. E)
Intended Use
Your DCV582L cordless/corded industrial vacuum cleaner and
dust extractor for mobile operation to take up wet substances or
all types of dry, non-combustable dusts up to dust Class L with
limit values for occupational exposure greater than 1 mg/m³.
This appliance can also be operated as a blower for removing
debris from the workplace and for drying damp surfaces.
Working on mains (corded) or battery (cordless) power, this
appliance can be used both indoors andoutdoors.
DO NOT use blower for removing hazardousdust.
DO NOT let children come into contact with this appliance.
Supervision is required when inexperienced operators use
thisappliance.
DO NOT use the dust extractor for combustibledust.
DO NOT use the dust extractor in explosiveatmospheres.
DO NOT use under wet conditions or in presence of flammable
liquids orgases.
NOTE: This appliance is suited for the commercial use, e.g.
in hotels, schools, hospitals, factories, shops, offices, rental
companies, and on constructionsites.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn appliance off and disconnect appliance
from power source and remove battery pack before
making any adjustments or removing/installing
attachments or accessories. An accidental start-up can
causeinjury.
WARNING: Use only
DeWALT
battery packs andchargers.
Inserting and Removing the
Battery Pack from the Tool (Fig. C)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
1. Align the battery pack13 with the rails inside the vacuum’s
battery port10.
2. Slide the pack into the battery port until the battery pack
is firmly seated in the battery port and ensure that it does
notdisengage.
To remove the battery pack
1. Press the battery release button and firmly pull the battery
pack out of theport.
2. Insert battery pack into the charger as described in the
charger section of thismanual.

11
ENGLISH
Fuel Gauge Battery Packs (Fig. C)
Some
DeWALT
battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button14. A combination of the three green LED lights will
illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge
will not illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate tool functionality and is
subject to variation based on product components, temperature
and end-userapplication.
Connecting the Hose (Fig. D)
Vacuum Mode
1. Insert the notched connecting piece15 into the vacuum
inlet4.
2. Turn the connecting piece clockwise to fix the hose
intoposition.
3. Connect the appropriate accessory to the hose nozzle11.
Blow Mode
1. Insert the notched connecting piece15 into the blow
outlet5.
2. Turn the connecting piece clockwise to fix the hose
intoposition.
3. Connect the appropriate accessory to the hose nozzle11.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn appliance off and disconnect appliance
from power source and remove battery pack before
making any adjustments or removing/installing
attachments or accessories. An accidental start-up can
causeinjury.
Switching On and Off (Fig. A)
To switch the appliance on, set the on/off switch1 to positionI.
To switch the appliance off, set the on/off switch1 to
positionO.
Power Source
This vacuum runs either on mains power or battery power.
The vacuum will switch between AC (mains) and DC (battery)
powerautomatically.
Mains Power
1. Fully unwind the mainscable.
2. Connect the plug to the mains outlet before turning the
applianceon.
• Always turn the vacuum off when work is finished and
beforeunplugging.
• Tidy the mains cable when the vacuum is not inuse.
Battery Power
1. Tidy the mainscable.
2. Insert a battery pack13.
3. Make sure the battery pack is properlyseated.
NOTE: The mains cable power source is only designed to power
the operation of the vacuum and will not charge an installed
batterypack.
Vacuuming (Fig. A, E, F)
1. Empty and clean the tank3 beforeuse.
2. Connect the notched connecting piece15 to the vacuum
inlet4.
3. Select the appropriateaccessory.
NOTE: We recommend not mixing wet and dry substances.
When switching substances, empty and clean the tankfirst.
Dust Collection (Fig. E)
In the vacuum mode, your D
e
WALT vacuum can function as a
dust collector for applications producing dust ordebris.
Your D
e
WALT vacuum is fitted with the D
e
WALT AirLock
connection system. This system allows for a fast, secure
connection between the suction hose9 and a power tool. The
AirLock connector11 connects directly to D
e
WALT compatible
tools or through the use of the included AirLock adapter 12.
NOTE: When using an adapter ensure it is firmly attached to the
tool outlet before following the stepsbelow.
1. Ensure the collar on the AirLock connector is in the unlock
position. Align notches on collar and AirLock connector as
shown for unlock and lockpositions.
2. Push the AirLock connector onto the adapter
connectorpoint.
3. Rotate the collar to the lockedposition.
NOTE: The ball bearings inside collar lock into slot and
secure the connection.The power tool is now securely
connected to the dustextractor.
Wet/Dry Filter (Fig. F)
WARNING: Always operate the appliance with the
dust filter 16 inplace.
WARNING: Always use the appliance in upright
position. Do not tilt the appliance, in order to
prevent liquids collected in the tank from entering
the motorhousing.
WARNING: If foam or liquid escapes from the machine,
switch offimmediately.
CAUTION: Clean the water level limiting device regularly
and examine it for signs ofdamage.
Shut-off Feature
If by mistake the appliance is used without the dust filter in
place, a shut-off feature will be actuated when the liquid level
in the tank has reached its maximum. A float valve will block the
suction opening, after which the suction stops and the motor
speedincreases.

12
ENGLISH
Blowing (Fig. A)
WARNING: Never blow hazardousdust!
1. Empty and clean the tank3 before use inblowing.
2. Connect the hose 9 to the blow outlet 5.
3. Select the appropriateaccessory.
To Empty the Tank (Fig. F)
The tank must be emptied when suction power
reducessignificantly.
1. Release the latches6 and remove the power head2 from
the tank3.
2. Empty the contents of the tank into a waste container in
accordance with any current regulation for the disposal of
suchwaste.
3. Clean the filter16 as described below inCleaning.
4. Re-install the power head onto the tank and secure
thelatches.
Cleaning (Fig. F, G)
WARNING: To reduce the risk of serious personal
injury, turn appliance off and disconnect appliance
from power source and remove battery pack before
cleaning, making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
Cleaning the Housing
Regularly clean the housing with a softcloth.
Cleaning the Tank
The tank should be cleaned after each use or when switching
substances duringuse.
1. Empty the tank3.
2. Clean the tank using mild soap and a dampcloth.
3. Dry the tank carefully using a softcloth.
Cleaning the Wet/Dry Filter (Fig. G)
The wet/dry filter should be cleaned after eachuse.
If the filter is damaged or fails to operate properly, it must
bereplaced.
1. Remove the wet/dry filter16 by turning it counterclockwise
and taking it off the suction opening17.
2. Shake off excess dust by tapping the filter into a
wastecontainer.
3. Depending on its condition, rinse the outside of the filter
under lukewarm runningwater.
4. Secure the filter again by placing it over the suction opening
and turning itclockwise.
WARNING:
• Do not wash the inside of thefilter.
• Let the filter dry thoroughly if the inside becomeswet.
• Do not use a brush to clean thefilter.
• Never use compressed air or a brush to clean filters,
otherwise damage to the filter membrane will occur
which will allow dust to pass through thefilter.
Cleaning the Suction Opening Filter
(Fig. G)
The suction opening filter needs to be cleaned if the appliance is
operated without the dust filter inplace.
1. Keeping the float valve18 out of the way, remove the filter
from the suction opening17.
2. Rinse the filter under lukewarm runningwater.
3. Dry the filter before putting it back inplace.
4. Clean the float valve18 using a dampcloth.
Troubleshooting
If your vacuum seems not to operate properly, follow the
instructions below. If this does not resolve the problem, please
contact your repairagent.
Problem Solution
Motor does not run Check power cord, plugs and
outlet, or battery contact,
charging condition of battery
Ensure the on/off/tool
control switch is in the ON
positionI.
Suction capacity decreases Remove blockages in the
suction nozzle, suction tube,
suction hose, float valve
orfilters.
Check for proper installation
of thefilters.
Clean or replace thefilters.
Empty canister, refer to
Empty Tank underOperation.
Vacuum stops running Thermal overload has been
tripped:
1. Turn the vacuum off and
disconnect vacuum cleaner
from powersource.
2. Empty the canister,
ifneeded.
3. Allow the unit tocool.
4. Plug the power cord into
an appropriate outlet or
battery into battery port
and turn on/off/tool control
switch to the ON positon I
to test. If vacuum will not
restart contact your seller or
check the location of your
nearest authorised
DeWALT
repair agent in the
DeWALT
catalogue or contact your
DeWALT
office at the address
indicated in this manual

13
ENGLISH
Problem Solution
Dust comes out while
vacuuming
Check for proper installation
of the Filter and dusttank.
Ensure filter is not damaged;
replace ifnecessary.
Ensure filter seals are in place
and aresecure.
If furthermore dust comes
out while vacuuming
contact your seller or check
the location of your nearest
authorised
DeWALT
repair
agent in the
DeWALT
catalogue or contact your
DeWALT
office at the address
indicated in thismanual.
If Shut-off Feature Engages
1. Turn off the vacuumimmediately.
2. Empty the tank as describedabove.
3. Clean the suction opening filter as described in Cleaning
the Suction OpeningFilter.
4. Remember to put the dust filter in place before
resumingwork.
MAINTENANCE
Your
DeWALT
appliance has been designed to operate over
a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper
appliance care and regularcleaning.
WARNING: To reduce the risk of injury, turn
appliance off and disconnect appliance from power
source before installing and removing accessories,
before adjusting or changing set-ups or when
making repairs. An accidental start-up can causeinjury.
WARNING: For user servicing, the machine must be
dismantled, cleaned and serviced, as far as is reasonably
practicable, without causing risk to the maintenance staff
and others. Suitable precautions include, decontamination
before dismantling, provision for local filtered exhaust
ventilation where the machine is dismantled, cleaning of
the maintenance area and suitable personalprotection.
• The manufacturer, or an instructed person, shall
perform a technical inspection at least annually,
consisting of, for example, inspection of filters for
damage, air tightness of the machine and proper
function of the controlmechanism.
• When carrying out service or repair operations, all
contaminated items which cannot be satisfactorily
cleaned, are to be disposed of; such items shall be
disposed of in impervious bags in accordance with
any current regulation for the disposal of suchwaste.
• For dust extractors it is necessary to provide for an
adequate air change rate L in the room if the exhaust
air is returned to the room.
(NOTE: Reference to National Regulations
isnecessary.
The charger and battery pack are notserviceable.
Lubrication
Your vacuum cleaner requires no additionallubrication.
Cleaning
WARNING: Cleaning with blowing with compressed air
is not allowed for dust class L vacuums. Wear approved
eye protection and approved dust mask when performing
thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non-metallic parts of the tool. These
chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap.
Never let any liquid get inside the tool; never immerse any
part of the tool into aliquid.
Optional Accessories
WARNING: Since accessories, other than those offered
by
DeWALT
, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only
DeWALT
recommended
accessories should be used with thisproduct.
The replacement filter (DCV5801 H) is available as an accessory
at additionalcost.
Consult your dealer for further information on the
appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with normal
householdwaste.
Products and batteries contain materials that can be
recovered or recycled reducing the demand for raw materials.
Please recycle electrical products and batteries according to
local provisions. Further information is available at
www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due care for
our environment:
• Run the battery pack down completely, then remove it from
the vacuumcleaner.
• Li-Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.

14
Belgique et
Luxembourg België
en Luxemburg
DeWALT - Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλάς DeWALT (Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT
5, allée des Hêtres
BP 30084, 69579 Limonest Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Calpe House Rock Hill
Black Rock, Co. Dublin
Tel: [phone]
Fax: [phone]
www.dewalt.ie
Italia DeWALT
via Energypark
20871 Vimercate (MB), IT
Tel: [phone]
39 039 9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT Netherlands BV
Holtum Noordweg 35
6121 RE BORN, Postbus 83, 6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613, Nydalen
0405 Oslo
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT Limited, SARL
Centro de Escritórios de Sintra Avenida
Almirante Gago Coutinho, 132/134, Edifício 14
2710-418 Sintra
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL 47
00521 Helsinki
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
Box 94
431 22 Mölndal
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye KALE Hırdavat ve Makina A.Ş.
Defterdar Mah. Savaklar Cad. No:15
Edirnekapı / Eyüp / İSTANBUL 34050 TÜRKİYE
Tel: [phone]
Faks: 0212 533 10 05
www.dewalt.com.tr
United
Kingdom
DeWALT, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia DeWALT
810 Whitehorse Road Box Hill
VIC 3103 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
N466114 04/16
