DeWalt DCV586 User manual

DCV586M
Final page size: A5 (148mm x 210mm)

B
Copyright DeWALT
English (original instructions) 4

1

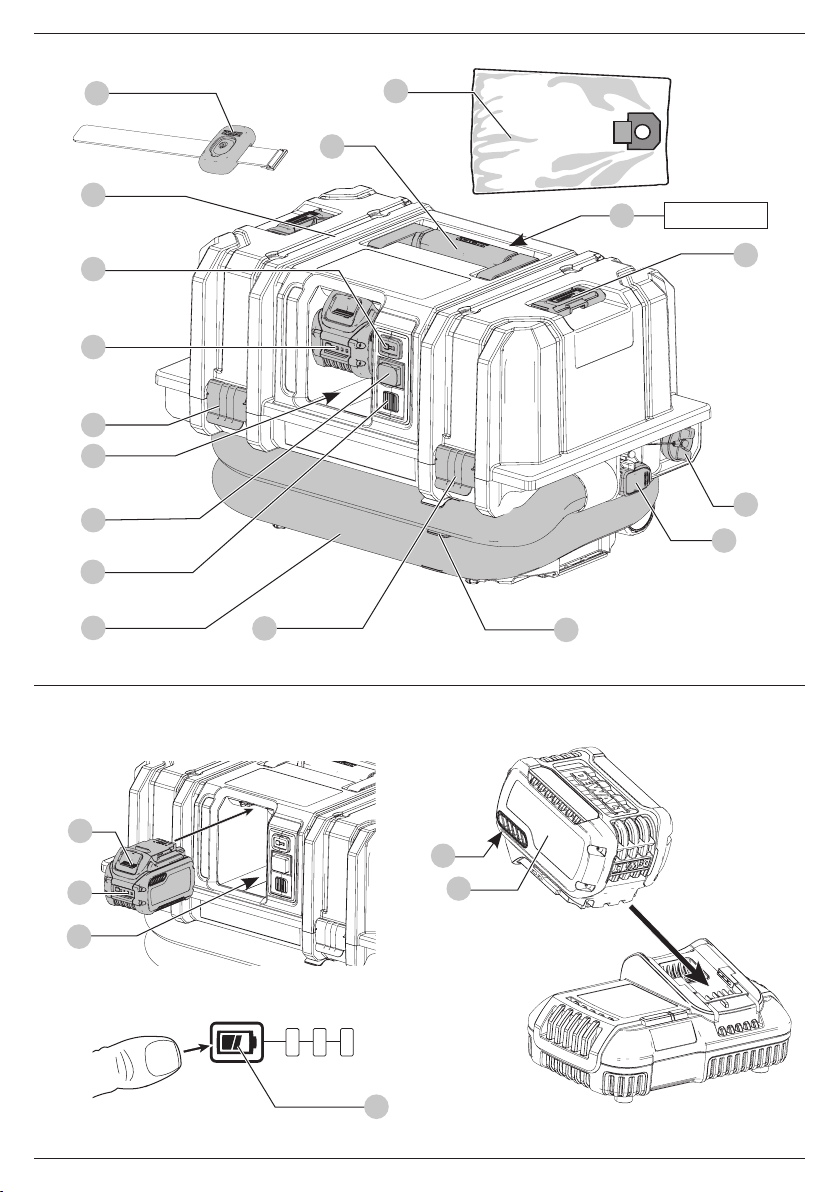

Fig. A
Fig. B
1
7
23
7
23
16
1
2
3
4
45
6
7
13
9
8
11 10
12
XXXX XX XX
22
15
14

2
Fig. E
Fig. G
Fig. F
Fig. H
Fig. C Fig. D
6
21
4
Ø
20
Ø
32
3
30
11
15
29
18 19
2020
27
28
26

3
Fig. I
17
24
25
Fig. J
31
32
14
33

4
ENGLISH
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf ofDeWALT.
Markus Rompel
Vice‑President Engineering, PTE‑Europa
DeWALT, Richard‑Klinger‑Straße 11,
65510, Idstein, Germany
01.12.2022
DECLARATION OF CONFORMITY
THE SUPPLY OF MACHINERY (SAFETY)
REGULATIONS 2008
AND RADIO EQUIPMENT REGULATION 2017
Dust Extractor
DCV586M
DeWALT declares that these products described under Technical
Data are in compliancewith:
The Supply of Machinery (Safety) Regulations, 2008, S.I.
2008/1597 (as amended),
EN60335‑1:2012 + A11:2014 + A13:2017; EN60335‑2‑69:2012.
These products conform to the following UK Regulations:
Electromagnetic Compatibility Regulations, 2016, S.I.2016/1091
(asamended).
Radio Equipment Regulations 2017, S.I. 2017/1206
(asamended):
The Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment Regulations 2012, S.I.
2012/3032 (as amended).
For more information, please contact DeWALT at the following
address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical
file and makes this declaration on behalf of DeWALT.
Karl Evans
Vice President Professional Power Tools EANZ GTS
DeWALT UK, 270Bath Road, Slough
Berkshire, SL1 4DX
England
01.12.2022
Congratulations!
You have chosen a DeWALT dust extractor. Years of experience,
thorough product development and innovation make DeWALT one
of the most reliable partners for professional power toolusers.
Technical Data
DCV586M
Voltage VDC 54
Type 1
Battery type Li‑Ion
Degree of protection IPX4
Negative pressure kPa 8.8
Flow rate l/s 24.7
Container capacity l11
Filling liquid max. l7.5
Hose diameter mm 32
Hose length m2.5
Weight (without battery pack) kg 8
Wireless Tool Control™ remote N547456
Voltage VDC 3
Battery Type CR2032
Frequency Band
Max Power (EIRP)
MHz
mW
433
0,03
Noise values and vibration values (triax vector sum) according to EN60335‑2‑69:
LPA (emission sound pressure level) dB(A) 69
LWA (sound power level) dB(A) 81.5
K (uncertainty for the given sound level) dB(A) 3.5
EC‑Declaration of Conformity
Machinery Directive
and Radio Equipment Directive
Dust Extractor
DCV586M
DeWALT declares that these products described under Technical
Data are in compliance with:
2006/42/EC, EN60335‑1:2012 + A11:2014 + A13:2017;
EN60335‑2‑69:2012.
These products also comply with Directive 2014/30/EU, 2014/53/EU
and 2011/65/EU. For more information, please contact DeWALT at
the following address or refer to the back of themanual.
English (original instructions)
DUST EXTRACTOR
DCV586M

5
ENGLISH
WARNING: To reduce the risk of injury, read
the instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
IMPORTANT SAFETY
INSTRUCTIONS
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
READ ALL INSTRUCTIONS BEFORE USING
THISAPPLIANCE
When using this appliance, basic safety precautions should always
be followed including the following:
WARNING:Operators shall be adequately
instructed on the use of this dustextraxtor.

WARNING: To reduce the risk of fire, electric
shock and injury:
• Make sure that the dust extractor is engaged in the
horizontalposition.
• Do not leave the appliance unattended when the dust
extractor is out of reach or sight. Remove the battery
pack when not in use and beforeservicing.
• Do not allow appliance to be used as a toy. Close
attention is necessary when used nearchildren.
• Use this appliance ONLY as described in the manual.
Use only recommended attachments andaccessories.
• Do not use this appliance if it is showing signs of
malfunction in any way. If the appliance is not working
correctly, has been dropped, damaged, left outdoorsor
dropped into water, return it to a servicecentre.
• Do not handle the appliance with wethands.
• Do not put any objects into the openings of the
appliance. Do not use the appliance with any opening
blocked; keep free of dust, lint, hair and anything else
that may reduce airflow.
• Keep hair, loose clothing, fingers, and all body parts
away from the openings and movingparts.
• Turn off all controls before disconnecting from
powersource.
• Use extra care when cleaning onstairs.
• Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non‑skid safety shoes, hard hator hearing
protection used for appropriate conditions will reduce
personalinjuries.
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
*Date code 201811475B or later
**Date code 201536or later
**Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition ofbatteries.
***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition ofbatteries.
Batteries Chargers/Charge Times (Minutes)***
Cat # VDC Ah Weight (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB116 DCB117 DCB118 DCB132 DCB119
DCB546 18/54 6.0/2.0 1.08 60 270 170 140 90 80 40 60 90 X
DCB547 18/54 9.0/3.0 1.46 75* 420 270 220 135* 110* 60 75* 135* X
DCB548 18/54 12.0/4.0 1.46 120 540 350 300 180 150 80 120 180 X
DCB549 18/54 15.0/5.0 2.12 125 730 450 380 230 170 90 125 230 X
DCB181 18 1.5 0.35 22 70 45 35 22 22 22 22 22 45
DCB182 18 4.0 0.61 60/40** 185 120 100 60 60/45** 60/40** 60/40** 60 120
DCB183/B/G 18 2.0 0.40 30 90 60 50 30 30 30 30 30 60
DCB184/B/G 18 5.0 0.62 75/50** 240 150 120 75 75/60** 75/50** 75/50** 75 150
DCB185 18 1.3 0.35 22 60 40 30 22 22 22 22 22 40
DCB187 18 3.0 0.54 45 140 90 70 45 45 45 45 45 90
DCB189 18 4.0 0.54 60 185 120 100 60 60 60 60 60 120
DCBP034 18 1.7 0.32 27 82 50 40 27 27 27 27 27 50
*Date code 201811475B or later
**Date code 201536 or later
***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.

6
ENGLISH
Chargers
DeWALT chargers require no adjustment and are designed to be
as easy as possible tooperate.
• Stay alert, watch what you are doing and use
common sense when operating a dust extractor. Do
not use a dust extractor while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating dust extractors
may result in serious personalinjury.
Additional Safety Warnings
a ) Prevent unintentional starting. Ensure the switch
is in the off‑position before connecting to battery
pack, picking up or carrying the appliance. Carrying
the appliance with your finger on the switch or energizing
appliance with switch on invitesaccidents.
b ) Disconnect the battery pack from the appliance
before making any adjustments, changing
accessoriesor storing appliance. Vacuum could be
activated by the remote or a paired tool. Unintended
energising of the appliance that has the switch on
invitesaccidents.
c ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another batterypack.
d ) Use appliance only with DeWALT recommended
battery packs. Use of any other battery packs may create
a risk of injury andfire.
e ) Use power tools and accessories which are
connected to the vacuum in accordance with these
instructions. Use of power tools for applications others
than those intended, can result in hazardoussituations.
f ) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or afire.
g ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation orburns.
h ) Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified batteries
may exhibit unpredictable behavior resulting in fire,
explosion or risk ofinjury.
i ) Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 40°C may causeexplosion.
j ) Follow all charging instructions and do not charge
the battery pack or appliance outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of the
specified range may damage the battery and increase the
risk offire.
k) Do not use the vacuum cleaner if dust is blown out of
the ventilation slots. Switch off the vacuum cleaner
and check whether the filter is installed correctly or is
defective. Defective filters must be replacedimmediately.
l ) Have servicing performed by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the product ismaintained.
Specific Safety Rules for Dust Extractors
• The appliance may only be used by persons who are familiar
with it, have been trained on how to use it safely and who
understand the resultinghazards.
• When picking up dusts with an exposure limit value,
precautions must be taken to ensure adequate air exchange
in the room if the exhaust air from the appliance is released
into theroom.
• Operator should observe any safety regulations to the material
beinghandled.
• Do not use to vacuum combustible explosive materials, such
as coal, grainor other finely divided combustiblematerial.
• Do not use the appliance to pick up flammable or combustible
liquids, such as gasolineor use in areas where flammable or
combustible liquids arepresent.
• Do not use to vacuum hazardous, toxic or carcinogenic
materials, such as asbestos or pesticide, unless the vacuuming
of the material is specifically identified in this instruction
manual as an approveduse.
• Static shocks are possible in dry areas or when the relative
humidity of the air is low. This is only temporary and does not
affect the use of thedustextractor.
• To avoid spontaneous combustion, empty the canister after
everyuse.
• Some wood contains preservatives which can be toxic. Take
extra care to prevent inhalation and skin contact when
working with these materials. Request and follow any safety
information available from your materialsupplier.
• Do not use vacuum as a stepladder.
• Do not place heavy objects ondustextractor.
WA RNING: To reduce the risk of fire, electric shock
andinjury:
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches or hotashes.
• Do not use without filter inplace.
Residual Risks
In spite of the application of the relevant safety regulations
and the implementation of safety devices, certain residual risks
cannot be avoided. These are:
• Impairment ofhearing.
• Risk of personal injury due to flyingparticles.
• Risk of burns due to accessories becoming hot
duringoperation.
• Risk of personal injury due to prolongeduse.

7
ENGLISH
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the battery pack voltage corresponds to the
voltage on the rating plate. Also make sure that the voltage of
your charger corresponds to that of yourmains.
iYour DeWALT charger is double insulated in accordance
with EN60335; therefore, no earth wire isrequired.
If the supply cord is damaged, it must be replaced only by
DeWALT or an authorised serviceorganisation.
Mains Plug Replacement
(U.K.& Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 3A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for the
power input of your charger (Refer to Technical Data). The
minimum conductor size is 1mm2; the maximum length is30m.
When using a cable reel, always unwind the cablecompletely.
Important Safety Instructions for All
Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for compatible battery
chargers (referto TechnicalData). Before using charger, read all
instructions and cautionary markings on charger, battery pack, and
product using batterypack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only DeWALT rechargeable batteries. Other types of
batteries may burst, causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that
they do not play with theappliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting toclean.
• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual. The charger
and battery pack are specifically designed to worktogether.
• These chargers are not intended for any uses other than
charging DeWALT rechargeable batteries. Any other uses
may result in risk of fire, electric shock orelectrocution.
• Do not expose charger to rain orsnow.
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk ofdamage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk
of fire, electric shock, orelectrocution.
• Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source. The
charger is ventilated through slots in the top and the bottom
of thehousing.
• Do not operate charger with damaged cord or plug—
have them replacedimmediately.
• Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take it
to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised service
centre when service or repair is required. Incorrect reassembly
may result in a risk of electric shock, electrocution orfire.
• In case of damaged power supply cord, the supply cord must
be replaced immediately by the manufacturer, its service agent
or similar qualified person to prevent anyhazard.
• Disconnect the charger from the outlet before attempting
any cleaning. This will reduce the risk of electric shock.
Removing the battery pack will not reduce thisrisk.
• NEVER attempt to connect two chargerstogether.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
Charging a Battery
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack 11 into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly, indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button 23 on the batterypack.
NOTE: To ensure maximum performance and life of lithium‑ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the batterypack.

8
ENGLISH
Battery Packs
Important Safety Instructions for All
BatteryPacks
When ordering replacement battery packs, be sure to include
catalogue number andvoltage.
The battery pack is not fully charged out of the carton. Before
using the battery pack and charger, read the safety instructions
below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery from the charger may
ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non‑compatible
charger as battery pack may rupture, causing serious
personalinjury.
• Charge the battery packs only in DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in locations
where the temperature may fall below 4˚C (39.2˚F)
(such as outside sheds or metal buildings in winter), or
reach or exceed 40˚C (104˚F) (such as outside sheds or
metal buildings insummer).
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium‑ion battery packs areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open eye
for 15minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of
liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persist, seek
medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark orflame.
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
cloth or soft non‑metallic brush. Do not use water or any
cleaning solutions. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.

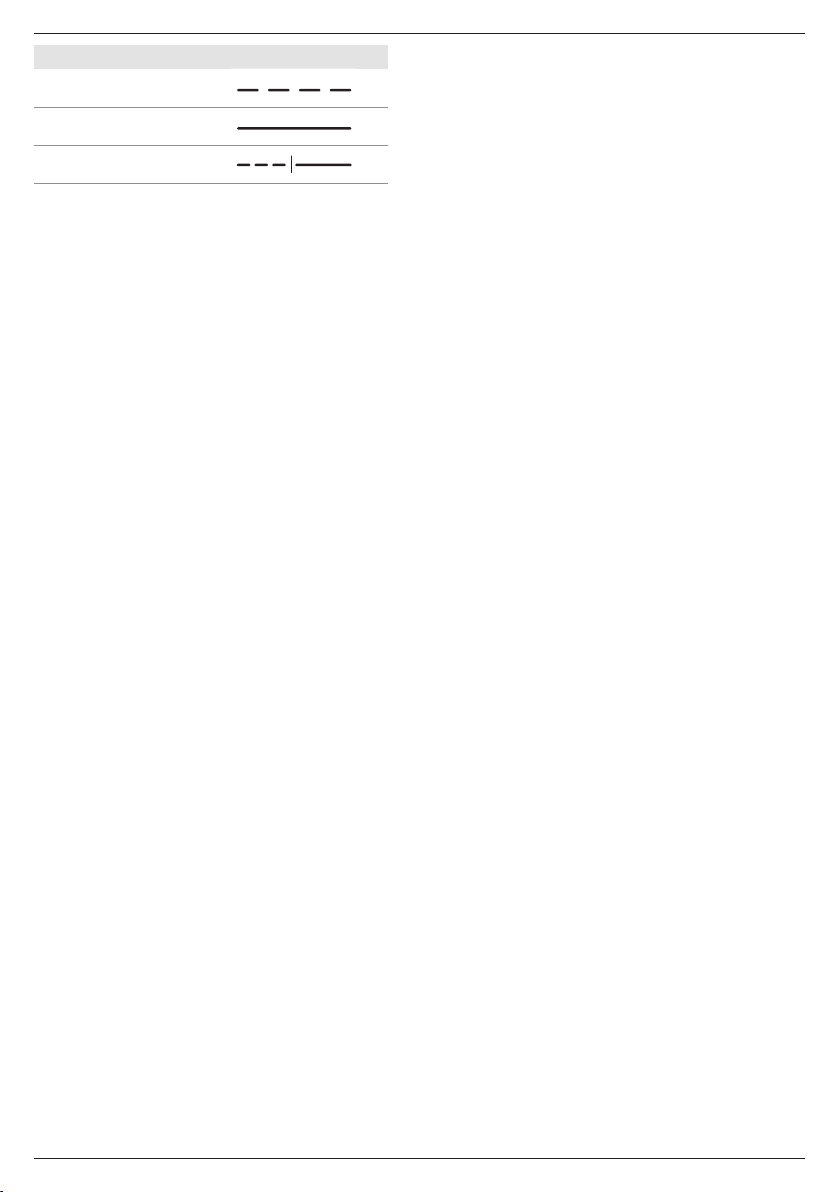

Charge Indicators
FCharging I
GFully Charged J
HHot/Cold Pack Delay* K
*The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the pack
charging mode. This feature ensures maximum battery packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan designed to
cool the battery pack. The fan will turn on automatically when the
battery pack needs to be cooled. Never operate the charger if the
fan does not operate properly or if ventilation slots are blocked.
Do not permit foreign objects to enter the interior of thecharger.
Electronic Protection System
XR Li‑Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection
System engages. If this occurs, place the lithium‑ion battery
pack on the charger until it is fullycharged.
Wall Mounting
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate the
charger within reach of an electrical outlet, and away from a
corner or other obstructions which may impede air flow. Use
the back of the charger as a template for the location of the
mounting screws on the wall. Mount the charger securely using
drywall screws (purchased separately) at least 25.4mm long
with a screw head diameter of 7–9mm, screwed into wood to
an optimal depth leaving approximately 5.5mm of the screw
exposed. Align the slots on the back of the charger with the
exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING:Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using a

9
ENGLISH
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come into contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well‑insulated from
materials that could contact them and cause a short
circuit. NOTE: Lithium‑ion batteries should not be put in
checkedbaggage.
DeWALT batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards, which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations; International Maritime Dangerous Goods
(IMDG) Regulations; and the European Agreement Concerning
The International Carriage of Dangerous Goods by Road
(ADR). Lithium‑ion cells and batteries have been tested to
section 38.3of the UN Recommendations on the Transport of
Dangerous Goods Manual of Tests andCriteria.
In most instances, shipping a DeWALT battery pack will
be excepted from being classified as a fully regulated
Class9Hazardous Material. In general, only shipments containing
a lithium‑ion battery with an energy rating greater than 100Watt
Hours (Wh) will require being shipped as fully regulated Class9.
All lithium‑ion batteries have the Wh rating marked on the pack.
Furthermore, due to regulation complexities, DeWALT does
not recommend air shipping lithium‑ion battery packs alone
regardless of Wh rating. Shipments of tools with batteries (combo
kits) can be air shipped as excepted if the Wh rating of the battery
pack is no greater than 100Wh.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’s responsibility to ensure that its
activities comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The DeWALT FLEXVOLT® battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in
a DeWALT 18V product, it will operate as an 18V battery. When
the FLEXVOLTTM battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54Vbattery.

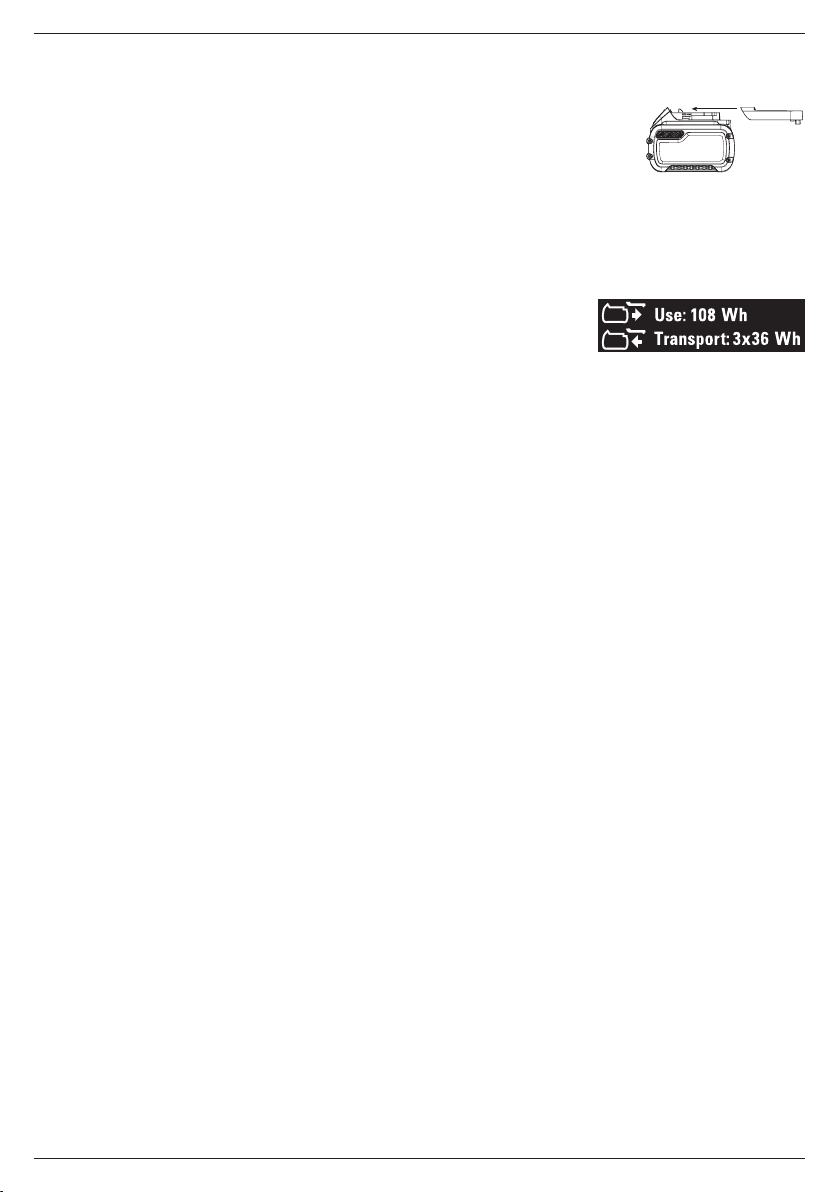

Transport Mode: When the cap is attached to the FLEXVOLTTM
battery, the battery is in Transport mode. Keep the cap
forshipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack,
resulting in 3batteries with a
lower Watt hour (Wh) rating as compared to 1battery with a
higher Watt hour rating. This increased quantity of 3batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
For example, the Transport
Wh rating might indicate
3x36Wh, meaning
3batteries of 36Wh each.
The Use Wh rating might
indicate 108Wh (1batteryimplied).
Storage Recommendations
1. The best storage place is one that is cool and dry away from
direct sunlight and excessive heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the
labels on the charger and the battery pack may show the
followingpictographs:
LRead instruction manual beforeuse.
p Refer to Technical Data for chargingtime.
q Do not probe with conductiveobjects.
r Do not charge damaged batterypacks.
s Do not expose towater.
t Have defective cords replacedimmediately.
u Charge only between 4˚C and 40˚C.
v Only for indooruse.
Example of Use and Transport Label Marking

10
ENGLISH
Battery Type
The DCV586M operates on a 54volt batterypack.
These battery packs may be used: DCB546, DCB547, DCB548.
Refer to Technical Data for moreinformation.
Package Contents
The package contains:
1 Dust extractor
1 Wireless Tool Control™ remote
2 Filters
1 Hose
1 Fleece bag
1 Charger (C, D, E, G, H, L, M, P, Q, S, T, U, X, Y, Z models)
1 Li‑Ion battery pack (C1, D1, E1, G1, H1, L1, M1, P1, Q1, S1, T1,
U1, X1, Y1, Z1 models)
2 Li‑Ion battery packs (C2, D2, E2, G2, H2, L2, M2, P2, Q2, S2,
T2, U2, X2, Y2, Z2 models)
3 Li‑Ion battery packs (C3, D3, E3, G3, H3, L3, M3, P3, Q3, S3,
T3, U3, X3, Y3, Z3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by DeWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the dust extractor, parts or accessories
which may have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.

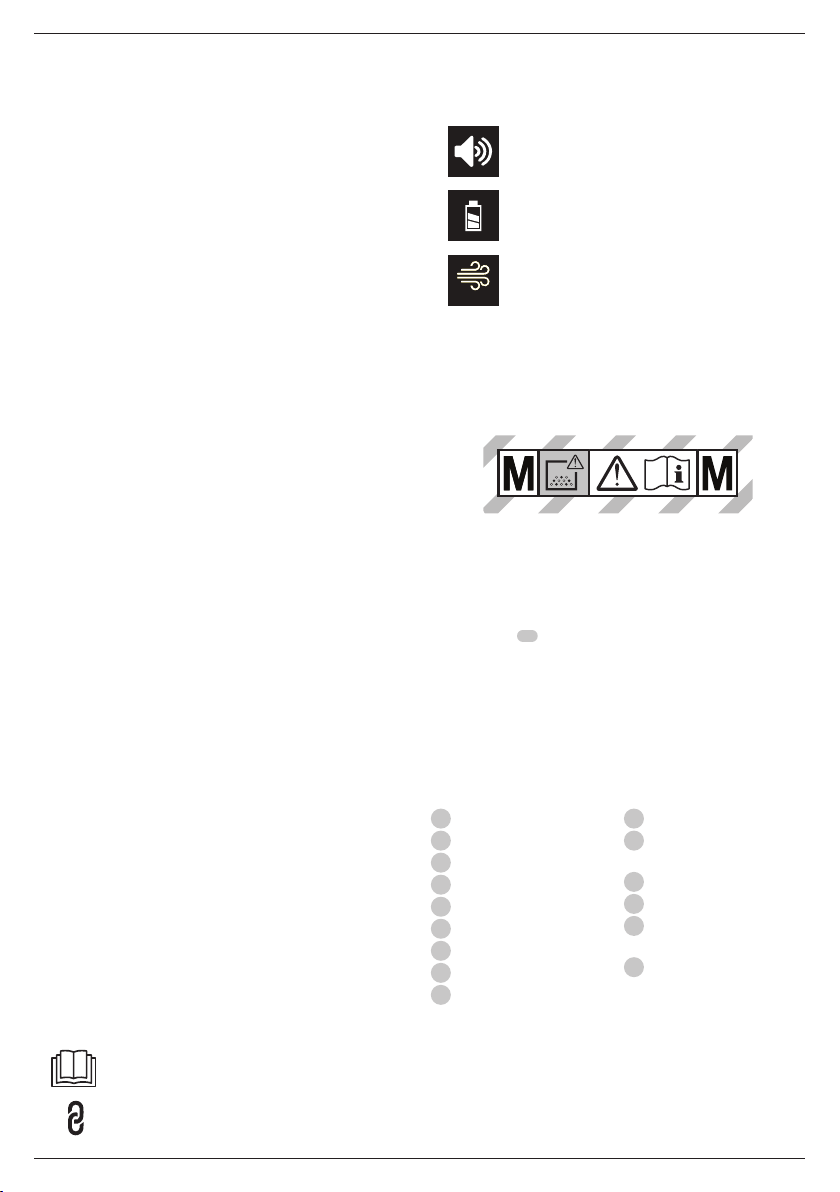

Markings on Dust Extractor
The following pictograms are shown on the dust extractor:
Read instruction manual beforeuse.
Pairingsymbol.
x Discard the battery pack with due care for
theenvironment.
y Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other than
the designated DeWALT batteries with a DeWALT
charger may make them burst or lead to other
dangeroussituations.
z Do not incinerate the batterypack.
B USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).
Ø
20
Ø
32 Hose diameter switchpostions.
Acoustic alarm
Low battery alarm
<20m/s
Flow rate alarm
WARNING: This machine contains dust hazardous to
health. Emptying and maintenance operations, including
removal of the dust collection means, must only be carried
out by authorised personnel wearing suitable personal
protection. Do not operate without the full filtration
systemfitted.
Class M dust extractors are suitable to extract dry,
non‑combustable dusts with workpace limit values
of ≥ 0.1 mg/m³.
Date Code Position (Fig.A)
The date code22, which also includes the year of manufacture,
is printed on top housing underhandle.
Example:
2022XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the dust extractor or any part of
it. Damage or personal injury couldresult.
1 Battery port
2 Dust extractor hose
3 Three position switch
4 Tank latches
5 Hose clips
6 Dust extractor head
7 Battery pack
8 Hose release latch
9 Hose inlet plug
10 TSTAK stacking latches
11 Wireless Tool Control™
pairing button
12 Fleece bag
13 Handle
14 Wireless Tool Control™
remote
15 Hose selection switch
Intended Use
This industrial dust extractor cleaner is intended for wet and dry
vacuum cleaningapplications.
The appliance can operate cordless by using the DeWALT 54V
Li‑ionbatteries.

11
ENGLISH
The dust extractor can be used with a DeWALT TSTAK transport
system or as a stand alone unit on thefloor.
The DCV586M is suitable for picking up dry and non‑flammable
dusts, liquids, wood chips, mineral dusts containing quartz and
hazardous dusts with exposure limit values (e.g. MAK or AGW
values) greater than or equal to 0.1 mg/m³ (dust class M as per
IEC/EN60335‑2‑69).
DO NOT pick up materials that present a risk of explosion,
glowing or burning materials, flammable materials, gases or
other hazardoussubstances.
DO NOT suck up oil, liquids with a temperature of over 32°C,
aggressive or flammableliquids.
DO NOT use the dust extractor in explosiveatmospheres.
DO NOT use the dust extractor without dustbag.
NOTE: This appliance is suited for professional and commercial
use, e.g. in hotels, schools, hospitals, factories, shops, offices,
rental companies, and on constructionsites.
DO NOT let children come into contact with the dust extractor.
Supervision is required when inexperienced operators use
thisdustextractor.
• Young children and the infirm. This appliance is not
intended for use by young children or infirmpersons.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills.
Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn dust extractor off and disconnect battery
pack before making any adjustments or removing/
installing attachments or accessories and if the
dust extractor head is removed from the tank or
not latched securely. An accidental start‑up can
causeinjury.
WARNING: Use only DeWALT battery packs andchargers.
Installing and Removing the Battery Pack
(Fig. B)
NOTE: Make sure your battery pack7 is fullycharged.
1. To install the battery pack into the vaccum, insert/slide
battery pack into battery port1. Make sure the battery pack
is fullyseated.
2. To remove the battery pack from the dust extractor,
press and hold the battery release23 on the battery
pack and remove. To charge the pack, insert it into your
DeWALTcharger.
Fuel Gauge Battery Packs (Fig.B)
Some DeWALT battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button16. A combination of the three green LED lights will
illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge
will not illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate dust extractor functionality
and is subject to variation based on product components,
temperature and end‑userapplication.
Attaching the Hose to the Dust Extractor
(Fig. A)
To attach the hose to the dust extractor, press the hose release
latch8 and insert the end of the hose into the hose inlet.
The hose must be inserted fully before the hose release latch
isreleased.
To remove the hose, press the hose release latch and remove
the hose. The hose must be fully removed before releasing the
hose releaselatch.
The hose inlet plug9 may be used to cover the hose inlet if the
hose is removed for transportation, cleaning,etc.
Installing the Paper or Fleece Bag (Fig. A, C, E, F)
When vacuuming fine dust, you may also use an additional paper
bag or fleece bag12 to make emptying the tank21easier.
NOTE: Always use a bag with M‑classdust.
1. Press the three position switch3 to the Off (O) position and
remove thebattery7.
2. Unlatch the tank latches4 and remove the dust extractor
head6 from thetank21.
3. Attach the bag by passing the two tabs26 on the bag
opening past the two notches27 on the dustextractor.
4. Rotate the bag a quarter turn until the square edge28 is
facingupward.
5. Fit the bag inside thetank.
6. Replace dust extractor head onto the tank and
latchsecurely.
Removing and Disposing the Bag (Fig.A, D, E ,F)
WARNING: Appropriate personal protective equipment
like dust mask and gloves should be used while handling
used dustbags.
1. Press the three position switch3 to the Off (O) position and
remove thebattery7.
2. Close the twist‑lock hose inlet with the hose inlet plug9.
3. Unlatch the tank latches4 and remove the dust extractor
head6 from thetank21.
NOTE: It is normal for there to be a small amount of dust in
the tank even with the the bag properlyinstalled.
4. Rotate the bag until the two tabs align with the two
notches on the dust extractor and remove the bag from the
dustextractor.
5. Once the bag is removed it can be sealed fordisposal.
a. Peel the backing from the adhesive seal29.
b. Press the adhesive seal over the opening and properly
dispose of the bag. DO NOT reuse thebag.
c. Dispose of collection bag in appropriate container
according to statutory provisions.

12
ENGLISH
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn dust extractor off and disconnect battery
pack before making any adjustments or removing/
installing attachments or accessories and if the
dust extractor head is removed from the tank or
not latched securely. An accidental start‑up can
causeinjury.
Flow Rate/Low Battery Alarm
Flow Rate Alarm Adjustment (Fig.A)
Adjust the hose selection switch15 to the correct hose (or
tube) inside diameter size or accessory diameter referring to
the largest section. The chosen diameter of the hose selection
switch must be equal or bigger as the largest diameter of the
used hose/tube/accessories. The hose supplied is 32mm inside
diameter. An acoustic alarm will sound with a slow, intermittent
beep if the flow rate falls below 20m/s. The system has a time
delay to reduce unintendedalarms.
If the alarm sounds when there is no apparent blockage:
1. Ensure that the hose selection switch is set to the correctdiameter.
2. If the flow rate adjustment is set below the maximum,
increase this level until sufficient flow through the hose
causes the alarm tostop.
3. If the alarm still continues to sound, remove hose and check
that it is clear. Remove and replace dust bag if full or blocked
and check filter condition and replace wherenecessary.
If the alarm continues to sound contact your local DeWALT
serviceagent.
Low Battery Alarm (Fig.A)
An acoustic alarm will sound with a quick, intermittent beep if
the battery life should become low. If this alarm sounds, remove
the battery pack7 from the battery port1 and charge the
battery. Refer to Charging aBattery.
Using the Dust Extractor (Fig. A, J)
1. Before using the dust extractor select the proper hose
diameter using the hose selector switch15.
2. Attach the appropriate accessory to the dust extractor hose2.
3. Insert the battery pack7.
4. To turn dust extractor on, press the three position switch3
to the On (I)position.
5. To use in Wireless Tool Control™ mode press the three
position swtich to the Wireless Tool Control™ ( ) position.
The trigger of the connected tool or the button33 on the
remote14 will control the dustextractor.
NOTE: Refer to Pairing the Dust Extractor with a Tool
using Wireless Tool Control™ Mode to use the dust
extractor with a Wireless Tool Control™ equipped tool
orremote.
Replacing the Coin Cell Battery in the
Remote Control (Fig. J)
DANGER: DO NOT INGEST BATTERY;
CHEMICAL BURN HAZARD.This product contains
a coin / button cell battery. If the coin / button cell
battery is swallowed, it can cause severe internal
burns in just 2 hours and can lead to death.
WARNING: KEEP NEW AND USED BATTERIES AWAY FROM
CHILDREN. If the battery compartment does not close securely,
stop using the product and keep it away from children. If you
think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
WARNING: WHEN REPLACING BATTERY, REPLACE IT
WITH THE SAME OR EQUIVALENT TYPE CR2032. Observe
correct polarity (+ and –) when replacing batteries. Do not
store or carry batteries so that metal objects can contact
exposed battery terminals.
WARNING: ENSURE THAT COIN CELL REPLACEMENT IS
CARRIED OUT PROPERLY. There is a risk of explosion.
• When replacing battery, replace it with the same or
equivalent type CR2032. Do not use any other coin cells or
other forms of electrical power supply.
• DO NOT attempt to recharge the coin cell battery and do
not short circuit the coin cell battery. The coin cell battery
may leak, explode, catch fire and cause personal injury.
• DO NOT overheat the coin cell or throw it into fire. The
coin cell may leak, explode, catch fire and cause personal
injury.
• DO NOT damage the coin cell and do not disassemble
the coin cell. The coin cell may leak, explode, catch fire and
cause personal injury.
• DO NOT allow damaged coin cells to come into contact
with water. Leaking lithium may mix with water to create
hydrogen, which could cause a fire, an explosion, or personal
injury.
• DO NOT dispose of the button cell battery with normal
household waste. Contact your local waste disposal
department to dispose of the device/batteries in accordance
with applicable local laws and regulations.
• Remove and dispose of drained coin cell correctly.
Drained coin cell may leak and damage the product or cause
personal injury.
1. To open the housing remove the 4 screws 31from the rear
panel with a T10 torx screwdriver.
2. Pull out sideways the discharged coin cell battery fom the
battery holder.
3. Insert sideways the new coin cell battery 32into the battery
holder, pay attention to the orientation of the battery in terms
of polarity.
4. Replace the back cover, insert the screws and tighten.

13
ENGLISH
6. When finished, turn the dust extractor off by pressing the
three position switch to the Off (O)position.
Wet Pick Up Applications (Fig.I)
WARNING: If foam or liquid escapes from the machine,
switch offimmediately.
CAUTION: Clean the water level sensors regularly and
examine it for signs ofdamage.
WARNING: Do not use the machine with this set up for
dust ClassM.
The dust extractor is designed to perform as a wet/dry
unit.Dedicated filters should be used for wet pick up
applications to avoid filterclogging.
• Make sure that the dust extractor is engaged in the
horizontalposition.
• Before wet pick up applications the dust bag must
beremoved.
• Water level sensors probes25 will automatically shut off
the dust extractor when the maximum fill level has been
reached. Move the three position switch to the Off (O)
position, remove the battery, and empty the tank before
turning the dust extractor backon.
• To avoid syphoning, remove the dust extractor hose from
the source after the water sense probes shut down the
dustextractor.
• It is recommended that the tank be emptied of any dry
contents prior to being used for wet pick up to facilitate
tankcleaning.
• Allow filters to dry after wet pick upapplications.
To Empty Tank (Fig.A, E, F)
1. Press the three position switch3 to the Off (O) position and
remove thebattery7.
2. Unlatch tank latches4 and remove dust extractor head6.
3. Empty contents of tank21 into an appropriate container
according to statutoryprovisions.
To Convert Back to Dry Vacuum Operation
(Fig.A, F)
1. Empty tank21, refer to Dust Extractor
Cleaninginstructions.
2. Place tank upside down position until dry. DO NOT use wet
tank for dry pickup.
3. Place dust extractor head6 on a level surface untildry.
4. Reinstall filters when dust extractor head is dry. SeeFilters.
5. When canister is dry place the dust extractor head6 onto
the tank and secure it by closing the tank latches4.
Connecting to Power Tools (Fig. A, G)
CAUTION: Follow all the requirements of the power tool
regarding connection of dustextractor.
1. Choose the correct power tool adaptor19 to fit the power
tool connection on the tool to be used, refer to Optional
Accessories under Maintenance.Attach power tool
adaptor19 to powertool.
2. Your DeWALT construction dust extractor is fitted with the
DeWALT AirLock connection system. The AirLock allows for a
fast, secure connection between the dust extractor hose2
and power tool. The AirLock connector18 connects
directly to DeWALT compatable tools or through the use
of an AirLock adaptor(available from your local DeWALT
supplier). Refer to the Optional Accessories section for
detail on availableadaptors.
NOTE: If using an adaptor, ensure it is firmly attached to the
tool outlet before following the stepsbelow.
a. Ensure the collar on the AirLock connector is in the
unlock position. (Refer to FigureG.) Align notches20
on collar and AirLock connector as shown for unlock and
lockpositions.
b. Push the AirLock connector onto the adaptor
connectorpoint.
c. Rotate the collar to the lockedposition.
NOTE: The ball bearings inside collar lock into slot and
secure the connection.The power tool is now securely
connected to the dustextractor.
Pairing the Dust Extractor with a Tool using
Wireless Tool Control™ Mode (Fig. A, H, J)
CAUTION: When the dust extractor is being controlled
with the remote or paired power tool it may start or stop
withoutwarning.
WARNING: Do not attach the remote strap to
movingparts.
To Pair with a DeWALT Remote or Wireless Tool
Control™ Tool
1. Press the three position switch3 to the Wireless Tool
Control™ ( )position.
2. Press and hold the Wireless Tool Control™ pairing
button11 on the DCV586M and pull the trigger on
the Wireless Tool Control™ equipped tool or press the
button33  on the remote14 at the sametime.
3. The LED30 will be steadily illuminated to indicate a
successfulpairing.
NOTE: Only one transmitter can be paired to the DCV586M
at a time. If the unit is already paired the previous
transmitter will beoverridden.
To Unpair with a Wireless Tool Control™ Tool or Remote
• Press and hold the Wireless Tool Control™ pairing
button11 on the DCV586M and pull the trigger on the
Wireless Tool Control™ equipped tool or press the button on
the remote at the sametime.
• The LED30 will flash slowly to indicate a
successfulunpairing.
LED FLASH PATTERN
In pairing mode – – – – – – –
No device is paired
– – – –– – – –
Device is successfully paired
––––

14
ENGLISH
Dust Extractor Cleaning
To Empty Tank (Fig.A, F, H,I)
WARNING: Appropriate personal protective equipment
like a dusk mask and gloves should be used while cleaning
the dust extractor and emptying thetank.
WARNING: Emptying and maintenance, including
disposal of the dust collection container, may be carried
out only by trained and qualified specialists. Wear the
appropriate protectiveequipment.
The buzzer sounds and suction is reduced when the tank isfull.
1. Press the three position switch3 to the Off (O) position and
remove thebattery7.
2. Close the twist‑lock hose inlet with the hose inlet plug9.
3. Remove the dust extractor head6 from thetank21.
4. Dispose of collection bag in appropriate container according
to statutoryprovisions.
5. Clean or change filters17. Refer to Filter section of
thismanual.
6. Inspect machine for damage by foreign objects. Contact the
nearest DeWALT authorized service centre for replacement
of damaged or missingparts.
7. Replace dust extractor head onto the tank and
latchsecurely.
Stacking Using the DeWALT TSTAK Stacking
Latches (Fig. A)
WARNING: When stacking, always place the dust
extractor on thebottom.
The DEWALT TSTAK stacking latches10 l allow for other
TSTAK products to securely stack one on top of the other for
convenience andportability.
To use the TSTAK stacking latches10, place a TSTAK compatible
unit on top of the dust extractor and flip up the two TSTAK
stacking latches so that they clip securely to the bottom of
theunit.
Filters
WARNING: The filters must always be in place
whilevacuuming.
Filter Care
The filters included with this dust extractor are long life filters. To
be effective in minimizing dust recirculation, the filters MUST be
installed correctly and in goodcondition.
Automatic Filter Cleaning System
This dust extractor has a highly effective filter cleaning system
which minimizes filter clogging. Every 20seconds, one of the
two filters gets automatically cleaned. The cleaning process
alternates between the filters and continues through the life of
theunit.
NOTE: It is normal to hear a clicking sound during thisprocess.
NOTE: After many hours of operation the automatic filter
cleaning system may not be effective. When this happens the
filters will need to be cleaned or replaced.
To Remove Filters (Fig. A, H, I)
WARNING: Appropriate personal protective equipment
like dust mask and gloves should be used while handling
thefilters.
1. Press the three position switch3 to the Off (O) position and
remove thebattery7.
2. Release tank latches4 and remove dust extractor head6
from canister. Place dust extractor head on a level surface
upsidedown.
3. Turn each filter17 counterclockwise, and carefully remove
from dust extractor head, ensuring debris does not fall into
mountinghole.
NOTE: Use care to not damage filtermaterial.
4. Inspect filters for wear, tears or otherdamage.
NOTE: If there is any doubt on the condition of the filters,
they MUST be replaced. DO NOT continue use if filters
aredamaged.
WARNING: Never use compressed air or a brush to clean
filters, otherwise damage to the filter membrane will
occur which will allow dust to pass through the filter.
If needed, rinse with room temperature water and let
air dry. Cleaning of the filters is typically unnecessary.
Even if the filter is covered with dust, the automatic filter
cleaning system will maintain maximum performance
and continue to function. If visual damage to the filter
membrane exists, replace filters. Filters typically last
between six and twelve months, depending on use
andcare.
NOTE: Dispose of filter in appropriate container according to
statutoryprovisions.
To Install Filters (Fig.E, F, I)
WARNING: The filters must always be in place
whilevacuuming.
1. Ensure filter seal24 is in place and isclean andsecure.
2. Line up the tabs on the filter17 to the notches on the dust
extractor head and using moderate force, turn clockwise
until the filter issecure.
NOTE: Use care to not damage filtermaterial.
3. Place the dust extractor head6 onto the tank21 and
secure it by closing the tank latches4.
MAINTENANCE
The appliance must be subjected to a technical inspection
by DeWALT Service or a trained person at least once a year to
check, damage to the filter, air leakage, and to ensure correct
operation of controllingdevices.
NOTE: Cleaning and user maintenance shall not be made by
children.
WARNING: For vacuum cleaners of the class M, please
note: The exterior of the dust extractor should be
decontaminated by dust extraction and wiped clean
or seal it in a suitable container or material before
being removed from an area contaminated with
hazardous substances; All parts of the dust extractor
must be considered contaminated when taken out of the

15
ENGLISH
hazardous area and appropriate measures must be taken
to avoid dustdistribution.
WARNING: To reduce the risk of serious personal
injury, turn dust extractor off and disconnect battery
pack before making any adjustments or removing/
installing attachments or accessories and if the
dust extractor head is removed from the tank or not
latched securely. An accidental start‑up can causeinjury.
The dust extractor must be handled for cleaning and
maintenance in a way, that avoids exposing maintenance
personnel and other persons to anyhazards.
• Wear personal protectiveequipment.
• Use filtered forcedventilation.
• Clean the dust extractor. Refer toCleaning.
• When maintenance or repairs are carried out, all
contaminated parts which cannot be satisfactorilycleaned
must be packed in impermeable bags and disposed of in
compliance with the applicable disposalregulations.
• After maintenance or repairs clean the maintenance area in
a way that prevents hazardous substances escaping into the
surroundingenvironment.
The charger and battery pack are notserviceable.
Lubrication
Your dust extractor requires no additionallubrication.
Cleaning (Fig. A, I)
WARNING: Never use solvents or other harsh chemicals
for cleaning the non‑metallic parts of the dust extractor.
These chemicals may weaken the materials used in these
parts. Use a cloth dampened only with water and mild
soap. Never let any liquid get inside the dust extractor;
never immerse any part of the dust extractor into aliquid.
For cleaning and maintenance in a way that avoids exposing
maintenance personnel and other persons to any hazards, wear
personal protective equipment. Clean the maintenance area in a
way that prevents hazardous substances from escaping into the
surroundingenvironment.
Do not use a spray system, pressure jet washer or running water
forcleaning.
1. Vacuum the outside of the dust extractor. For further
cleaning use a cloth dampened only with water and mild
soap ifnecessary.
2. After use dispose of cloth in an appropriatecontainer.
3. Empty tank according the the section Dust
ExtractorCleaning.
4. Inspect water sensor probes25 during dust extractor
cleaning. Water sense probes may become contaminated
during operation. If contamination is present, clean water
sense probes thoroughly with damp cloth to remove any
visiblecontamination.
Storage (Fig. A)
CAUTION: The three position switch must be in OFF (0)
position to prevent unintentional being switched on by
Wireless ToolControl.
1. Empty the tank. Refer to Dust Extractor Cleaning
underOperation.
2. Clean the dust extractor inside andoutside.
3. Clean or replace filters, refer toFilters.
4. Store the suction hose with the hose clips5 and the power
cord as shown in the illustration. Place the unit in a dry room
and secure it from unauthorizeduse.
NOTE: Plug hose inlet plug9 into inlet to keep debris inside
canister when suction hose is removed. You can also attach
the ends of the hose together and lock together with the
twist‑lockend.
Optional Accessories
WARNING: Since accessories, other than those offered
by DeWALT, have not been tested with this product,
use of such accessories with this dust extractor could
be hazardous. To reduce the risk of injury, only DeWALT
recommended accessories should be used with
thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
A replacement filter is available at extra cost at your local
DeWALT servicecentre.
Dust Collector
In the vacuum mode, the appliance can also function as a dust
collector for power tool applications producing dust ordebris.
IMPORTANT! The DWV9000 dust extraction adaptor is
designed to work with Dust System Compatible DeWALT
power tools. An additional adaptor will be needed with
non‑compatible DeWALTtools.
Optional Accessories
• DCV5861 Replacement Filters (Contains 2DC5151H filters)
• DWV9316 Anti‑Static Hose
• DWV9350 Floor Cleaning Kit
• DWV9000 Twist Lock connection
• DWV9110 29mm–35mm tapered rubber adaptor
• DWV9120 35mm–38mm stepped rubber adaptor
• DWV9130 35mm OD Adaptor
• DWV9150 35mm OD angle adaptor
• DWV9210 Construction Kit (DWV9000 + DWV9120 +
DWV9130)
• DWV9220 Woodworking Kit (DWV9000 + DWV9130 x 3 +
DWV9120 + DWV9150 + Cable Hose Clip)
• DWV9470 Y Splitter Hose Kit
• DWST17889 Cart
• DWST17888 Trolley
The filter bags provide a clean, easy and quick way to dispose of
the dustcollected.

16
ENGLISH
Paper filter bags: The DCV9401 filter bags are designed to
capture many types of dust including drywall, concrete and
wood. These bags should be disposed of once the airflow
becomes restricted. DO NOT reusebags.
DCV9401 Disposable paper filter bag
Fleece filter bag: The DCV9402 fleece bag is designed to
capture many types of dust including drywall, concrete and
wood. This bag should be disposed of once the airflow becomes
restricted. DO NOT reuse this bag. The fleece bag is ideal for
heavier materials such as concrete and drywall dust where a
paper filter bag maytear.
DCV9402 Disposable fleece filter bag
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with normal
householdwaste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is available at
www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due care for
our environment:
• Run the battery pack down completely, then remove it from
thedustextractor.
• Li‑Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.

17
ENGLISH
TROUBLESHOOTING
Problem Possible Cause Troubleshooting Steps
Motor does not run. Switch is not in On (I) position. Ensure three position switch is in On (I) position.
Low battery voltage/poor battery connection. Ensure battery is fully charged and fully inserted.
Tank is full of liquid and sense circuit is tripped. 1. Turn the three position switch to the Off (0) position and remove battery.
2. Empty tank.
Dust extractor stops running. Thermal overload has been tripped. 1. Turn the dust extractor off and remove battery.
2. Empty the tank, if needed.
3. Allow the dust extractor to cool.
4. Resinsert the battery and press the three position switch to the On (I)
position to test.
5. If dust extractor will not restart, contact DeWALT service centre.
Tank is full of liquid and sense circuit is tripped. 1. Turn the three position switch to the Off (0) position and
remove battery.
2. Empty tank.
Battery is discharged. Insert fully charged battery.
Battery is not fully inserted. Remove and reinsert battery.
Dust comes out of unit while using. Filters not installed properly. Remove and reinstall per proper procedure.
Filters are damaged/torn. Replace filters.
Filter gaskets are damaged. Contact DeWALT service centre.
Head not installed properly to tank. Remove, reinstall and ensure latches are fully engaged.
Head gasket damaged. Contact DeWALT service centre.
Dust extractor stops capturing dust. Filters clogged. Remove filters, tap clean and reinstall.
Filters at end of service life. Replace with new filters.
Automatic filter cleaning no longer functional. If filter cleaning system is not heard every 20 seconds, contact DeWALT
service centre.
Tank full. Turn unit off and empty tank.
Hose is clogged. Inspect and clear hose if clog is found.
Hose is not fully connected to tank. Reinsert and ensure hose latch is fully engaged.
Hose is damaged. Inspect hose for holes or tears. Replace if damage is found.
Dust extractor is not turned on by
Wireless Tool Control™ equipped
power tool or remote.
Dust extractor is not in Wireless Tool
Control ( ) mode.
Move three position switch to Wireless Tool Control™ ( ) mode.
Confirm LED is illuminated. If LED is not illuminated with the 3‑position
switch in Wireless Tool Control™ ( ) mode, contact DeWALT
service centre.
Remote/power tool is not paired to
dust extractor.
Follow pairing steps.
Remote/power tool is out of range of
dust extractor.
Move dust extractor closer to remote/power tool.
Wireless Tool Control™ remote coin cell is dead. Replace coin cell and retry.
Paired tool's battery is dead. Ensure paired tool's battery is fully charged and fully inserted.
Low battery voltage/poor battery connection. Ensure battery is fully charged and fully inserted.
Tank is full of liquid and sense circuit is tripped. 1. Turn the three position switch to the Off (0) position and
remove battery.
2. Empty tank.
Tool does not pair Dust extractor is not in Wireless Tool
Control ( ) mode.
Move three position switch to Wireless Tool Control™ ( ) mode.
Confirm LED is illuminated. If LED is not illuminated with the 3‑position
switch in Wireless Tool Control™ ( ) mode, contact DeWALT
service centre.
Tool is not Wireless Tool Control™ enabled. Confirm that tool is Wireless Tool Control™ enabled.

Belgique et
Luxembourg België en Luxemburg
DeWALT - Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT (Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard-Klinger-Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλάς DeWALT (Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT (Stanley Black & Decker France SAS)
62 Chemin de la Bruyère
CS 60105,
69574 DARDILLY Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: [phone]
Fax: [phone]
www.dewalt.ie
[email protected]
Italia DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: [phone]
39 039-9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
AND Kozyataği - İçerenköy Mah. Umut Sok. AND Ofis Sit. No: 10-12 / 82-83-84
Ataşehir/İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United Kingdom DeWALT, 270 Bath Road;
Slough, Berks SL1 4DX
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia / New Zealand DeWALT
810 Whitehorse Road Box Hill
VIC 3128 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
NA286963 12/22
