TECHNICAL REFERENCE MANUAL
HSI-LV Module
WELCOME TO
THE WORLD OF
DEWETRON!
Congratulations on your new device! It
will supply you with accurate, complete
and reproducible measurement results
for your decision making.
Look forward to the easy handling and
the flexible and modular use of your
DEWETRON product and draw upon
more than 30 years of DEWETRON
expertise in measurement engineering.
ISO9001
EN ISO 14001
THE MEASURABLE DIFFERENCE.

Copyright © DEWETRON GmbH
This document contains informaon which is protected by copyright. All rights are reserved. Reproducon,
adaptaon, or translaon without prior wrien permission is prohibited, except as allowed under the copyright
laws.
All trademarks and registered trademarks are acknowledged to be the property of their owners.

3
Notice
General Information, Safety Instructions
The information contained in this document is subject to change without notice.
DEWETRON GmbH (DEWETRON) shall not be liable for any errors contained in this document.
DEWETRON MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THIS DOCUMENT, WHETHER
EXPRESS OR IMPLIED. DEWETRON SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DEWETRON shall not be liable for
any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any
other legal theory, in connection with the furnishing of this document or the use of the information in this
document.
Warranty Information:
A copy of the specic warranty terms applicable to your DEWETRON product and replacement parts can be
obtained from your local sales and service o󰀩ce.
Restricted Rights Legend:
Use austrian law for duplication or disclosure.
DEWETRON GmbH
Parkring 4
8074 Grambach
Austria
Printing History:
Please refer to the page bottom for printing version.
Copyright © DEWETRON GmbH.
This document contains information which is protected by copyright. All rights are reserved. Reproduction,
adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright
laws.
All trademarks and registered trademarks are acknowledged to be the property of their owners.
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

4
Notice
Safety symbols in the manual
Indicates hazardous voltages.
WARNING Calls attention to a procedure, practice, or condition that could cause bodily
injury or death.
CAUTION Calls attention to a procedure, practice, or condition that could possibly cause
damage to equipment or permanent loss of data.
WARNINGS
The following general safety precautions must be observed during all phases of operation, service, and
repair of this product. Failure to comply with these precautions or with specic warnings elsewhere in this
manual violates safety standards of design, manufacture, and intended use of the product. DEWETRON
Elektronische Messgeraete Ges.m.b.H. assumes no liability for the customer’s failure to comply with these
requirements.
All accessories shown in this document are available as option
and will not be shipped as standard parts.

5
Safety Instructions
Safety instructions for DEWETRON amplifiers
The DEWETRON data acquisition systems and ampliers may only be installed by experts.
Read your manual carefully before operating.
Observe local laws when using the ampliers.
Ground the equipment: For Safety Class 1 equipment (equipment having a protective earth terminal), a
non interruptible safety earth ground must be provided from the mains power source to the product input
wiring terminals or supplied power cable.
DO NOT operate the product in an explosive atmosphere or in the presence of ammable gases
or fumes.
DO NOT operate damaged equipment: Whenever it is possible that the safety protection features built
into this product have been impaired, either through physical damage, excessive moisture, or any other
reason, REMOVE POWER and do not use the product until safe operation can be veried by service-
trained personnel. If necessary, return the product to a DEWETRON sales and service o󰀩ce for service
and repair to ensure that safety features are maintained.
Keep away from live circuits: Operating personnel must not remove equipment covers or shields.
Procedures involving the removal of covers or shields are for use by service-trained personnel only.
Under certain conditions, dangerous voltages may exist even with the equipment switched o󰀨. To avoid
dangerous electrical shock, DO NOT perform procedures involving cover or shield removal unless you
are qualied to do so.
No modications are allowed at the ampliers.
DO NOT service or adjust alone. Do not attempt internal service or adjustment unless another person,
capable of rendering rst aid and resuscitation, is present.
DO NOT substitute parts or modify equipment: Because of the danger of introducing additional hazards,
do not install substitute parts or perform any unauthorized modication to the product. Return the product
to a DEWETRON sales and service o󰀩ce for service and repair to ensure that safety features are
maintained.
DO NOT touch internal wiring!
DO NOT use higher supply voltage than specied!
Use only original plugs and cables for harnessing.
Safety of the operator and the unit depend on following these rules.
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

6
Support
For any support please contact your local distributor rst or DEWETRON directly.
For Asia and Europe, please contact:
DEWETRON GmbH
Parkring 4
8074 Grambach
AUSTRIA
Tel.: [phone]
Fax: [phone]
Email: [email protected]
Web: http://www.dewetron.com
The telephone hotline is available Monday to Friday between 08:00 and 12:00 CET (GMT -1:00) and Monday
to Thursday between 13:00 and 17:00 CET.
For the Americas, please contact:
DEWETRON, Inc.
2850 South County Trail, Unit 1
East Greenwich, RI 02818
U.S.A.
Tel.: [phone]
Toll-free: [phone]
Fax: [phone]
Email: [email protected]
Web: http://www.dewetron.us
The telephone hotline is available Monday to Friday between 08:00 and 17:00 GST (GMT +5:00)

12345
6789
7
General Module Information
9-pin male SUB-D connector
Interface pin assignment:
1 Module output (±5 V)
2 RS-485 (A)
3 RS-485 (B)
4 GND
5 +9 V power supply
6 +12 V power / sensor supply
7 Module input (from D/A
converter of the A/D board)1)
8 reserved
9 -9 V power supply
1) Triggerout at DAQP-FREQ-A
Calibration information
All DEWETRON modules are calibrated at 25 °C after a warmup time of 30 minutes and meet their
specications when leaving the factory.
The time interval for recalibration depends on environmental conditions. Typically, the calibration should be
checked once a year.
Calibration certicates are available from DEWETRON as an option. DEWETRON o󰀨ers two types:
ISO traceable DEWETRON certicate
Calibration certicate according to ÖKD (equivalent to DKD)
This manual contains no calibration information. For self calibration, there is a separate calibration kit for the
DAQ series modules available. The CAL-KIT contains the required cables, software and instructions.
General module specifications
Module dimensions: 20 x 65 x 105 mm (0.79 x 2.56 x 4.13 in.)
(W x H x D without front cover and connectors)
Frontcover: 20 x 87 x 2 mm (0.79 x 3.43 x 0.08 in.)
(W x H x D without connector)
Environmental:
Temp. range storage: -30 °C to +85 °C (-22 °F to 185 °F)
Temp. range operating: -5 °C to +60 °C (23 °F to 140 °F)
Relative humidity
(MIL202): 0 to 95 % at 60 °C, non-condensing (unless otherwise noticed)
RFI susceptibility: ±0.5 % span error at 400 MHz, 5 W, 3 m
All specications within this manual are valid at 25 °C!
All modules are produced according ISO9001 and ISO14001.
Module connectors
Frontpanel connector: Accessable to the user. The connector type and pin assignment varies
from module to module. Detailed pin assignment of each module is
shown in the appropriate module description.
Rear connector: 9-pin male SUB-D, interface to the DEWE-System, not accessable to the user.
HSI/DAQx and PAD module
rear view
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

DEWETRON
data acquisition
system
RS-232/485
conversion on
DEWETRON-
motherboard
DAQx or PAD
module
RS-232
interface
RS-485
businterface
8
RS-232/485 interface
HSI/DAQP modules can be congured via
RS-485 interface, PAD modules require
this interface for all data transfers.
For all DEWETRON systems, an internal
RS-232/485 converter is available
(standard with DEWE-800, -2000, -2500, -3000, -4000, -5000 series systems). This converter allows
communication with HSI/DAQP and PAD modules.
To communicate with the modules, the RS-232 interface has to be set to the following parameters:
baud rate: 9600 bps
data bits: 8
parity: no parity
stop bits: 1
handshake: not required
HSI/DAQP module configuration
1. Push button selection
All ranges and lters can be selected directly by pressing the push buttons on the module. Approx. 15 sec.
after changing range and / or lter, the range and lter information is stored in an EEPROM. This procedure
increases the livetime of the EEPROM.
The current input range setting is shown all the time by LED. To change the range just press RANGE button
a few times until the required range is displayed.
To see the current lter setting just press the FILTER button once. The corresponding LED is ashing for
approx. 3 seconds. Within this time, the lter can be selected by pressing the FILTER button again. Approx.
3 seconds after the last key activity, the information will be stored, the LED stops ashing and shows the
input range again.
CAUTION: Power loss during this time leaves the module in the former settings.
2. RS-232/485 programming
All ranges and lters can also be selected via RS-232/485 interface. All new DEWE-800, -2000, -2500,
-3000, -4000, -5000 series systems are prepared as a standard to work with HSI/DAQP modules.
The easiest way to change the conguration is to use the DEWECong software, which comes as a standard
with the DEWETRON data acquisition system.
Detailed information about HSI/DAQP modules programming for customer applications is available in the
DEWE-Modules Programmers Reference Manual.
CAUTION: All range and lter changes which are done via RS-232/485 interface are not stored in the
EEPROM of the HSI/DAQP modules! You have to store this information in a separat initialisation le to
keep settings information for next system start!
PAD module communication
All PAD modules are only working through the RS-232/485 interface. All new DEWE-800, -2000, -2500,
-3000, -4000, -5000 series systems are prepared as a standard to work with PAD modules. The easiest
way to change the conguration is to use the DEWECong software, which comes as a standard with the
DEWETRON data acquisition system.
Detailed information about PAD modules programming for customer applications is available in the
DEWE-Modules Programmers Reference Manual.
General Module Information

9

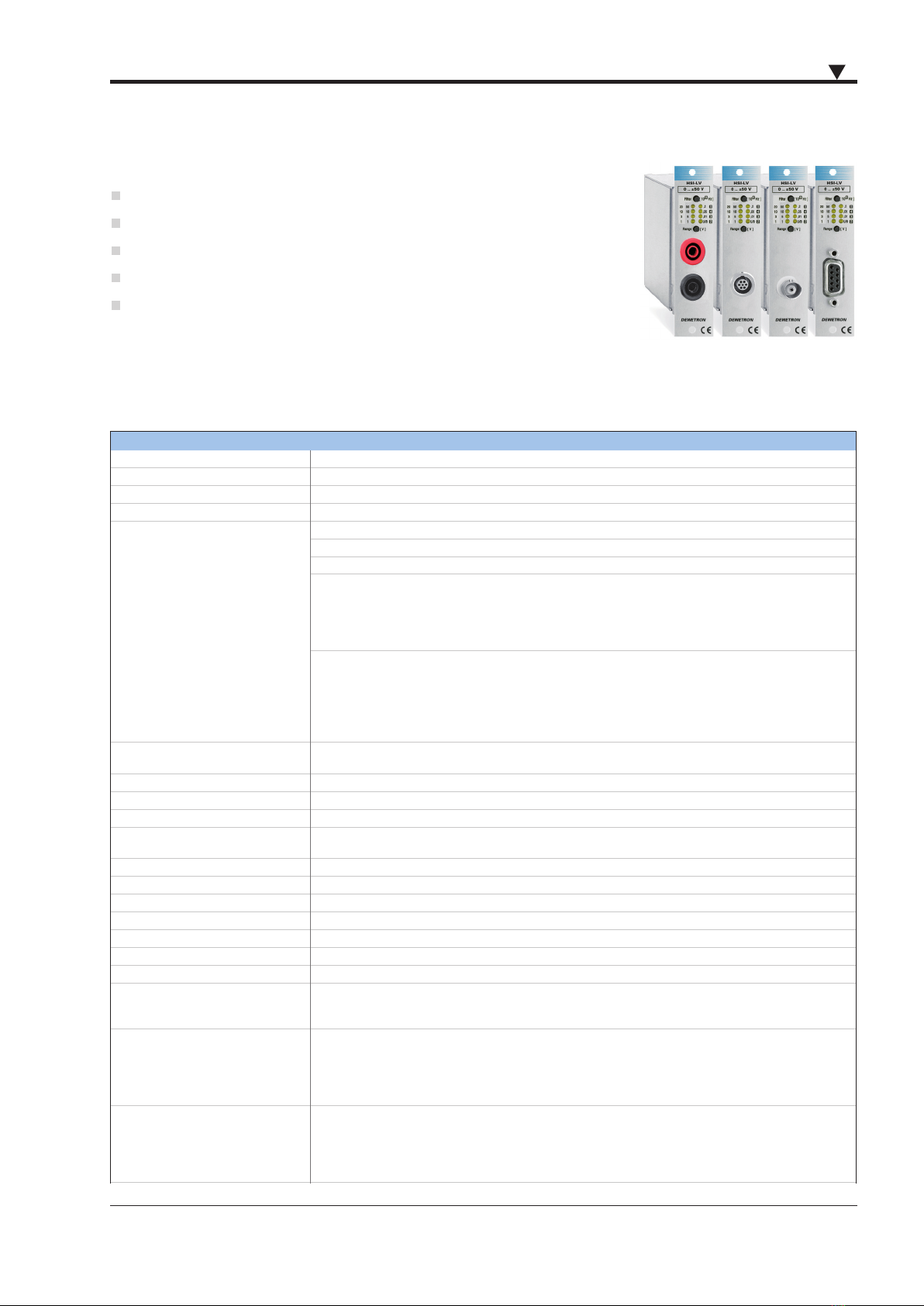

HSI-LV
High speed isolated voltage amplifier
Bandwidth: 2 Mhz
Input ranges: 12 ranges (10 mV to 50 V)
Input type: AC and DC coupling software selectable
TEDS: Supports electronic data sheet sensors
Signal connection:
HSI-LV-B: Banana plugs
HSI-LV-BNC: BNC connector
HSI-LV-D: 9-pin D-SUB connector
HSI-LV-LEMO: 7-pin LEMO connector
Module specifications
HSI-LV
Input ranges 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2.5 V, 5 V, 10 V, 25 V, 50 V
Button selectable ranges 10 mV, 50 mV, 200 mV, 1 V, 5 V, 10 V, 50 V
Rated input voltage 33 VRMS, 46.7 VPEAK, 70 VDC according to EN-61010-1 and EN-61010-2-30
1 year accuracy1) Range Signal frequency Accuracy
Bipolar 10 mV to 100 mV DC ±0.02 % of reading ±60 µV
2.5 V DC ±0.02 % of reading ±0.1 % of range
200 mV to 50 V DC ±0.02 % of reading ±0.05 % of range
10 mV to 100 mV 0.1 Hz to 5 kHz ±0.1 % of reading ±30 µV
>5 kHz to 50 kHz ±0.4 % of reading ±30 µV
>50 kHz to 100 kHz ±(0.016*f) % of reading ±0.1 % of range
>100 kHz to 1 MHz ±(0.010*f) % of reading ±1 % of range
>1 MHz to 2 MHz ±(0.014*f) % of reading ±3 % of range
200 mV to 50 V 0.1 Hz to 500 Hz ±0.05 % of reading ±0.01 % of range
>500 Hz to 5 kHz ±0.1 % of reading ±0.05 % of range
>5 kHz to 50 kHz ±0.4 % of reading ±0.05 % of range
>50 kHz to 100 kHz ±(0.016*f) % of reading ±0.1 % of range
>100 kHz to 1 MHz ±(0.010*f) % of reading ±1 % of range
>1 MHz to 2 MHz ±(0.014*f) % of reading ±3 % of range
Unipolar 10 mV to 100 mV DC ±0.02 % of reading ±60 µV
200 mV to 50 V DC ±0.02 % of reading ±0.08 % of range
Input coupling DC or AC software selectable (1.5 Hz standard, custom on request down to 0.01 Hz)
Gain linearity Typically 0.01 %; max. 0.04 % of full scale
Gain drift range Typically 10 ppm/°C (max. 30 ppm/°C)
O󰀨 set drift 10 mV to 200 mV: Typically 3 µV/°C
500 mV to 50 V: Typically 10 ppm of range/°C
Long term stability 100 ppm/sqrt (1000 hrs)
Input resistance 1 MOhm
Bandwidth (-3 dB) 2 MHz
Signal delay @ full bandwidth approx. 405 ns
Filter selection Push button or software
Filter 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 2 MHz2)
Filter type Bessel or Butterworth 40 dB/dec
Filter characteristics
100 Hz to 1 MHz
2 MHz
Butterworth or Bessel 40 dB/dec (2nd order; ±1.5 dB @ f0)
Butterworth 60 dB/dec (3rd order; 0 to -3 dB @ 2 MHz)
Typical SFDR and SNR:
20 mV
1 V
50 V
10 kHz bandwidth 100 kHz bandwidth 1 MHz bandwidth 2 MHz bandwidth
SFDR SNR SFDR SNR SFDR SNR SFDR SNR
88 dB 78 dB 88 dB 71 dB 77 dB 60 dB 76 dB 56 dB
110 dB 98 dB 110 dB 95 dB 93 dB 82 dB 84 dB 75 dB
110 dB 98 dB 110 dB 95 dB 94 dB 82 dB 85 dB 75 dB
Typical CMRR
50 Hz
1 kHz
10 kHz
100 kHz
10 mV to 1 V range: 2.5 V to 50 V range:
130 dB 100 dB
120 dB 60 dB
95 dB 40 dB
75 dB 20 dB
Input overvoltage protection 350 VDC
Isolation voltage 1 kVRMS
3)
Sensor supply ±9 V (±1 %), 12 V (±5 %), 200 mA resettable fuse protected4)
Output voltage ±5 V
Output resistance 10 Ohm
Maximum output current 5 mA
Output protection Short to ground for 10 sec.
Power On default settings Software programable
Power supply ±9 VDC ±1 %
Power consumption 1.1 W without sensor supply
Special functions Integrated temperature sensor
RS-485 interface Yes
TEDS Hardware support for TEDS (Transducer Electronic Data Sheet)
Supported TEDS chips DS2406, DS2430A, DS2432, DS2433, DS2431
Supported MSI MSI-V-ACC, MSI-V-RTD
1) Conditions for accuracy: Module temperature is calibration temperature ±5 °C; humidity is 30 to 90 RH.
AC accuracy: the highest lter (2 MHz) has to be activated. f = signal frequency in kHz.
For the 2 year accuracy multiply all % of range and % of reading values by 1.5.
2) 2 MHz lter: exclusively for Butterworth 60 dB/decade - refer to lter specications. Please consider possible bandwidth limitation of further components in the
measuring chain, e.g. A/D card or signal conditioning mainframe.
3) Although the rated input voltage is 33 VRMS, 46.7 VPEAK or 70 VDC according to EN-61010-1 and EN-61010-2-30, the galvanic isolation has been tested with
1 kVRMS for 1 min.
4) Overall current should not exceed DEWE-30-xx maximum power.
continued on next page
nical Refe450134 • DAQP/HSI/PAD Modules • Tech rence Manual • Printing version 2.3.4 • November 18, 2020

10
HSI-LV
HSI-LV
Input ranges 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2.5 V, 5 V, 10 V, 25 V, 50 V
Button selectable ranges 10 mV, 50 mV, 200 mV, 1 V, 5 V, 10 V, 50 V
Rated input voltage 33 VRMS, 46.7 VPEAK, 70 VDC according to EN-61010-1 and EN-61010-2-30
1 year accuracy1) Range Signal frequency Accuracy
Bipolar 10 mV to 100 mV DC ±0.02 % of reading ±60 µV
2.5 V DC ±0.02 % of reading ±0.1 % of range
200 mV to 50 V DC ±0.02 % of reading ±0.05 % of range
10 mV to 100 mV 0.1 Hz to 5 kHz ±0.1 % of reading ±30 µV
>5 kHz to 50 kHz ±0.4 % of reading ±30 µV
>50 kHz to 100 kHz ±(0.016*f) % of reading ±0.1 % of range
>100 kHz to 1 MHz ±(0.010*f) % of reading ±1 % of range
>1 MHz to 2 MHz ±(0.014*f) % of reading ±3 % of range
200 mV to 50 V 0.1 Hz to 500 Hz ±0.05 % of reading ±0.01 % of range
>500 Hz to 5 kHz ±0.1 % of reading ±0.05 % of range
>5 kHz to 50 kHz ±0.4 % of reading ±0.05 % of range
>50 kHz to 100 kHz ±(0.016*f) % of reading ±0.1 % of range
>100 kHz to 1 MHz ±(0.010*f) % of reading ±1 % of range
>1 MHz to 2 MHz ±(0.014*f) % of reading ±3 % of range
Unipolar 10 mV to 100 mV DC ±0.02 % of reading ±60 µV
200 mV to 50 V DC ±0.02 % of reading ±0.08 % of range
Input coupling DC or AC software selectable (1.5 Hz standard, custom on request down to 0.01 Hz)
Gain linearity Typically 0.01 %; max. 0.04 % of full scale
Gain drift range Typically 10 ppm/°C (max. 30 ppm/°C)
O󰀨set drift 10 mV to 200 mV: Typically 3 µV/°C
500 mV to 50 V: Typically 10 ppm of range/°C
Long term stability 100 ppm/sqrt (1000 hrs)
Input resistance 1 MOhm
Bandwidth (-3 dB) 2 MHz
Signal delay @ full bandwidth approx. 405 ns
Filter selection Push button or software
Filter 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 2 MHz2)
Filter type Bessel or Butterworth 40 dB/dec
Filter characteristics
100 Hz to 1 MHz
2 MHz
Butterworth or Bessel 40 dB/dec (2nd order; ±1.5 dB @ f0)
Butterworth 60 dB/dec (3rd order; 0 to -3 dB @ 2 MHz)
Typical SFDR and SNR:
20 mV
1 V
50 V
10 kHz bandwidth 100 kHz bandwidth 1 MHz bandwidth 2 MHz bandwidth
SFDR SNR SFDR SNR SFDR SNR SFDR SNR
88 dB 78 dB 88 dB 71 dB 77 dB 60 dB 76 dB 56 dB
110 dB 98 dB 110 dB 95 dB 93 dB 82 dB 84 dB 75 dB
110 dB 98 dB 110 dB 95 dB 94 dB 82 dB 85 dB 75 dB
Typical CMRR
50 Hz
1 kHz
10 kHz
100 kHz
10 mV to 1 V range: 2.5 V to 50 V range:
130 dB 100 dB
120 dB 60 dB
95 dB 40 dB
75 dB 20 dB
Input overvoltage protection 350 V
DC
Isolation voltage 1 kVRMS
3)
Sensor supply ±9 V (±1 %), 12 V (±5 %), 200 mA resettable fuse protected4)
Output voltage ±5 V
Output resistance 10 Ohm
Maximum output current 5 mA
Output protection Short to ground for 10 sec.
Power On default settings Software programable
Power supply ±9 VDC ±1 %
Power consumption 1.1 W without sensor supply
Special functions Integrated temperature sensor
RS-485 interface Yes
TEDS Hardware support for TEDS (Transducer Electronic Data Sheet)
Supported TEDS chips DS2406, DS2430A, DS2432, DS2433, DS2431
Supported MSI MSI-V-ACC, MSI-V-RTD
1) Conditions for accuracy: Module temperature is calibration temperature ±5 °C; humidity is 30 to 90 RH.
AC accuracy: the highest  lter (2 MHz) has to be activated. f = signal frequency in kHz.
For the 2 year accuracy multiply all % of range and % of reading values by 1.5.
2) 2 MHz  lter: exclusively for Butterworth 60 dB/decade - refer to  lter speci cations. Please consider possible bandwidth limitation of further components in the
measuring chain, e.g. A/D card or signal conditioning mainframe.
3) Although the rated input voltage is 33 VRMS, 46.7 VPEAK or 70 VDC according to EN-61010-1 and EN-61010-2-30, the galvanic isolation has been tested with
1 kVRMS for 1 min.
4) Overall current should not exceed DEWE-30-xx maximum power.
continued from previous page
Front panel control
LED indication:
The HSI-LV series module has a set of 8 LEDs showing the current input range (constant active)
and lter range (ashing) setting.
Filter Range Range Filter
20 Hz 50 V 200 mV 105
10 Hz 10 V 50 mV 104
3 Hz 5 V 10 mV 103
1 Hz 1 V U/B 102
The U/B LED shows the input mode: If this LED is o󰀨, the bipolar input range is selected, otherwise the
unipolar mode is selected.
Power On Default function
You can store the actual settings of the module in the internal EE-Prom memory. Once the module restarts,
it comes up automatically with these setting. This is important for stand alone applications and for fail save
reasons. If the function is deactivated the module automatically remembers the last pushbutton selected
range and lter.
Push button operation:
Select range: Push the RANGE button several times shortly until the LED displays the
desired input range.
Select lter: Push the FILTER button once - the LEDs will ash for approx. 3 seconds and
display the current lter setting. Push the FILTER button within the three seconds
several times until the ashing LED displays the desired lter range.
Change input mode: Keeping the RANGE button pressed for more than 3 seconds, the input mode
changes from unipolar to bipolar or vice versa.

11
HSI-LV
Programmable
amplifier
100nF 980k
20k
AC/DCAC/DC
Isolation
TEDS
controller
TEDS
IN+
IN-
+12V
GND
+9V
-9V
+Vs
-Vs
1
2
7
6
4
5
9
3
8
7
1
2
6
5
3
4
9-pin DSUB
7-pin LEMO
INPUT
CONNECTORS
RS-485(A)
RS-485(B)
reserved
reserved
±5 V out
+12V
GND
+9V
-9V
2
3
7
8
1
6
4
5
9
9-pin DSUB
OUTPUT
CONNECTOR
10 mV .. 1 V
2.5 V .. 50 V
Calibration
memory
optional 2W DC DC
±5 V, ±15 V
HSI-LV-module
resettable
200 mA fuse
3rd order
Butterworth filter
2 MHz
2nd order
lowpass filter
(BE or BU)
100 Hz to 1 MHz
or off
Block diagram
The base block diagram of the HSI-LV gives an idea of the internal structure.
CAUTION: TEDS terminal is not isolated!
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

12
HSI-LV
Frequency additional error with activated
Butterworth  lter
additional error with activated
Bessel  lter
f/f0% of reading % of reading
<0.1 0 0
0.01 0.00 0.00
0.02 0.00 0.02
0.03 0.00 0.04
0.05 0.00 0.11
0.1 0.01 0.47
0.2 0.14 1.9
0.3 0.73 4.3
0.5 5.24 12
0.75 20.34 25
1 40.45 40.45
Filter
The module has 9 selectable low pass lters from 100 Hz to 1 MHz. The lter characteristic could be chosen
between Butterworth 2nd order or Bessel 2nd order. The highest lter is a 3rd order lter with a guaranteed
-3 dB bandwidth of 2 MHz. This lter structure is the same for all HSI modules.
Typical lter transfer function:
AC accuracy with activated filter
With activated hardware lter an additional % of reading error has to be considered due to the damping of
the lter. This error depends on the signal frequency f and the selected ler frequency f0.
HSI Ready
Please ensure that also the Hardware that carries the HSI Module
is not limiting the 2 MHz bandwidth.
Older systems may have a x installed 350 kHz lter. The HSI series
modules will also work in these systems, but the bandwidth will be
limited to the system bandwidth.

13
HSI-LV
1
2
3
6
5
4
7
1 TEDS
2 IN +
3 Reserved for custom sensor supplies
4 GND (not isolated)
5 +9 V (200 mA max.)
6 +12 V (200 mA max.; +15 V in conjunction with a DEWE-30-4)
7 IN -
8 Reserved for custom sensor supplies
9 -9 V (200 mA max.)
Voltage measurement via D-SUB cord
HSI-LV-D module
If signals above 60 V may appear, don’t use the metal housing of D-SUB connector!
HSI-LV-LEMO module
Voltage measurement via LEMO cord
1 IN +
2 IN -
3 +9 V (200 mA max.)
4 -9 V (200 mA max.)
5 GND
6 +12 V (200 mA max.; +15 V in conjunction with a DEWE-30-4)
7 TEDS
7-pin LEMO connector female
EGG.1B.307
IN +
IN -
Red
Black
Signal connection
HSI-LV-B module
Hot: IN +
Shield: IN -
HSI-LV-BNC module
Voltage measurement via BNC cord
Voltage measurement via banana plug cords
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

14
HSI-LV
TEDS
GND
IN+
IN-
+9V
-9V
TEDS
Output
+
-
Supply
+
-
1
4
2
7
5
9
7
5
1
2
3
4
9-pin DSUB
Connectors Sensor
7-pin LEMO
Sensor
1
4
2
7
5
9
7
5
1
2
3
4
9-pin DSUB
Connectors
7-pin LEMO
TEDS
GND
IN+
IN-
+9V
-9V
4..20 mA
4..20 mA
output
50 OHM
6
2
7
4
6
1
2
5
9-pin DSUB
Connectors Sensor
2-wire
4..20 mA
7-pin LEMO
GND
IN+
IN-
50 OHM
+12V
Output
+
-
6
2
7
4
6
1
2
5
9-pin DSUB
Connectors Sensor
7-pin LEMO
GND
IN+
IN-
+12V
Output
GND
VCC
Typical sensor connection
Sensor with dierential output
powered by the module
Loop powered sensor Sensor with common ground
Current measurement

C1
L
E
V
M
C
Dipl.-Ing. Roland Jeutter / Managing director
Manufacturer:
Address:
Name of product:
Kind of product:
CE-Certificate of conformity
Graz, April 28, 2010
Place / Date of the CE-marking
DEWETRON GmbH
Parkring 4
8074 Grambach, Austria
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
http://www.dewetron.com
DEWE-MODULES
Signal conditioning modules
The product meets the regulations of the following EC-directives:
73/23/EEC
"Directive on the approximation of the laws of the Member States relating to electrical
equipment designed for use within certain voltage limits amended by the directive 93/68/
EEC"
89/336/EEC
"Directive on the approximation of the laws of the Member States relating to
electromagnetic compatibility amended by the directives 91/263/EEC, 92/31/EEC, 93/68/
EEC and 93/97/EEC
The accordance is proved by the observance of the following standards:
Safety
Emissions
Immunity
IEC/EN 61010-1:1992/93 IEC 61010-1:1992/300 V CATIII Pol. D. 2
IEC/EN 61010-2-031 IEC 1010-2-031
EN 61000-6-4 EN 55011 Class B
EN 61000-6-2 Group standard
CE-Certificate of conformity
450134 • DAQP/HSI/PAD Modules • Technical Reference Manual • Printing version 2.3.4 • November 18, 2020

C2
Notes
