DFI HU968 User manual

www.dfi.comChapter 1 Introduction
1
HU968
COM Express Compact Module
User’s Manual
A31800414

www.dfi.comChapter 1 Introduction
2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2014. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
COM Express Specification Reference
PICMG®COM Express ModuleTM Base Specification.
http://www.picmg.org/
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.dfi.comChapter 1 Introduction
3
Table of Contents
Copyright.............................................................................................................2
Trademarks........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures..............................................................................................4
About the Package.........................................................................................5
Chapter 1 - Introduction.............................................................................6
Specifications ................................................................................................6
Features ........................................................................................................7
Chapter 2 - Concept.......................................................................8
COM Express Module Standards..............................................................8
Specification Comparison Table ...............................................................9
Chapter 3 - Hardware Installation.............................................. 10
Board Layout...............................................................................................10
Block Diagram.............................................................................................10
Mechanical Diagram..................................................................................11
System Memory..........................................................................................12
Connectors...................................................................................................13
CPU Fan Connector.....................................................................................13
COM Express Connectors ............................................................................13
COM Express connectors Signal Discription ..................................................15
Standby Power LED...................................................................................22
Cooling Option............................................................................................22
Installing HU968 onto a Carrier Board................................................23
Installing the COM Express Debug Card.............................................26
Chapter 4 - BIOS Setup................................................................29
Overview .....................................................................................................29
AMI BIOS Setup Utility.............................................................................30
Main ..........................................................................................................30
Advanced...................................................................................................30
Chipset ......................................................................................................38
Boot...........................................................................................................44
Security......................................................................................................45
Save & Exit................................................................................................45
Updating the BIOS....................................................................................46
Notice: BIOS SPI ROM.............................................................................46
Chapter 5 - Supported Software ..........................................................47
Chapter 6 - GPIO Programming Guide...............................................62
Chapter 7 - RAID...........................................................................63
RAID Levels.................................................................................63
Settings .......................................................................................63
Chapter 8 - Intel AMT Settings..............................................................66
Overview...............................................................................................................66
Enable Intel®AMT in the AMI BIOS.........................................................66
Enable Intel®AMT in the Intel®Management Engine BIOS
Extension (MEBX) Screen..............................................................................67
Appendix A - nLite and AHCI Installation Guide...........................77
nLite...............................................................................................................77
AHCI.............................................................................................................. 81
Appendix B - Watchdog Sample Code................................................83
Appendix C - System Error Message...................................................84
Appendix D - Troubleshooting................................................................85

www.dfi.comChapter 1 Introduction
4
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD,
insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.
Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.dfi.comChapter 1 Introduction
5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One HU968 board
• One QR (Quick Reference)
• One DVD
Optional Items
• COM331-B carrier board kit
• COM101-BAT carrier board kit
• Heat spreader with heat sink and fan
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

www.dfi.comChapter 1 Introduction
6
Expansion
Interfaces • Supports 2 USB 3.0 interfaces
• Supports 8 USB 2.0 interfaces
• Supports 1 PCIe x4; or 2 PCIe x2; or 4 PCIe x1 interfaces
• Supports 1 PCIe x2; or 1 PCIe x1 interface
• Supports 1 PCIe x1 interface (PCIe Lane 6 shares with 1 SATA 3.0 port)
• Supports LPC interface
• Supports SMBus interface
• Supports I2C interface
• Supports 2 serial interfaces (TX/RX)
• Supports 4-bit input and 4-bit output GPIO
Damage Free
Intelligence • Monitors CPU temperature and overheat alarm
• Monitors CPU fan speed and failure alarm
• Monitors Vcore/1.05V/DDR voltages and failure alarm
• Watchdog timer function
BIOS • AMI BIOS
- 64Mbit SPI BIOS
Power • Input: 12V, VCC_RTC, 5VSB* (optional)
Power
Consumption • TBD
WatchDog
Timer • Software programmable from 1 to 255 seconds
OS Support • Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
• Windows 8.1 Enterprise x86 (32-bit)
• Windows 8.1 Enterprise x64 (64-bit)
Temperature • Operating: 0oC to 60oC
• Storage: -20oC to 85oC
Humidity • 5% to 90%
PCB • Dimensions
- COM Express®Compact
- 95mm (3.74") x 95mm (3.74")
• Compliance
- PICMG COM Express®R2.1, Type 6
Chapter 1 - Introduction
Specifications
Processor • 4th generation Intel®CoreTM processors
4650U: Intel®CoreTM i7-4650U, 4M Cache, up to 3.3 GHz, 15W
4300U: Intel®CoreTM i5-4300U, 3M Cache, up to 2.9 GHz, 15W
4010U: Intel®CoreTM i3-4010U, 3M Cache, 1.7 GHz, 15W
2980U: Intel®Celeron®2980U, 2M Cache, 1.6 GHz, 15W
• BGA 1168 packaging technology
• 22nm process technology
System Memory • 2GB/4GB/8GB DDR3L memory down
• Supports DDR3L 1600MHz
• Supports dual channel memory interface
Graphics • Intel®HD Graphics GT Series
• Supports VGA, LVDS and DDI interfaces
• VGA: Chrontel CH7517, resolution up to 1920x1200 @60Hz
• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz
• Digital Display Interface: HDMI, DVI and DP
• HDMI, DVI: resolution up to 4096x2304 @24Hz
• DP: resolution up to 3200x2000 @60Hz
• Intel®Clear Video Technology
• Intel®Advanced Vector Extensions 2.0 (Intel®AVX 2.0) Instructions
• Supports DirectX 11.1, OpenGL 4.0, OpenCL 1.2
Audio • Supports High Definition Audio interface
LAN • Intel®I218LM with iAMT9.5 Gigabit Ethernet Phy
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Serial ATA • Supports 3 SATA 3.0 with data transfer rate up to 6Gb/s
- One shares with PCIe Lane 6
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1/5
• Supports Intel® Smart Response Technology
SSD*
(optional) • 2GB/4GB/8GB/16GB/32GB/64GB
• Write: 30MB/sec (max), Read: 70MB/sec (max)
• SATA to SSD onboard
Trusted
Platform
Module - TPM*
(optional)
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
Active
Manaement
Technology -
AMT
• Supports iAMT9.5
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking
Chapter 1
Note:
*Optional and is not supported in standard model. Please contact your sales represen-
tative for more information.

www.dfi.comChapter 1 Introduction
7
Chapter 1
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3L
DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher
speed successor. DDR3L supporting 1600MHz delivers increased system bandwidth and im-
proved performance to provide its higher bandwidth and its increase in performance at a lower
power.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. It supports VGA, LVDS and DDI
interfaces for 3 display outputs.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
The Intel®I218LM with iAMT9.5 Gigabit LAN controller supports up to 1Gbps data transmis-
sion.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.

www.dfi.comChapter 2 Concept
8
Chapter 2
Chapter 2 - Concept
106.00
91.00
70.00
51.00
4.00
18.00
6.00
0.00
16.50 4.00 0.00
Extended
BasicCompact
Mini
74.20 80.00 91.00 121.00 151.00
Common for all Form Factors
Extended only
Basic only
Compact only
Compact and Basic only
Mini only

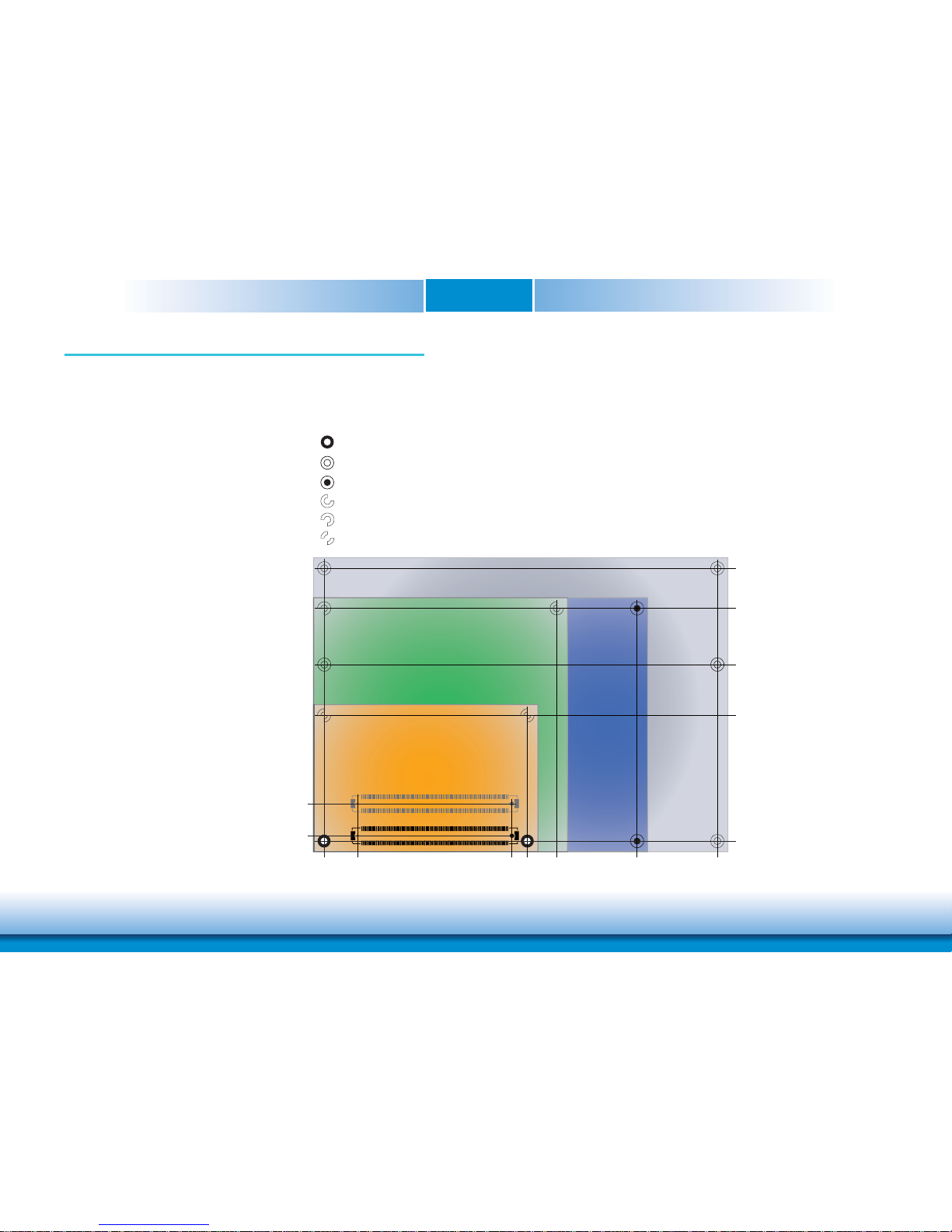

COM Express Module Standards
The figure below shows the dimensions of the different types of COM Express modules.
HU968 is a COM Express Compact module. The dimension is 95mm x 95mm.

www.dfi.comChapter 2 Concept
9
Chapter 2
Specification Comparison Table
Module Pin-out - Required and Optional Features C-D Connector. PICMG®COM.0 Revision 2.1
The table below shows the COM Express standard specifications and the corresponding specifications supported on the HU968 module.
• 5 Indicates 12V-tolerant features on former VCC_12V signals.
• 6 Cells in the connected columns spanning rows provide a rough approximation of features
sharing connector pins.
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI HU968
Type 6
A-B
A-B PCI Express Lanes 0 - 5 1 / 6 6 (PCIE Lans 4-5 support PCIEx2 or PCIEx1 only)
A-B LVDS Channel A 0 / 1 1
A-B LVDS Channel B 0 / 1 1
A-B eDP on LVDS CH A pins 0 / 1 0
A-B VGA Port 0 / 1 0/1 (Option : DDI2 or VGA)
A-B TV-Out NA NA
A-B DDI 0 NA NA
A-B5Serial Ports 1 - 2 0 / 2 2
A-B CAN interface on SER1 0 / 1 0
A-B SATA / SAS Ports 1 / 4 2/3 (Option : PCIE Lane 6 or SATA Port 2)
A-B AC’97 / HDA Digital Interface 0 / 1 1
A-B USB 2.0 Ports 4 / 8 8
A-B USB Client 0 / 1 0
A-B USB 3.0 Ports NA NA
A-B LAN Port 0 1 / 1 1
A-B Express Card Support 1 / 2 2
A-B LPC Bus 1 / 1 1
A-B SPI 1 / 2 1
A-B SDIO (muxed on GPIO) 0 / 1 0
General Purpose I/O 8 / 8 8
A-B SMBus 1 / 1 1
A-B I2C 1 / 1 1
A-B Watchdog Timer 0 / 1 1
A-B Speaker Out 1 / 1 1
A-B External BIOS ROM Support 0 / 2 1
A-B Reset Functions 1 / 1 1
System I/O
System Management
A-B6
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI HU968
Type 6
A-B
A-B Thermal Protection 0 / 1 1
A-B Battery Low Alarm 0 / 1 1
A-B Suspend/Wake Signals 0 / 3 1
A-B Power Button Support 1 / 1 1
A-B Power Good 1 / 1 1
A-B VCC_5V_SBY Contacts 4 / 4 4
A-B5Sleep Input 0 / 1 1
A-B5Lid Input 0 / 1 1
A-B5Fan Control Signals 0 / 2 2
A-B Trusted Platform Modules 0 / 1 1
A-B
A-B VCC_12V Contacts 12 / 12 12
Power
Power Management
Connector Feature
COM Express Module Base
Specification Type 6
(No IDE or PCI, add DDI+ USB3)
Min
/
Max
DFI HU968
Type 6
C-D PCI Express Lanes 16 - 31 0 / 16 0
PCI Express Graphics (PEG) 0 / 1 0
Muxed SDVO Channels 1 - 2 NA N
A
PCI Express Lanes 6 - 15 0 / 2 0/1
(
O
p
tion : PCIE Lane 6 or SATA Port 2
)
PCI Bus - 32 Bit NA N
A
PATA Port NA N
A
LAN Ports 1 - 2 NA N
A
DDIs 1 - 3 0 / 3 1/2
(
O
p
tion : DDI2 or VGA
)
USB 3.0 Ports 0 / 4 2
C-D
C-D VCC_12V Contacts 12 / 12 12
System I/O
Power
C-D6
C-D6

www.dfi.comChapter 3 Hardware Installation
10
Chapter 3
Chapter 3 - Hardware Installation

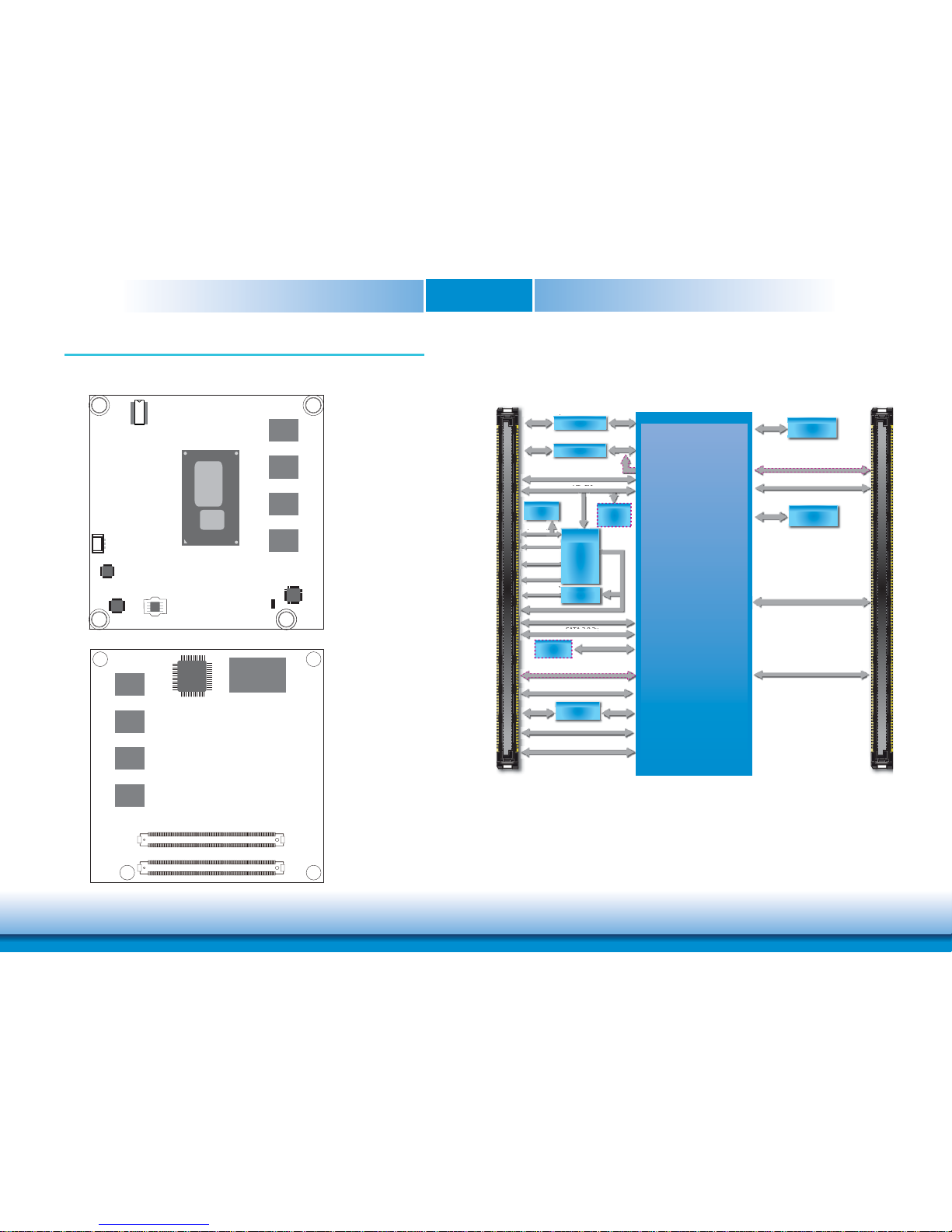

Board Layout
Top View
Bottom View
Block Diagram
DDI Port 2
(Opt. share with DP to VGA)
USB 2.0 8x
SATA 3.0 2x
USB 3.0 2x
HD Audio
A / B
HD
Audio
USB
2
.
0
8x
SATA 3 0
2x
SATA
3
.
0
2x
Embedded
Controller
IT8528E
WDT
I2C Bus
4th Generation
Intel®Core™i7/i5/i3;
Intel®Celeron™
USB
3.0
2x
Serial Port1,
2 Tx/Rx
Sys Fan
PWM/TACH
I
C
Bus
s
SSD Chip
(Optional)
Intel®GLAN
I218LM
PCIe x1 Lane 0~3 (4 x1 or 2 x2 or 1 x4)
LAN
C / D
eDP
LVDS Port
(Dual Channel)
(Opt
.
share
with
DP
to
VGA)
DDI Port 1
DDR3L
2GB/4GB/8GB
DDR3 1600MHz
Dual Channel
DP to VGA
)
eDP to LVDS
R.G.B DDI Port 2
PCIe x1
PCIe x1 Lane 4~5 (1 x1 or 1 x2)
Backup
EEPROM
LPC Bus
4 in/4 out DIO
SM Bus
O
O
SM Bus
DIO
LPC
Bus
LPC
Bus
TPM 1.2
SLB9635
(optional)
SATA 3.0 1x
(Opt. share with PCIe x1 Lane 6)
SM Bus
SATA 3.0 1x
PCIe x1 Lane 6
2nd SPI Bus
2nd
SPI
Bus
VR12.6
(Vcore)
CPU Fan
1
DDR3L
DDR3L
DDR3L
DDR3L
Intel
BGA 1168
Standby
Power LED
SPI Flash BIOS
Intel
I218LM
Chrontel
CH7517 NXP
PTN3460
TPM (optional)
DDR3L
DDR3L
DDR3L
DDR3L
SSD
(optional)
B110 B1
A110 A1
COM Express connector
COM Express connector
D110 D1
C110 C1
iTE
IT8528E
