1.1 System Board Layout
Chapter 1 - Quick Setup Guide
KB
Mouse
Parallel
1394_2
USB 3-4
LAN
USB 1-2
Winbond
W83627HF
Mic-in
Line-in
Line-out
PS/2 power
select (JP2)
1
1
IrDA
COM 1
VGA
BIOS
1
1394_1
Socket 479
1
USB power
select (JP3)
VIA
VT6307
Intel
855GME
Intel
6300ESB
1
2nd fan
1
CPU fan
DDR 1 DDR 2
DIMM standby
power LED
1
FDD
1
ATX p owe r
1
IDE 2
1
IDE 1
AGP
1
Clear
CMOS
(JP10)
1
Chassis
fan
PCI-X Slot 1
PCI1Slot
PCI standby
power LED PCI2Slot
Realtek
RTL8110S
1
CD-in
Audio
codec
1
Front audio
1
S/PDIF-out COM 2
1
Battery
1
Front panel
1
SATA 2
1
SATA 1
1
CPU FSB
select (J3)

5
1
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP10
3
1
2
3
1
2

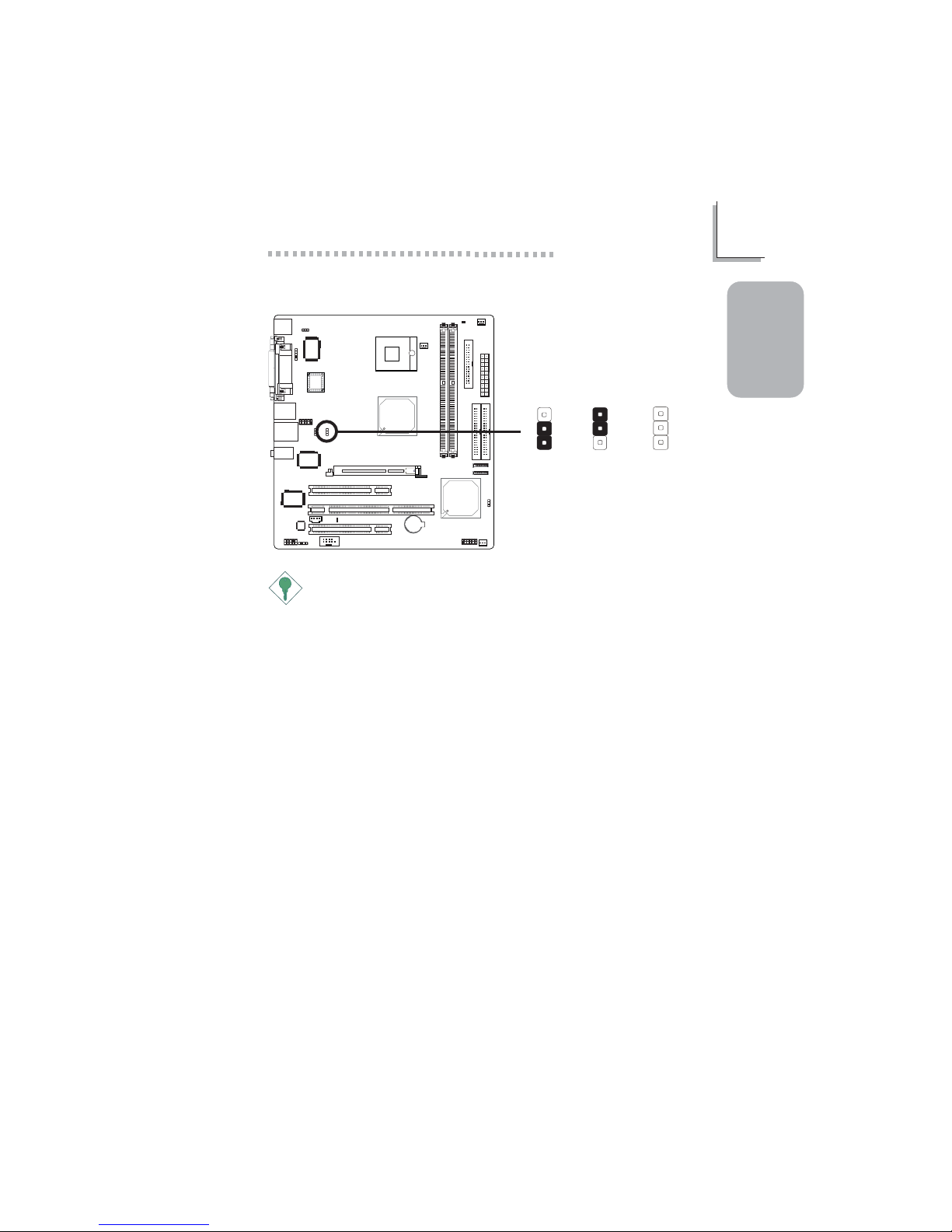

1.2.1 Clear CMOS Data
1.2.2 PS/2 Power Select
1-2 On: 5V
(default)
2-3 On: 5VSB
X
JP2 312312

6
Quick Setup Guide
1
Quick Setup
Guide
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5VSB power source of your
power supply must support ≥ 2A.
1.2.3 USB Power Select
X
JP3 3
1
2
3
1
2
1-2 On: 5V
(default)
2-3 On: 5VSB

7
1
Quick Setup Guide
Quick Setup
Guide

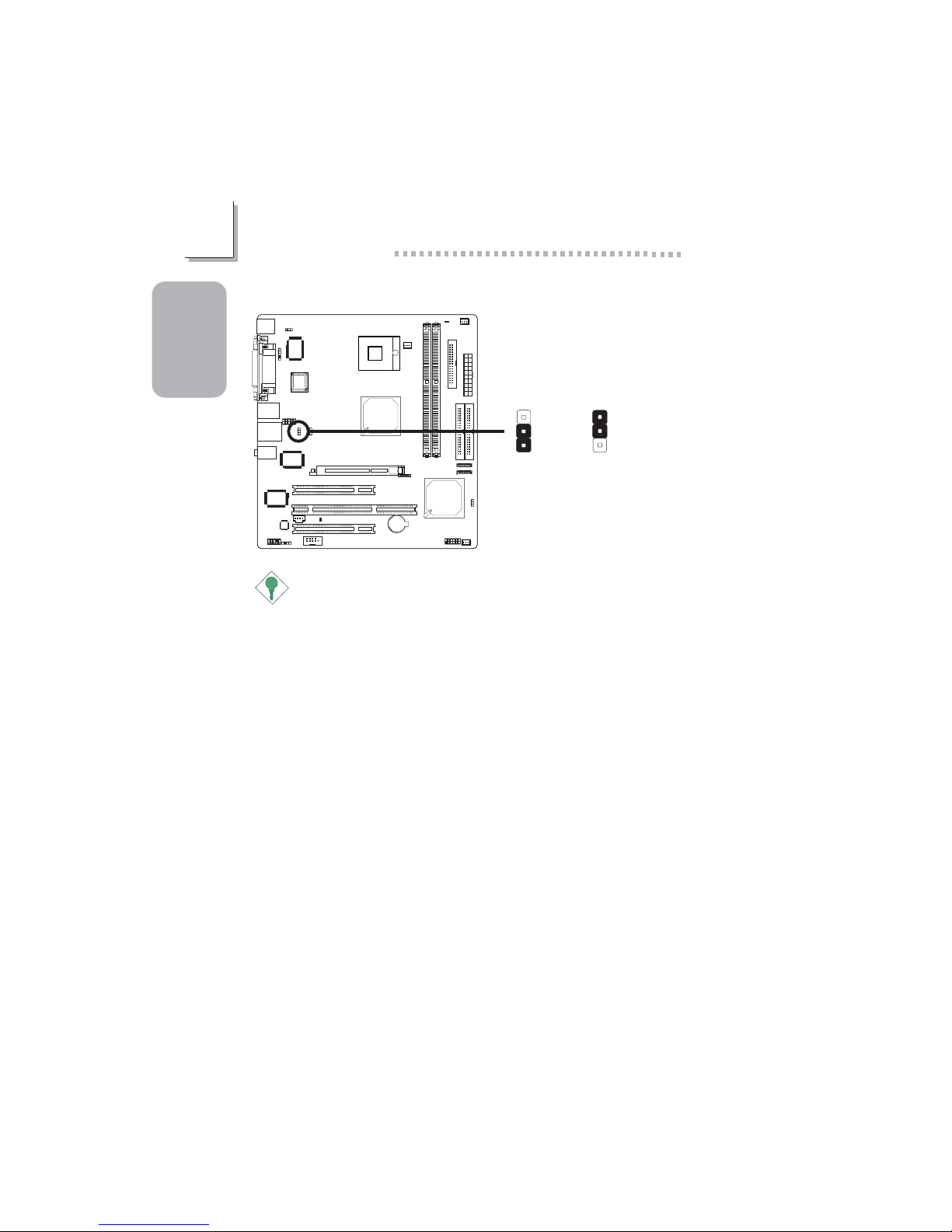

1.2.4 CPU FSB Select
Important:
• If you are using a CPU whose frequency has been locked by the
manufacturer, overclocking will have no effect.
• Overclocking may result to the CPU’s or system’s instability and
are not guaranteed to provide better system performance. If you
are unable to boot your system due to overclocking, make sure
to set this jumper back to its default settings.
X
J3
3
1
2
3
1
2
3
1
2
1-2 On:
Reserved
2-3 On:
400MHz
(Default)
All Off:
533MHz

8
Quick Setup Guide
1
Quick Setup
Guide
1.4 I/O Connectors

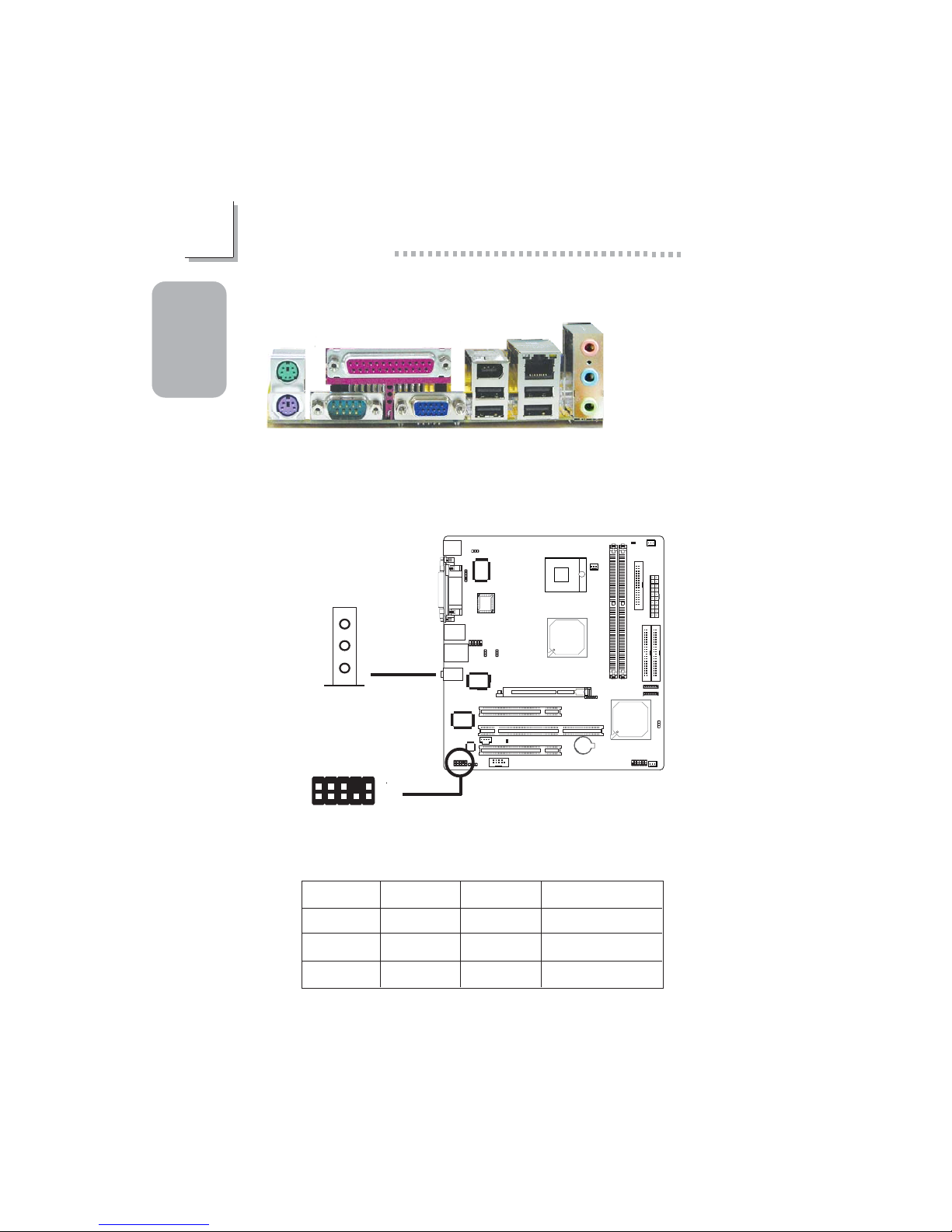

1.3 Rear Panel I/O Ports
PS/2
Mouse Parallel
COM 1 VGAPS/2 KB
LAN
1394_2
USB 3-4 USB 1-2
Line-out
Line-in
Mic-in
W
1.4.1 Audio (Rear Audio and Front Audio)
Front
audio
W
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
Line-out
Line-in
Mic-in
Rear audio
2-channel
Line-in
Line-out
Mic-in
4-channel
Rear R/L
Front R/L
Mic-in
6-channel
Rear R/L
Front R/L
Center/Subwoofer
Light Blue
Lime
Pink

9
1
Quick Setup Guide
Quick Setup
Guide
COM 1
1.4.3 Serial Ports
W
W
COM 2 19
2
CD
TD RD
DTR
GND
RTS DSR
CTS
RI
1.4.2 IEEE 1394
1394_2
W
W
1394_1
+12V (fused)
1
TPA+
Ground
TPB+
+12V (fused)
Key
TPA-
Ground
TPB-
Ground
210
9

10
Quick Setup Guide
1
Quick Setup
Guide
1.4.4 CD-in Internal Audio Connector
W
14
Right audio
channel
Left audio
channel
Ground Ground
1.4.5 S/PDIF-out Connector
W
+5V
Key
SPDIF out
GND
14

11
1
Quick Setup Guide
Quick Setup
Guide
1.4.6 Floppy Disk Drive Connector
X
34 33
21
1.4.7 Serial ATA Connectors
XSATA 2
SATA 1
17
GND
TXP
TXN
GND
RXN
RXP
GND
17
Note:
The Intel 6300ESB south bridge chip allows configuring RAID on
Serial ATA drives. It supports RAID 0 and RAID 1.

12
Quick Setup Guide
1
Quick Setup
Guide
Note:
The sequence of the pin functions on some IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the IR connector according to
their pin functions.

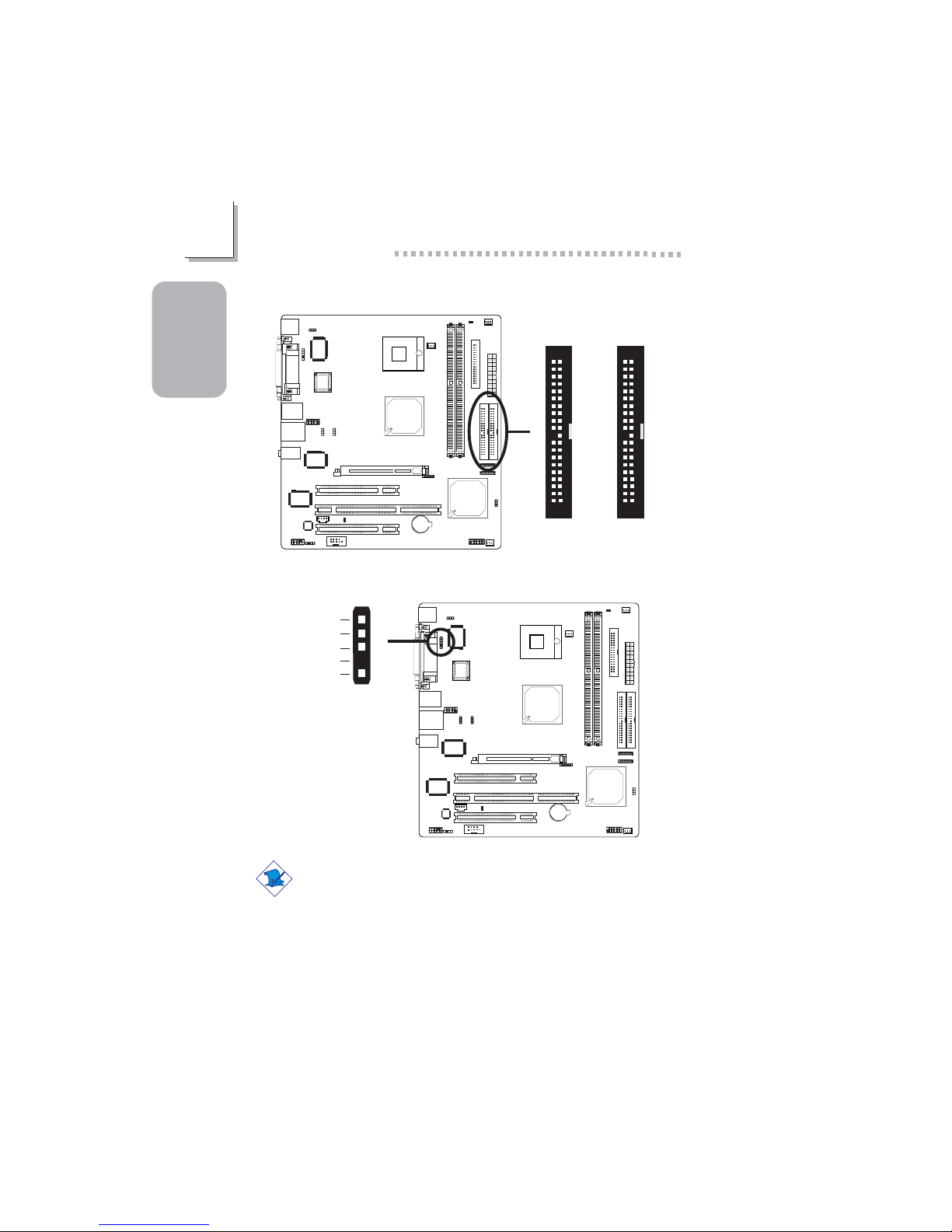

1.4.8 IDE Disk Drive Connectors
IDE 1IDE 2
40 39
21
40 39
21
X
1.4.9 IrDA Connector
W
1
5
VCC
N. C.
IRRX
Ground
IRTX

13
1
Quick Setup Guide
Quick Setup
Guide
Important:
To ensure that adequate power is provided, use a 250 Watt (or
greater) power supply.

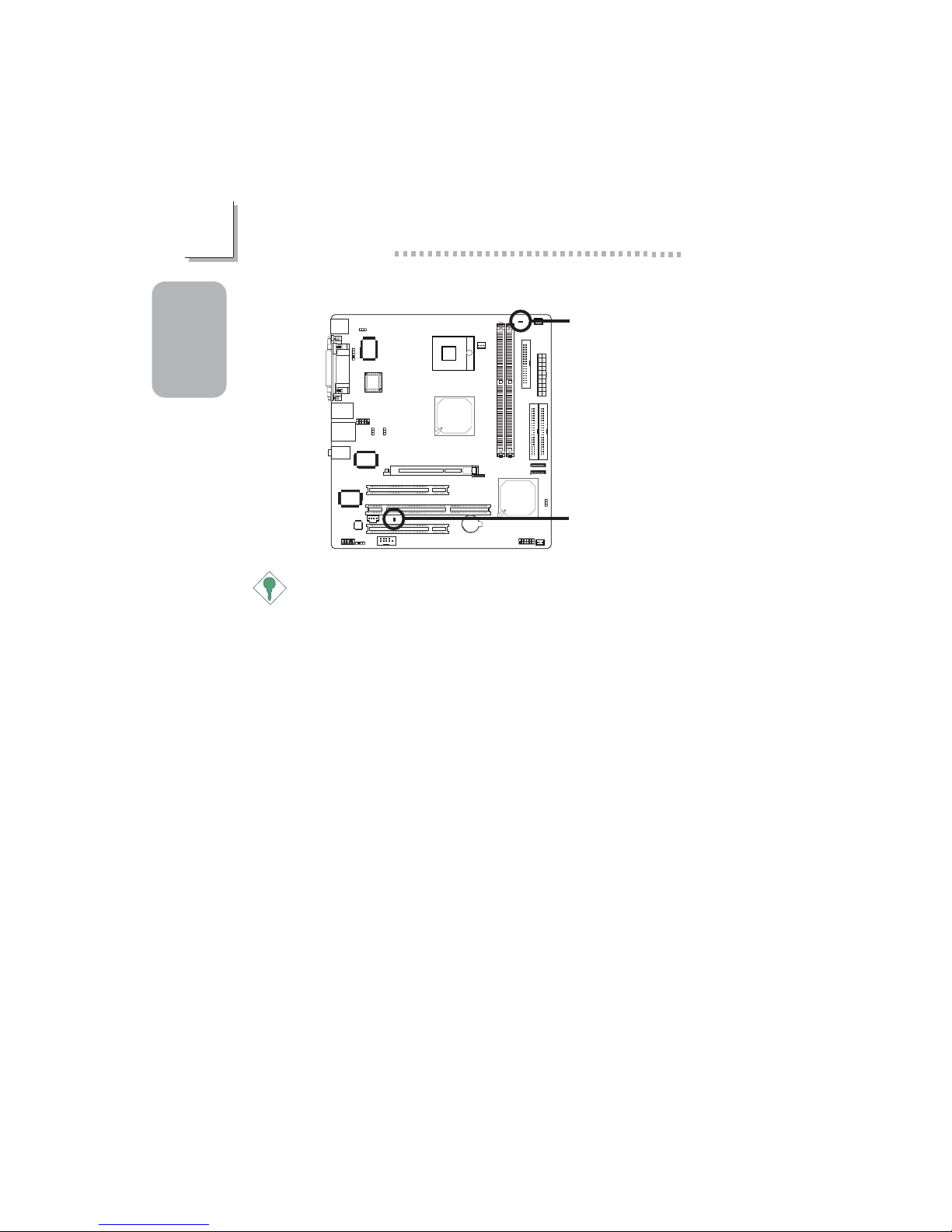

1.4.10 Cooling Fan Connectors
X
2nd fan
13
Ground
Power
Sense
CPU fan
13
Ground
Power
Sense
X
Chassis fan
13
Ground
Power
Sense
X
1.4.11 Power Connector
X
+12V
111
10
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
20

14
Quick Setup Guide
1
Quick Setup
Guide
1.4.12 DIMM and PCI Standby Power LEDs
DIMM Standby
Power LED
PCI Standby
Power LED
Important:
If the DIMM Standby Power LED or PCI Standby Power LED is
lighted, you must power-off the system then turn off the power
supply’s switch or unplug the power cord prior to installing any
memory modules or add-in cards.

15
1
Quick Setup Guide
Quick Setup
Guide
1.4.13 Front Panel Connectors
X
1
2
11
12
HDD-LED
RESET SW
PWR-LED
PWR-BTN
Pin
1
3
5
7
9
11
N. C.
HDD-LED
RESET SW
N. C.
Pin Assignment
N. C.
HDD Power
Signal
Ground
RST Signal
N. C.
Pin
2
4
6
8
10
12
PWR-LED
PWR-BTN
Key
Pin Assignment
LED Power
LED Power
Signal
PWR-BTN Power
Signal
Key

16
English
2
English
Chapter 2 - English
2.1 Features and Specifications
Processor
• Intel®Pentium®M / Celeron®M processor
- 400MHz system bus
- Supports 64-bit host data bus and 32-bit addressing
• Processor socket: mPGA479M
Chipset
• Intel®855GME chipset
- Intel®855GME Graphics Memory Controller Hub (GMCH)
- Intel®6300ESB I/O Controller Hub
System Memory
• Two 184-pin DDR SDRAM DIMM sockets
• 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or
PC2700 (DDR333) DDR SDRAM DIMM with ECC/non-ECC
support
• Supports 128Mbit, 256Mbit and 512Mbit technologies providing
maximum capacity of 1GB with x16 devices and up to 2GB with
high density 512Mbit technology
Note:
ECC is supported on both the integrated graphics and AGP
card.
BIOS
• Award BIOS
• 4Mbit flash memory
Energy Efficient Design
• Supports ACPI specification and OS Directed Power
Management
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard
- Wake-On-Ring
- Wake-On-LAN

17
2
English
English
- RTC timer to power-on the system
• AC power failure recovery
Hardware Monitor
• Monitors CPU/system temperature and overheat alarm
• Monitors 5VSB(V)/VBAT(V)/1.5V/3.3V/5V/12V/CPU(V) voltages
and failure alarm
• Monitors CPU/chassis/2nd fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan
speed
Onboard Graphics Features
• Up to 64MB of dynamic video memory allocation
• Display core frequency at 133/200/250MHz
• Render core frequency at 100/133/166/200/250MHz
• Intel®Dual-Frequency Graphics Technology
• 2D graphics engine
- Optimized 128-bit BLT engine
- 32-bit Alpha Blended cursor
- 8-bit, 16-bit and 32-bit color
• 3D graphics engine
- Enhanced Hardware Binning Instruction Set
- Bi-Cubic Filtering
- Linear Gamma Blending for Video Mixer Rendering (VMR)
- Video Mixer Rendering (VMR)
- 3D setup and render engine
- DirectX and OpenGL pixelization rules
- 266-MegaTexel/s peak performance
- 16- and 24-bit Z-buffering; 16- and 24-bit W-buffering
- Optimal 3D resolution
- Double and triple render buffer
• Graphics Power Management
- Dynamic Frequency Switching
- Memory Self-Refresh During C3
- Intel®Display Power Saving Technology
Onboard Audio Features
• Realtek ALC655 6-channel audio
• 16-bit stereo full-duplex codec with independent variable
sampling rate
• DirectSound 3DTM compatible
• S/PDIF-out interface

18
English
2
English
Onboard LAN Features
• RTL8110S Gigabit ethernet controller
• Supports 10Mbps, 100Mbps and 1Gbps data transmission
• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant
Serial ATA Interface with RAID
• Supports two SATA (Serial ATA) interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
• Supports RAID 0 and RAID 1
IDE Interface
• Supports up to UltraDMA 100Mbps hard drives
• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
IEEE 1394 Interface
• VIA VT6307
• Supports two 100/200/400 Mb/sec ports
Accelerated Graphics Port (A.G.P.)
• Supports 1.5V AGP 4x data transfers and 2x/4x fast write
protocol (3.3V AGP card is not supported)
• AGP 2.0 compliant
Rear Panel I/O Ports
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 DB-25 parallel port
• 1 DB-9 serial port
• 1 DB-15 VGA port
• 1 IEEE 1394 port
• 1 RJ45 LAN port
• 4 USB 2.0/1.1 ports
• Mic-in, line-in and line-out
I/O Connectors
• 1 connector for an external serial port
• 1 connector for 1 external IEEE 1394 port
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF-out connector
• 1 connector for IrDA interface
• 2 Serial ATA connectors

19
2
English
English
• 2 40-pin IDE connectors
• 1 floppy connector
• 1 ATX power supply connector
• 1 front panel connector
• 3 fan connectors
Expansion Slots
• 1 AGP 4x slot
• 1 PCI-X slot
• 2 PCI slots
Compatibility
• PCI 2.2, Intel AGP 2.0, PCI-X 2.2 and AC ’97 compliant
PCB
• 4 layers, microATX form factor
• 24.4cm (9.61") x 23cm (9.06")
2.2 RAID Configuration
The following describes the steps on configuring RAID.
1. Set the “On-Chip Serial ATA” field to “Enhanced Mode”. (Inte-
grated Peripherals submenu - OnChip IDE Device” section of the
Award BIOS.)
2. Set the “SATA Mode” field to “RAID”. (Integrated Peripherals
submenu - OnChip IDE Device” section of the Award BIOS.)
3. Reboot the PC.
4. When the system powers-up, press the <Ctrl> and <I> keys
simultaneously to run the Intel RAID BIOS Setting Utility. The
utility is used to configure the Serial ATA drives to RAID 0 or
RAID 1.
5. Install the Intel 6300ESB RAID driver.
If you are in the process of installing Windows®XP or
Windows®2000 on RAID configured Serial ATA drives, you will
need the provided Intel RAID floppy diskette. If you are installing
the driver on existing Windows®XP or Windows®2000, install
the “6300ESB RAID Drivers” that is in the provided CD.

20
English
2
English
Installing the RAID Driver While Installing Windows®XP or
Windows®2000
The steps below will instruct you on installing the 6300ESB RAID
driver while in the process of installing Windows®XP or Windows®
2000 on a RAID 0 or RAID 1 Volume Serial ATA drives.
1. Start Windows Setup by booting from the installation CD.
2. Press <F6> when prompted at the beginning of Windows
setup.
3. Press <S> to select “Specify Additional Device”.
4. At this point you should be prompted to insert a floppy disk
containing the 6300ESB RAID driver. Insert the provided floppy
diskette.
5. Select “Intel®6300ESB SATA RAID Controller” from the list then
press <Enter>.
6. The next screen should confirm that you have selected the
Intel(r) RAID controller. Press <Enter> again to continue.
7. Finish the Windows installation. Leave the floppy disk in the
floppy drive until the system reboots itself. Windows setup will
need to copy the files from the floppy disk again after the RAID
volume is formatted, then Windows setup starts copying files.
