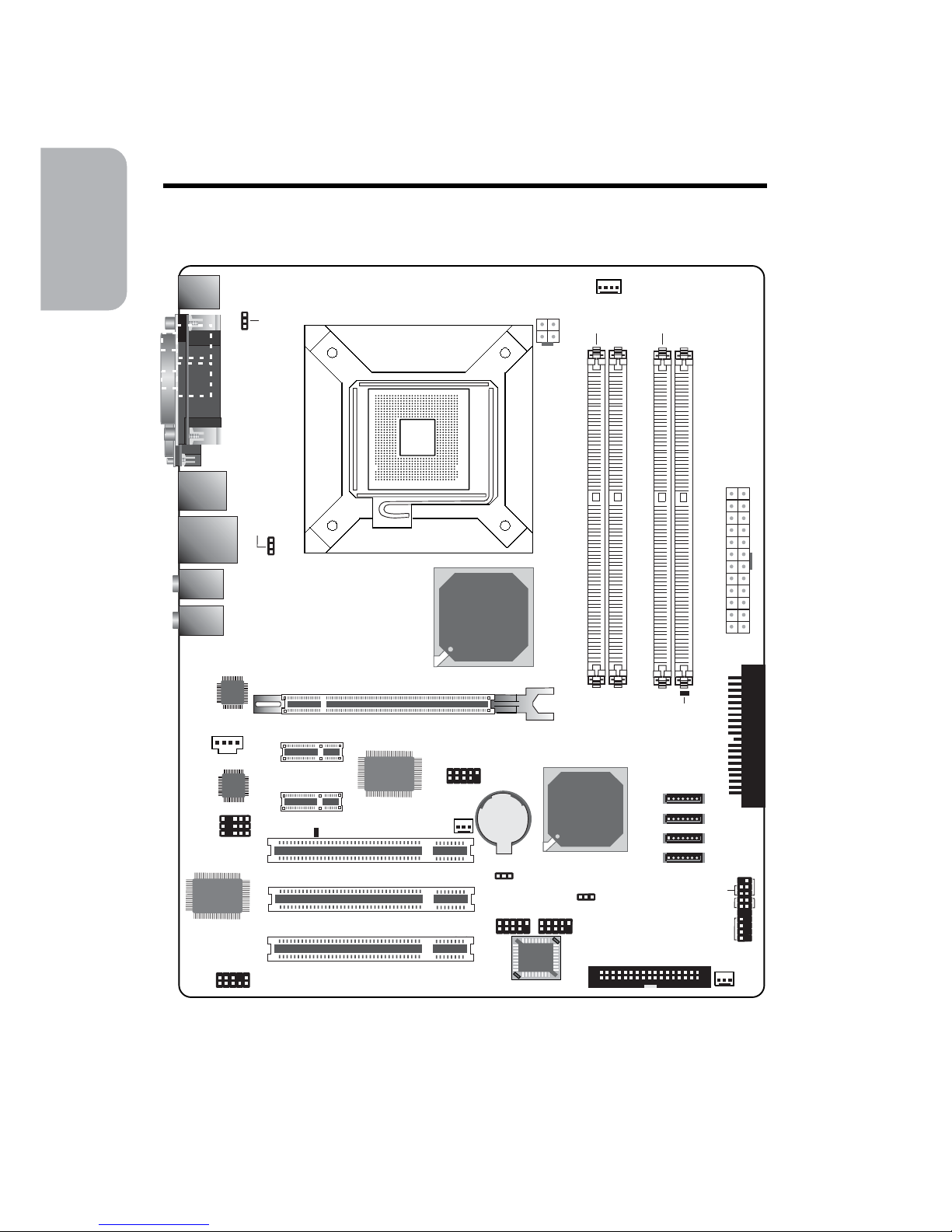

1.1 System Board Layout
Chapter 1 - Quick Setup Guide
JP8
PS/2 power
select (JP1)
1
USB 1-4 power
select (JP2)
1
KB
Mouse
1394_1
USB 1
USB 2
LAN 1
USB 3
USB 4
(PCI Express x1)
1
Fan 2
1
Fan 3
1
CPU fan
1
+12V power
DDR 1
DDR 2
DDR 3
DDR 4
LGA 775 CPU Socket
Intel
915P
Intel
ICH6
VIA
VT6307
I/O
chip
1
1
1
1394_2
ATX
power
IDE
Standby Power LED
DRAM Power LED
BIOS
1
USB 5-6
USB 5-8 power
select (JP3)
1
1
Clear CMOS (JP4)
1
FDD
1
SATA 4
1
1
1
SATA 3
SATA 2
SATA 1
Battery
CIR
IR
HD-LED
RESET
SPEAKER
PCI 1
PCI 2
PCI 3
PCIEX1 1
PCIEX1 2
PCIEX16
Marvell
88E8053
PWR-LED
ATX-SW
1
S/PDIF-
in
S/PDIF-
out
COM
Parallel
Line-in
Front R/L
Mic-in
Center/Subwoofer
Side R/L
Rear R/L
Audio
CODEC
1
CD-in
1
S/PDIF
1
Front audio
1
USB 7-8

5
1
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers
1.2.1 Clear CMOS Data
1.2.2 PS/2 Power Select
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
JP8
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP4
312 312
JP8
X
JP1
2-3 On: 5VSB
1-2 On: 5V
(default)
3
1
2
3
1
2

6
Quick Setup Guide
1
Quick Setup
Guide
1.3 Rear Panel I/O Ports
1.2.3 USB Power Select
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5VSB power source of your
power supply must support ≥ 2A.
PS/2
Mouse
PS/2
K/B
COMS/PDIF-in
S/PDIF-out
USB 1-2 USB 3-4
IEEE
1394_1
RJ45
LAN
Parallel
Mic-in
Line-in
Line-out (Front R/L)
Side R/L
Center/
Subwoofer
Rear R/L
JP8
X
USB 1-4
(JP2) 3
1
2
3
1
2
2-3 On: 5VSB
1-2 On: 5V
(default)
312 312
2-3 On: 5VSB
1-2 On: 5V
(default)
X
USB 5-8
(JP3)

7
1
Quick Setup Guide
Quick Setup
Guide
1.4 I/O Connectors
1.4.1 S/PDIF-in/out Jacks
Note:
DO NOT use RCA S/PDIF and optical S/PDIF at the same time.
JP8
S/PDIF-in
S/PDIF-out
W
WJ1
15
+5V
Key
SPDIF out
GND
SPDIF in
15
15
S/PDIF-out
1.4.2 IEEE 1394
JP8
1394_1
W
W
1394_2
+12V (fused)
1
TPA+
Ground
TPB+
+12V (fused)
Key
TPA-
Ground
TPB-
Ground
210
9

8
Quick Setup Guide
1
Quick Setup
Guide

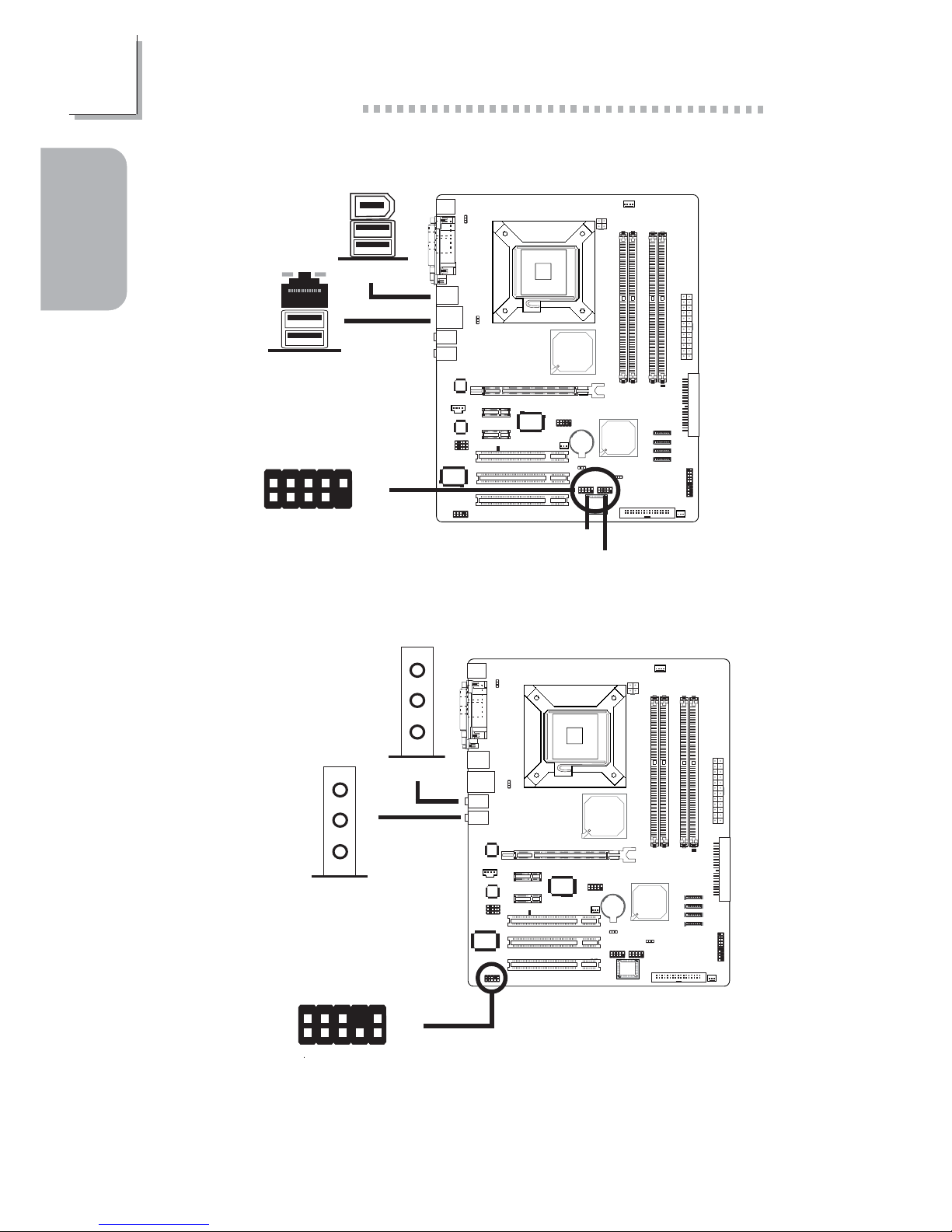

1.4.3 Universal Serial Bus Ports
1.4.4 Audio (Rear Audio Jacks and Front Audio)
JP8
USB 4
USB 3
1
VCC
-Data
+Data
Ground
Key
VCC
-Data
+Data
Ground
N. C.
210
9
W
USB 2
USB 1
W
USB 5-6
W
USB 7-8
JP8
Front audio W
W
Mic-in
Line-out
Line-in
Center/
Subwoofer
Side R/L
Rear R/L W
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
CN2
CN3

9
1
Quick Setup Guide
Quick Setup
Guide

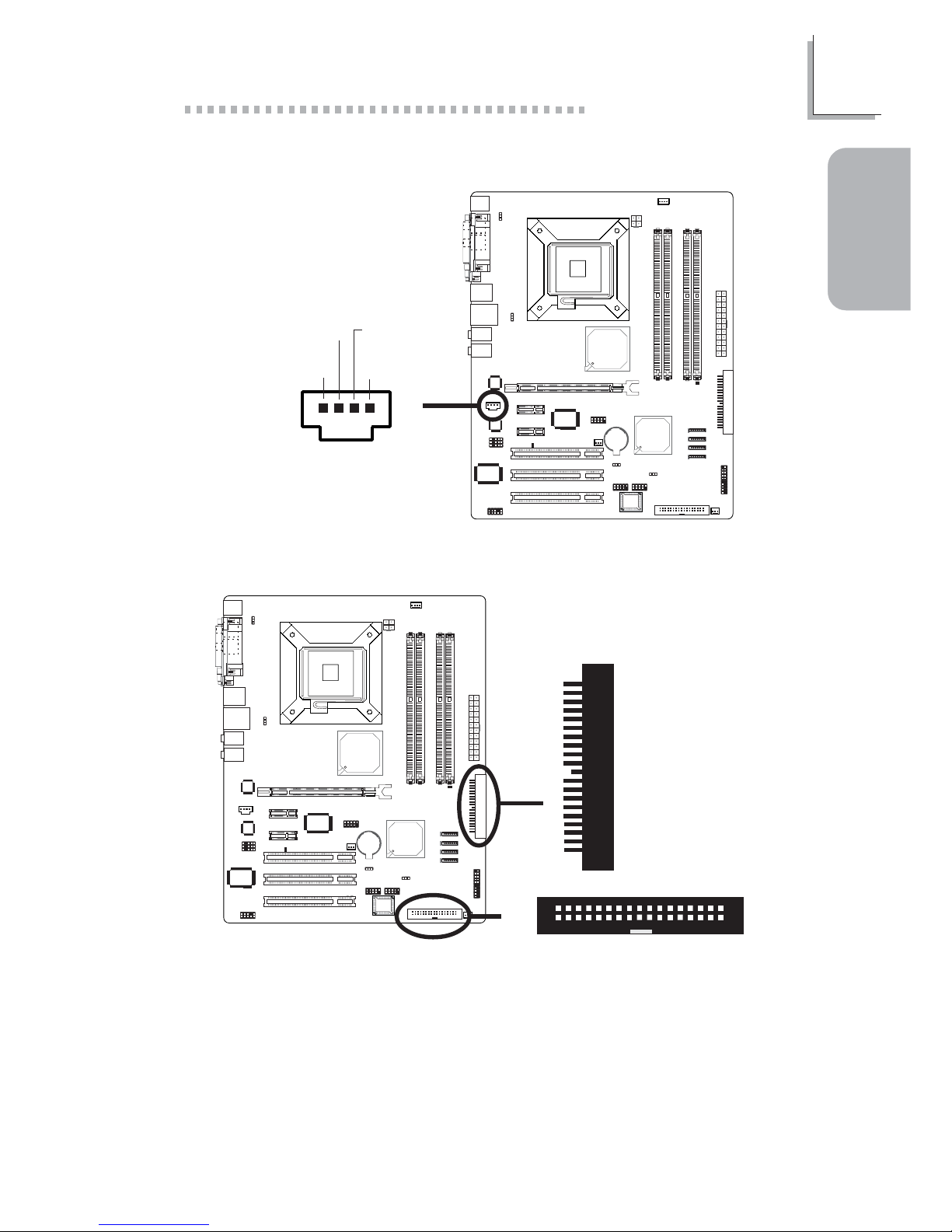

1.4.5 CD-in Internal Audio Connector
JP8
W
14
Right audio
channel
Left audio
channel
Ground Ground
JP8
1.4.6 FDD and IDE Connectors
X2
133
34
X
IDE
FDD
IDE

10
Quick Setup Guide
1
Quick Setup
Guide

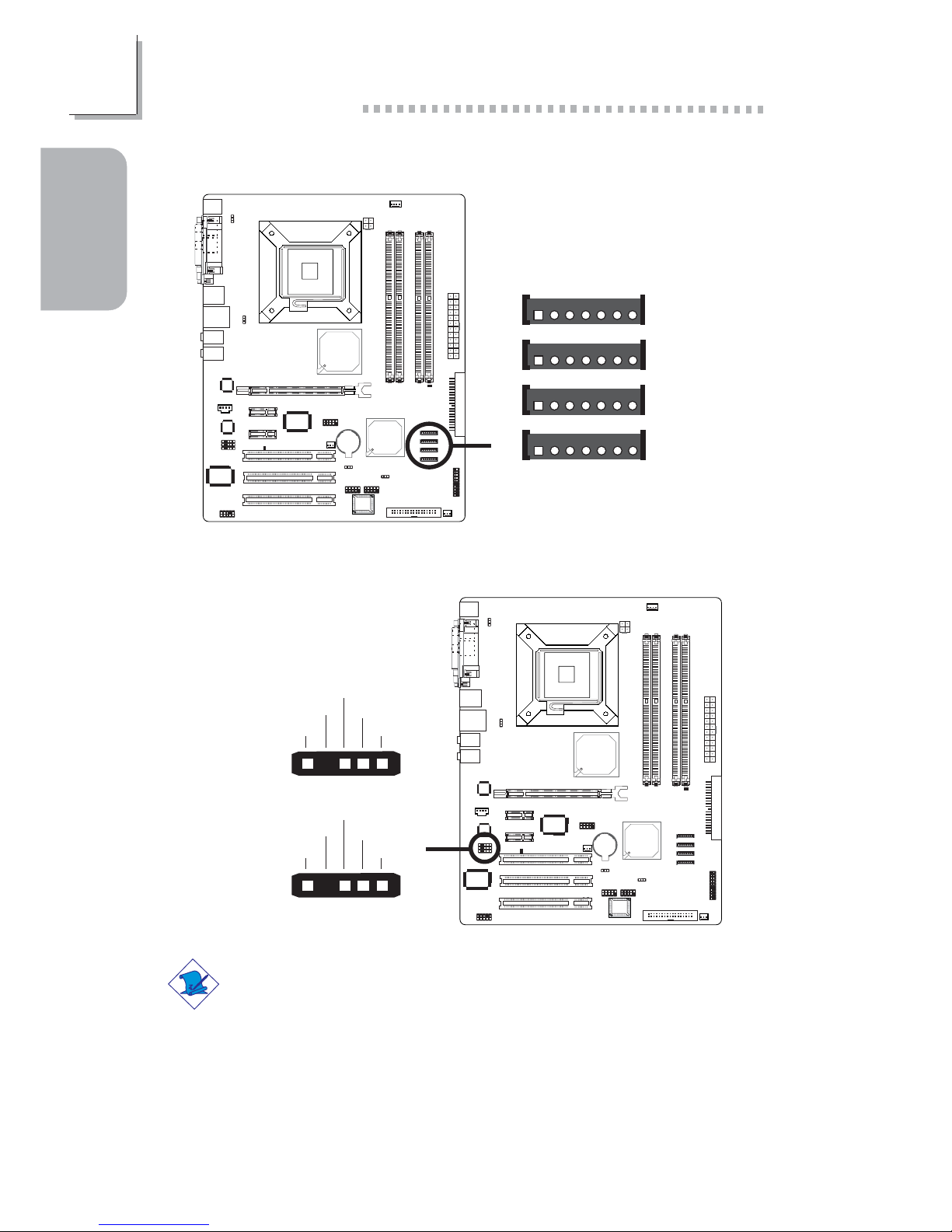

1.4.7 Serial ATA Connectors
1.4.8 IrDA Connector
Note:
The sequence of the pin functions on some CIR/IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the CIR/IR connector
according to their pin functions.
JP8
X
SATA 2
SATA 1
GND
TXP
TXN
GND
RXN
RXP
GND
17
17
17
17
SATA 4
SATA 3
JP8
W
15
VCC
N. C.
IRRX
Ground
IRTX
CIR
IR
15
5VSB
N. C.
CIRRX
GND
CIRTX

11
1
Quick Setup Guide
Quick Setup
Guide
1.4.9 Cooling Fan Connectors
JP8
X
X
Fan 2
CPU fan
4
1
Sense
Power
Ground
Speed
Control
13
Ground
Power
Sense
X
Fan 3
13
Ground
Power
Sense
1.4.10 LEDs
JP8
Standby Power LED
DRAM Power LED

12
Quick Setup Guide
1
Quick Setup
Guide
1.4.12 PCI Express x16 and x1 Slots
Important:
To ensure that adequate power is provided, we strongly recommend
that you use a minimum of 400 Watt (or greater) power supply.
1.4.11 Power Connectors
JP8
X
X
+12V
43
12
GroundGround
+12V
131
12 24
+3.3VDC
+3.3VDC
COM
+5VDC
COM
+5VDC
COM
PWR_OK
+5VSB
+12VDC
+12VDC
+3.3VDC
+3.3VDC
-12VDC
COM
PS_ON#
COM
COM
COM
NC
+5VDC
+5VDC
+5VDC
COM
JP8
PCI Express x16
PCI Express x1
PCI Express x1

13
1
Quick Setup Guide
Quick Setup
Guide
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
N. C.
N. C.
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
1.4.13 Front Panel Connectors
JP8
X
J15
12
1920
PWR-LED
ATX-SW
HD-LED
RESET
SPEAKER

14
English
2
English
Chapter 2 - English
2.1 Features and Specifications
Processor
• Intel®Pentium®4 Prescott processor
- Hyper-Threading Technology
- 533MT/s and 800MT/s (200MHz) system bus interface
• Socket LGA 775 (LAN Grid Array)
Chipset
• Intel®915P chipset
- Intel®915P Memory Controller Hub (MCH)
- Intel®82801FB I/O Controller Hub (ICH6)
System Memory
• Four 184-pin DDR DIMM sockets that support PC2700
(DDR333) and PC3200 (DDR400) DIMMs
• Supports dual channel (128-bit wide) memory interface
• Supports up to 4GB system memory
• Supports non-ECC x8 and x16 DIMMs
• Supports up to 512Mb DRAM densities
• Supports unbuffered DIMMs
BIOS
• Award BIOS
• CPU/DRAM overclocking
• CPU/NB/DRAM overvoltage
• Supports SCSI sequential boot-up
• Supports DMI 2.0 function
• 4Mbit flash memory
Energy Efficient Design
• Supports ACPI specification and OS Directed Power
Management
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-Ring (external modem)

15
2
English
English
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
Hardware Monitor
• Monitors CPU/system temperature and overheat alarm
• Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/3.3Vsb voltages
• Monitors the speed of the CPU/system fan
• CPU Overheat Protection function monitors CPU temperature
and fan during system boot-up - automatic shutdown upon
system overheat
Onboard Audio Features
• Azalia audio CODEC with independent variable sampling rate
• True stereo line level outputs
• S/PDIF-in/out interface
• 8-channel audio output
Onboard LAN Features
• Marvell 88E8053 PCI Express Gigabit ethernet controllers
• Integrated power management functions
• Full duplex support at both 10 Mbps, 100 Mbps and 1Gbps
• Supports IEEE 802.3u auto-negotiation
• Supports wire for management
Serial ATA Interface
• Supports four SATA (Serial ATA) interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
IEEE 1394 Interface
• Supports two 100/200/400 Mb/sec ports
IDE Interface
• Supports up to UltraDMA 100Mbps hard drives
Rear Panel I/O Ports
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
• 1 DB-25 parallel port
• 1 DB-9 serial port
• 1 IEEE 1394 port
• 1 RJ45 LAN port

16
English
2
English
• 4 USB 2.0/1.1 ports
• Line-in, line-out (front R/L) and mic-in jacks
• Center/subwoofer, rear R/L and side R/L jacks
I/O Connectors
• 2 connectors for 4 additional external USB 2.0/1.1 ports
• 1 connector for 1 external IEEE 1394 port
• 1 front audio connector for external line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF connector for optical cable connection
• 1 IR connector
• 1 CIR connector
• 4 Serial ATA connectors
• 1 IDE connector
• 1 floppy connector
• 1 24-pin ATX power connector
• 1 4-pin ATX 12V power connector
• 1 front panel connector
• 3 fan connectors
Expansion Slots
• 1 PCI Express x16 slot
• 2 PCI Express x1 slots
• 3 PCI slots
Compatibility
• PCI 2.2 and Azalia compliant
PCB
• ATX form factor
• 24.5cm (9.64") x 30.5cm (12")

17
2
English
English
2.2 Package Checklist
The system board package contains the following items:
;One system board
;One IDE cable for Ultra DMA/33/66/100 IDE drives
;One 34-pin floppy disk drive cable
;Two Serial ATA data cables
;One Serial ATA power cable
;One I/O shield
;One “Mainboard Utility” CD
;One user’s manual
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

18
Français
3Français
Français
Chapter 3 - Français
3.1 Caractéristiques et Spécifications
Processeur
• Les processeurs Intel®Pentium®4 Prescott
- Intel Hyper-Threading Technologie
- Interface du bus système 533MT/s et 800MT/s (200MHz)
• Socket LGA 775 (LAN Grid Array)
Chipset
• Intel®915P chipset
- Intel®915P Controlleur du Mémoire (MCH)
- Intel®82801FB I/O Controleur Entrée/Sorrtie (ICH6)
Mémoire Système
• 4 socles DIMM DDR 184-pin supportant les modules PC2700
(DDR333) et PC3200 (DDR400)
• Supporte l’interface de mémoire deux canaux (128-bit)
• Supporte jusqu’à 4 GB de mémoire système
• Supporte exclusivement les modules DIMM non-ECC x8 et x16
• Supporte une densité de RAM jusqu’à 512Mb
• Supporte les DIMM non-tamponnés
BIOS
• Compatible avec Award BIOS
• Overclocking de CPU/DRAM
• Contrôle du voltage de CPU/NB/DRAM
• Supporte l’amorçage séquentiel SCSI
• Supporte la fonction DMI 2.0
• Mémoire Flash 4Mbit
Design à Haut Rendement Énergétique
• ACPI STR (Suspend to RAM) fonction
• Réveil-Sur-PS/2 Clavier/Souris et Réveil-Sur-USB Clavier/Souris
• Eveil Sonnerie et Réveil Par Le Réseau
• Minuterie RTC pour allumer le système
• Récupération après Défaillance d’Alimentation CA

19
3
Français
Français
System Health Monitor Fonctions
• Gère l’alarme de température et de surchauffe de CPU/système
• Gère l’alarme de voltage et d’échec de 12V/5V/3.3V/Vcore/
Vbat/5Vsb/3.3Vsb
• Gère la vitesse de ventilateur du ventilateur de CPU/système
• Protection du CPU - supporte la mise hors circuit automatique
en cas de surchauffage du système
Caractéristiques Audio sur Carte
• CODEC Azalia avec fréquence d’échantillonnage variable
indépendante
• Sorties de niveau de lignes stéréo vraies
• Interface entrée/sor tie S/PDIF
• Sortie audio 8-canaux
Fonctionnalités Onboard LAN
• Marvell 88E8053 PCI Express Gigabit LAN
• Fonctions de gestion d’alimentation intégrées
• Support Full duplex à 10 Mbps, 100 Mbps et 1Gbps
• Supporte l’auto négociation IEEE 802.3u
• Support câble pour la gestion
Interface Serial ATA
• Supportant 4 interface SATA (Serial ATA) compatible avec la
spécification SATA 1.0 (bande passante à 1.5Gbps)
Interface IEEE 1394
• Supporte 2 ports 100/200/400 Mb/séc
Contrôleur IDE
• Supporte des disques durs jusqu’à UltraDMA 100Mbps
Le Panneau des Ports Entrée/Sortie en Arrière
• 1 port souris PS/2 et 1 port clavier PS/2
• 2 S/PDIF RCA prises (S/PDIF-in et S/PDIF-out)
• 1 port parallèle DB-25
• 1 port de DB-9 série
• 1 port IEEE 1394
• 1 port RJ45 LAN
• 4 ports USB 2.0/1.1
• Line-in, line-out (front R/L) et mic-in prises audio
• Center/subwoofer, rear R/L et side R/L prises audio

20
Français
3Français
Français
Connecteurs Entrée/Sortie
•2 connecteurs pour 4 ports USB 2.0/1.1 supplémentaires
• 1 connecteur pour 1 IEEE 1394
• 1 connecteur audio de l’avant pour la sortie ligne/l’entrée micro
•1connecteur CD-in audio internes
• 1 S/PDIF l’assemblage pour l’adjonction de câble optique
• 1 connecteur IR et 1 connecteur CIR
•4connecteurs Serial ATA
• 1 connecteur IDE
• 1 connecteur de FDD
• 1 connecteur d’alimentation ATX 24-pin
• 1 connecteur d’alimentation ATX 4-pin 12V
• 3 connecteurs de ventilateurs
Logements d’Extension
• 1 slot PCI Express x16
• 2 slots PCI Express x1
• 3 slots PCI
Compatibilité
• Compatible PCI 2.2 et Codec Azalia
PCB
•ATX
• 24.5cm (9.64") x 30.5cm (12")
3.2 Liste de Vérification de l’Emballage
L’emballage de la carte système contient les éléments suivants:
;1 carte système
;1 câble IDE pour les lecteurs UltraDMA 33/66/100
;1 câble 34 broches pour lecteur de disquette
;2 câble SATA
;1 câble d’alimentation SATA
;1 plaque I/O
;1 CD “Mainboard Utility”
;1 manuel utilisateur
Si l’un de ces éléments n’était pas dans l’emballage ou s’il était
endommagé, veuillez contacter votre revendeur ou votre
représentant.
