ADN171_ADN173

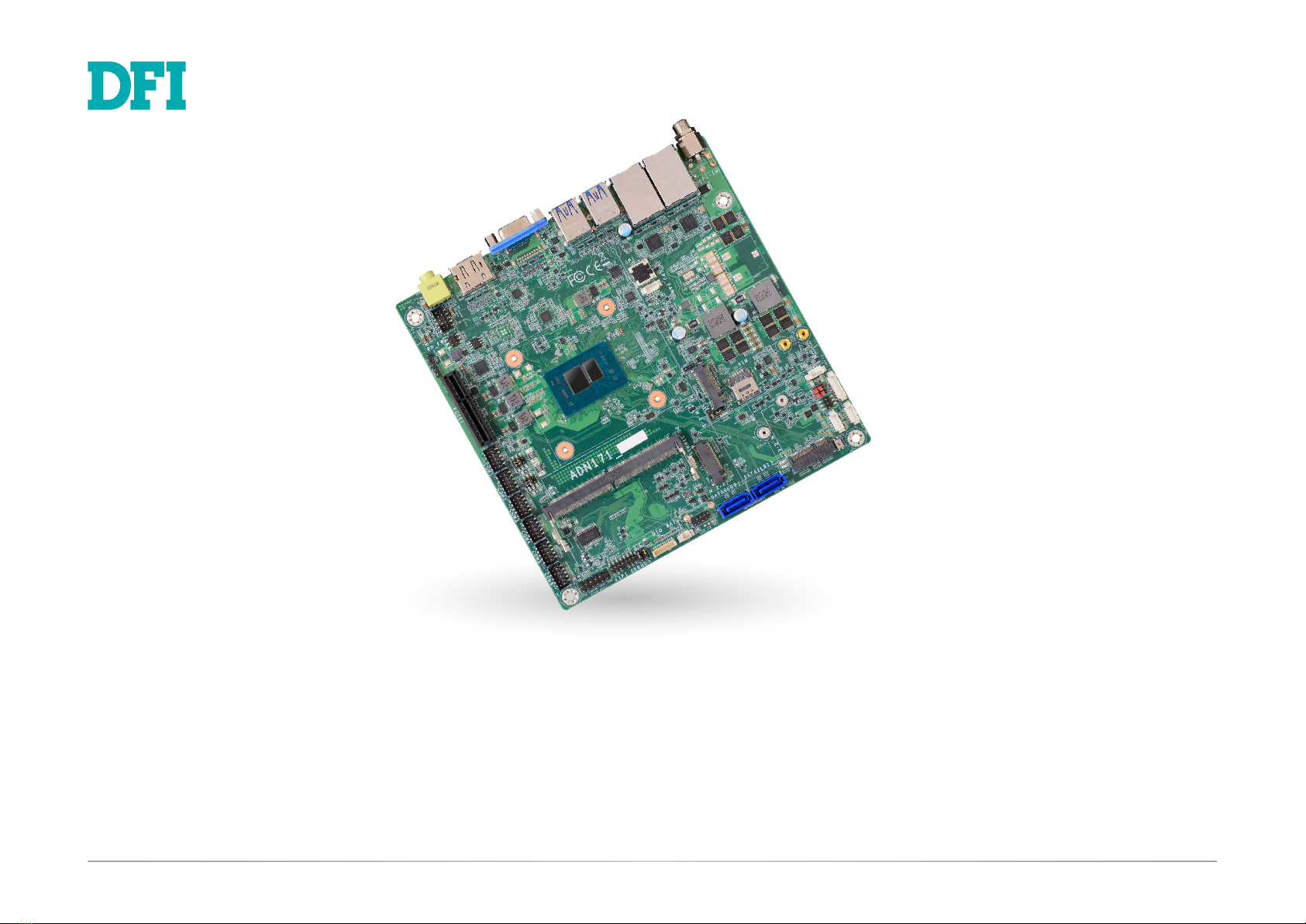

Mini-ITX Industrial Motherboard
User’s Manual
© December 11, 2023 DFI Inc.

2
User's Manual | ADN171_ADN173
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2023. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
User's Manual | ADN171_ADN173
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specifications.........................................................................................................................6

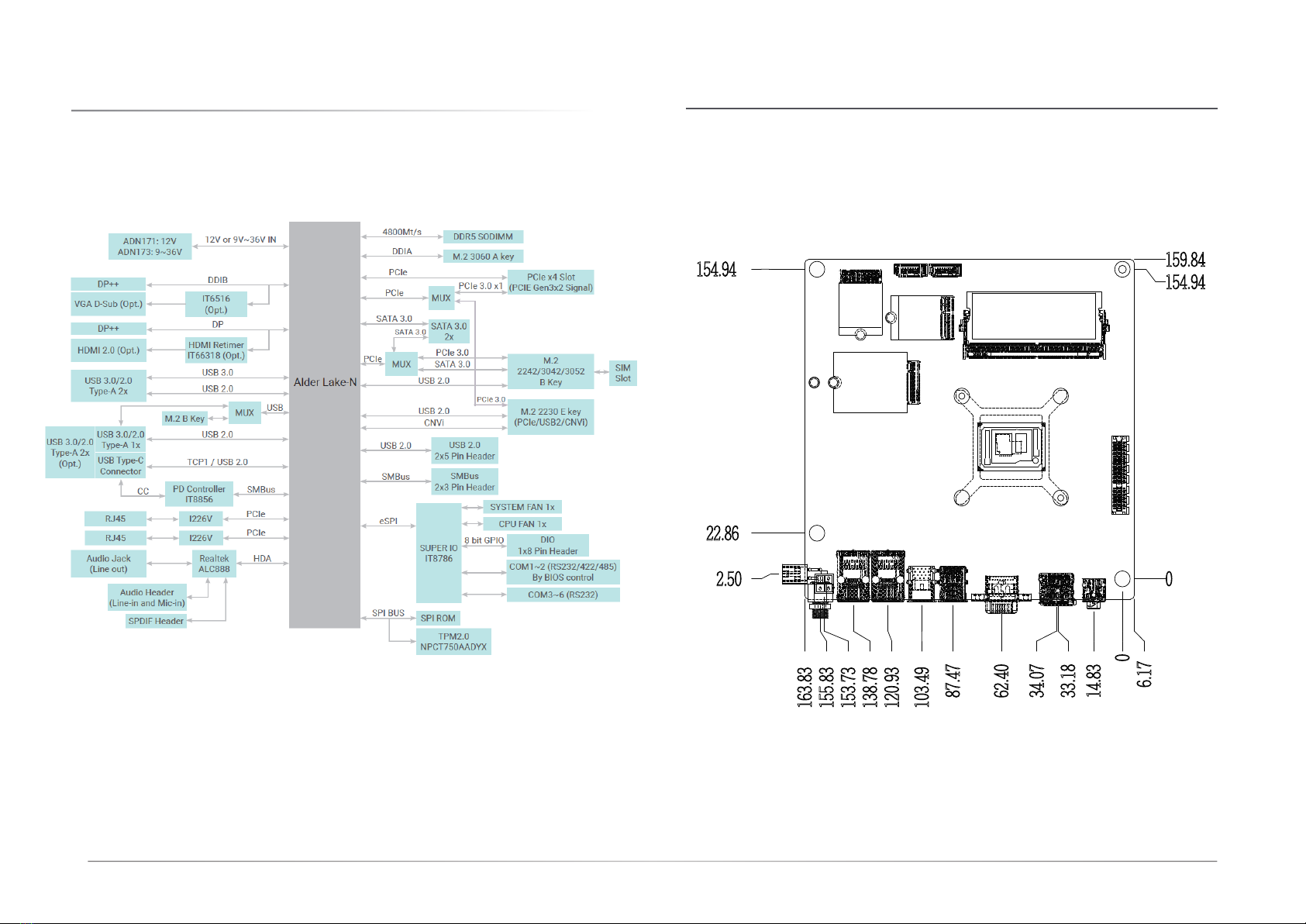

Block Diagram ........................................................................................................................8
Dimension...............................................................................................................................8
Chapter 2 - Hardware Installation................................................................................................9
Board Layout...........................................................................................................................9
Installing the heat sink.........................................................................................................11
Installing the Heat Sink.................................................................................................11
Jumper Settings...................................................................................................................12

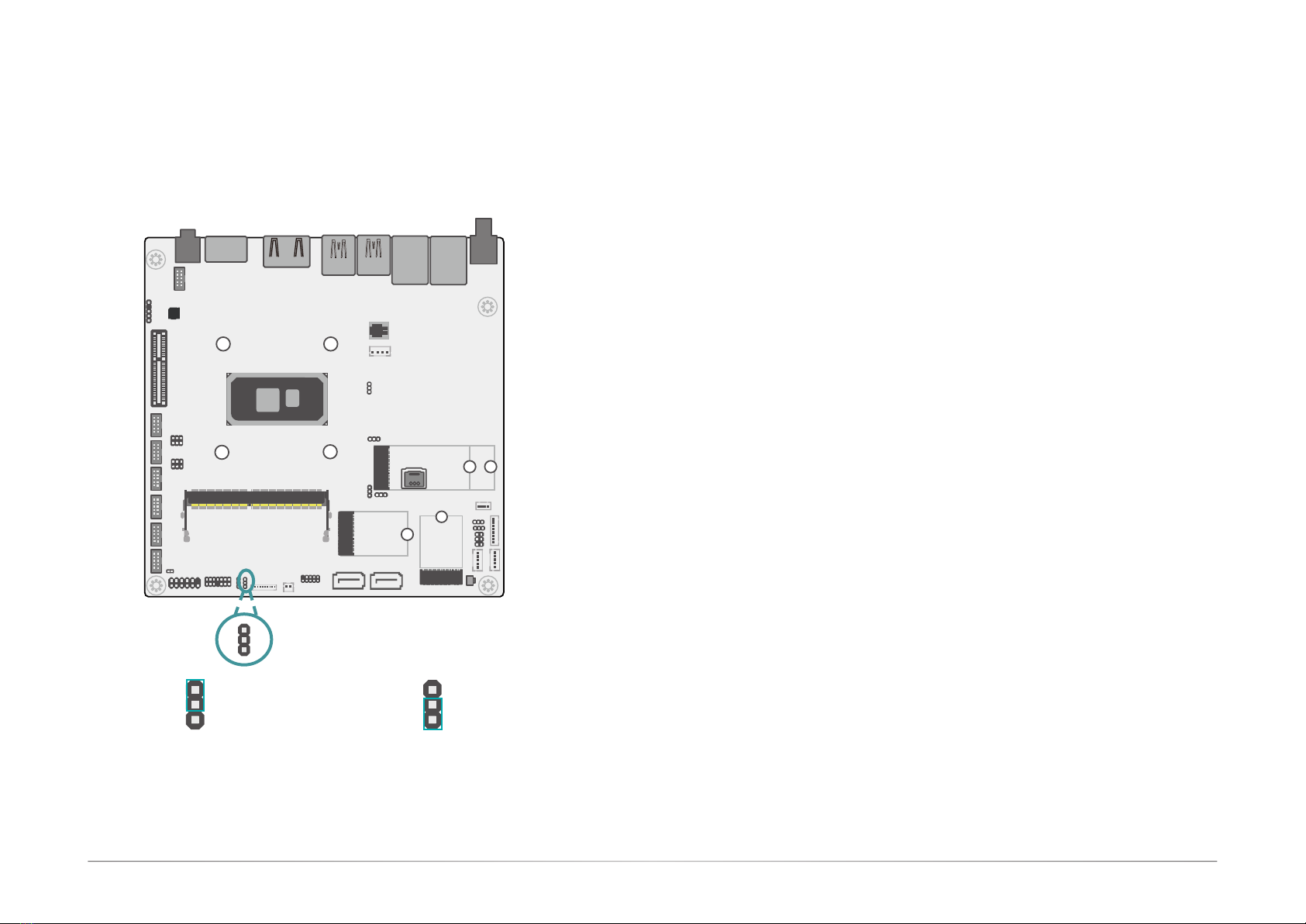

Clear CMOS Data (SW1)...............................................................................................12
SATA1 CONN/M.2 B-KEY (PBJP1)...............................................................................12
PCIE Slotx2/M.2 E-KEY (PBJP2)..................................................................................13
USB3-A/M.2 B-KEY (PBJP3).........................................................................................13
Panel Backlight ON Level Select (DPJP1) ...................................................................14
VCC Panel Power Select (DPJP3)................................................................................14
Inverter Panel Power Select (DPJP4)...........................................................................15
DIO_0~3 Power Select (JP2)........................................................................................15
DIO_4~7 Power Select (JP5)........................................................................................16
Pin Assignment....................................................................................................................17
RTC Battery (J19)..........................................................................................................17
Case Open (J2)..............................................................................................................17
UART Header (Debug) (JP4).........................................................................................18
System Fan (J20)..........................................................................................................18
System Fan (J10)..........................................................................................................19
DIO (J16)........................................................................................................................19
SATA POWER (CN8)......................................................................................................20
SATA POWER (CN12)....................................................................................................20
S/PDIF (AUJ2)................................................................................................................21
SATA1 (J12)...................................................................................................................21
SATA0 (J4).....................................................................................................................22
Backlight CON (DPJ2)...................................................................................................22
COM1 Power Select (TSJP1)........................................................................................23
COM2 Power Select (TSJP2)........................................................................................23
COM1 (TSJ1).................................................................................................................24
COM2 (TSJ2).................................................................................................................24
COM3 (TSJ3).................................................................................................................24
COM4 (TSJ4).................................................................................................................24
COM5 (TSJ5).................................................................................................................24
COM6 (TSJ6).................................................................................................................24
Front Audio (AUJ1)........................................................................................................24
USB2.0 Pin Header (J3)................................................................................................25
Front Panel (J17)..........................................................................................................25
eSPI Header(Debug) (J5)..............................................................................................26
Expansion Slots....................................................................................................................27
Installing the M.2 Module.............................................................................................27
Chapter 3 - BIOS Settings...........................................................................................................29
Overview ...............................................................................................................................29
Main.......................................................................................................................................30
Advanced .............................................................................................................................30
RC ACPI Settings...........................................................................................................31
CPU Configuration.........................................................................................................31
Power & Performance...................................................................................................32
PCH-FW Configuration..................................................................................................32
Intel(R) Time Coordinated Computing.........................................................................33
Trusted Computing........................................................................................................34
IT8786 Super IO Configuration.....................................................................................34
IT8786 Super IO Configuration ►Serial Port 1, 2 Configuration ........................35
IT8786 Super IO Configuration ►Serial Port 3, 4 Configuration ........................35
IT8786 Super IO Configuration ►Serial Port 5, 6 Configuration ........................36
IT8786 HW Monitor.......................................................................................................36
Serial Port Console Redirection ...................................................................................37
Serial Port Console Redirection ►Console Redirection Settings........................37
Network Stack Configuration........................................................................................38
USB Power Control........................................................................................................39
Chipset..................................................................................................................................40
System Agent (SA) Configuration................................................................................40
PCH-IO Configuration....................................................................................................41
PCH-IO Configuration►PCI Express Configuration.............................................41
PCH-IO Configuration►SATA And RST Configuration.........................................42
PCH-IO Configuration►HD Audio Configuration.................................................42
Security .................................................................................................................................43
Secure Boot....................................................................................................................43
Boot.......................................................................................................................................44
Save & Exit............................................................................................................................44
Updating the BIOS................................................................................................................45
Notice: BIOS SPI ROM..........................................................................................................45

4
User's Manual | ADN171_ADN173
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in
or out of warranty. It must be returned to the purchase point, factory or authorized ser-
vice agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover the
system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5
User's Manual | ADN171_ADN173
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 AND171/ADN173 Motherboard
• 1 COM port cable (Length: 250mm, 1 x COM ports)
• 1 Serial ATA data & power cable w/lock (Length: 300mm)
• 1 Heat Sink
The board and accessories in the package may not come similar to the information listed above.
This may differ in accordance with the sales region or models in which it was sold. For more
information about the standard package in your region, please contact your dealer or sales repre-
sentative.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device such as a hard disk drive.
• Power supply
External system peripherals may also be required for navigation and display, including at least a
keyboard, a mouse and a video display monitor.

6
Chapter 1
INTRODUCTION
User's Manual | ADN171_ADN173
Chapter 1 - Introduction
X Specifications
SYSTEM Processor Intel®Atom®Alder Lake-N Processors, TDP up to 15W
Intel®Core i3-N305 Processor, 8 Core, 6M Cache, 3.8GHz, 15W
Intel®Processor N200, Quad Core, 6M Cache, 3.7GHz, 6W
Intel®Atom®x7213E Processor, Dual Core, 16M Cache, 3.2GHz, 10W
Intel®Processor N50, Dual Core, 6M Cache, 3.4GHz, 6W
Memory One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
BIOS AMI SPI 256Mbit
GRAPHICS Controller Intel®UHD Graphics
Feature OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display 1 x DP++/ VGA (Co-layout)
1 x DP++/ HDMI2.0 (Co-layout)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
HDMI: resolution up to 3840x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz
USB-C: resolution up to 3840x2160 @24Hz
Triple Displays DP++/VGA + HDMI/DP++ + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)
EXPANSION Interface 1 x PCIe x4 (PCIe signal x2)
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1 or SATA3 and USB2.0 wi USB3(opt.))
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required)
1 x Nano SIM socket (connected to M.2 B key)
AUDIO Audio Codec Realtek ALC888S
ETHERNET Controller 2 x Intel®I226V (10/100/1000/2500Mbps)

7
Chapter 1
INTRODUCTION
User's Manual | ADN171_ADN173
REAR I/O Ethernet 2 x 2.5GHz RJ45
USB 4 x USB 3.2 Gen2 or 3 USB3.2Gen + 1 USB2.0 or 3 USB 3.2 Gen2+1 USB Type C
Display 1 x HDMI /DP++ (opt., MOQ may required)
1 x DP++ /VGA (opt., MOQ may required)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
Audio 1 x Line-out
INTERNAL I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)
USB 2 x USB 2.0 (2.0mm pitch) or 1 x USB 2.0 (2.00mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
Audio 1 x S/PDIF
1 x Line-in/Mic-in
SATA 2 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM dTPM (default)
fTPM (option)
POWER Type Single 12VDC (+/-5%) (ADN171) (DC-In jack by default)
Wide Range 9~36V (ADN173) (4P vertical type by default)
Connector DC-in Jack
Right Angle Connector (4-pin)
Vertical Type Connector (4-pin)
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft Windows IoT Enterprise 10 LTSB
Linux Linux
ENVIRONMENT Temperature Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANISM Dimensions Mini-ITX Form Factor: 170mm (6.7") x 170mm (6.7")
Height PCB: 1.6mm
Top Side: TBD Bottom Side: TBD
STANDARDS AND CERTIFICATIONS Certifications CE, FCC, RoHS

8
Chapter 1
INTRODUCTION
User's Manual | ADN171_ADN173
X Block Diagram X Dimension
0
154.94
159.84
2.50
22.86
154.94
0
14.83 33.18 34.07 62.40 87.47
103.49 120.93 138.78 153.73 155.83 163.83
6.17

9
Chapter 2
HARDWARE INSTALLATION
User's Manual | ADN171_ADN173
Chapter 2 - Hardware Installation
X Board Layout
SO-DIMM1
1
9
10
2
1
9
10
2
1
9
10
2
1
9
10
2
1
9
10
22
2
1
1
1
6
6
5
5
9
10
2
1
1
910
2
1
1
M.2 B Key
M.2 A Key
M.2 E Key
11
1
12
34
1
1
1
1
2
6
5
1
1
1
1
11
11
1
2
10
2
2
11
12
14
1
8
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
22
23
24
25
27
28
26
29
33 35
34
19
20
45 44 41 40
39
38 37 36
21
43 42
30
31
32
121
28
35
38
39
222
29
323
30
424
31
525
32
626
33
36
727
34
37
8
9
10
11
12
14
15
16
17
18
19
20
13
DC-in
2.5G LAN 1
2.5G LAN 2
USB3.2 Gen2
USB3.2 Gen2
DP++
HDMI
Line-out
S/PDIF
PCIE1
COM1
COM2
COM3
COM4
COM5
COM6
Front Audio
Buzzer
COM1 Power Select
COM2 Power Select
Case Open
SPI
System Fan
UART Header (Debug)
SATA1 CONN/ M.2 B-KEY
SIM Card Slot
USB3-A/ M.2 B-KEY
PCIE Slotx2/ M.2 E-KEY
System Fan
Panel Backlight ON Level Select
Panel Inverter Power Select
VCC Panel Power Select
SATA Power
Backlight CON
SATA Power
Clear CMOS Data
SATA1
SATA0
USB2.0 Pin Header
RTC Battery
40

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | ADN171_ADN173
41
42
43
44
45
DIO
DIO_4~7 Power Select
DIO_0~3 Power Select
eSPI Header(Debug)
Front Panel
