DFI EHL556 User manual

EHL556
3.5" SBC Industrial Motherboard
User’s Manual

2User's Manual | EHL556
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2022. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
• The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | EHL556
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specifications ......................................................................................................................... 6
Features ..................................................................................................................................8

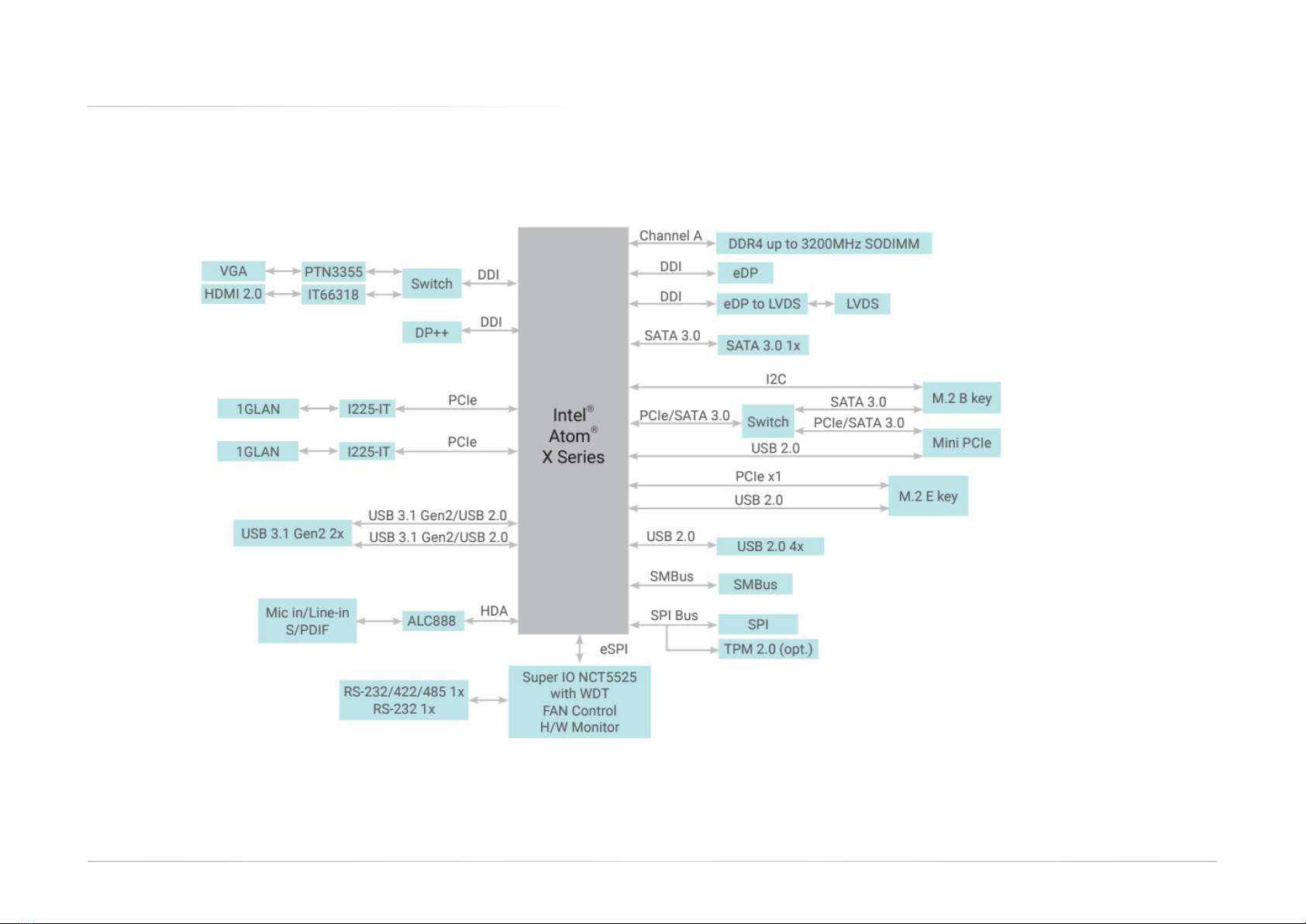

Block Diagram ........................................................................................................................ 9
Chapter 2 - Hardware Installation..............................................................................................10
Board Layout.........................................................................................................................10
System Memory ...................................................................................................................11
Installing the SODIMM Module.....................................................................................11
Removing the SODIMM Module ...................................................................................12
Panel Backlight Voltage (DPJP1) .................................................................................13
Panel Inverter Power Selection (DPJP2) .....................................................................13
Panel Power ...................................................................................................................14
Rear I/O Ports.......................................................................................................................15
USB Ports .......................................................................................................................15
Graphics Interfaces .......................................................................................................16
RJ45 LAN Ports .............................................................................................................17
Internal I/O Connectors .......................................................................................................17
Audio .............................................................................................................................17
SATA (Serial ATA) ..........................................................................................................18
SATA Power ...................................................................................................................18
COM (Serial) ports.........................................................................................................19
Cooling Fan Connectors................................................................................................20
Front Panel.....................................................................................................................21
USB 2.0...........................................................................................................................21
Expansion Slots .............................................................................................................22
Installing the M.2 Module .............................................................................................22
Battery Header...............................................................................................................23
LVDS Backlight...............................................................................................................24
Chapter 3 - BIOS Settings...........................................................................................................25
Overview ...............................................................................................................................25
Main.......................................................................................................................................26
Advanced .............................................................................................................................26
RC ACPI Configuration..................................................................................................27
CPU Configuration.........................................................................................................27
Power & Performance ...................................................................................................28
PCH-FW Configuration ..................................................................................................28
Trusted Computing........................................................................................................29
PTN3460 Configuration ................................................................................................29
NCT5525D Super IO Configuration ..............................................................................30
NCT5525D HW Monitor ................................................................................................31
Serial Port Console Redirection ...................................................................................32
USB Configuration .........................................................................................................33
Network Stack Configuration........................................................................................34
USB Power Control........................................................................................................34
Chipset ..................................................................................................................................35
Memory Configuration ..................................................................................................35
Graphics Configuration .................................................................................................36
PCH-IO Configuration....................................................................................................37
PCI Express Configuration............................................................................................37
SATA And RST Configuration .......................................................................................38
HD Audio Configuration ................................................................................................38
Security .................................................................................................................................39
Secure Boot....................................................................................................................39
Boot .......................................................................................................................................41
Save & Exit ............................................................................................................................41
Updating the BIOS................................................................................................................42
Notice: BIOS SPI ROM..........................................................................................................42

4User's Manual | EHL556
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
• Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
• The warranty is void if the product has been subjected to physical abuse, improper
installation, modification, accidents or unauthorized repair of the product.
• Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether
in or out of warranty. It must be returned to the purchase point, factory or authorized
service agency for all such work.
• We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
• To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
• Wear an antistatic wrist strap.
• Do all preparation work on a static-free surface.
• Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
• Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover the
system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5User's Manual | EHL556
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 EHL556 motherboard
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device such as a hard disk drive.
• Power supply
External system peripherals may also be required for navigation and display, including at least a
keyboard, a mouse and a video display monitor.

6
Chapter 1
INTRODUCTION
User's Manual | EHL556
Chapter 1 - Introduction
XSpecifications

7
Chapter 1
INTRODUCTION
User's Manual | EHL556

8
Chapter 1
INTRODUCTION
User's Manual | EHL556
XFeatures
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so that
your system will continue to operate.
DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
Gigabit LAN
Two Intel® Ethernet Controller I225 support up to 2.5GbE data transmission.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on the
system only through an IRQ or DMA interrupt.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the new USB 3.1 Gen 2. It is capable of running at a maximum
transmission speed of up to 10 Gbit/s (1250 MB/s), and is faster than USB 2.0 (480 Mbit/s,
or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.1 reduces the time required for data transmission,
reduces power consumption, and is backward compatible with USB 2.0. It is a marked improve-
ment in device transfer speeds between your computer and a wide range of simultaneously ac-
cessible external Plug and Play peripherals.
RTC Timer
The Real Time Clock (RTC) installed on the system board allows your system to automatically
power-on on the set date and time.

9
Chapter 1
INTRODUCTION
User's Manual | EHL556
XBlock Diagram

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | EHL556
Chapter 2 - Hardware Installation

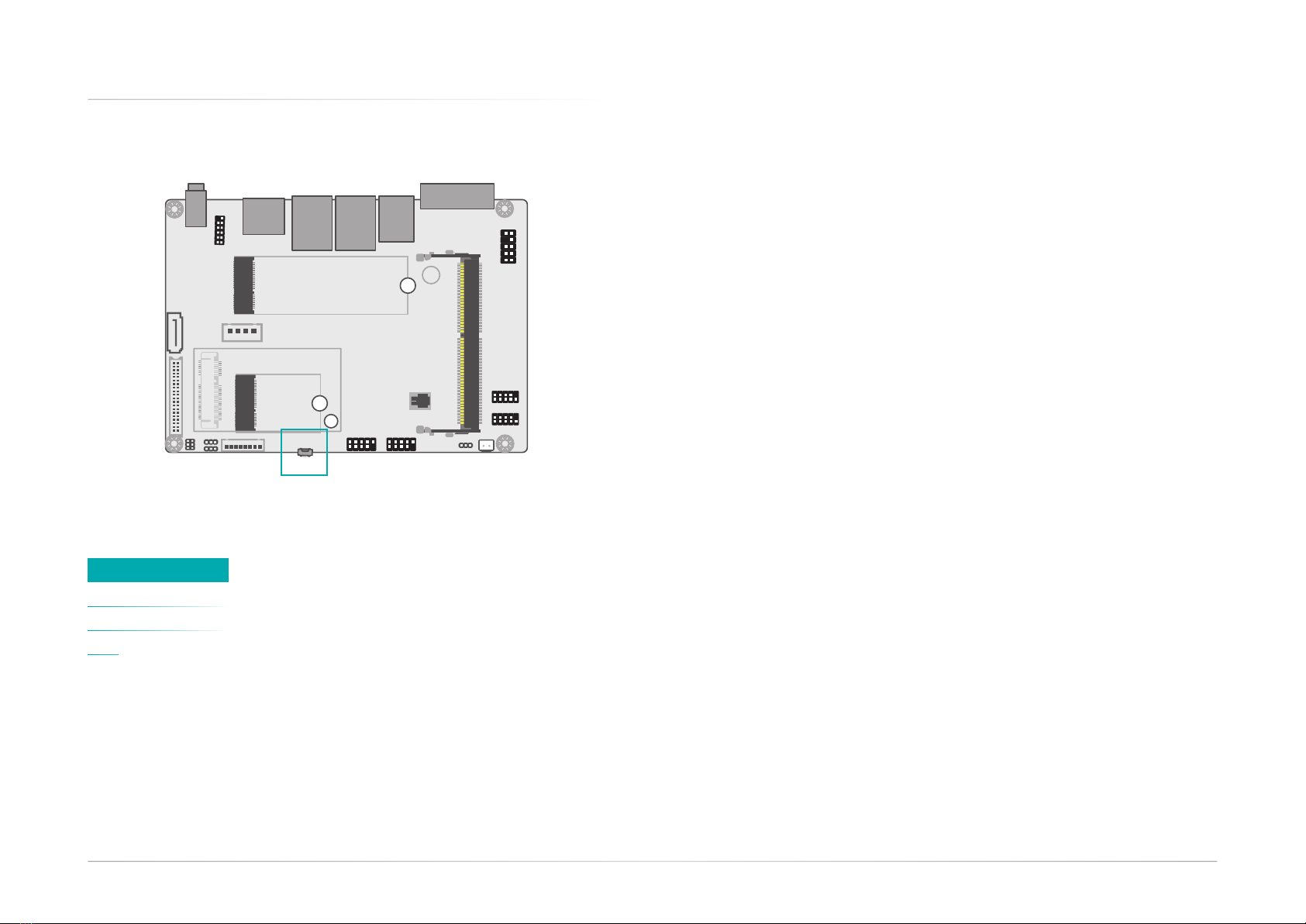

XBoard Layout
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives,
add-in boards, and other components. Perform installation procedures at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.
Note:
Some components are optional and only available upon request.
1
1
M.2 E Key
2230
mini-PCIe
8
1
M.2 B Key (Option)
1
1
1
5
6
2
1
Front Audio
1 2 10
9
1
2 10
9
COM 1
1
2 10
9
COM 2
USB 4-5
1
2 10
9
USB 6-7
1
2 10
9
1
1
2
11
12
Front Panel
1
1
2
1
3
4 5
6
9
8
7
11 10
15
12
16
14
13
17
18
19
