Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
26
46
67
89
Note:
The user’s manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesn’t
match those shown in this manual, this manual should always be
regarded as the most updated version.

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
7
10
21
Important:
To ensure proper boot up and operation of your system, you must
power-off the system then turn off the power supply’s switch or
unplug the AC power cord prior to altering the setting of a jumper
or replacing the CPU.

6
Quick Setup Guide
1
Quick Setup
Guide
1.1 System Board Layout
J1
KB
Mouse
J2
USB 1
USB 2
LAN
ATX p ower
(J19)
CPU fan (J18)
COM 1 (J3)
Parallel (J4)
COM 2 (J5)
Game/MIDI (J8)
Line
out
(J6)
Line
in
(J7)
Mic
in
(J9)
CD-in (J12)
AUX-in (J15)
Front audio (J13)
9
10
2
1
Realtek
RTL8100
Second chassis
fan (J26)
Socket 462
AC’97
Winbond
W83697HF
BIOS IrDA (J17)
VIA
VT6202
DIMM standby
power LED
DDR 1
VIA
KT333
VIA
VT8233ACE
DDR 2 DDR 4
DDR 3
USB 2.0 (J22)
Wake-On-
LAN (J23)
Wake-On-
Ring (J24)
1
11
5
15
Promise
20276
USB 1.1 (J25)
Chassis fan
(J21)
RESET
SPEAKER HD-LED
Battery
Primary
IDE (J27)
Secondary
IDE (J29)
FDD
(J34)
Clear
CMOS
(JP5)
CPU FSB
select (JP4)
RAID Primary
IDE (J31)
RAID Secondary
IDE (J35)
J35
J28
Wake-On-
USB 2.0
KB/Mouse
(J11)
USB 2.0
(J20)
G-SW
G-LED
PWR-LED
ATX-SW
PS/2 KB/Mouse power select (JP1)
9
10
2
1
10
2
9
1
RAID
setting (JP2)
PCI standby
power LED
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
PCI Slot 6
S/PDIF-out (J38)

7
1
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers
1.2.2 CPU’s Front Side Bus - JP4
To ensure proper boot up and operation of your system, you must power-
off the system then turn off the power supply’s switch or unplug the AC
power cord prior to altering the setting of the jumper.
1.2.1 Clear CMOS Data - JP5
Clear CMOS
(JP5)
123
123
123
1-2 On:
Normal (default)
2-3 On:
Clear CMOS Data
CPU FSB
select (JP4)
1
2
21
21
On:
100MHz (200MHz FSB)
(default)
Off:
133MHz (266MHz FSB)

8
Quick Setup Guide
1
Quick Setup
Guide
1.2.3 Power Select for PS/2 (JP1)
1.2.4 Wake-On-USB 2.0 Keyboard/Mouse - J11
PS/2 KB/Mouse
power select (JP1)
1
2
3
1
2
3
1
2
3
1-2 On: 5V
(default)
2-3 On: 5VSB
Wake-On-USB 2.0
KB/Mouse (J11)
123
123
123
1-2 On:
Enable - 5VSB power
(default)
2-3 On:
Disable - VCC power

9
1
Quick Setup Guide
Quick Setup
Guide
1.2.5 RAID Settings - JP2
RAID setting
(JP2)
123
123
123
1-2 On:
Disable the RAID function
2-3 On:
Enable the RAID function
(default)

10
Quick Setup Guide
1
Quick Setup
Guide
1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or keyboard.
Failure to do so may damage the
system board.
PS/2 Mouse
PS/2 Keyboard
J1
Mouse
(Green)
KB
(Purple)
1.3.2 RJ45 Fast-Ethernet Port
J2
RJ45
LAN
RJ45 LAN

11
1
Quick Setup Guide
Quick Setup
Guide
1.3.3 Universal Serial Bus Ports
1.3.4 Serial Ports
COM 1
Serial Port COM 2
Serial Port
J2
USB 2
(Black)
USB 1
(Black)
USB 2.0
(J22)
1
11
5
15
9
10
2
1
10
2
9
1
2
1
10
9
USB 2.0
(J20) USB 1.1
(J25)
USB 2.0
(J20 or J22)
5
15
11
1
USB 1.1
(J25)
J3
J5
COM 1 COM 2
(Teal/Turquoise)
1
2
3
4
5
5V_Dul 6 Data+
5V_Dul 7 Ground
Data- 8 Ground
Data- 9 Key
Data+ 10 Ground
USB 2.0 (J20 and J22)
USB 1.1 (J25)
1 VCC 9 Ground
2 UP2- 10 Ground
3 UP2+ 11 Ground
4 Ground 12 Gound
5 Key 13 UP2+
6 VCC 14 UP2-
7 UP3- 15 VCC
8 UP3+

12
Quick Setup Guide
1
Quick Setup
Guide

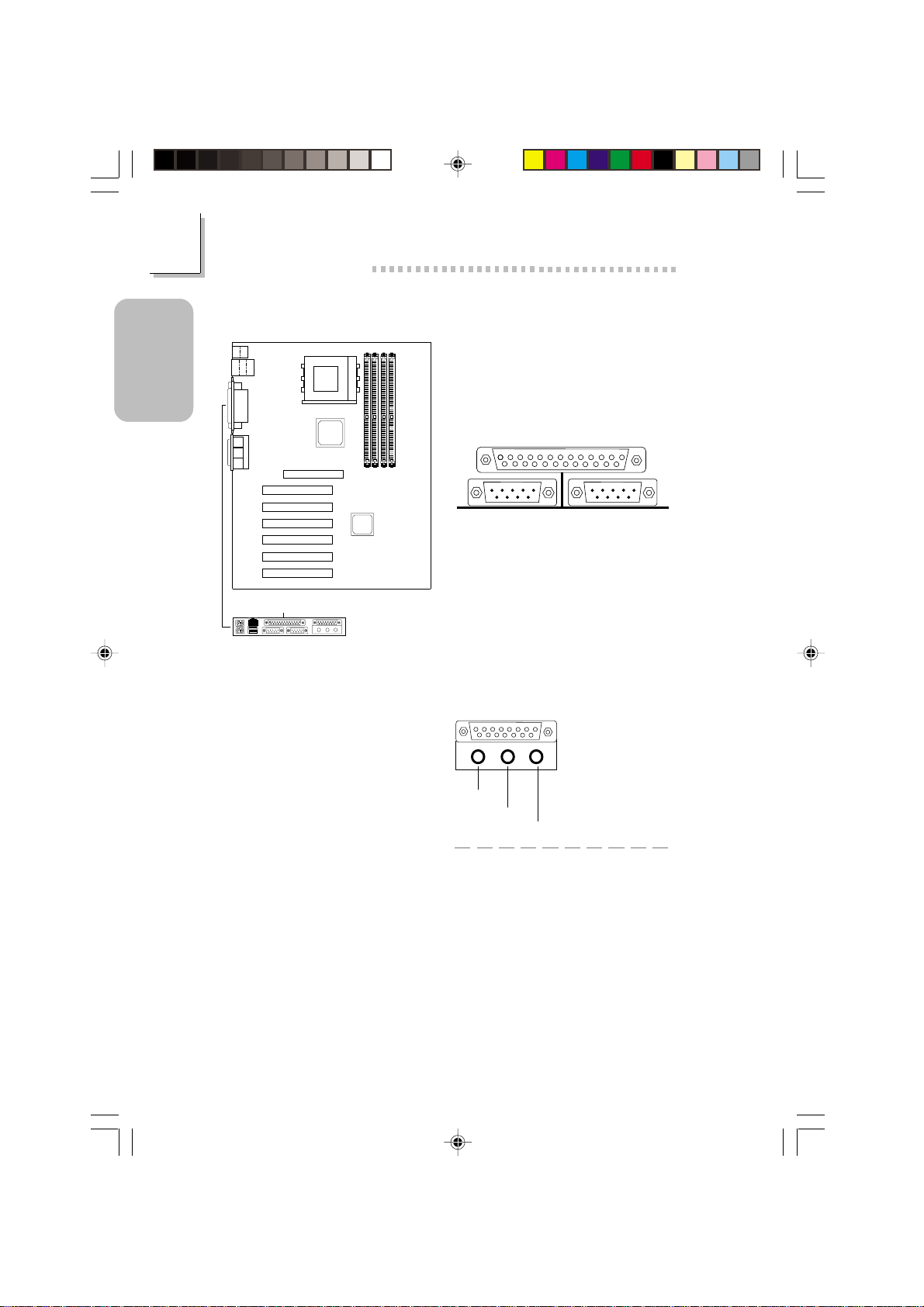

1.3.5 Parallel Port
J4
Parallel
(Burgundy)
Parallel Port
1.3.6 Game/MIDI Port andAudio Jacks
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Front Audio (J13)
1 Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 AuD_R_Return (GND)
7N.C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
Onboard Game/MIDI / Audio

13
1
Quick Setup Guide
Quick Setup
Guide
1.3.7 S/PDIF-out Connector
1
2
3
4
S/PDIF-out
(J38)
1234
AVDD5
N. C.
SPDIF
Ground
1.3.8 InternalAudio Connectors
CD-in
(J12)
AUX-in
(J15)
4
3
2
1
1
2
3
4
Left audio channel
Ground
Ground
Right audio channel

14
Quick Setup Guide
1
Quick Setup
Guide
1.3.9 Floppy Disk Drive and IDE Disk Drive Connectors
1
2
33
34
1
2
40 39
If you encountered problems while using anATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly
set in Master mode.
Primary
IDE (J27)
Secondary
IDE (J29)
FDD (J34)

15
1
Quick Setup Guide
Quick Setup
Guide
1.3.10 RAID IDE Disk Drive Connectors
Only connect IDE hard drives to the RAID IDE connectors.
PCI slot 3 and RAID IDE use the same IRQ. If you are using add-in cards
such as PCI audio card, please do not install it into PCI slot 3.
By default, the Promise RAID controller is enabled. If you are not using this
function, set the “Promise RAID Control” field (Advanced BIOS Features)
to Disabled.The IRQ previously occupied by the controller will be available
for other devices.
JP31 and JP35 are jumpers relevant to configuring RAID. Make sure these
jumpers are set accordingly.
RAID Primary
IDE (J31)
RAID Secondary
IDE (J35)
1
2
40 39

16
Quick Setup Guide
1
Quick Setup
Guide
1.3.11 IrDA Connector
1 VCC
2 N.C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on some IrDA cable may be reversed
from the pin function defined on the system board. Make sure to connect
the cable to the IrDA connector according to their pin functions.
IrDA (J17)
12345

17
1
Quick Setup Guide
Quick Setup
Guide
1.3.13 Wake-On-LAN Connector
The 5VSB power source of your
power supply must support
≥720mA.
1 +5VSB
2 Ground
3 WOL
1.3.12 Fan Connectors
1On
2 +12V
3 Sense
1 On/Off
2 +12V
3 Sense
1 Ground
2 +12V
3N.C.
CPU Fan
Chassis Fan
Second Chassis Fan
Wake-On-LAN
(J23)
123
CPU fan
(J18)
321
Second
Chassis fan
(J26)
213
Chassis
fan (J21)
3
2
1

18
Quick Setup Guide
1
Quick Setup
Guide
1.3.15 Power Connector
1 3.3V
2 3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +12V
11 3.3V
12 -12V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
The system board requires a minimum of 300W electric current.
1.3.14 Wake-On-Ring Connector
1 Ground
2 RI#
If you are using a modem add-in
card, the 5VSB power source of
your power supply must support
≥720mA.
Wake-On-Ring
(J24)
21
ATX p ower
(J19)
20 11
10 1

19
1
Quick Setup Guide
Quick Setup
Guide
1.3.16 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the system’s power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
Lighted LEDs serve as a reminder that you must power-off the
system then turn off the power supply’s switch or unplug the power
cord prior to installing any memory modules or add-in cards.
DIMM standby
power LED
PCI standby
power LED

20
Quick Setup Guide
1
Quick Setup
Guide
1.3.17 Front Panel Connectors
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
Front panel
connectors (J28)
PWR-LED
G-SW
HD-LED
RESET
SPEAKER
2
1
20
19
ATX-SW
G-LED
