DFI BW551 User manual

1
BW551
Embedded SBC 3.5”
User’s Manual
A40910952

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2017. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Table of Contents
Copyright ..................................................................... 2
Trademarks.................................................................. 2
FCC and DOC Statement on Class B................. 2
About this Manual ..................................................... 4
Warranty...................................................................... 4
Static Electricity Precautions................................... 4
Safety Measures.......................................................... 4
About the Package .................................................... 5
Chapter 1 - Introduction......................................... 6
Specifications.......................................................................................................... 6
Features ................................................................................................................ 7
Chapter 2 - Hardware Installation ........................ 8
Board Layout.......................................................................................................... 8
Block Diagram....................................................................................................... 9
Mechanical Diagram............................................................................................. 9
System Memory..................................................................................................10
Jumper Settings ...................................................................................................10
Clear CMOS Data .......................................................................................................................... 10
Auto Power-on Select.................................................................................................................... 11
Backlight Power Select................................................................................................................... 11
Panel Power Select ......................................................................................................................... 12
LVDS Channel and bpp Select ..................................................................................................... 12
Rear Panel I/O Ports .........................................................................................13
12V DC-in ....................................................................................................................................... 13
Graphics Interfaces ......................................................................................................................... 14
RJ45 LAN Ports............................................................................................................................... 14
USB Ports.......................................................................................................................................... 15
I/O Connectors...................................................................................................16
Digital I/O Connector.................................................................................................................... 16
Front Audio Connector................................................................................................................. 16
COM (Serial) Ports......................................................................................................................... 17
COM Port Connector................................................................................................................... 17
Standby Power LED........................................................................................................................ 18
Front Panel Connector.................................................................................................................. 18
SATA (Serial ATA) Connector...................................................................................................... 19
SATA (Serial ATA) Power Connector ........................................................................................ 19
LVDS LCD Panel Connector........................................................................................................ 20
LCD/Inverter Power Connector................................................................................................. 20
Expansion Slot.................................................................................................................................. 21
Cooling Fan Connector................................................................................................................. 21
SMBus Connector ......................................................................................................................... 22
Chassis Intrusion Connector ...................................................................................................... 22
Battery ............................................................................................................................................... 23
Chapter 3 - BIOS Setup..........................................24
Overview .............................................................................................................24
Insyde BIOS Setup Utility.................................................................................25
Main .................................................................................................................................................... 25
Advanced ......................................................................................................................................... 25
Security .............................................................................................................................................. 33
Boot.................................................................................................................................................... 34
Exit...................................................................................................................................................... 34
Updating the BIOS .............................................................................................35
Notice: BIOS SPI ROM......................................................................................35
Chapter 4 - Supported Software..........................36
Appendix A - System Error Message...................48
Appendix B - Troubleshooting Checklist.............49

4
About this Manual
This manual can be downloaded from the website, or acquired as an electronic file included in
the optional CD/DVD. The manual is subject to change and update without notice, and may be
based on editions that do not resemble your actual products. Please visit our website or con-
tact our sales representatives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, in-
ability to use the product, unauthorized replacement or alteration of components and prod-
uct specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One BW551 board
• One COM port cable (Length: 300mm)
• One Serial ATA data cable (Length: 500mm)
• One Serial ATA power cable (Length: 250mm)
• One QR
• One Heat sink (Height: 16.5mm)
Optional Items
• USB port cable (Length: 200mm)
• COM port cable (Length: 300mm)
• Power adapter (60W, 12V)
• Heat spreader (Height: 8mm)
• Audio cable (Length: 160mm)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as hard disk drive, DVD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Chapter 1 - Introduction
Specifications
Chapter 1
Chapter 1 Introduction www.d.com
SYSTEM Processor Intel®Pentium®/Celeron®Processor N3000 Family, BGA 1170 (*)
Intel®Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel®Pentium®Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel®Celeron®Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel®Celeron®Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel®Celeron®Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz
BIOS Insyde SPI 64Mbit
GRAPHICS Controller Intel®HD Graphics
Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display 1 x VGA VGA: resolution up to 2560x1600 @ 60Hz
1 x LVDS LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
1 x DP++ DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
Triple
Displays
VGA + LVDS + DP++
EXPANSION Interface 1 x Half-size Mini PCIe (PCIe/USB)
1 x Full-size mSATA (USB/SATA)
1 x SIM (optional)
AUDIO Audio
Codec
Realtek ALC888S-VD2-GR
ETHERNET Controller 2 x Intel®I211AT PCIe (10/100/1000Mbps)
REAR I/O Ethernet 2 x GbE (RJ-45)
USB 4 x USB 3.0
Display 1 x VGA
1 x DP++
INTERNAL I/O Serial 2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)
USB 2 x USB 2.0 (2.0mm pitch)
Display 1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio 1 x Audio (Line-out/Mic-in)
SATA 1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Available Upon Request
POWER Type Single 12V +/-10% DC
Connector Vertical Type Connector (4-pin)
Right Angle Connector (4-pin) (available upon request)
DC-in Jack (available upon request)
Consumption BW551
Typical: N3710:12V @ 0.53A (6.36Watt)
Max.: N3710:12V @ 1.14A (13.68Watt)
RTC Battery Lithium 3V (210mAH)
OS SUPPORT Microsoft/
Linux
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 32/64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
ENVIRONMENT Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF BW551 : 411,490 hrs @ 25°C; 250,359 hrs @ 45°C ; 160,650 hrs @ 60°C
MECHANICAL Dimensions 3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height PCB: 1.6mm
Top Side: 15.5mm, Bottom Side: 8.0mm
*When PXE function is used with the UEFI boot type, the client screen might display partial screen
if the PXE server employs a graphical user interface (GUI)-based management interface. This prob-
lem is due to resolution compatibility between the server and the client.

7
Chapter 1
Chapter 1 Introduction www.d.com
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3L
DDR3L SDRAM provides backward compatibility to DDR3 memory modules but can operate at
the same or at a lower power level.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports 1 VGA, 1 LVDS and 1
DP++ interfaces for display outputs.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
• Gigabit LAN
Two Intel®I211AT PCI Express Gigabit Ethernet controllers support up to 1Gbps data transmis-
sion.
• Audio
The Realtek ALC888S-VD2-GR audio codec provides 5.1-channel High Definition audio output.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB (Optional)
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enable PCs to implement power manage-
ment and plug-and-play with operating systems that support power management features.
With ACPI, the system can further utilize the Ethernet adapter’s wake-on-LAN (WOL) capability
that enables remote wake-up if the Ethernet adapter supports such feature.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• RTC Timer
The RTC installed on the system board allows your system for automatic power-on according
to the set date and time.

www.d.com
8
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
Top View Bottom View
DC-in
4-pin Vertical Type (optional)
4-pin
Right Angle
LAN 1
LAN 2
USB 0-1 USB 3.0
USB 2-3 USB 3.0
VGA
Mini PCIe
mSATA
SPI Flash
BIOS
1
Auto Power-on
Select (JP6)
2
1
5
6
Front Panel
1
5
6
2
2 1
39
40
LVDS LCD
Panel
1
SATA 0
1
SATA Power
SATA 3.0
1
System Fan
1
2
Battery
2
1
20
19
2
1
20
19
COM 1/COM 2 COM 3/COM 4
1
Clear CMOS
Data (JP7)
1
1
1
ON
2
LVDS Channel and
bpp Select (SW2)
2
1
10
9
Front Audio
1
Backlight Power
Select (JP10)
1
5
6
2
SMBus
1
9
10
2
Digital I/O
USB 4-5
1 2
910
USB 2.0
1
DP++
LCD/Inverter
Power
Panel Power
Select (JP8)
ME Disable
Chassis Intrusion
Intel
WGI211AT
Intel
WGI211AT
Nuvoton
NCT6106D
Chrontel
CH7517
RT8175A
RT8175A RT5041A
DDR3L SODIMM
Intel
Pentium
Celeron
Standby
Power LED
SIM
Realtek
ALC888
PTN3460
SMSC
USB2517
RT8175A
Fintek
F81439
Fintek
F81439
Fintek
F81437
Fintek
F81437

www.d.com
9
Chapter 2 Hardware Installation
Chapter 2
Block Diagram
Pentium/
Celeron
N3000
Family
Super IO
with WDT
Digital I/O 8-bit
DDR3L 1600MHz
SODIMM
Channel A
Half-size
Mini PCIe
PCIe x1
USB 2.0 (Hub)
DDI
LPC Bus
TPM (Opt.)
PTN3460 DDI
LVDS
SMBus
SMBus
SPI
CH7517 DDI
VGA
Full-size
mSATA
SATA 3.0
USB 2.0 (Hub)
SIM (Opt.)
DP++
USB 4x
USB 3.0
USB 2.0
USB 2x USB 2.0
GLAN I211AT
GLAN I211AT
PCIe x1
PCIe x1
SATA 3.0 SATA 1x
HD Audio
(Line-out, Mic-in)
RS-232/422/485 2x
RS-232 2x
H/W Monitor
Mechanical Diagram
810 0
6
11.76
40.92
66
66.41
83.01
101.72
119.22
137.66
140
146
0
18.98
25
102
0
6
140
0
22
96
98.40

www.d.com
10
Chapter 2 Hardware Installation
Chapter 2

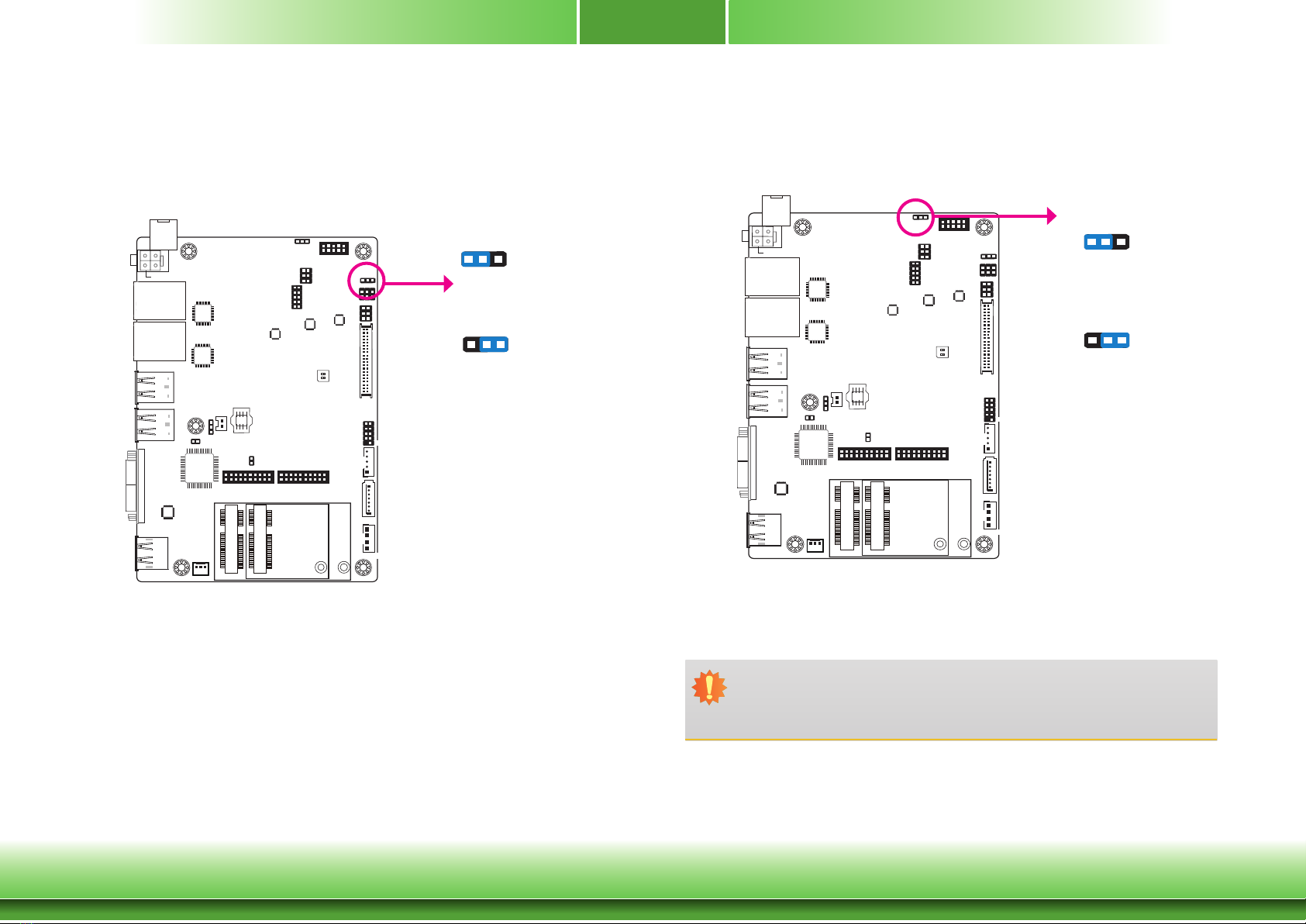

Jumper Settings
Clear CMOS Data
If you encounter the following conditions, you can reconfigure the system with the default val-
ues stored in the ROM BIOS.
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
To load the default values stored in the ROM BIOS, please follow these steps below.
1. Power-off the system and unplug the power cord.
2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
2-3 On:
Clear CMOS Data
1-2 On:
Normal (default)
3
1
2
3
1
2
1
1
ON
2
JP7
System Memory
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED is red, it indicates that there is power on the sys-
tem board. Power-off the PC then unplug the power cord prior to installing any de-
vices. Failure to do so will cause severe damage to the motherboard and components.
• One 204-pin SODIMM up to 8GB
• Single Channel DDR3L 1600MHz
Features
DDR3L
