DFI CM33-TC User manual

CM33-TC
CM33-TL
Rev. A+
System Board
Users Manual
53300142

Copyrig t
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000 and Windows
NT® 4.0 are registered trademarks of Microsoft Corporation. Intel®,
Pentium® III and CeleronTM are registered trademarks of Intel
Corporation. VIA CyrixIII is a registered trademark of VIA
Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This users manual contains detailed information about the system
board. If, in some cases, some information doesnt match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the users manual, insert the CD into a CD-ROM drive. The
autorun screen (Main Board Utility CD) will appear. Click Users
Manual.
System Board
This users manual is for the CM33-TL and CM33-TC system
boards. The differences between these boards are shown below.
CM33-TL
(Supports onboard LAN)
CM33-TC
Realtek RTL8100
RJ45 LAN port
ü
ü
û
û

Table of Contents
Chapter 1 - ntroduction
1.1 Features and Specifications..................................................................................
1. Package Checklist.........................................................................................................
Chapter 2 - Hardware nstallation

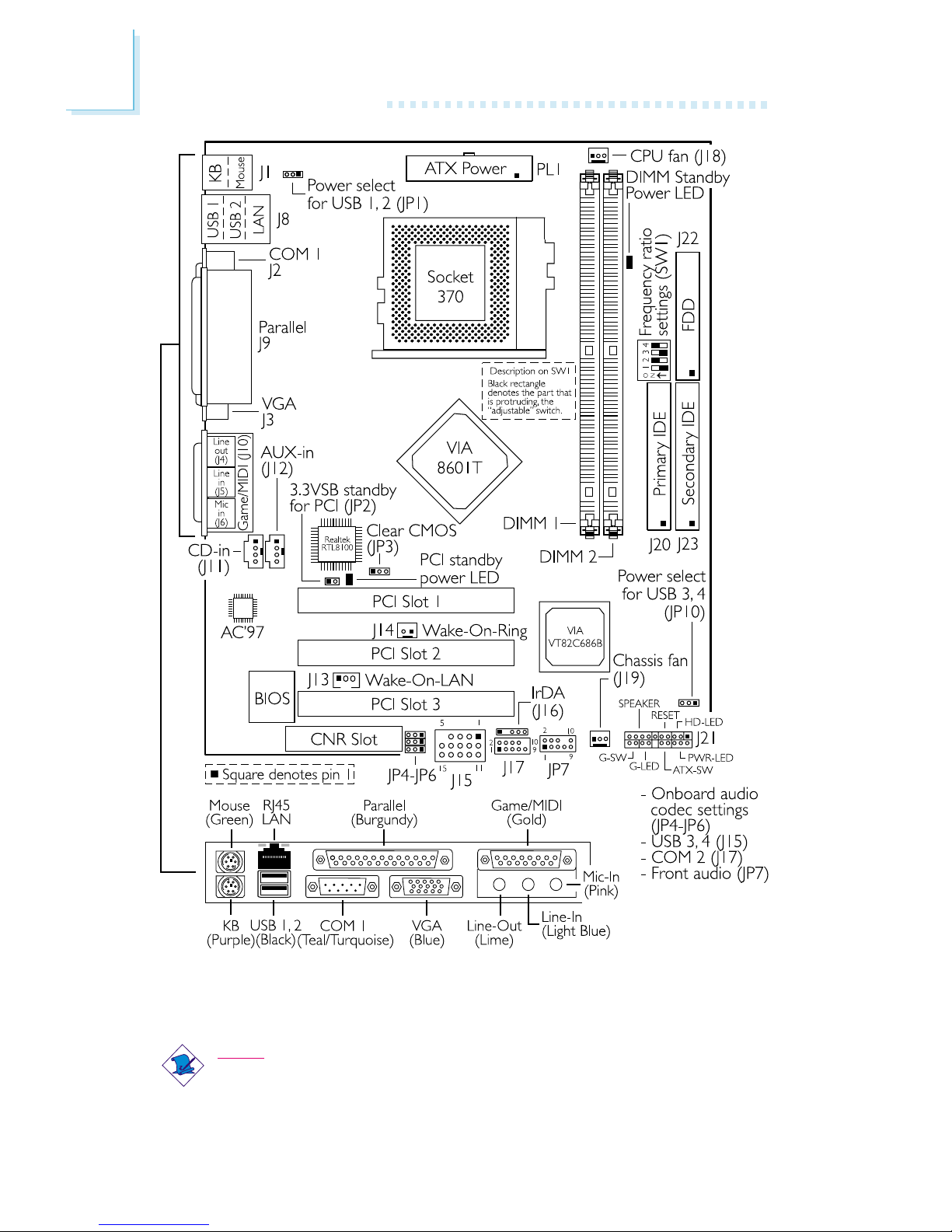

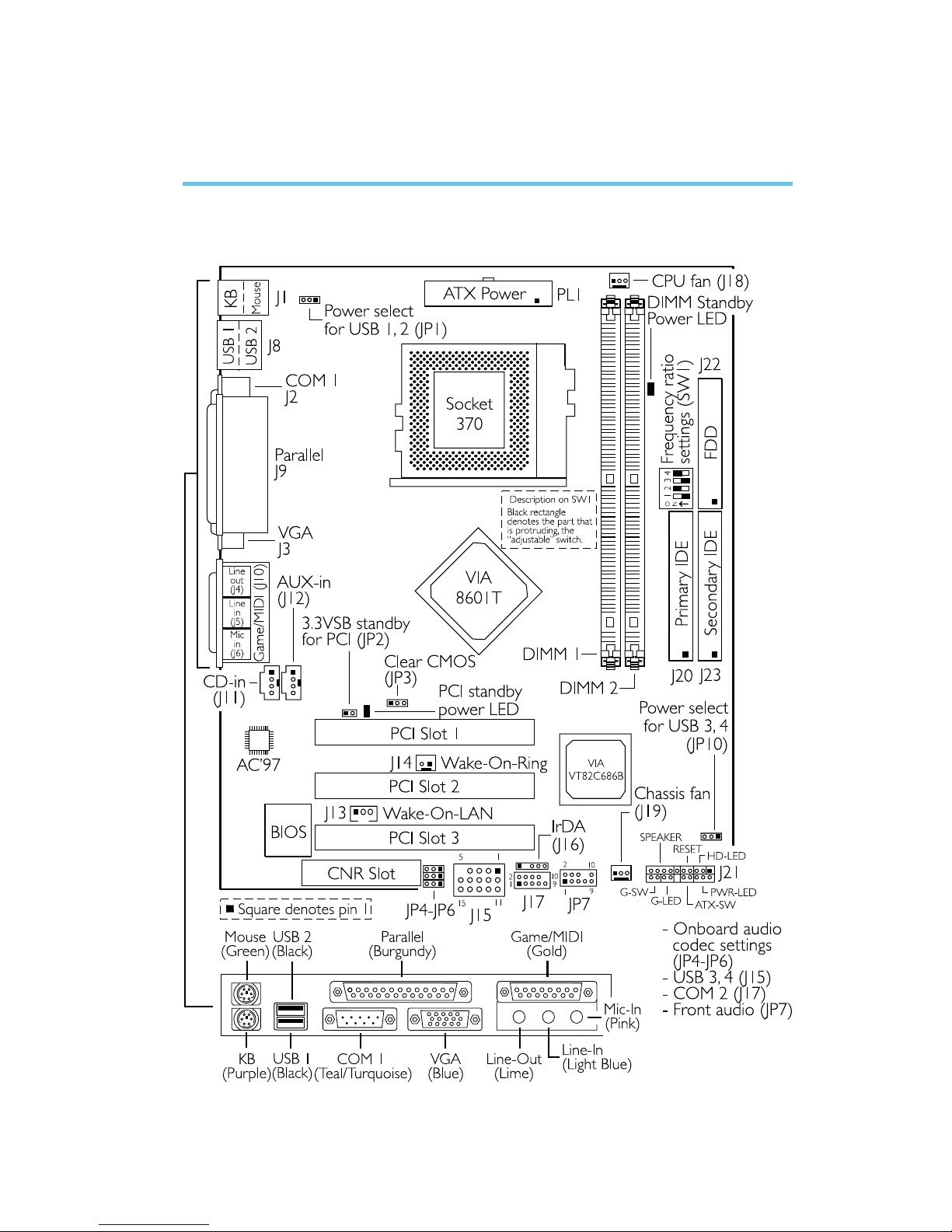

.1 System Board Layout .............................................................................................
. System Memory.............................................................................................................
.3 Frequency Ratio Settings for Processors................................................
.4 Jumper Settings for Clearing CMOS Data..........................................
.5 Jumper Settings for the Onboard Audio Codec .........................
.6 Jumper Settings for Selecting the USB Power...................................
.7 Ports and Connectors.............................................................................................
Chapter 3 - Award B OS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.1 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
3. Updating the BIOS.....................................................................................................
7
14
51
51
55
60
63
68
73
76
78
80
80
81
81
8
8
8
15
17
19
1
3
4
5

ntroduction

6
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4. VIA Hardware Monitor............................................................................................
4.3 VIA Service Pack..........................................................................................................
4.4 Audio Drivers and Software Applications.............................................
4.5 Onboard LAN Drivers for Windows.......................................................
4.6 Graphics Drivers............................................................................................................
4.7 Microsoft DirectX 8.0 Driver.............................................................................
4.8 Drivers and Utilities Installation Notes.....................................................
Appendix A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B. Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
83
86
86
87
88
88
88
89
94
94
90
96


ntroduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
 VIA® Apollo PLE133T 8601T/8 C686B
Processor
The system board is equipped with Socket 370. It is also equipped
with a switching voltage regulator that automatically detects 1.050V
to 1.8 5V.
 Pentium® III
- FCPGA 133MHz FSB (1.13GHz-1. 6GHz on 0.13µ)
- FCPGA 133MHz FSB (533EB-1GHz)
- FCPGA 100MHz FSB (500E-1.1GHz)
 CeleronTM
- FCPGA 100MHz FSB (≥1. GHz on 0.13µ)
- FCPGA 100MHz FSB (800MHz-1.1GHz)
- FCPGA 66MHz FSB (566MHz-700MHz)
 VIA CyrixIII processor
System Memory
 Supports up to 1GB using VCM (Virtual Channel Memory) or
PC SDRAM DIMM (unbuffered or registered)
 Two 168-pin DIMM sockets
 Uses x64 PC SDRAM, 3.3V
- PC-66 SDRAM DIMM for 66MHz FSB processors
- PC-100 SDRAM DIMM for 100MHz FSB processors
- PC-133 SDRAM DIMM for 133MHz FSB processors
mportant:
If you are using more than one DIMM, make sure you insert
the same type of DIMMs into the DIMM sockets. Using
different types (VCM or PC SDR M) of DIMMs may cause
problems.
Chapter 1 - Introduction

ntroduction

8
Expansion Slots
The system board is equipped with dedicated PCI slots and 1
shared PCI/CNR slot. The CNR slot supports modem riser card
only.
Onboard Graphics Features
 Integrated rCADE3D D/3D/Video accelerator
- Shares 8MB of the system memory
- Optimized Shared Memory Architecture (SMA)
- High quality DVD video playback
 3D rendering features
- 3 -bit true color rendering
- MPEG- video textures
 D hardware acceleration features
 Motion video architecture
 Software drivers
- Windows® 98/98SE/ME/ 000
- Windows NT® 4.0
Onboard Audio Features
 Supports Microsoft® DirectSound
 Standard v1.0 or v .0 AC'97 codec
 AC97 supported with full duplex, independent sample rate
converter for audio recording and playback
 Downloadable sound (DLS) level-1
 Suppor ts 1W audio amplifier on line-out jack
Onboard LAN Features (CM33-TL only)
 Uses Realtek RTL8100 fast ethernet controller
 Integrated IEEE 80 .3 10BASE-T and 100BASE-TX compatible
PHY
 3 -bit PCI master interface
 Integrated power management functions
 Full duplex support at both 10 and 100 Mbps
D MMs
MBx64
4MBx64
8MBx64
Memory Size
16MB
3 MB
64MB
D MMs
16MBx64
3 MBx64
64MBx64
Memory Size
1 8MB
56MB
51 MB


ntroduction
9
 Supports IEEE 80 .3u auto-negotiation
 Supports wire for management
ATX Double Deck Ports (PC 99 color-coded connectors)
 Two USB ports
 One RJ45 LAN port (CM33-TL only)
 One NS16C550A-compatible DB-9 serial port
 One DB-15 VGA por t
 One DB- 5 parallel port
 One mini-DIN-6 PS/ mouse port
 One mini-DIN-6 PS/ keyboard port
 One game/MIDI port
 Three audio jacks: line-out, line-in and mic-in
Connectors
 One connector for additional external USB ports
 One 9-pin connector for 1 external serial port
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two .88MB floppy
drives
 One ATX power supply connector
 One Wake-On-LAN connector
 One Wake-On-Ring connector
 CPU fan and chassis fan connectors
 Two internal audio connectors (AUX-in and CD-in)
 One connector for external line-out and mic-in jacks
PC Bus Master DE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33, ATA/66 and ATA/100 hard drives
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-1 0 and ZIP

ntroduction

10
rDA nterface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the HPSIR and ASKIR
standard.
USB Ports
The system board supports 4 USB ports. Two onboard USB ports
are located at the ATX double deck ports of the board. The J15
connector on the system board allows you to connect more
optional USB ports. These optional USB ports, which are mounted
on a card-edge bracket, will be provided as an option. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
B OS
 Award BIOS, Windows® 95/98/ 000/ME Plug and Play compat-
ible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades
 Supports DMI .0 function
 Mbit flash memory
Desktop Management nterface (DM )
The system board comes with a DMI .0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.


ntroduction
11
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors CPU/system temperature and overheat alarm
 Monitors VCORE/3.3V/5V/1 V/ .5V voltages and failure alarm
 Monitors CPU/chassis fan speed and failure alarm
 Automatic CPU and chassis fans on/off control
 Read back capability that displays temperature, voltage and fan
speed
Refer to the PC Health Status section in chapter 3 and the VIA
Hardware Monitor section in chapter 4 for more information.
1.1.3 ntelligence
CPU Temperature Protection
The CPU Temperature Protection function has the capability of
monitoring the CPUs temperature during system boot-up. Once it
has detected that the CPUs temperature exceeded the CPU
temperature limit defined in the BIOS, the system will automatically
power-off after 5 warning beeps. Refer to CPU Temp. Prot. Function
and CPU Temp. Prot. Alarm in the PC Health Status section in
chapter 3 for more information.
CPU Fan Protection
The CPU Fan Protection function has the capability of monitoring the
CPU fan during system boot-up and will automatically power-off the
system once it has detected that the CPU fan did not rotate. This
preventive measure has been added to protect the CPU from
damage and insure a safe computing environment. Refer to CPU
Fan Connector with CPU Fan Protection Function in chapter and
CPU Fan Protection in the PC Health Status section in chapter 3
for more information.

ntroduction

1
CPU Overclocking
The CPU Overclocking function allows you to adjust the processors
bus clock. However, overclocking may result to the processors or
systems instability and are not guaranteed to provide better system
performance. Refer to Clock By Slight Adjust in the Frequency/
Voltage Control section in chapter 3 for more information.
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the Soft-Off By PWRBTN field of the
Power Management Setup, this switch will allow the system to enter
the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to Wake-On-Ring
Connector in chapter and Resume On LAN/Ring (Wake Up
Events field) in the Power Management Setup section in chapter 3
for more information.
mportant:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720m .
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to Resume
By-Alarm (Wake Up Events field) in the Power Management
Setup section in chapter 3 for more information.


ntroduction
13
Wake-On-LAN
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function. Refer to Wake-On-LAN Connector in
chapter and Resume On LAN/Ring (Wake Up Events field) in
the Power Management Setup section in chapter 3 for more
information.
mportant:
The 5VSB power source of your power supply must support a
minimum of ≥ 720m .
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to PWR Lost Resume State in the Power
Management Setup section in chapter 3 for more information.
ACP STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows® 98/ 000/ME supports
the ACPI function allowing you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting Standby
when you shut down Windows® 98/ 000/ME without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of
storing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system. Refer to Using the Suspend to RAM
Function in appendix A for more information.
mportant:
The 5VSB power source of your power supply must support
≥ 1 .

ntroduction

14
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne card-edge bracket with a serial port
þOne IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
þOne 34-pin floppy disk drive cable
þOne Main Board Utility CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

Hardware nstallation
15
2.1 System Board Layout
Chapter 2 - Hardware Installation
CM33-TC

16
Hardware nstallation
Note:
The illustrations on the following pages are based on the CM33-TL
system board, which is the board that supports onboard L N.
CM33-TL
(Supports onboard L N)

Hardware nstallation
17
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.
The system board is equipped with two 168-pin DIMM (Dual In-line
Memory Module) sockets that support VCM or PC SDRAM DIMM.
PC SDRAM (Synchronous Dynamic Random Access Memory) uses a
fast memory interface technology that includes using the clock on the
chip to synchronize with the CPU clock so that the timing of the
memory chips and the timing of the CPU are synchronized. This
saves time during transmission of data, subsequently increasing
system performance.

18
Hardware nstallation
Refer to chapter 1 (System Memory section) for detailed
specification of the memory supported by the system board.
1. Pull the tabs which are at the ends of the socket to the side.
. Position the DIMM above the socket with the notches in the
module aligned with the keys on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab
Tab
2.2.1 nstalling the D M Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.

Hardware Installation
19
2.3 Frequency Ratio Settings for Processors
The following table shows the available frequency ratios and their
corresponding DIP switch setting. There are 4 switches on S 1. The
black rectangle in the diagram denotes the part that is protruding,
the adjustable switch. Make sure S 1 is set correctly before
applying power, otherwise you will not be able to power-on the
system.
*** denotes future processors.
700MHz -- - 10.5x
--- 4.5x
--- 5x
Processor SW1
66MH 100MH
Freq.
Ratio
5.5x
Processor SW1
66MH 100MH
Freq.
Ratio
---
---
---
---
6x
6.5x
7x
7.5x
8x---
500MHz
---
133MH 133MH
650MHz
700MHz 933MHz
866MHz
800MHz
750MHz 1GHz
800MHz
667MHz
733MHz
---
550MHz
600MHz
600MHz
---
8.5x
9x
9.5x
10x
11x
566MHz 850MHz
600MHz 900MHz
1.13GHz
1.2GHz
1.26GHz
--- ---
633MHz 950MHz
667MHz -- -
***
***
--- 11.5x
--- 12x
--- ***
--- ***
***

0
Hardware nstallation
mportant:
 The frequency ratio of some processors shown in the table
may have been locked by the manufacturer. If you are using
this kind of processor, setting an extended ratio for the
processor will have no effect. The system will instead use its
factory default ratio.
 Most processors with frequency ratio greater than 8x have
locked frequency ratio therefore does not have the flexibility
of using extended ratio. If your processor does not have
locked frequency ratio, you can set SW1 according to the
desired ratio.
 The processors supported by the system board support
VID (Voltage Identification). The switching voltage regulator
on the system board will automatically set the voltage
regulator according to the voltage of the processor.
