DFI NB71-SC User manual

NB71-SC
Rev. A+
System Board
User’s Manual
58100209

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 00 . All Rights Reserved.
Trademarks
Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000,
Windows NT® 4.0 and Windows® XP are registered trademarks of
Microsoft Corporation. Intel® and Pentium® 4 are registered
trademarks of Intel Corporation. Award is a registered trademark of
Award Software, Inc. Other trademarks and registered trademarks
of products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Introduction
1
Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1. Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
.1 System Board Layout ..........................................................................................
. System Memory...........................................................................................................
.3 Jumper Settings for Clearing CMOS Data........................................
.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................
.5 Jumper Settings for Selecting the CPU’s Front Side Bus......
.6 Jumper Settings for USB 4................................................................................
.7 Factory Use Jumpers..............................................................................................
.8 Por ts and Connectors...........................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 CPU Frequency Control..................................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.1 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
6
13
49
49
53
58
61
68
7
74
76
79
79
80
80
81
81
14
15
17
19
1
3
4

5
1
Introduction
9
9
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4. Hardware Doctor..........................................................................................................
4.3 Intel 845E INF Update Utility for Windows 98/ 000/ME.....
4.4 Intel Application Accelerator for Windows............................................
4.5 Audio Drivers and Software Application...............................................
4.6 Microsoft DirectX 8.0 Driver.............................................................................
4.7 Drivers and Utilities Installation Notes.....................................................
Appendi A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendi B - System Error Messages
B.1 POST Beep.......................................................................................................................
B. Error Messages..............................................................................................................
Appendi C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
8
85
85
86
86
86
87
88
94

6
Introduction
1
1.1 Features and Specifications
1.1.1 Features
Chipset
• Intel® 845E chipset
- Intel® 8 845E Memory Controller Hub (MCH)
- Intel® 8 801BA I/O Controller Hub (ICH )
Processor
The system board is equipped with Socket 478 for installing a
Pentium® 4 processor.
• Intel® Pentium® 4 processor (478-pin)
• Supports up to . GHz CPU speed
• 400/533MHz system data bus
System Memory

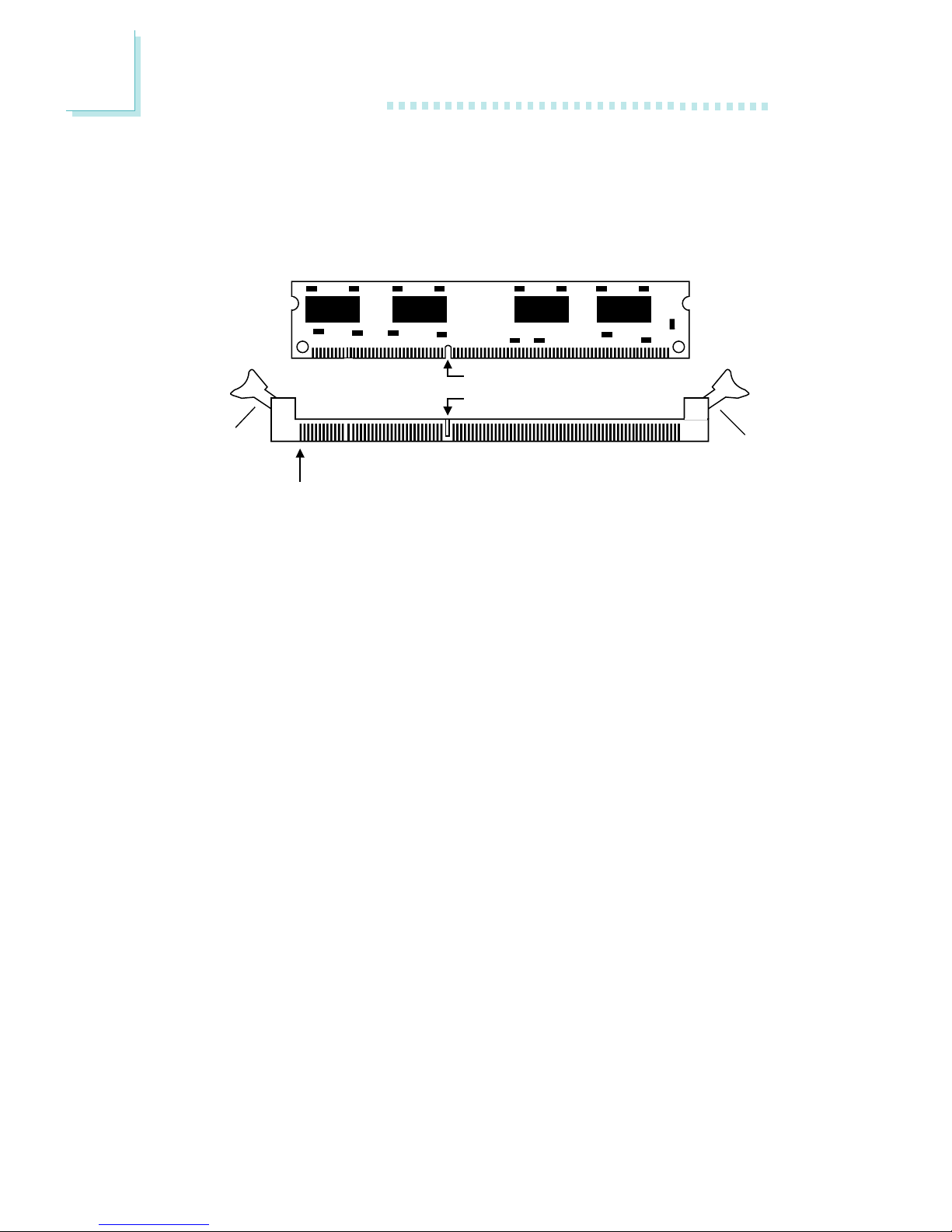

• Two 184-pin DDR SDRAM DIMM sockets
• .5V unbuffered PC1600 (DDR 00) / PC 100 (DDR 66)
DDR SDRAM DIMM
• Supports maximum of GB system memory using 64Mbit,
1 8Mbit, 56Mbit or 51 Mbit technology
- Double-sided x16 DDR SDRAM DIMM is not supported
• Supports ECC function
Chapter 1 - Introduction
Density Width
Single/Double
184-pin DDR
64 Mbit
X8
SS/DS
64/128MB
X16
SS/DS
32MB/N
Density 128 Mbit
X8
SS/DS
128/256MB
X16
SS/DS
64MB/N
256 Mbit
X8
SS/DS
256/512MB
X16
SS/DS
128MB/N
512 Mbit
X8
SS/DS
512/1024MB
X16
SS/DS
256MB/N

7
1
Introduction
Expansion Slots
The system board is equipped with 1 AGP slot, 5 PCI slots (1
shared with CNR slot) and 1 CNR slot.
The AGP slot only supports 1.5V AGP 4x (1066MB/sec. bandwidth)
add-in cards. AGP is an interface designed to support high
performance 3D graphics cards for 3D graphics applications. It
handles large amounts of graphics data with the following features:
• Pipelined memory read and write operations that hide memory
access latency.
• Demultiplexing of address and data on the bus for nearly 100
percent efficiency.
CNR (Communication and Networking Riser) is an interface that
supports multi-channel audio, V.90 analog modem, phone-line based
networking or 10/100 Ethernet based networking riser board.
Onboard A dio Feat res
• 18-bit stereo full-duplex codec with independent variable sam-
pling rate
• High quality differential CD input
• True stereo line level outputs
Compatibility
• Microsoft PC ’98 compliant
• PCI . , CNR 1.0 “A” type and AC ’97 compliant
• Intel AGP version .0
ATX Do ble Deck Ports (PC 99 color-coded connectors)
• Two USB ports
• Two NS16C550A-compatible DB-9 serial ports
• One SPP/ECP/EPP DB- 5 parallel port
• One mini-DIN-6 PS/ mouse port
• One mini-DIN-6 PS/ keyboard port
• One game/MIDI port
• Three audio jacks: line-out, line-in and mic-in

8
Introduction
1
Connectors
• One connector for additional external USB ports
• One connector for IrDA interface
• Two IDE connectors
• One floppy drive interface supports up to two .88MB floppy
drives
• Three ATX power supply connectors
• One Wake-On-LAN connector
• One Wake-On-Ring connector
• CPU, chassis and system fan connectors
• One opened chassis alarm connector (optional)
• Three internal audio connectors (AUX-in, CD-in and TAD)
PCI B s Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66 and ATA/100 hard drives
• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-1 0 and ZIP
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.
USB Ports
The system board supports 4 USB ports. Two onboard USB ports
are located at the ATX double deck ports of the board. The J 1/J 3
connector on the system board allows you to connect the optional
3rd and 4th USB ports. These optional USB por ts, which are
mounted on a card-edge bracket, will be provided as an option.
USB allows data exchange between your computer and a wide
range of simultaneously accessible external Plug and Play peripherals.

9
1
Introduction
BIOS
• Award BIOS, Windows® 98/ 000/ME/XP Plug and Play
compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI .0 function
Desktop Management Interface (DMI)
The system board comes with a DMI .0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors system temperature and overheat alarm
• Monitors 5VSB/VBAT/3.3V/5V/±1 V/CPU voltages and failure
alarm
• Monitors the fan speed of the CPU fan, chassis fan and system
fan; and failure alarm
• Automatic chassis fan on/off control
• Read back capability that displays temperature, voltage and fan
speed
• Opened chassis alarm (optional)
Refer to the “PC Health Status” section in chapter 3 and the
“Hardware Doctor” section in chapter 4 for more information.

10
Introduction
1
1.1.3 Intelligence
A tomatic Chassis Fan Off
The chassis fan will automatically turn off once the system enters the
Suspend mode.
D al F nction Power B tton
Depending on the setting in the “Soft-Off By PWR-BTTN” field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to “Wake-On-Ring
Connector” in chapter and “Resume On Ring” in the Power
Management Setup section in chapter 3 for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support ≥ 720mA
Wake-On-LAN
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function. Refer to “Wake-On-LAN Connector” in
chapter and “Resume On LAN” in the Power Management Setup
section in chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support
≥ 720mA

11
1
Introduction
Wake-On-Keyboard/Wake-On-Mo se
This function allows you to use the keyboard or PS/ mouse to
power-on the system. Refer to “Jumper Settings for Wake-On-
Keyboard/Wake-On-Mouse” in chapter and “Keyboard/Mouse
Power On” in the Integrated Peripherals section in chapter 3 for
more information.
Important:
• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals submenu You must type
the correct password to power-on the system If you forgot
the password, power-off the system and remove the
battery Wait for a few seconds and install it back before
powering-on the system
• The 5VSB power source of your power supply must
support ≥ 720mA
Wake-On-USB Keyboard
The Wake-On-USB Keyboard function allows you to use a USB
keyboard to wake up a system that is in the S3 (STR - Suspend To
RAM) state. Refer to “USB KB Wake-Up From S3” in the Power
Management Setup section in chapter 3 for more information.
Important:
• If you are using the Wake-On-USB Keyboard function for 2
USB ports, the 5VSB power source of your power supply
must support ≥ 1 5A
• If you are using the Wake-On-USB Keyboard function for 3
or more USB ports, the 5VSB power source of your power
supply must support ≥ 2A
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to “Resume
By Alarm” in the Power Management Setup section in chapter 3 for
more information.

12
Introduction
1
ACPI STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows® 98/ 000/ME/XP
supports the ACPI function. ACPI when enabled in the Power
Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows® 98/ 000/ME/XP without having to
go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system. Refer to “Using the
Suspend to RAM Function” in appendix A for more information.
Important:
The 5VSB power source of your power supply must support
≥ 1A
AC Power Fail re Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to “PWR Lost Resume State” in the Integrated
Peripherals section in chapter 3 for more information.
Vir s Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

13
1
Introduction
1.2 Package Checklist
The system board package contains the following items:
The system board
A user’s manual
One IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
One 34-pin floppy disk drive cable
One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

14
2Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation
KB
Mouse
USB 1
USB 2
Game/MIDI: CN6
Line-
out
CN4
Line-
in
CN5
Mic-
in
CN7
J5
J9
COM 1
CN1
Parallel
CN2
COM 2
CN3
Wake-On-
KB/Mouse (JP1) Socket 478
CPU fan
(J3A)
ATX Main Power
System fan
(J8)
Auxiliary power
(ATXP3) J12
J11
Secondary IDE
Primary IDE
Battery
15
11
51
Firmware
Hub
Wake-On-LAN
J20
IrDA (J19)
I/O
chip
PCI Standby Power LED
AC’97
2
19
10
Front audio
(J16)
CPU FSB select
(JP2)
+12V power
(ATXP2)
4
3
2
1
Intel
82801
ICH2
USB 4 select
(J24 and J25)
CD-in
(J10)
DIMM Standby
Power LED
AGP Slot
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
PCI 4 Slot
PCI 5 Slot
CNR Slot
J2
J1
J4
J7
J6
AUX-in
(J13)
TAD (J14)
Wake-On-Ring (J15)
J17
Chassis
open
DDR SDRAM
DIMM 1
ATXP1
DDR SDRAM
DIMM 2
J24
J25
Factory use only
(J1/J2/J4/J6/J7)
USB 1
(Black)
Mouse
(Green)
KB
(Purple)
COM 1 COM 2
Parallel
(Burgundy)
Game/MIDI
(Gold)
Line-In
(Light Blue)
Line-Out
(Lime)
Mic-In
(Pink)
USB 2
(Black)
Square denotes pin 1
(Teal/Turquoise)
PWR-LED
HD-LED
J27
ATX-SW
G-LED G-SW
RESET SPEAKER
J18
FDD
Clear CMOS
(JP3)
Chassis fan
(J22)
USB 3, 4
(J21/J23)
Intel
82845E
MCH
AGP Warning LED

15
2
Hardware Installation
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD orkstation
only. If such a station is not available, you can provide some ESD
protection by earing an antistatic rist strap and attaching it to a
metal part of the system chassis. If a rist strap is unavailable,
establish and maintain contact ith the system chassis throughout
any procedures requiring ESD protection.
The mainboard is equipped with two 184-pin DDR SDRAM DIMM
(Dual In-line Memory Module sockets that suppor t 2.5V DDR
SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM is a
type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore doubling the
speed of data transfer.
The system board also supports the ECC (Error Checking and
Correction function. To use this function, you must install DIMM that
supports parity. Refer to chapter 1 (System Memory section for
detailed specification of the memory supported by the system
board. “Memor y Frequency For” in the Advanced Chipset Features
submenu of the BIOS must be set accordingly.

16
2Hardware Installation
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab Tab

17
2
Hardware Installation
2.3 Jumper Settings for Clearing CMOS Data
Clear CMOS Data - Jumper JP3
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user pass ord.
c) You are unable to boot-up the computer system because the
processor’s ratio/clock as incorrectly set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system.
2. Set JP3 pins 2 and 3 to On. Wait for a few seconds and set JP3
back to its default setting, pins 1 and 2 On.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default
1
2
3
1
2
3

18
2Hardware Installation
3. Now power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processor’s ratio/clock in the BIOS, please proceed
to step 4.
4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.
5. Select the CPU Frequency Control submenu and press <Enter>.
6. Set the “CPU Clock Ratio” or “Clock By Slight Adjust” field to its
default setting or an appropriate frequency ratio or bus clock.
Refer to the CPU Frequency Control section in chapter 3 for
more information.
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select “Save & Exit Setup” and press <Enter>.
8. Type <Y> and press <Enter>.

19
2
Hardware Installation
2.4 Jumper Settings for Wa e-On-Keyboard/
Wa e-On-Mouse
Wake-On-Keyboard/Wake-On-Mouse - Jumper JP
The Wake-On-Keyboard/Wake-On-Mouse function allows you to use
the keyboard or PS/2 mouse to power-on the system. By default,
JP1 is disabled. To use this function, set JP1 to 2-3 On. “Keyboard/
Mouse Power On” in the Integrated Peripherals submenu of the
BIOS must be set accordingly. Refer to chapter 3 for details.
Warning:
1. If JP1 as enabled ith a pass ord set in the “KB Po er
On Pass ord” field, and no you ish to disable the
keyboard pass ord function, make sure to set the
“Keyboard/Mouse Po er On” field to Disabled prior to
setting JP1 to disabled. You ill not be able to boot up the
system if you fail to do so.
2-3 On: Enable1-2 On: Disable
(default
123 123

20
2Hardware Installation
2. The po er button ill not function once a keyboard
pass ord has been set in the “KB Po er On Pass ord”
field of the Integrated Peripherals submenu. You must type
the correct pass ord to po er-on the system.
3. The 5VSB po er source of your po er supply must
support ≥ 720mA.
