DFI CD951-C Series User manual

www.dfi.com
1
Chapter 1 Introduction
CD951-C Series
Embedded SBC 3.5”
User’s Manual
A21550504

www.dfi.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2015. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.dfi.com
3
Chapter 1 Introduction
Copyright............................................................................................................. 2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
About the Package.........................................................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features ........................................................................................................7
Chapter 2 - Hardware Installation................................................8
Board Layout................................................................................................. 8
System Memory............................................................................................ 9

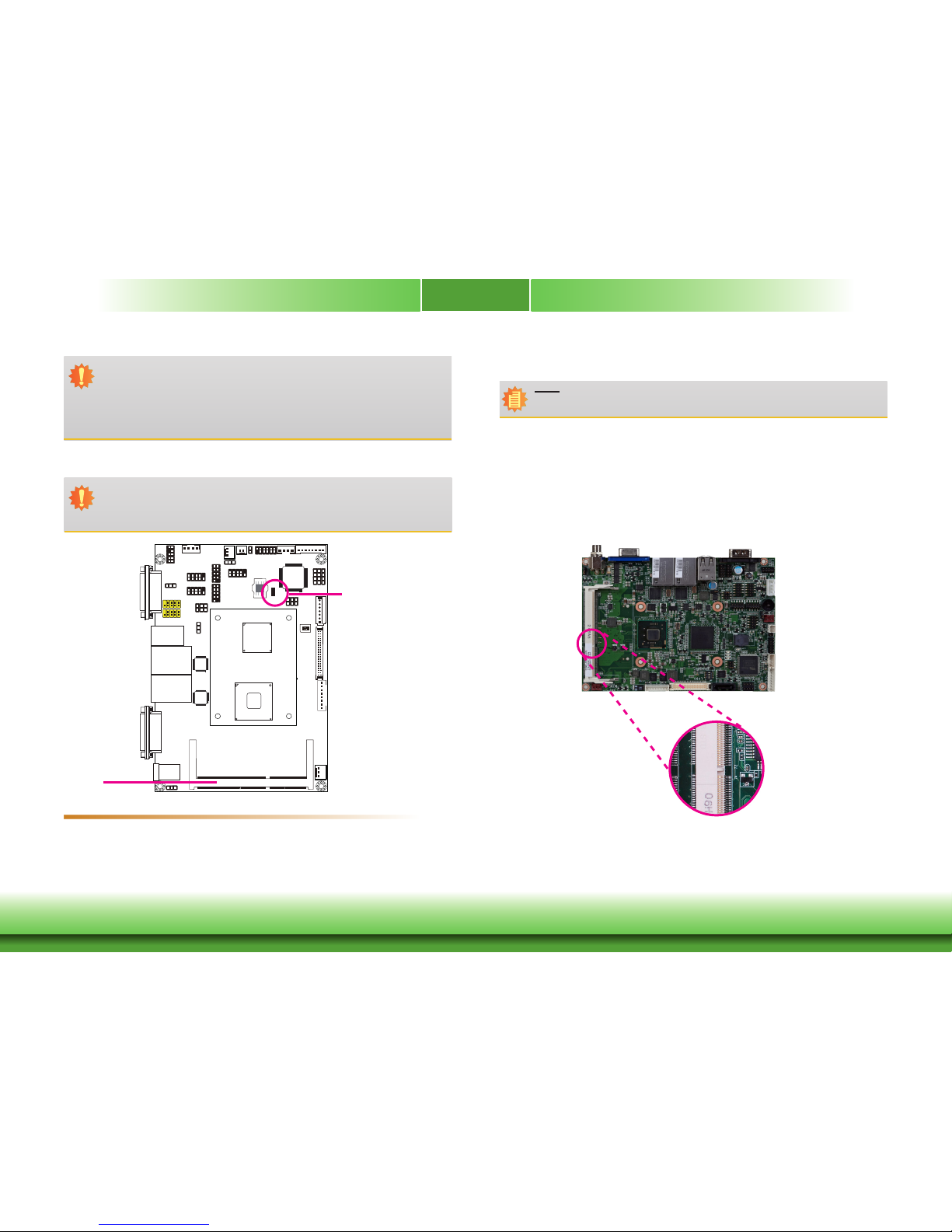

Installing the DIMM Module ..........................................................................9

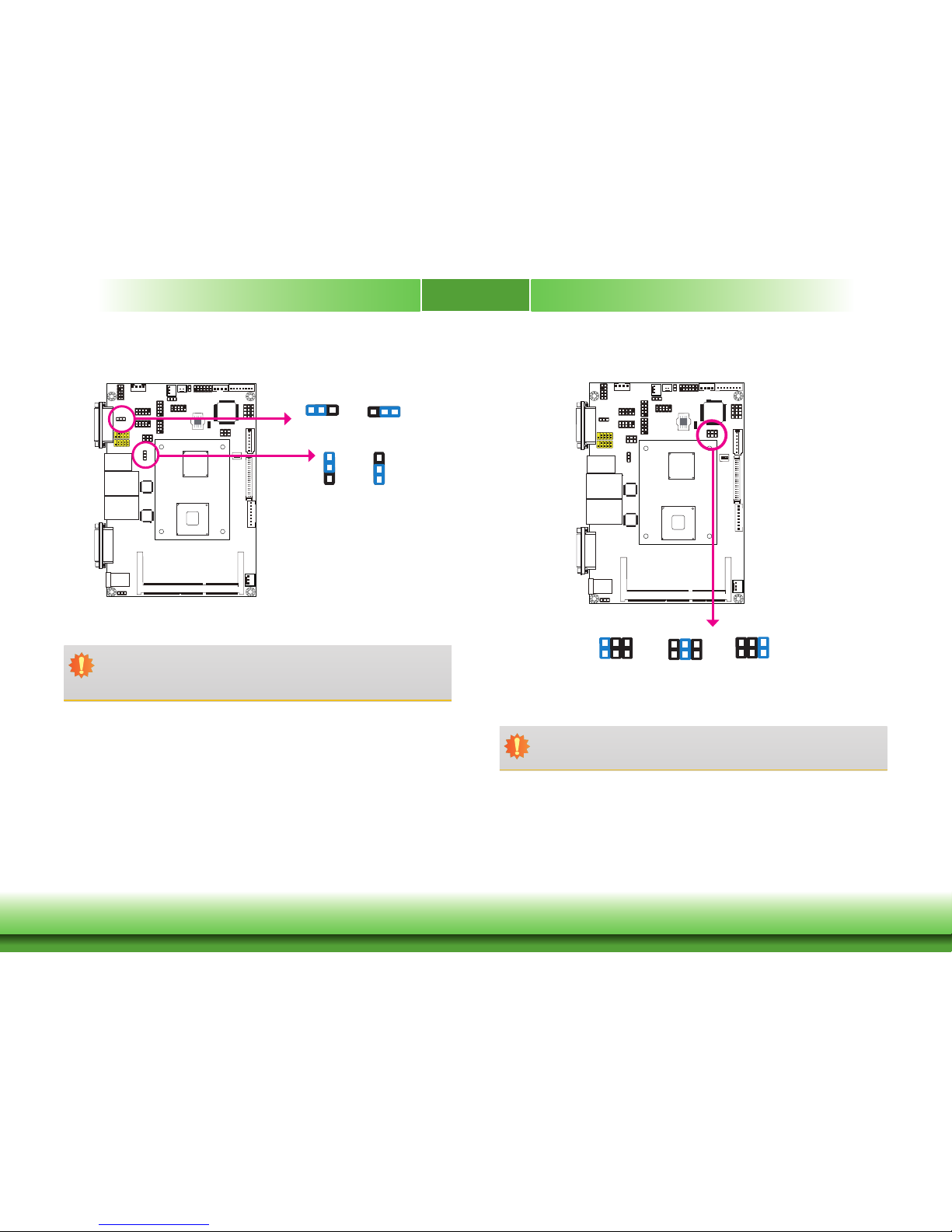

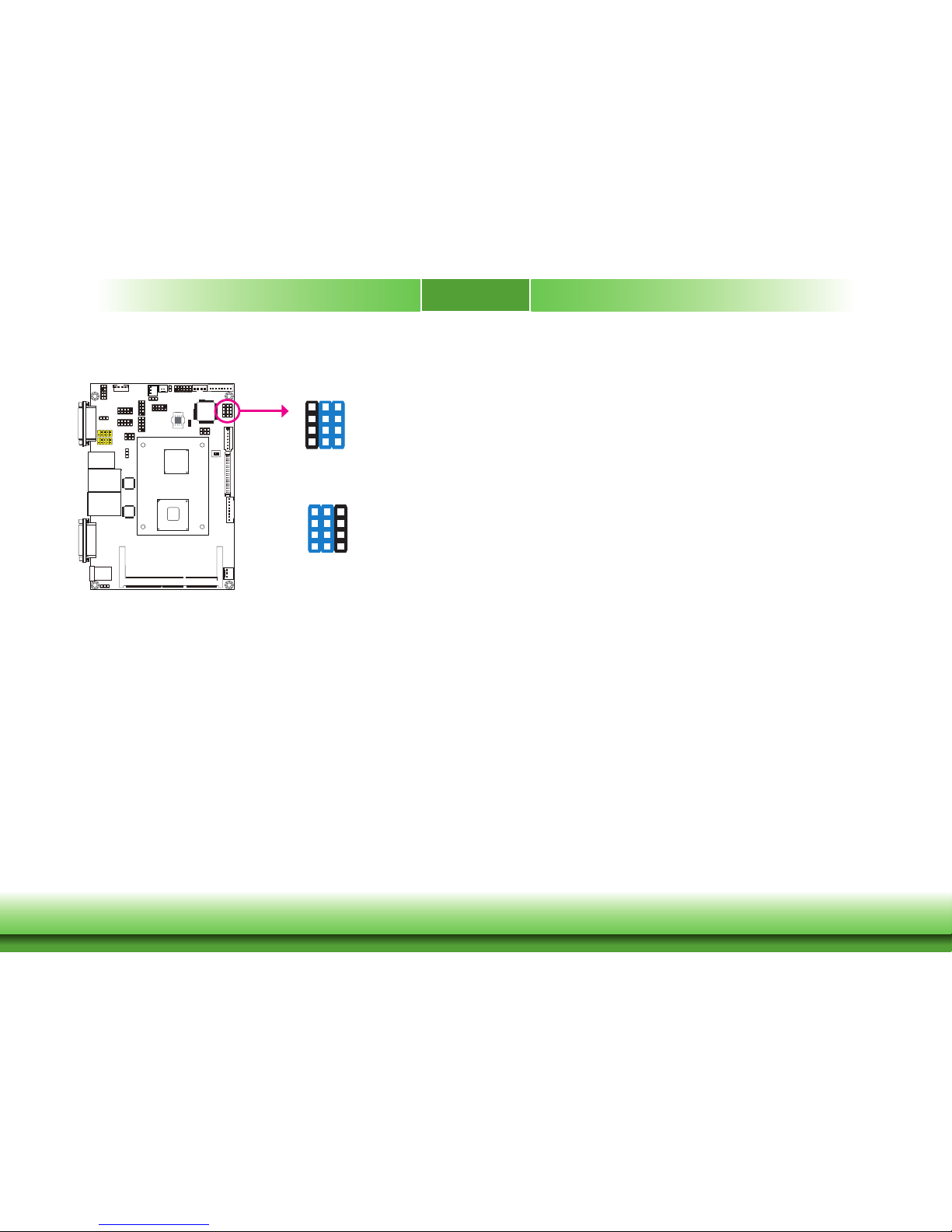

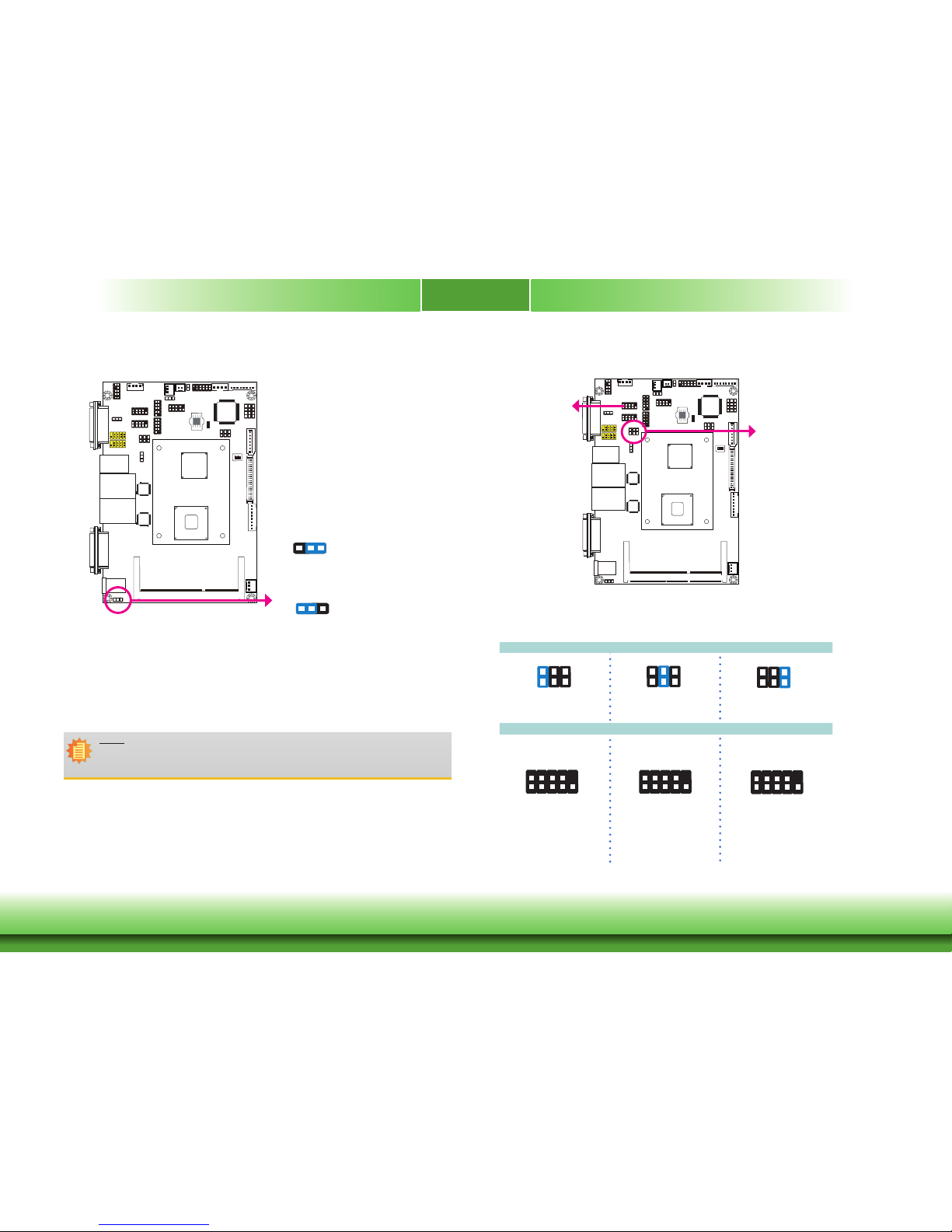

Jumper Settings ......................................................................................... 10
Clear CMOS ............................................................................................... 10
USB Power Select ....................................................................................... 11
Panel Power Select ..................................................................................... 11
LVDS Panel Select....................................................................................... 12
Power-on Select.......................................................................................... 13
COM RS232/422/485 Select ........................................................................ 13
Mini PCIe/mSATA Select .............................................................................. 14
Rear Panel I/O Ports................................................................................. 15
COM (Serial) Ports...................................................................................... 15
USB Ports................................................................................................... 16
RJ45 LAN Ports........................................................................................... 16
VGA Ports .................................................................................................. 17
DC-in ......................................................................................................... 17
I/O Connectors ........................................................................................... 18
LVDS LCD Panel Connector ......................................................................... 18
LCD/Inverter Power Connector .................................................................... 18
Digital I/O Connector.................................................................................. 19
SATA (Serial ATA) Connectors...................................................................... 19
Cooling Fan Connectors............................................................................... 20
Chassis Intrusion Connector ........................................................................ 20
Front Panel Connector ................................................................................ 21
Front Audio Connector ................................................................................ 21
Battery....................................................................................................... 22
CompactFlash Socket .................................................................................. 22
Expansion Slot............................................................................................ 23
Chapter 3 - BIOS Setup............................................................... 24
Overview ..................................................................................................... 24
AMI BIOS Setup Utility............................................................................. 25
Main .......................................................................................................... 25
Advanced ................................................................................................... 25
Chipset ...................................................................................................... 32
Boot........................................................................................................... 35
Security...................................................................................................... 35
Save & Exit ................................................................................................ 36
Updating the BIOS .................................................................................... 36
Chapter 4 - Supported Software .......................................................... 37
Appendix A - nLite and AHCI Installation Guide........................... 46
nLite............................................................................................................... 46
AHCI .............................................................................................................. 50
Appendix B - Watchdog Sample Code................................................ 52
Appendix C - Troubleshooting ................................................................ 53
Appendix D - Troubleshooting................................................................ 54
Table of Contents

www.dfi.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD,
insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.
Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, in-
ability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installa-
tion or servicing. After installation or servicing, cover the system chassis before
plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.dfi.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One CD951-C board
• One Serial ATA data cable
• One DVD
• One QR (Quick Reference)
Optional Items
• Serial ATA data cables
• USB port cable
• COM port cable
• Power adapter (100W, 12V)
• Heat sink with fan
• Heat sink
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

www.dfi.com
6
Chapter 1 Introduction
I/O Connectors • 2 connectors for 4 external USB 2.0/1.1 ports
• 5 connectors for 5 external serial ports
- 1 connector supports RS232/422/485
- 4 connectors support RS232
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 Serial ATA port
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
BIOS • AMI BIOS
- 16Mbit SPI BIOS
Energy Efficient
Design • Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery
Damage Free
Intelligence • Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
Power
Consumption • 17.5W with D2550 at 1.86GHz and 1x 2GB DDR3 SODIMM
• 17.5W with N2800 at 1.86GHz and 1x 2GB DDR3 SODIMM
• 13.8W with N2600 at 1.6GHz and 1x 2GB DDR3 SODIMM
Temperature • Operating: 0oC to 60oC
• Storage: -20oC to 85oC
Humidity • 10% to 90%
PCB • 3.5" board
• 146mm (5.75") x 102mm (4.02")
Certification • CE
• FCC Class B
• RoHS
• UL
Chapter 1 - Introduction
Specifications
Processor • CD951-C2550:
- Intel®AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core
- Cooling: heatsink with cooling fan
• CD951-C2800:
- Intel®AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core
- Cooling: heatsink (fanless solution)
• CD951-C2600:
- Intel®AtomTM N2600, 1.6GHz, 2x 512K L2, 3.5W TDP, dual-core
- Cooling: heatsink (fanless solution)
Chipset • Intel®NM10 Express chipset
System Memory • One 204-pin DDR3 SODIMM socket
• Supports DDR3 1066MHz (Intel®AtomTM D2550/N2800)
Supports DDR3 800MHz (Intel®AtomTM N2600)
• Supports single channel memory interface
• Supports up to 4GB system memory (Intel®AtomTM D2550/N2800)
Supports up to 2GB system memory (Intel®AtomTM N2600)
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
Expansion
Slots •1 Mini PCIe slot
- Supports PCIe (PCIe and USB signals) or mSATA module
- Supports half size card
• 1 CompactFlash socket
Graphics • Intel®GMA 3650 (Intel®AtomTM D2550/N2800)
Intel®GMA 3600 (Intel®AtomTM N2600)
• Supports LVDS and VGA interfaces
• LVDS: Chrontel CH7511B, 24-bit, dual channel, resolution up to 1920x1200
@ 60Hz
• VGA: resolution up to 1920x1200 @ 60Hz
• Supports Hardware H.264/AVC, MPEG-2 video decoder, VC-1, DirectX 9, 1080p
decoder
Audio • Realtek ALC886 2-channel High Definition Audio
LAN • 2 Intel®82574 Gigabit Ethernet Controllers
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Serial ATA • Supports 1 Serial ATA interface
• SATA 2.0 with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
IDE • JMicron JMB368 PCI Express to PATA host controller
• Supports 1 CompactFlash interface
OS Support • Windows 7 Ultimate x86 & SP1 (32-bit)
Rear Panel I/O
Ports • 1 12V DC-in jack (default) or 4-pin power connector* (optional)
• 1 DB-9 RS232 serial port
• 1 DB-15 VGA port
• 2 RJ45 LAN ports
• 2 USB 2.0/1.1 ports
Chapter 1
Note:
*Optional and is not supported in standard model. Please contact your sales represen-
tative for more information.

www.dfi.com
7
Chapter 1 Introduction
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3
DDR3 delivers increased system bandwidth and improved performance. The advantages of
DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports LVDS and VGA for up
to 2 independent displays.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 3Gb/s (SATA 2.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
• Gigabit LAN
The Intel 82574 Gigabit LAN controller supports up to 1Gbps data transmission.
• Audio
The Realtek ALC886 audio codec provides 2-channel High Definition audio output.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Chapter 1
• Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows® without having to
go through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
Important:
The 5V_standby power source of your power supply must support ≥720mA.

www.d.com
8
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
Intel
NM10
Intel Atom
D2700/ N2800/
N2600
DC-IN
VGA
LAN 2
COM1
1
Power on Seletct
(JP5)
1
COM4
12
910
12
910
COM3
COM6
1
2
9
10
COM2
COM5
1
2
9
10
1
2
9
10
1
2
5
6
COM2
RS232/422/485
Select(JP3)
1
LAN 1
1
System fan 1
Battery
1
2
12
Front panel
1
11 18
DIO
1
8
LCD/ Inverter
power
40
39
12
LVDS LCD panel
DDR3_SODIMM
CPU Fan
1
USB 2-3
1
2
9
USB 4-5
1
2
9
1
9
10
Front Audio
1
2
5
6
SPI Flash BIOS
Standby power
LED
SATA 0
USB 0-1
1
DIO Power
Fintek
F81866
1
1
ON
4
(SW2)
5
Intel
WG82574L
Intel
WG82574L
SATA Power
Chassis intrusion
USB 2-5 Power
Seletct (JP6)
USB 0-1 Power
Select (JP4)
Panel Power Select (JP2)
1
Clear
CMOS(JP7)
1
3
Mini PCIe/mSATA select (JP8)
10
12
Mini PCIe
CompactFlash
Socket
Top View Bottom View

www.d.com
9
Chapter 2 Hardware Installation
Chapter 2
System Memory
DDR3
Features
• One 204-pin DDR3 SODIMM sockets
• Supports 800/1066MHz DDR3 SDRAM
• Singal channel memory interface
• Supports maximum of 4GB system memory
Installing the DIMM Module
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the system board.
4. Note the key on the socket. The key ensures the module can be plugged into the socket
in only one direction.
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lit red, it indicates that there is power on the system
board. Power-off the PC then unplug the power cord prior to installing any devices.
Failure to do so will cause severe damage to the motherboard and components.
Standby
Power LED
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.

www.d.com
10
Chapter 2 Hardware Installation
Chapter 2
6. Push down the module until the clips at each end of the socket lock into position. You will
hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
5. Grasping the module by its edges, align the module into the socket at an approximately 30
degrees angle. Apply firm even pressure to each end of the module until it slips down into
the socket. The contact fingers on the edge of the module will almost completely disappear
inside the socket.
Clip
Jumper Settings
Clear CMOS
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
JP7
2-3 On:
Clear CMOS
1-2 On: Normal
(default)
13 2
13 2
