DFI NS35-TC User manual

NS35-TC
NS35-TL
Rev.A+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Tablero Electrónico del Sistema Manual del Usuario
935-NS3502-100
60500226

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98, Windows®98 SE, Windows®ME, Windows®2000,
Windows NT®4.0 and Windows®XP are registered trademarks of
Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. SiS®is a registered trademark of
Silicon Integrated Systems Corporation. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
28
46
66
87
Note:
This user’s manual is for the NS35-TC and NS35-TL system boards.
The only difference between these boards is the NS35-TL system
board supports onboard LAN.

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
9
10
20

6
Quick Setup Guide
1
Quick Setup
Guide

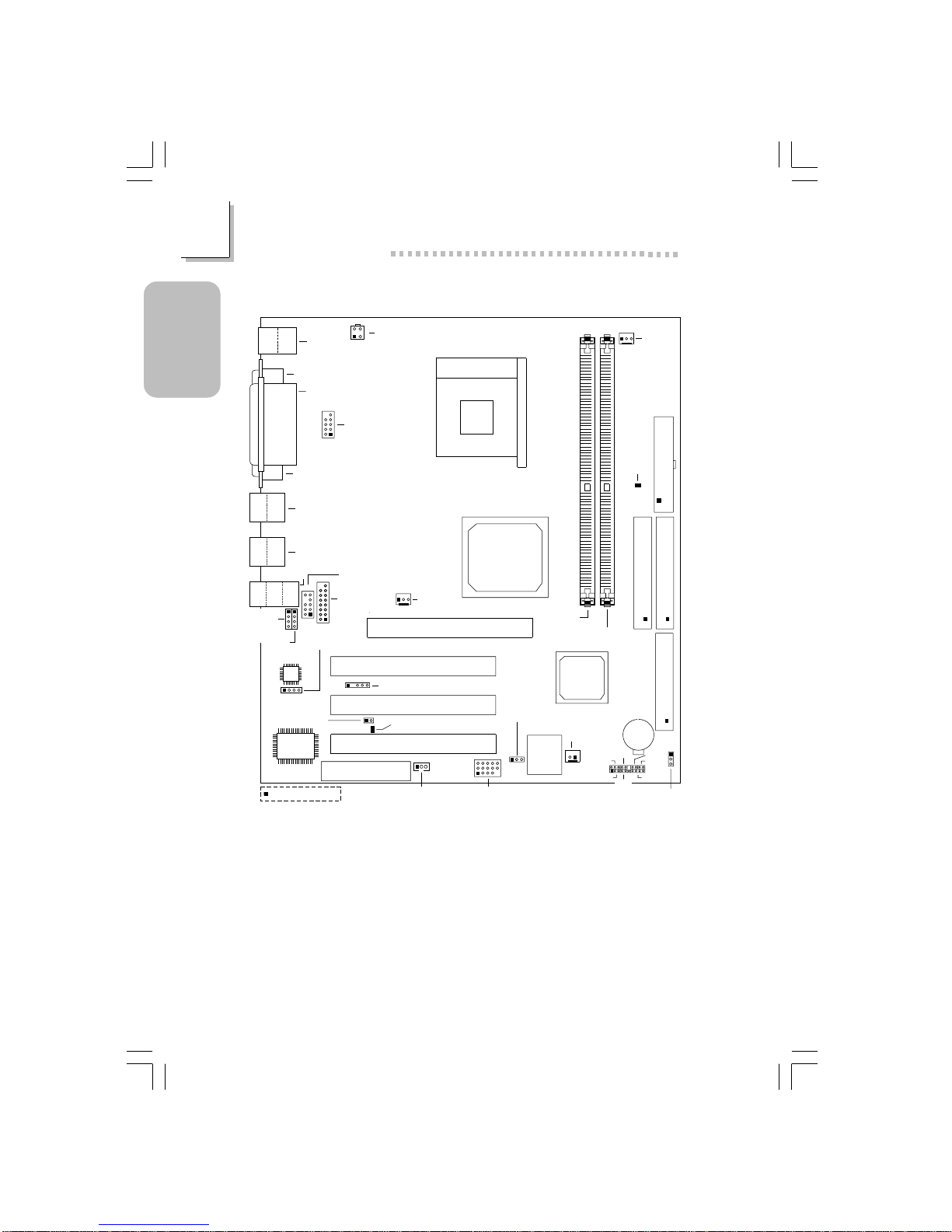

1.1 System Board Layout
NS35-TC
Clear CMOS (JP5)
FDD (J22)
SiS
650GX
SiS
962L
J2
KB
Mouse
COM 1 (J4)
Parallel (J5)
ATX Power
21
10 9
Front audio
(J10)
AC’97
Wake-On-Ring
(J19)
3.3VSB standby
for PCI (JP6) PCI standby
power LED
J3
15
11 15
USB5&6(J25)
BIOS
CPU fan
(J1)
DIMM
standby
power
LED
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
CNR Slot
Socket 478
AGP Slot
+12V power
(ATXP1)
34
12
I/O
chip
System fan
(J12)
IrDA (J20)
J8
PWR-LED
HD-LED
J27
ATX-SW G-LED
G-SW
SPEAKER
Battery
RESET
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Primary IDE (J18)
Seconary IDE (J17)
VGA (J7)
Square denotes pin 1
Wake-On-LAN (J23)
USB 1
USB 2
Line-
out
Line-
in
Mic-
in
CN1
CN3
1615
21
CD-in
(J16)
Game/MIDI
(J13)
S/PDIF-out (J28)
AUX-in
(J15)
Power select
for USB 5/6 (JP3)
10 9
21
COM 2 (J6)
USB 3
USB 4

7
1
Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the system
board that supports onboard LAN.

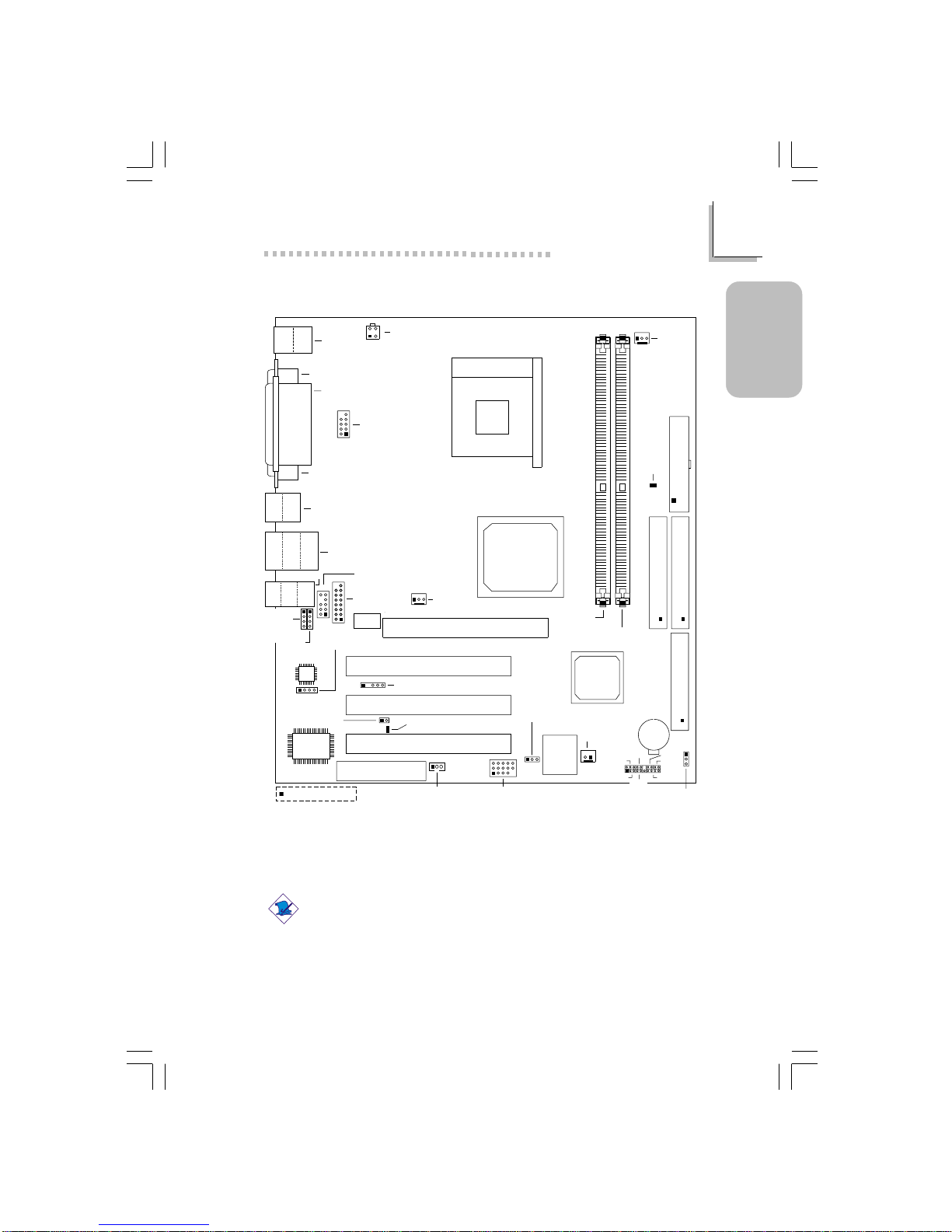

NS35-TL
(Supports onboard LAN)
Clear CMOS (JP5)
FDD (J22)
SiS
650GX
SiS
962L
J2
KB
Mouse
LAN
COM 1 (J4)
Parallel (J5)
ATX Power
21
10 9
Front audio
(J10)
AC’97
Wake-On-Ring
(J19)
3.3VSB standby
for PCI (JP6) PCI standby
power LED
J3
15
11 15
USB5&6(J25)
BIOS
CPU fan
(J1)
DIMM
standby
power
LED
USB 3
USB 4
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
CNR Slot
Socket 478
AGP Slot
+12V power
(ATXP1)
34
12
I/O
chip
System fan
(J12)
IrDA (J20)
J8
PWR-LED
HD-LED
J27
ATX-SW G-LED
G-SW
SPEAKER
Battery
RESET
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2
Primary IDE (J18)
Seconary IDE (J17)
VGA (J7)
Square denotes pin 1
Wake-On-LAN (J23)
USB 1
USB 2
Line-
out
Line-
in
Mic-
in
CN1
CN3
1615
21
Phy
CD-in
(J16)
Game/MIDI
(J13)
S/PDIF-out (J28)
AUX-in
(J15)
Power select
for USB 5/6 (JP3)
10 9
21
COM 2 (J6)

8
Quick Setup Guide
1
Quick Setup
Guide
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

9
1
Quick Setup Guide
Quick Setup
Guide

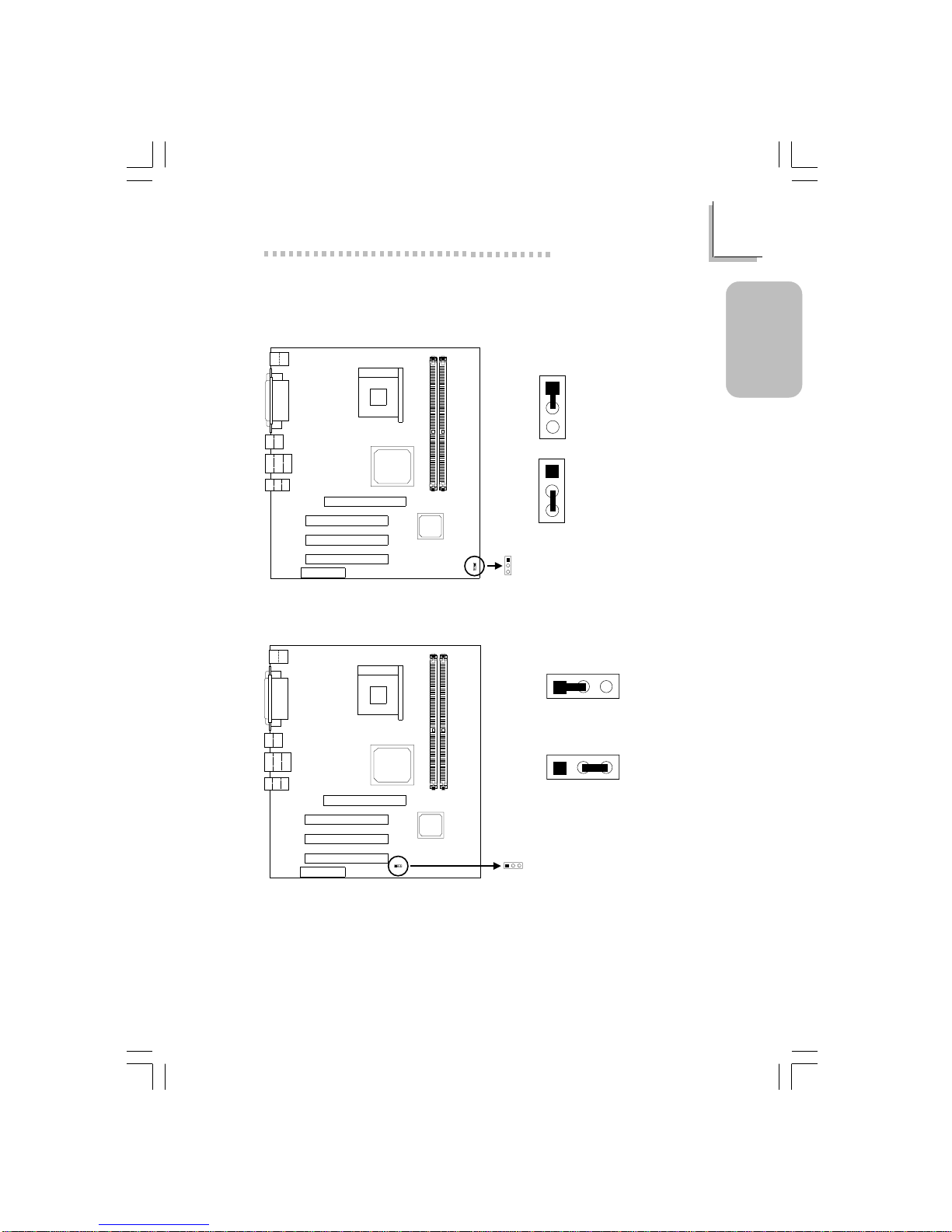

1.2.1 Clear CMOS Data - JP5
1.2 Jumpers
1
2
3
1
2
3
1-2 On:
Clear CMOS Data
2-3 On: Normal
(default)
Clear CMOS
(JP5)
1
2
3
1.2.2 Jumper Settings for Selecting the USB 5/6 Power
Power select
for USB 5/6 (JP3)
123
123
1-2 On: Disabled - VCC
123
2-3 On: Enabled -
5V_DUL
(default)
If you wish to use the Wake-On-USB Keyboard/Mouse function, make sure
this jumper is set to Enabled. “USB Port Wake Up Control” (“PM Wake Up
Events” field) in the Power Management Setup submenu of the BIOS must
also be set to Enabled.

10
Quick Setup Guide
1
Quick Setup
Guide
1.3 Ports and Connectors

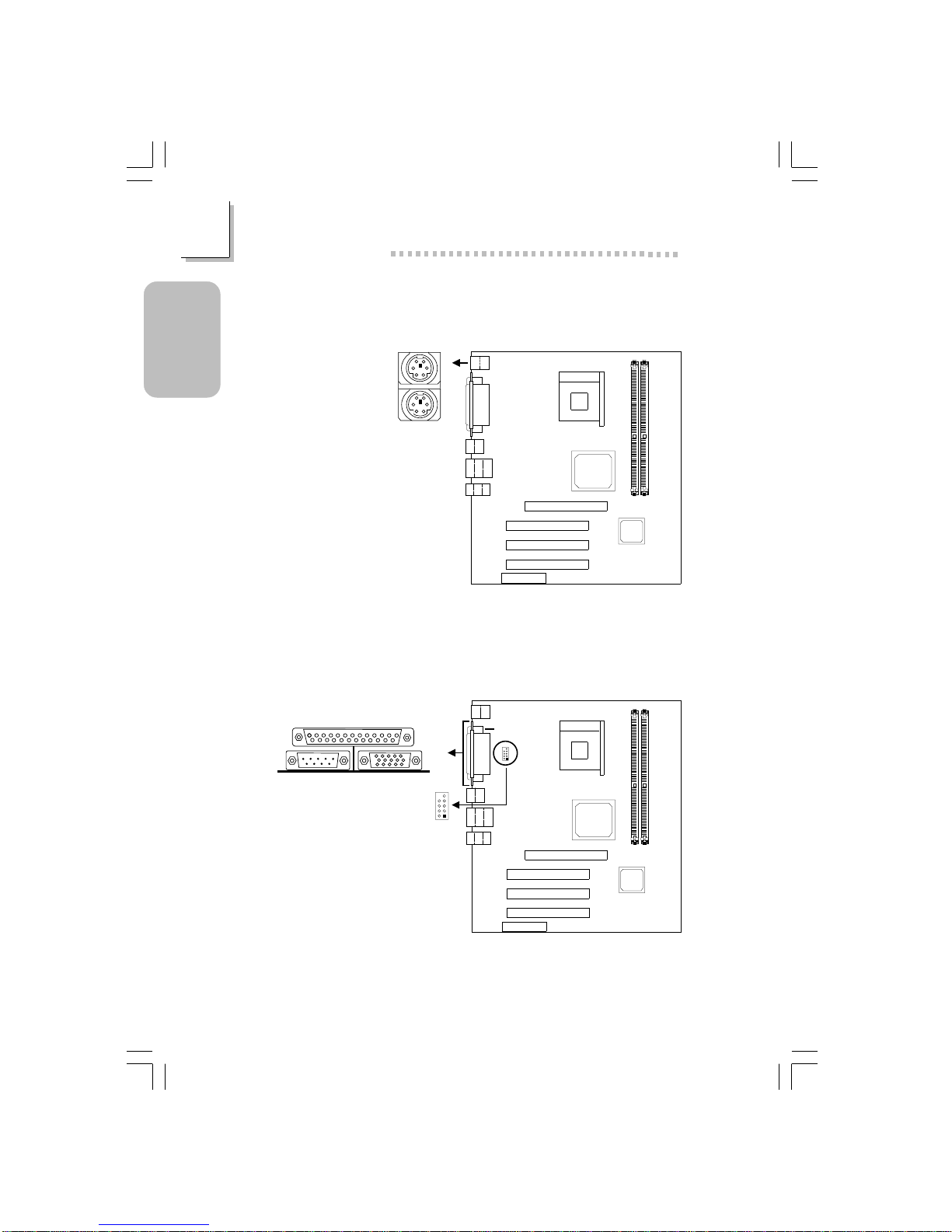

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
1.3.2 Serial Port
J2
The Wake-On-PS/2 Keyboard/
Mouse function, when enabled,
allows a PS/2 keyboard or
PS/2 mouse to wake up a
system from the S3/S4/S5 state.
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
PS/2 Mouse
PS/2 Keyboard
J4
10 9
21
COM 2 (J6)
21
9
COM 1
Serial Port

11
1
Quick Setup Guide
Quick Setup
Guide

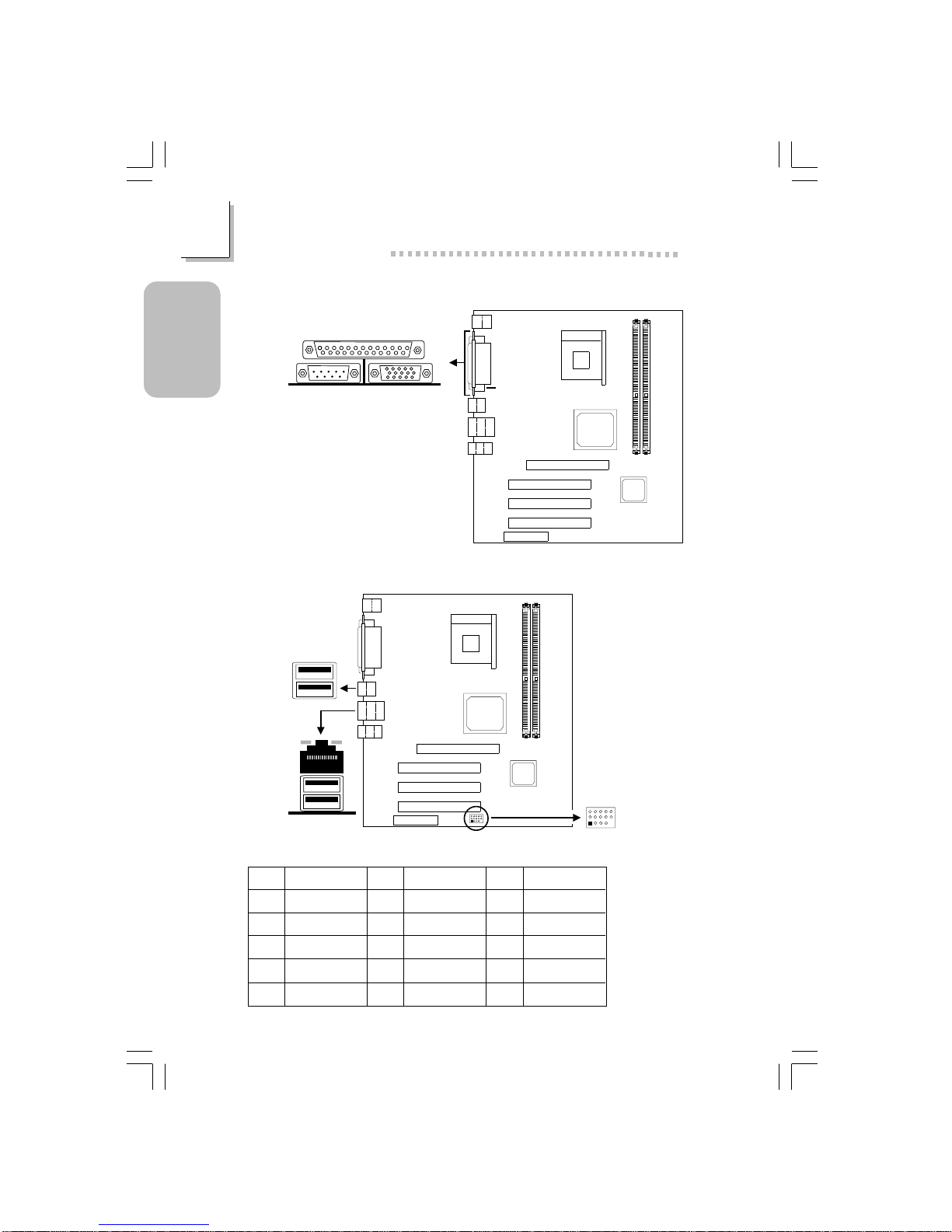

1.3.3 Parallel Port
J5
Parallel Port
Setting
SPP
(StandardParallelPort)
ECP
(ExtendedCapabilitiesPort)
EPP
(EnhancedParallelPort)
Function
Allowsnormalspeedoperationbut
inonedirection only.
Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.
Allowsbidirectionalparallelportop-
erationatmaximumspeed.

12
Quick Setup Guide
1
Quick Setup
Guide
1.3.5 Universal Serial Bus Ports
CN1
J3
15
11 15
USB5&6
(J25)
5
15
11
1
USB 4
USB 3
USB 2
USB 1
Additional USB Ports (USB 5 and USB 6)
J7
1.3.4 VGA Port
VGA Port
Pin
1
2
3
4
5
Function
VCC
UP5-
UP5+
Ground
Key
Pin
6
7
8
9
10
Function
VCC
UP6-
UP6+
Ground
N. C.
Pin
11
12
13
14
15
Function
Ground
Ground
UP5+
UP5-
VCC

13
1
Quick Setup Guide
Quick Setup
Guide
1.3.6 RJ45 Fast-Ethernet Port (NS35-TL only)
J3
RJ45 LAN

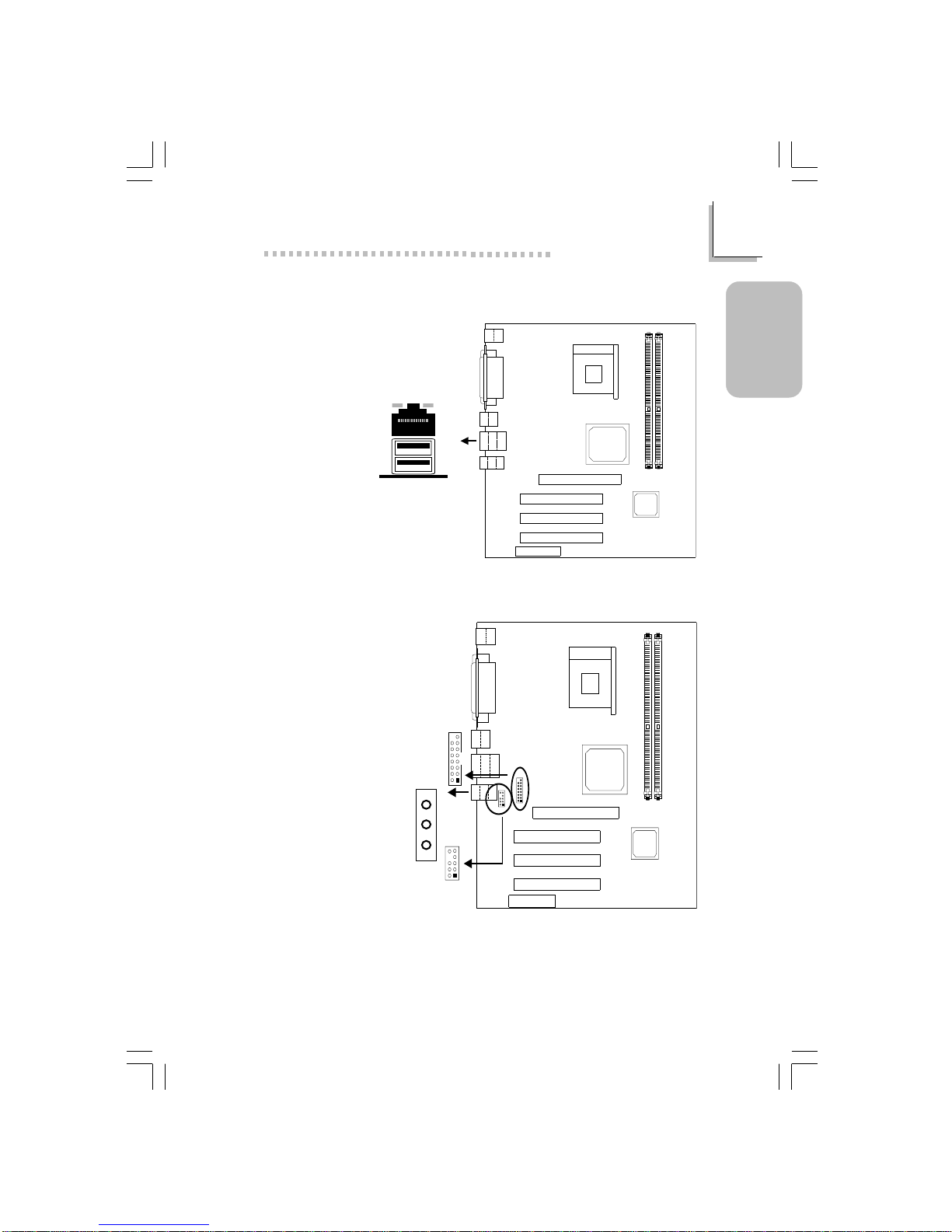

1.3.7 Game/MIDI Port and Audio Jacks
CN3
21
10 9
Front audio
(J10)
21
9
10
15
16
15
1
2
Game/MIDI
(J13)
1 Mic+
2 Ground
3 N.C.
4 AuD_Vcc (Avcc)
5 AuD_R_Out
6 N.C.
7 N.C.
8 Key
9 AuD_L_Out
10 N.C.
Line-out
Line-in
Mic-in

14
Quick Setup Guide
1
Quick Setup
Guide
1.3.8 Internal Audio Connectors
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
CD-in / AUX-in
CD-in
(J16)
AUX-in
(J15)
1
2
3
4
1.3.9 S/PDIF-out Connector
S/PDIF-out
(J28)
1234
S/PDIF-out
1
2
3
4
AVDD5
N. C.
SPDIF-out
Ground

15
1
Quick Setup Guide
Quick Setup
Guide

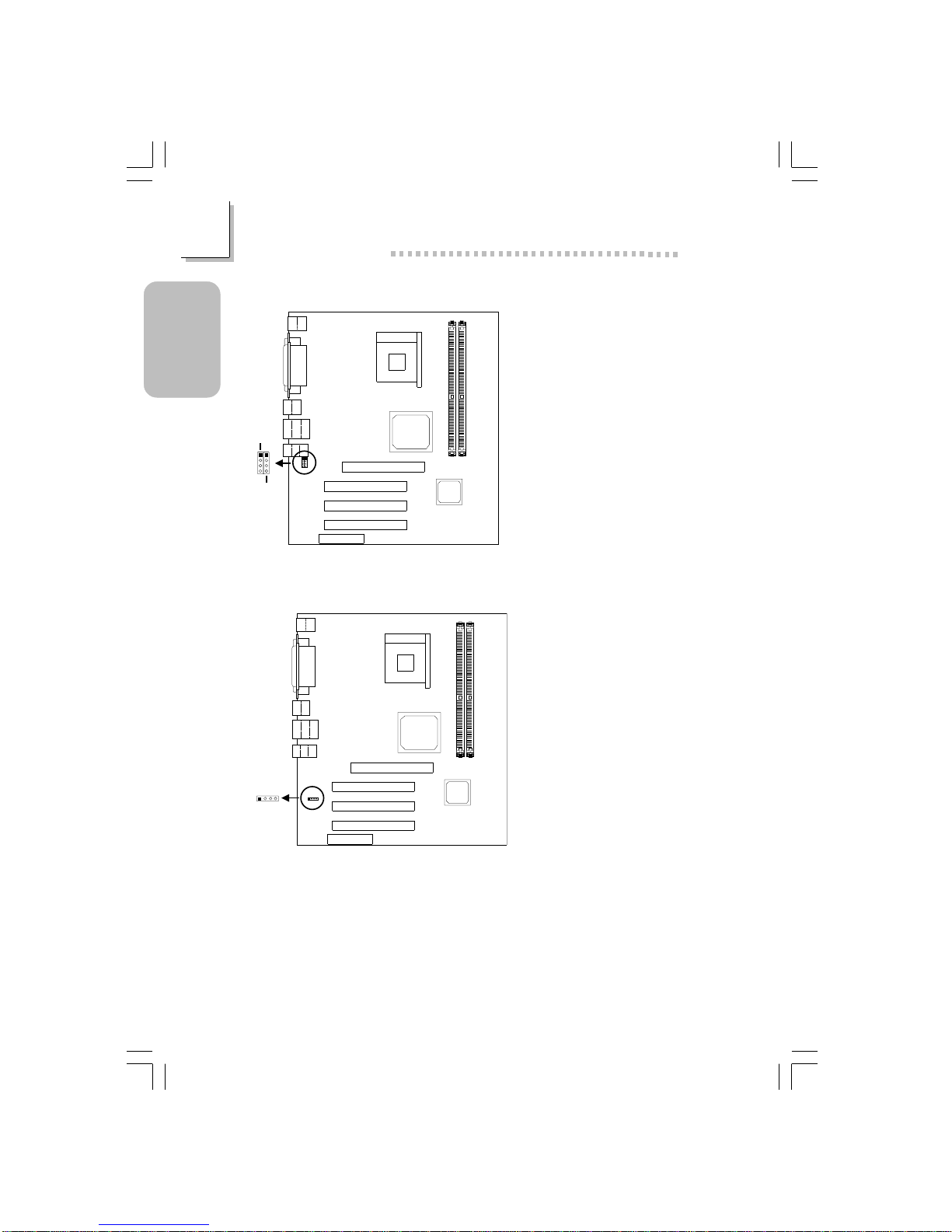

1.3.10 IrDA Connector
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
1.3.9 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD IDE
IrDA (J20)
12345
FDD (J22)
Secondary
IDE (J17)
Primary
IDE (J18)

16
Quick Setup Guide
1
Quick Setup
Guide
1.3.11 Fan Connectors
1 Ground
2 Power
3 Sense
1 Ground
2 On/Off
3 Sense
CPU Fan
System Fan
System fan
(J12)
321
CPU fan
(J1)
321
1.3.12 Wake-On-LAN Connector
The 5VSB power source
of your power supply
must support ≥720mA.
1 WOL
2 Ground
3 +5VSB
Wake-On-LAN
(J23)
123

17
1
Quick Setup Guide
Quick Setup
Guide
1.3.14 DIMM/PCI Standby Power LED
3.3VSB Standby for PCI - Jumper JP6
1.3.13 Wake-On-Ring Connector
1 Ground
2 RI #
If you are using a
modem add-in card, the
5VSB power source of
your power supply must
support ≥720mA.
Wake-On-Ring
(J19)
21
DIMM standby
power LED
3.3VSB standby
for PCI (JP6)
PCI standby
power LED
2
1
12 12
On: Default
3.3VSB Standby Power to
PCI slots - PCI 2.2 spec.
Off:
Non-PCI 2.2 spec.

18
Quick Setup Guide
1
Quick Setup
Guide
The DIMM Standby Power LED will turn red when the system’s power is
on or when it is in the Suspend state (Power On Suspend or Suspend to
RAM). It will not light when the system is in the Soft-Off state.
The PCI Standby Power LED will turn red when the system is in the
power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM)
state.
Lighted LEDs serve as a reminder that you must power-off the system
then turn off the power supply’s switch or unplug the power cord prior to
installing any memory modules or add-in cards.

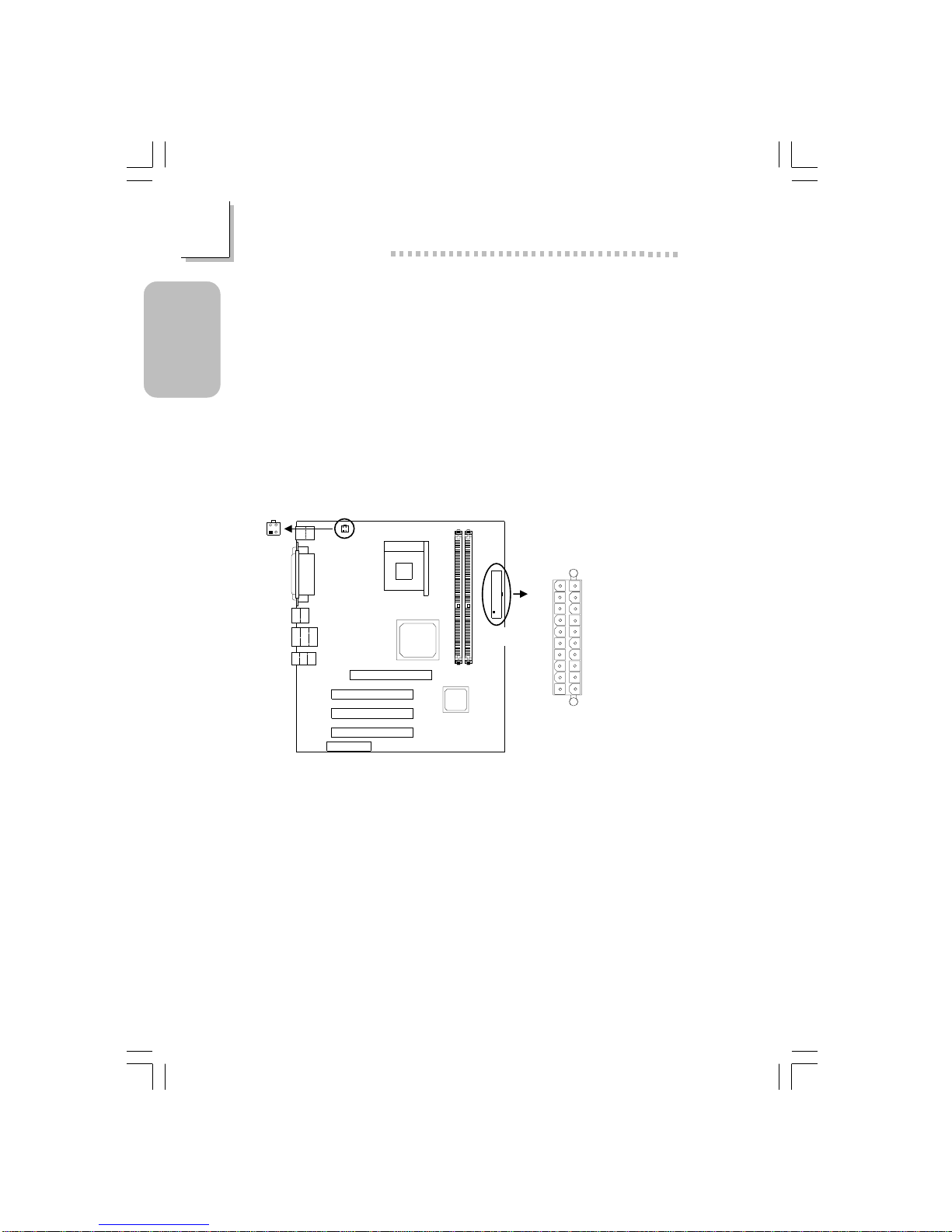

1.3.15 Power Connector
+12V power
(ATXP1)
34
12
2
1
4
3
ATX Power
(J8)
1
10
11
20
1 3.3V
2 3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +12V
11 3.3V
12 -12V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
ATX Main Power
1 Ground
2 Ground
3 +12V
4 +12V
+12V Power

19
1
Quick Setup Guide
Quick Setup
Guide
1.3.16 Front Panel Connectors
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
If a system did not boot-up and the Power/Standby LED did not light
after it was powered-on, it may indicate that the CPU or memory module
was not installed properly. Please make sure they are properly inserted
into their corresponding socket.
Front panel
connectors (J27)

20
Quick Setup Guide
1
Quick Setup
Guide
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only. Your version may not be
identical to this one.
↑↓→← :Move
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Mon, Jun 24 2002
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
!
!
!
!
