DFI LanParty 925X-T2 User manual

System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî Ïîëüçîâàòåëÿ
935-925T21-000
81520437

2
Quick Setup Guide
1
Quick Setup
Guide
Copyright
This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any
transformation/adaptation without the prior written permission from the copyright
holders. This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to the
contents or use of this manual and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. The user will
assume the entire risk of the use or the results of the use of this document.
Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or
entity of such revisions or changes. © 2004. All Rights Reserved.
Trademarks
Windows®2000, Windows NT®4.0 and Windows®XP are registered
trademarks of Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of products
appearing in this manual are the properties of their respective holders.
Caution
To avoid damage to the system, use the correct AC input voltage range.....
To reduce the risk of electric shock, unplug the power cord before removing the
system chassis cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery: 1. Danger of explosion if battery incorrectly replaced. 2. Replace only
with the same or equivalent type recommend by the manufacturer. 3. Dispose of
used batteries according to the battery manufacturer’s instructions.
Notice
The system board and accessories you receive in the package may not come
similar to the information stated in this manual. This may differ in accordance to
the sales region or models in which it was sold. For more information about the
standard package in your region, please contact your dealer or sales
representative.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accord-
ance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

3
1
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Español............................................................................
Chapter 6
Ðóññêèé.......................................................................
4
17
23
29
36
42
The user’s manual in the provided CD contains detailed information about the system board. If, in some
cases, some information doesn’t match those shown in this manual, this manual should always be re-
garded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si,
en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit
toujours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine.
Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem
Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún
caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más
nuevo.
 ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ ïîäðîáíàÿ
èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå ðóêîâîäñòâî ìîæåò íå
ñîâïàäàòü ðóêîâîäñòâîì íà CD, òàê êàê ïîñëåäíåå íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è
ÿâëÿåòñÿ ñàìûì ñâåæèì.

4
Quick Setup Guide
1
Quick Setup
Guide
1.1 System Board Layout
Chapter 1 - Quick Setup Guide
JP8
1
S/PDIF-in
S/PDIF-out
S/PDIF
PS/2 power
select (JP1)
1
USB 1-6 power
select (JP2)
1
KB
Mouse
1
Audio
Line-in,
Mic-in,
1394_1
USB 1
USB 2
LAN 1
USB 3
USB 4
(PCI Express x1)
LAN 2 (PCI)
USB 5
USB 6
1
Fan 5
1
Fan 2
1
Fan 4
1
Fan 3
1
CPU fan
1
+12V power
DDR2_1
DDR2_2
DDR2_3
DDR2_4
LGA 775 CPU Socket
Intel
925X
Intel
ICH6R
VIA
VT6307
I/O
chip
1
1
1
1394_2
ATX
power
1
Diagnostic LED
IDE
Standby Power LED
DRAM Power LED
LED 1
LED 3
LED 2
LED 4
BIOS
1
USB 7-8
USB 7-8 power
select (JP3)
1
1
Clear CMOS (JP4)
1
FDD
1
Speaker
On/Off (JP8)
1
SATA 4
1
1
1
SATA 3
SATA 2
SATA 1
Battery
CIR
IR
Reset
Power
HD-LED
RESET
SPEAKER
PCI 1
PCI 2
PCI 3
1
COM
PCIEX1 1
PCIEX1 3
PCIEX1 2
PCIEX16
Marvell
88E8053
Rear R/L
Front R/L,
Side R/L
Center/
Subwoofer
Marvell
88E8001
PWR-LED
ATX-SW
1

5
1
Quick Setup Guide
Quick Setup
Guide
1.2 Jumpers
1.2.1 Clear CMOS Data
JP8
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP4 312 312
JP8
1.2.2 PS/2 Power Select
X
JP1
2-3 On: 5VSB
1-2 On: 5V
(default)
3
1
2
3
1
2
Important:
The 5VSB power source of your power supply must support
≥ 720mA.

6
Quick Setup Guide
1
Quick Setup
Guide
JP8
1.2.3 USB Power Select
X
USB 1-6
(JP2) 3
1
2
3
1
2
2-3 On: 5VSB1-2 On: 5V
(default)
312 312
2-3 On: 5VSB
1-2 On: 5V
(default)
X
USB 7-8
(JP3)
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5VSB power source of your
power supply must support ≥ 2A.
JP8
1.2.4 Speaker On/Off Select
X
JP8
312 312
2-3 On:
Speaker On
(default)
1-2 On:
Speaker Off

7
1
Quick Setup Guide
Quick Setup
Guide
1.4 I/O Connectors
1.3 Rear Panel I/O Ports
JP8
W
1.4.1 S/PDIF-in/out Jacks
W
Optical S/PDIF
J1
S/PDIF-in
S/PDIF-out
1
5
+5V
Key
SPDIF out
GND
SPDIF in
Note:
DO NOT use RCA S/PDIF and optical S/PDIF at the same time.
PS/2
Mouse
PS/2
K/B
S/PDIF-in
S/PDIF-out
Line-in
Front R/L
(Line-out)
Mic-in
Center/
Subwoofer
Rear R/L
Side R/L
1394_1
USB 1-2 USB 3-4 USB 5-6
LAN 2LAN 1

8
Quick Setup Guide
1
Quick Setup
Guide
1.4.2 Karajan Audio Card
Important:
The adhesive tape on the Karajan card is used to stabilize the card
to the system board. Peel off the strip of the adhesive tape then
insert the 14-pin connector at the solder side of the card to J5 on
the system board.
1.4.3 Front Audio Connector
Audio
codec
1
1
Line-in
Front R/L
Mic-in
Center/Subwoofer
Rear R/L
Side R/L
X
1
2
10
9
Mic_LeftGND
Mic_Right
Vcc
Line out_Right
Mic Jet Detect
Sense
N. C.
Line out_Left
Line out Jet Detect
The front audio connector (J4) on the Karajan audio add-in card allows
you to connect to the line-out and mic-in jacks that are at the front panel
of your system.
JP8
W
1
2
13
14 WJ5
Line-in
Front R/L
(Line-out)
Mic-in
Center/
Subwoofer
Rear R/L
Side R/L

9
1
Quick Setup Guide
Quick Setup
Guide
Audio
codec
1
1
Line-in
Front R/L
Mic-in
Center/Subwoofer
Rear R/L
Side R/L
X

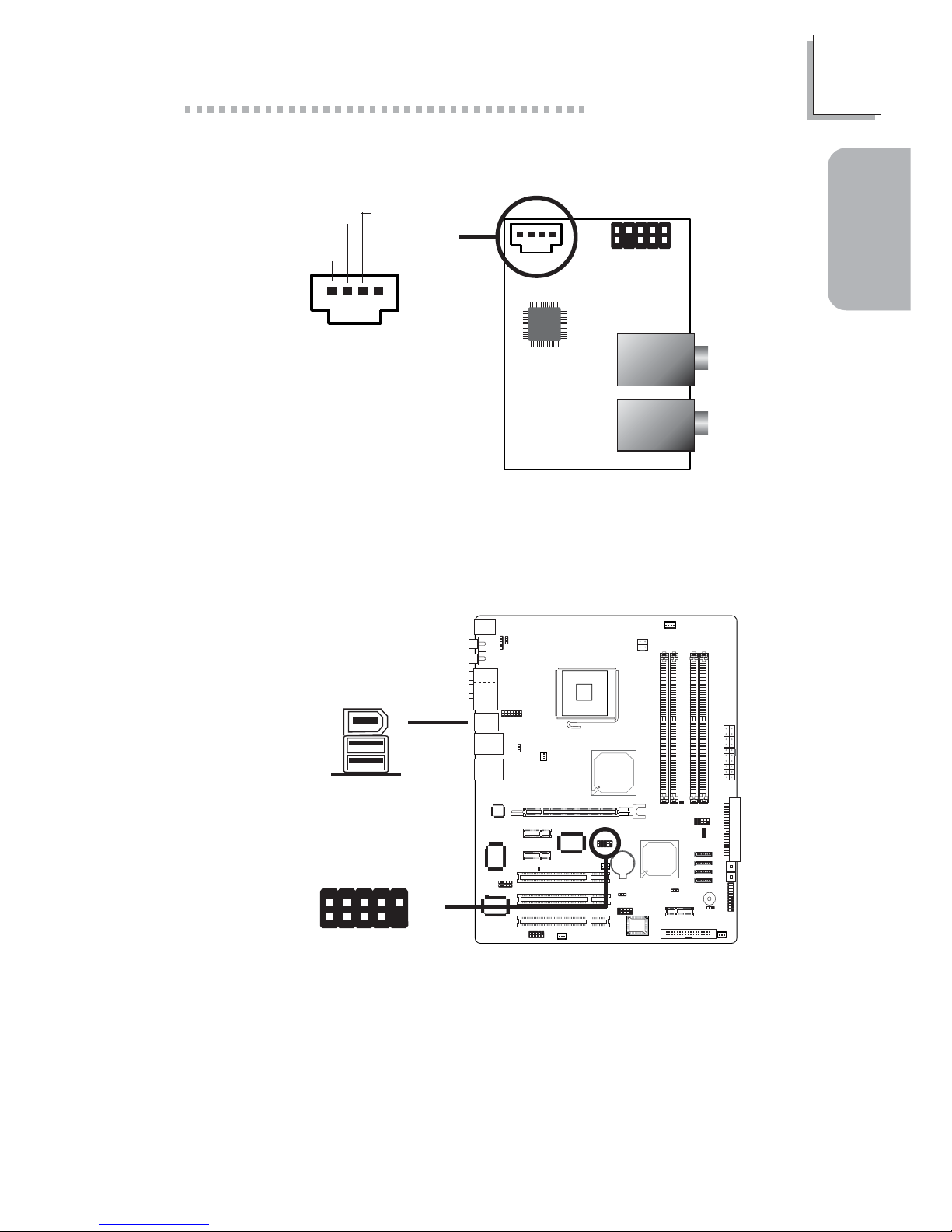

1.4.4 CD-in Internal Audio Connector
14
Right audio
channel
Left audio
channel
Ground Ground
JP8
1.4.5 IEEE 1394
1394_1
W
W
1394_2
+12V (fused)
1
TPA+
Ground
TPB+
+12V (fused)
Key
TPA-
Ground
TPB-
Ground
210
9
The CD-in (J2) connector on the Karajan audio add-in card is used to
receive audio from a CD-ROM drive,TV tuner or MPEG card.

10
Quick Setup Guide
1
Quick Setup
Guide
JP8
USB 4
USB 3
1.4.6 Universal Serial Bus Ports
1
VCC
-Data
+Data
Ground
Key
VCC
-Data
+Data
Ground
N. C.
210
9
USB 6
USB 5
W
W
USB 2
USB 1
WUSB 7-8
W
JP8
1.4.7 Serial Ports
X
19
2
CD
TD
RD
DTR
SG
RTS
DSR
CTS
RI

11
1
Quick Setup Guide
Quick Setup
Guide
JP8

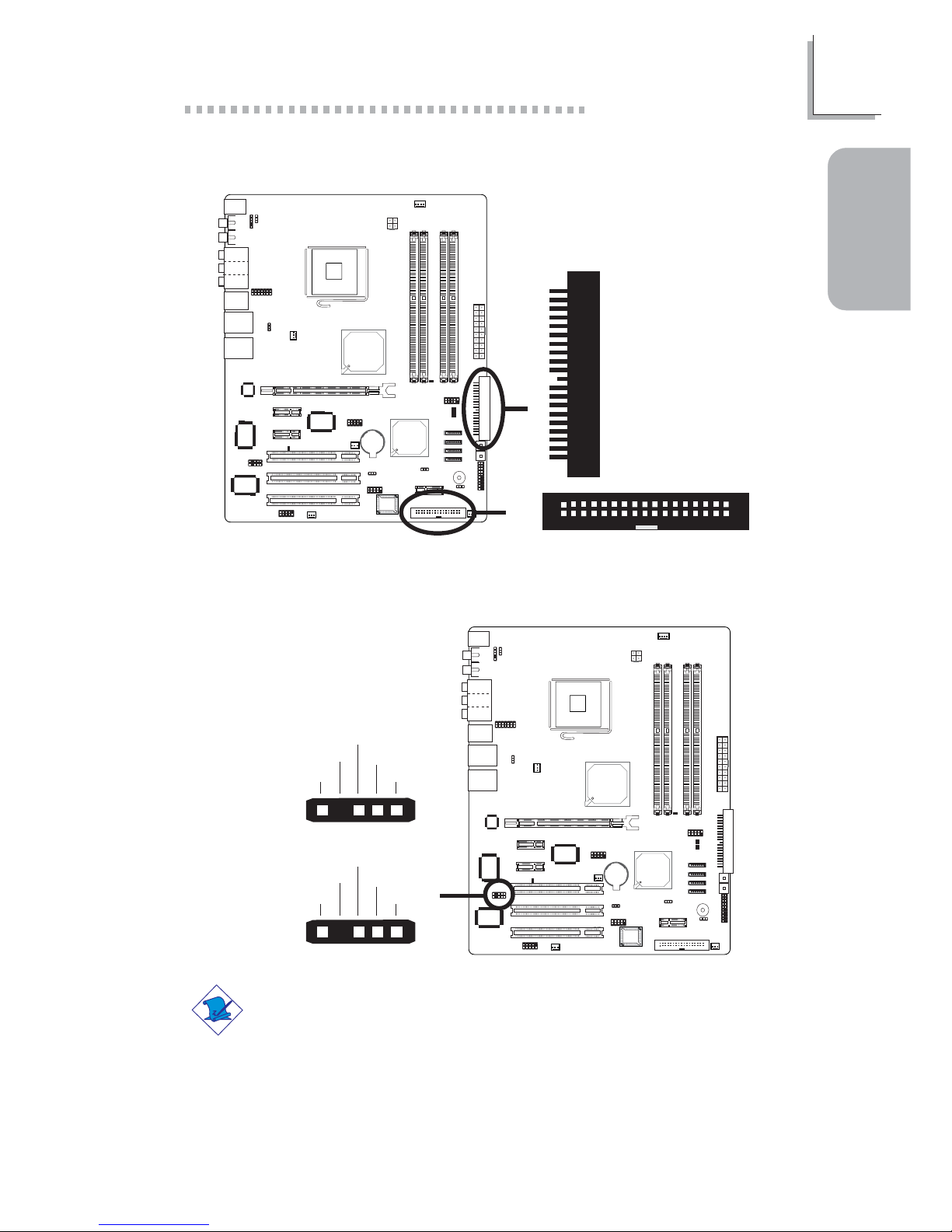

1.4.8 FDD and IDE Connectors
X2
133
34
X
IDE
FDD
JP8
1.4.9 IrDA Connector
W
15
VCC
N. C.
IRRX
Ground
IRTX
CIR
IR
15
5VSB
N. C.
CIRRX
GND
CIRTX
Note:
The sequence of the pin functions on some CIR/IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the CIR/IR connector
according to their pin functions.

12
Quick Setup Guide
1
Quick Setup
Guide
JP8

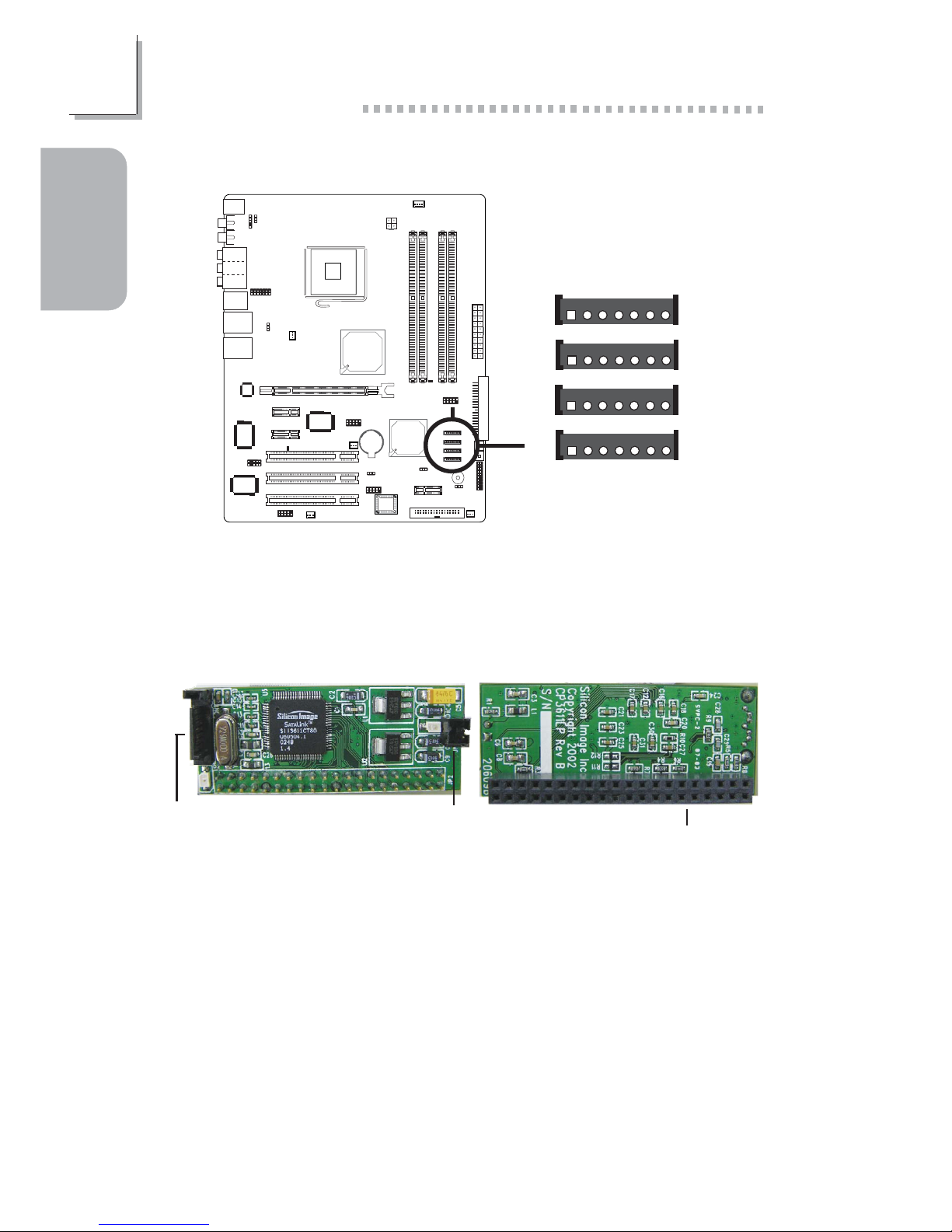

1.4.10 Serial ATA Connectors
X
SATA 2
SATA 1
GND
TXP
TXN
GND
RXN
RXP
GND
17
17
17
17
SATA 4
SATA 3
Serial ATA to Parallel ATA Adapter Module
The SATA to PATA module provides more flexibility to the system board
by allowing you to connect an additional parallel IDE drive via a SATA
connector and supports RAID spanning across SATA and PATA drives.
Power connector:
connect to power supply
Serial ATA connector:
connect to the Serial ATA
of the system board IDE connector: connect
to parallel ATA drive
The ICH6R south bridge chip allows configuring RAID on serial ATA drives.
It supports RAID 0, RAID 1 and JBOD.

13
1
Quick Setup Guide
Quick Setup
Guide
The presence of the power switch and reset switch on the system board
are user-friendly especially to DIY users. They provide convenience in
powering on and/or resetting the system while fine tuning the system
board before it is installed into the system chassis.
JP8
1.4.12 EZ Touch Switches
X
Reset Switch
Power Switch
JP8
1.4.11 Cooling Fan Connectors
X
X
X
X
Fan 2
CPU fan
Fan 5
4
1
Sense
Power
Ground
Speed
Control
13
Ground
Power
Sense
X
Fan 3
13
Ground
Power
Sense
1
3
Ground
Power
Sense
Fan 4
13
Ground
Power
Sense

14
Quick Setup Guide
1
Quick Setup
Guide
JP8
1.4.14 LEDs
Standby
Power LED
DRAM
Power LED
Diagnostic LEDs
1
D-LED1+
210
9
D-LED2+ D-LED3+ D-LED4+
Key
D-LED1- D-LED2- D-LED3- D-LED4-
N. C.
LED 1
LED 2
LED 3
LED 4
J3
Important:
To ensure that adequate power is provided, we strongly recommend
that you use a minimum of 400 Watt (or greater) power supply.
JP8
1.4.13 Power Connectors
X
X
+12V
43
12
GroundGround
+12V
131
12 24
+3.3VDC
+3.3VDC
COM
+5VDC
COM
+5VDC
COM
PWR_OK
+5VSB
+12VDC
+12VDC
+3.3VDC
+3.3VDC
-12VDC
COM
PS_ON#
COM
COM
COM
NC
+5VDC
+5VDC
+5VDC
COM

15
1
Quick Setup Guide
Quick Setup
Guide
Early program chipset
register before POST.
Testing memory presence.
Detecting memory size.
No memory present.
Programming DRAM timing
register.
Calculating DRAM size
variable including row,
column and bank.
Initializing JEDEC of current
DRAM row.
Checking CMOS checksum
and battery.
Initializing the clock
generator.
Initializing USB.
Testing all memory (cleared
all extended memory to 0).
Initializing the onboard
Super IO.
Detecting and installing an
IDE device.
Final initialization.
Booting the system.
LED 1
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
LED 2
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
LED 3
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
LED 4
Off
Off
Off
Off
Off
Off
Off
On
On
On
On
On
On
On
On

16
Quick Setup Guide
1
Quick Setup
Guide
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
N. C.
N. C.
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal

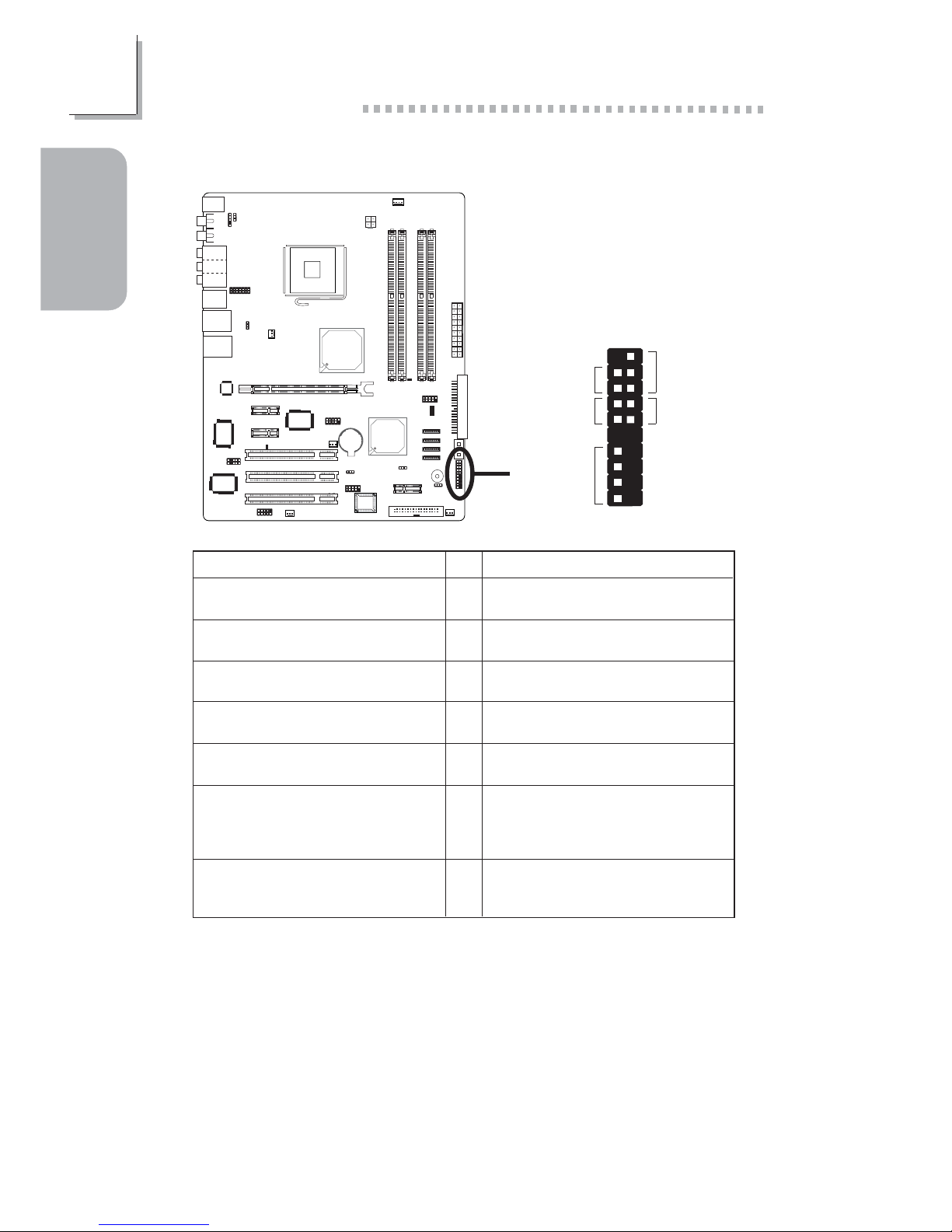

1.4.15 Front Panel Connectors
JP8
X
J15
12
1920
PWR-LED
ATX-SW
HD-LED
RESET
SPEAKER

17
2
English
English
Chapter 2 - English
2.1 Features and Specifications
Processor
• Intel®Pentium®4 Prescott processor
- Hyper-Threading Technology
- 800MT/s (200MHz) system bus interface
• Socket LGA 775 (LAN Grid Array)
Chipset
• Intel®925X chipset
- Intel®925X Memory Controller Hub (MCH)
- Intel®82801FR I/O Controller Hub (ICH6R)
System Memory
• Four 240-pin DDR2 DIMM sockets
• Supports dual channel (128-bit wide) memory interface
• Supports up to 4GB system memory
• Supports DDR2 400 and DDR2 533 DIMMs
• Supports non-ECC x8 and x16 DIMMs
• Support for 256Mb and 512Mb DRAM densities
• Supports Performance Acceleration Technology
• Supports unbuffered DIMMs
BIOS
• Award BIOS
• Genie BIOS provides:
- CPU/DRAM overclocking
- CPU/NB/DRAM overvoltage
• Supports SCSI sequential boot-up
• Supports DMI 2.0 function
• 4Mbit flash memory
Energy Efficient Design
• Supports ACPI specification and OS Directed Power
Management
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse

18
English
2
English
- Wake-On-Ring (external modem) and Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
Hardware Monitor
• Monitors CPU/system temperature and overheat alarm
• Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/3.3Vsb voltages
• Monitors the speed of the CPU/system fan
• CPU Overheat Protection function monitors CPU temperature
and fan during system boot-up - automatic shutdown upon
system overheat
Onboard Audio Features
• Azalia audio codec with independent variable sampling rate
• True stereo line level outputs
• S/PDIF-in/out interface
• 8-channel audio output
Onboard LAN Features
• Gigabit ethernet controllers - Marvell 88E8053 PCI Express and
Marvell 88E8001 PCI
• Integrated power management functions
• Full duplex support at both 10 Mbps, 100 Mbps and 1Gbps
• Supports IEEE 802.3u auto-negotiation
• Supports wire for management
Serial ATA Interface with RAID
• Supports four SATA (Serial ATA) interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
• Supports RAID 0, RAID 1 and JBOD
IEEE 1394 Interface
• Supports two 100/200/400 Mb/sec ports
IDE Interface
• Supports ATA/33, ATA/66 and ATA/100 hard drives
Rear Panel I/O Ports
• 1 PS/2 mouse port and 1 PS/2 keyboard port
• 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
• Karajan audio card (6 audio jacks)
• 1 IEEE 1394 port and 2 RJ45 LAN ports
• 6 USB 2.0/1.1 ports

19
2
English
English
I/O Connectors
• 1 connector for 2 additional external USB 2.0/1.1 ports
• 1 connector for 1 external IEEE 1394 port
• 1 connector for 1 external serial port
• 1 front audio connector for external line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF connector for optical cable connection
• 1 IR connector and 1 CIR connector
• 4 Serial ATA connectors
• 1 IDE connector and 1 floppy connector
• 2 ATX power supply connectors
• 5 fan connectors
• 4 diagnostic LEDs
• 1 diagnostic LED connector for external 4 diagnostic LEDs
display
• EZ touch switches (power switch and reset switch)
Expansion Slots
• 1 PCI Express x16 slot
• 3 PCI Express x1 slots
• 3 PCI slots
Compatibility
• PCI 2.2 and Azalia compliant
PCB
• 6 layers, ATX form factor
• 24.5cm (9.64") x 30.5cm (12")
2.2 CMOS Reloaded
CMOS Reloaded allows you to save different configurations and
when needed, allows you to conveniently restore one of these previ-
ously saved configurations. CMOS Reloaded is especially helpful to
overclockers who often go through the tiresome trial and error
process of repeatedly changing the BIOS settings to come up with
the most ideal overclocked setting. By being able to save and load
the settings, it eliminates the tedious job of remembering several
settings and/or repeatedly resetting settings during the trial process.
The settings are stored in the SEEPROM. SEEPROM is divided into 5
banks - the backup bank and the 4 user defined banks.

20
English
2
English
Auto Save Bootable Setting
This field is used to automatically save the last bootable setting from
CMOS to an area in the SEEPROM referred to as the backup bank.
To use this function:
1. Set this field to Enabled.
2. Select “Save & Exit Setup” in the main menu then press <Enter>.
3. Type <Y> then press <Enter>.
If the changes to the setting allowed the system to boot, the setting
will be stored in the SEEPROM. In other words, if the system did not
boot up, the setting will not be stored. You may then follow the
steps in the next section to load the last bootable setting.
Load Last Bootable Setting
If, during the trial and error process, the setting resulted to the
system’s instability or worse yet, not being able to boot up the
system, please follow the steps below to use the Load function.
Note:
You can use the Load function only if you have set the “Auto
Save Bootable Setting” to Enabled.
1. If the system did not boot up properly but you were able to
enter the BIOS utility:
a. Select “CMOS Reloaded” in the main menu then press
<Enter>.
b. Move the cursor to “Load Last Bootable Setting” then press
“Load”.
c. Press <Y> to load the last bootable setting that was stored
in the backup bank.
2. If you cannot enter the BIOS utility:
a. Use JP3 to clear the CMOS. Refer to chapter 1 for more
information about clearing CMOS.
b. Enter the BIOS utility then perform steps 1a to 1c.
Saving, Loading and Naming BIOS Settings
For overclockers who require different sets of settings for various
system environments or operating systems, CMOS Reloaded allows
you to save, load and name up to four sets of BIOS settings - in
