With the 230RC-series searchlight, DHR introduces an entry level remote controlled LED searchlight. The
75W LED engine produces a color output of 5.000K and an intensity close to the same performance levels
of 1.000W halogen searchlights. Using the best available parabolic mirror reflectors on the market, a crisp
& clear spot with no visible stray light has been ensured. The 230RC is equipped with an unique bracket
design to realize an extreme downward vertical angle. This is specifically useful for close range targets.
Positions on high structures or foremasts of inland navigation vessels, where high angles up to 60° are
desired, the 230RC is the answer.
DEN HAAN ROTTERDAM B.V.
D.M. Den Haan
Managing Director
PREFACE
QUALITY STANDARDS
Excellent Optics
Maintenance Friendly
Light Weight Construction
IP66 Water Ingress Protection
Remote Control
LED Technology
Large Vertical Angle

5Version 0.91 October 2020
Den Haan Rotterdam
5. TABLE OF CONTENTS
1. Mounting instructions 6
2. Specifications 8
3. Dimensions 11
4. Photos 13
5. Wiring diagrams 14
6. Maintenance and correct use 19
7. Replacing of motor frame 20
8. Recommended spare parts 21

6Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
1. MOUNTING INSTRUCTIONS
Place the control panel inside the wheelhouse, where it is protected against weather influences. The panel
has been designed in order to be flush-mounted in an instrument cabinet, as shown in the illustration below.
The minimum required space for the panel inside the console 50 mm (4.33 inch).
Install the searchlight in a horizontal upright position with sufficient space around the head of the search-
light to ensure it can move freely. The dimensions can be found on page 9.
Bolt M10x (60 + M)
Insulation sleeve
Lantern base
Insulation sleeve
Washer M10
Mounting plate Min. 5 mm (0.20 inch)
Nut M10
All dimensions in mm (inch)
Fasteners
• The permissible torque should be 8 Nm (5.9 lbfft)
• Use only A4-grade stainless steel
Caution!
Even though the housing is made of corrosion resistant materials, galvanic corrosion may still occur. To
prevent galvanic corrosion use the supplied insulation sleeves to isolate the aluminium housing from
other metal parts.
4 x Ø10 (0.39)
162,5 (6.40)
Warning!
Den Haan Rotterdam does not accept responsibility for any damage if the searchlight is in-
stalled incorrectly and/or used improperly. When in doubt consult a qualified electrical techni-
cian.
!
162,5 (6.40)
1. A Mounting the panel
1. A Searchlight installation
125 (4.92)
Ø4,2
(Ø 0.17)
All sizes are in mm (inch)
127 (5.00)
92
(3.62)
90
(3.54)
8 (0.31) / 45°

7Version 0.91 October 2020
Den Haan Rotterdam
Install the electrical wiring according to the wiring diagrams showed on pages 11 - 14. Keep the distance
between the power supply and halogen lamp as short as possible. Long wires will increase a voltage drop
near the halogen lamp, which affects the light output.
ØD
Cable
• Prefered diameter D is 7 - 12 mm (0.28 - 0.47 inch)
• Material: Neoprene H07RN-F
Cable too tight!
This gives unwanted stress at the sealing of the
cable gland and water ingress will occur.
Include cable slack at the entering
point of the cable gland
Replacing cable gland
• Use gasket between housing
and cable gland
• Tighten firmly (6Nm / 4.4 lbfft)
with wrench
Remove the plug before placing the cable.
If no cable is connected, leave the plug in place!
Note
The cable glands on the searchlight prevent water ingress. Do not use (electrical) tape to cover the
cable where it enters the cable gland as this will cause water ingress. Do not use a rubber or shrink-
able cover on the cable gland to improve water tightness.
1. A Cable glands
1. A Electrical installation

8Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
2. SPECIFICATIONS
Control panel
Model PAN2019
Dimensions
Height 105 mm (4.33 inch)
Width 140 mm (4.33 inch)
Weight 0,6 kg (1.32 lb)
Electrical
Voltage 24 VDC -20 /+30%
Maximum wattage 20 W
Fuse Resettable - 3A
Electrical insulation class III
Housing
Front IP65
Back Aluminium, painted black
Operating temperature 0 - 45 °C (32 - 104 °F)
4
3
1 2
Switches
1. “Speed” > to select two speed settings: slow / fast
2. “Beam” > swithing on/off the light source
3. Joystick to control the direction of movement
Potentiometer
4. “Dim” > for adjusting LED intensity of illuminated buttons

9Version 0.91 October 2020
Den Haan Rotterdam
Searchlight
Model 230RCL21
Dimensions
Height 617 mm (24.29 inch)
Width 331 mm (13.03 inch)
Weight 16 kg (35.27 lb)
Electrical
LED-driver 115-230 VAC / 75W
Motor voltage 6-13 VDC
Preferred cable type H07RN-F
Cable diameter Ø 6-12 mm (0.24 - 0.47 inch)
Optics
Mirror Parabolic mirror reflector Ø 230 mm (9.06 inch)
Range 775m (2542 ft)
Adjustable Focus No
² 6° x 6°
Luminous intensity 640.000 cd
LED
Model CLU731
Luminous flux 8.767 lm
Rated LED voltage -
Rated LED wattage -
Average life-time 50.000 h
Color temperature 5000 K
Base -
Heater
Type PTC-heater
Voltage 24VDC
Maximum wattage 70 W
Motor Unit
Tilt + 30° / - 60°
PAN 340°
Max. speed left / right approx. 34°/ sec
Max. speed up / down approx. 3,2° / sec
Housing
Material Chromated seawater resistant aluminium
Finish UV resistant powder coating - White RAL9016
Front glass Hardened front glass
Seals Silicone / Neoprene, black
Cable gland M25x1.5
Operating temperature - 25° / + 40° C
Ingress protection class IP66 c/w Membrane vent

10 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
3. DIMENSIONS
All sizes are in mm (inch)
Control Panel PAN2019
105
(4.13)
140 (5.51)
±50 (2.00) 32 (1.26)
Joystick JOY2011
Ø3
(Ø 0.12)
84 (3.31)
90 (3.54)
60
(2.36)
66
(2.60)
45
(1.77)

11 Version 0.91 October 2020
Den Haan Rotterdam
Bottom View
4 x Ø10 (Ø 0.39)
Searchlight
650
(25.59)
277 (10.91)
162,5
(6.40)
162,5
(6.40)
All sizes are in mm (inch)
Side ViewFront View

12 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
4. PHOTOS

13 Version 0.91 October 2020
Den Haan Rotterdam
Head searchlight
J1
* CAUTION:
Ground is used as return pad when on the end-position switch. Always use the ground
comming from the control panel to avoid unwanted potential differences.
12
13
14
15
16
17
J1-6
J1-4/5
J1-7
-
Ground
+
Up -
-
Ground
+
+
Ground
-
+
Ground
-
Pole
MM2
J1-8
J1-4/5
J1-9
J1-8
J1-4/5
J1-9
-
-Left
Right
J1-6
J1-4/5
J1-7
Motor 1
Down
Motor 2
-
MM1
Terminal
24VDC (for PTC) 11
10
9
8
7
6
1
5
4
3
2
Motor left / right
6 - 13VDC
Motor Up / down
6 - 13VDC
Ground*
Microswitch V3 with roller lever, IP67 sealedS1, S2, S3, S4
COB-LED 70W
LED driver
Terminal block 18 way
Motor 12VDC/6W, gearhead 1:370 (up / down)
Motor 12VDC/6W, gearhead 1:3700 (right / left)
PTC heater 12-24V 30W (self-regulating)
Description
Earth point
Head resisting cable 3 x1,5 - 1,25 m
Cable
Component
X1, X2
M2
M1
G1
D1
J1
PTC
S3
S4
Right
Left
X2
Drum
S2
X1
cable
PTC
S1
Mounting plate
motor house
G1
D1
Up
Down
5. WIRING DIAGRAMS
Internal Connections
!

14 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
External Connections
F2A
Motor left / right
Not used LEDdriver 70W
*110VAC on request
230VAC*
M2
Motor up / down
M1 M1
- +
6-12VDC
NGND GND
NMotor GND NMotor GND
3 x 1,5 mm²
T2A
24VDC
L
LED On/Off
Internal wiring Internal wiring Not used
PTC
Not used
M2
F3A
Joystick
(Four directions
and neutral)
115 / 230 VAC

15 Version 0.91 October 2020
Den Haan Rotterdam
Control Panel PAN2019
15
K1
24
14
24VDC
T2A
115 / 230 VAC
PE L N
1412111098765321
F3A
2313
PTC Heater
Motor up/down
Motor left/right Power LED driver
3 x 1,5 mm²
4 13
J1
1716
5 x 1 mm²
Return path motors
P E
Motor1(-)
Motor1 (+)
24VDC(+) PTC
NEUTRAL
Not Used
DOWN
LINE
UP
LEFT
RIGHT
Motor-GND Motor-GND
24VDC(+) PTC
Not Used Not Used
Motor2 (+)
Motor2 (-)
(AWG 17)
(AWG 16)

16 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005

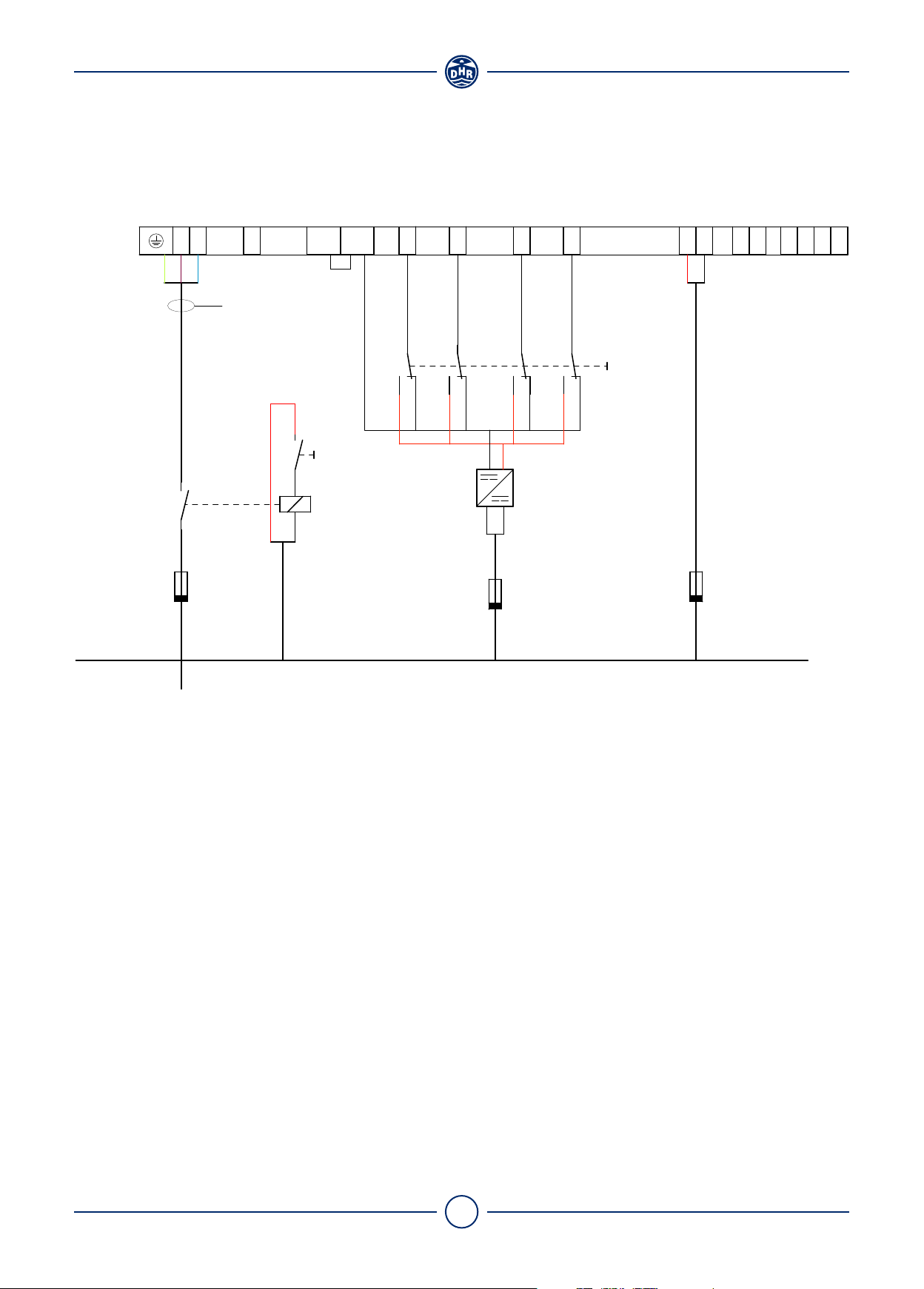

Joystick JOY2011
Remarks:
- To use the Joystick switch-off panel
- Fuses, K1 and S1 not included / to be
ordered separately
15
24
14
24VDC
T2A F4A
S1
PE L N
115 / 230VAC
14
13
PTC Heater Motor up/down
414
Return path motors Power LED driver
23
Motor left/right
56 122138 9 10 1131
13
7
3 x 1,5 mm²
K1
54
136
JOY2011
2
J1
16 17
24/12VDC
5 x 1 mm²

17 Version 0.91 October 2020
Den Haan Rotterdam
6. MAINTENANCE AND CORRECT USE
Tips for correct use
• Do not overheat the searchlight - max. burning time 20 min.
• Switch off the searchlight immediately after use, this increases the life
expectancy of the bulb
• Do not light-up objects closer than 2 metres
• Clean the searchlight regularly with water
• Do not point the light beam at the eyes of humans or animals
Preventive maintenance
Clean the searchlight with clean water regularly. Do not use any aggressive cleaning agents. At least twice
a year rub the dirt wiper, on top of the motor housing (see drawing below), in with silicone grease.
Safety notes
• Handle with care
• Turn off main power
• Warning, lamp is hot
• Do not touch the lamp with bare hands
!

18 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
7. REPLACING OF MOTOR FRAME
Motor frame replacement
1. Switch off the main power
2. Open the backplate of the motor housing
3. Disconnect the power cables connected to the motor frame
4. Unscrew the four (4) bolts to dismount the searchlight from the base structure
5. Unscrew the spindle nut
6. Tilt the searchlight vertically
7. Disassemble the bottom plate
8. Unscrew the (4) bolts and carefully remove the defective motor frame
9. Slowly insert the new motor frame in the motor housing. Be careful not to damage the dirt wiper
located on top of the motor housing
10. Before fixing the (4) bolts of motor frame, the following steps should be taken:
A. Reconnect the power cables
B. Turn the motors left/right and up/down using the controls. This is necessary to settle the motor
frame inside the motor housing
11. Close the motor housing by mounting the bottom plate
12. Reposition the searchlight and mount it on the base structure
13. Fasten the spindle nut. Do not overtighten it!
14. Test the searchlight both in vertical and horizontal directions to ensure that the searchlight is function-
ing properly
15. Searchlight is ready for use
Spindle nut
Bottom plate
Four bolts
Dirt wiper
1
1
2
2
4
3
3
5
Motor frame
5
4
!
!

19 Version 0.91 October 2020
Den Haan Rotterdam
Spare Part
No Description Order code
1 Lampholder COB led 23990010
2 COB led 23990020
3 LED-driver 230V/70W TBA
4 Mirror reflector 230 23990040
5 Front glass 230 23990050
6 Motor frame TBA
7 Control Panel PAN2011
8 Control Panel PAN2019
9 Joystick JOY2011
1
2
8. RECOMMENDED SPARE PARTS
3
4 5

20 Version 0.91 October 2020
Den Haan Rotterdam
Name document: A00DOC-ZL0005
6
9
7
