Dialogic BorderNet 2020 Installation instructions

BorderNet 2020 Hardware Guide
BorderNet 2020 hardware specifications
April 26, 2011
No Doc Number
www.dialogic.com

1. Copyright and Legal Notice
Copyright © 2011 Dialogic Corporation. All Rights Reserved. You may not reproduce this
document in whole or in part without permission in writing from Dialogic Corporation at the
address provided below.
All contents of this document are furnished for informational use only and are subject to
change without notice and do not represent a commitment on the part of Dialogic Inc. and
its affiliates or subsidiaries (“Dialogic”). Reasonable effort is made to ensure the accuracy of
the information contained in the document. However, Dialogic does not warrant the
accuracy of this information and cannot accept responsibility for errors, inaccuracies or
omissions that may be contained in this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH DIALOGIC®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY
INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED
IN A SIGNED AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC ASSUMES NO
LIABILITY WHATSOEVER, AND DIALOGIC DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY, RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS INCLUDING
LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT OF A
THIRD PARTY.
Dialogic products are not intended for use in medical, life saving, life sustaining, critical
control or safety systems, or in nuclear facility applications.
Due to differing national regulations and approval requirements, certain Dialogic products
may be suitable for use only in specific countries, and thus may not function properly in
other countries. You are responsible for ensuring that your use of such products occurs only
in the countries where such use is suitable. For information on specific products, contact
Dialogic Inc. at the address indicated below or on the web at http://www.dialogic.com/.
It is possible that the use or implementation of any one of the concepts, applications, or
ideas described in this document, in marketing collateral produced by or on web pages
maintained by Dialogic may infringe one or more patents or other intellectual property
rights owned by third parties. Dialogic does not provide any intellectual property licenses
with the sale of Dialogic products other than a license to use such product in accordance
with intellectual property owned or validly licensed by Dialogic and no such licenses are
provided except pursuant to a signed agreement with Dialogic. More detailed information
about such intellectual property is available from Dialogic’s legal department at 926 Rock
Avenue, San Jose, California 95131 USA.
Dialogic encourages all users of its products to procure all necessary intellectual
property licenses required to implement any concepts or applications and does not
condone or encourage any intellectual property infringement and disclaims any
responsibility related thereto. These intellectual property licenses may differ from

country to country and it is the responsibility of those who develop the concepts
or applications to be aware of and comply with different national license
requirements.
Dialogic, Dialogic Pro, Dialogic Blue, Veraz, Brooktrout, Diva, Diva ISDN, Making Innovation
Thrive, Video is the New Voice, Diastar, Cantata, TruFax, SwitchKit, SnowShore, Eicon,
Eicon Networks, NMS Communications, NMS (stylized), Eiconcard, SIPcontrol, TrustedVideo,
Exnet, EXS, Connecting to Growth, Fusion, Vision, PowerMedia, PacketMedia, BorderNet,
inCloud9, I-Gate, Hi-Gate, NaturalAccess, NaturalCallControl, NaturalConference, NaturalFax
and Shiva, among others as well as related logos, are either registered trademarks or
trademarks of Dialogic Inc. and its affiliates or subsidiaries. Dialogic's trademarks may be
used publicly only with permission from Dialogic. Such permission may only be granted by
Dialogic’s legal department at 926 Rock Avenue, San Jose, California 95131 USA. Any
authorized use of Dialogic's trademarks will be subject to full respect of the trademark
guidelines published by Dialogic from time to time and any use of Dialogic’s trademarks
requires proper acknowledgement.
Windows is a registered trademark of Microsoft Corporation in the United States and/or
other countries. Other names of actual companies and products mentioned herein are the
trademarks of their respective owners.
This document discusses one or more open source products, systems and/or releases.
Dialogic is not responsible for your decision to use open source in connection with Dialogic
products (including without limitation those referred to herein), nor is Dialogic responsible
for any present or future effects such usage might have, including without limitation effects
on your products, your business, or your intellectual property rights.
Using the AMR-NB resource in connection with one or more Dialogic products mentioned
herein does not grant the right to practice the AMR-NB standard. To seek a patent license
agreement to practice the standard, contact the VoiceAge Corporation at
http://www.voiceage.com/licensing.php

iv
Table of Contents
Dialogic® BorderNet™ 2020 Integrated Multimedia Gateway with BDN_EMS ........ 1
Getting Started....................................................................................................... 2
BorderNet 2020 - Specifications ................................................................................2
Physical Description and Specifications.......................................................................4
Front Panel Interfaces and LEDs .............................................................................. 10
Licensing ..............................................................................................................12
Installing the Hardware .................................................. Error! Bookmark not defined.
Locating the Base MAC Address............................................................................... 15
Space Requirements .............................................................................................. 15
Electromagnetic Interference .................................................................................. 15
Channel Service Units ............................................................................................ 16
Electrostatic Discharge Protection ............................................................................ 16
Installing the 2020 IMG in a Rack ............................................................................17
Installing the Rear Mount Bracket Kit ....................................................................... 18
DS3/OC-3 2020 IMG Grounding Lug ........................................................................ 20
AC Power Cables ...................................................................................................21
DC Power Cables ................................................................................................... 24
Connecting to a Single DC Power Source ..................................................................25
Connecting to a Redundant DC Power Source............................................................ 25
Connecting to the Network ..................................................................................... 27
Cable Specifications ............................................................................................... 28
Cabling Multiple Subnets ........................................................................................ 29
Cabling for Redundancy ......................................................................................... 32

1
2. Dialogic® BorderNet™ 2020 Integrated
Multimedia Gateway with BDN_EMS
Welcome to the WebHelp documentation for the Dialogic®BorderNet™ 2020 Integrated
Multimedia Gateway. The WebHelp documentation provides installation and configuration
information needed to install, setup, and configure the BorderNet 2020.

2
3. Getting Started
BorderNet 2020 - Specifications
Refer to the BorderNet 2020 Product Description Sheet on the Dialogic website for the latest
information on supported protocols, features, and requirements

Getting Started
3
Hardware Limited Warranty
Refer to the following Dialogic web site for information on hardware warranty information,
which applies unless different terms have been agreed to in a signed agreement between
yourself and Dialogic Corporation or its subsidiaries. The listed hardware warranty periods
and terms are subject to change without notice. For purchases not made directly from
Dialogic please contact your direct vendor in connection with the warranty period and terms
that they offer.
http://www.dialogic.com/warranties

BDN_Hardware_Printed_Documentation
4
Physical Description and Specifications

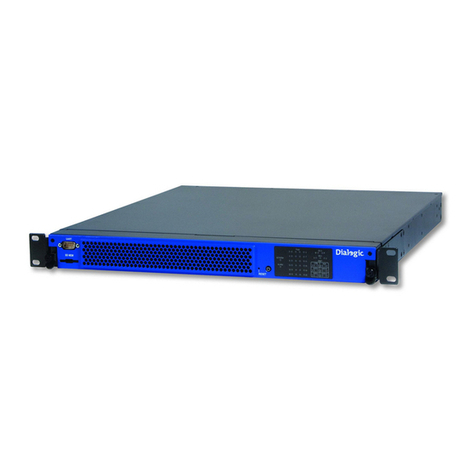

The 2020 IMG is a low profile (1U), rack-mounted system designed to fit into a 482.6 mm
(19-inch) rack. It includes a docking station and a field replaceable tray that mates to the
docking station. The 2020 IMG hardware provides:
Centralized and a distributed architecture
Scalable configurations
Front panel span and alarm status indicators
Rear I/O panel interfaces (host control, network interfaces, redundancy)
Configuration information provided on a sticker on the bottom of the unit ( part
number, revision, serial number, and MAC).
For product declarations and global approval information, see
www.dialogic.com/declarations/default.htm.
The following table provides the 2020 IMG physical specifications:
Physical
Specification
Width
431 mm (16.97 in.)
Height
43.7 mm (1.72 in.) (1U)
Depth
499.6 mm (19.67 in.)
Weight
10.9 kg (24 lb)
The following illustration shows the 2020 IMG dimensions:
Electrical Specifications and Power Requirements
The 2020 IMG is designed to the following electrical specifications:
Power
Specification
AC power
100 - 240 V AC, 60-50 Hz, 2A-1A
DC power
-40 to -60 V DC (-48 V DC Nominal), 6 A

Getting Started
5
Environmental Specifications
The 2020 IMG is designed to work under the following environmental conditions:
Parameter
Specification
Operating temperature
0° C to 50° C
Operating short-term temperature
(96 hours)
-5° C to 55° C
Storage temperature
-40° C to 70° C
Operating thermal shock
30° C/hr
Packaged thermal shock
-40° C to 23° C @ 13° C/min
70° C to 23° C @ 10° C/min
23° C to -40° C @30° C/hr
23° C to 70° C @ 30° C/hr
Operating relative humidity
5% to 90% non-condensing
Operating short-term relative humidity
(96 hours)
5% to 90% non-condensing
Packaged relative humidity
90% to 95% non-condensing
Altitude
Up to 3962 m (13,000 ft)

BDN_Hardware_Printed_Documentation
6
Power and Fan Control
When the tray is fully seated in the docking station and the main board receives a fully
seated signal from the docking station, the power ramps up. If a fault is detected by the
CPU, the main board shuts down.
The 2020 IMG uses the fans on the front of the panel to draw air into the unit to cool the
main board and the I/O board. The air exhausts out of vent holes on the side and rear of
the docking station.
The fans connect directly to the main board and are fused and controlled by a fan controller
on the main board. The main board also provides temperature sensors that monitor
temperature at strategic locations on the board. When the fan controller detects a
temperature overage, the fans increase their speed. For example:
If one fan fails, the remaining fans increase speed to full on to supply the required
cooling.
If any of the temperature sensors detect an over temperature condition, the fans
increase speed to full on to supply the required cooling.

Getting Started
7
Unpacking the 2020 IMG
Complete the following steps to unpack the 2020 IMG:
1. Open the shipping box and remove the packing list.
2. Review the packing list to verify that it matches what was shipped with your order. If
discrepancies exist, contact a Dialogic sales representative.
3. Remove the protective cover and carefully lift the 2020 IMG from the shipping box.
4. Inspect the 2020 IMG and contact a sales representative if it is not what you
ordered.
Retain the original packaging for shipping the system. If you do not need the packaging,
recycle both the corrugated cardboard and polyethylene foam. For information and
procedures specific to your area, contact your local recycling facility.

BDN_Hardware_Printed_Documentation
8
Rear Panel Interfaces and LEDs
The following illustration shows the rear panel interfaces on the DS3/OC-3 2020 IMG:
Connector
Description
CTRL 0, CTRL 1
10/100/1000
(Ethernet control)
Redundant 10/100/1000BaseT Ethernet connectors
providing secure communication with an external host or
device.
Auto-negotiating, full-duplex connectors that support MDIX
(cable crossover), eliminating the need for crossover
cables for point-to-point communications.
Base MAC is always assigned to CTRL.
AUX 0, AUX 1
Reserved for future use.
DATA 0, DATA 1
10/100/1000
(Ethernet data)
A0, A1
B0, B1
C0, C1 (if present)
D0, D1 (if present)
Redundant 10/100/1000BaseT Ethernet connectors
providing an interface to the internal Ethernet switch.
Used to communicate to all 2020 IMG devices that
communicate over the public network.
Auto-negotiating, full-duplex connectors that support MDIX
(cable crossover), eliminating the need for crossover
cables for point-to-point communications.
Interface DATA A is reserved for both RTP traffic and IP
signaling.
Interface DATA B is reserved for IP signaling only.
Interface DATA C is reserved for future use.
Interface DATA D is reserved for future use.
T1/E1
RJ-48 connectors available to support T1/E1 interfaces:
DS3/OC-3 I/O: 0 - 3 T1/E1 spans
Redundancy
(1+1 T1/E1
redundancy)
Reserved for future use.

Getting Started
9
DS3
75 ohm BNC connectors supporting three DS3 links.
OC-3
Small form factor pluggable optical modules. 1+1 auto-
protection switching (APS) providing full link redundancy and
hitless switchover in case of line failure.
Ethernet LEDs
RJ-45 Ethernet connectors containing one Ethernet status LED:
Green/blinking green:
1000Base-T link present/1000Base-T activity
Orange/blinking orange:
100Base-T link present/100Base-T activity
Power supply LEDs
Indicate the power supply status:
Off = No power to both power supply units.
Flashing red with audible alarm = No power to one of the
redundant supplies
Green = AC present. Only standby output on.
Blue = DC power supply on and OK.

BDN_Hardware_Printed_Documentation
10
Front Panel Interfaces and LEDs
The following illustration shows the front panel interfaces and LEDs:
Connector
Description
UART
Universal asynchronous receiver/transmitter. Requires a null
modem serial cable for PC connection. Used for local access
when IP connectivity is unavailable.
SD MEM
SD memory card slot.
RESET
System soft reset.
ACT/STBY
Reserved for future use. LED will be off.
ALARM
Indicates if the 2020 IMG is in an alarmed condition:
Off: No alarms raised.
Yellow: At least one minor alarm raised
Red: At least one major alarm raised
Blinking red: At least one critical alarm raised.
T1/E1 (0 to 23)
Green: Signaling and framing present
Yellow: Remote alarm indicator
Red: No signaling and framing
OC-3 (W and P)
Green: Signaling and framing present
Yellow: Remote alarm indicator
Red: No signaling and framing
DS3 (0 to 2)
Green: Signaling and framing present
Yellow: Remote alarm indicator
Red: No signaling and framing

Getting Started
11
ENET (CTRL, AUX,
DATA A, DATA B,
DATA C, DATA D)
Green: Link present and active connection
Yellow: Link present and standby connection
Off: No link

BDN_Hardware_Printed_Documentation
12
Licensing
The 2020 IMG requires a license to use various functions including SS7 Signaling, ISDN
Signaling, and VoIP. The licenses are distributed by email when a 2020 IMG is purchased.
Each license will unlock different functionality and the licenses are sold in different
increments to address each customer needs. After receiving the license, transfer the license
to the /opt/dialogic/common/license directory.
File Format
The license file supplied contains a unique number which is derived from the serial number
of the I/O on the 2020 IMG and a 12 bit unique number embedded in the hardware. The
format of the file includes an eight digit serial number (NNNNNNNN) followed by a
timestamp (YYYYMMDDhhmmss).
NNNNNNNN_YYYYMMDDhhmmss.cfg
If the license is renamed or altered, it will become unusable.
Downloading the license
1. Before transferring new license to license directory, rename any existing licenses
already loaded. For example, an existing license could have the _old extension added
to it. (Ex. 12345678_20100726043030_old.cfg)
2. Transfer new license as a dialogic user to the /opt/dialogic/common/license
directory.
3. Open ClientView and Right-click the node being queried and select Licensing Info
and click on commit.
4. The License Info pane appears. Click Download Node License. The license is then
configured onto the 2020 IMG and the license Info page now displays the new license
specifications.
Note: The license is downloaded based on the serial number and a unique number
embedded in the hardware. If a license other than the license intended for this machine is
sent to the 2020 IMG, the license will not download. It has to be specifically created for this
machine's serial number and unique number. If license is renamed or in any way altered, it
will become unusable.
Viewing License Information
Use the License Info page to view page status
Evaluation License
Evaluation licenses expire after a specified number of days. The License Expiration Info
field within the Licensing pane indicates the date and time the evaluation license will expire.
Licenses that are not designated as evaluation licenses will display Does not expire.
Seventy-two hours before an evaluation license is set to expire, an EventView alarm
displays the number of hours remaining on the evaluation license.

Getting Started
13
License Validation Failure
The following icon displays on the Physical Node object in the WebUI page tree:
A license validation has failed. Verify the serial number for license is serial
number of 2020 IMG. See License Info page.
Licensed Components
License
Description
License Expiration Info
Licenses generated for the 2020 IMG do not expire
unless the license is generated as an evaluation license.
If the license considered an evaluation license then the
Date and Time the license expires is displayed
Note: Licenses do not expire unless the license is
configured as an evaluation license.
System Software
System Software License is needed on all 2020 IMG's
and is specific to the software build. A basic System
Software License includes a default 1024 DSP Resources.
Security ID
The security ID is a code embedded in the ROM of the
2020 IMG. Each license generated must have the code
embedded in the license file for the system to work.
SS7_Base
Must be loaded on license file if SS7 stacks are going to
be configured.
SS7_TCAP_TRANSACTION
Up to 2500 TCAP transactions/second in 100
transactions/second increments can be licensed.
SS7_LINK
Links are licensed in 2 link pairs, up to 64 links.
SS7_ISUP_PORT (CIC's)
Up to 2016 Ports can be licensed.
M3UA AS
Up to four M3UA Application Server stacks can be
licensed per 2020 IMG. Licenses are created in one stack
increments.
M3UA SG
Up to four M3UA Signaling Gateway stacks can be
licensed per 2020 IMG. Licenses are created in one stack
increments.
M3UA Link/Association
Up to 64 associations can be licensed. Licenses are
created in 2 step increments.
ISDN_Ports
Up to 2016 ports can be licensed for ISDN B channels.
See table below.
TDM_Ports
There are a total of 2016 TDM ports available to be

BDN_Hardware_Printed_Documentation
14
licensed. When initially purchasing the 2020 IMG, the
licenses are sold as 1 DS3, 2 DS3's, or 3 DS3's. Once the
initial license bundle is created, the TDM ports can then
be licensed in 32 port increments. Table 1 below displays
the increments that the licenses are created.
VoIP_Ports
If the 2020 IMG has two VoIP modules installed, there
are a total of 2016 VoIP Ports. Channels are assigned to
each module in groups of 32. For example, if the 2020
IMG is licensed for 96 VoIP channels, 64 will be on the
first module and 32 will be on the second module. The
Maximum number of VoIP ports that can be licensed is
2016.
Note: The 2020 IMG has a maximum port density of
2016 VoIP ports. This is true for all codecs except the
AMR codec. The maximum port density when using AMR
codec is restricted to 1560 ports.
AMR Codec License
The maximum number of VoIP ports using the AMR
codec is restricted to 1560 ports.
DSP_Resource Points
All 2020 IMGs comes fully licensed with 6144 DSP
Resource Points.
Secure Communications
The secure communication license adds the ability to
configure TLS and then SRTP for secure SIP
communication. With this license, both SIP signaling and
SIP RTP will be encrypted.
Switchkit Node
The Switchkit®_Node license will allow the BDN EMS to
communicate with the 2020 IMG.
Note: When licensing remote CICs, each remote node must have an SS7_ISUP port license
that equals the number of CICs needed on the remote node.
Note: When configuring SS7 redundancy, both the Active 2020 IMG and its Peer/Redundant
node must have an SS7 Base license. The Base license allows stacks and links to be created
on the Peer/Redundant node.

15
Pre-Installation Considerations
The 2020 IMG has the following location requirements:
2020 IMG
Location requirements
-48 V DC
Restricted area, such as a dedicated equipment room or limited
access office with access only by trained personnel.
120/240 V AC
Does not have to be in a restricted area. Can be located in a clean
and well-ventilated office space.

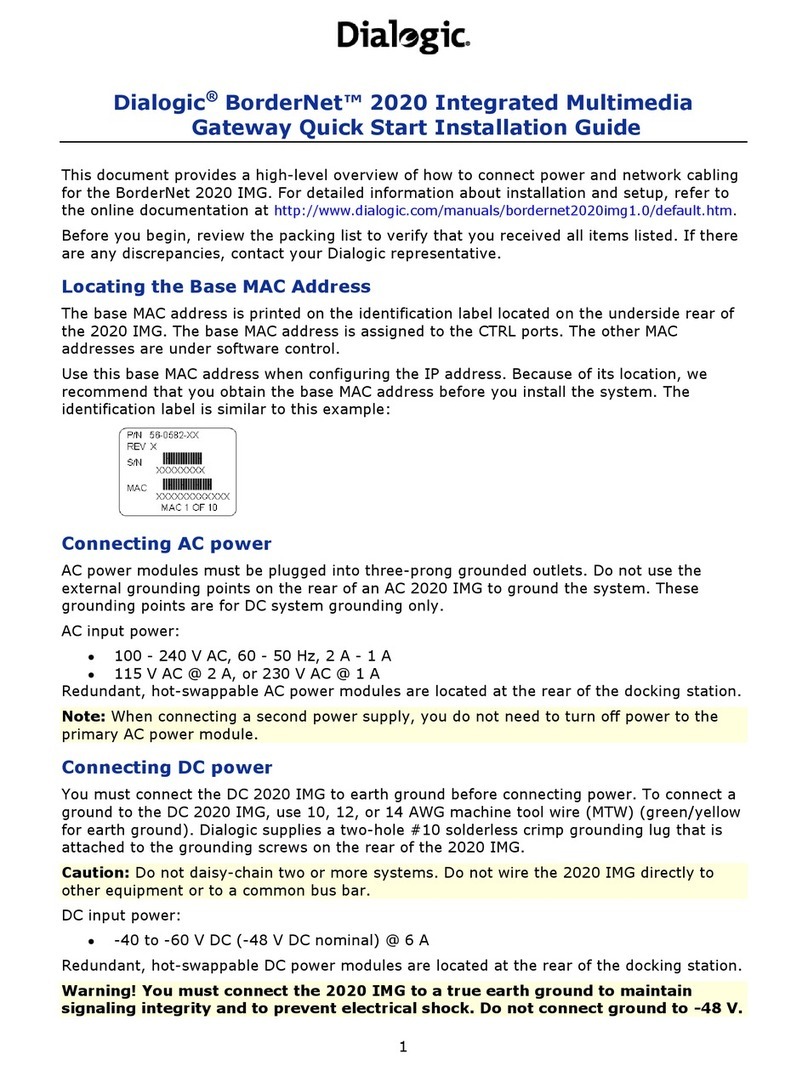

Locating the Base MAC Address
The base MAC address is printed on the identification label located on the underside rear of
the 2020 IMG. The base MAC address is assigned to the CTRL ports. The other MAC
addresses are under software control.
Use this base MAC address when configuring the IP address. Because of its location, we
recommend that you obtain the base MAC address before you install the system. The
identification label is similar to this example:
Space Requirements
Allow approximately 76 cm (2.5 ft) of space in front of the 2020 IMG for removing and
maneuvering it with ease. Leave enough room so that air flow to the fans at the front and
the vent holes at the side and rear are not obstructed. Do not put the 2020 IMG inside a
cabinet with closed doors unless you can provide sufficient ventilation inside the cabinet.
The operating ambient temperature may exceed room temperature in an enclosed
equipment rack.
Caution: When installing the 2020 IMG, do not block the fans at the front as this will cause
the unit to overheat.
Electromagnetic Interference
Electromagnetic interference (EMI) can affect the performance of your system. When
selecting cables, keep the following information in mind:
Shielded cables prevent outside electrical interference and drains off any induced
current.

BDN_Hardware_Printed_Documentation
16
Twisted wire reduces induction, and thus interference, from one wire to the other.
Varying the length of twists reduces the potential for signal interference between
pairs.
Twisted pair wiring is available in various thicknesses. Thicker cable covers longer
distances and provides better sound quality, but it is more expensive.
Channel Service Units
A channel service unit (CSU) connects a digital phone line (T1/E1) from the telephone
company to a digital communications device. CSUs are required between all
telecommunications ports and the network to provide necessary linking capabilities such as:
Line conditioning for long haul transmissions
Remote loopback
Equalization
Regeneration and monitoring of digital signals
Digital circuit testing
Protection from outside lines
Electrostatic Discharge Protection
Always use electrostatic discharge protection when working with electronic components.
This protection includes electrostatic discharge (ESD) protective straps, shoes, or mats.
Caution: Electrostatic discharge from your body can damage integrated circuits during
installation.
