Diamondback 910IC User manual

2

910Ic Owner’s Manual
3

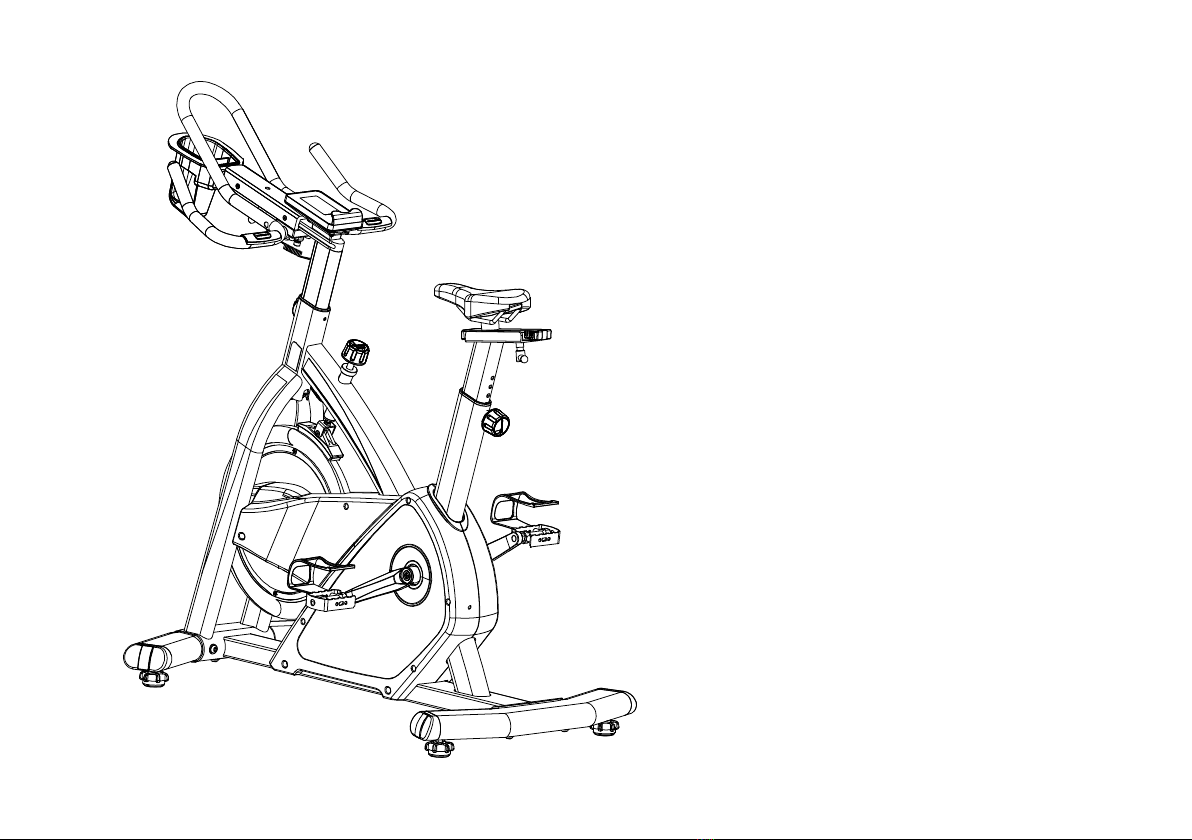

910Ic
Indoor Cycle

4
TABLE OF CONTENTS
Introduction ................................................5
Safety Instructions & Warnings ...............................6
Carton Contents ............................................8
910Ic Assembly Instructions..................................9
Final Installation & Setup ....................................13
Workout Guidelines .........................................14
Workout Quality & Quantity ..................................17
Console Overview & General Notes ...........................19
Console Keypad Funtion.....................................19
Console LCD Display ........................................20
Console Operation ..........................................21
Troubleshooting ............................................26
Maintenance ...............................................27
Warranty Information ........................................28
Purchaser’s reference Information ............................31

910Ic Owner’s Manual
5
Congratulations on the purchase of your new Diamondback Fitness computer-controlled indoor cycle. You have made a great choice and are
about to enjoy one of the most eective and technically-advanced methods of low-impact cardio-vascular exercise available today.
Founded in 1991 as an o-shoot of the legendary bicycle company, Diamondback Fitness was in many ways a complimentary addition to the
Diamondback brand. One might even say this extension grew as a natural evolution...an evolution from classic outdoor bicycle usage, toward
indoor-based cycling and cross training. It turns out that many fitness enthusiasts were searching for ways to maintain conditioning during times
of inclement weather or simply looking for new and dierent cross-training options.
This trend still continues today, twenty years later, as the strong Diamondback brand resonates with both the boomers who grew up with the
bicycles, as well as the younger generations riding them today.
Diamondback Fitness continues to build upon this legendary brand identity by oering the cardio enthusiast a full line of upright exercise bikes,
recumbent cycles, and elliptical trainers, each oering superior value and quality with intuitive and visually-appealing design. Let’s just say, we
are already planning our next twenty years.
Thank you for choosing Diamondback Fitness.
For more information or questions regarding your equipment, please visit our website at www.diamondbackfitness.com.
INTRODUCTION

6
Every piece of Diamondback Fitness equipment is built for maximum safety and meets or exceeds all applicable domestic and international
standards. However, certain precautions must be taken when operating any piece of fitness equipment.
NOTE: Please read the entire owner’s manual before operating the unit. Save this manual for future reference.
Cautions – For Safe Operation
• Keep hands and feet away from all moving parts and pinch points.
• If you have a history of heart disease, high blood pressure, diabetes, chronic respiratory diseases, elevated cholesterol, or if you smoke
cigarettes or experience any other chronic diseases or physical complaints, consult with a physician before beginning any exercise
program.
• If overweight or above the age of 35, consult with your physician before beginning an exercise program.
• Pregnant women should consult with their physician before beginning an exercise program.
• If you experience dizziness, nausea, chest pains or other abnormal symptoms during exercise, stop the exercise session immediately and
consult your physician.
• Consume water before, during and after each exercise session.
Warnings – To Reduce the Risk of Injury to Yourself and Others
• To ensure proper functioning of your unit, do not install attachments or accessories not provided or recommended by Diamondback
Fitness.
• Always wear proper clothing and shoes when exercising.
• User weight is not to exceed 325 pounds (147.4 Kg) for the 910Ic.
• Keep children away from the unit. Hands and feet may become entangled with the moving parts and could result in serious injury.
SAFETY INSTRUCTIONS & WARNINGS

910Ic Owner’s Manual
7
• Place the unit in an area that will meet minimum clearance requirements:
front & sides = 24 inches (61cm)
rear = 12 inches (30.5cm)
• The unit is intended for indoor use only.
• Place the unit on a solid, level surface. Always adjust the leveling feet before using to ensure stability.
• Ensure all adjustment knobs and levers are fastened securely before using the unit and after making an adjustment.
• Use the handlebars when stepping on and o the unit.
• The unit is heavy. Do not attempt to move alone.
• Never operate the unit if it is damaged or broken. Contact your local authorized Diamondback Fitness Dealer for service.
• Please unplug the unit after exercising.
• Always unplug the unit from the power source before moving or servicing.
• Do not remove the covers or other components. Only Authorized Diamondback Fitness Dealers or Authorized Technicians should perform
service on the unit.

8

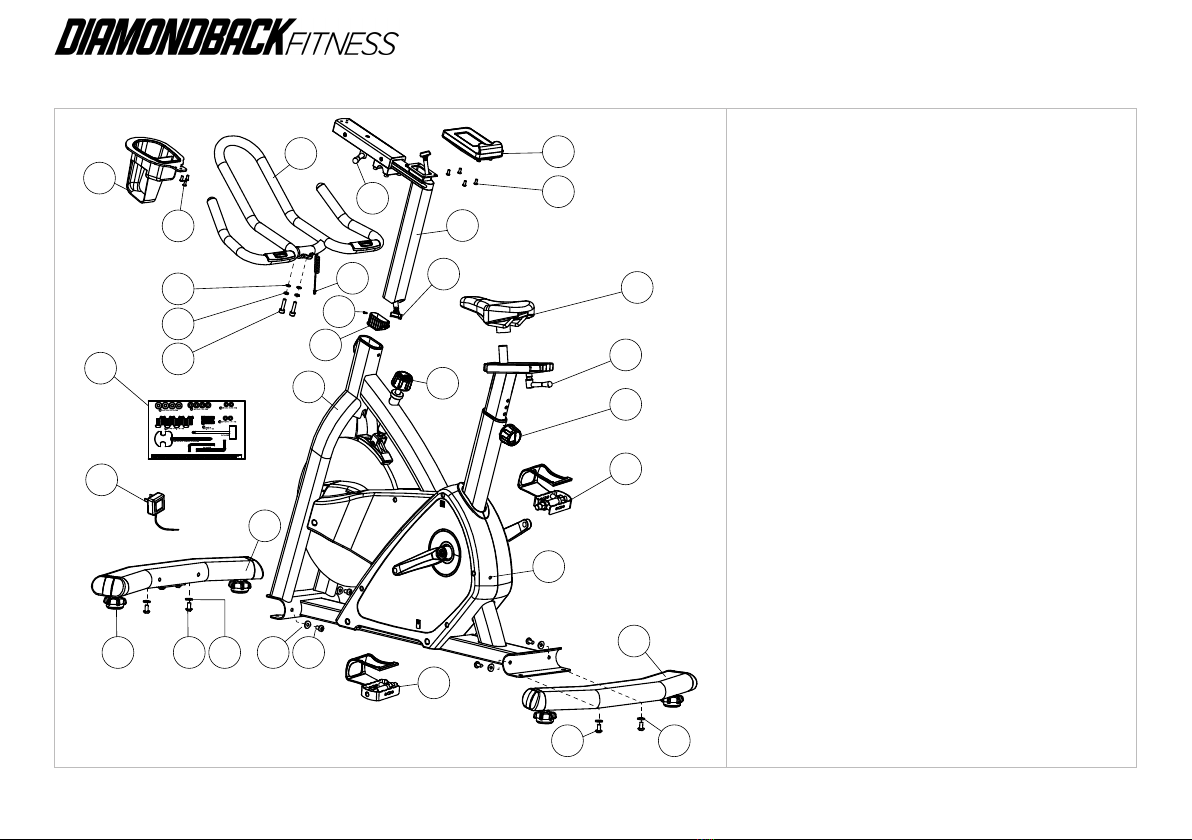

CARTON CONTENTS
B-15
B-13
H-6 L
A
A-1
B-19
B-17
B-4
B-23
B-20
B-1
G
B
M-1
F-R
F-R
B-4
G-6
C
F-16
H-5
H-4
H
N
D
H-1 H-3 H-2 H-1D-2
H-1 H-3
Item Description Qty
A Console 1
A-1 Console Fixing Screw 4
B Handlebar Assembly 1
B-1 Handlebar Assembly Endcap 1
B-4 Fore-Aft Adjustment Lever 2
B-13 Water Bottle Cage Fixing Screw 3
B-15 Water Bottle Cage 1
B-17 Wire Harness (Upper) 1
B-19 Stem Assembly 1
B-20 Handlebar Assy Endcap Fixing Screw 1
B-23 Pulse Wire 1
C Rear Stabilizer Assembly 1
D Front Stabilizer Assembly 1
D-2 Leveling Foot Assembly 4
F-16 Power Input Jack 1
F (L&R) Pedal, Clip & Strap Assembly (pair) 1
G Main Frame 1
G-6 Stem/Seat Post Adjustment Knob 1
H Assembly Hardware / Tool Kit 1
H-1 Stablizer Assembly Fixing Screw 8
H-2 Stablizer Assembly Curved Washer 4
H-3 Stabilizer Assembly Flat Washer 4
H-4 Handlebar Assembly Fixing Screw 2
H-5 Handlebar Assembly Lock Washer 2
H-6 Handlebar Assembly Flat Washer 2
L Saddle 1
M-1 Emergency Stop Knob 1
N Power Supply/Adaptor 1

910Ic Owner’s Manual
9
910IC ASSEMBLY INSTRUCTIONS
H-1 H-3
H-1 H-3
C
D H-2 H-1
H-1 H-2
• Unpack the 910Ic from the carton. Please recycle.
• Verify the carton contains all parts from the list.
• Remove the blocking (the short section of tubing installed at the
factory to prevent damage to the front frame during shipping) by
removing the two fixing screws shown in Figure 1 above. Discard
this piece.
• Align the front stabilizer (D) with the receiver located in the front
of the frame, and loosely install four (4) H-1 bolts, two (2) curved
washers (H-2) and two (2) flat washers (H-3), making sure that the
correct shape of washers are installed on their correspond ving
surface profile; i.e. flat washer on the flat surface, etc. When all bolts
have been inserted, tighten for final installation.
• Repeat this process for the rear stabilizer assembly (C).

10
B-19
B-17
G-16
L
F-R
F-L
• Insert the stem assembly (B-19) into the
receiver on the main frame, paying care not
to pinch the wire harness connector (B-17).
• Loosen the stem height adjuster knob (G-16)
with two or three counter-clockwise rotations.
Adjust the stem/handlebar assembly to the
lowest position by pulling outward on the
knob to disengage the pop-pin. If the stem
assembly does not drop, loosen the knob
further and pull outward on the knob again.
Repeat these steps again if necessary.
• Tighten adjuster knob (G-16) to lock the
assembly in the lowest position.
• Install the saddle (L) onto the seat post and
tighten with the included wrench.
• Install the pedals (F-L & F-R) onto the
cranks by threading the left pedal by hand
(marked with an “L”) into the left crank with a
counter-clockwise rotation. Do not cross-
thread the cranks/pedals. The pedal must
be tight and installed completely to prevent
future damage to the cranks.
• Repeat the pedal installation steps for the
right side, noting that the pedal will thread
into the right crank with a clockwise rotation.

910Ic Owner’s Manual
11
B
B-15
B-13
B-13
H-6
H-5
H-4
B-19
B-25
B-23
A-1
B-17
B-23
A-1
A

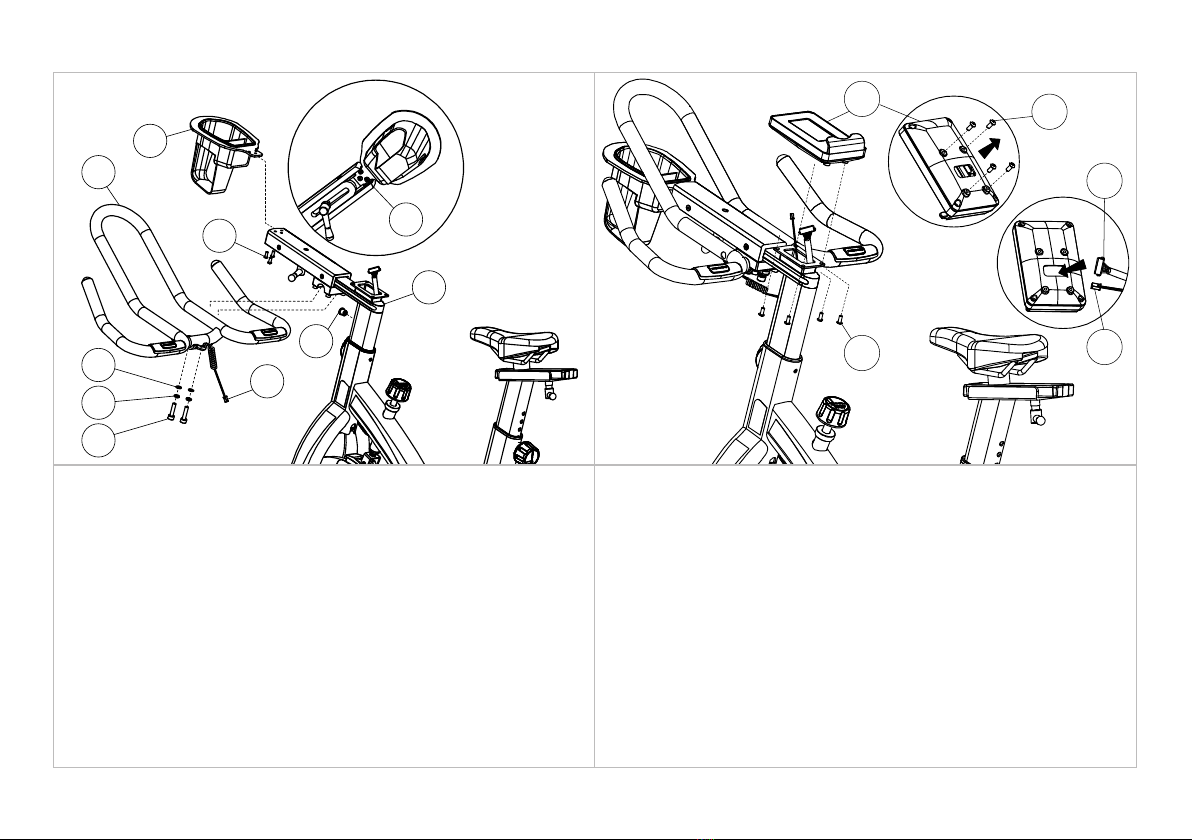

• Attach handlebar (B) to the underside of the stem assembly (B-19)
with the two (2) stem fixing bolts (H-4), two (2) lock washers (H-5)
and two (2) flat washers (H-6). Make the final angle adjustment
before fixing the bolts firmly.
• Completely Remove stem wire retaining cap (B-25). Insert pulse
wire (B-23) into the stem assembly and feed wire up until it appears
next to the upper wire harness connector. Reinstall retaining cap.
• Attach the water bottle cage assembly (B-15) to the underside of
the stem assembly (B-19) with the three (3) Phillips fixing screws
(B-13). Thread all screws into place loosely before performing final
tightening.
• Remove the four console fixing screws (A-1) from the back of the
console (A) and set them aside.
• Plug the upper wire harness connector (B-17) and pulse wire (B-23)
into the back of the console (A). Make sure the connections are
complete.
• Position the console above the mounting plate located on the top
on the stem assembly (B-19). Reinstall the four (4) fixing screws
(A-1) through the underside of the plate and into the console.
Tighten the four screws only after all four have been started by hand.

12

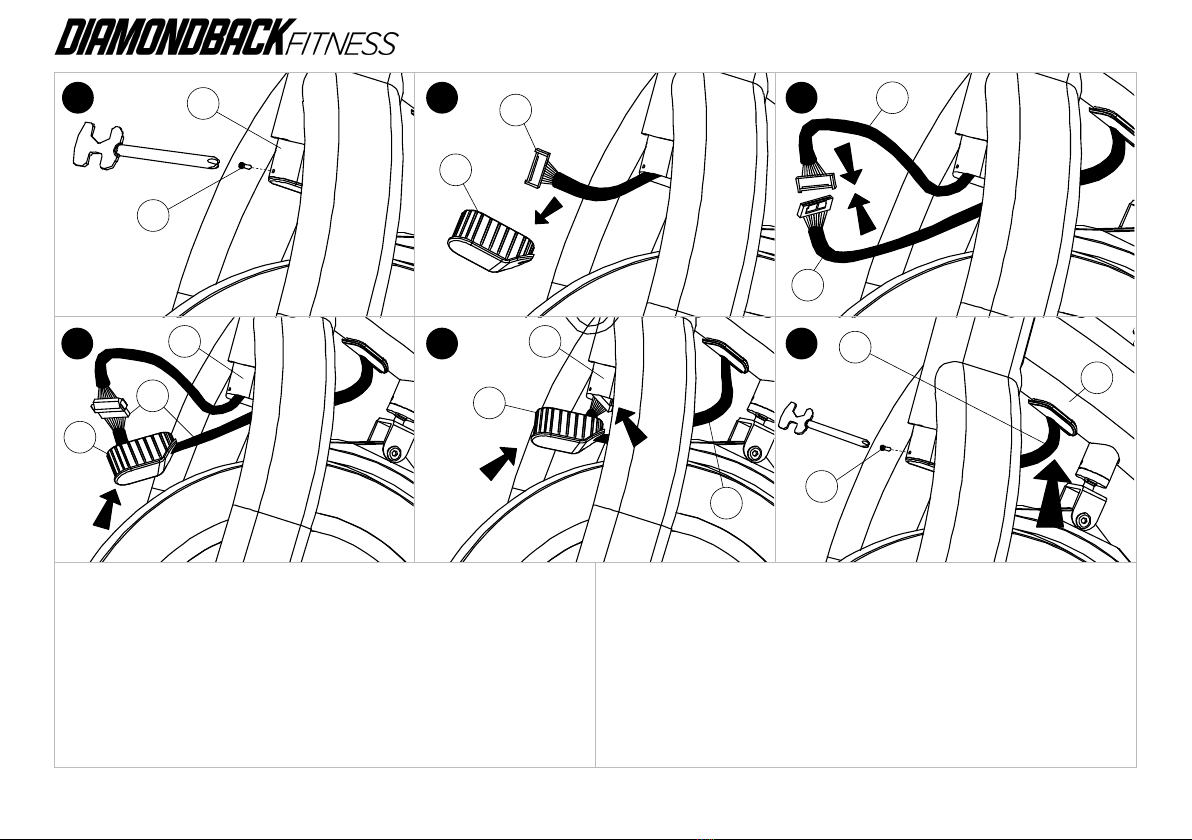

• Remove the endcap fixing screw (B-20) from the bottom of the
handlebar assembly (B-19), set aside.
• Pull the endcap (B-1) from the bottom of handlebar assembly.
Completely separate the endcap from the console wire (B-17) using
the slot opening and set aside.
• Connect B-17 to wire harness connector G-9, taking care to ensure
the connection is firm.
• Take the endcap (B-1) from previous step and using the slot
opening, attach it to the G-9 wire exiting the main bike frame.
• Push the wire and connection up into the handlebar assembly
(B-19), followed by the endcap (B-1).
• Reinstall the endcap fixing screw (B-20). Push any remaining G-9
wire slack into the main bike frame (G).
B-20
B-19
B-20
G-9
G
B-17
B-1
B-1
B-19
G-9
B-1
B-19
G-9
G-9
B-17
1 2 3
4 5 6

910Ic Owner’s Manual
13
FINAL INSTALLATION & SETUP
B-4
G-16
G-6
F-16
D-2
B-4
M-1
N
• Moving and Positioning the Unit. Move the 910Ic into the desired
final position by carefully raising the rear end of the unit until the
wheels located in the front stabilizer contact the floor. Leave room
around the unit for safe operation and sucient air flow.
• Leveling the Unit. Level the unit by rotating the four leveling
feet located in the stabilizer bars. Lock the feet into position by
tightening the jamb nut upward, against the frame.
• Final Adjustments – Up/Down. Raise and lower the stem and
handlebar assemblies by loosening the adjuster knobs (G-16)
with a couple of counter-clockwise rotations. While supporting
the assembly, pull the knob outward, away from the frame, to
disengage the pop-pin. Raise or lower the assembly as desired,
releasing the knob to reengage the pop pin. Tighten the knob to
lock the assembly in place.
• Final Adjustments – Fore/Aft. Fore-aft adjustment for the seat and
handlebar are made by loosening the levers (B-4) located under
the assemblies. Rotate the lever to the left to loosen. If the lever
movement in inhibited by the frame or other components, pull the
lever downward to reposition the lever and release. Continue to
loosen. Only ⁄ turn should be required to loosen or tighten the
levers. Position the seat and handlebar slides and secure the levers.
• Charge the Unit. Plug one end of the power adaptor/charger (N)
into a 120V power source. Plug the opposite end into the power
input jack (F-16) found on the rear end of the plastic housing.

14
WORKOUT GUIDELINES
Good Health is an Exercise in Common Sense
In the study titled, “The Surgeon General’s Call To Action To Prevent and Decrease Overweight and Obesity”, the surgeon general indicates that
61% of American adults are either overweight or obese. The study indicates that being overweight increases the risk of health problems, such as
heart disease, certain types of cancer, as well as Type-2 diabetes among other aictions.

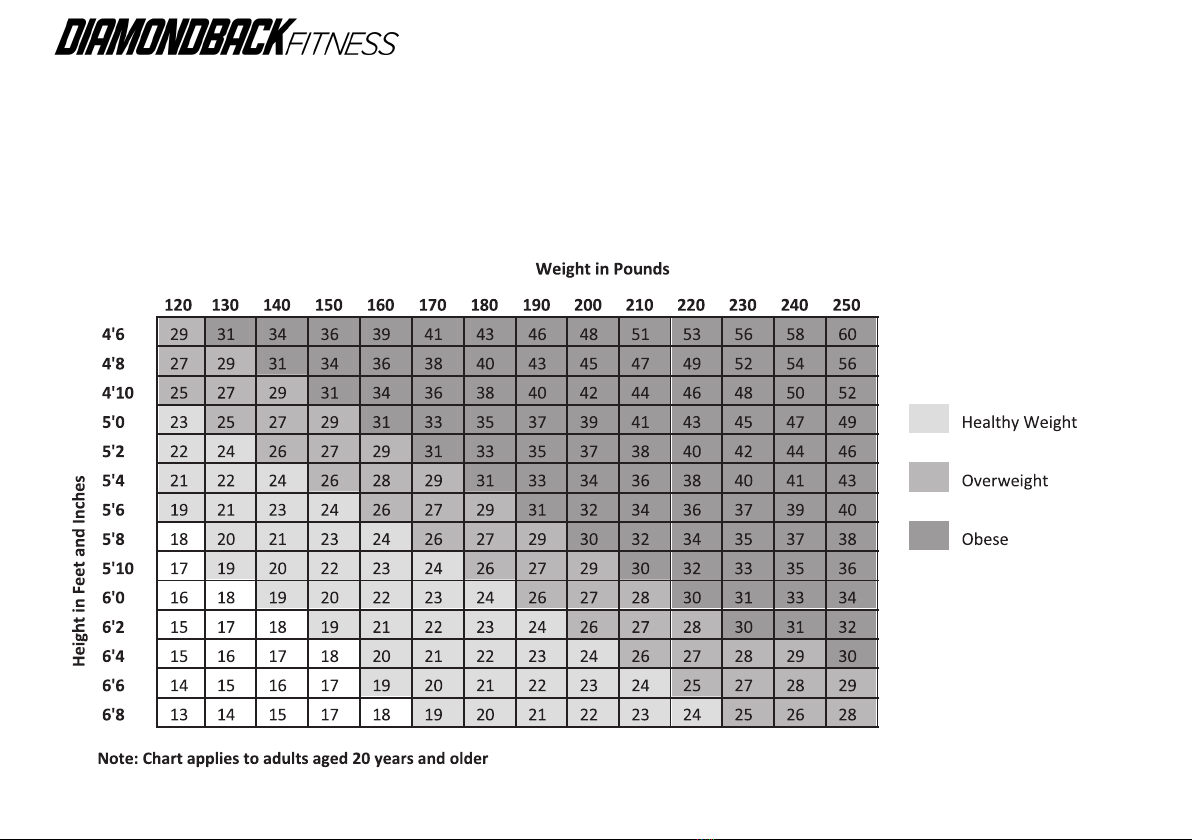

Body Mass Index; BMI = (weight (lb) ÷ height2(in)) x 703

910Ic Owner’s Manual
15
Heart Rate is an Important Key to Your Exercise
The Surgeon General also released a report on physical activity and health. This report dictates that exercise and fitness are beneficial for a
person’s health and reiterated the need for exercise as a key component for disease prevention and healthier living.
The best way to determine exercise intensity is to monitor your pulse rate. Your heart rate can easily be determined by counting the number of
heart beats per minute at the chest, wrist or the carotid artery on your neck. It is dicult however to count your own pulse while exercising as it is
not possible to count fast enough to accurately track the number of beats per minute. This Diamondback Fitness unit is equipped with a wireless
heart rate receiver.
Using the Wireless Heart Rate Receiver
A wireless telemetry heart rate receiving system is one feature found on this unit. In order for the console to detect and display your heart rate,
four (4) conditions must be present:
A compatible heart rate chest strap transmitter (not included) must be functioning and worn. For proper function of the chest strap, please refer to
the manufacturer’s instructions. Non-coded transmitters such as the Polar model T31 and T34 are examples of wireless chest straps known to be
compatible with this unit.
The unit must be powered on.
A workout program must be running.
The user is within three (3) feet of the console.
In general, a wireless heart rate chest strap is the most accurate and convenient method of detecting and monitoring a heart rate signal and is a
considerable upgrade from the touch type heart rate sensors. Occasionally, certain factors can negatively aect the accurate transmission of the
heart rate signal. WiFi networks, cordless telephones and large electrical appliances may degrade or corrupt the signal so that the rate appears
erratic or impossibly high. The only remedy for such a symptom is to isolate the unit from potential disturbances. Additionally, a person’s body
chemistry or lack of perspiration can prevent the chest strap from providing a strong or accurate heart rate signal. Always follow the chest strap
manufacturer’s instructions and recommendations.

16
Calculated Maximum Heart Rate & Target Training Zone
Your calculated target heart rate, or the ideal intensity needed to improve
cardiovascular fitness, depends primarily upon your age rather than your
current state of fitness. If the exercise intensity is too low or too high, only
modest gains will be made in strength and cardio-vascular fitness. A workout
at a very low intensity will not oer maximum benefits. Conversely, if the
workout intensity is too high, injury or fatigue may slow the progression of your
exercise goals as the body attempts to recover.
Note: It is most eective to train at a heart rate between 60%
and 85% of your maximum heart rate. Maximum heart rate
is calculated as a percentage of your maximum heart rate
(estimated as 220 beats-per-minute minus your age).
To calculate your maximum heart rate and find the appropriate target training
zone, use the following formulas. For example, the following estimation would
be relevant for a 35 year-old user:
• 220 – 35 = 185 Bpm (220 – Age = Calculated Maximum Heart Rate in Beats-per-minute/Bpm)
• 0.60 x 185 = 111 Bpm (60% of 185 BPM [Calculated Maximum Heart Rate] = 111 Bpm)
• 0.85 x 185 = 157 Bpm (85% of 185 BPM [Calculated Maximum Heart Rate] = 157 Bpm)

910Ic Owner’s Manual
17
Based on these calculations, the recommended heart rate training zone for this user would be between 111 Bpm ñ 157 Bpm. The graph below
displays the recommended heart rate training zone for users twenty years of age to seventy-five years of age.
WORKOUT QUALITY & QUANTITY
It is recommended that you accumulate at least thirty (30) minutes of physical activity most days of the week. The American College of Sports
Medicine makes the following recommendations for the quantity and quality of training for developing and maintaining cardio-respiratory fitness
in healthy adults:
• An activity that uses large muscle groups, maintained continuously, and is rhythmical and aerobic in nature.
• Duration: 20 to 60 minutes of continuous aerobic activity, including a warm-up and cool-down period for each session.
• Frequency: 3 to 5 times per week.
• Intensity: 60% to 85% of maximum heart rate.
In addition to aerobic exercise, strength training of moderate intensity twice per week is recommended. Women especially may benefit from
weight-bearing exercises. Select activities you enjoy and can fit into daily life. Having Diamondback Fitness equipment at home oers you the
opportunity to work out without going to the gym.

18
Get a Smart Start on Exercising
Anyone over the age of 35, as well as younger persons whom are overweight, should check with his/her physician before commencing an exercise
program. Persons who have diabetes or high blood pressure, a family history of heart disease, high cholesterol or have led sedentary lifestyles
should protect themselves with a medical check-up and stress test administered by a healthcare professional.
• Stretching and massaging major muscles (such as your quadriceps) following a workout session will aid in the dissipation of lactic acid and
speed your body’s recovery.
• The first few minutes of your workout should be devoted to warming up the muscles before a vigorous workout. Concentrate on raising your
heart rate slowly.
• After an aerobic workout of roughly 20-30 minutes, spend 10 minutes gradually reducing your heart rate by moving slower or with less
resistance.
NOTE: Start slow, with intensity low until you build up endurance and strength. Always consult your physician
before beginning any exercise program.

910Ic Owner’s Manual
19
CONSOLE OVERVIEW & GENERAL NOTES
A primary feature of the 910Ic is the ability to control and monitor the user’s workout program via the brilliant LCD console. At any time, the user
may view their speed, RPM, elapsed time, distance, Watts, calories and pulse rate.
To provide power to the display console and computer, begin pedaling at a rate exceeding fifteen (15) revolutions per minute. The 910Ic Indoor
Cycle uses an on-board generator to supply power to the computer, console display and resistance control system while the unit is in use. While
the unit generates power for the current functions, a set of batteries is also charged to allow console operation for up to sixty (60) seconds without
pedaling. Should the battery ever run down or if the console does not light, connect the included power supply/adaptor to a 120V power source.
Plug the opposite end into the 910Ic power input jack found near the ground at the rear of the machine. Begin pedaling to recharge the battery.
To avoid damage and danger, use only the power supply/adaptor that was designed for the 910Ic. To maintain and extend the life of the battery, it
is necessary to charge the battery overnight, once per week.
To conserve energy, the console will automatically power down after sixty (60) seconds of inactivity.
CONSOLE KEYPAD FUNTION
Fit Test Key.
Test heart rate recovery status.
Reset Key.
Press and hold for 2 seconds, computer will
reboot from user setting. Return to main menu
during preset workout value or stop mode.
Up & Down Arrow Keys.
Increase and decrease resistance level.
Setting selection
Mode / Enter.
Confirm setting or selection.
Start-Stop Key.
Start or Stop workout.

20
CONSOLE LCD DISPLAY
Time: Count up – No preset target, Time will count up from 00:00 to maximum
99:59. Each increment is 1 minute. Count down – If training with preset Time, Time
will count down from preset to 00:00. Each preset increment is 1 minute between
00:00 to 99:00.
Speed: Displays current training
speed. Maximum speed is 99.9
KM/H or MPH.
RPM: Displays the Rotation Per
Minute. Display range 0~15~999
Distance: Accumulates total distance from 0.00 up to 99.99 KM or Miles. The user
may preset target distance data by using UP/DOWN button. Each preset increment
is 0.1KM or Mile between 0.00 to 99.90.
Calories: Tracks calorie consumption during training from 0 to maximum 9999
calories. (This data is a rough guide for comparison of dierent exercise sessions
and should not be used in medical treatment.)
Pulse: User may set up target
pulse from 0 – 30 to 230; and
computer buzzer will beep
when actual heart rate is over
the target value during workout.
Watts: Display current workout
watts. Display range 0~999.
