Response U6c Owner’s Manual

PURCHASER’S REFERENCE INFORMATION
Product Name Response U6c by Diamondback Fitness Upright
Serial Number: E _ _ _ _ _ _ _ _ _ _
Record the serial number here.

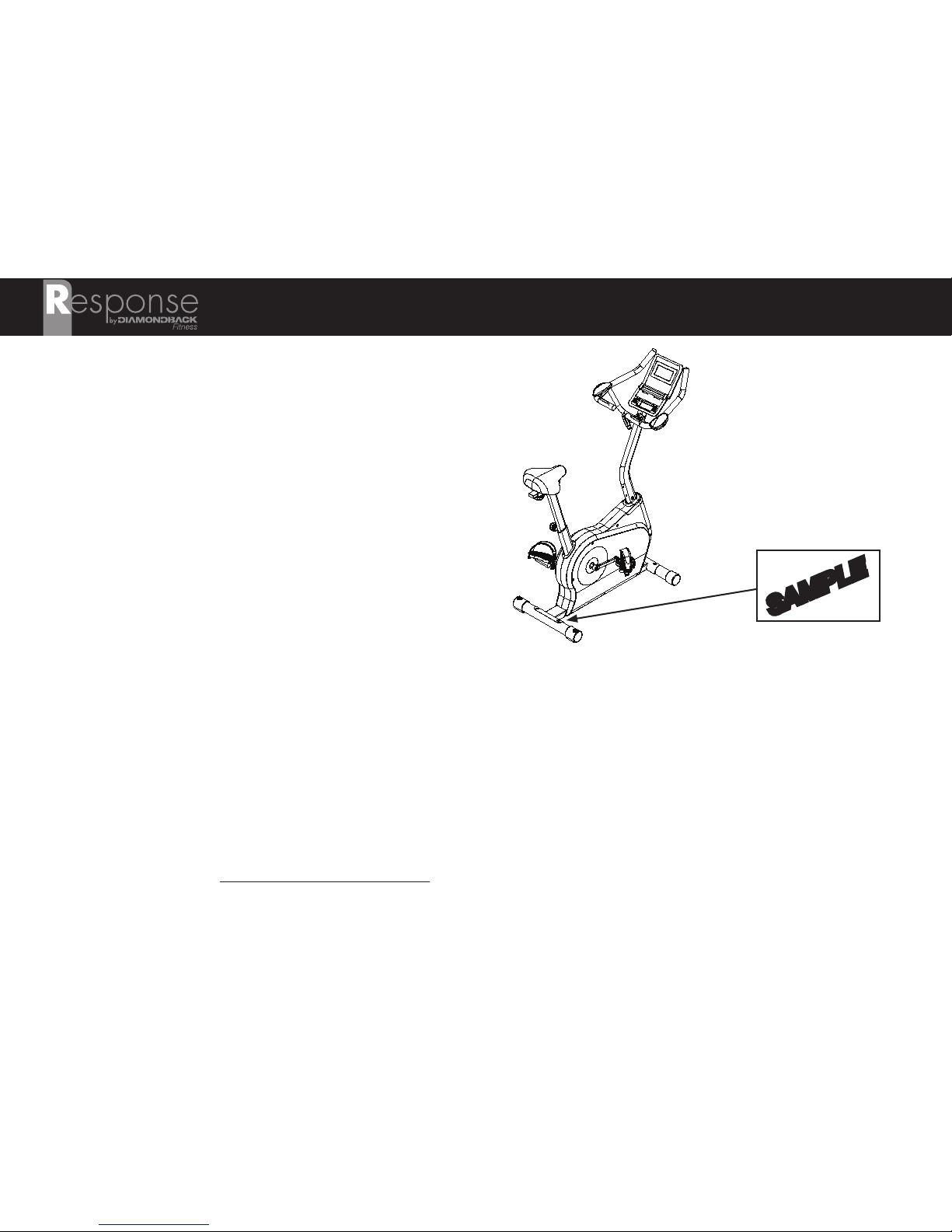

Serial Number Location
The serial number will be located on the right side of the lower main
frame, just forward of the rear stabilizer (see figure to the right).
Record of Purchase
NOTE: Please record details associated with the purchase of your Response U6c below. This information will be
required in the event the unit requires future service. ATTACH THE PURCHASE RECEIPT.
Dealer Name: ___________________________________________ Dealer Telephone Number: ( ) _____________________________
Dealer Address: _________________________________________________________________________________________________________
Date Purchased: ________________________________________ Dealer Contact Name: ________________________________________
To Activate Your Warranty
Please register the unit at www.diamondbackfitness.com. Failure to comply may limit or void your warranty coverage.
SERIAL NUMBER
||||||| |||| |||||| |||||||||||
E000000000
WARNING: REMOVAL OR
DESTRUCTION OF THIS
LABEL VOIDS WARRANTY
SAMPLE
2

Release v.2 (04/2010)
Response U6c
Owner’s Manual
3

TABLE OF CONTENTS
PURCHASER’S REFERENCE INFORMATION ....................................................................2
Serial Number: .......................................................................................2
INTRODUCTION ..........................................................................................5
RESPONSE U6c ASSEMBLY & INSTALLATION...................................................................6
Response U6c Assembly Instructions ..................................................................... 7
SAFETY INSTRUCTIONS & WARNINGS .......................................................................10
WORKOUT GUIDELINES...................................................................................12
Good Health is an Exercise in Common Sense ............................................................. 12

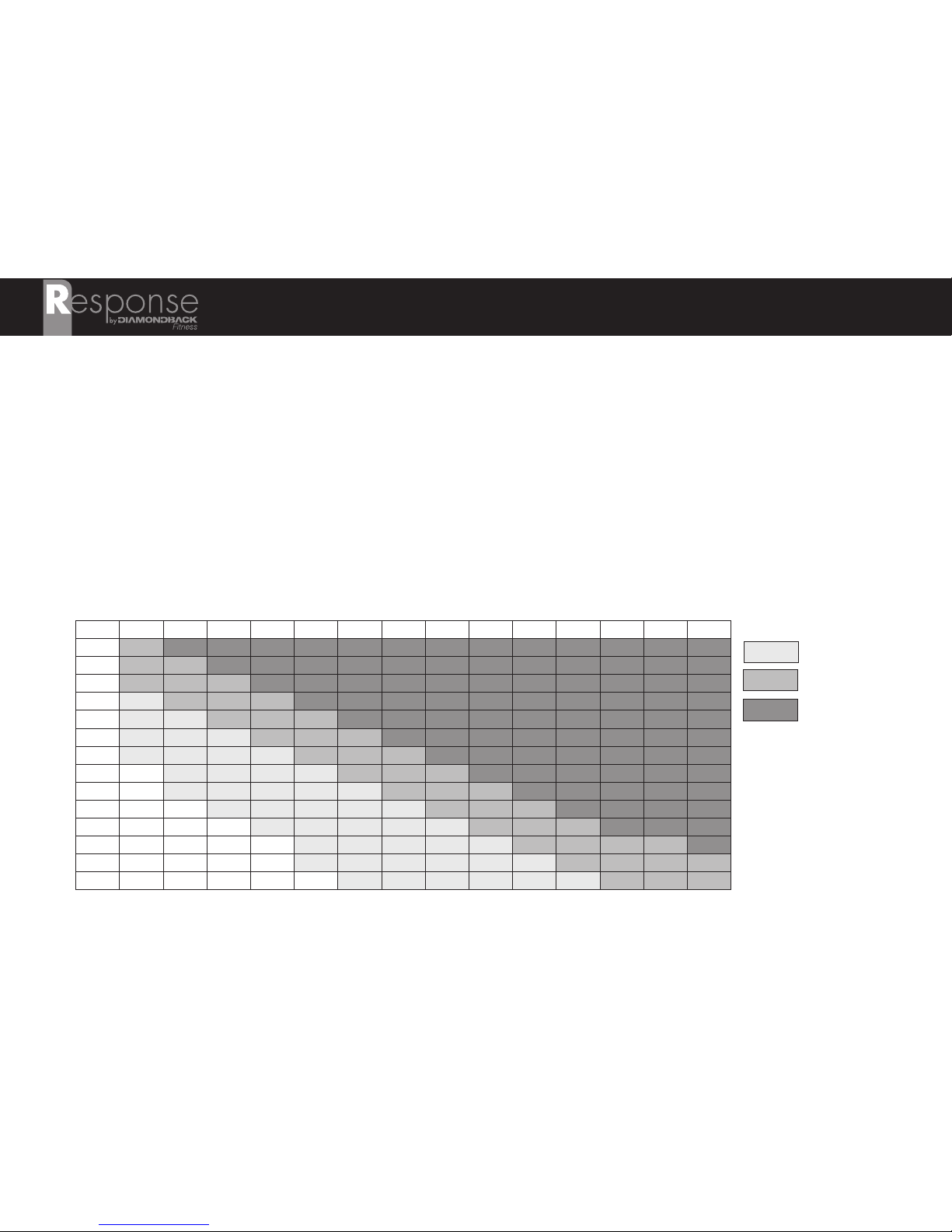

Body Mass Index .................................................................................... 12
Heart Rate is an Important Key to Your Exercise ............................................................ 13
Touch Heart Rate Sensors ............................................................................. 13
Wireless Heart Rate Receiver ........................................................................... 13
Your Estimated Maximum Heart Rate & Target Training Zone ................................................... 14
WORKOUT QUALITY AND QUANTITY ........................................................................15
CONSOLE LAYOUT.......................................................................................17
LCD Display Windows ................................................................................ 17
Buttons And Keys ................................................................................... 19
MP3/iPod Input Jack and Speakers ...................................................................... 20
Default Settings ..................................................................................... 20
PROGRAMS ............................................................................................21
Quick Start ........................................................................................ 21
Manual Program .................................................................................... 22
Classic Programs .................................................................................... 23
User Program ...................................................................................... 23
Target Heart Rate ................................................................................... 24
MAINTENANCE..........................................................................................26
WARRANTY INFORMATION ................................................................................27
WARRANTY REGISTRATION CARD ..........................................................................30
4

INTRODUCTION
Congratulations on the purchase of your new Response U6c Exercise Bicycle. You have made a smart choice and are about
to enjoy one of the most effective and technically-advanced methods of cardiovascular exercise available today.
Founded in 1991 as an off-shoot of the legendary bicycle company, Diamondback Fitness was in many ways a complimentary
addition to the Diamondback brand. One might even say this extension grew as a natural evolution…an evolution from
classic outdoor bicycle usage, toward indoor-based cycling and cross training. It turns out that many fitness enthusiasts were
searching for ways to maintain conditioning during times of inclement weather or were simply looking for new and different
cross-training options.
This trend still continues today, twenty years later, as the strong Diamondback brand resonates with both the boomers who
grew up with the bicycles, as well as the younger generations riding them today.
Diamondback Fitness continues to build upon this legendary brand identity by offering the cardio enthusiast a full line of
upright exercise bicycles, recumbents, and elliptical trainers, each offering superior value and quality in an intuitive and
visually-appealing design. Let’s just say, we are already planning our next twenty years.
Thank you for choosing Diamondback Fitness.
Diamondback Fitness
6004 South 190th Street, Suite 101 Kent WA 98032 Ph. 1.800.776.7642 Fax: [phone]
For more information or questions regarding your equipment, please visit our web site at DiamondbackFitness.com.
5

Part Description
A.......Front Stabilizer [Quantity: 1]
B.......Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
C.......Rear Stabilizer [1]
D.......Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
E1 ......Pedal – Left [1]
E2 ......Pedal – Right [1]
F .......Saddle [1]
G.......Seat Post Assembly [1]
H.......Lower Wire Harness Connector [1]
J .......Console Mast Assembly [1]
K1 ......Upper Wire Harness – Connector 1 [1]
K2 ......Upper Wire Harness – Connector 2 [1]
L .......Curved Washer – 8.0 x 19.0 x 2.0 mm [1]
M.......Flat Washer – 8.0 x 19.0 x 2.0 mm [4]
N.......Hex Bolt – M8 x 1.25 x 12 mm (6 mm socket) 5]
P.......Handlebar Assembly [1]
Q1 ......Handlebar Fixing Clamp [1]
Q2 ......Lock Washer – 7.0 x 13.0 x. 2.0 mm [2]
Q3 ......Flat Washer – 7.0 x 12.0 x 1.0 mm [2]
Q4 ......Handlebar Clamp Cover [1]
Q5 ......Spacer/Bushing – 7.0 x 12.0x 40 mm (plastic) [1]
Q6 ......T-Handle – M7 x 1.0 x 65 mm [1]
Q7 ......Hex Bolt – M7 x 1.0 x 30 mm [1]
R.......Console [1]
S.......Heart Rate Wire Harness – Console [1]
T .......Heart Rate Wire Harness – Handlebar [1]
U.......Rubber Grommet [1]
V .......Wire Harness - Console [1]
W.......Phillips Screw – M5 x 0.8 x 10 mm [4]
X .......AC Adaptor – US Plug; 120V, 60 Hz, 9V, 1A 1]
Y.......Console Mast Cover [1]
Z .......Crank Cap [2]
AA ......Leveling Foot/End Cap [2]
BB ......Seat Post Adjustment Knob [1]
CC......Input Jack [1]
RESPONSE U6c ASSEMBLY
6
A
S
W
V
R
C
B
D
E1Z
E2
F
G
L
K1
H
K2
M
J
P
Q1Q3Q4Q2
Q6Q7
Q5
U
T
X
N
Y
Z
AA
BB
CC

Assembly Notes
• Please read the entire Response U6c Owner’s Manual before beginning
the assembly. Review the package contents to ensure all listed parts are
included.
• The assembler will require a 15 mm box wrench, a 6 mm hex wrench, a 15
mm pedal wrench, and a Phillips screwdriver for assembly. All required tools
are included.
• The estimated assembly time of the Response U6c by a person familiar with
basic tool usage is thirty (30) to forty-five (45) minutes.
• Always inspect the unit to ensure handlebars are fixed and the seat post is
locked into position prior to using the unit.
1
Assembly Instructions
Bushing
ID 7.0 x OD 12.0 (1)
T-Handle M7 x 65 mm (1)
Model: Response U6c Assembly Hardware Kit Card
Year: DB Fitness 2010
Graphics Prepared by: Skip Reys; [e-mail]
Date Created:
30-Mar-10
Crank Bolt
& Nut
Wrench/
Screwdriver (1)
Pedal Wrench / Screwdriver (1)
Allen
Wrench (1)
Handlebar Clamp (1)
Lock Washers
for handlebar
clamp
ID 7.0 mm (2)
Hex Bolt for
handlebar clamp
M7 .0 x 1.0 x 30 mm (1)
Flat Washers
for handlebar
clamp
ID 7.0 mm (2)
Response U6c
Assembly Hardware Kit
DP #22-10-1220
7
B
D
C
A
AA
Remove the hex fixing bolts (B & D)
from the front stabilizer (A) and rear
stabilizer (C).
Align the holes in the main frame with
the recessed nuts in the stabilizers
and thread the fixing bolts into place
Level the base by adjusting the
leveling feet integrated into each of the
stabilizer end caps (AA). Rotate the
knobs counter-clockwise to raise the
feet and clockwise to lower them.
NOTE: Always check the stability
of the unit after it has been moved
as serious injury can result.

3 42
8
J
L
MNK1
H
Y
E1
Z
E2
Z
G
F
BB
Slide the clamp on the underside of
saddle (F) onto the seat post (G) and
tighten the nuts evenly.
Slide the entire seat post assembly
into the main frame seat tube. Un-
thread the adjuster knob on the
right side of the seat tube, and pull
outward, away from frame to allow
post to enter the seat tube. Adjust the
seat to preferred height and release
the knob.
Do not extend the post beyond
the minimum insertion mark (MAX)
stamped into the post. . Ensure the
post is fixed in place, and tighten
knob.
Remove the left and right crank caps
(Z) by inserting a flathead screwdriver
into the cap opening and un-threading
counter-clockwise.
Tighten both crank nuts (clockwise)
with the enclosed box wrench and
replace the crank caps.
Thread the left pedal (E1) into the
left crank. Tighten firmly in a counter-
clockwise direction with the spanner
wrench.
Install the right pedal (E2) into the
right crank, tightening in a clockwise
direction. Reinstall the crank caps (Z).
Remove the five (5) hex bolts (N), four
(4) flat washers (M) and one (1) curved
washer (L) from the console mast (J).
Orient and slide the console mast
cover (Y) onto the console mast (J).
While supporting the console mast,
carefully join connectors (H) and (K1).
Slide the console mast into place onto
the main frame. Install only the lower
bolts, nuts and washers L, M & N.
Slide the console mast cover (Y)
downward and snap into place.
Re-install the two (2) bolts (N) and
washers (M) into the upper holes.

5 6 7
9
Remove the four (4) Phillips fixing
screws (W) from the back side of the
console.
While supporting the console (R), join
plugs Vand K2.
Join plug T with plug S.
Gently tuck the wires into the top of
the console mast.
Align the fixing holes in the back of
the console with those on the console
mast mounting plate. Re-install the
four console fixing bolts (W).
Install the rubber grommet (U).
U
T
P
Q2Q3Q4Q5
Q7
Q6
Q1
R
V
S
W
CC
X
While supporting the handlebar (P),
assemble the handlebar clamp parts
(Q1, Q2, Q3, Q4, Q5, Q6 & Q7)
as per the diagram above. Adjust
handlebar to desired angle and fix by
rotating the-handle clockwise.
Thread the heart rate wire harness
connector (T) through the hole on the
right side of the console mast and up
through the opening at the top.
FINAL SETUP & INSTALLATION
Move the unit into final position with
the help of the front transport rollers.
Carefully lift and support the rear end
of the unit until both wheels touch the
ground. Slowly roll into position.
After moving the unit, ensure all four
feet touch the floor. Review assembly
step #1 above for leveling instructions.
Adjust the final position of the bars
(P) by loosening the T-Handle (Q6)
counter-clockwise. Select the desired
angle and re-tighten the T-handle.
To adjust the seat post height for the
proper riding position, unlock the seat
post adjustment knob (BB) by rotating
it counter-clockwise a few turns.
Support the seat post assembly and
pull outward on the knob to retract
the pin. Adjust the height, taking
care to not extend the post beyond
the minimum insertion mark (MAX)
stamped into the post. Release the pin
and ensure the post is fixed. Lock the
post into place by re-tightening the
adjustment knob (BB).
Inspect the unit for loose bolts,
hardware, knobs or pins.
Plug the AC adaptor in an outlet. Plug
the other end into the input jack (CC).

SAFETY INSTRUCTIONS & WARNINGS
Every piece of Diamondback Fitness equipment is built for maximum safety and meets or exceeds all
applicable domestic and international standards. However, certain precautions need to be taken when
operating any piece of fitness equipment.
NOTE: Please read the entire owner’s manual before operating the unit.
NOTE: Read all warnings posted on the unit. If the warning label to the right is missing from the
U6c Upright Cycle, contact Diamondback Fitness at [phone] for a replacement.
Cautions – For Safe Operation
• Keep your hands and feet away from all moving parts and pinch points.
• If you have a history of heart disease, high blood pressure, diabetes, chronic respiratory diseases,
elevated cholesterol, or if you smoke cigarettes or experience any other chronic diseases or physical
complaints, consult with a physician before beginning any exercise program.
• If overweight, pregnant or above the age of 35, consult your doctor before beginning an exercise program.
• If you experience dizziness, nausea, chest pains or other abnormal symptoms during exercise, stop the
exercise session immediately and consult your physician.
• Consume water before, during and after each exercise session.
Warnings – Reduce the Risk of Injury to Yourself or Others
• To ensure proper functioning of your unit, do not install attachments or accessories not provided or
recommended by Diamondback Fitness.
• Always wear proper clothing and shoes when exercising.
• Never operate the unit without first verifying that both the handlebar and seat post are firmly fixed.
• Never extend the seat post beyond the MAX marking. See the installation instructions above for proper seat post adjustment.
• User weight is not to exceed 300 pounds / 136.4 kilograms.
• Keep children away from the unit. Hands and feet may become tangled in the moving parts which could result in serious injury.
WARNING
This Class C product is rated for
home (Class H) use only. Use
only DIAMONDBACK FITNESS
replacement parts. Failure to to
so will render the warranty void
and could result in personal
injury or even death. There is a
risk assumed by individuals who
use this type of equipment. To
minimize the risk, always follow
these simple rules:
Spining cranks and pedals
can cause injury. Only
operate unit when seated.
Operation of this unit should
only commence after the
entire Owner’s Manual has
been read.
User weight for the Response
U6c is not to exceed 300 lbs.
Keep children away from unit
at all times.
Contact DIAMONDBACK
FITNESS if you do not
understand these warnings,
are missing the Owner’s
Manual, or have questions
regarding the proper use and
maintenance of this unit.
1.
2.
3.
4.
5.
DiamondbackFitness.com
800.766.7642
ES0835 U6c
10
