Dietz Rehab CANEO Series User manual

EN
IT
NL
FR
Version 1.0.0
CANEO Serie - manual wheelchairs
User manual

Record of product identication data
We recommend that you write down your product identication data below (found on product
label), so that you have these on hand should you require any further information about your
product. (see chapter product labelling)*
Type / model:
Item No. / REF:
Serial number (21):
Date of manufacture:
Other information/notes:
*The identication data on your product label may differ on custom-made devices.
2
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
USER MANUAL FOR CANEO SERIES

Thank you for purchasing a
CANEO wheelchair from DIETZ Reha Produkte.
Read these operating instructions carefully before starting to use your
new wheelchair. They contain important safety instructions and valuable
tips on correctly using and caring for the wheelchair.
In addition, you will receive information that will aid operational and
traffic safety and the preservation of your investment in your wheelchair.
If you have any questions or require additional information, please con-
tact the specialist retailer which supplied the wheelchair to you.
You can always find the latest information on your product on our
homepage. For information or queries concerning product safety and on
recalls, please contact DIETZ in writing or by telephone. You will find our
contact information on the back of these operating instructions.
NOTE
A large-print version of the operating instructions is
available for visually impaired persons at
www.dietz-rehab.de in PDF format.
3
EN
EN
FR
IT
NL
USER MANUAL FOR CANEO SERIES

4CONTENTS
01 Important information
Intended Purpose . . . . . . . . . . . . . . . . . . . . . .6
Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Contraindications . . . . . . . . . . . . . . . . . . . . . .7
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
02 Product Description
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . .8
Accessories (optional) . . . . . . . . . . . . . . . . . . .8
Structure of the CANEO_S. . . . . . . . . . . . . . . .9
Structure of the CANEO_E. . . . . . . . . . . . . . .10
Structure of the CANEO_L. . . . . . . . . . . . . . .11
Structure of the CANEO_B. . . . . . . . . . . . . . .12
Structure of the CANEO_XL. . . . . . . . . . . . . .13
03 Setting up the wheelchair
Preparing the wheelchair for use . . . . . . . . . .14
3.1 Folding/unfolding the wheelchair. . . . . .15
3.2 Backrest upholstery. . . . . . . . . . . . . . . .16
3.3 Leg rests. . . . . . . . . . . . . . . . . . . . . . . .16
3.4 Foot plates . . . . . . . . . . . . . . . . . . . . . .17
3.6 Lower leg length. . . . . . . . . . . . . . . . . .18
3.7 Seat depth . . . . . . . . . . . . . . . . . . . . . .18
3.8 Removing and attaching rear wheels. . .19
04 Using the wheelchair
Using the Wheelchair . . . . . . . . . . . . . . . . . .20
4.1 Getting in and out of your wheelchair . .20
4.2 Swivelling the sideguards back . . . . . . .22
4.3 Folding the foot plates up . . . . . . . . . . .22
4.4 Swivelling away and
detaching the leg rests . . . . . . . . . . . . .23
4.5 Angle-adjustable foot plates . . . . . . . . .23
4.6 Propelling and slowing down
the wheelchair with the push rims. . . . .24
4.7 Driving on gradients and uneven
ground . . . . . . . . . . . . . . . . . . . . . . . . .25
4.8 Loading the wheelchair. . . . . . . . . . . . .25
4.8 Parking the wheelchair with the
parking brake . . . . . . . . . . . . . . . . . . . .26
4.9 Braking by an attendant (optional) . . . .26
4.11 Tipping aid . . . . . . . . . . . . . . . . . . . . . .27
4.12 Transport . . . . . . . . . . . . . . . . . . . . . . .28
Transport of the wheelchair without user . . . .28
Wheelchair as a car seat . . . . . . . . . . . . . . . .29
Attaching the wheelchair
restraint systems . . . . . . . . . . . . . . . . . . . . .30
Wheelchair occupant restraint system . . . . . .31

5
EN
EN
FR
IT
NL
CONTENTS
05 Individual adjustments
Important information on adjustments. . . . . .32
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
5.1 Parking brake . . . . . . . . . . . . . . . . . . . .33
5.2 Drum brake (optional) . . . . . . . . . . . . . .34
5.3 Backrest/adjustable back. . . . . . . . . . . .34
5.4 Armrest height . . . . . . . . . . . . . . . . . . .35
5.5 Armrest
positioning (desk /long) . . . . . . . . . . . . .36
5.6 Seat height adjustment . . . . . . . . . . . . .36
5.7 Seat angle adjustment . . . . . . . . . . . . .38
5.8 Wheelbase extension . . . . . . . . . . . . . .39
5.9 Pushing handle . . . . . . . . . . . . . . . . . .39
5.10 Anti-tip wheels (optional) . . . . . . . . . . .40
5.11 Safety belt (optional). . . . . . . . . . . . . . .40
5.12 Amputee support (optional). . . . . . . . . .41
5.13 Brake lever extension (optional) . . . . . .42
5.14 Angle-adjustable leg rest (optional) . . . .43
5.15 Therapy tray (optional). . . . . . . . . . . . . .44
5.16 Accessories and add-ons from external
suppliers . . . . . . . . . . . . . . . . . . . . . . . .45
06 Technical data
Wheelchair dimensions . . . . . . . . . . . . . . . . .46
Technical specications . . . . . . . . . . . . . . . . .47
Materials . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Further information . . . . . . . . . . . . . . . . . . . .50
07 Safety instructions
Safety information & driving restrictions. . . . .51
08 Instructions for general use
Servicing/maintenance. . . . . . . . . . . . . . . . . .53
Maintenance schedule . . . . . . . . . . . . . . . . .54
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .56
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Disinfection. . . . . . . . . . . . . . . . . . . . . . . . . .57
Forwarding / reusing . . . . . . . . . . . . . . . . . . .58
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Product labelling . . . . . . . . . . . . . . . . . . . . . .59
09 Manufacturer‘s declarations
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Lifetime. . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

6
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
01 IMPORTANT INFORMATION
INTENDED PURPOSE
The CANEO wheelchair is only intended for the personal transportation
and the transportation of others and can be used indoors and outdoors.
Depending on the model and size, it is designed for a different maximum
load, which you can check on the label.
SEAT WIDTH: 36 39-42 45 48-51 56-60
CANEO_S 120 kg 130 kg
CANEO_E 120 kg 130 kg
CANEO_L 150 kg
CANEO_B 130 kg 140 kg
CANEO_XL 170 kg / 200 kg
Persons who use the wheelchair independently must be physically and
mentally capable of moving and braking the wheelchair. The user must
have sufficiently good eyesight to use the wheelchair in public spaces
and to use public highways.
If the wheelchair is moved by an accompanying person, the accompany-
ing person must be physically capable of pushing and braking the occu-
pied wheelchair.
The wheelchair is not suitable for children. The wheelchair shall not be
used for the transport of more than one person or of cargo.
The intended purpose may differ for products which were manufactured
as custom-made device and which have been labelled as such. In this
case, please refer to the documentation supplied with the product.

7
EN
EN
FR
IT
NL
01 IMPORTANT INFORMATION
INDICATION
This wheelchair provides assistance for persons who are unable to walk
or who have a severe walking impediment due to
t Paralysis
t Loss of limbs
t Limb defect / deformation
t Joint contracture/joint damage (not on both arms)
t Other diseases.
CONTRAINDICATIONS
Use of the wheelchair is unsuitable in the case of
t False sensations
t Severe disequilibrium
t Loss of limbs on both arms
t Joint contracture / joint damage on both arms
t Inability to sit
t Impaired or inadequate vision.
SYMBOLS
These symbols indicate passages of text that are helpful for using and
operating the product in every day life.
WARNING
It is mandatory to observe and comply with warnings.
They inform you of circumstances that could result in injury and/or dam-
age to the wheelchair or surroundings if the warnings are not observed.
NOTE
Tips and advice to simplify using the functions.

8
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
02 PRODUCT DESCRIPTION
SCOPE OF DELIVERY
The CANEO_S wheelchair is packed in a cardboard box. Please keep the
packaging if possible; it can subsequently be used to store the wheel-
chair if necessary.
On receipt of the wheelchair, please immediately check to make sure
that the contents are complete and undamaged. The contents consist of:
t 1 set of cardboard box and packaging
t 1 pre-assembled wheelchair
t 1 pair of leg rests (CANEO_XL incl. footboard)
t User manual
t 4 Armrest height adapters 20mm (CANEO_E)
t Accessories (if selected)
ACCESSORIES (OPTIONAL)
Wheelchair accessories available from the manufacturer:
t Amputee support(s)
t Anti-tipping supports
t Safety belt
t Brake lever extension
t Height-adjustable side panel
t Therapy tray
t Angle-adjustable leg rests

9
EN
EN
FR
IT
NL
Height-adjustable handles
Backrest (adjustable)
Armrests height-adjustable
Swivel side panel
Brake
Push rims
Quick-release axle
Leg rest
Curb climber
Heel strap
Foot plate
02 PRODUCT DESCRIPTION

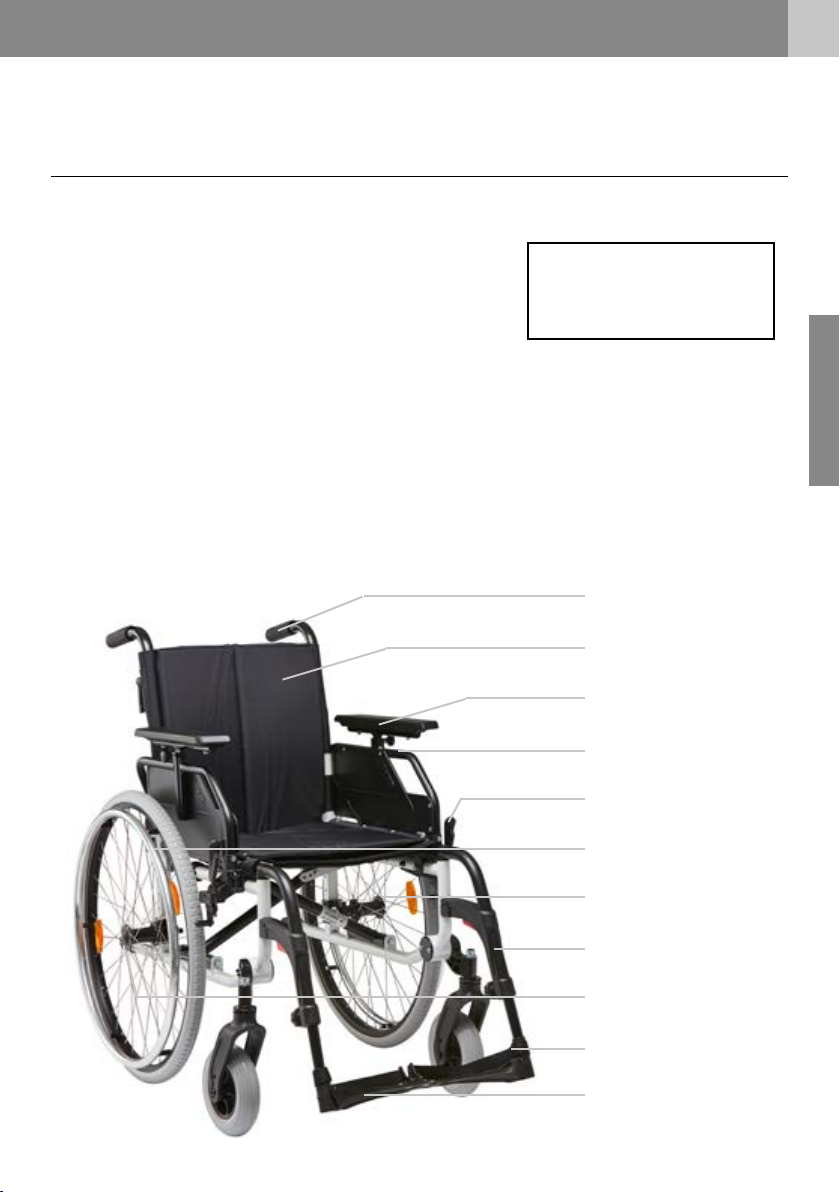

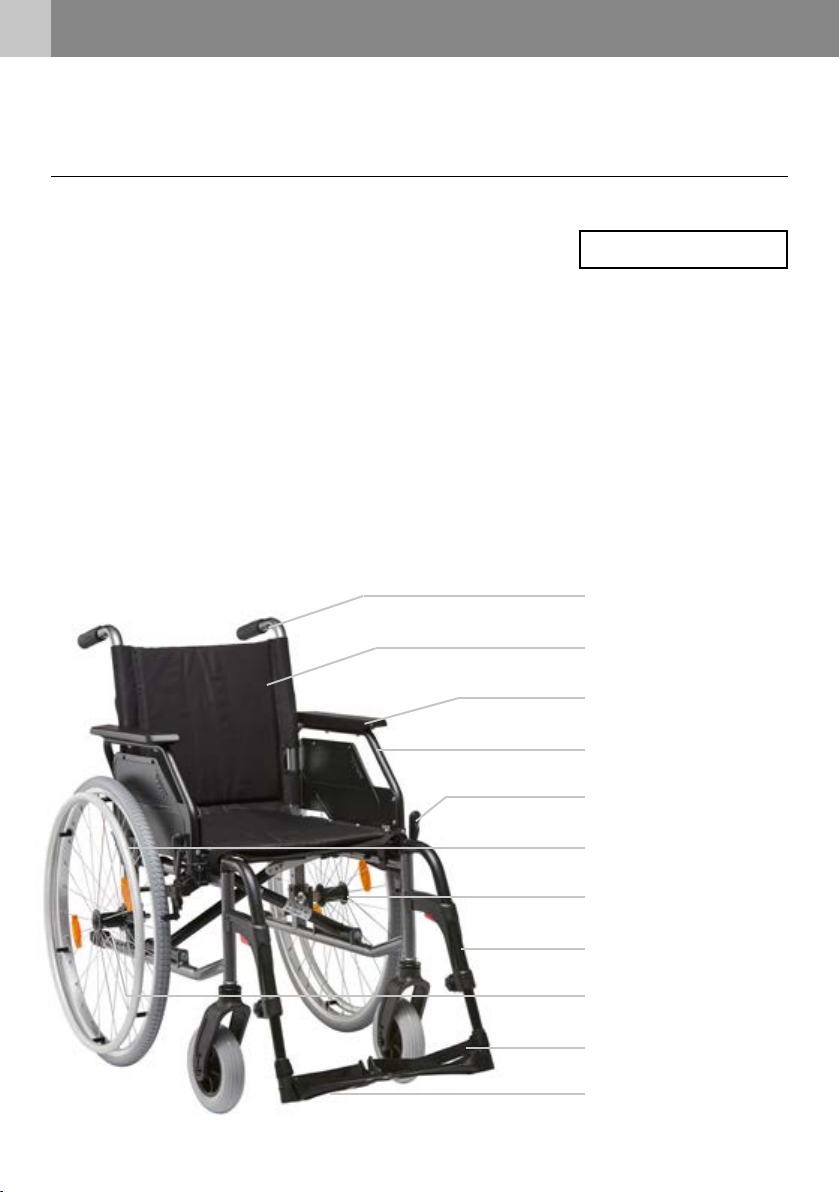

STRUCTURE OF THE CANEO_S
Basic components
n Corrosion resistant aluminium frame
n Tipping stability 10°
n Backrest angle 3°, Seat plane angle 3°
n Adjustable backrest Velcro
n Armrests adjustable in desk and long version, height adjustable
n Side panels can be swivelled back
n The armrests can be adjusted in 15 mm steps from 420 mm to 510 mm
n Leg rests can be swiveled to the side / removeable
n Foot plates height and angle-adjustable with heel strap
n Parking brake/Drum brake depending on the version
n Rear wheel PU 24“, incl. quick-release axle, front wheel PU 7“
n Height-adjustable handles
Lightweight folding wheel-
chair, comprehensive
standards
Fig.1

10
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN

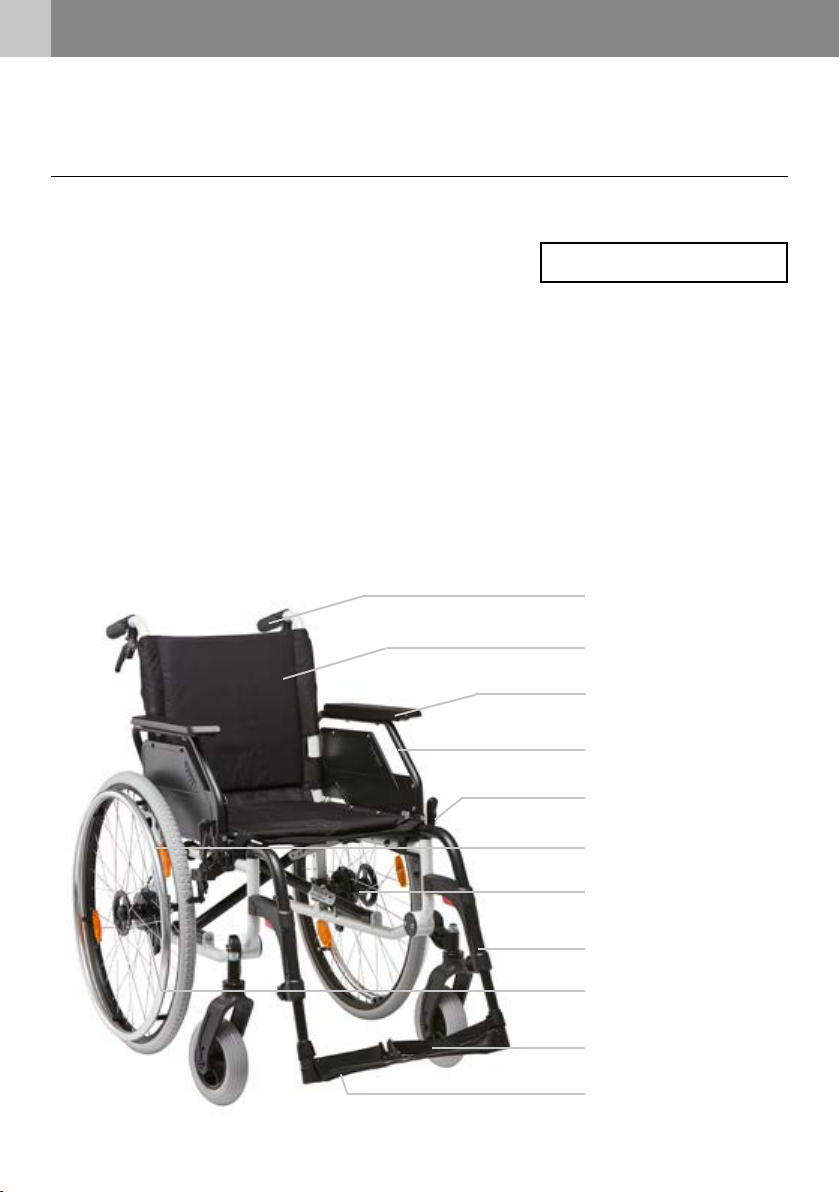

STRUCTURE OF THE CANEO_E
Basic components
n Corrosion resistant aluminium frame
n Tipping stability 10°
n Backrest angle 3°, Seat plane angle 3°
n Armrests adjustable in desk and long version
n Side panels can be swivelled back, height-adjustable
n The armrests can be adjusted in 15 mm steps from 420 mm to 510 mm
n Leg rests can be swiveled to the side / removeable
n Foot plates height and angle-adjustable with heel strap
n Parking brake/Drum brake depending on the version
n Rear wheel PU 24“, incl. quick-release axle, front wheel PU 7“
Lightweight wheelchair
Push handle
Backrest
Armrest
Swivel side panel
Brake
Push rims
Quick-release axle
Leg rest
Curb climber
Heel strap
Foot plate
Fig.2

11
EN
EN
FR
IT
NL
STRUCTURE OF THE CANEO_L
Basic components
n Corrosion resistant aluminium frame
n Tipping stability 10°
n Backrest angle 3°, Seat plane angle 3°
n Adjustable backrest Velcro
n Armrests adjustable in desk and long version, height adjustable
n Side panels can be swivelled back
n The armrests can be adjusted in 15 mm steps from 420 mm to 510 mm
n Leg rests can be swiveled to the side / removeable
n Foot plates height and angle-adjustable with heel strap
n Parking brake/Drum brake depending on the version
n Rear wheel PU 24“, incl. quick-release axle, front wheel PU 7“
Wheelchair for tall people
over 1.80 m tall
Push handle
Backrest (adjustable)
Armrests height-adjustable
Swivel side panel
Brake
Push rims
Quick-release axle
Leg rest
Curb climber
Heel strap
Foot plate
Fig.3

12
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
STRUCTURE OF THE CANEO_B
Basic components
n Tipping stability 10°
n Backrest angle 3°, Seat plane angle 3°
n Armrests adjustable in desk and long version
n Side panels can be swivelled back
n The armrests can be adjusted in 15 mm steps from 420 mm to 510 mm
n Leg rests can be swiveled to the side / removeable
n Foot plates height and angle-adjustable, with heel strap
n Parking brake/Drum brake depending on the version
n Rear wheel PU 24“, incl. quick-release axle, front wheel PU 7“
Push handle
Backrest
Armrest
Swivel side panel
Brake
Push rims
Quick-release axle
Leg rest
Curb climber
Heel strap
Foot plate
Standard Steel Model
Fig.4

13
EN
EN
FR
IT
NL

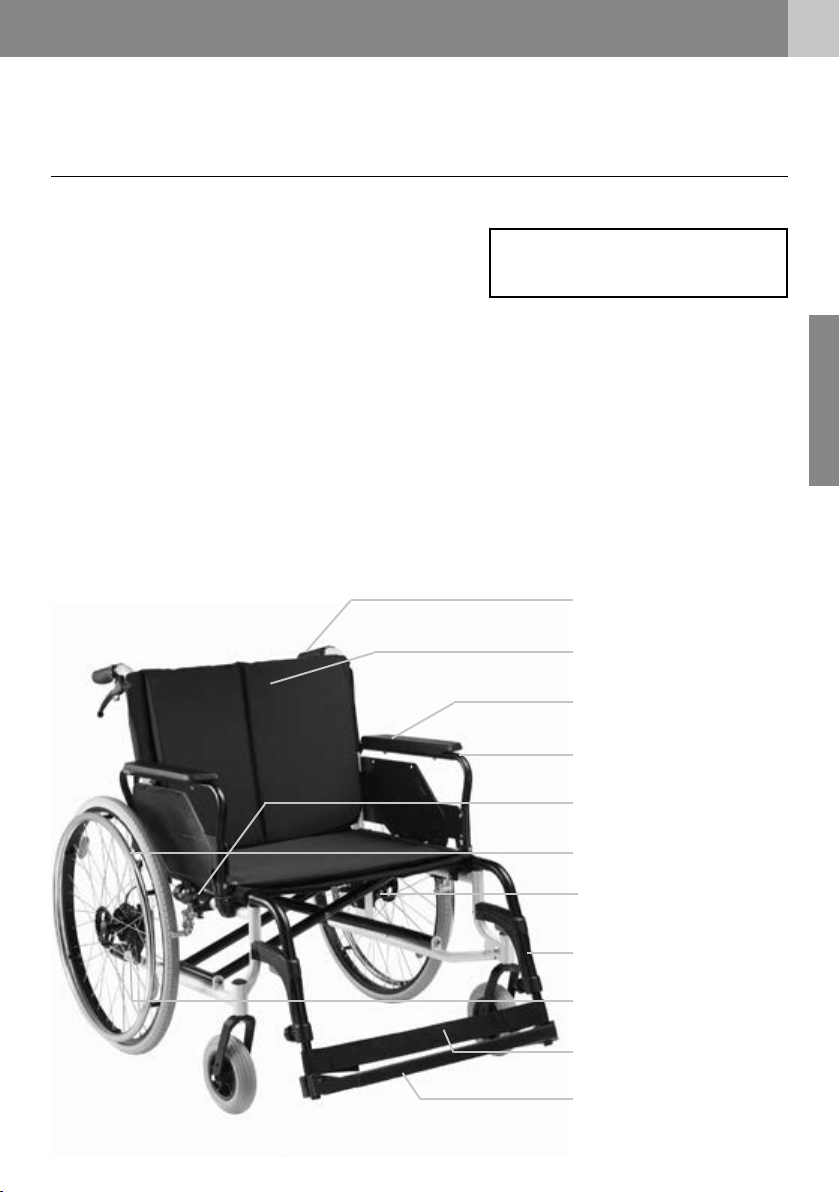

STRUCTURE OF THE CANEO_XL
Basic components
n Tipping stability 10°
n Backrest angle 3°, Seat plane angle 3°
n Adjustable backrest Velcro
n Rearward swivelling reinforced side panels
n Armrests adjustable in desk and long version
n The armrests can be adjusted in 15 mm steps from 420 mm to 510 mm
n Leg rests can be swiveled to the side / removeable
n Height-adjustable foot plates, with separate aluminium foot plate & calf strap
n Reinforced rear wheel connection
n Parking brake/Drum brake depending on the version
n Rear wheel PU 24“, incl. quick-release axle, front wheel PU 7“
Folding wheelchair, reinforced
design for user weight 170-200 kg
Push handle
Backrest (adjustable)
Armrest
Swivel side panel
Brake
Push rims
Quick-release axle
Leg rest
Curb climber
Calf strap
Foot plate/ board
Fig.5

14
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
PREPARING THE WHEELCHAIR FOR USE
The wheelchair is fully assembled at the factory. To get started you sim-
ply have to unfold the wheelchair and click the leg rests into place. In
this following chapter you can find some information about how to set
up and use your wheelchair. You can find information about simple set-
tings and adjustments that can be done without any tools.
Explanations of more complex adjustments such as seat height, angle
etc. can be found in chapter »05 Individual adjustments«.
NOTE
The initial set-up should be carried out by trained personnel of the medical
supplies dealer.
WARNING
Risk of trapping! There is a risk of trapping on moving parts. In proximity
of moving parts extra caution is required.
When folding and unfolding your wheelchair, pay attention to your
ngers and only grip the parts as seen in the illustrations.
03 SETTING UP THE WHEELCHAIR

15
EN
EN
FR
IT
NL
03 SETTING UP THE WHEELCHAIR 03 SETTING UP THE WHEELCHAIR
3.1 Folding/unfolding the wheelchair
Press the left and right seat tube down simul-
taneously with flat hands. The wheelchair will
now unfold itself. (Fig. 6).
When the wheelchair is completely unfolded,
please check whether both seat tubes are cor-
rectly located in the slots provided.
To fold the wheelchair, loosen the flap of the
backrest (see Chapter 3.2, Fig. 8) under the
seat and then pull the cover upwards in the
middle of the seat (Fig. 7).
Fig.6
Fig.7

16
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
3.2 Backrest upholstery
Pull the flap (Fig. 8) of the seat back cover un-
der the seat and fasten it, this closes the gap
between the backrest and seat.

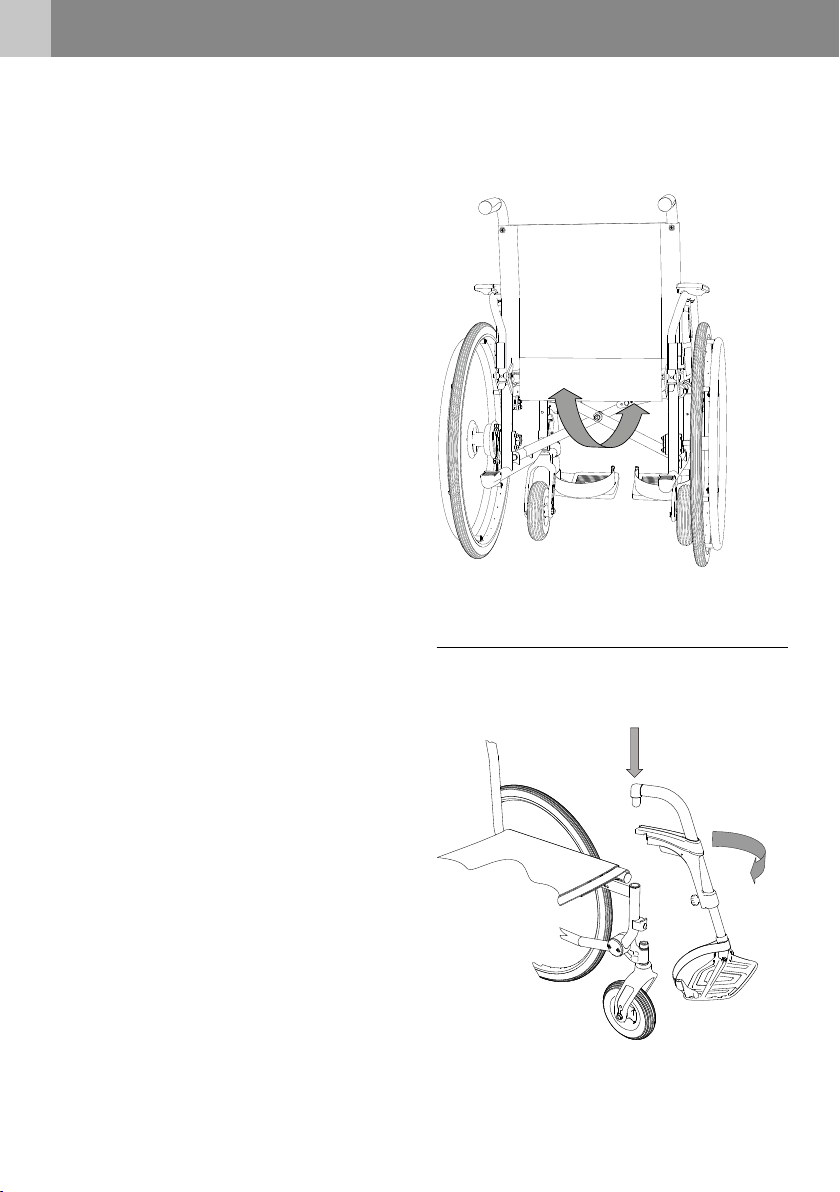

3.3 Leg rests
1. Insert the leg rest into the guide on the
wheelchair from above (1, Fig. 9). When do-
ing so, the leg rest must be angled out-
wards.
2. Swivel the leg rest forwards
(2, Fig. 9). You must hear and feel the leg
rest engage.
3. Check that the leg rest is securely locked in
place.
1
2
03 SETTING UP THE WHEELCHAIR
Fig.8
Fig.9

17
EN
EN
FR
IT
NL
03 SETTING UP THE WHEELCHAIR 03 SETTING UP THE WHEELCHAIR

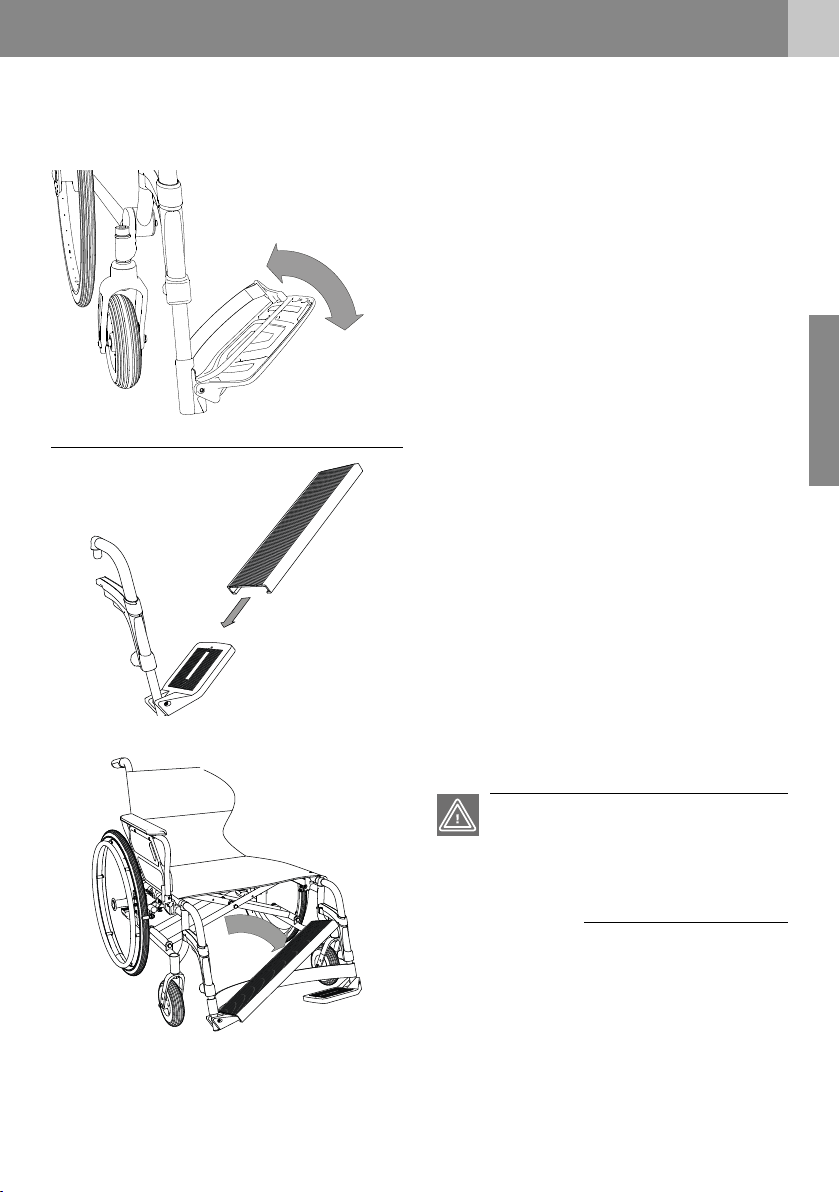

3.4 Foot plates
CANEO_S_E_L_B
The foot plates are each equipped with a heel
strap and are folded down after the leg sup-
ports have been attached. (Fig. 10).
CANEO_XL
The CANEO_XL is delivered with foot plates,
its foot board and a calf strap.
Place the footboard on one of the two foot-
plates (Fig. 11) and fold it down until it rests
securely on the other footplate (Fig. 12). Then
fasten the calf strap.
WARNING
Risk of trapping! There is a risk of trapping on
moving parts. In proximity of moving parts extra
caution is required.
Fig.10
Fig.11
Fig.12

18
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
3.7 Seat depth
The wheelchair is always delivered with the
maximum possible seat depth. To reduce the
seat depth, first remove the leg supports. Next,
open the Velcro straps on the right and left of
the seat frame. (Fig. 14).
Secure the Velcro straps to the extension so
that they are no longer wrapped around the
frame. Fold the extension beneath the seat
and fasten the Velcro straps to secure it there.
(Fig. 15).
Carry the procedure out in the opposite se-
quence to increase the seat depth.
03 SETTING UP THE WHEELCHAIR
3.6 Lower leg length
The setting is correct when your thighs are
horizontal with the feet placed on the foot
plates.
1. To do this, release the threaded connection
one quarter of a turn and pull the locking
mechanism backwards. (1, Fig. 13).
2. Move the foot plate into a position that is
comfortable for you and release the locking
mechanism again. The mechanism automat-
ically locks in the next position. (2, Fig. 13).
3. Then tighten the threaded connection se-
curely again. Fig.13
Fig.14
1
2

19
EN
EN
FR
IT
NL
03 SETTING UP THE WHEELCHAIR 03 SETTING UP THE WHEELCHAIR
Fig.15

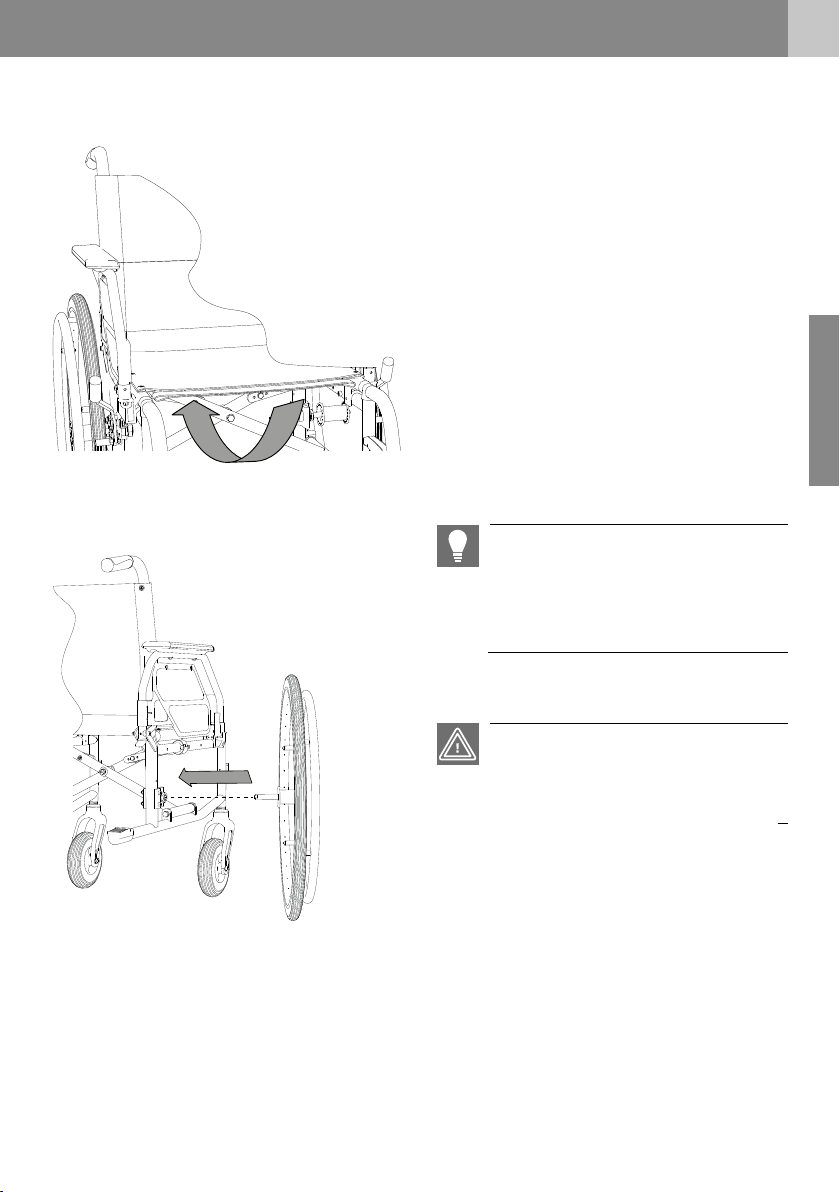

3.8 Removing and attaching rear
wheels
In some situations it is helpful to remove the
rear wheels. (Fig. 16).
Press the button on the quick-release axle and
hold the hub with four fingers. Then pull the
rear wheel out of the axle mounting.
To connect the rear wheels, press the quick-re-
lease axle button with your thumb again. Now
insert the axle into the axle mounting; the
quick-release axle will engage automatically.
NOTE
Push the quick-release button while engaging
the wheels. The axle / wheel will engage a lot
easier.
WARNING
After connecting the wheels make sure that
the quick-release axles are engaged properly.
Fig.16

20
DIETZ GmbH / User manual for the CANEO Series manual wheelchairs foldable / Version 1.0.0 EN
04 USING THE WHEELCHAIR
USING THE WHEELCHAIR

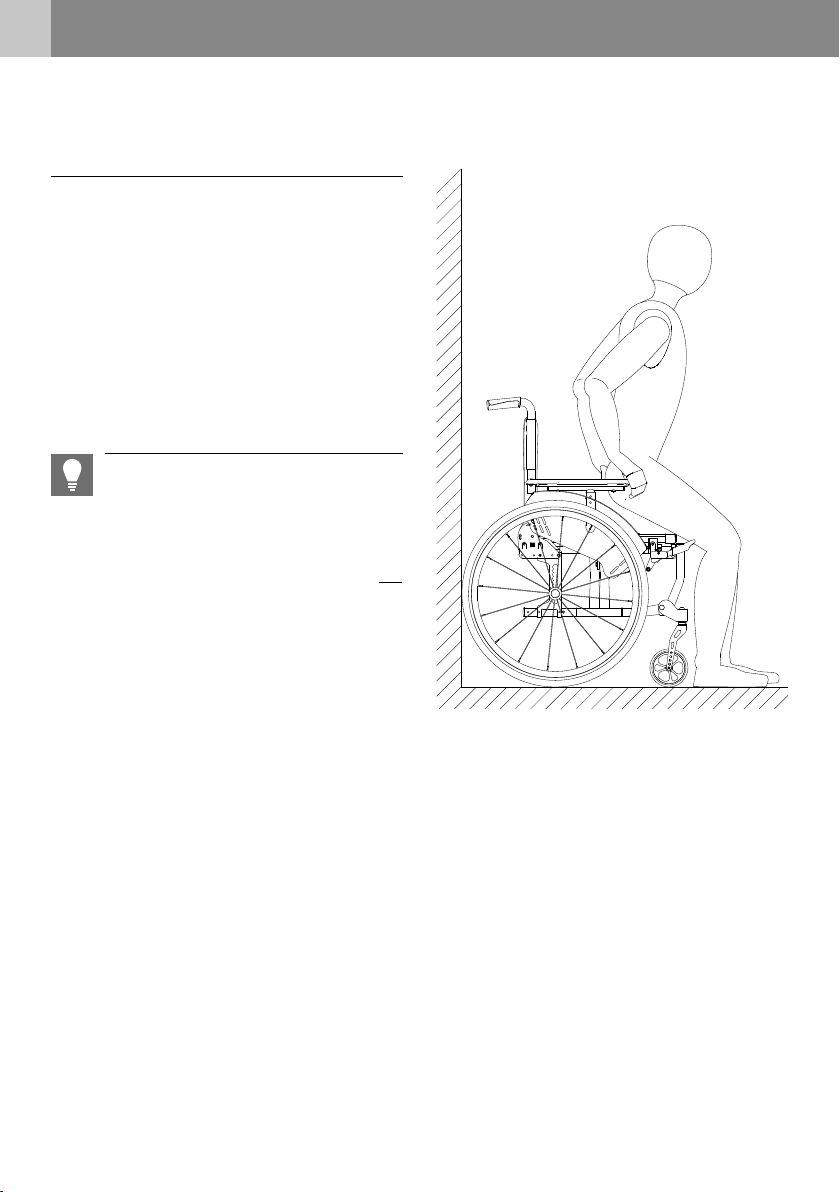

4.1 Getting in and out of your
wheelchair
Different handicaps allow more or less ma-
noeuvrability.
To get in and out of your wheelchair easily and
safely, the following tips can be helpful.
NOTE
Place the wheelchair backwards against a sta-
ble wall (Fig. 17). This ensures that the wheel-
chair will not roll away on smooth surfaces.
04 USING THE WHEELCHAIR
Fig.17
