Digifast DGMD01S User manual

1
Version 1.1
English
M.2 NVMe SSD
Docking Base
User Manual

2
Safety Precaution
Before using this product, please carefully read through the following pre-
cautionary notice and follow its guidelines. Improper use may cause harm
to the user and its surrounding environment.
WARNING
• Do not place this device in an area where there is risk of water getting
onto the device. Electric shock or re may occur and cause serious harm.
• Carefully examine if connection cord is damaged or broken. If the connect-
ing point is broken, then it could potentially result in electric shock or re
hazard.
• If there is smoke, abnormal noise, or o󱐯ensive odor, stop using the device
immediately. Continued use may cause re, electric shock, or device rup-
ture.
• Do not place liquid containers near this device, as spilling liquid onto the
device can cause serious damage. Electric shock may occur if liquid is
accidentally spilled onto the device. If liquid is accidentally spilled on the
device, then unplug immediately and contact product support.
• Do not use this product on an uneven or unstable surface, as this product
could fall and cause damage or injury.
• Please do not attempt to disassemble or modify this product by yourself.
If a repair is needed, please contact product support.
If the user ignores or mishandles the safety notice, then there is risk of serious injury. The
guideline indicates clearly of what to be aware.

3
Safety Precaution
WARNING
• Be sure to turn o󱐯 the power and unplug the connection cord before mov-
ing this product. Failure to do so may result in damaging the joint of this
device, or possibly getting the cord caught causing the product to fall or
injuring the user.
• When disconnecting the cord, please grab the root of the plug to pull out.
Forcefully pulling the cable part may cause damage to the cable or con-
nector.
• Do not attempt to pull out the connection cord with wet hands, as it will
cause electric shock and result in injury.
• Do not install this product in an environment where it is exposed to high
temperature. Direct sunlight or high temperature may cause product to
overheat and cause re or malfunction.
• Do not install this product in high-humid or dusty environments, as it could
potentially cause a re hazard.
• Please regularly check on this product to see if there is any abnormal be-
havior. If abnormal behavior occurs, then contact the support center.

4
Before Use
• Please carefully read through the safety guidelines to handle the product cor-
rectly and safely.
• Double check the device is functioning properly before use.
• Avoid heat and humidity when using this device. Make sure it is in a dry and
clean environment.
• It is normal for this product to generate heat while operating.
• Be mindful with static electricity when touching this device. Static electricity
may cause malfunction or failure.
• When transporting the product, please use cushiony material to prevent dam-
age.
• Prolonged exposure to chemical material may cause damage to the product
or a discoloration of the paint.
• If this product has not been used for an extended period, then the functional-
ity may be a󱐯ected.
• If there is dirt on the body of the device, then please use a soft cloth to gently
wipe away the dirt. (Please do not use benzine as it will damage the paint)
• It is recommended to keep the original product package, as if the device
needs repair, then it is ideal to ship it with the original product packaging.

5
Table of Contents
• S a f e t y P r e c a u t i o n ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2
• B e f o r e U s e ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 4
• T a b l e o f C o n t e n t s ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 5
• Product Specication, content, supported SSD ・・・・・・・ P.6
• Compatible and Incompatible M.2 SSD ・・・・・・・・・・・・・・・・・・・・・ P.7
• A t t a c h h e a t s i n k t o S S D ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 8
• C o n n e c t S S D ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 0
• H o w t o C o n n e c t a P C ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 2
• T r o u b l e s h o o t ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 3
• S u p p o r t e d I n f o r m a t i o n ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 4

6
Product Specication ・ Content ・
Supported SSD
■ Product Specication
• Product Model：DGMD01S
• USB Spec：USB3.1 Gen2
• Interface: Type-C
• Support OS (Windows): Windows 7/8/10
• Support OS(Mac): MacOS 10.10.5 or later
• Dimension: 50mm x 30mm x 11mm
• Weight: Around 40g (Exclude accessories)
■ Package Content
• DGMD01S
• SSD Heat sink
• SSD heat dissipation silicon pad
• Two Silicone rings
• USB Type-C to Type-A Cable
• Manual URL and Warranty Card
■ Support SSD
• NVMe M.2 SSD Type 22110/2280/2260/2242/2230
※ Does not support SATA(NGFF) M.2SSD
※ Does not support AHCI M.2 SSD
※ Does not support mSATA SSD
※ Windows 7/8 operate at USB 3.0 transfer speed.
※ If user connects to a MAC or a device that is not Gen2 Compatible, then the transfer speed
will be USB 3.1 Gen1 or USB 3.0.
※ Please use the latest OS if possible.
※ It can be connected to USB 3.0 or 2.0 interface; however, the transfer speed will decrease.

7
Compatible and Incompatible M.2 SSD
■ Compatibility of M.2 SSD
This product is designed for NVMe M.2 SSD, thus it does not support SATA
and AHCI M.2 (NGFF) SSD. Please refer to the diagram below to check if
your SSD can be installed. In the case of AHCI M.2 SSD, it may be di󱐰cult
to distinguish at a quick glance, as they both look extremely similar. User is
advised to double check to make sure it is NVMe M.2 SSD instead of AHCI
M.2 SSD.
※ Please make sure to check your SSD before installation. If user installs
the wrong SSD, it will not work and also runs the risk of damaging the
SSD itself.
NVMe M.2 SSD
One Notch in the terminal part to distinguish
itself as (M-Key) The label has “PCIe” or
“NVMe” notation
SATA M.2 SSD
・ Two Notches indicate (B&M-Key)
・ Label has「SATA 6Gbps」notation.
AHCI M.2 SSD
・ One notch indicates (M-Key)
・ The label has “AHCI” notation.

8
Attach Heat Sink to the SSD

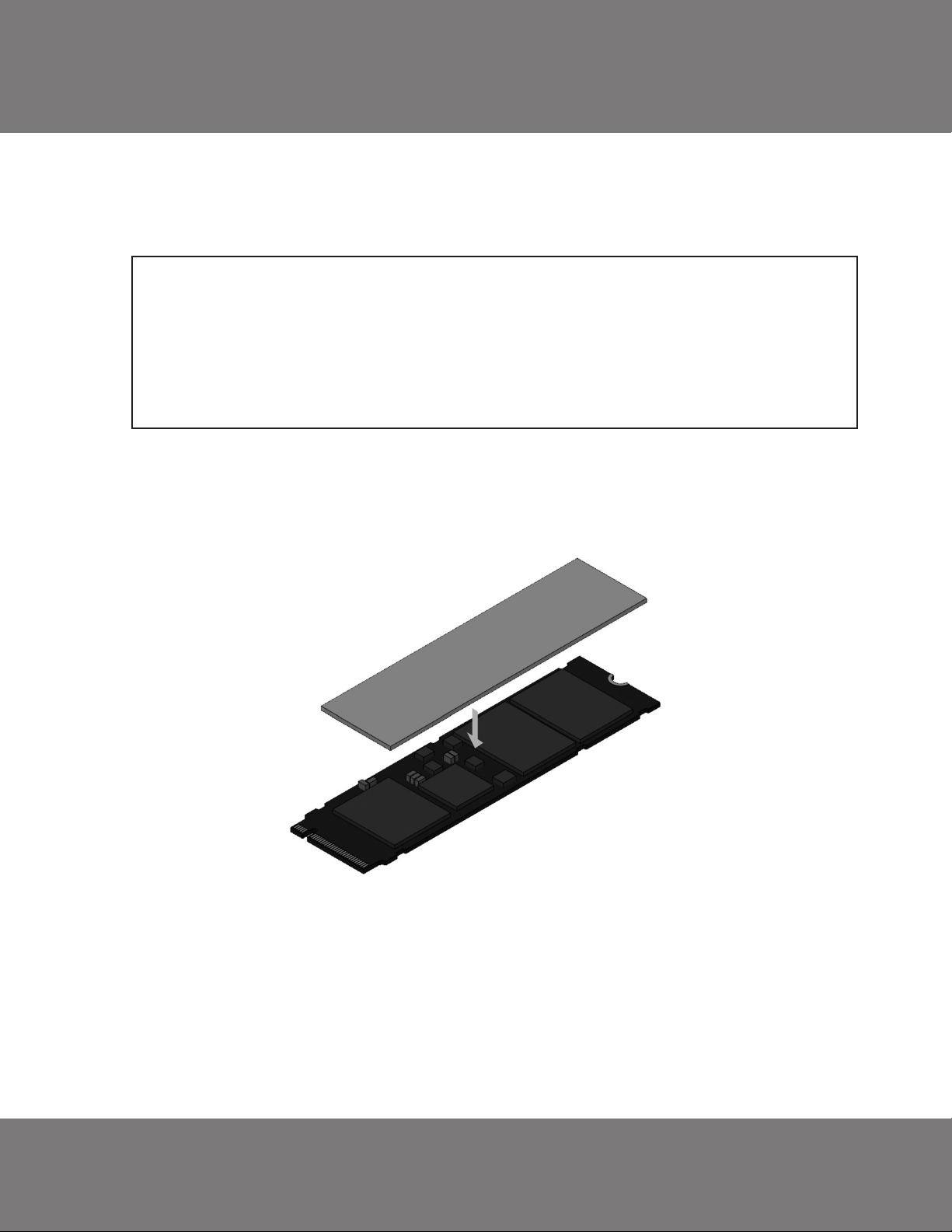

■ Attach the heat dissipation silicon pad to the SSD
Remove the lm from the heat dissipation silicon pad and attach it to the
SSD.
This article explains how to attach the heat sink to the SSD. Although it is
possible to use without attaching the heat sink, it is recommended to at-
tach and use the heat sink because the SSD becomes hot during use.
About the mounting surface of the heat sink:
In the case of double-sided mounting, it is recommended to mount the
heat sink on the side where the controller IC is mounted. In the case of
single-sided mounting, it is better to attach the heat sink to the base
side where the chip is not mounted. Heat dissipation e󱐰ciency increases
(according to our tests).

9
■ Install the heat sink
■ Attach the silicon ring
Remove the lm of heat dissipation silicon pad and attach the heat sink.
Finally, attach the silicon ring to secure the heat sink and the SSD.
Attach Heat Sink to the SSD

10
■ Plug SSD into the connector
Insert the SSD into the connector of this product. Pay close attention to the
orientation of the connector of the SSD.
This page explains how to attach SSD to this product.
Connect the SSD
This product does not support M.2 SSD plug and play. Therefore,
even if this product and a PC are connected via USB, it will not be
recognized even if you insert an M.2 SSD. Be sure to remove the USB
cable from this product when inserting or removing the M.2 SSD.

11
■ Connect USB Cable
After plugging in the SSD, connect the USB cable to this product and PC.
Connection is complete when the LED on the front of the main unit shows
a blue light.
• When connecting to a Type-C port, use a Type-C to C cable or Type-A to
Type-C conversion connector. Neither cable is included. The user is re-
quired to purchase them separately as needed.
• This product’s performance will be maximized when connected to a USB
3.1 Gen 2 compatible port. When connected to a USB 3.0 or USB 2.0
port, the upper limit of transfer speed is (5 Gps) or (480 Mbps) respec-
tively.
Attach Heat Sink to the SSD

12
How to Safely Remove SSD
Before unplugging this product, please remove it using the safe removal pro-
cess on the PC. Unplugging the product without safe removal may cause
problems such as data loss.
■ For Windows
■ Mac
Click the display USB Icon from the task bar, then click remove external. (As
shown on left image) Message will appear as it is safe to remove now. (As
shown on the right image)
Please drag and drop the SSD displayed on the desktop to the trash bin of
Dock.
This product does not support M.2 SSD plug and play. Therefore, even
if only the M.2 SSD is removed, with the USB connection between
this product and PC intact, removal cannot be performed normally.
When removing the M.2 SSD, be sure to safely remove the product
rst. Afterwards, remove the USB cable from this product.

13
If the device does not work properly, then please try the following:
If there are any issues or abnormal situations, please refer to the next page for
contact info.
■ SSD cannot be connected
• Please check if the SSD you are trying to connect is NVMe. Additionally,
check the orientation when inserting the SSD into the connector.
■ PC does not recognize your device
• If the LED is not lit: It means that there is no power. Please check that the
USB cable connection is correct.
• If the LED is lit: If a new SSD is installed, then formatting is required. Please
check the operating manual of the OS to format the SSD.
■ Transfer speed is slow
• When connected to a USB 2.0 port, the transfer speed is up to 480MB/s. For
higher speed, please connect to USB 3.1 or USB 3.0 port.
■ The device is running hot
• Due to the high-speed operation of the NVMe M.2 SSD, it is normal for the
main body of this device to be slightly warm along with the SSD.
Troubleshoot

14
Support Info
f the device does not operate properly or breaks down, please contact the Digi-
fast product support.
E-MAIL : [email protected]
For additional contact info please visit: Digifast-usa.com
DISCLAIMER
Digifast is not accountable for any incidental or consequential damages, includ-
ing, but not limited to property harm, loss of time or data from use of any Digifast
product, or any other damages attributable to product malfunction or failure of
including without limitation, those attributed to reliance of the materials provid-
ed, costs of product replacement, loss of use, data or prots, delays or business
interruptions, any principle of legal responsibility arising from or in reference to
the use, overall performance, delays in servicing, or lack of ability to render ser-
vice of any Digifast product. Digifast makes every e󱐯ort to ensure proper func-
tion of all its products. However, the customer is responsible to verify that the
output of Digifast product meets the customer’s quality requirement. The cus-
tomer further acknowledges that improper use of Digifast products, software
program, and/or hardware issues can cause loss of data, defective formatting,
or unreliable data loading. Digifast will make e󱐯orts to resolve or repair any is-
sues recognized by the customer either within the warranty period or on a time
and materials basis. Specications and features are subject to change without
notice or obligation.
PIRACY STATEMENT
Digifast accepts no responsibility for copyright infringement or misuse of any
Digifast equipment. Copying any form of data (audio, video, or software) without
the permission of the copyright holder is illegal. It is the sole responsibility of the
user to ensure that the legal copyrights of the copyright owners are respected.

15
Version 1.1
日本語
M.2 NVMe SSD
Docking Base
ユーザーマニュアル

16
安全上のご注意
ご使用いただく前に、以下の注意項目をご確認の上、正しく使用していただく様お願いい
たします。
誤った使用を行った場合には、使用者ご本人や周囲の方および環境へ損害を与える危険が
ございますので、くれぐれもご注意ください。
警告
• 水が掛かる恐れがある場所や、屋外には置かないでください。感電や火災の原因となり
ます。
• 接続コードが傷があったり、断線していないかをご確認ください。切断箇所が導体に触れ
ることで感電や火災を引き起こすおそれがあります。
• 発煙や異音、異臭がした場合には即座に使用を中断してください。使用を続けると、火災
や感電、破裂等を引き起こすおそれがあります。
• 本製品の上に液体が入った容器を置かないでください。万が一液体がこぼれた場合、本
製品が破損したり、感電したりするおそれがあります。誤って液体が掛かってしまった場
合には使用を即座に中断し、接続コードを抜き、サポートセンターまでご相談ください。
• 本製品を水平でない不安定な場所や、製品がはみ出す場所に載せて使用しないでくだ
さい。製品が落下してけがの原因となったり、破損したりするおそれがあります。
• お客様ご自身で本製品の修理、分解、改造を行わないでください。修理をご希望される場
合はサポートセンターへお問合せ下さい。
この表示を無視して誤った取扱いをすると、人が死亡または重傷を負う危険が想定されることを示していま
す。

17
安全上のご注意
注意
• 本製品を移動する場合には、必ず電源を切り、接続コードを引き抜いてから行ってくださ
い。接続コードを引き抜かずに移動させようとすると、本製品との接合部分を破損した
り、コードが引っ掛かって本製品の落下、破損および、けがを負ったりするおそれがありま
す。
• 接続コードを引き抜く際は、必ずプラグの根本付近をつかんで引き抜いてください。コー
ド部分を無理に引っ張るとケーブルやコネクタが破損するおそれがあります。
• 濡れた手で接続コードを差し込んだり引き抜いたりしないでください。故障するおそれ
があります。
• 本製品を直射日光の当たる場所や、高温になる場所に設置しないでください。製品が高
温となり、火災や故障の原因となります。
• 湿度が高い場所やホコリが多い場所に設置しないでください。火災を引き起こしたり、感
電したりするおそれがあります。
• 問題が発生していないか定期的にチェックを行ってください。ご不明な点はサポートセン
ターまでお問い合わせください。
この表示を無視して誤った取扱いをすると、人が傷害を負う危険または物的損害の発生が想定されることを示
しています。

18
ご使用の前に
• ご使用になる前に本書をよくお読みのうえ、本製品を正しく安全にお使いください。
• 接続する機器が予め正常に動作していることを確認してください。
• 高温多湿を避け、清潔で乾燥した環境でご使用ください。
• 本製品の動作中、製品本体が発熱するのは正常です。
• 機器に触れる際は、静電気にご注意ください。 本製品は精密電子機器ですので、静電気を与
えると誤動作や故障の原因となります。
• 製品を発送するなどの場合は、破損を防ぐために緩衝材をご使用ください。
• 殺虫剤や揮発性のものを掛けたり、ゴムやビニール製品を長時間接触させると、変色したり
塗装が傷む場合があります。
• 長時間使用しないと機能に支障をきたす場合がありますので、定期的に電源を入れることを
お勧めします
• 本体の汚れは、柔らかい布で軽くふき取って下さい。また、汚れがひどい時は、水で薄めた中
性洗剤を使い、よくふき取って下さい。（ベンジンやシンナーは塗装を傷める原因となるため
使用しないで下さい）。
• 製品を梱包してある箱および付属品は、修理の際に必要になることがありますので、保管す
ることをお薦めします。

19
目次
• 安全上のご注意 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 6
• ご使用の前に ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 8
• 目次 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 9
• 製品仕様・内容物・対応SSD ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 0
• 接続可能なSSD ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 1
• SSDにヒートシンクを取り付ける ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 2
• SSDを接続する ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 4
• 製品の安全な取り外し ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 1 6
• トラブ ル シュー ティング ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 7
• サポートのご案内 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P . 2 8

20
■ 製品仕様
• 製品型番 ： TＸB01S
• USB仕様 ： USB3.1 Gen2
• インターフェイス ： USB Type-C
• 対応OS（Windows) : Windows 7/8/１０
• 対応OS（Mac） : MacOS 10.10.5以降
• 本体寸法 : 50mm x 30mm x 11mm
• 本体重量 : 約40g（付属品除く）
■ 内容物
• TXB01S本体
• SSDヒートシンク
• SSD放熱シリコンパッド
• シリコンリング x 2
• USB Type-C to Type-Aケーブル
• 取説URL/保証書
■ 対応SSD
• NVMe M.2規格 SSD Type２２１１０/2280/2260/2242/2230
※ SATA(NGFF) M.2SSDには対応しません。
※ AHCI M.2 SSDには対応しません。
※ mSATA SSDには対応しません。
※ Windows7/8の場合、USB3.0の転送速度で動作します。
※ USB3.1 Gen2に対応したMac本体以外で接続した場合、USB3.1 Gen1またはUSB3.0の転送速度になり
ます。
※ OSは可能な限り最新のバージョンをご使用ください。
※ USB3.0/2.0インターフェイスに接続して使用することが可能ですが、転送速度は低下します。
製品仕様・内容物・対応SSD
