Digital Equipment VAX 4000 Model 200 User manual

VAX 4000 Model 200 (BA430)
Installation
Order Number EK–436AB–IN–002
Digital Equipment Corporation
Maynard, Massachusetts

First Printing, December 1990
Revised, June 1991
The information in this document is subject to change without notice and should not be
construed as a commitment by Digital Equipment Corporation.
Digital Equipment Corporation assumes no responsibility for any errors that may appear in
this document.
The software, if any, described in this document is furnished under a license and may be used
or copied only in accordance with the terms of such license. No responsibility is assumed
for the use or reliability of software or equipment that is not supplied by Digital Equipment
Corporation or its affiliated companies.
Restricted Rights: Use, duplication or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227–7013.
© Digital Equipment Corporation 1990, 1991. All rights reserved.
Printed in U.S.A.
The Reader’s Comments form at the end of this document requests your critical evaluation to
assist in preparing future documentation.
The following are trademarks of Digital Equipment Corporation: CompacTape, CX, DDCMP,
DEC, DECconnect, DECdirect, DECnet, DECscan, DECserver, DECUS, DECwindows,
DELNI, DEMPR, DESQA, DESTA, DSRVB, DSSI, IVAX, KDA, KLESI, KRQ50, MicroVAX,
MSCP, Q-bus, Q22-bus, RA, RQDX, RV20, SA, SDI, ThinWire, TK, TMSCP, TQK, TS05, TU,
VAX, VAX 4000, VAXcluster, VAX DOCUMENT, VAXELN, VAXlab, VAXserver, VMS, VT, and
the DIGITAL logo.
FCC NOTICE: The equipment described in this manual generates, uses, and may emit radio
frequency energy. The equipment has been type tested and found to comply with the limits for
a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed
to provide reasonable protection against such radio frequency interference when operated in
a commercial environment. Operation of this equipment in a residential area may cause
interference, in which case the user at his own expense may be required to take measures to
correct the interference.
S1662
This document was prepared using VAX DOCUMENT, Version 1.2.

Contents
Preface vii
1 Verify Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 ChecktheShipment................................ 1
3 PositiontheSystem................................ 4
4 OpentheSystemDoors ............................. 5
5 Install the Console Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.1 Perform Setup Operations . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.2 Connect the Terminal to the System . . . . . . . . . . . . . . . . . 8
6 Set the System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Connect Additional Devices to the System . . . . . . . . . . . . . . . 15
7.1 Connecting Terminals and Serial Printers . . . . . . . . . . . . . 18
7.2 Connecting Parallel Printers to the System . . . . . . . . . . . . 21
7.3 Connecting Synchronous Modems to the System . . . . . . . . 21
7.4 Connecting Asynchronous Modems to the System . . . . . . . 22
7.5 Connecting an Internal Modem to Telephone Lines . . . . . . 24
7.5.1 DFA01Modems ............................... 24
7.5.2 RJ11C/CA11A, RJ12C/CA12A, and RJ13C/CA13A
TelephoneService.............................. 24
7.5.3 RJ41S/CA41A and RJ45S/CA45A Telephone Service . . . 28
7.5.4 Setting Up Terminal Lines . . . . . . . . . . . . . . . . . . . . . . . 32
7.6 Connecting to an Ethernet Network at the CPU Cover
Panel ......................................... 32
7.6.1 Making a ThinWire Network Connection at the CPU
CoverPanel .................................. 34
7.6.2 Making a Standard Network Connection at the CPU
CoverPanel .................................. 37
7.7 Connecting to an Ethernet Network at the DESQA Module 39
7.7.1 Making a ThinWire Network Connection at the DESQA
Module...................................... 40
7.7.2 Making a Standard Network Connection at the DESQA
Module...................................... 46
iii

8 Connect an Expander, If Required . . . . . . . . . . . . . . . . . . . . . 47
8.1 Connecting the Q-bus Cables . . . . . . . . . . . . . . . . . . . . . . . 50
8.2 Connecting the DSSI Cable . . . . . . . . . . . . . . . . . . . . . . . . 51
8.3 Connecting the KZQSA External Cable . . . . . . . . . . . . . . . 52
8.4 Connecting the Power Control Bus Cable . . . . . . . . . . . . . 55
8.5 Connecting the Ground Cable . . . . . . . . . . . . . . . . . . . . . . 56
9 Connect the KZQSA Internal Cable, If Required . . . . . . . . . . 56
10 Connect the DSSI Cable — Dual Host Only . . . . . . . . . . . . . . 59
11 Connect the Ground Cable — Dual Host Only . . . . . . . . . . . . 62
12 Connect the System Power Cable . . . . . . . . . . . . . . . . . . . . . . 64
13 Turn On the System and Select a Language . . . . . . . . . . . . . 66
14 Close the System Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
15 AfterInstallation.................................. 70
Appendix A Starting and Modifying VMS Factory-Installed
Software
A.1 Pre-Startup Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
A.2 StartupProcedure ................................. A–2
A.2.1 Modifying FIS for a Standalone System . . . . . . . . . . . . . . . A–3
A.2.2 Modifying FIS for a Simple VAXcluster Network . . . . . . . . A–7
A.2.3 Modifying FIS for a Complex Network or Dual-Host
System........................................ A–11
A.2.3.1 Configuring for Dual-Host Systems . . . . . . . . . . . . . . . . A–12
A.2.3.2 Checking Your Modification Work . . . . . . . . . . . . . . . . . A–12
Index
Figures

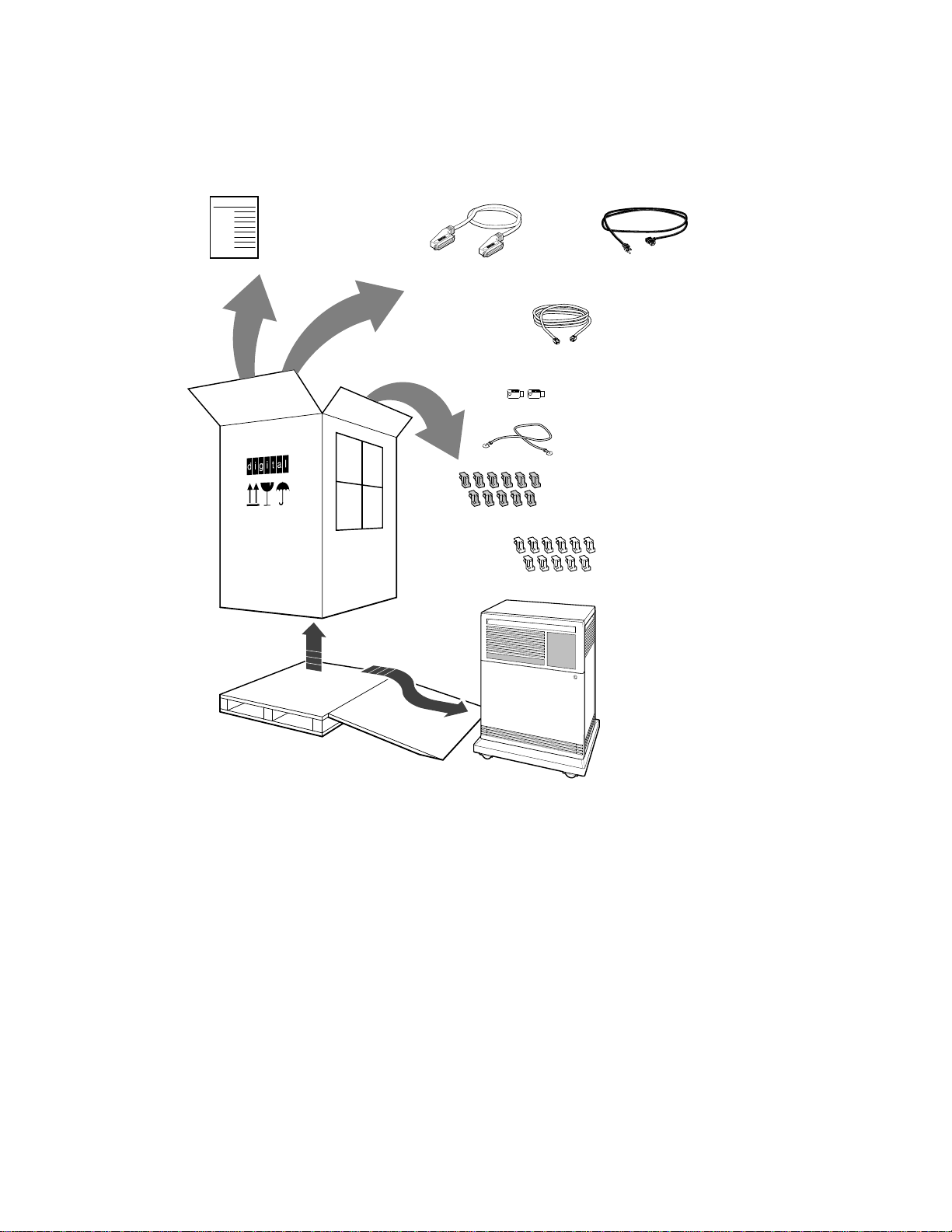

1 Shipping Carton Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Sliding the System into Position . . . . . . . . . . . . . . . . . . . . . . 4
3 Lock and Key Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

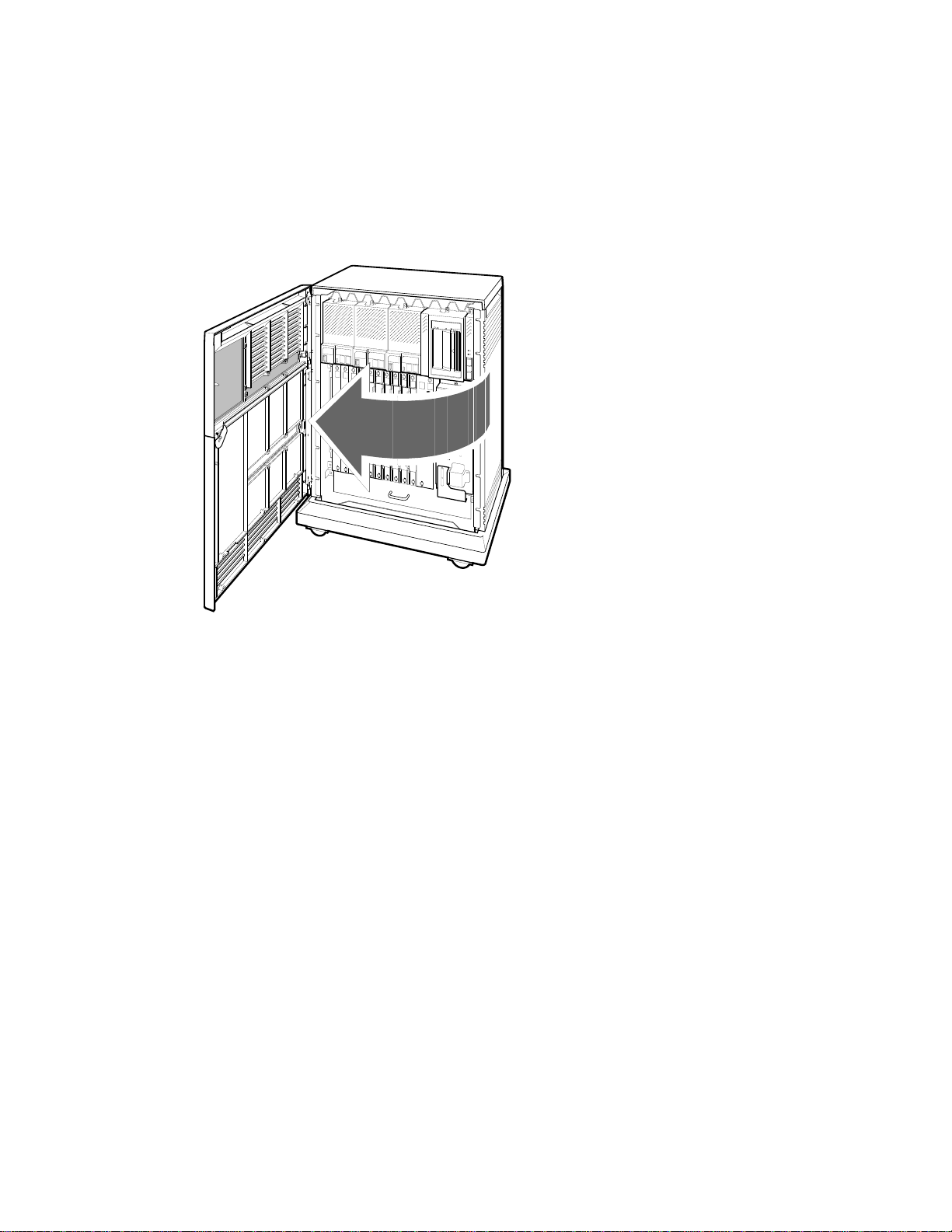

4 Opening the System Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

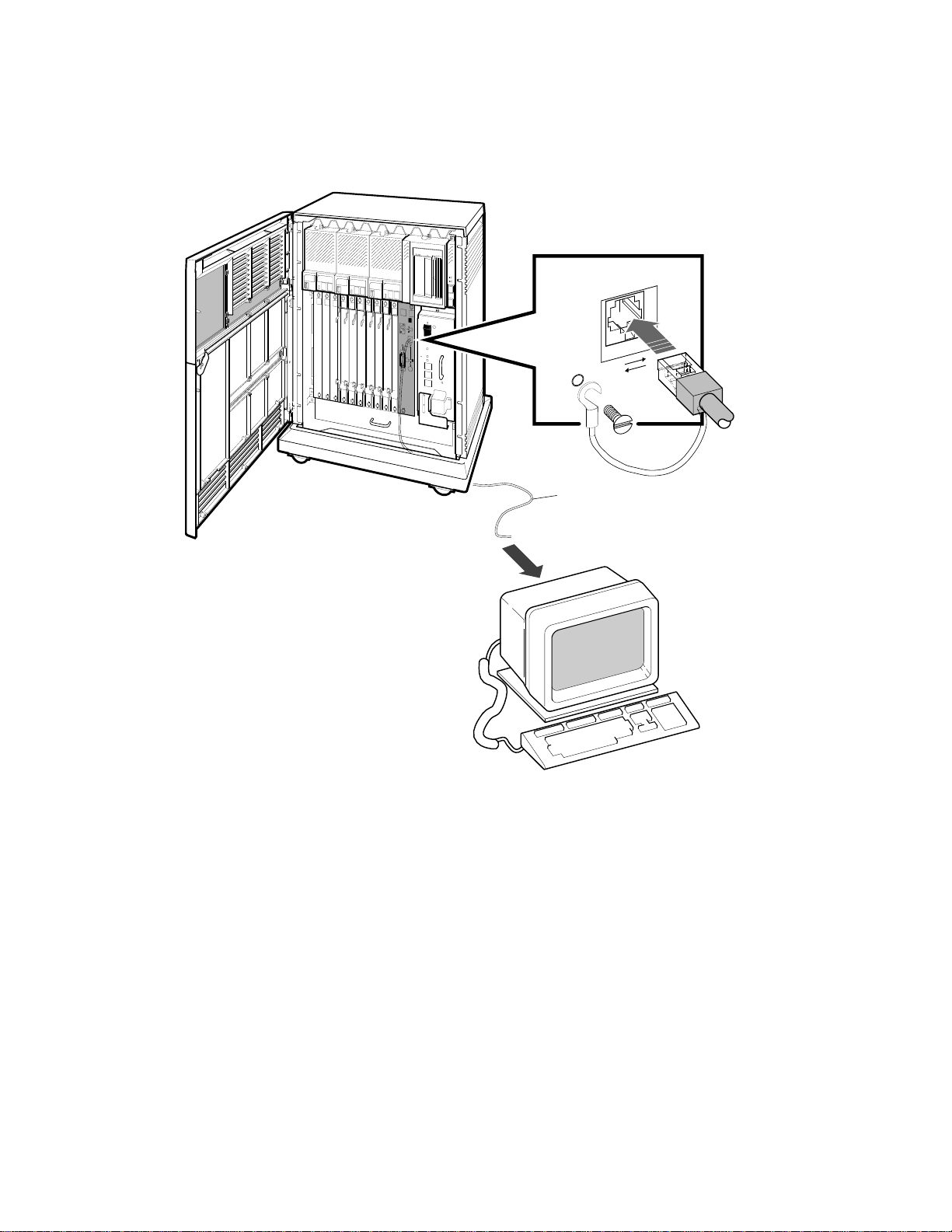

5 Connecting a VT300-Series or VT400-Series Console Terminal 9
iv

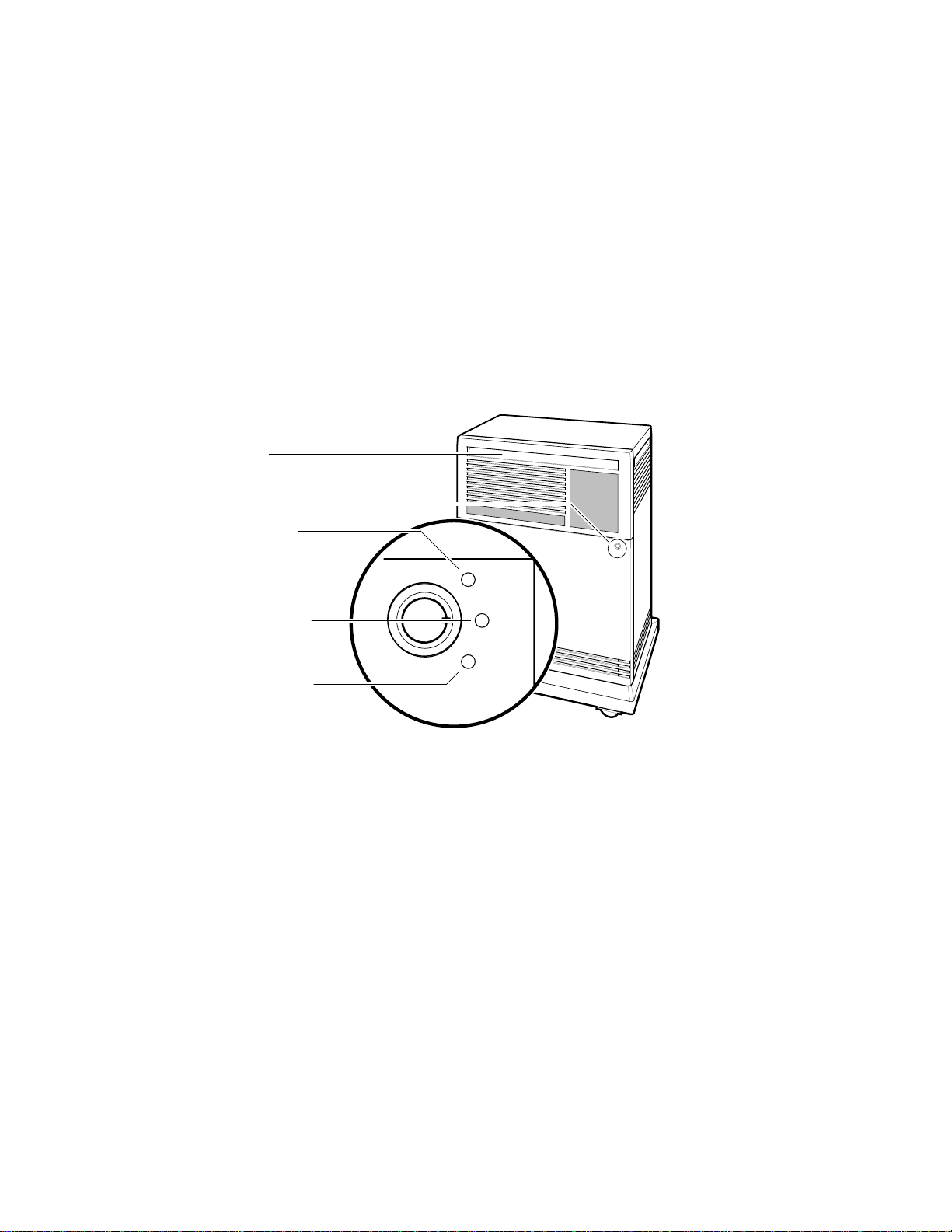

6 System Controls and Indicators — Power Supply and System
ControlPanel..................................... 11
7 System Controls and Indicators — Integrated Storage
Element and CPU Cover Panel . . . . . . . . . . . . . . . . . . . . . . . 13
8 System Controls and Indicators — TK-Series Tape Drives . . 14
9 System Controls and Indicators — TF85 Tape Drive . . . . . . . 15
10 Connecting Devices to the CXA16 Module . . . . . . . . . . . . . . . 19
11 Connecting Devices to the Cable Concentrator . . . . . . . . . . . . 20
12 Mounting the Cable Concentrator . . . . . . . . . . . . . . . . . . . . . 21
13 Connecting a Modem to a CXY08 Module . . . . . . . . . . . . . . . 23
14 Disconnecting the Telephone Line — Single Line and
MultilineService .................................. 25
15 Installing the Telephone Cord — Single Line and Multiline
Service.......................................... 26
16 Connecting a Modem to a Telephone — Single Line and
MultilineService .................................. 27
17 Connecting a Modem to a Wall-Mounted Jack (Data Jack
Service) — Telephone to Wall-Jack Connection . . . . . . . . . . . 29
18 Connecting a Modem to a Wall-Mounted Jack (Data Jack
Service) — Telephone to DFA01 Connection . . . . . . . . . . . . . . 31
19 Ethernet Connector Switch on the CPU Cover Panel . . . . . . . 33
20 ThinWire Cable, T-Connector, and Terminator . . . . . . . . . . . . 34
21 Making a ThinWire Ethernet Connection at the CPU Cover
Panel ........................................... 35
22 Grounding the ThinWire Ethernet at the CPU Cover Panel . 37
23 Making a Standard Ethernet Connection at the CPU Cover
Panel ........................................... 38
24 DESQA ThinWire/Standard Ethernet Connector Switch . . . . 40
25 ThinWire Cable, T-Connector, and Terminator . . . . . . . . . . . . 41
26 Making a ThinWire Ethernet Connection at the DESQA
Module.......................................... 42
27 Forming the Upper Cable in a Loop at the DESQA Module . . 43
28 Grounding the ThinWire Ethernet at the DESQA Module . . . 45
29 Making a Standard Ethernet Connection at the DESQA
Module.......................................... 46
30 System Connections for Expanders . . . . . . . . . . . . . . . . . . . . 48
31 Connecting the Q-bus Cables . . . . . . . . . . . . . . . . . . . . . . . . . 50
32 Removing the DSSI Terminator . . . . . . . . . . . . . . . . . . . . . . . 51
v

33 Connecting the DSSI Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 52
34 Removing the KZQSA Terminator . . . . . . . . . . . . . . . . . . . . . 53
35 Connecting the KZQSA External Cable . . . . . . . . . . . . . . . . . 54
36 Connecting the Power Control Bus Cable . . . . . . . . . . . . . . . 55
37 Connecting the Ground Cable . . . . . . . . . . . . . . . . . . . . . . . . 56
38 TLZ04/KZQSA System Connection . . . . . . . . . . . . . . . . . . . . . 57
39 TLZ04/KZQSA Module Connection — Removing the
Terminator....................................... 58
40 TLZ04/KZQSA Module Connection — Connecting the Cable . 59
41 Removing the DSSI Terminators . . . . . . . . . . . . . . . . . . . . . . 60
42 Connecting the DSSI Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 61
43 Connecting the Ground Cable . . . . . . . . . . . . . . . . . . . . . . . . 63
44 PowerSwitch..................................... 64
45 PowerCables..................................... 65
46 Attaching the Power Cable to the System . . . . . . . . . . . . . . . 66
47 Language Selection Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
48 Successful System Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
49 Saving the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
50 ClosingtheDoors.................................. 70
Tables
1 Module Identification Labels . . . . . . . . . . . . . . . . . . . . . . . . . 16
vi

Preface
This manual tells you how to install your system, using the following steps.
1. Verify site preparation
2. Check the shipment
3. Position the system
4. Open the system doors
5. Install the console terminal
6. Set the system controls
7. Connect additional devices to the system
8. Connect an expander, if required
9. Connect the KZQSA internal cable, if required
10. Connect the DSSI cable — dual host only
11. Connect the system ground cable — dual host only
12. Connect the system power cable
13. Turn on the system and select a language
14. Close the system doors
If you are installing a dual-host system, you must repeat each step for each
host. For more information on dual-host systems, refer to your system
Operation manual and to VAX 4000 Dual-Host Systems.
A glossary in your system Operation manual will help you understand new
words and abbreviations that appear in this manual.
CAUTION: Before installing the system, review your system warranty. The
terms of your agreement with Digital may require that a Digital service
representative install the system. Contact your local Digital representative
if you have any questions.
If you are installing an expander with your system:
1. Use this manual to begin the installation of the system.
vii

2. After you complete step 7, install the expander as described in
the installation document (addendum or manual) shipped with the
expander.
3. Return to this manual (step 8) to complete the installation of the
expander and the system.
NOTE: Some of the devices mentioned in this manual are designed for
timesharing systems and may not be suitable for server systems. If you
have a server system, contact your Digital representative if you have any
questions about whether a device is appropriate for your system.
Conventions
The following conventions are used in this manual.
Convention Meaning
Key A terminal key used in text and examples. For example, Break indicates
that you press the Break key on your terminal keyboard.
XXXX Return Bold, monospaced type and the symbol for the Return key indicate
interactive input that you must supply. For example:
>>> BOOT MUA0 Return
That line tells you to enter the command BOOT MUA0 at the console
terminal.
NOTE Provides general information about the current topic.
CAUTION Provides information to prevent damage to equipment or software.
WARNING Provides information to prevent personal injury.
The following warning symbols appear on the power supply. Please review
their meaning:
Indicates risk of electric shock.
To reduce the risk of injury, do not remove modules, Integrated
Storage Elements (ISEs), or the power supply. No user-
serviceable parts are inside. Refer servicing questions to your
viii

Digital service representative or your qualified self-maintenance
personnel.
The equipment is not designed for connection to an IT power
system (a power system without a directly grounded neutral
conductor). The equipment should be plugged into a dedicated
(isolated) ground circuit.
The system contains an automatic voltage-selection power
supply. Voltage selection is not required prior to installation.
ix

1 Verify Site Preparation
You may have received a copy of the system Site Preparation manual, which
describes the physical, environmental, and electrical requirements for your
system. A copy of that manual is also included in your Customer Hardware
Information Kit. If you have not done so, read that manual and follow its
instructions for preparing your site.
• The installation instructions that follow assume your site meets all the
requirements listed in the Site Preparation manual.
• These instructions also assume all terminal data lines, telephone lines,
and network lines that you plan to connect to your system are in place
and clearly labeled.
You will need the following tools to install your system. They are not
included in your shipment.
• Scissors
• Flat blade screwdriver
• Phillips (cross point) screwdriver
• Adjustable wrench
If you are installing a dual-host system, you must repeat each step in the
installation procedure for each host.
2 Check the Shipment
Before unpacking your system, find the Product Delivery Document. It is
attached to the outside of a carton and is labeled with a blue "i" symbol.
That document lists your order and how it breaks out into the items
shipped.
Your shipment may include several cartons:
• One carton contains the system.
• A smaller carton contains the console terminal, if ordered.
• Another carton contains hardware documentation, software documen-
tation, and software licenses. That carton also contains system software
and diagnostic software if you ordered those items separately.
VAX 4000 Model 200 (BA430) Installation 1

Depending on your order, your shipment may also include cartons
containing:
• Additional terminal(s)
• Printer(s)
• Modem(s)
• Expander(s)
Make sure your shipment is complete by checking that each item listed as
shipped on the Product Delivery Document appears on a Content Listing
or on a barcode label on the outside of one of the cartons in your shipment.
NOTE: Save all packing materials until you are sure you will not reship
any items in the shipment. And save all items in the shipment until you are
sure you will not use them.
Use the unpacking illustrations on the cartons as a guide to unpack your
shipment, one carton at a time. Check the contents of each carton against
the Content Listing on its side to ensure you received all items.
WARNING: The system weighs 68 kilograms (150 pounds) with all options
installed. Two or more people should move the system.
If any item is missing or damaged:
• Contact your delivery agent.
• Contact your Digital sales representative.
If you ordered a dual-host system, the carton containing the second system
includes the same items as the first carton plus a BC21M–09 DSSI cable
and a ground cable. DSSI stands for Digital Storage Systems Interconnect.
Figure 1 shows the contents of the shipping carton.
2VAX 4000 Model 200 (BA430) Installation

Figure 1: Shipping Carton Contents
Anti Static AntiStatic
System
Keys to Front Door
MLO-005560
Installation Checklist
Note:
Unpacking is illustrated on the
exterior of the shipping carton.
Ground Wire Cable
Power Cable
DECconnect
(12-13756-A8)
Office Cable
DSSI Bus Node ID Plugs
(12-28766-19)
Node ID Plugs
TLZ04 Bus
(12-28766-28)
Internal Cable
KZQSA
(BC06P-2F)
(17-01364-02)
VAX 4000 Model 200 (BA430) Installation 3

3 Position the System
You can move your system into position in one of two ways as shown in
Figure 2.
• Roll it sideways.
• Slide or walk it backward or forward by gripping the hand holds on the
side.
WARNING: Do not use the hand holds to lift the system.
Figure 2: Sliding the System into Position
Slides Front
to Back
Rolls Left to Right MLO-004012
Hand Holds
Leave space behind the system for routing cables. Once installation is
complete, you can place the system base directly against a wall. The
oversized base ensures enough space for proper ventilation.
4VAX 4000 Model 200 (BA430) Installation

4 Open the System Doors
The system doors are locked. To unlock and open them:
1. Find the key in the shipping carton (Figure 1). Two keys are provided,
one to keep as a spare.
2. Insert the key into the three-position rotary lock shown in Figure 3.
Turn the key to the bottom position to open the upper and lower doors
as a single unit.
3. Open the doors by pulling the handle on the upper door. Figure 3 shows
the door handle.
Figure 3: Lock and Key Positions
Tape Drive Controls and
Door Handle
(Both Doors) MLO-004958
Middle Key Position:
No Access to Controls
Bottom Key Position:
Access to Power Switch;
All Controls and Indicators
Top Key Position:
Access to SCP, ISEs, and
Rotary Key Lock
Indicators (Upper Door)
SCP stands for system control panel and ISE stands for Integrated
Storage Element.
VAX 4000 Model 200 (BA430) Installation 5

4. Swing the doors open. Figure 4 shows the system with the upper and
lower doors open.
Figure 4: Opening the System Doors
MLO-005561
The next step in installing your system is to install the console terminal.
6VAX 4000 Model 200 (BA430) Installation

5 Install the Console Terminal
You will use the console terminal to communicate with your system.
1. Unpack the terminal and its documentation.
2. Use the instructions in the terminal installation guide to connect the
various parts of the terminal.
3. Turn on the terminal.
The terminal performs a self-test. The documentation for the terminal
describes a successful self-test and error messages you receive if the
terminal is not operating properly.
Once the terminal passes its self-test, you are ready to perform setup
operations.
5.1 Perform Setup Operations
Setup instructions for terminals vary according to model or according to
which read-only memory (ROM) is installed in the terminal. Be sure to:
• Read the documentation provided with your terminal.
• Follow the setup instructions for your terminal.
NOTE: A new terminal from Digital has the baud rate set to 9600. If your
terminal is new and you want to use that rate, you can skip the baud rate
setup instructions.
If you have a dual-host system, you can use one terminal with dual sessions
instead of two terminals. See your terminal documentation for instructions.
Once you test the terminal and perform setup operations, you are ready to
connect the terminal to your system.
VAX 4000 Model 200 (BA430) Installation 7

5.2 Connect the Terminal to the System
You will attach one end of a cable to the CPU cover panel and the other
end of the cable to a communication port on the back of the terminal.
• The CPU cover panel is on the front of the system and covers backplane
slots 1 and 2.
• The port on the back of the terminal varies with the type of terminal.
Refer to the instructions that follow to connect a VT300-series or VT400-
series terminal.
1. Turn off the terminal.
2. Find the DECconnect Office Cable. It is labeled 17–01364–02 and has
a DEC–423 modular plug on each end.
3. Connect the terminal cable to the DEC–423 modular jack labeled 1 on
the rear of the terminal, according to the instructions in your terminal
installation guide.
4. Feed the other end of the cable under the system base, from behind or
from the side. Then draw up the cable and insert it into the DEC–423
modular jack shown in Figure 5.
5. Connect the ground lead as shown in Figure 5:
a. Loosen the ground screw, on the left of the modular jack.
b. Slide the end of the lead under the screw.
c. Tighten the screw.
8VAX 4000 Model 200 (BA430) Installation

Figure 5: Connecting a VT300-Series or VT400-Series Console Terminal
MLO-005562
DECconnect Office
Cable
You are now ready to set the controls on your system.
VAX 4000 Model 200 (BA430) Installation 9

6 Set the System Controls
The system controls are on the power supply, system control panel,
Integrated Storage Elements, CPU cover panel, and tape drives.
1. Check the setting of the Power switch on the power supply shown in
Figure 6. It should be off (set at 0).
2. Check the setting of the Halt button on the system control panel shown
in Figure 6. It should be set to the out (run) position.
10 VAX 4000 Model 200 (BA430) Installation

Figure 6: System Controls and Indicators — Power Supply and System
Control Panel
DC OK Indicator
Over Temperature
Warning Indicator
Halt Button
Restart Button
System Control
Panel
Power Supply Power Switch
DC OK Indicator
Over Temperature
Condition Indicator
Fan Failure
Indicator
Power Bus
Connectors
Power Cable
Connector
AC Present Indicator
MLO-005564
VAX 4000 Model 200 (BA430) Installation 11
