Digital Equipment VAX 4000 User manual

VAX4000
BA42BEnclosureSystemOptions
Order Number: EK–474AB–OP. B01
August 1994
This manual provides reference, configuration, and installation information
for the options that the VAX 4000 BA42B Enclosure-based systems (Models
100, 100A, and 105A) support.
Digital Equipment Corporation
Maynard, Massachusetts

August 1994
Digital Equipment Corporation makes no representations that the use of its products in the
manner described in this publication will not infringe on existing or future patent rights, nor do
the descriptions contained in this publication imply the granting of licenses to make, use, or sell
equipment or software in accordance with the description.
© Digital Equipment Corporation 1994. All Rights Reserved.
The postpaid Reader’s Comments forms at the end of this document request your critical
evaluation to assist in preparing future documentation.
The following are trademarks of Digital Equipment Corporation: CompacTape, DEC, Digital,
MicroVAX, VAX DOCUMENT, and the DIGITAL logo.
All other trademarks and registered trademarks are the property of their respective holders.
S2486
This document was prepared using VAX DOCUMENT Version 2.1.

Contents
Preface ..................................................... ix
Overview ........................................... xii
DSSI and SCSI Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
1 DHW42 Asynchronous Communications Option
1.1 OrderingInformation.................................. 1–1
1.2 OptionContents...................................... 1–2
1.3 Installation ......................................... 1–4
1.4 DiagnosticSupport.................................... 1–10
2 DSW42 Synchronous Communications Option
2.1 OrderingInformation.................................. 2–1
2.2 OptionContents...................................... 2–2
2.3 Installation ......................................... 2–3
2.4 DiagnosticSupport.................................... 2–9
3 MS44L and MS44 Memory Options
3.1 OrderingInformation.................................. 3–1
3.2 OptionContents...................................... 3–2
3.3 Installation ......................................... 3–3
3.4 DiagnosticSupport.................................... 3–5
4 RF31T/RF35/RF36 Disk Drive Options
4.1 OrderingInformation.................................. 4–1
4.2 OptionContents...................................... 4–1
4.3 SettingtheDSSIID................................... 4–1
4.4 Installation ......................................... 4–3
4.5 DiagnosticSupport.................................... 4–6
4.6 PowerRequirements .................................. 4–6
iii

5 RRD42-EK CD–ROM Drive Option
5.1 OrderingInformation.................................. 5–1
5.2 OptionContents...................................... 5–1
5.3 SCSIIDInformation .................................. 5–2
5.4 Installation ......................................... 5–4
5.4.1 Preparing to Install an RRD42 in the Right-Hand
Position ......................................... 5–4
5.4.2 Preparing to Install an RRD42 in the Left-Hand Position . . . 5–5
5.5 DiagnosticSupport.................................... 5–8
5.6 RRD42 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8
6 RRD43-EK CD–ROM Drive Option
6.1 OrderingInformation.................................. 6–1
6.2 OptionContents...................................... 6–1
6.3 SCSIIDInformation .................................. 6–2
6.4 Installation ......................................... 6–4
6.4.1 Preparing to Install an RRD43 in the Right-Hand
Position ......................................... 6–4
6.4.2 Preparing to Install an RRD43 in the Left-Hand Position . . . 6–5
6.4.3 Installing the RRD43 CD–ROM Option . . . . . . . . . . . . . . . . . 6–5
6.5 DiagnosticSupport.................................... 6–7
6.6 PowerRequirements .................................. 6–8
7 RX26-EL Disk Drive Option
7.1 OrderingInformation.................................. 7–1
7.2 OptionContents...................................... 7–1
7.3 SCSIIDInformation .................................. 7–2
7.4 Installation ......................................... 7–4
7.5 DiagnosticSupport.................................... 7–8
7.6 PowerRequirements .................................. 7–8
8 TLZ06/TLZ07 Tape Drive Option
8.1 OrderingInformation.................................. 8–1
8.2 OptionContents...................................... 8–1
8.3 SCSIIDInformation .................................. 8–2
8.4 Installation ......................................... 8–4
8.4.1 Preparing to Install a TLZ06/TLZ07 in the Left-Hand
Position ......................................... 8–4
iv

8.4.2 Preparing to Install a TLZ06/TLZ07 in the Right-Hand
Position ......................................... 8–5
8.4.3 Installing the TLZ06/TLZ07 Tape Drive . . . . . . . . . . . . . . . . . 8–5
8.5 DiagnosticSupport.................................... 8–7
8.6 PowerRequirements .................................. 8–7
9 TZ30-EL Tape Drive Option
9.1 OrderingInformation.................................. 9–1
9.2 OptionContents...................................... 9–1
9.3 SCSIIDInformation .................................. 9–2
9.4 Installation ......................................... 9–4
9.5 DiagnosticSupport.................................... 9–8
9.6 PowerRequirements .................................. 9–8
10 TZK10-HG/TZK11-HG Tape Drive Options
10.1 OrderingInformation.................................. 10–2
10.2 OptionContents...................................... 10–2
10.3 SCSIIDInformation .................................. 10–2
10.4 Installation ......................................... 10–4
10.4.1 Preparing to Install a TZK10/TZK11 Option in the
Right-HandPosition................................ 10–5
10.4.2 Preparing to Install a TZK10/TZK11 in the Left-Hand
Position ......................................... 10–5
10.4.3 Installing the TZK10/TZK11 Option . . . . . . . . . . . . . . . . . . . . 10–5
10.5 DiagnosticSupport.................................... 10–8
10.6 PowerRequirements .................................. 10–8
Figures
1–1 DHW42Option ................................... 1–3
1–2 Removing the Covers from Asynchronous Communications
PortAandPortB ................................. 1–5
1–3 DHW42 Input/Output Module Installation. . . . . . . . . . . . . . . 1–6
1–4 DHW42 Input/Output Cable Installation . . . . . . . . . . . . . . . . 1–7
1–5 Location of the Standoff Pillars on the KA52/KA53 CPU
Module.......................................... 1–8
1–6 DHW42 Logic Board Installation . . . . . . . . . . . . . . . . . . . . . . 1–9
2–1 DSW42Option.................................... 2–2
v

2–2 Removing the Covers from Synchronous Communications
Port0andPort1.................................. 2–4
2–3 DSW42 Input/Output Module Installation . . . . . . . . . . . . . . . 2–5
2–4 DSW42 Input/Output Cable Installation . . . . . . . . . . . . . . . . 2–6
2–5 Location of the Standoff Pillars on the KA52/53 CPU
Module.......................................... 2–7
2–6 DSW42 Logic Board Installation . . . . . . . . . . . . . . . . . . . . . . 2–8
3–1 MS44 and MS44L Memory Modules . . . . . . . . . . . . . . . . . . . 3–2
3–2 Memory Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
4–1 RF31T/RF35/RF36 Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
4–2 Sample RF31T/RF35/RF36 Disk Drive Option with Mounting
Brackets......................................... 4–4
4–3 Installing a Sample RF31T/RF35/RF36 Disk Drive Option
................................................ 4–5
5–1 RRD42-EKOption ................................. 5–2
5–2 RRD42 SCSI ID Jumper Wire Locations . . . . . . . . . . . . . . . . 5–3
5–3 Connecting the Power Cable and the SCSI Cable . . . . . . . . . 5–6
5–4 Installing the RRD42-EK Option . . . . . . . . . . . . . . . . . . . . . . 5–7
6–1 RRD43 Compact Disc Drive Front Panel . . . . . . . . . . . . . . . . 6–2
6–2 RRD43 CD–ROM Drive Jumper Locations . . . . . . . . . . . . . . . 6–3
6–3 Connecting the Power and SCSI Cables . . . . . . . . . . . . . . . . . 6–6
6–4 Installing the RRD43 Option . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
7–1 RX26-ELOption................................... 7–2
7–2 Ventilation Slot for SCSI ID Switch Access . . . . . . . . . . . . . . 7–3
7–3 Installing the RX26 Bezel Insert in a BA42B-Based
System.......................................... 7–5
7–4 Connecting the Power Cables and the SCSI Cable . . . . . . . . . 7–6
7–5 Installing the RX26-EL Option . . . . . . . . . . . . . . . . . . . . . . . 7–7
8–1 TLZ06/TLZ07 Tape Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2
8–2 TLZ06/TLZ07 SCSI ID Jumper Switch Locations . . . . . . . . . 8–3
8–3 Connecting the Power Cable and the SCSI Cable . . . . . . . . . 8–5
8–4 Installing the TLZ06/TLZ07 Tape Drive . . . . . . . . . . . . . . . . . 8–6
9–1 TZ30-ELOption................................... 9–2
9–2 TZ30 SCSI ID Switch Locations . . . . . . . . . . . . . . . . . . . . . . . 9–3
9–3 Installing the TZ30 Bezel Insert . . . . . . . . . . . . . . . . . . . . . . 9–5
9–4 Connecting the Power Cable and the SCSI Cable . . . . . . . . . 9–6
9–5 Installing the TZ30 Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–7
10–1 TZK10/TZK11-HG Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2
vi

10–2 TZK10/TZK11 SCSI ID Jumper Wire Locations . . . . . . . . . . . 10–3
10–3 Connecting the Power Cable and the SCSI Cable . . . . . . . . . 10–6
10–4 Installing the TZK10/TZK11 Option . . . . . . . . . . . . . . . . . . . . 10–7
Tables
1–1 DHW42Variants .................................. 1–1
1–2 OrderingInformation............................... 1–1
1–3 Unique Components of the DHW42 Variants . . . . . . . . . . . . . 1–4
2–1 OrderingInformation............................... 2–1
2–2 DSW42 External Components . . . . . . . . . . . . . . . . . . . . . . . . 2–3
3–1 MS44 and MS44L Variants . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
4–1 RF31T/RF35/RF36 DSSI ID Jumper Wire Combinations . . . . 4–2
4–2 RF31T/RF35 Power Requirements . . . . . . . . . . . . . . . . . . . . . 4–6
4–3 RF36 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
5–1 RRD42 SCSI ID Jumper Wire Combinations . . . . . . . . . . . . . 5–4
5–2 RRD42-EK Power Requirements . . . . . . . . . . . . . . . . . . . . . . 5–8
6–1 RRD43 CD–ROM SCSI ID Jumper Settings . . . . . . . . . . . . . 6–4
6–2 RRD43-EK Power Requirements . . . . . . . . . . . . . . . . . . . . . . 6–8
7–1 RX26Diskettes ................................... 7–1
7–2 RX26 FDI/SCSI Board SCSI ID Switch Positions . . . . . . . . . 7–4
7–3 RX26 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8
8–1 TLZ06/TLZ07 Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . 8–1
8–2 TLZ06/TLZ07 SCSI ID Jumper Switch Combinations . . . . . . 8–4
8–3 TLZ06/TLZ07 Power Requirements . . . . . . . . . . . . . . . . . . . . 8–7
9–1 TZ30 SCSI ID Switch Positions . . . . . . . . . . . . . . . . . . . . . . . 9–4
9–2 TZ30 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–8
10–1 TZK10 Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1
10–2 TZK11 Tape Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1
10–3 TZK10/TZK11 SCSI ID Jumper Wire Combinations . . . . . . . 10–4
10–4 TZK10/TZK11 Power Requirements . . . . . . . . . . . . . . . . . . . . 10–8
vii

Preface
This manual provides reference, configuration, and installation information for
each internal option that the VAX 4000 BA42B Enclosure systems support.
Audience
This manual is for Digital services personnel. It is also for customers who have
a self-maintenance agreement with Digital Equipment Corporation.
Structure of This Manual
This manual is divided into ten chapters describing all the options that you
can install in a VAX 4000 BA42B Enclosure system.
Related Documents
The following documents contain more information about VAX 4000 BA42B
systems:
•Acoustic Declaration for VAX 4000 BA42B Systems, EK-464AA-AN
•VAX 4000 BA42B Enclosure Maintnance, EK-472AB–MG
•VAX 4000 Model 100, 100A, 105A KA52/53 CPU System Maintenance
EK-472AB–MG
•VAX 4000 Model 100 Customer Letter, EK-463AA-CL
•VAX 4000 Model 100 Customer Technical Information, EK-467AA-TI
•VAX 4000 Model 100 Installation Information, EK-465AA-IN
•VAX 4000 Model 100 Operator Information, EK-466AA-OP
•VAX 4000 Model 100 Troubleshooting and Diagnostics Information,
EK-468AA-TS
•VAX 4000 Model 100A Customer Letter, EK-501AA-CL
•VAX 4000 Model 100A Customer Technical Information, EK-504AA-TI
ix

•VAX 4000 Model 100A Installation Information, EK-502AA-IN
•VAX 4000 Model 100A Operator Information, EK-503AA-OP
•VAX 4000 Model 100A Troubleshooting and Diagnostics Information,
EK-505AA-TS
•VAX 4000 Model 105A Customer Letter, EK-511AA-CL
•VAX 4000 Model 105A Customer Technical Information, EK-514AA-TI
•VAX 4000 Model 105A Installation Information, EK-512AA-IN
•VAX 4000 Model 105A Operator Information, EK-513AA-OP
•VAX 4000 Model 105A Troubleshooting and Diagnostics Information,
EK-515AA-TS
•OpenVMS Factory Installed Software User Guide, EK-A0377-UG
x

Conventions
The following conventions are used in this manual:
Convention Description
xA lowercase italic xindicates the generic use of a letter. For
example, xxx indicates any combination of three alphabetic
characters.
italic type Italic type emphasizes important information, indicates variables,
and indicates the complete titles of manuals.
boldface type Boldface type in examples indicates user input. Boldface type in text
indicates the first instance of terms defined either in the text, in the
glossary, or both.
MONOSPACE Text displayed on the screen is shown in monospaced type.
Radix indicators The radix of a number is written as a word enclosed in parentheses,
for example, 23(decimal) or 34(hexadecimal).
UPPERCASE A word in uppercase indicates a command.
Note A note contains information that is of special importance to the user.
Caution A caution contains information to prevent damage to the equipment.
xi

Overview
Overview
This manual contains descriptions of options that the VAX 4000 BA42B-based
systems support. It provides instructions that describe how to install each
option into a VAX 4000 BA42-based system. If there is option model-specific
information, it is also described. The following is a list of options that the
VAX 4000 BA42B-based systems support.
• DHW42-AA, -BA, -CA, -UP asynchronous communications option
• DSW42-AA synchronous communications option
• MS44-DC, MS44L-BC memory options
• RF31T-EK/RF35-EK/RF36-EK tape drive option
• RRD42-EK CD–ROM drive option
• RRD43-EK CD–ROM drive option
• RX26-EL disk drive option
• TLZ06-HG/TLZ07-HG tape drive option
• TZ30-EL tape drive option
• TZK10-HG/TZK11-HG tape drive option
Note
Your system may differ slightly from some illustrations because this
manual randomly depicts VAX 4000 Models 100, 100A, and 105A as
examples.
Many options may be installed in either right-hand or left-hand
mounting positions. Illustrations may differ from the actual position
used in your system.
xii

DSSI and SCSI Information
DSSI and SCSI Information
DSSI ID information
You must set the ID of the digital storage systems interconnect (DSSI) device
option. In the VAX 4000 Model 100, 100A or 105A, each DSSI device must
have a unique DSSI ID.
SCSI ID information
You must set the ID of a small computer system interface (SCSI) device option.
In a VAX 4000 Model 100, 100A or 105A, each SCSI device must have a unique
SCSI ID. The following table lists the recommended SCSI IDs for the various
SCSI devices that the VAX 4000 Model 100, 100A or 105A systems support.
SCSI ID Device
0-5
6 SCSI controller (internal default)
7
xiii

1
DHW42 Asynchronous Communications
Option
The DHW42 is an asynchronous communications option for the VAX 4000
BA42-based systems. There are four variants of this option; three variants
provide different communications interfaces, and one variant is an upgrade
option (see Table 1–1).
Table 1–1 DHW42 Variants
Variant Communications Interface
DHW42-AA Eight DEC423 asynchronous lines
DHW42-BA Sixteen DEC423 asynchronous lines
DHW42-CA Eight EIA-232 asynchronous lines with modem control
DHW42-UP Eight to sixteen DEC423 asynchronous line upgrade
1.1 Ordering Information
Table 1–2 lists the order numbers for the DHW42 options that Digital services
personnel install in a VAX 4000 BA42-based system.
Table 1–2 Ordering Information
System Type Order Numbers
BA42B Enclosure DHW42-AA
DHW42-BA
DHW42-CA
DHW42-UP
DHW42 Asynchronous Communications Option 1–1

DHW42 Asynchronous Communications Option
1.2 Option Contents
1.2 Option Contents
The DHW42 option contains components that you install in the system
enclosure (internal components) and components that you connect to the
system (external components).
The DHW42 asynchronous communications option contains these components:
• A logic board (54-20662-01)
• An input/output cable (17-02942-01)
• One of the following input/output modules:
8 data-only line input/output module (70-28542-02)
16 data-only line input/output module (70-28542-03)
8 modem control line input/output module (70-28543-01)
Figure 1–1 shows the contents of a DHW42 option. The DHW42 input/output
module and the external components for each variant are different. Table 1–3
gives information about the unique components of each variant.
1–2 DHW42 Asynchronous Communications Option

DHW42 Asynchronous Communications Option
1.2 Option Contents
Figure 1–1 DHW42 Option
DHW42
Logic Board I/O Cable I/O Module
Internal Components
External Components
External Cable
H3104
Harmonica
Modem
Labels
MLO-009946
DHW42 Asynchronous Communications Option 1–3

DHW42 Asynchronous Communications Option
1.2 Option Contents
Table 1–3 Unique Components of the DHW42 Variants
Variant I/O Module External Cable Harmonica Modem
Labels
DHW42-AA 36-way1BC16C-10 H3104-00
(70-28542-02) (17-01174-01)
DHW42-BA 36-way BC16C-102H3104-002
(70-28542-03) (17-01174-01)
DHW42-CA 50-way BC29J-06236-36016-01
(70-28543-01) (17-02941-01)
DHW42-UP 36-way BC16C-10 H3104-00
(70-28542-03) (17-01174-01)
1This I/O module contains only one 36-way connector.
2Two are supplied.
1.3 Installation
To install the DHW42 option in the system enclosure: remove the enclosure
cover and the drive-mounting shelves. (Refer to the BA42B Enclosure
Maintenance manual for more information.)
To install the DHW42 input/output module you must:
1. Remove the asynchronous communications port covers from the back of the
CPU module. The variant of the option determines the covers you remove
as follows:
• DHW42-AA—remove the cover on the asynchronous communications
port A only (the lower cover).
• DHW42-BA and DHW42-CA—remove the covers on the asynchronous
communications ports A (lower port) and B (upper port).
• DHW42-UP—remove the cover on the asynchronous communications
port B (the upper cover).
2. To remove a port cover, push up the plastic tab on the cover from inside the
enclosure and remove the cover from the enclosure (see Figure 1–2).
1–4 DHW42 Asynchronous Communications Option

DHW42 Asynchronous Communications Option
1.3 Installation
Figure 1–2 Removing the Covers from Asynchronous Communications Port
A and Port B
Slot for Asynchronous
Communications Port B
Cover
Slot for Asynchronous
Communications Port A
Cover
Note: 1. Remove lower cover first.
2. Remove lower cover only for DHW42-AA. MLO-012387
3. Place the DHW42 input/output module, with external connectors facing
out, on the support tabs on the back of the enclosure (see Figure 1–3).
4. Tilt the DHW42 input/output module towards the back of the enclosure
until the spring clip on the DHW42 input/output module clicks into
position.
DHW42 Asynchronous Communications Option 1–5

DHW42 Asynchronous Communications Option
1.3 Installation

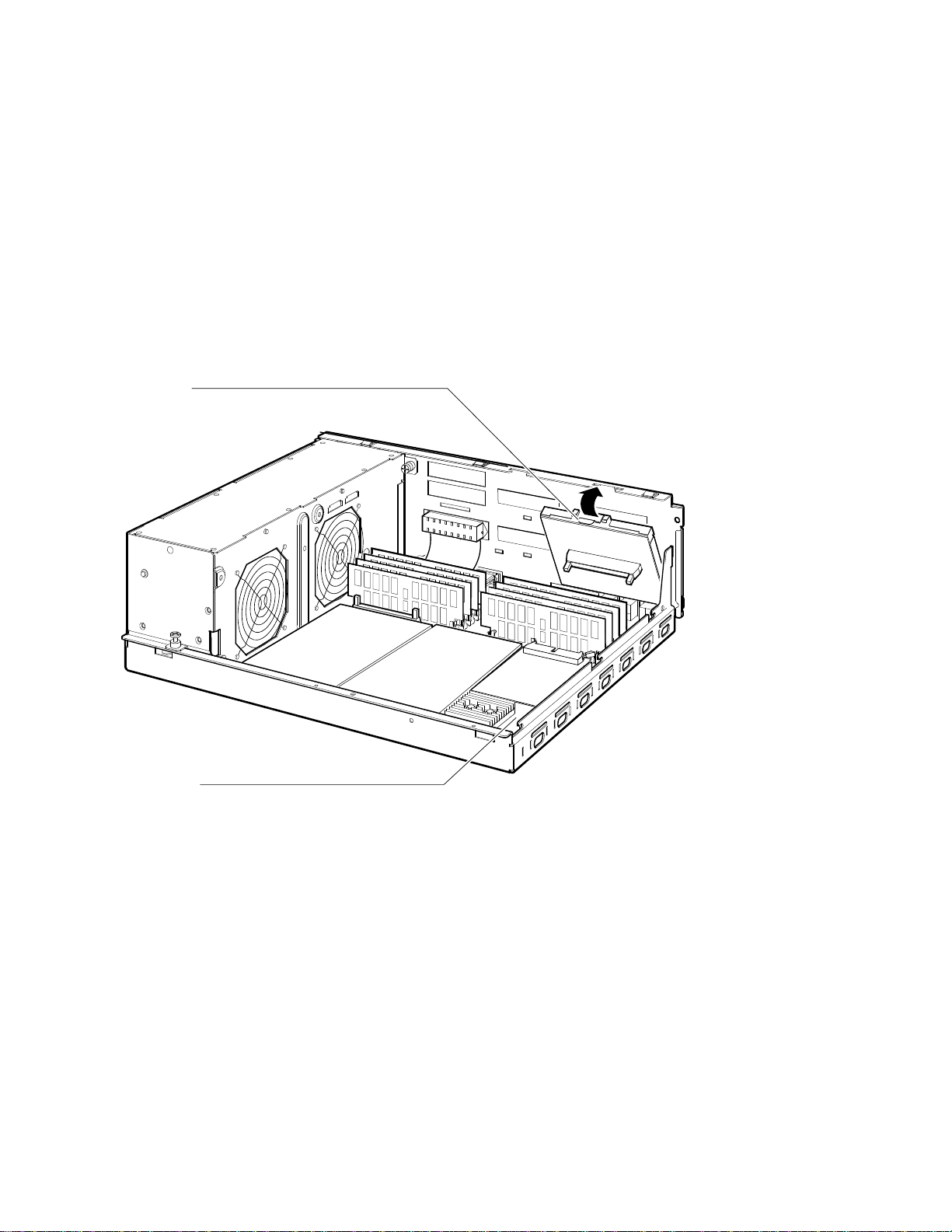

Figure 1–3 DHW42 Input/Output Module Installation
Spring Clip
CPU Module MLO-009891
To install the DHW42 input/output cable:
1. Connect one end of the DHW42 input/output cable to the connector on the
CPU module (see Figure 1–4).
2. Connect the other end of the DHW42 input/output cable to the DHW42
input/output module on the back of the enclosure.
3. Ensure that the connector arms lock both cable connectors securely into
position.
1–6 DHW42 Asynchronous Communications Option
