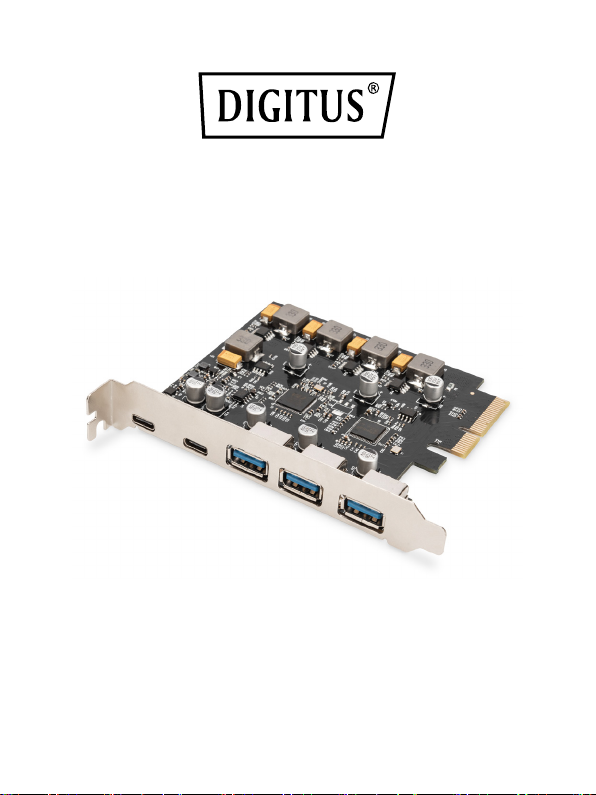

Digitus DS-30222 User manual

PCIe card 2x USB-C +
3x USB A
Quick Installation Guide
DS-30222

2
Table of Contents
1. Introduction .................................................................................3
2. Main Features ..............................................................................3
3. Package Contents.........................................................................3
4. Product Specification ...................................................................4
5. Hardware Installation...................................................................5

3
1. Introduction
The Digitus PCI Express Card extends the PC by 2x USB-C™and 3x
USB A ports. Various devices can be connected to this card, such as
hard disks, DVD drives, mouse, keyboard, card reader and more.
2. Main Features
1. USB 3.0 PCI Express Interface Card with 5 external USB 3.0 ports:
3x USB A jack, 2x USB-C jack for devices of the latest generation
2. 2x USB-C™ (USB 3.1) up to 10 Gbps
3. 3x USB-A (USB 3.1) up to 10 Gbps
4. Supports data transfer rates of 10G / 5G / 480M / 12M /
1.5Mbps
5. Power supply: USB-C™ 5V/3.5A per port max.
6. Power supply: USB A 5V/1A per port max.
7. Plug and Play - no driver installation required
3. Package Contents
•1x USB-3.1 Gen2 PCI Express Card
•
1x Driver CD
•1x User manual

4
4. Product Specification
Technical
Transfer rate
Each port supports a transfer
rate of up to 10 Gbps (USB3.1
Gen2),
Supports data transfer rates of
10G / 5G / 480 / 12 / 1.5 Mbps
Output
USB Type-C™ Port 5 V / 3.5 A,
USB Type A Port 5 V / 1 A
SuperSpeed
USB 3.1 Super Speed up to 10
Gbps,
2x SuperSpeed USB 10 Gbps
(USB 3.1 Gen2) USB Type-C™
jack,
3x SuperSpeed USB 10 Gbps
(USB 3.0) A jack
Supporting
Support of 4-way PCI Express
v2.0,
Supports eXtensible Host
Controller Interface (xHCI)
Specification 1.1,
Supports Multiple INs
Operating systems
Supports Windows
7/8/8.1/10/11,
Linux
USB A ports
3
USB C™ ports
2

5
5. Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCIe x4/x8/X16 slot.
4. To install the card, carefully align the card’s bus connector with
the selected PCIe slot on the motherboard. Push the board down
firmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
For Windows 7 (32 or 64 bit):
1. Please insert the CD driver bound with USB-3.1 PCI Express Card
into your CD-ROM Drive.
2. At the Windows desktop, click “Computer” Double click CD-ROM
Drive to Brower driver’s files:
Type: D: \ USB3.1 ASM1142 \Setup.exe, click OK.
(Change D: to match your CD-ROM drive letter)
3. Follow the on-screen instruction to complete the installation
For Windows 8, 8.1, Server 2012 and Windows 10/11 (32 or 64 bit):
Using in Windows box driver for Win8, Win8.1 and Win10/11 to
complete install the drivers.
To Verify Windows® Driver Installation
Click on the Device Manager tab in System Properties, which you
access from the Windows Control Panel. If you have installed
successfully, you should see “ASMedia USB3.1eXtensible Host
controller” …installed under Universal Serial Bus Controllers item.

6
Hereby ASSMANN Electronic GmbH declares that the Declaration of
Conformity is part of the shipping content. If the Declaration of
Conformity is missing, you can request it by post under the below
mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
