Dillenger SUPER STREET 8 User manual

SUPER STREET 8
User Manual
English
This manual describes how to safely complete nal
assembly and includes tips for use and maintenance

2
SAFETY
PLEASE NOTE
Mechanical Safety Check:
Routinely check the condition of your bike. Make sure no fasteners have come loose. Perform
a visual inspection of the whole bicycle before every ride. Make sure tyres are correctly inated
within the range given on the tyre sidewall and the spokes are properly tightened. Check your
brakes for proper operation.
Your First Ride:
Be sure to pick an area away from cars, other cyclists, obstacles or other hazards to become
familiar with the controls, features and performance of your new electric bike.
We highly recommend the purchase of the Dillenger electric bike repair
toolkit. It will make your setup and ongoing maintenance much easier.
This can be purchased online.
Thank you for purchasing your new Dillenger electric bike! We know you’ll love it, and with some
care it should last for a very long time. Please read through this manual carefully before
beginning nal assembly.
THANK YOU

3
ITEM CHECK LIST
Each electric bike is assembled under the most strict quality control standards. Upon
completion, each electric bike is test ridden by a technician inside the assembly factory to
check that every function and adjustment on the bike is perfect.
Item check list:
• Electric bike with front wheel and handlebars
• Charger box (this may container other important parts)
• Pedals (left and right) please note the left and right pedals are not identical
• Any loose boxes may container other parts, such as a light (if where a light is provided or
purchase) so please check all packaging thoroughly
• Front mudguard
• Keys

4
CONTENTS
THANK YOU 2
SAFETY 2
ITEM CHECK LIST 3
SUMMARY OF FINAL SETUP 5
UNBOXING 6
MAIN PARTS 7
ASSEMBLY 10
HANDLEBARS 10
FRONT WHEEL AND MUDGUARD 11
PEDALS 13
SEAT 14
BATTERY OPERATION 15
LED DISPLAY OPERATION 17
IMPORTANT POINTS 17
CHARGING 18
MAINTENANCE 19
TROUBLESHOOTING 20
CONTACT US 23
To t into an appropriately sized shipping carton to comply with the various courier
networks, some basic parts of the bike are temporarily removed. This is so that the bike
can t into the shipping carton safely, and so that we can adequately package each part of
the bike so that it is delivered in perfect condition.
These simple instruction will show you how to perform the nal setup. Your bike may
arrive in a more assembled state than what is shown here. These are the steps required
for most customers (packaging and nal assembly can vary by country).
In summary, these are the main steps:
Step 1. Unpacking/ Unboxing
Step 2. Identifying the pieces that require nal assembly
Step 3. Handlebar alignment and fastening
Step 4. Front mudguard and front wheel fastening
Step 5. Left and right side pedals
Step 6. Seat
Tools required:
Allen keys
Spanner (15mm)
Bike pump (or service station car tyre pump)

5
To t into an appropriately sized shipping carton to comply with the various courier
networks, some basic parts of the bike are temporarily removed. This is so that the bike
can t into the shipping carton safely, and so that we can adequately package each part of
the bike so that it is delivered in perfect condition.
These simple instruction will show you how to perform the nal setup. Your bike may
arrive in a more assembled state than what is shown here. These are the steps required
for most customers (packaging and nal assembly can vary by country).
In summary, these are the main steps:
Step 1. Unpacking/ Unboxing
Step 2. Identifying the pieces that require nal assembly
Step 3. Handlebar alignment and fastening
Step 4. Front mudguard and front wheel fastening
Step 5. Left and right side pedals
Step 6. Seat
Tools required:
Allen keys
Spanner (15mm)
Bike pump (or service station car tyre pump)
SUMMARY OF FINAL SETUP

6
Unboxing your Dillenger bike will be very exciting, but it’s important to take care when
unboxing the bike, as it’s possible to accidentally damage the bike or misplace crucial
parts. It’s also much easier to unbox the bike with someone there to help you.
Remove the protective packaging from the bike carefully with a pair of scissors or a box
cutter. Make sure you don’t misplace any components in the loose packaging (there can
be quite a lot of protective packaging around the bike).

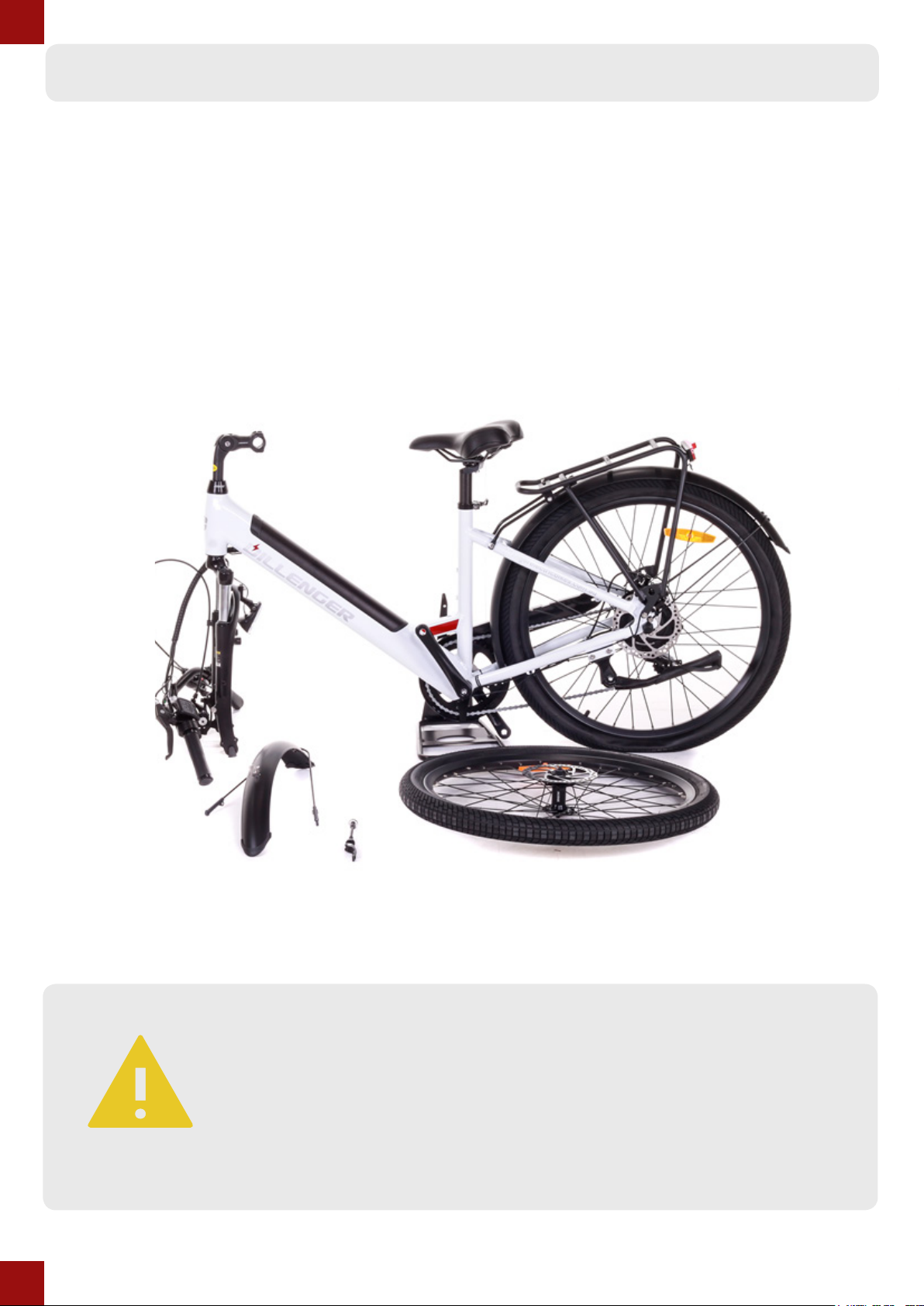

After you’ve taken your Dillenger bike out of its shipping carton, you should have these parts:
1. The complete bike
2. Front wheel with quick release axle
PLEASE NOTE
The keys will be securely fastened to the frame or handlebars of
your bike. Make sure you do not lose these as they are coded and a
replacement set would need to be special ordered.
UNBOXING

7
MAIN PARTS
After you’ve taken your Dillenger bike out of its shipping carton, you should have these parts:
1. The complete bike
2. Front wheel with quick release axle

8
6. Front mudguard
Note: This can be in the shipping carton or fastened to the bike separately.
7. Lights (attached by the cabling)
8. Charger

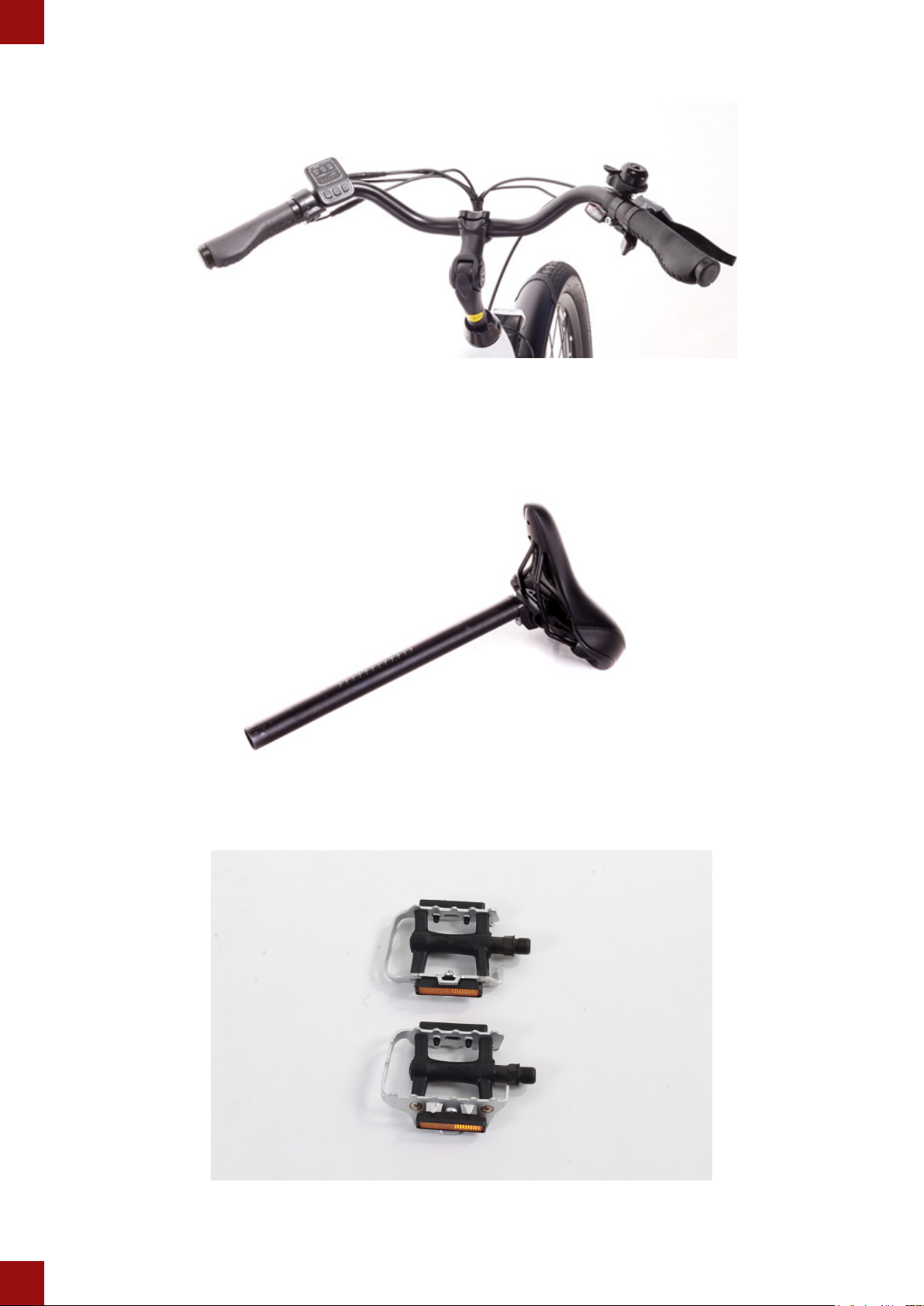

3. Handlebars (components already connected by the cabling)
4. Seat
Note: This can be in the shipping carton or fastened to the bike separately.
5. Pedals
Note: These can be in the same box as the charger, or fastened to the bike separately.

9
6. Front mudguard
Note: This can be in the shipping carton or fastened to the bike separately.
7. Lights (attached by the cabling)
8. Charger

10
HANDLEBARS Note: It may be easier to do this step with the bike ipped over, resting on its seat and
handlebars. Just be careful that the display doesn’t get damaged when the bike leans on the
handlebars.

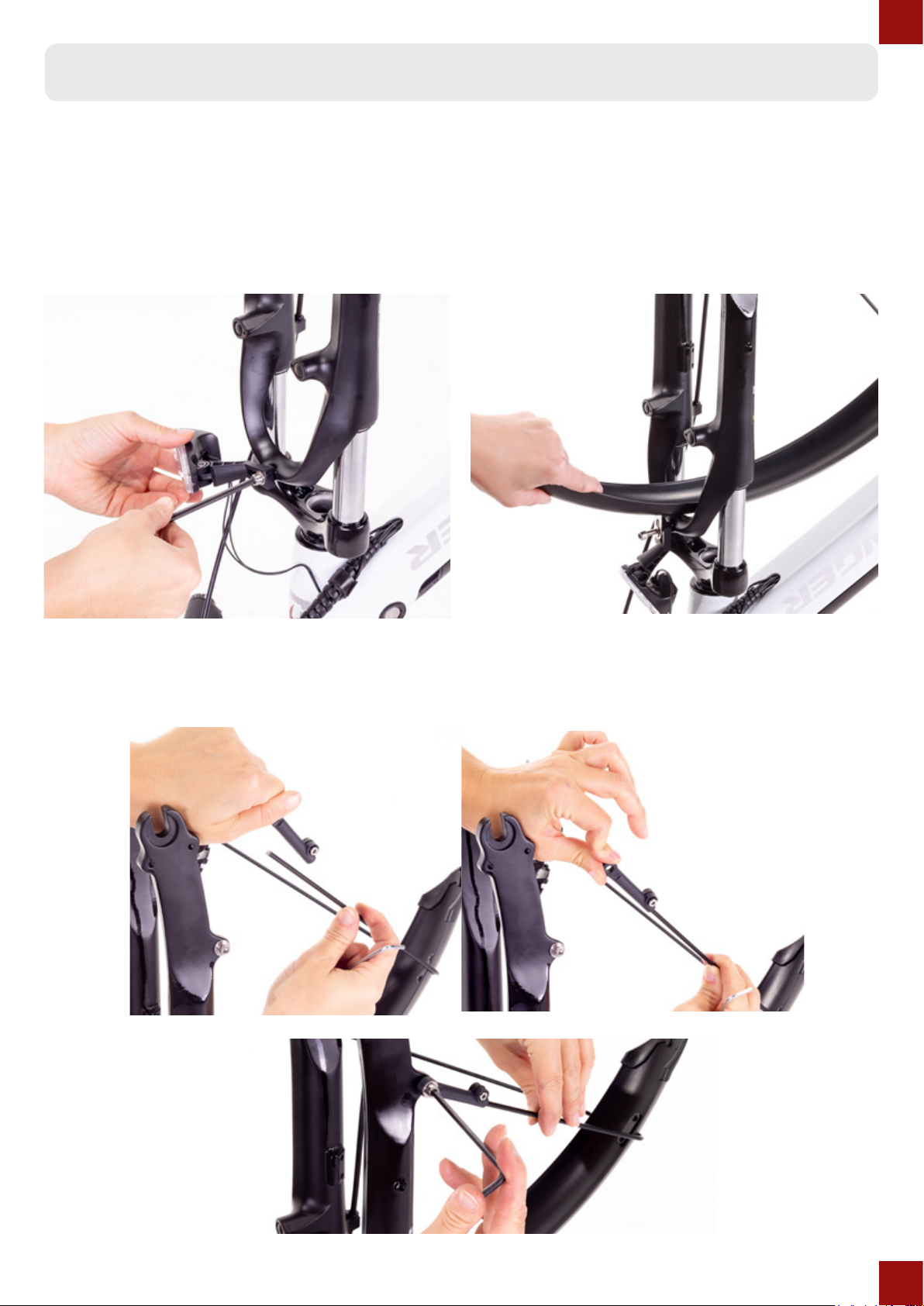

Firstly, secure the front mudguard by undoing the bolt that secures the light to the forks
and then use that bolt to secure both the mudguard and the light to the forks.
Now the mudguard side-stays. You can adjust the length of the stay with the plastic
holder. Once you have the correct length you can secure the side-stays to the forks with
the supplied bolts. You may need to play around for a bit to nd the correct legnth.
The handlebar components are already connected by the cables and wires, all that’s
required for nal setup is to secure the handlebar stem onto the headtube as shown
below:
ASSEMBLY
