Dimension One Spas Aquatic Fitness System User manual

Dimension One Spas - Aquatic Fitness System Owner’s Manual
i
Your Product Information
Please gather the following important information about your Dimension One Aquatic Fitness System
(AFS) and register your product online at www.D1.com. Registering your product establishes your
warranty, protects your product and helps us develop new and better products.
My Aquatic Fitness System
Model Name: Serial
Number:
Date Purchased: Date
Installed:
Gallons/Liters:
Notes:
Dealer Information:
Dealer’s Name:
Address:
City: State, Zip:
Telephone: Fax:

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
ii
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS .....................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS (CANADA) (CSA SAFETY INFORMATION) .............................2
HYPERTHERMIA .........................................................................................................................................3
SAFETY DO’S AND DON’TS.......................................................................................................................3
DANGER SIGN.............................................................................................................................................4
USING THE “POOL-SIDE” CONTROL PANEL..........................................................................................8
PROGRAMMING THE FILTER CYCLE.....................................................................................................10
USING THE SPA SIDE OF THE “DUAL TEMP” MODEL.........................................................................12
OPERATION OF THE SPA........................................................................................................................12
MESSAGES THAT APPEAR IN THE DISPLAY WINDOW.......................................................................14
HYDROSPORT™SWIM SYSTEM .............................................................................................................17
IMPORTANT SAFETY INSTRUCTIONS ...................................................................................................17
USING THE SWIM TETHER ......................................................................................................................17
USING THE SWIM KICK BAR...................................................................................................................18
USING THE SWIM JETS............................................................................................................................18
OPTIONAL HYDROSPORT™ROWING SYSTEM....................................................................................19
INSTALLING THE ROWING SYSTEM ......................................................................................................19
ROWING FOR THE FIRST TIME...............................................................................................................20
CONNECTING THE HYDROSPORT™BODY BELT ................................................................................21
CONNECTING THE HYDROSPORT™D-HANDLES................................................................................21
CONNECTING THE HYDROSPORT™BAR STRAPS..............................................................................21
HYDROSPORT™EXERCISE BARS .........................................................................................................22
INSTALLING THE STATIONARY EXERCISE BARS ...............................................................................22
HYDROSPORT™AQUATIC FITNESS BAR .............................................................................................22
INSTALLING THE AQUATIC FITNESS BAR............................................................................................22
ROUTINE EQUIPMENT MAINTENANCE..................................................................................................23
DRAINING YOUR SYSTEM.......................................................................................................................23
FILTER CLEANING....................................................................................................................................23
LIGHT REPLACEMENT.............................................................................................................................23
SURFACE CARE........................................................................................................................................24
SPECIAL COLD WEATHER INSTRUCTIONS..........................................................................................24
TROUBLESHOOTING GUIDE...................................................................................................................26
HEATING SYSTEM....................................................................................................................................26
ELECTRICAL SYSTEM..............................................................................................................................26
WATER SYSTEM .......................................................................................................................................26
SELF-DIAGNOSTIC SYSTEM ...................................................................................................................27

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
1
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
Installation and use of this equipment requires the user to always follow safety precautions including:
•Risk of Accidental Drowning. Exercise extreme caution to prevent unsupervised children going
near the Aquatic Fitness System. Children should not use the Aquatic Fitness System without
adult supervision.
•Risk of Serious Injury or Death. If you need to replace the suction fitting or pump make sure
that the flow rates are compatible. Never operate the Aquatic Fitness System if the suction fittings
are broken or missing. Never replace a suction fitting with one rated less than the flow rate
marked on the original suction fitting.
•Risk of Electric Shock. Install at least 5 FEET (1.5 m), from all metal surfaces. As an alternative,
the Aquatic Fitness System may be installed within 5 feet of metal surfaces if each metal surface is
permanently connected by a minimum No. 8 AWG (8.4 mm2) solid copper conductor attached to
the wire connector on the grounding lug, inside the equipment compartment on the equipment can.
•Risk of Electric Shock. Do not permit any electrical appliance, such as a light, telephone, radio,
television, etc. within 5 feet (1.5 m) of the Aquatic Fitness System. Never operate any electrical
appliances from inside the Aquatic Fitness System or when you are wet.
•Danger. The electrical supply for this Aquatic Fitness System must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply with section 680-42 of the
National Electrical Code, ANSI/NFPA 70-1993. The disconnect must be readily accessible and
visible to the Aquatic Fitness System occupant but installed at least 5 feet (1.5 m), from the
Aquatic Fitness System water.
•Danger. A grounding wire connector is provided on this Aquatic Fitness System to connect a
minimum No. 8 AWG (8.4 mm2) solid copper conductor between this unit and any metal
equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5 m) of the Aquatic Fitness System.
•Risk of Electric Shock. Do not attempt to remove the light housing cover without lowering the
water level below the light housing cover.
•To Reduce the Risk of Injury: The water in the Aquatic Fitness System should never exceed
104° F (40° C). Water temperatures between 100° F (38° C) and 104° F (40° C) are considered
safe for a healthy adult. Lower water temperatures are recommended for young children and
when Aquatic Fitness System use exceeds 10 minutes.
•To Reduce the Risk of Injury: Since excessive water temperatures have a high potential for
causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant
women should limit Aquatic Fitness System water temperatures to 100° F (38° C).
•To Reduce the Risk of Injury: Before entering the Aquatic Fitness System, the user should
measure the water temperature with an accurate thermometer since the tolerance of water
temperature-regulating devices may vary as much as +/- 5° F (2° C).
•To Reduce the Risk of Injury: The use of alcohol, drugs, or medication before or during Aquatic
Fitness System use may lead to unconsciousness with the possibility of drowning.
•To Reduce the Risk of Injury: Pregnant women, the elderly, infants, or persons suffering from
obesity or with a medical history of heart disease, low or high blood pressure, circulatory system
problems, or diabetes, should consult a physician before using the Aquatic Fitness System.
People with infectious diseases should not use an Aquatic Fitness System.
•To Reduce the Risk of Injury: Persons using medication should consult a physician before
using the Aquatic Fitness System since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
•Observe a reasonable time limit when using the Aquatic Fitness System. Long exposures at high
temperatures can cause high body temperature (hyperthermia, see pg. 3). Enter and exit the
Aquatic Fitness System slowly. Wet surfaces can be very slippery.
•Proper chemical maintenance of Aquatic Fitness System water is necessary to maintain safe
water and prevent possible damage to Aquatic Fitness System components.
•Use the cover straps and clip tie downs to secure the cover when not in use. This will help
discourage unsupervised children from entering the spa and keep the spa cover secure in high
wind conditions. There is no guarantee that the cover, clip tie downs, or the actual locks will
prevent access to the Aquatic Fitness System.
SAVE THESE INSTRUCTIONS

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
2
IMPORTANT SAFETY INSTRUCTIONS (CANADA)
(CSA SAFETY INFORMATION)
In addition to the preceding safety instructions, Canadian owners should read and
understand the following information from the Canadian Safety Association:
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
•A green colored terminal or a terminal marked G, GR, Ground, Grounding, or the symbol * is
located inside the supply terminal box or compartment. To reduce the risk of electric shock,
this terminal must be connected to the grounding means provided in the electric supply
service panel with a continuous copper wire equivalent in size to the circuit conductors
supplying this equipment.
oIEC Publication 417, Symbol 5019.
•At least two lugs marked “BONDING LUGS” are provided on the external surface or on the
inside of the supply terminal box/compartment. To reduce the risk of electric shock, connect
the local common bonding grid in the area of the hot tub or Aquatic Fitness System to these
terminals with an insulated or bare copper conductor not smaller than No. 6 AWG.
•All field-installed metal components such as rails, ladders, drains or other similar hardware
within 3 meters of the Aquatic Fitness System or hot tub shall be bonded to the equipment
grounding bus with copper conductors not smaller than No. 6 AWG.
•Children should not use Aquatic Fitness Systems or hot tubs without adult supervision.
•AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE
RELAXATION SANS SURVEILLANCE.
•Do not use Aquatic Fitness Systems or hot tubs unless all suction guards are installed to
prevent body and hair entrapment.
•AVERTISSEMENT: POUR ÉVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS
PUISSENT TRES ASPIRÉS, NE PAS UTILISER UNE CUVE DE RELAXATION SI LES
GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES EN PLACE.
•People using medications and/or having adverse medical history should consult a physician
before using an Aquatic Fitness System or hot tub.
•AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÉDICAMENTS OU ONT
DES PROBLÈMES DE SANTÉ DEVRAIENT CONSULTER UN MÉDECIN AVANT
D’UTILISER USE CUVE DE RELAXATION.
•People with infectious diseases should not use an Aquatic Fitness System or hot tub.
•AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE
DEVRAIENT PAS UTILISER UNE CUVE DE RELAXATION.
•To avoid injury, exercise care when entering or exiting the Aquatic Fitness System or hot tub.
•AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN
ENTRANT DANS UNE CUVE DE RELAXATION ET E SORTANT.
•Do not use drugs or alcohol before or during the use of the Aquatic Fitness System or hot tub
to avoid unconsciousness and possible drowning.
•AVERTISSEMENT: POUR ÉVITER L’ÉVANOUISSEMENT ET LA NOYADE EVENTUELLE,
NE PRENDRE NI DROGUE NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION
NI QUAND ON S’Y TROUVE.
•Pregnant or possibly pregnant women should consult a physician before using an Aquatic
Fitness System or hot tub.
•AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT
CONFIRMÉE OU NON, DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE
CUVE DE RELAXATION.
•Water temperature in excess of 38°C may be injurious to your health.
•AVERTISSEMENT: IL PEUT TRES DANGEREUX POUR LA SANTÉ DE SE PLONGER
DANS DE L’EAU À PLUS DE 38°C.
•Before entering the Aquatic Fitness System or hot tub, measure the water temperature with
an accurate thermometer.
•AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION MESURER LA
TEMPÉRATURE DE L’EAU À L’AIDE D’UN THERMOMÈTRE PRÉCIS.
•Do not use an Aquatic Fitness System or hot tub immediately following strenuous exercise.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
3
•AVERTISSEMENT: NE PAS UTILISER UNE CUVE DE RELAXATION IMMEDIATEMENT
APRÈS UN EXERCICE FATIGANT.
•Prolonged immersion in an Aquatic Fitness System or hot tub may be injurious to your health.
•AVERTISSEMENT: L’UTILISATION PROLONGÉE D’UNE CUVE DE RELAXATION PEUT
TRES DANGEREUSE POUR LA SANTÉ.
•Do not permit electric appliances (such as a light, telephone, radio, television, etc.) within
1.5m of this Aquatic Fitness System or hot tub.
•AVERTISSEMENT: NE PAS PLACER D’APPAREIL ÉLECTRIQUE (LUMINAIRE,
TÉLÉPHONE, RADIO, TÉLÉVISEUR, ETC.) À MOINS DE 1.5 M DE CETTE CUVE DE
RELAXATION.
•Maintain water chemistry in accordance with manufacturer’s instructions.
•ATTENTION: LA TENEUR DE L’EAU EN MATIERÈS DISSOUTES DOIT TRE CONFORME
AUX DIRECTIVES DU FABRICANT.
•The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in hot tubs and
Aquatic Fitness Systems.
•AVERTISSEMENT: LA CONSOMMATION D’ALCOOL OU DE DROGUE AUGMENTE
CONSIDÈRABLEMENT LES RISQUES D’HYPERTHERMIE MORTELLE DANS UNE CUVE
DE RELAXATION.
SAVE THESE INSTRUCTIONS
Hyperthermia
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal
temperature of the body reaches a level several degrees above the normal body temperature of
(98.6˚F, 37°C). The symptoms of hyperthermia include dizziness, drowsiness, lethargy, and fainting.
The effects of hyperthermia include:
•Failure to perceive heat,
•Failure to recognize the need to exit the spa,
•Unawareness of impending hazard,
•Fetal damage in pregnant women,
•Physical inability to exit spa,
•Unconsciousness resulting in the danger of drowning.
Safety Do’s and Don’ts
DO
•DO read all operating instructions.
•DO read, understand and follow all Safety, Danger and Warning instructions before use.
•DO test water temperature with your hand before entering.
•DO keep the cover down when the spa or AFS remains unused.
DO NOT
•DO NOT block or sit on the filter recess area.
•DO NOT allow horseplay or unsupervised use of your AFS.
•DO NOT allow anyone to tamper or play with any of the safety or suction fittings of your spa
or AFS system.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
4
DANGER SIGN
Every AFS has a warning sign that
outlines safety precautions. Read
and familiarize yourself with all
warnings listed on this sign. Make the
sign visible and accessible to all AFS
users.
Replacement signs may be obtained
from:
Dimension One Spas
2611 Business Park Drive
Vista, CA 92081

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
5
Initial Startup
Go over the initial startup with your dealer before they begin the installation of your spa.
IMPORTANT: About your GFCI Circuit Breaker — The GFCI (Ground Fault Circuit Interrupter —
also called a "circuit breaker”) automatically shuts off power to the Aquatic Fitness System in case of
an electrical malfunction. You must have a GFCI installed according to your local building codes in
an electrical power box near your system. The GFCI must be OFF before you fill your Aquatic Fitness
System with water. You can manually turn off power to the system any time by moving the switch into
the OFF position. After turning off the GFCI check for a blank control panel screen which means the
power is off. To turn power back on move the switch to the ON position.
If you have questions about the location or operation of your GFCI, ask your dealer for clarification.
DO NOT use your system unless you understand the operation of the GFCI.
1. Locate the equipment
compartment, beneath the steps
of the AFS. Have your dealer
familiarize you with the equipment
components.
2. Use a Phillips screwdriver to
remove the equipment
compartment screws. Open the
compartment.
3. Check the pump unions (see
photo) for hand-tightness and to
prevent the possibility of
leakages.
4. Check near the pumps to make sure
the gate valve has the red safety clips
in place which means that the gate
valve is open (see photo above).
5. Remove the two front and two rear
shipping bolts on each pump mount.
(See photo, left).

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
6
6. Remove the
filter baskets
and the foam
blocks securing
the filters.
7. Remove one of
the two filters
from the pool side of the system. (If
you have the Dual-Temp model with
separate built-in spa, also remove the
filter from the spa side). (If you need
more details on how to remove the
filters, see the Filter Cleaning section,
pg. 23)
8. Ensure that the hose
bibs are closed before
filling the spa. The
hose bibs are
connected to hoses in the equipment
compartment. Turn the handles on
the side of the valve perpendicular to
the pipe to close the hose bibs. The
picture at right shows an open hose
bib.
9. Place a garden hose in
the empty filter canister
to fill the system. Fill
the system until the
water level reaches the
center of the tile line.
10. After filling the system, return the filter to its basket. After the filter is in place, turn on the
GFCI circuit breaker. The Display Window of the Pool will show the current water
temperature.
NEVER run your spa’s pumps without the filters in place. This can cause damage to
the pumps.
11. Prime the pumps by pushing the JETS 1 button once and letting it
run for 30 to 45 seconds. To turn off, push it again. Repeat for the
JETS 2 and JETS 3 buttons.
If the jets do not turn on, air is trapped in the plumbing lines. To
eliminate the trapped air, turn the pumps on and off several times to
force the trapped air through the pumps. If the jets still do not turn on,
turn off the pumps and loosen the pump unions slightly to let any
trapped air escape. Re-tighten the pump unions and turn the pumps on
again. Turn the pumps on and off several times until jets function
properly.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
7
12. Press the Warmer (UP) Button and Cooler (DOWN) Buttons until
your desired water temperature appears. The Display Window
shows your Set Temperature for five seconds before reverting back
to the current water temperature.
If you have the Dual-Temp model with built-in spa, likewise set the spa
temperature using the + and – buttons. See the spa programming
section later in this manual for more details. (pg. 15)
The Display Window does not allow you to set the temperature above 104°F
(≅40°C). However, if the water temperature exceeds 104°F (≅40°C), the display will
show the actual temperature. Never get in water if the temperature exceeds 104°
F (≅40°C).
13. While heating the spa, inspect the pump unions and plumbing fittings for leaks. When you
have finished the inspection, you can reinstall the equipment compartment panel.
14. After completing the above steps, see the Water Care Guide (provided separately) to
ensure proper water chemistry.
15. Place the thermal cover on your Aquatic Fitness System to conserve energy and keep it
ready for use.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
8
Using Your Aquatic Fitness System
Using the “Pool-Side” Control Panel

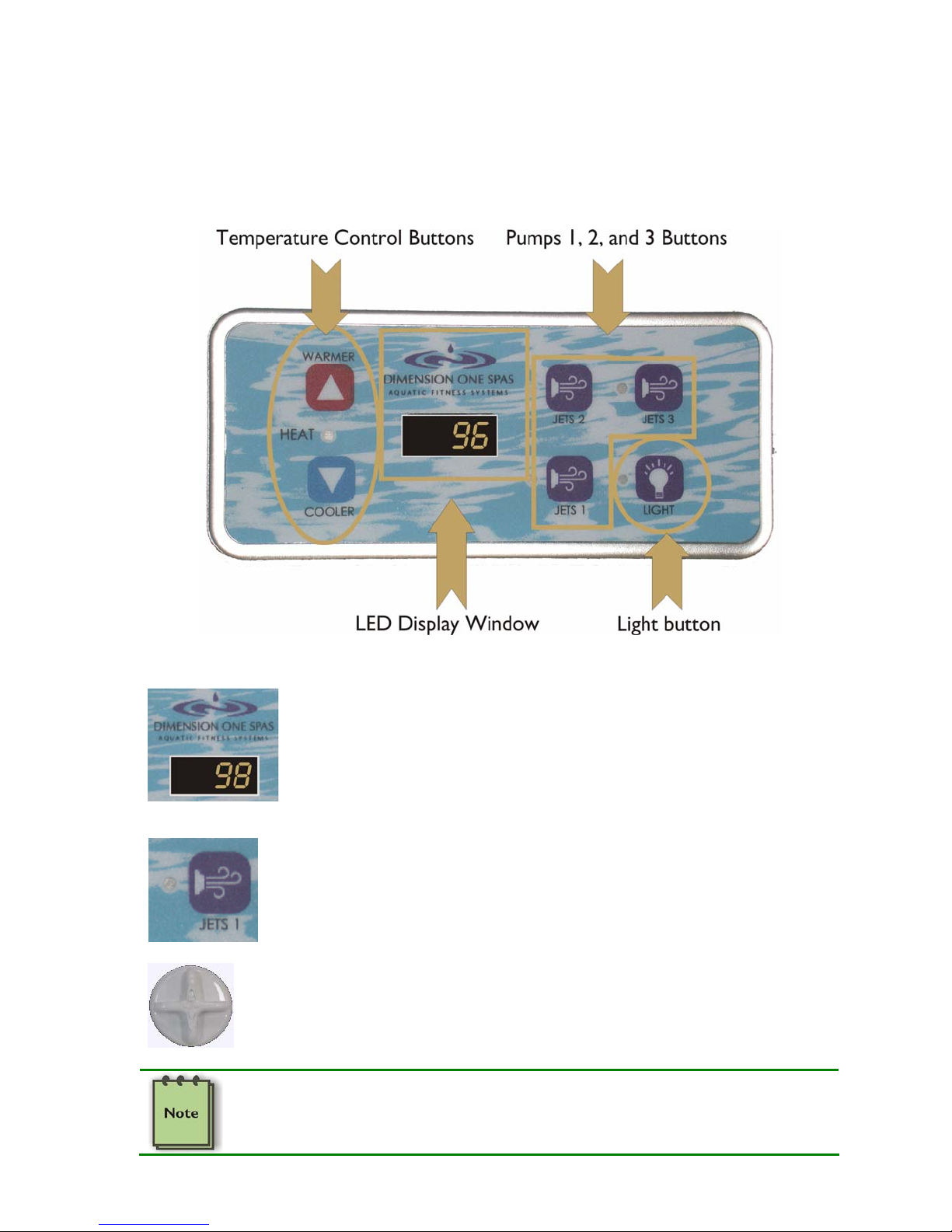

Your Aquatic Fitness System has a Control Panel on the top side to control the Pool Functions. (If
you have the “Dual Temp” model the spa-side functions are controlled by a separate panel, pg. 12).
The Display Window
The Display Window shows the current water temperature, except when you
adjust the temperature. Five seconds after you finish setting the desired
temperature, the Display Window reverts back to the current temperature.
Jets 1 Button
Pressing the Jets 1 button once turns Pump 1 on low speed. A second press
turns it to High Speed. A third press turns the pump off, unless the pump has
been automatically activated during a heating cycle – in which case a third
press returns the pump to Low Speed for heating. A built-in timer automatically
shuts the pump off after 20 minutes of operation. The Jets 1 Indicator light
(beside the button) will glow while the pump is running.
Pump 1 powers the Swim Jets and/or HydroTherapy Jets.The diverter valve
(see left) controls which set of jets gets the water, and how much flows to
each set. (Note: If you have the Dual Temp model with built-in spa, the spa
side has a diverter valve but the swim side does not.)
Pump 1 also runs on low speed during all filtering and heating cycles. During the
filter cycle the indicator light for Jets 1 glows. If you manually press JETS 1 during a
filter cycle, that particular filter cycle disables to give you control of the jet pump.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
9
Jets 2 and Jets 3 Buttons
Pumps 2 and 3 provide high-volume water flow to the Swim Jets.
Press the appropriate button once to turn on Pump 2 or 3. The pumps work
independently, giving you flexible control over the amount of water flowing
from the Swim Jets. Pressing either button a second time turns that pump off.
A built-in timer will shut the pump(s) off after 20 minutes of operation unless
you manually shut them off earlier. The Jets 2 or Jets 3 Indicator light beside
the button will glow when that pump is running.
If your system was installed with less than the maximum recommended electrical
service for heat and pumps, the heater will turn off when the pumps run at high
speed. If you have the maximum electrical service, then you can continue to heat
your water while running the pumps at high speed. Ask your dealer if you have
questions about your electrical service.
Light Button
Push the LIGHT Button once to turn on the spa light in Color Change mode.
In Color Change mode, the light will continuously cycle through Red, Green,
Blue, White and Magenta. To switch to Color Select mode, which holds the
current color, turn the light off by pushing the LIGHT Button, then push the
LIGHT Button again to turn the light back on in Color Select mode.
Alternately, you can hold the LIGHT Button until you see the light flash off
and on to turn on the light and start in Color Select mode.
If you have more than one light in your spa and the lights are no longer
synchronized, power off the lights for 3 to 9 seconds. When powered on, all
lights will be resynchronized and reset to Color Change mode.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
10
Programming the Filter Cycle
The AFS comes with six pre-programmed filter cycles (F1-F6) and two lockout modes (L1 & L2).
Three of the six filter cycles run in Standard Mode and the other three cycles run in Economy Mode.

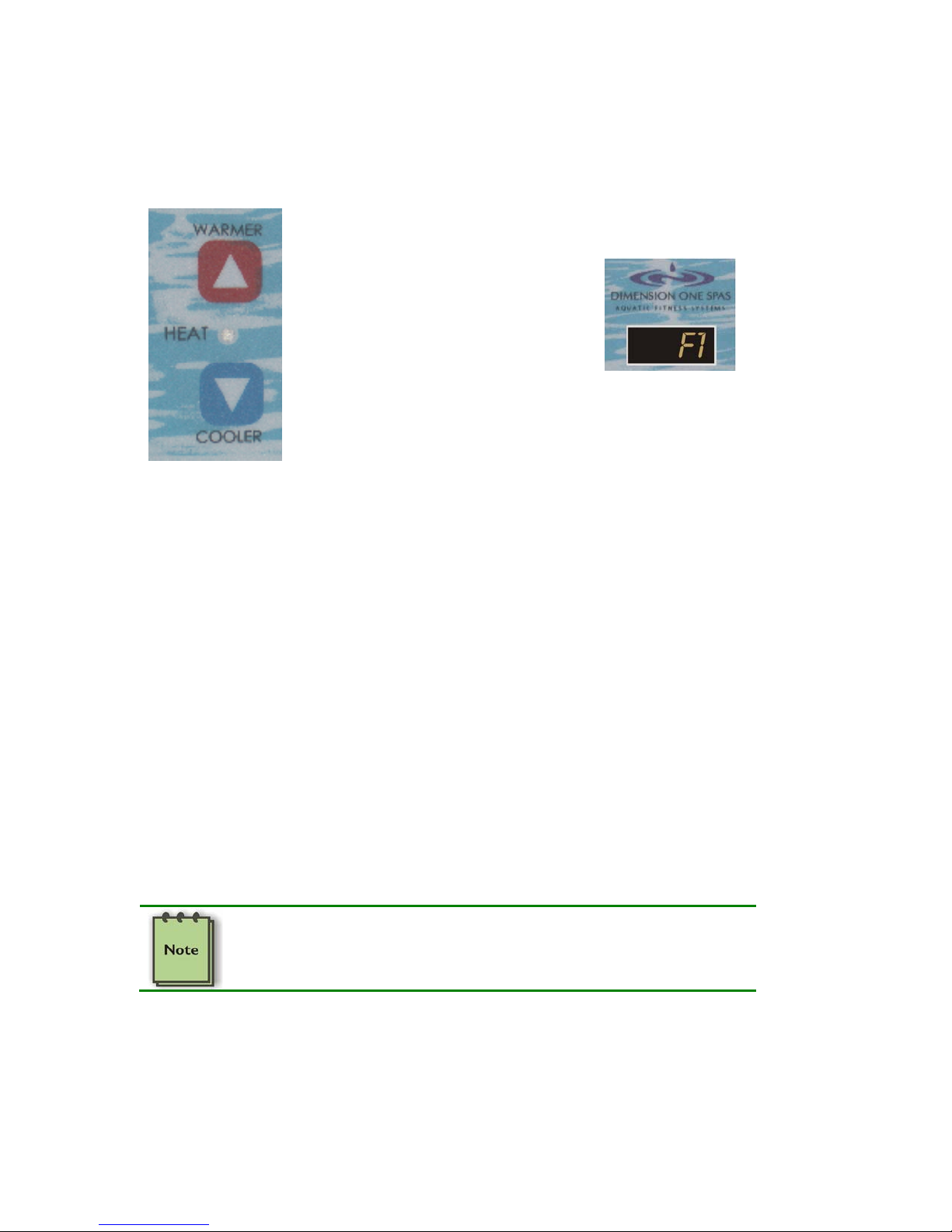

To enter the programming mode, press and hold both the
WARMER and COOLER buttons at the same time for 3
seconds. The display indicates the filter
mode with a code (F1 indicates Filter
Mode 1, etc.).
Use the WARMER and COOLER buttons
to scroll up or down through the filtering
modes. The filter cycles look as follows:
•Standard Mode: F1,F2,F3
•Economy Mode: F4, F5,F6
•Lockout Mode: L1,L2
Selecting a Filter Cycle
Standard and Economy Mode
In the standard modes your system heats whenever the water temperature drops to 2°F (≅1°C) below
your set temperature, and continues heating until the water is 2°F (≅1°C) above your set temperature.
In Standard Mode, heating the water remains independent of the filter cycles.
In economy mode, the water only heats when the filter runs during a normal filtration cycle.
After entering the filter programming mode press the WARMER (up) button or the COOLER (down)
button until you see F1, F2, F3, F4, F5 or F6.
F1: 2 hours of filtration 2 times a day. (Standard)
F2: 2 hours of filtration 3 times a day. (Standard)
F3: 2 hours of filtration 4 times a day. (Standard)
F4: 2 hours of filtration and heat 2 times a day. (Economy)
F5: 2 hours of filtration and heat 3 times a day. (Economy)
F6: 2 hours of filtration and heat 4 times a day. (Economy)
If you make no further changes for three (3) seconds, the system automatically stores your choice
and exits the programming sequence.
If the display window displays COL or ICE, cool or ice conditions have
been detected. These conditions override economy mode. The system
heats as needed to prevent freezing damage, regardless of the filter
cycle. For more information, see the Troubleshooting Guide (pg. 26).

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
11

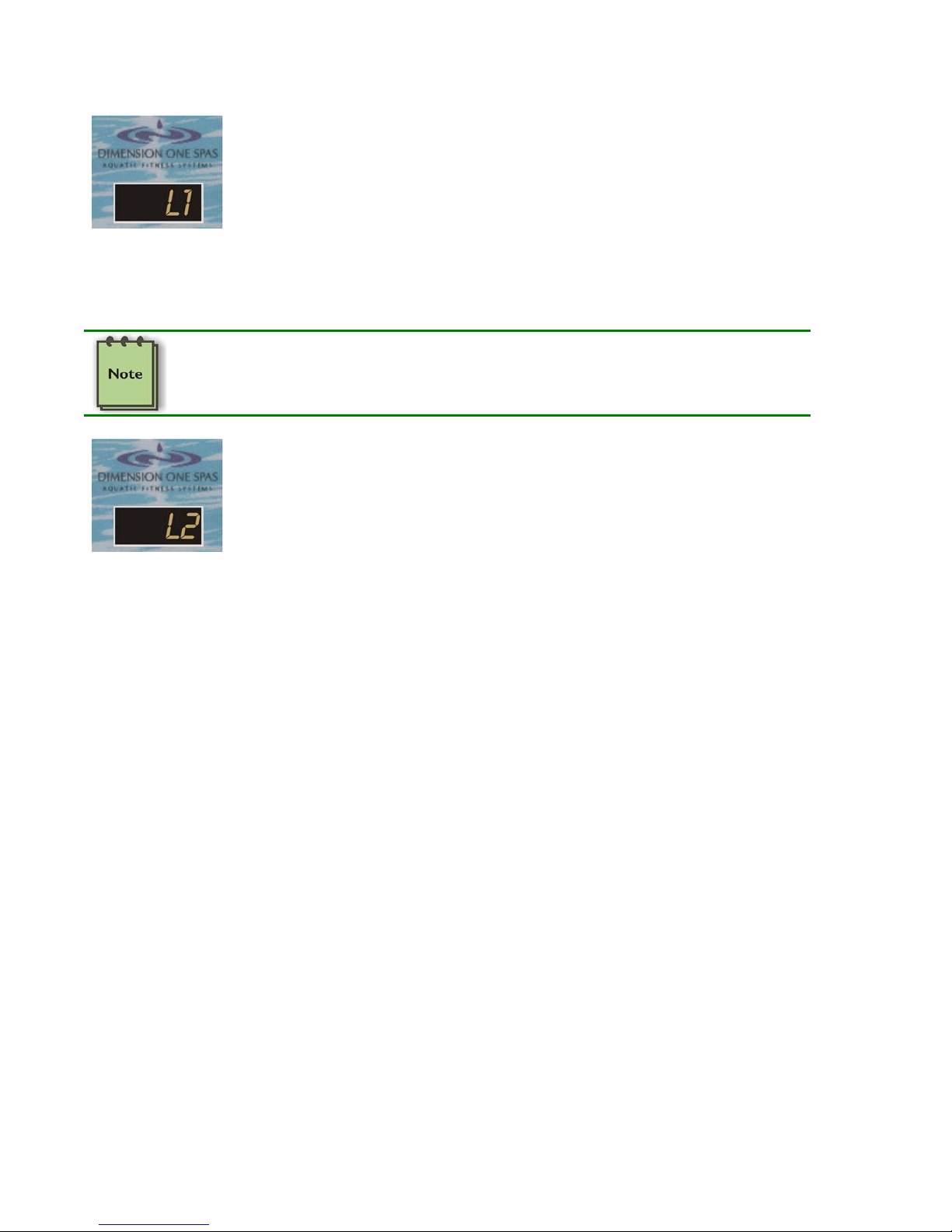

Selecting a Lockout Mode
L1 – Pump Lockout – To prevent pumps from accidentally turning on
while you clean the filters or do non-electrical service on your system, use
the L1 mode.
Start the programming sequence by pressing and holding both the
WARMER and COOLER buttons for three (3) seconds. Press the
WARMER (up) button or the COOLER (down) button until you see L1.
If you make no further changes for three (3) seconds, the system
automatically stores your choice and exits the programming sequence.
The temperature display flashes while you remain in this mode.
If the system was heating when you put it in lockout mode, the heater
immediately turns off and the pumps run for thirty seconds, then turn off.
L2 – Panel Lockout – To prevent unauthorized use of you system, use the
L2 mode to lock the control panel.
Start the programming sequence by pressing and holding both the
warmer and cooler buttons for three (3) seconds. Then press the
WARMER (up) button or the COOLER (down) button until you see L2.
If you make no further changes for three (3) seconds, the system
automatically stores your choice and exits the programming sequence.
The temperature display flashes while you remain in this mode.
Note: While in L2 lockout mode, the system will behave as if the filter
cycle is set to F1.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
12
Using the Spa Side of the “Dual Temp” Model
The functions described in this section refer only to the AquaFit 19DT, which features the separate
built-in spa.
The “spa side” is separate from the “pool side.” The water in the spa circulates through its own closed
system. It contains a separate filter and heating system, and the water chemistry must be managed
separately using the guidelines in the separate Water Care Guide.
Operation of the Spa
Display Window

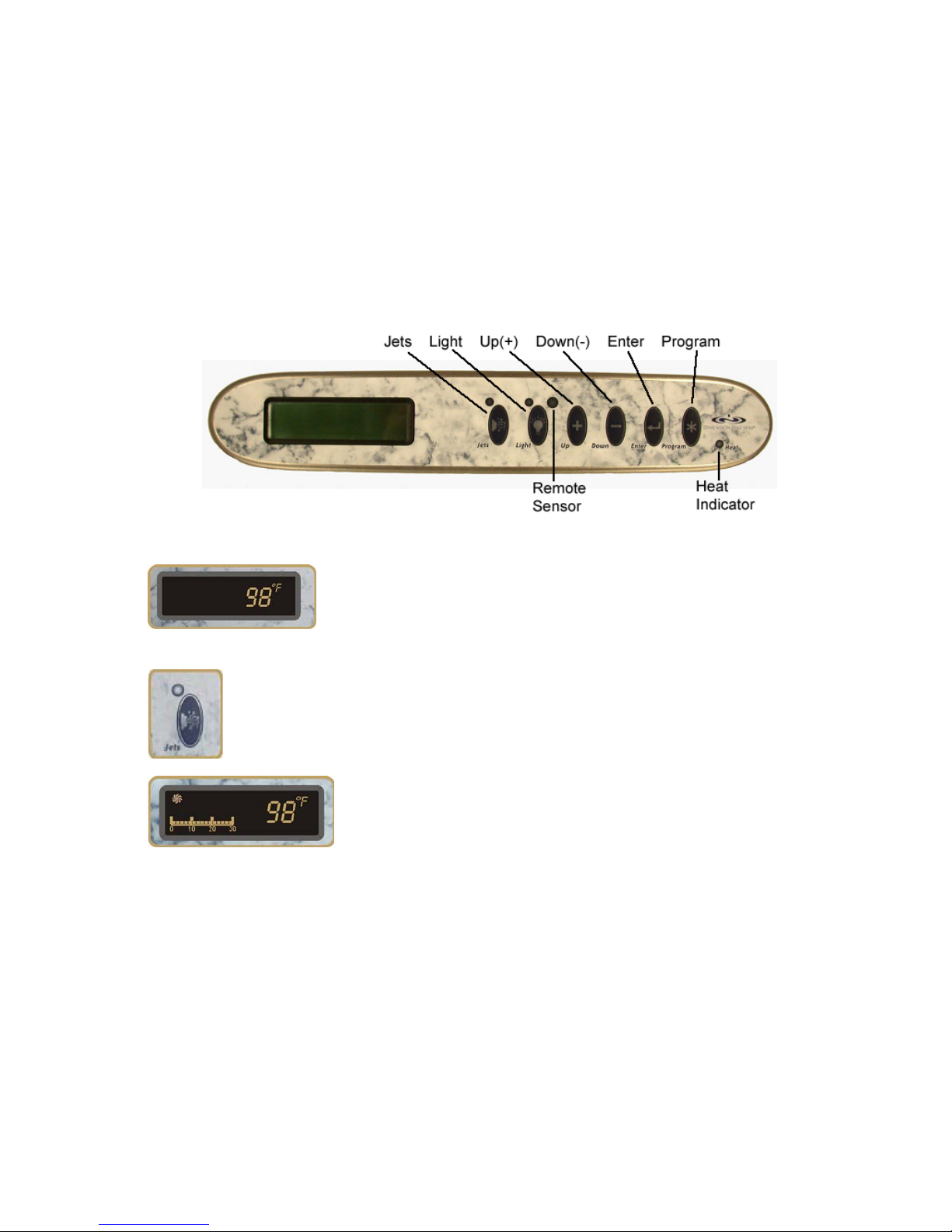

The display window shows the current status of the spa. By
default it shows the temperature.
JETS Button
When you push the JETS button :
•The jet pump activates.
•The jet indicator light glows.
•A swirl icon appears in the upper left corner of the display
window. Its swirl speed indicates the pump’s speed.
Pushing the JETS button once starts the pump on low speed.
Pushing it a second time turns on high speed. Pushing it a third
time turns the pump off.
A built-in timer will automatically shut the pump off after 30
minutes. You can reprogram this shut-off time. See the
Programming section (pg. 15).
After the pump turns on, the pump speed appears, a status bar
appears indicating the time remaining until shut-off. If your spa
has multiple jet pumps, the shut-off cycle controls all of them.
Pushing a JETS button will disable any concurrent filter cycle.
Flashing jets, lights or heat indicator lights denotes a problem with
your spa. See the Troubleshooting Section for more details (pg.
24).

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
13
Light Button

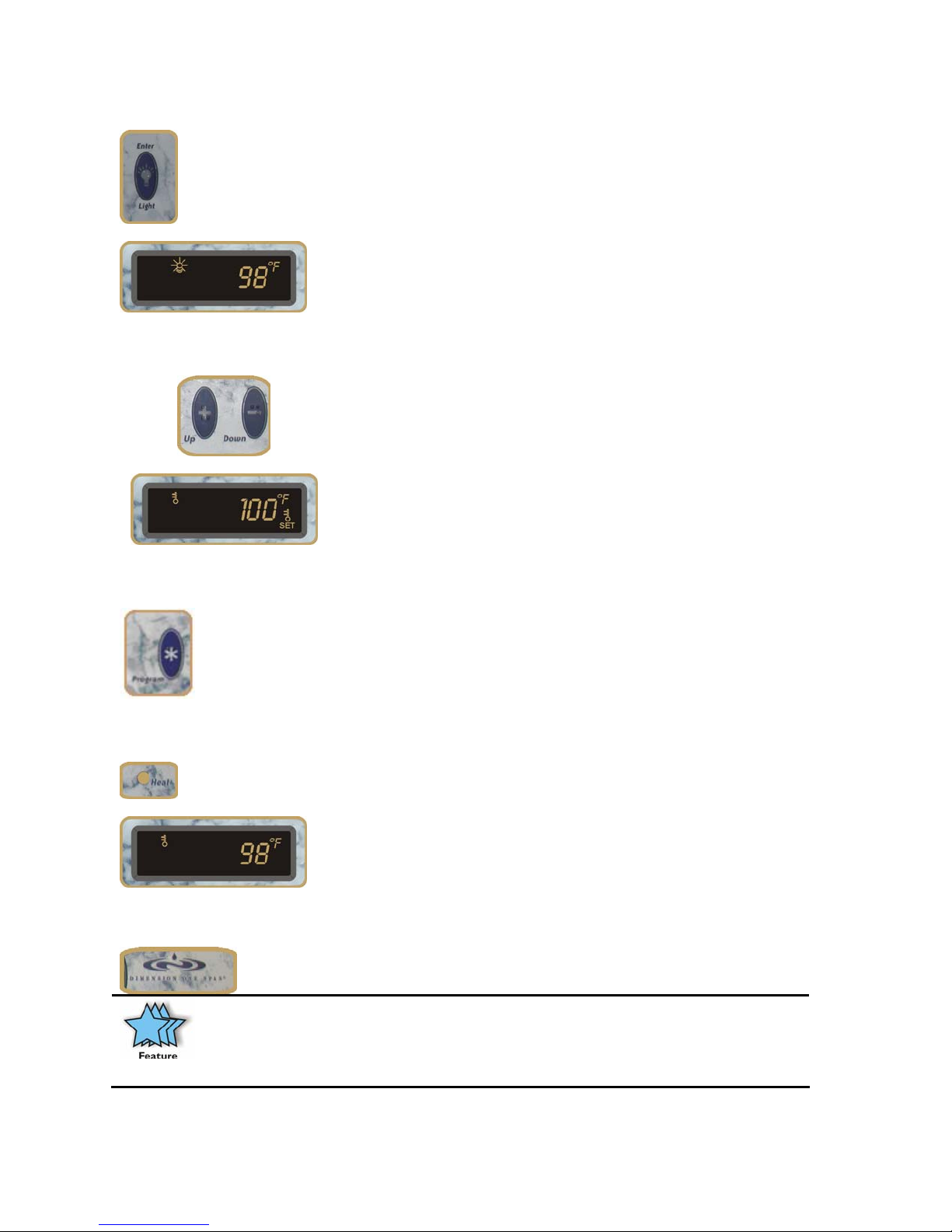

The LIGHT button controls the lighting of your spa. See the Light
control section (pg. 9).
Up (+) and Down (-) Buttons
You can control the water temperature by using the Up (+) and
Down (-) Buttons.The SET TEMPERATURE Icon appears in
the lower right side of the Window to indicate that the temperature
shown is a “target setting” and not the actual temperature. The
Temperature Icon will appear at the top of the window if your new
setting requires more heat.
Once the new temperature is set, the Display Window once again
shows the actual spa water temperature. The spa will heat to the
new temperature automatically.
Program Button
Push the PROGRAM Button to begin the process of
programming, or reprogramming, the spa. See Programming the
Spa Functions for details (pg. 15).
Heat Status Light
The Heat Status Light is illuminated whenever the heater is on.
Additionally, a heat icon will also be displayed in the upper left
corner of the Digital Display Window.
Dimension One Spas ICON
(Logo)®
Push the Dimension One ICON button to see the time of day. If no
other button is pushed within 5 seconds, the display reverts to the
water temperature.
Battery Backup - The Dimension One Spas scrolling message center control panel
has a battery back-up that will retain the time of day for 30 days without an active
power source. The control panel also stores your custom programming commands
for up to 40 years without power. This battery backup will not provide power to heat
or operate the hot tub.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
14
Messages that Appear in the Display Window

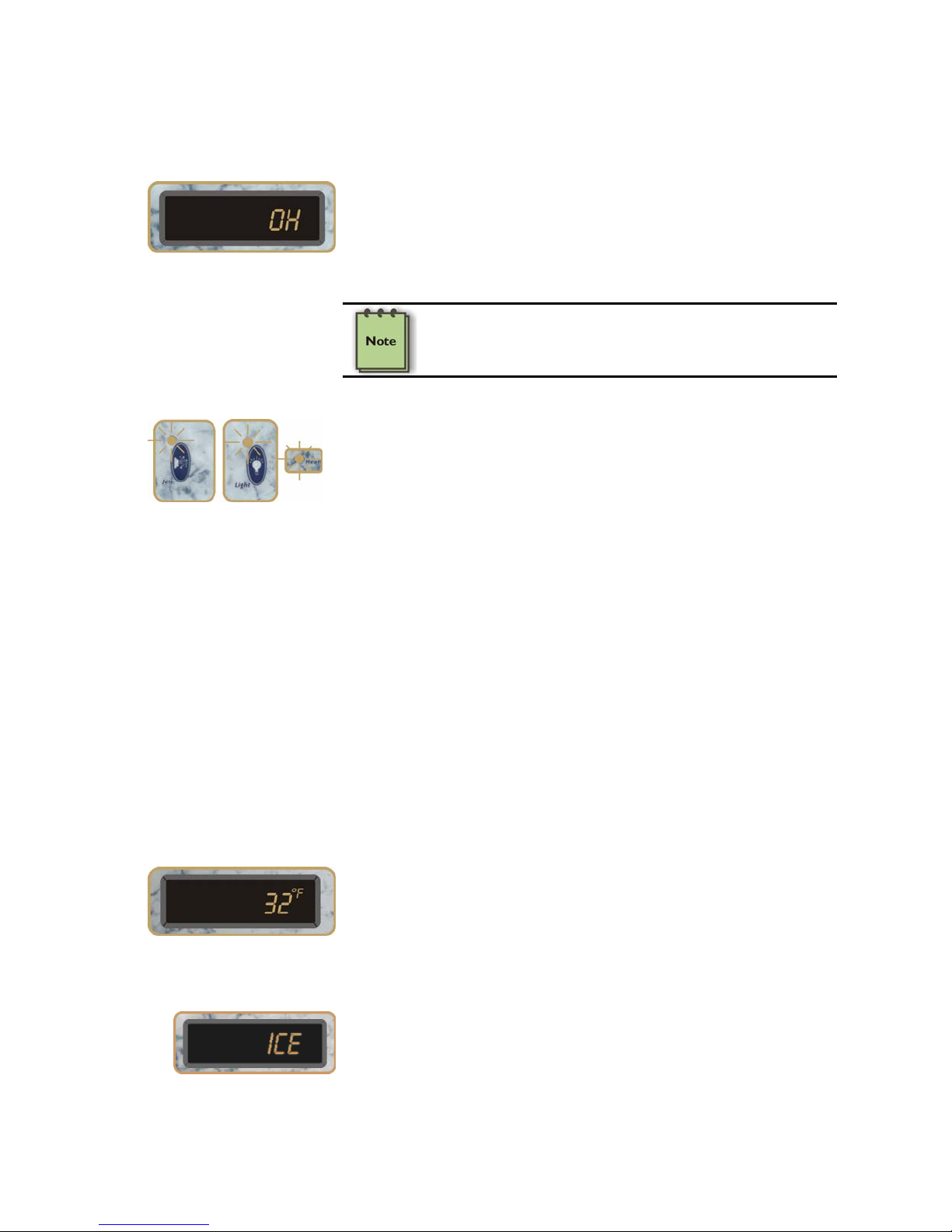

Overheat
DO NOT ENTER THE WATER when “OH” is displayed on the
control system’s Digital Display Window because the spa is in a high
temperature condition. If this happens, remove the spa cover and
allow the water to cool below 110°F (≅43.3°C). Turn off all power to
the system to reset.
If the problem persists, contact your local Authorized Dimension One
Spas Dealer, or authorized service center.
The overheat condition could be caused by excessive
filtration. See the Troubleshooting Guide section for
more information (pg. 26).
3 Flashing Lights
DO NOT ENTER THE WATER if you see 3 flashing LEDs on the Top
Side Control. The system has detected a problem.
Check to see of your Digital Display Window is also displaying an
Overheat Protection condition (OH).If you have flashing lights and
an OH in the display, your system has detected a high limit condition.
The water temperature has reached 118°F (≅47.8°C). The entire
system is disabled.
Contact your local Authorized Dimension One Spas Dealer, or
authorized service center.
If you have flashing lights, but the Digital Display Window shows the
current water temperature, you have a water flow problem. You will
need to check the water level and/or clean the filters.
The flashing lights should stop once the problem is fixed. If the
problem persists, reset the power to the spa by resetting the GFCI
breaker.
If the error is not resolved after resetting the spa, contact your local
Authorized Dimension One Spas Dealer, or authorized service
center.
Extreme Temperature on
the Display
Do not enter the water if you see a temperature reading of 32° F
(≅0° C) or 136° F(≅57.8° C) without first checking the actual water
temperature with a certified thermometer. The system has detected a
Temperature Probe Failure and the water may be too hot, or too
cold, to safely use.
Contact your local Authorized Dimension One Spas Dealer, or
authorized service center.
Ice
When ICE appears in the Display Window, the air temperature has
dropped below a factory-preset level, and the system has activated
“Smart Winter Mode.” The pump will automatically run to circulate
the water and prevent it from freezing.
This is a normal function and no action is necessary.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
15
Programming the Digital Control Panel
Program Button

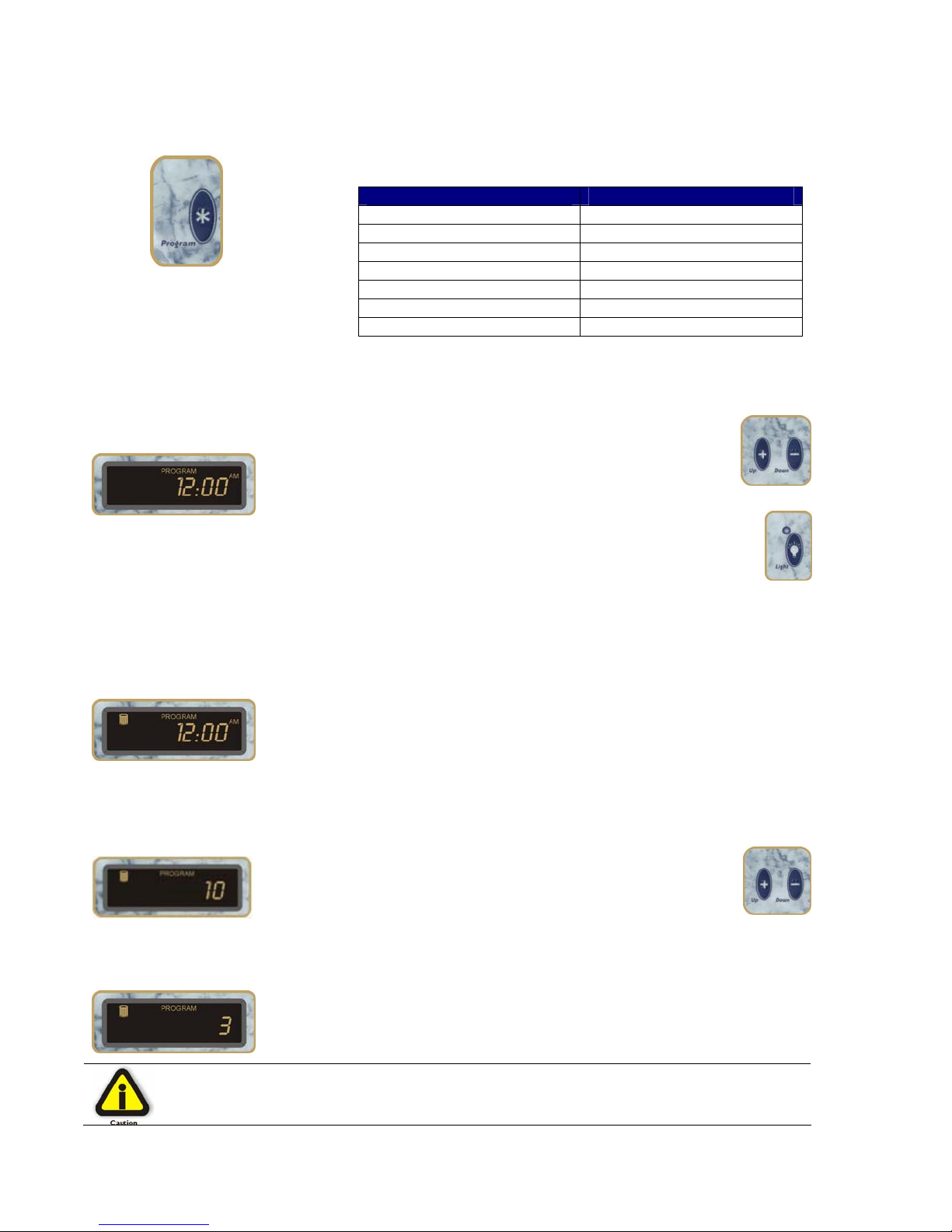

To enter the programming mode, press and hold the Program
button for 5 seconds. Each time you press the button you’ll
move to the next step of the programming sequence.
Programmable Item Program Button Action
Clock Press and hold for 5 seconds
Filter Cycle Start Time 2nd press
Filter Cycle Duration 3rd press
Number of Filter Cycles 4th press
Pump Run Time 5th press
Temperature Unit 6th press
Quit Program Sequence 7th press, or wait 60 seconds
To exit the programming sequence before the end, just wait for
60 seconds without touching any buttons.
Clock
When you enter Programming mode, the clock
appears with the Hour flashing. Use the UP or
DOWN Buttons to set the HOUR.
When the HOUR is correct, press the LIGHT Button to
move to the MINUTES setting.
Use the UP or DOWN Buttons to set the minutes, the
press Light to move to the AM/PM setting. Use the Up or Down
buttons to select AM or PM. Then press the Program button to
move on to the next step.
Filter Cycle Start Time:
When you press the Program button the 2nd time, the Filter Icon
appears in the Display Window to indicate that you are setting
the Filter Cycle Start Time.
Use the Up and Down buttons and the Light button to set the
Filter Cycle Starts time just as you did in setting the Clock (see
above).
Filter Cycle Duration
Pressing the Program button the third time brings you to the
Filter Cycle Duration. This tells your spa how long
to run during each filter cycle.
Use the UP or DOWN Buttons to choose from 10,
20, 30, 40, 50, or 60 minutes. The factory default is 10 minutes.
Number of Filter Cycles:
Pressing the Program button the fourth time brings you to the
Number of Filter Cycles that your spa will run each day.
Your choices are 1, 2, 3, or 4 cycles per day. The factory default
is 2 times per day.
NOTE: Long and/or numerous filter cycles could cause overheating of the hot
tub - especially in hot climates.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
16
Pump Run Time
Pressing the Program button the fifth time brings you to the Filter
Pump Run Time. Push the UP or DOWN Button to choose 60, 90,
120, 150, or 180 minutes. This sets how long the pump will run
when a Jets Button is pushed, before shutting off automatically.
The pre-set factory default is 60 minutes.
Temperature Units (ºF or ºC)
Pressing the Program button the sixth time brings you to the
Temperature Unit selection.
Use the UP or DOWN Buttons to choose Fahrenheit (ºF) or
Celsius (ºC). The factory default setting is Fahrenheit.
Press the Program Button a seventh time to finish and exit the
programming sequence.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
17
HydroSport™Swim System
Important Safety Instructions
Never let children play with the Swim Tether Cord. They could get the cord wrapped
around their neck and suffocate.
Swimming in your Aquatic Fitness System (AFS) requires that you follow swimming safety
precautions. Your AFS offers a variety of exercises that require awareness of many safety and health
precautions.
Using the Swim Tether
The HydroSport™Swim Tether system that comes with the AFS provides
multiple stationary exercises.
The Swim Tether system includes a 7-foot
Swim Tether Pole, an adjustable Swim
Tether Belt, and 7 feet of Swim Cord.
The belt snaps easily around your waist
using a quick-release buckle and adjusts
from the back.
Swim Tether Mounts are located at either end of the AFS (see picture at
left). Place the pole in the mount, strap on the adjustable belt and adjust
the cord length.
If speed is your goal, the Swim Tether allows you to swim as fast as you want and
remain stationary.
Do not allow your Tensor Cords to remain in direct sunlight for extended periods of
time. Exposure to direct sunlight for extended periods of time can cause the Tensor
Cords to deteriorate. Deteriorated, or damaged, Tensor Cords could break and
cause injury if the break should occur during use.
Be sure to examine your Tensor Cords for damage or deterioration prior to each use.
Do not use damaged or deteriorated Tensor Cords.
Do NOT adjust any piece of HydroSport equipment too tightly! If a piece is too tight it
might not release in the event of an emergency.

Dimension One Spas - Aquatic Fitness System - Owner’s Manual
18
Using the Swim Kick Bar
A swim kick bar at the end opposite the steps comes standard on
all the AFS models.
Use this bar as you would the edge of a pool to do kicking or
standing exercises.
Using the Swim Jets
The swim jets in your Aquatic Fitness System are adjustable, allowing you to get the most out of your
exercise.
When swimming, use the tile markers on the side, front and bottom of the spa to properly position
yourself in the swim lane. You can also use the swim jets for resistance to while walking or jogging in
place.
Using the Diverter Valve
The diverter valve at the filter end of the AFS controls water movement from Pump 1. Turn the valve
to direct water flow either in the direction of the hydrotherapy or swim jets.
Adjusting Air Flow
The air valves located at the front of the AFS
control the amount of air added to the water. The
window in the air valve informs you of the amount
of air being mixed with the water at the swim jets.
