Dimplex DCEVP6 User manual
For domestic household use only.
INSTRUCTION MANUAL
6L Evaporative Cooler
Model: DCEVP6
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your evaporative cooler
for the rst time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a
shower or a swimming pool.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a rm, at surface to avoid the risk of water leakage.
Ensure that the unit is kept upright at all times.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after
appliance malfunction or if the appliance was dropped or is otherwise damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers service
agent or a similarly qualied person in order to avoid a hazard.
• Please ask a professional service agent to repair the product. Improper repair may
cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, and before cleaning.
• Operate the appliance only at the voltage specied on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that
you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This evaporative cooler is only intended for INDOOR RESIDENTIAL applications.
This evaporative cooler should not be used for commercial or industrial or leisure
applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a re or electrocution hazard, NEVER put the cord near heat registers,
radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord
away from trac areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection
may lead to a risk of re or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away
from walls, furniture and overhanging objects such as curtains or a shelf.
2
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• To prevent spillage, empty the water tank before lifting or relocating the appliance.
• WARNING: To avoid danger of suocation please remove all packaging materials
particularly plastic and EPS and keep these away from vulnerable people, children
and babies.
• NEVER drop or insert any object or ngers into any openings.
• Do not use the appliance in locations where paint, petrol or other ammable liquids
are used or stored.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
• Do not use bug sprays or other ammable cleansers/vapour sprays on or around
the unit.
• Always switch o the unit and take the plug out of the socket:
•
If you are not using the unit
•
Before you clean or carry out maintenance on the unit
•
If a fault occurs
•
In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical
burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery immediately
call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764
766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be
dangerous.
3

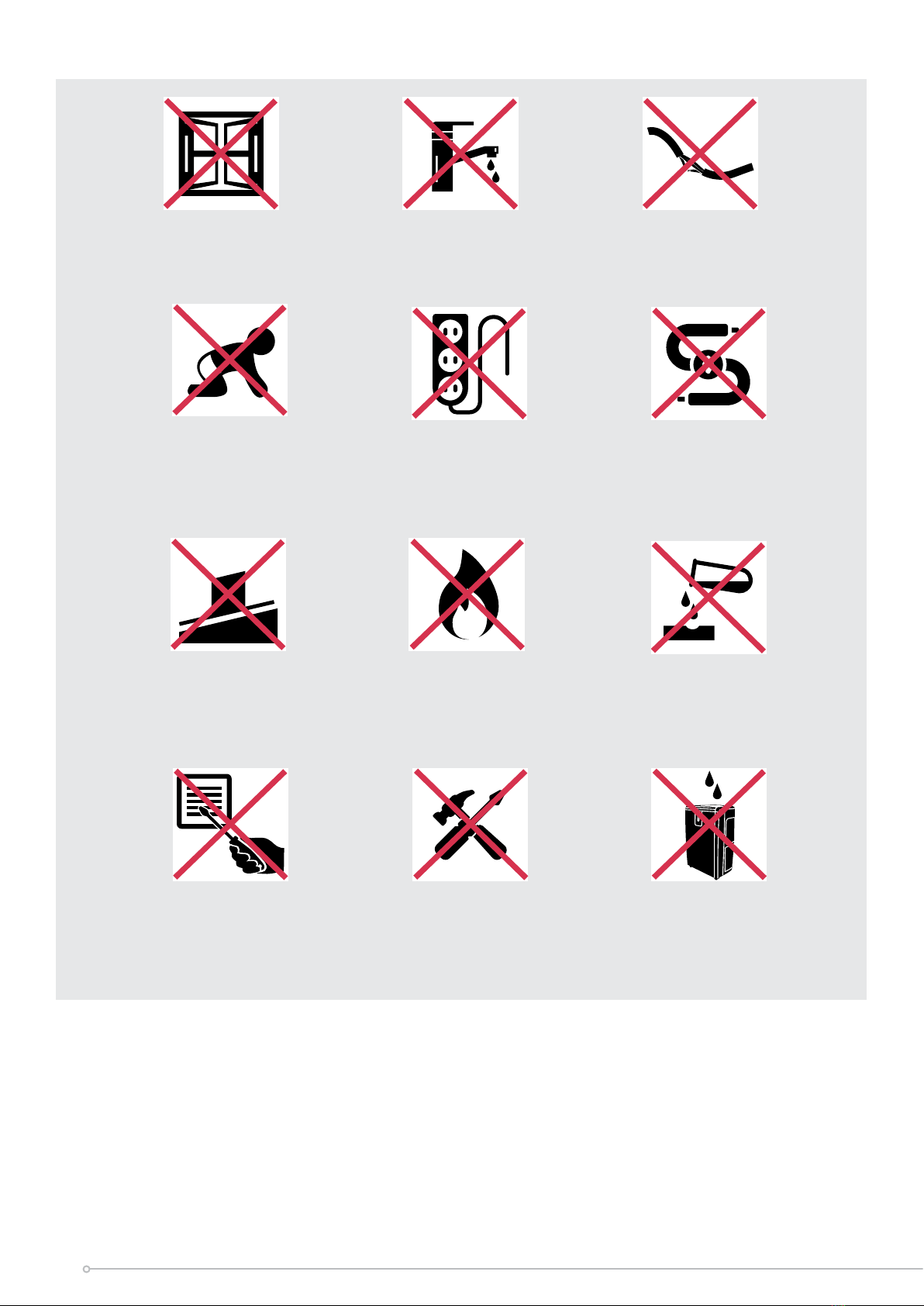

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
If an extension
lead may become
overloaded
Where there is risk
of re or close to
a naked ame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
4
Model no. DCEVP6
Colour
White/Black
Power supply
220-240V~, 50Hz
Rated power
110W
Speed settings
3
Modes 3 (natural, normal & sleep)
Turbo air speed 10m/s
Water tank capacity 6L
Remote control Y
Timer 0-8 hours
Swing function Y
Controls
Button with LED display
Max. room size
20m²
Water consumption
1.2L/h (high speed)
Weight (net) 7.1kg
Dimensions (w x d x h) 279 x 355 x 825mm
Specication
• For greater precision, please always refer to the rating label placed on the product.
5

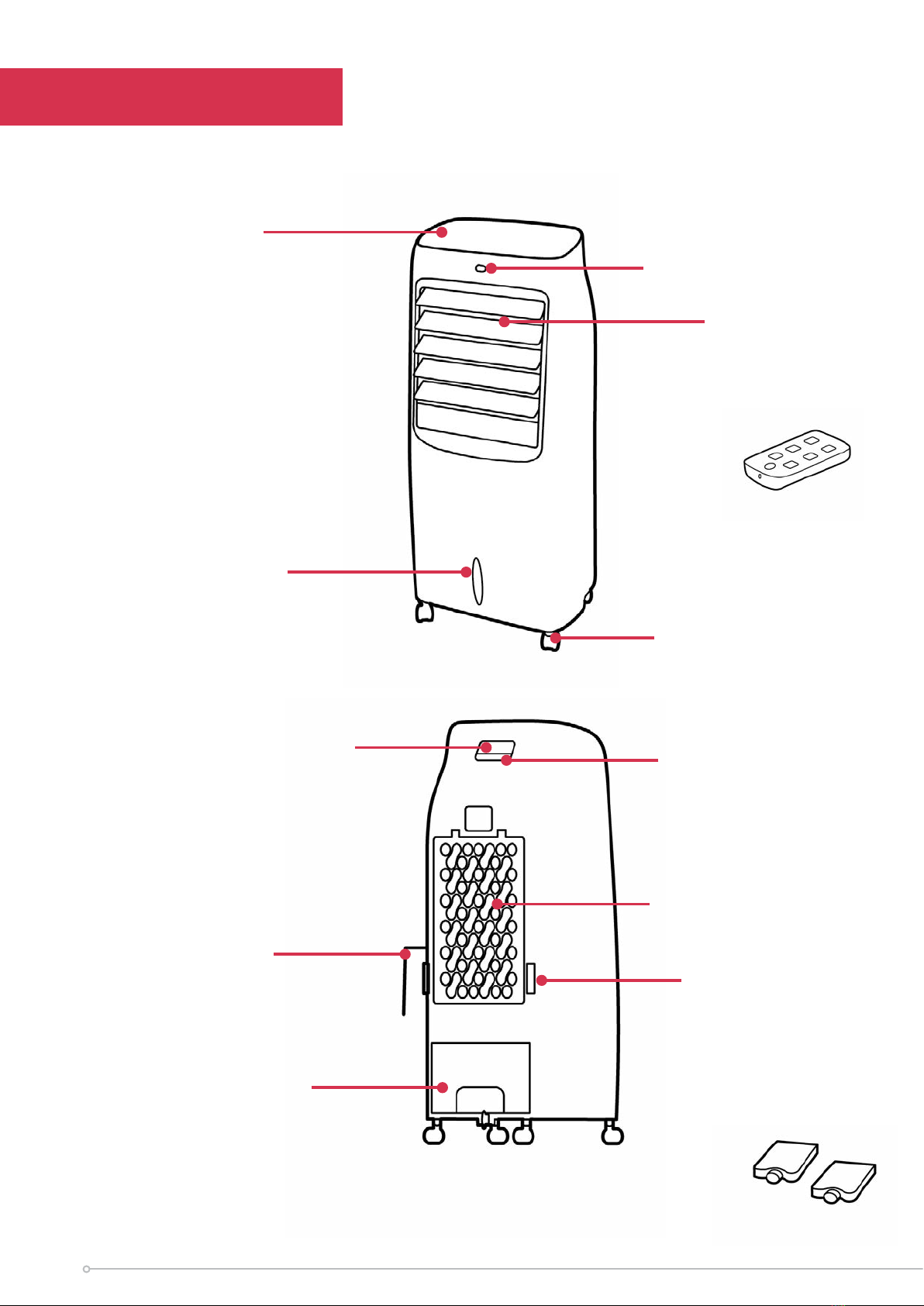

Parts
Display & control
panel
Louvres
Water level window
Castors
Remote receiver
Remote control
storage
Rear lter
Cord storage
Water tank
Power cord
Handle
Ice packs
Remote
6
Display Panel
Functions
Cool /
humidify
Left / right
swing Mode (sleep,
natural, normal)
Timer
Up / down
swing Fan speed
Cool / humidify
Timer
Left / right swing
Up / down swing
Mode
On / Speed
OFF
7
Functions
ON / SPEED
This button is used to switch the unit ON and to control the speed. By pressing this
button, you can regulate the airow from LOW, MEDIUM or HIGH depending on your
needs. The unit automatically starts in MEDIUM speed.
MODE
This button is used to switch between pre-set operating modes. By pressing the MODE
button, you can regulate the mode from NORMAL, NATURAL or SLEEP depending on
your needs. The unit automatically starts in NORMAL mode.
UP / DOWN (swing)
This control gives you the option of having the horizontal louvres swing or stationary.
After turning on, the louvres default to 127°. Press the UP / DOWN button and the
louvres will swing between 60° - 127°. Press the UP / DOWN button again and the
louvres will stay at the current angle.
LEFT / RIGHT (swing)
This control gives you the option of having the vertical louvres open or closed. Press
once to turn “ON”. Press again to turn “OFF”.
TIMER
This evaporative cooler comes with an 8 hour TIMER that allows you to pre-set the
machine to switch o automatically, in intervals of 1, 2, 4 or 8 hours.
To operate, simply select the number of hours ahead you wish the machine to switch
o. If you want it to run continuously, ensure the TIMER mode is deselected.
COOL / HUMDIFY
Press this button to turn on the COOL / HUMIDIFY function, the pump will start and
the COOL / HUMIDIFY LED will illuminate. Press this button again to turn o the COOL
function, and to use as a fan only
OFF
Press this button to switch the unit OFF.
8
Operation
1. Remove the unit from its packaging
2. To begin using the cooling function, open and remove the water tank located at
the back of the unit and ll to the MAX ll line.
3. For extra cooling power, place an ice pack into the water tank.
4. Press the ON/SPEED button to start the appliance.
5. The unit will operate initially on a continual basis. If a set period of operation is
required, please follow TIMER instructions on the previous page.
6. Select the operation MODE as required, by pressing the MODE button.
7. Operate the LEFT / RIGHT & UP / DOWN swing function as required.
8. To switch the unit o at any time, press the OFF button.
Precautions
• Do not overll the water tank (check the MAX ll line).
• Only ll the water tank half full, when using the ice packs.
• Use only cold, clean ltered water.
• The unit is equipped with a number of safety devices, including a water shortage
protection, tank removal protection & power failure protection.
• Do not allow the same water to sit in the machine for a prolonged period.
• It is recommended that any water left in the machine for 3 days or more be re-
moved and replaced with clean water.
• The control panel must not come in contact with water or any other liquids.
Using the Remote Control
1. Open the battery cover of the remote control, and insert a 3V CR2032 battery.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover as per the diagram
and replace with a new battery (CR2032). Then replace the battery cover.
9
Cleaning
Your unit is designed to remove dirt and other atmospheric impurities by drawing air
through the air lter. DO NOT block the air lter, as this will impair the eciency of
the unit. Pushing the unit up against a wall or operating it in close proximity to long
window drapes will also impair the unit’s air ow and eciency.
Rear Air Filter
• This is easily accessible by removing the rear screen and lter.
• In a smoky or dusty environment, this lter will become grey in colour after one
to two months.
• Disconnect the unit from the main supply. Gently wash the lter in mild, soapy
water, dry and replace. Be sure to re-t the rear screen securely. No special tools
are required for this.
Water Tank
The water tank should be cleaned regularly. If not cleaned, deposits may build up
aecting the eciency of the unit. Cleaning the tank with mild soapy water once
every 6 months is recommended. To do this, following the steps bellows:
1. Disconnect the appliance from the main supply.
2. Completely remove the water tank from the unit.
3. Remove any deposits or dirt from the tank with a mild, soapy detergent and
cloth.
4. Flush the tank with clean water.
5. Reverse the procedure and make sure the tank lock is in place.
Outside Cabinet
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a sti brush to clean the
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Storage
If not using the unit for an extended period of time. After cleaning please:
• Turn the unit o, unplug and take care of the mains lead & plug.
•
Cover the unit and store it upright in a location where it will not receive direct sunlight.
NB- Prolonged exposure to direct sunlight will discolour the enclosure.
10
If the unit fails to operate eciently, is broken or other problems arise, unplug and
do not operate. Ask for advice by calling your local after sales service agent or the
Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Maintenance
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landlls or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
11
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
1340 Ferntree Gully Road, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
12
Other manuals for DCEVP6
1
Table of contents
Other Dimplex Accessories manuals
