PARTS & SERVICE MANUAL
FOR THE COMPACT FIREPLACE

1
TABLE OF CONTENTS
OPERATION PAGE1
PARTS DRAWING PAGE 2
PARTSLIST PAGE3
WIRING DIAGRAM PAGE 5
LIGHT BULB REPLACEMENT PAGE 6
MAIN ON/OFF SWITCH REPLACEMENT PAGE 7
HEAT ON/OFF SWITCH REPLACEMENT PAGE 8
THERMOSTAT CONTROL REPLACEMENT PAGE 9
FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 10
HEATER ASSEMBLY REPLACEMENT PAGE 11
POWER CORD REPLACEMENT PAGE 12
MIRROR REPLACEMENT PAGE 13

2
OPERATION
To access the controls, swing down the front cover panel located on the lower front of
the Fireplace (refer to diagram below).
A. MAIN ON/OFF SWITCH
The on/off switch supplies power to all unit functions (heat/flame)
B. HEATER ON/OFF SWITCH
The HEATER ON/OFF SWITCH supplies power to the heater fan and the heater
element.
C. HEATER THERMOSTAT CONTROL
To adjust the temperature to your individual requirements, turn the thermostat control
clockwise all the way to turn on the heater. When the room reached the desired
temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in
this position to maintain the room temperature at this setting. For additional heat, turn
clockwise until you hear the click again and the heater will turn on. To turn the heater
off, switch the HEATER ON/OFF SWITCH to the OFF position.
NOTE: When the heater is switched ON, the heater fan will operate. The heater
element may or may not be on, depending on the thermostat control setting (SEE
“HEATER THERMOSTAT CONTROL”).
RESETTING THE TEMPERATURE CUTOFF SWITCH
This unit is equipped with a thermostat, which controls the temperature of the room. It
does this by turning the heater on and off. The heater is protected with a safety device
to prevent overheating. Should the heater overheat, an automatic cut out will turn the
heater off and it will not come back on without being reset. It can be reset by switching
the ON/OFF SWITCH to OFF and waiting 5 minutes before switching the unit back on.
CAUTION
If you need to continuously reset the heater, unplug the unit and call Dimplex North
America Limited at 1-800-668-6663.
C B
A
COVER PANEL

3
1
11
3
4
8
6 14
6
7
9
2
12
5
15
10
13

4
REPLACEMENT PARTS
COMPACT FIREPLACE
PART NO. 6901860100 6901860200
MOD LEVEL: NONE NONE
MADE IN: CHINA CHINA
REPLACEMENT PART REPLACEMENT PART NO.
1. LOGSET 0438270100RP 0438270100RP
2. FLICKER MOTOR 2000220100RP 2000220100RP
3. HEATER ASSEMBLY 2200490300RP 2200490300RP
4. CUTOUT 2300270100RP 2300270100RP
5. THERMOSTAT 2300150100RP* 2300150100RP*
6. ON/OFF SWITCH 2800070200RP 2800070200RP
7. CAPACITOR 3200030100RP 3200030100RP
8. TERMINAL BLOCK 4000070100RP 4000070100RP
9. CORD SET 4100090104RP 4100090104RP
10.REFLECTOR ASSEMBLY 5900340100RP 5900340100RP
11.MIRROR 5900410100RP 5900560100RP
12.FRONT GLASS 5900420100RP 5900420100RP
13.BUSHING, SNAP-IN 8500000400RP 8500000400RP
14.FLICKER CONNECTOR 8500680100RP 8500680100RP
15.CONTROL KNOB 8800000300RP 8800000300RP
16.LAMPHOLDER ASSEMBLY 4200120800RP 4200120800RP
17.HEYCO STRAIN RELIEF 8500260003RP 8500260003RP

5
REPLACEMENT PARTS
COMPACT FIREPLACE
PART NO. 6901860300
MOD LEVEL: NONE
MADE IN: CHINA
REPLACEMENT PART REPLACEMENT PART NO.
1. LOGSET 0438270100RP
2. FLICKER MOTOR 2000220100RP
3. HEATER ASSEMBLY 2200490300RP
4. CUTOUT 2300270100RP
5. THERMOSTAT 2300150100RP*
6. ON/OFF SWITCH 2800070200RP
7. CAPACITOR 3200030100RP
8. TERMINAL BLOCK 4000070100RP
9. CORD SET 4100090104RP
10.REFLECTOR ASSEMBLY 5900340100RP
11.MIRROR 5900560100RP
12.FRONT GLASS 5900420100RP
13.BUSHING, SNAP-IN 8500000400RP
14.FLICKER CONNECTOR 8500680100RP
15.CONTROL KNOB 8800000300RP
16.LAMPHOLDER ASSEMBLY 4200120800RP
17.HEYCO STRAIN RELIEF 8500260003RP

6

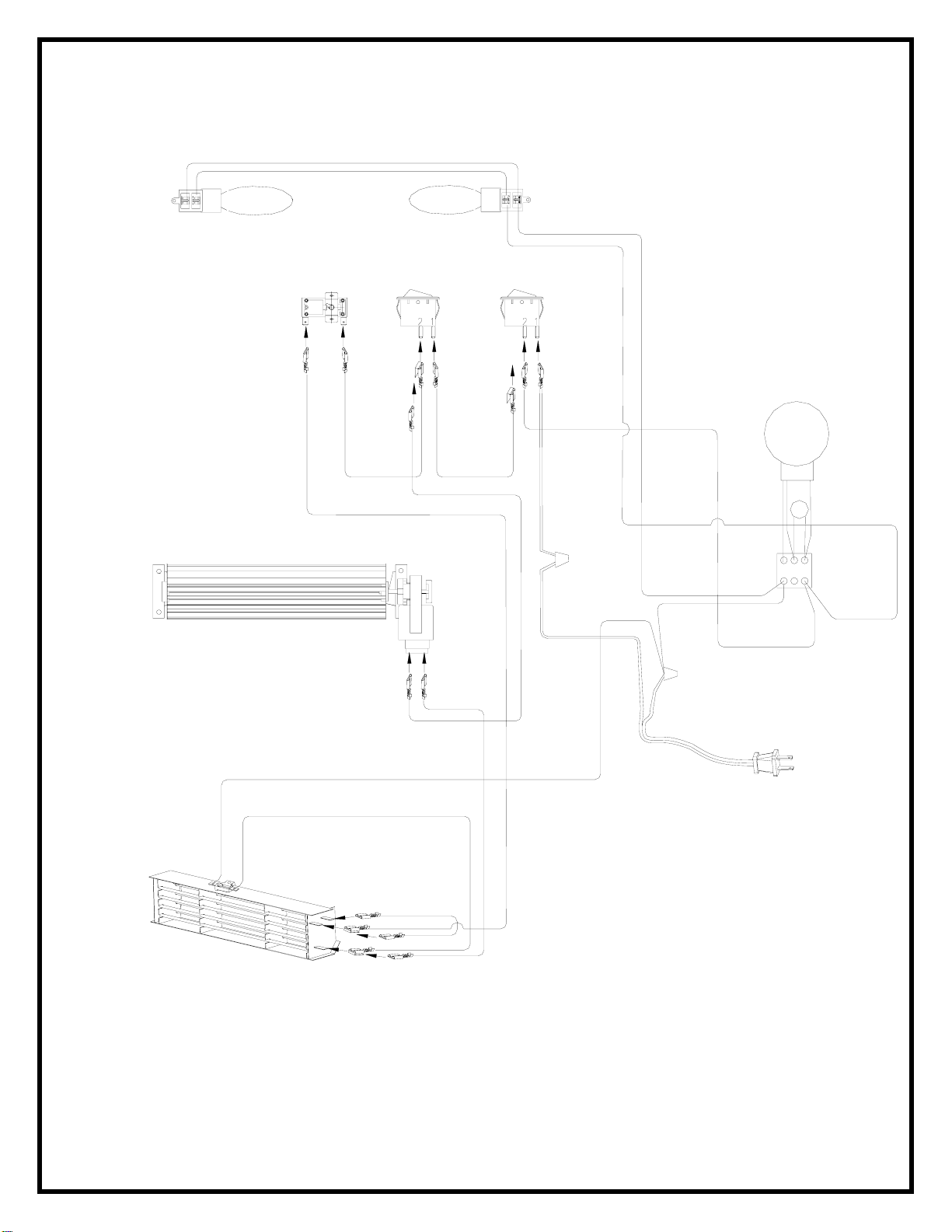

WIRING DIAGRAM

7
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame. There are
four bulbs under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the end of
their rated life. Group replacement will reduce the number of times you need to open
the unit to replace the light bulbs.

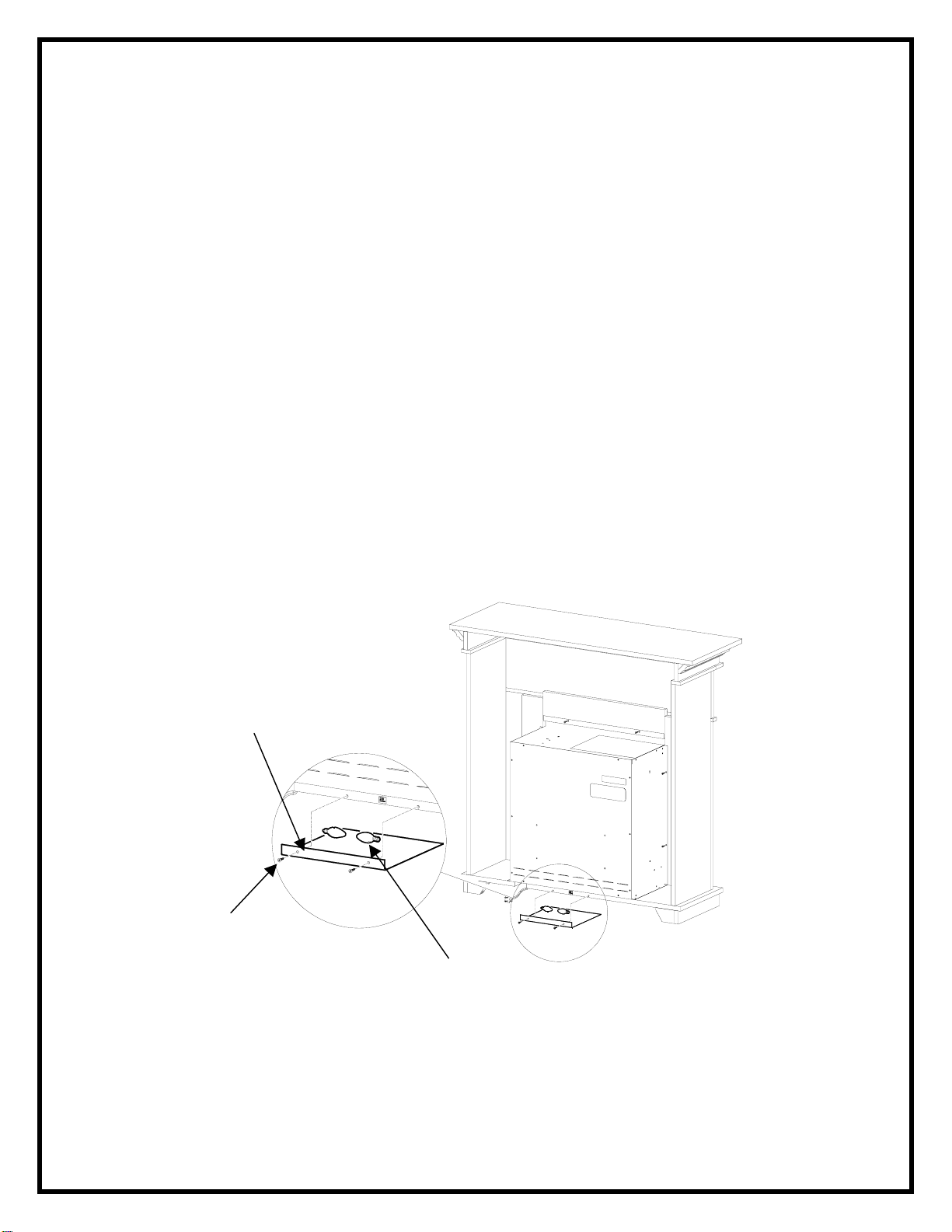

LOWER BULB REPLACEMENT
1. Unplug the unit from power outlet.
2. On the back of the Compact Fireplace remove the screws from the light access
cover.
3. Remove the light access cover.
4. Reach into the opening, locate and examine the bulbs to determine which bulb(s)
required replacement.
5. Unscrew the bulb(s) counter clockwise.
6. Insert new bulb(s).
7. Install the light access cover and install the screws.
SCREWS
LIGHT
ACCESS
COVER
LIGHT
BULBS

8
LOWER LIGHT BULB REQUIREMENTS
Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base,
60 watt rating.
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

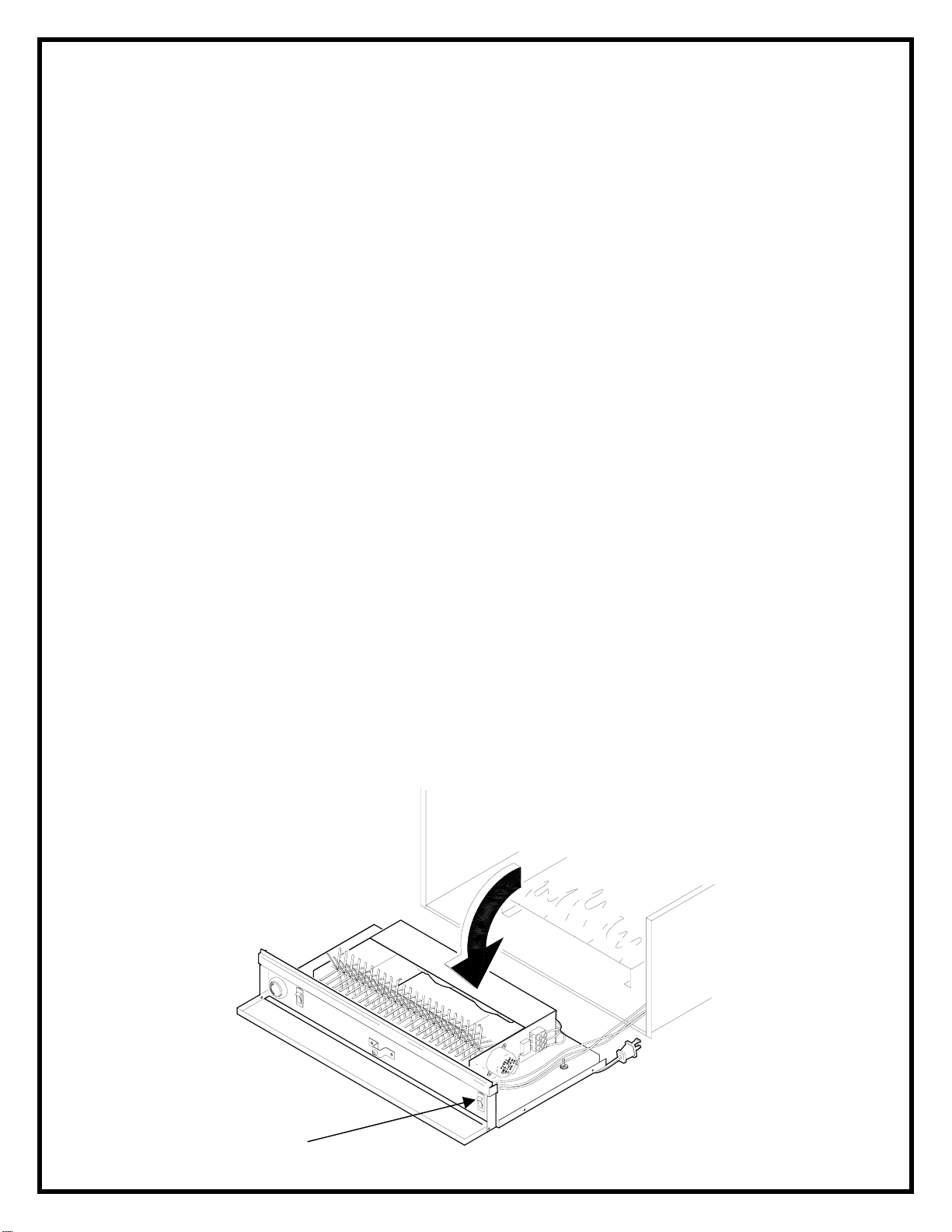

TO REPLACE MAIN POWER SWITCH
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Remove the 4 bottom access panel screws and separate the bottom access panel
from the unit.
8. Locate the Main Power switch and disconnect the wiring connections noting their
original locations.
9. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom access panel.
10.Properly orientate the new switch and connect all of the wiring connections.
11.Reassemble in the reverse order as above.
MAIN POWER SWITCH

9
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HEATER CONTROL SWITCH
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Remove the 4 bottom access panel screws and separate the bottom access panel
from the unit.
8. Locate the Heater control switch and disconnect the wiring connections noting their
original locations.
9. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom access panel.
10.Properly orientate the new switch and connect all of the wiring connections.
11.Reassemble in the reverse order as above.
HEATER CONTROL SWITCH

10
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

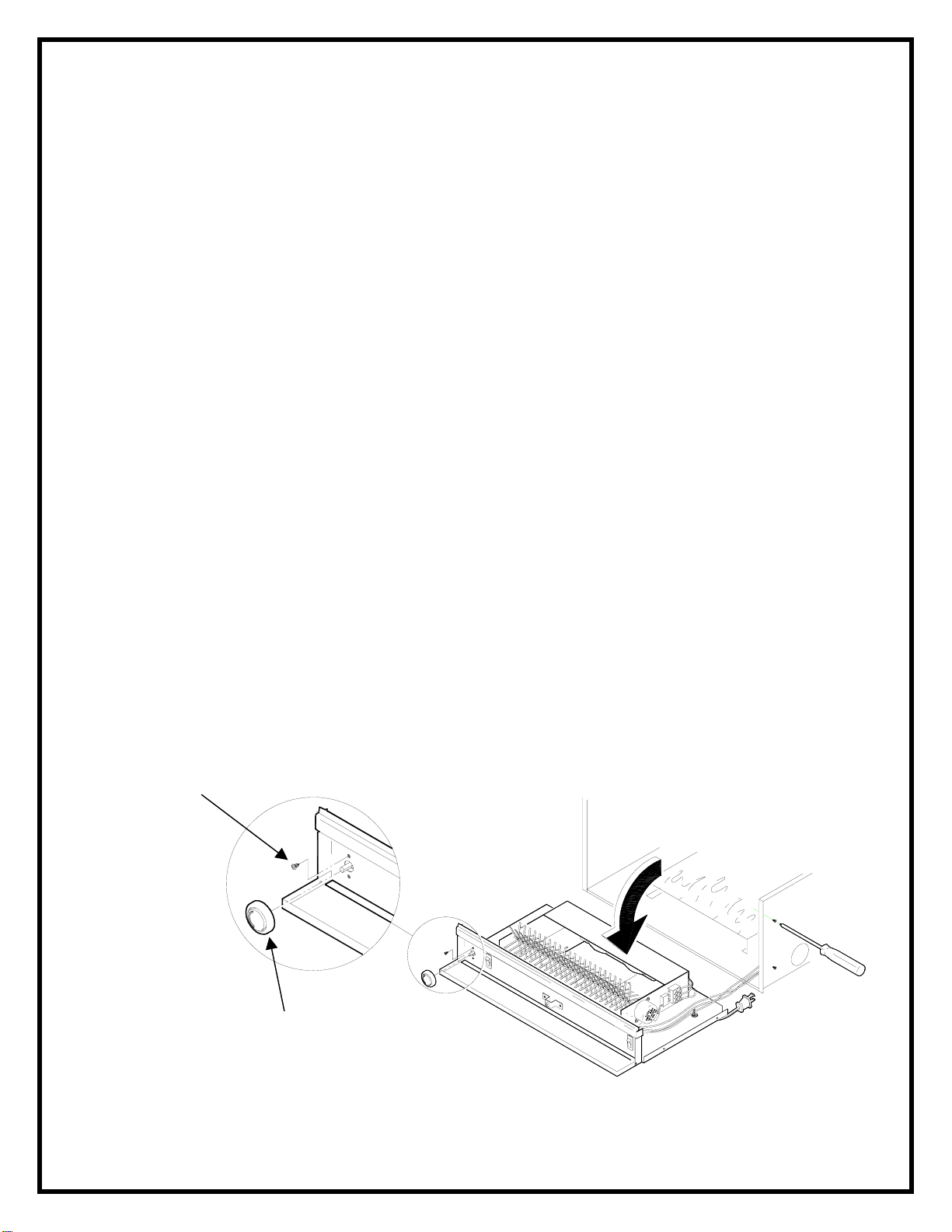

TO REPLACE THERMOSTAT CONTROL
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Remove the 4 bottom access panel screws and separate the bottom access panel
from the unit.
8. Locate the thermostat control and pull off the thermostat control knob to expose the
mounting screws.
9. Remove the mounting screws.
10.Disconnect the wiring connections noting their original locations and remove the
thermostat control switch.
11.Properly orientate the new thermostat control switch and reconnect all wiring
connections.
12.Reassemble in the reverse order as above.
THERMOSTAT CONTROL KNOB
MOUNTING SCREWS

11
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE FLICKER MOTOR/REFLECTOR ASSEMBLY
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Remove the 4 bottom access panel screws and separate the bottom access panel
from the unit.
8. Locate and disconnect the 3 motor assembly wires going to the terminal block.
9. Remove the 2 motor mounting screws.
10.Separate the motor from the flicker connector and remove.
11.Slide the reflector assembly out of the snap-in bushing and remove.
12.Reassemble in the reverse order as above.
FLICKER CONNECTOR
FLICKER MOTOR
REFLECTOR
ASSEMBLY

12
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HEATER ASSEMBLY
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the 2 screws on the top panel that are closest to the front of the unit.
6. Remove the top panel screws and lift off the top panel.
7. Disconnect heater assembly wires noting their original locations.
8. Remove the 4 screws on the top panel that secure the heater assembly
9. Remove the 2 heater brackets and install them on the new heater assembly.
10.Properly orientate the new heater assembly and connect all of the wiring.
WARNING
Ensure wires do not come in contact with moving parts by securing wires in wiring tie
wraps.
NOTE
When re-installing the bottom heater pan, ensure that the heater assembly wires are
clear of the blower wheel. Additional wiring tie wraps may be required.
11.Reassemble in the reverse order as above.
TOP PANEL HEATER
BRACKETS
HEATER
ASSEMBLY

13
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE POWER CORD
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Locate and disconnect the power cord wiring connections noting their original
locations.
8. With needle nose pliers, grasp the power cord strain relief grommet from inside the
back of the bottom panel and push while twisting to remove.
9. Install the new power cord.
POWER CORD
POWER CORD
STRAIN RELIEF

14
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE MIRROR
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the 2 screws on the top panel that are closest to the front of the unit.
6. Remove the top panel screws and lift off the top panel.
7. Disconnect heater assembly wires noting their original locations.
8. Remove mirror from unit.
9. Reassemble in the reverse order as above.
MIRROR
TOP PANEL
