Dimplex BF9000 User manual

Owner’s Manual
Model
BF9000
7211120100R06
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this replace.
!NOTE: Procedures
and techniques that are
considered important enough
to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ..................3
Important Instructions .......................4
Fireplace Installation .......................7
Front Glass Installation .........................10
Bathroom Installation. . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operation ................................11
Maintenance .............................13
Warranty ................................16
Replacement Parts .........................19

3
Model Number Part Number
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future refer-
ence: model and serial numbers can be found on the Model and Serial
Number Label of your replace.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
S E R IAL No.
MODE L
MOD.

4 www.dimplex.com
IMPORTANT INSTRUCTIONS
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before us-
ing the electric replace.
②The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
③ Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the electric
replace when not in use.
⑤ Do not operate any heater after
it malfunctions. Disconnect power
at the service panel and have the
heater inspected by a reputable
electrician before reusing.
⑥ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦Do not use outdoors.
⑧ Never locate heater where it
may fall into a bathtub or other
water container.
⑨ Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩ To disconnect the unit, turn the
controls off, then remove the plug
from the outlet
⑪ Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.
⑭ Do not modify the electric re-
place. Use it only as described
in this manual. Any other use not
recommended by the manufactur-
er may cause re, electric shock

5
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
or injury to persons.
⑮ To reduce the risk of electric
shock, this appliance has a polar-
ized plug (one blade is wider than
the other). This plug will t in a
polarized outlet only one way. If
the plug does not t fully in the
outlet, reverse the plug. If it still
does not t, contact a qualied
electrician to install the proper
outlet. Do not change the plug in
any way.
⑯ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑰ Do not burn wood or other ma-
terials in the electric replace.
⑱ Do not strike the replace
glass.
⑲ Always use a certied electri-
cian should new circuits or outlets
be required.
⑳ Always use properly grounded,
fused and polarized outlets.
㉑ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉒When transporting or stor-
ing the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
!NOTE: This equipment has
been tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and the receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.
IMPORTANT INSTRUCTIONS

7
878"
(225 mm)
24 1/2"
(622 mm)
18 ¼"
(463 mm)
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
CAUTION: Clearance for air
circulation beneath the re-
place insert is provided by 2
rubber feet.
Do not install the replace
insert directly on carpet or
similar surfaces which may
restrict air circulation.
CAUTION: If installing the
replace in a carpeted area, place
a one-piece, solid, at surface
under the replace. Ensure that
both of the feet rest securely on
this surface.
!NOTE: The dimensions of the
rebox are 30 in. (762 mm)
wide X 18 ⅞ in. (479.5 mm)
high X 9 ¼ in. (235 mm) deep.
The replace does not require
any additional venting.
Mantel Installation
Install the replace into the
mantel (refer to mantel assembly
instructions).
!IMPORTANT: If not using a
Dimplex mantel, the replace
must be installed in an enclosure
with the following minimum inter-

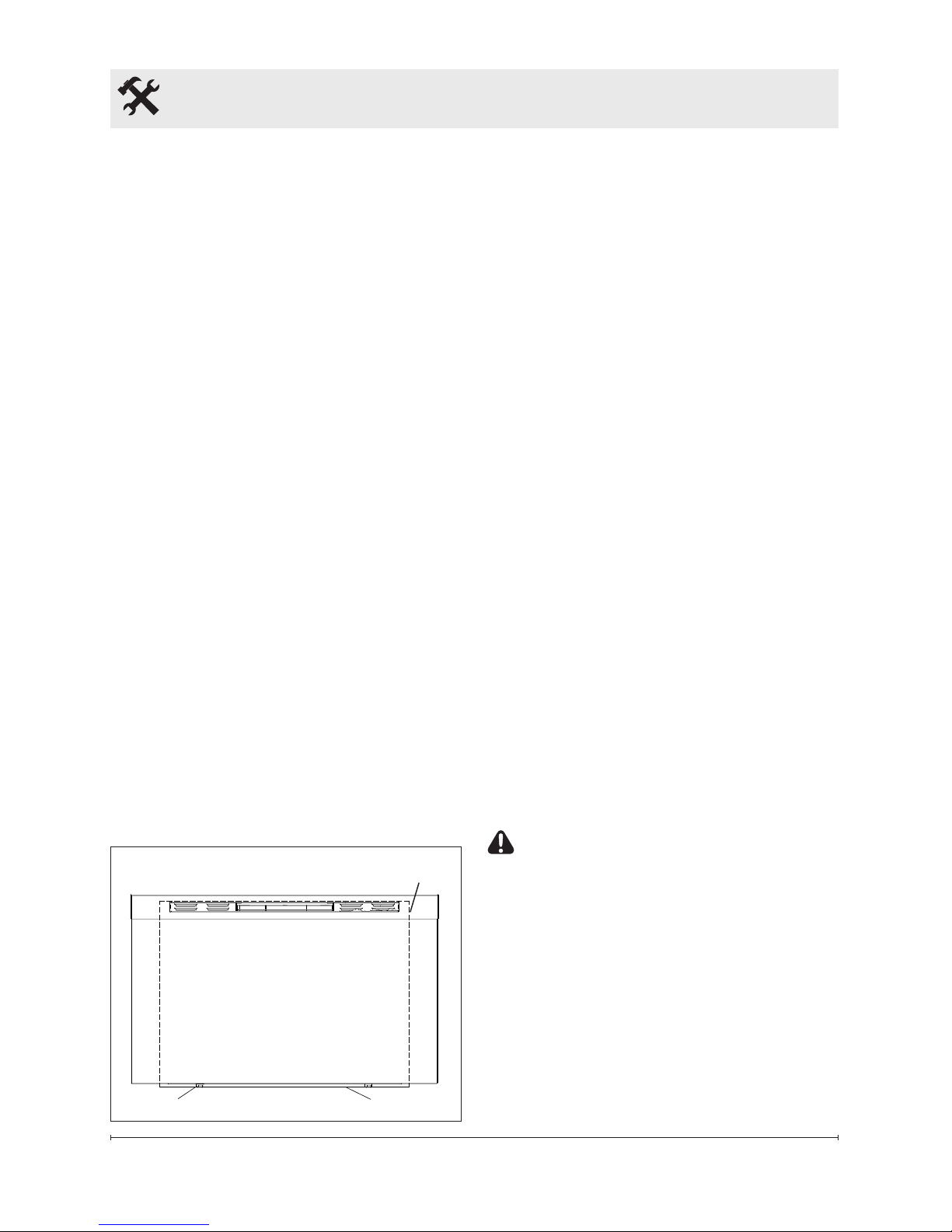

nal/opening dimensions - Figure
1.
Figure 1

8 www.dimplex.com
Figure 2
Feet
Opening
Visible Edges
New Wall Construction
1. Mark the desired location on
the oor and store the re-
place in a safe, dry and dust
free location.
2. Use studs to frame an open-
ing of 24 ½ in. (622 mm) wide
X 18 ¼ in. (463.6 mm) high
X 8 ⅞ in. (225.5 mm) deep.
(Figure 1)
!NOTE: On elevated
installations, the bottom edge
and 1/2" (12.7) up either side will
be easily visible after installation
(Figure 2). This area should
be nished in a manner that is
visually appealing and does not
restrict air ow to the unit.
Option #1 - The power cord can
be lead from behind the trim
and along the wall to an outlet
near the replace.
Option #2 - A new outlet can be
Fireplace Installation
installed inside the new frame
construction. Plug the unit into
a 15 Amp/120 Volt outlet.
!NOTE: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not es-
sential in all cases. A dedi-
cated circuit will be required
if, after installation, the circuit
breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating
of the circuit breaker.
Option #3 - Hardwire
1. Wire a dedicated, properly
fused circuit with 120 Volt, 15
Amp rating. Allow up to 8 feet
of service cable for connect-
ing power supply to junction
box on replace when install-
ing after nishing wall.
CAUTION: Use two conduc-
tor, non-metallic sheath cable
with ground wire (3 wires total)
for the incoming power supply on
replace inserts. Use appropriate
wire to meet local and national
electrical codes for rated power
consumption.
2. Remove the outer jacket and
strip the individual conductor

9
Fireplace Installation
from the end.
3. Loosen the screw securing
the junction box cover and
remove the cover.
4. Take the cables out from the
junction box, loosen the two
wire twist nuts and remove
the cord set (Figure 3).
5. Route the power supply wire
through the knockout on sup-
plied alternative junction box
cover and secure with a wire
clamp (not supplied)
(Figure 4).
6. Connect the black wire (live)
from the unit to the black wire
from power supply (Figure 4).
7. Connect the white wire
(neutral) from the unit to the
white wire from power supply
Figure 4
Figure 3
LED LOG
ASSEMBLY
LED CONTROL
BOARD
L1
N
N
SWITCH OUT
CUTOUT THERMOSTAT
M
M
L
HEAT ON/OFF
SWITCH
LIGHT HARNESS
ASSEMBLY
FLICKER
MOTOR
CAPACITOR
BLOWER
MOTOR
ELEMENT
Wiring

10 www.dimplex.com
Fireplace Installation
Front Glass Installation
1. Carefully mount front glass
assembly so that the front
glass hooks (2) hang on the
front glass mounts on the
fireplace (2).
2. Use the supplied two (2)
Phillips sheet metal screws
to fasten the glass assembly
tabs to the fireplace (Figure
5).
3. Ensure the fireplace's
3-Position Switch is switched
to the Off position (refer to
operation section).
4. If unit is not hard-wired, plug
fireplace into a 15 Amp, 120
Volt outlet (refer to NOTE 1).
Figure 5 Tab
(Figure 4).
8. Connect the green wire
(ground) from the unit to the
green wire from power supply
(Figure 4).
9. Place all connectors inside
the unit and secure the junc-
tion box cover to unit. Ensure
that the cable clamp grips
only the jacket of service
cable.
Bathroom Installation
This rebox must be protected
by a GFI receptacle or circuit. If
a receptacle is used it must be
readily accessible.
To prevent electrical shock this
unit is an electrical appliance
that is not watertight and must be
installed as to prevent water from
entering the unit. This unit must
be installed away from showers,
tubs, etc. Never locate replace
where it may fall into a bathtub or
other water containers.

11
Operation
WARNING: This electric
rebox must be properly installed
before it is used.
Manual Controls
A. 3-Position Switch
The switch has two On positions
marked. The "--" position is for
manual operation. In this posi-
tion the built-in remote control
is by-passed. The "=" position
is for operating the unit with the
provided remote control. When in
remote control ("=") position the
unit is operated with the On and
Off buttons of the remote control.
When the switch is in the center
“O” position the unit is Off.
B. Heater On/Off Switch
The Heat On/Off Switch supplies
power to the heater fan and the
heater element. When the switch
is in the On position the heater
operates if the thermostat calls for
heat.
C. Heater Thermostat Control
To adjust the temperature to your
individual requirements, turn the
thermostat control clockwise all
the way to turn on the heater.
When the room reaches the de-
sired temperature, turn the ther-
mostat knob counter-clockwise
until you hear a click. Leave in
this position to maintain the room
temperature at this setting. For
additional heat, turn clockwise un-
til you hear the click again and the
heater will turn on.
!NOTE: The heater on your
replace may emit a slight,
harmless odor when rst used.
This odor is a normal condition
caused by the initial heating of
internal heater parts and will
not occur again.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the re-
place off and it will not come back
on without being reset. It can
be reset by switching the 3-Posi-
tion switch to Off and waiting ve
minutes before switching the unit
Figure 6
C
BA

12 www.dimplex.com
back on.
CAUTION: If you need to
continuously reset the heater,
disconnect power and call
Dimplex customer service at
1-888-DIMPLEX
(1-888-346-7539).
Remote Operation
The replace is supplied with an
integrated on/off remote control
!NOTE: Ensure that the 3-po-
sition switch is set to the
remote control setting.
To operate, push the ON button
to turn replace on, push the OFF
button to turn the replace off.
!NOTE: Before attempting any
operation with the remote control,
pull the plastic insulator strip out
from between the remote casing
and battery cover.
Remote Control Initialization/
Reprogramming
In the event that your remote
control ceases to operate your
replace, follow these steps to
re-initialize the remote control and
the remote control receiver board
in the replace:
1. Place the 3-Position Switch
(Figure 6A) in the OFF (“O”)
position.
2. Wait a minimum of ve sec-
onds and then place the 3-Po-
sition Switch in the Remote
Control (“=”) position.
3. Within 10 seconds of chang-
ing the switch position, press
the ON button located on the
remote control (Figure 7).
This will synchronize the remote
control and the replace receiver.
!NOTE: You will have only 10
seconds to perform this last
step. Failure to do so will result
in these steps needing to be
followed again.
Battery Replacement
(Figure 7)
To replace the battery:
1. Slide battery cover open on
the remote control.
2. Install one 12-Volt (A23) bat-
tery in the battery holder.
3. Close the battery cover.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
Operation

13
Operation

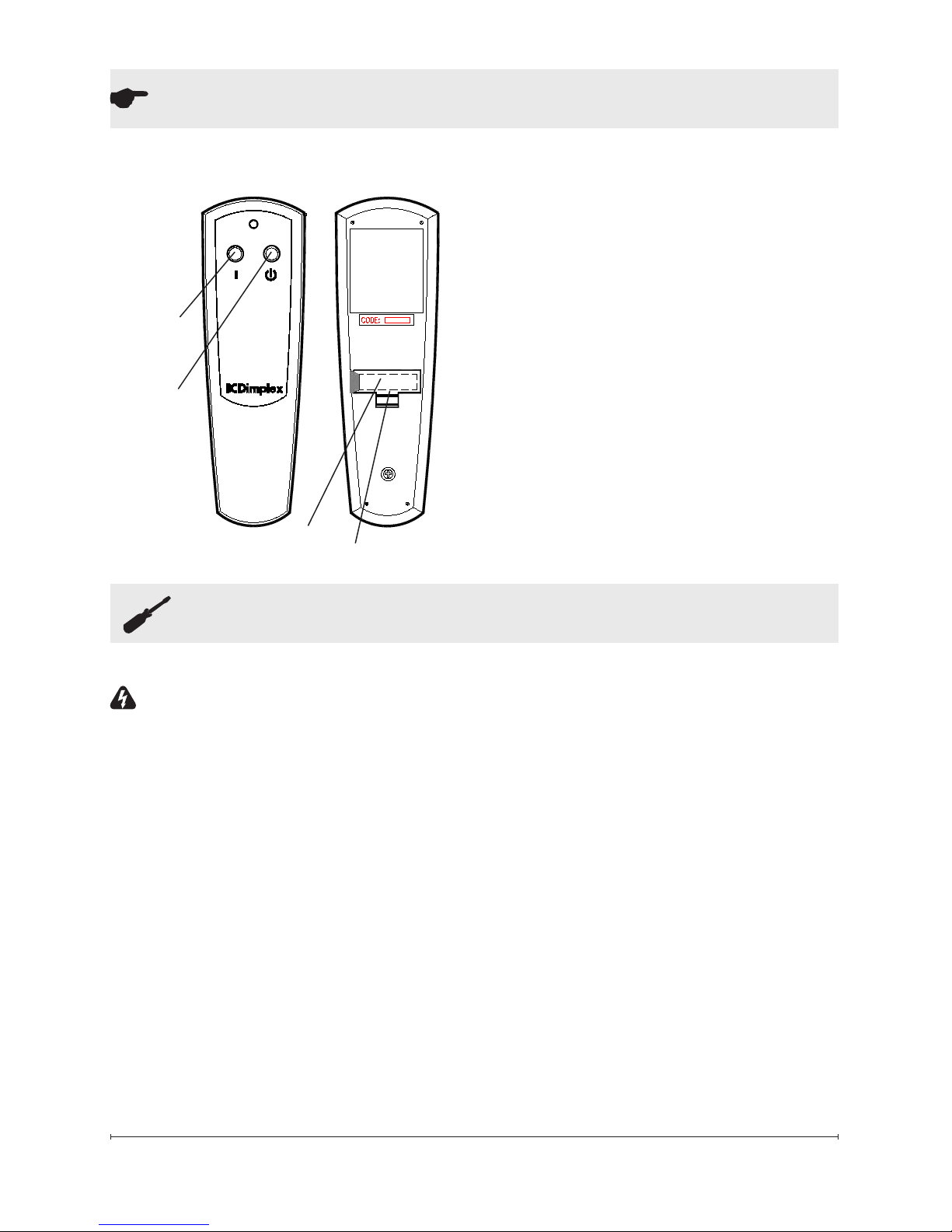

ON
Button
Battery Cover
OFF
Button
Battery
Figure 7
Maintenance
WARNING: Disconnect power
before attempting any main-
tenance or cleaning to reduce
the risk of re, electric shock
or damage to persons.
!NOTE: The replace should
not be operated with an accumu-
lation of dust or dirt on or in the
unit, as this can cause a build up
of heat and eventual damage. For
this reason the heater must be
inspected regularly, depending
upon conditions and at least at
yearly intervals.
Light Bulb Replacement
Light bulbs need to be replaced
when you notice a dark section
of the ame or when the clarity
and detail of the log ember bed
exterior disappears. There are
two bulbs under the log set, which
generate the ames and embers.
Light Bulb Requirements
Quantity of two clear chandelier
or candelabra bulbs with an E-12
(small) socket base, 60 Watt
rating. Example: GE 60BC or
Philips 60 CTC. Do not exceed
60 Watts per bulb.

14 www.dimplex.com
6. Insert new bulbs.
7. Reconnect the icker rod to
the motor.
8. Replace the log set by insert-
ing the front edge of the log
set and push down on the
rear edge of the ember bed
until it snaps into place (Fig-
ure 9).
!NOTE: Ensure the log set is
installed tightly under the back
ledge to prevent light leakage.
9. Replace glass assembly.
Maintenance
Helpful Hints: It is a good idea
to replace both light bulbs at one
time if they are close to the end
of their rated life. Group replace-
ment will reduce the number of
times you need to open the unit
to replace light bulbs. Care must
be taken when removing the Log
Set Assembly as it contains LED’s
and wires.
CAUTION: Allow at least ve
minutes for light bulbs to cool
before touching bulbs to avoid ac-
cidental burning of skin.
1. Remove front glass assembly.
2. Pull the back edge of the
plastic ember bed forward
until the rear tab releases
from the ledge located at the
bottom of the partially reec-
tive glass. (Figure 9)
!IMPORTANT: Only handle the
log set by the ember bed.
!NOTE: Log set ts tightly into
rebox, some force may be nec-
essary to remove.
3. Set log set in front of re-
place.
4. Disconnect the icker rod
from the motor (see Figure 8).
5. Unscrew bulbs counter clock-
wise.

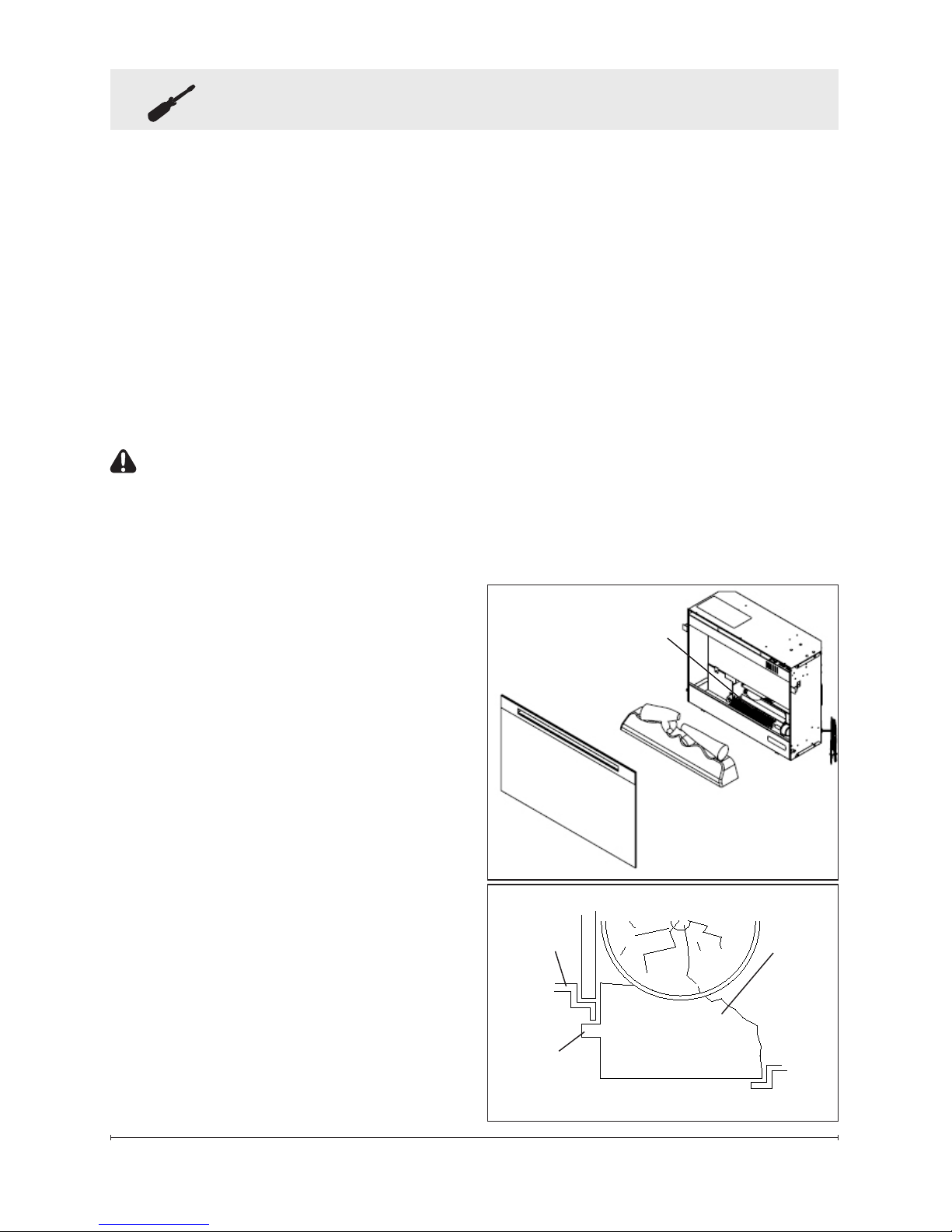

Figure 8
Flicker Rod
Figure 9
Side Section Front
Edge
Log
Ember
Bed
Back
Ledge
Rear
Tab

15
Glass Cleaning
The front glass is cleaned in the
factory during the assembly op-
eration. During shipment, instal-
lation, handling, etc., the front
glass may collect dust particles,
these can be removed by dusting
lightly with a clean dry cloth.
To remove ngerprints or other
marks, the glass can be cleaned
with a damp cloth. The glass
should be completely dried with
a lint free cloth to prevent water
spots. To prevent scratching,
do not use abrasive cleaners or
spray liquids on the glass surface.
Fireplace Surface Cleaning
To remove ngerprints or other
marks, the exterior nish can be
cleaned with a damp cloth with
a mild detergent. The surface
should be completely dried with
a lint free cloth to prevent water
spots.
Maintenance

16 www.dimplex.com
Two Year Limited Warranty
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex electric replace. This
limited warranty applies only to purchases
made in any province of Canada except
for Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of the
USA (and the District of Columbia) except
for Hawaii and Alaska. This limited war-
ranty applies to the original purchaser of
the product only and is not transferable.
Products excluded from this limited war-
ranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased
in Yukon Territory, Nunavut, Northwest
Territories, Hawaii, or Alaska are not cov-
ered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without warranty
or condition of any kind (including, without
limitation, any implied warranties or condi-
tions of merchantability or tness for a
particular purpose) and the entire risk of
as to the quality and performance of the
products is with the purchaser, and in the
event of a defect the purchaser assumes
the entire cost of all necessary servicing
or repair.
What this limited warranty covers and for
how long
Products, other than replace surrounds
(mantels) and trims, covered by this
limited warranty have been tested and
inspected prior to shipment. Subject to
the provisions of this warranty, Dimplex
warrants such products to be free from
defects in material and workmanship for a
Warranty
period of 2 years from the date of the rst
purchase of such products as follows: (a)
a repair or replacement warranty on defec-
tive products or parts, including in-home
services, for the rst year following the
date of rst purchase; and (b) thereafter, a
replacement of parts warranty on defective
products and parts (with no in-home ser-
vices) for the 1 year period commencing
on the rst anniversary of rst purchase
and ending on the second anniversary of
the date of rst purchase.
Dimplex replace surrounds (mantels) and
trims covered by this limited warranty have
been tested and inspected prior to ship-
ment and, subject to the provisions of this
warranty, Dimplex warrants such products
to be free from defects in material and
workmanship for a period of 1 year from
the date of rst purchase of such products.
Warranty services do not include in-home
services.
The limited 2 year warranty period for
products other than replace surrounds
(mantels) and trims and the limited 1 year
warranty period for replace surrounds
(mantels) and trims also applies to any
implied warranties that may exist under
applicable law. Some jurisdictions do not
allow limitations on how long an implied
warranty lasts, so the above limitation may
not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service rep-
resentatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation, im-
proper maintenance or handling, or opera-

17
tion with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road, Cam-
bridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model
and serial numbers available when calling.
Limited warranty service requires a proof
of purchase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during (i)
the 2 year limited warranty period for prod-
ucts other than replace surrounds (man-
tels) and trims, and (ii) the 1 year limited
warranty period for surrounds (mantels)
and trims, you have the following rights:
• Limited warranty service will be per-
formed solely by dealers or service
agents of Dimplex authorized to pro-
vide limited warranty services.
• For products (other than sur-
rounds (mantels) and trims) for
the period ending at midnight on
the rst anniversary of the date
of rst purchase, Dimplex will in its
sole discretion either repair or replace
such defective product or part without
charge. If Dimplex is unable to repair
or replace such product or part, or if
repair or replacement is not commer-
cially practicable or cannot be timely
made, Dimplex may, in lieu of repair
or replacement, choose to refund the
purchase price for such product or
part. This limited warranty entitles the
purchaser to on-site or in-home war-
ranty services. Accordingly, Dimplex
will be responsible for all labour
and transportation costs associated
with the repair or replacement of the
product or part except as follows: (i)
charges may be levied for travel costs
incurred to travel to the purchaser’s
site where the product is located if the
purchaser’s site is beyond 30 miles
(48 km) from the closest service depot
of Dimplex’s dealer or service agent;
and (ii) the purchaser is solely respon-
sible for providing clear access to all
serviceable parts of the product.
• For products (other than surrounds
(mantels) and trims) for the period
commencing at 12:01 a.m. on the
day after the rst anniversary of
the rst purchase and ending at
midnight on the second anniver-
sary of the date of rst purchase,
this limited warranty entitles the
purchaser to replacement parts only
without charge. If Dimplex is unable to
replace such part, or if replacement is
not commercially practicable or cannot
be timely made, Dimplex may, in lieu
of replacement, choose to refund the
purchase price for such part. The pur-
chaser shall not be entitled to on-site
or in-home warranty services. The
purchaser shall be responsible for all
expenses incurred for the removal of
the part and installation of the replace-
ment part including, without limitation,
all shipping costs and transportation
costs to and from the authorized
dealer’s or service agent’s place of
business and all labour costs. Such
costs shall not be the responsibility of
Dimplex.
Warranty

18 www.dimplex.com
Warranty
• For surrounds (mantels) and trims
for the period ending at midnight
on the rst anniversary of the date
of rst purchase, Dimplex will in its
sole discretion either repair or replace
such defective surrounds (mantels)
and trims or part thereof without
charge. If Dimplex is unable to repair
or replace such product or part, or if
repair or replacement is not commer-
cially practicable or cannot be timely
made, Dimplex may, in lieu of repair or
replacement, choose to refund the pur-
chase price for such product or part.
The purchaser shall not be entitled to
on-site or in-house services. The pur-
chaser is responsible for all expenses
incurred for repair or replacement of
such product or part including, without
limitation, all shipping costs and
transportation costs to and from the
authorized dealer’s or service agent’s
business and all labour costs. Such
costs shall not be the responsibility of
Dimplex.
• On-site or in-home services not
provided under this warranty may be
performed at the purchaser’s specic
request and expense at Dimplex’s
then-current rates for such services.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY. WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE SALE, MAIN-
TENANCE, USE, OR INABILITY TO USE
THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAM-
AGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE
PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to juris-
diction. The provisions of the United Na-
tions Convention on Contracts for the Sale
of Goods shall not apply to this limited
warranty or the sale of products covered
by this limited warranty.

19
© 2013 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
Replacement Parts
Flicker Motor ...............................2000210200RP
Log Set Assembly ...........................0440590100RP
Heater Assembly ........................... 2200491100RP
Thermostat ................................2300150100RP
3-Position Switch ...........................2800071100RP
Heater On/Off Switch .........................2800070700RP
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4100040300RP
Light Harness ..............................2500400500RP
Partially Reective Glass .....................5901410100RP
Front Glass ................................6907580100RP
Remote Control ............................3000370500RP
Remote Control Receiver Board ................3000380200RP
LED Log Driver Board ........................3000390100RP
