Dimplex Evolve 50 User manual

INSTALLATION AND USER’S GUIDE
7216710100R05
Models
500002573 Evolve 50
500002574 Evolve 60
500002608 Evolve 74
500002563 Evolve 100
Your input helps to create even better products and experiences.
Share the warmth and leave a review.
dimplex.com/sharethewarmth
We value your feedback!
IMPORTANT SAFETY INFORMATION:
Read this manual first before attempting to install or use this electric fireplace. Always comply with the warnings and safety
instructions contained in this manual to prevent personal injury or property damage.
To view the full line of Dimplex products, visit www.dimplex.com
Certified to:
UL 2021, 4th Ed.

2www.dimplex.com
Welcome .................................................................... 3
IMPORTANT INSTRUCTIONS ................................................ 4
Technical Specifications ....................................................... 6
Electrical Rating ............................................................. 6
Product Reference ........................................................... 6
Product Dimensions .......................................................... 6
Package Contents ............................................................ 7
Optional Accessories ......................................................... 8
Installation................................................................... 9
Placement.................................................................. 9
Installation Instructions....................................................... 10
Electrical Installation......................................................... 12
Heater Hardware Disconnect .................................................. 14
Mirrored Glass Installation .................................................... 15

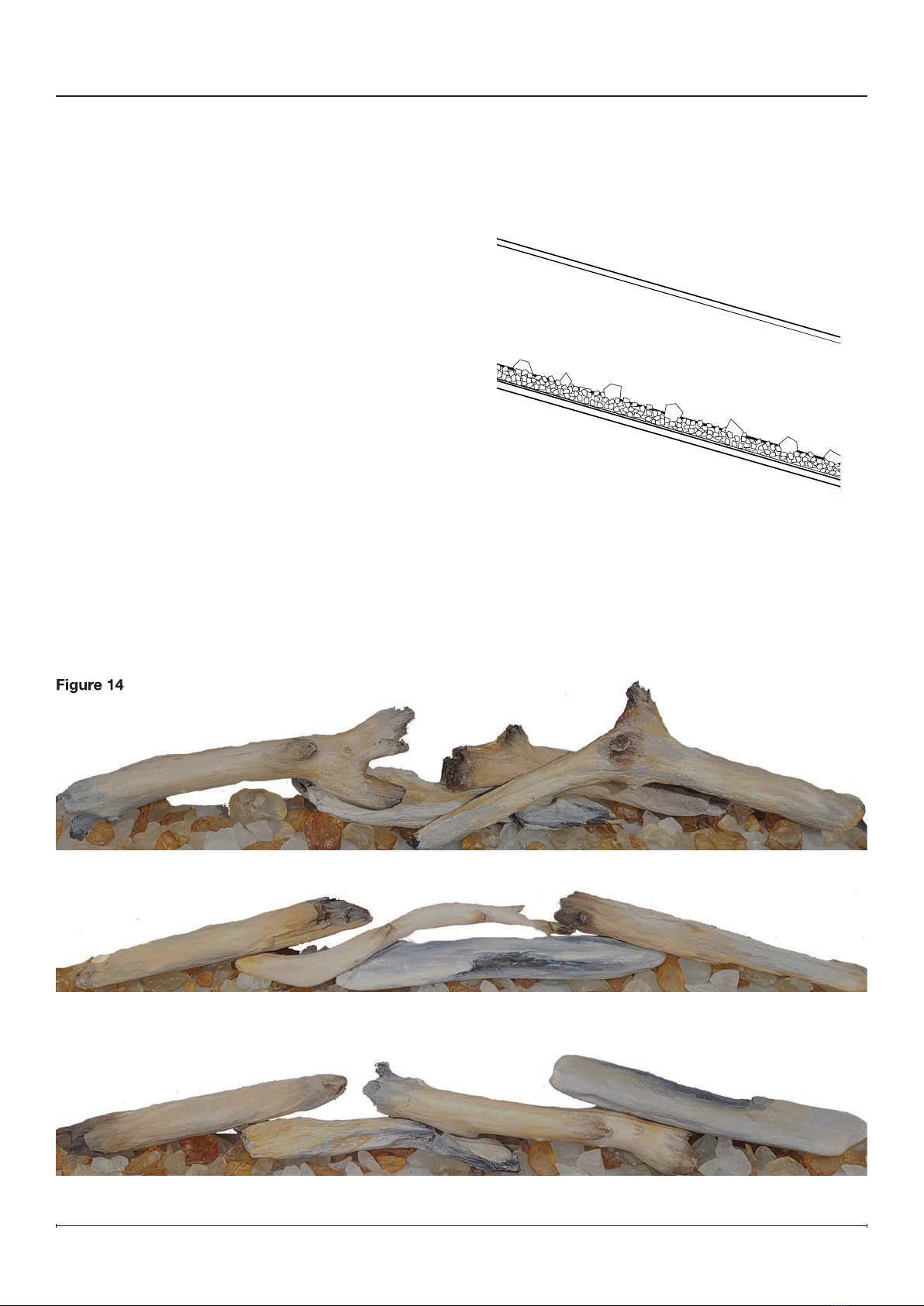

Media Arrangement ......................................................... 16
Front Glass Installation ....................................................... 17
Operation .................................................................. 18

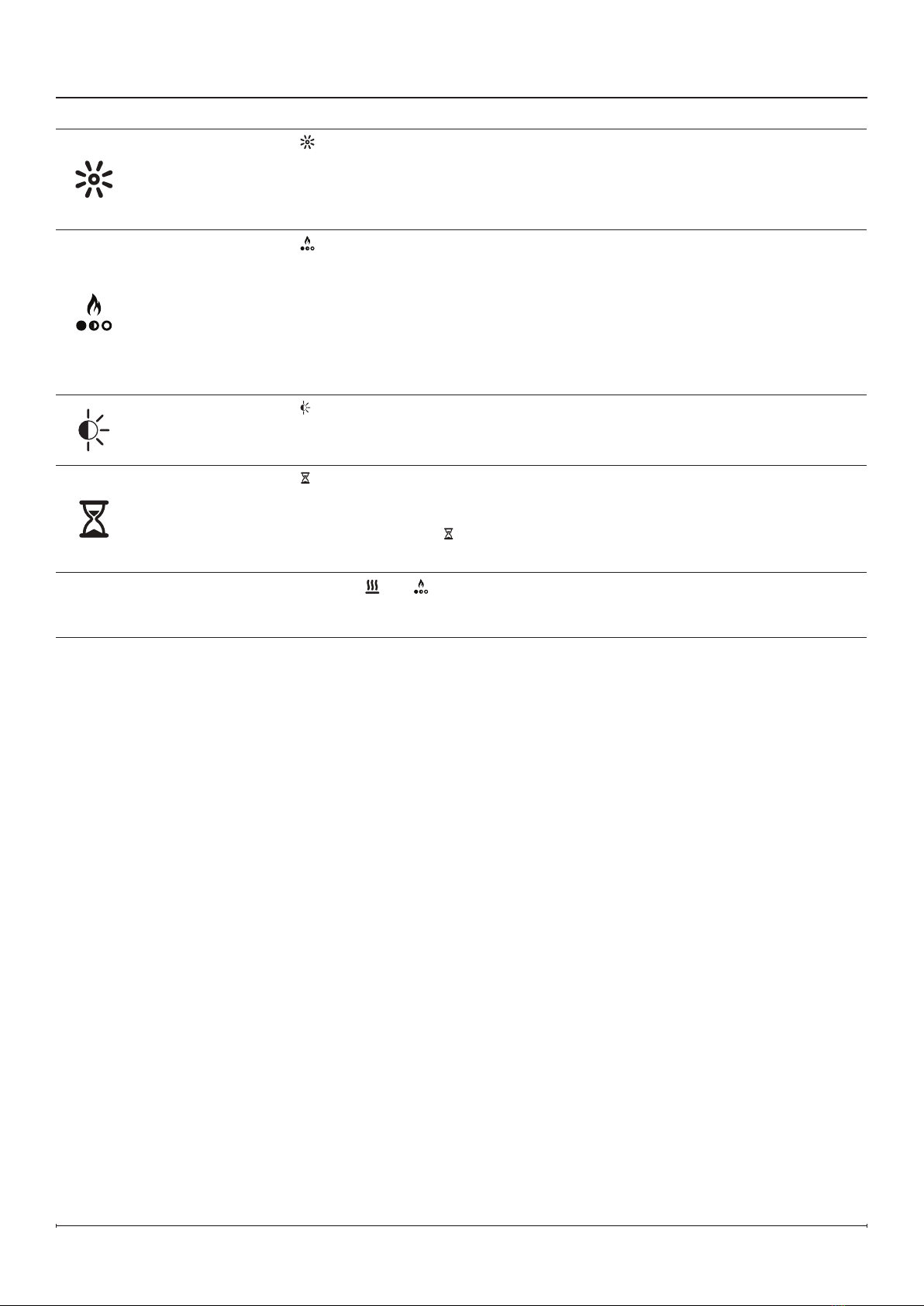

General Operation .......................................................... 18

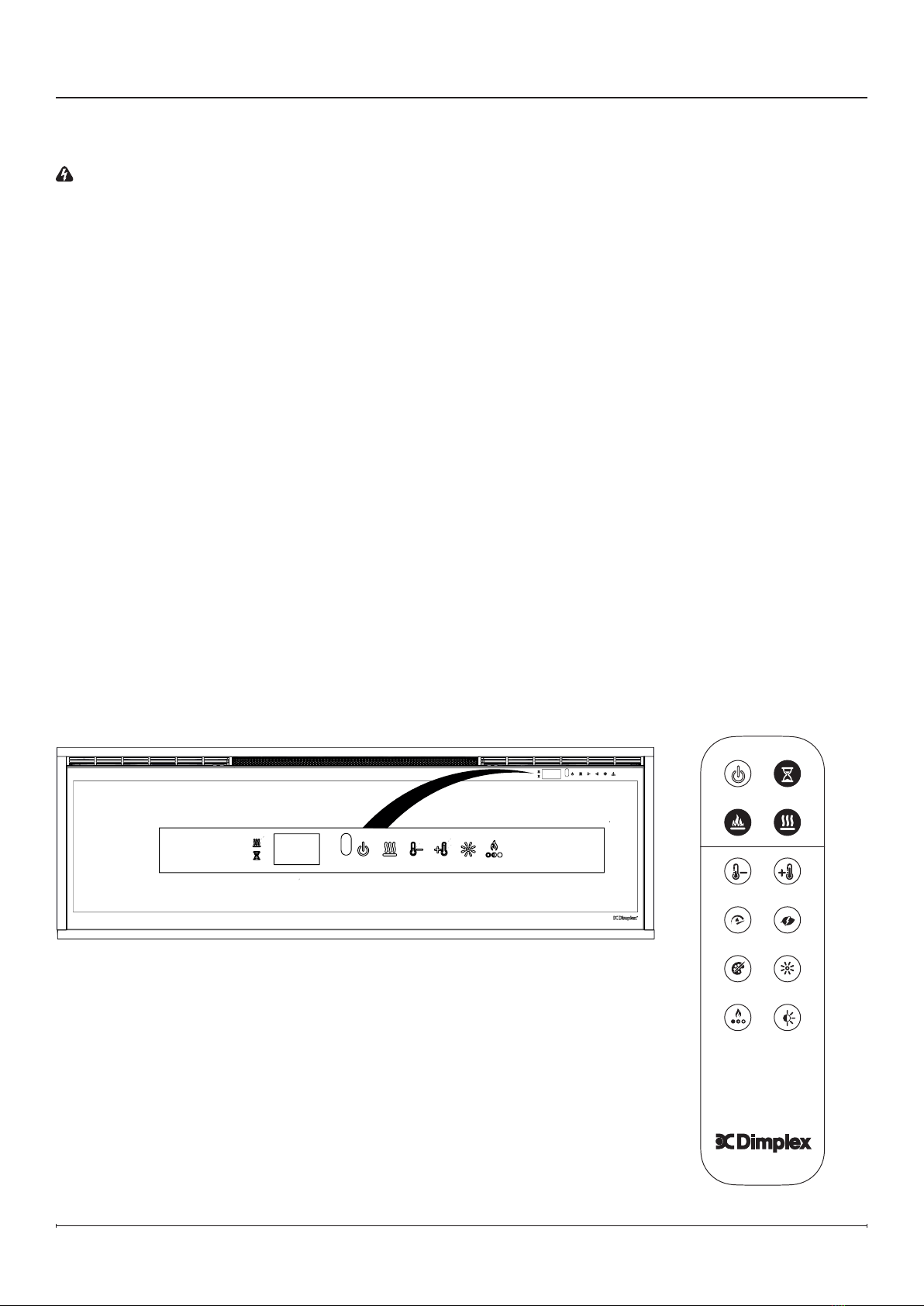

Hidden Touch Controls ....................................................... 18
Remote Operation .......................................................... 18
App ...................................................................... 18
Maintenance ................................................................ 21
Remote Control Battery Replacement ........................................... 21
Cleaning .................................................................. 21
Servicing .................................................................. 21
Troubleshooting ............................................................. 22
Wiring Diagrams ............................................................. 23
Warranty ................................................................... 25
Conventions used in this manual:
!NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re,
serious injury, or death.
Table of Contents

3
NO NEED TO RETURN TO THE STORE
If you have questions regarding the operation of this product or if you require
service, before returning this product to the place of purchase,
Contact us at: www.dimplex.com/support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
Please have your model number and product serial number ready.
Welcome
Thank you and congratulations for choosing to purchase a Dimplex replace.
Please carefully read and save these instructions.
WARNING: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible electric shock, re hazard and will void the warranty.

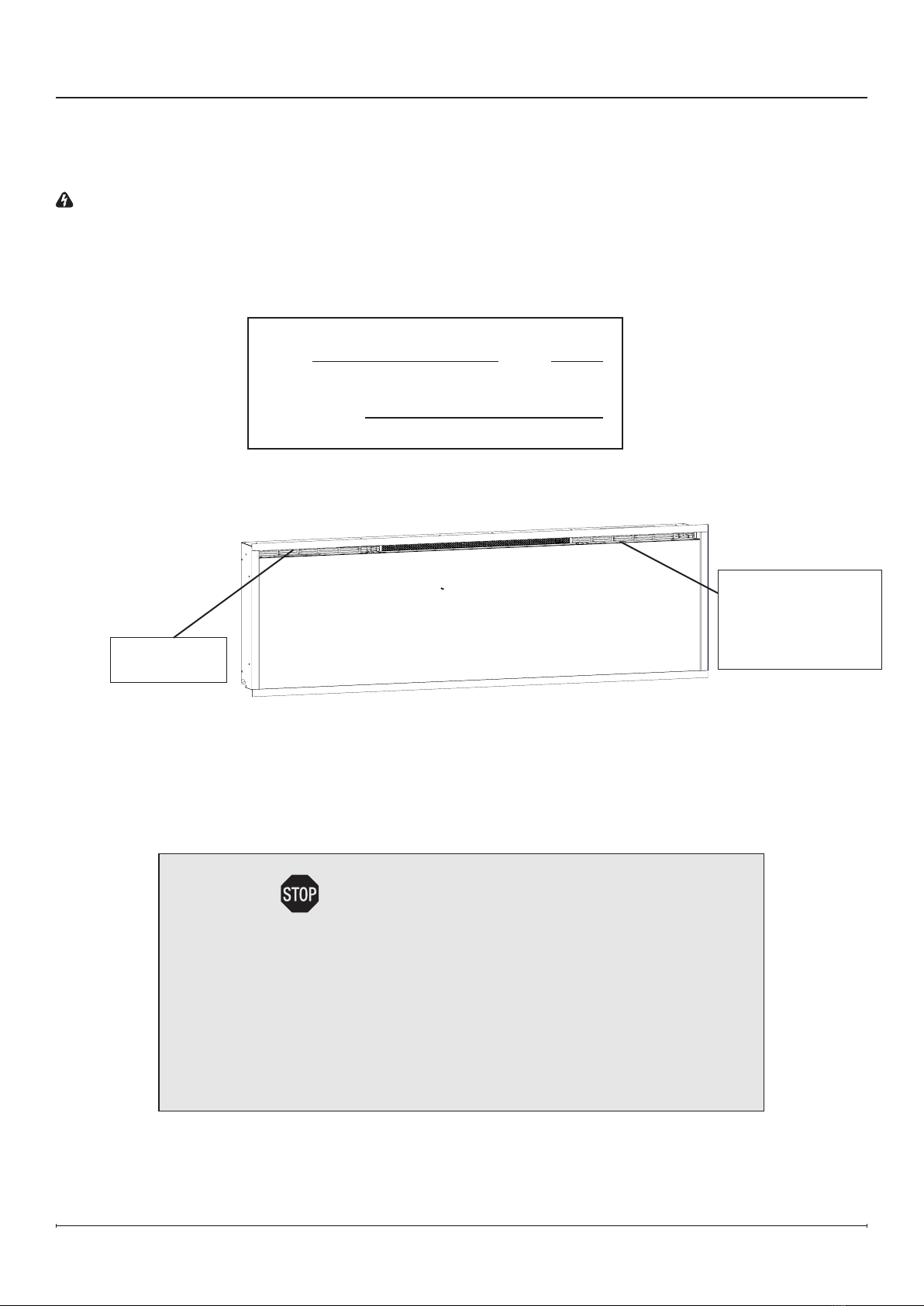

Please record your model and serial numbers for future reference. Model and serial numbers can be found on the
label located behind the front glass of your replace.

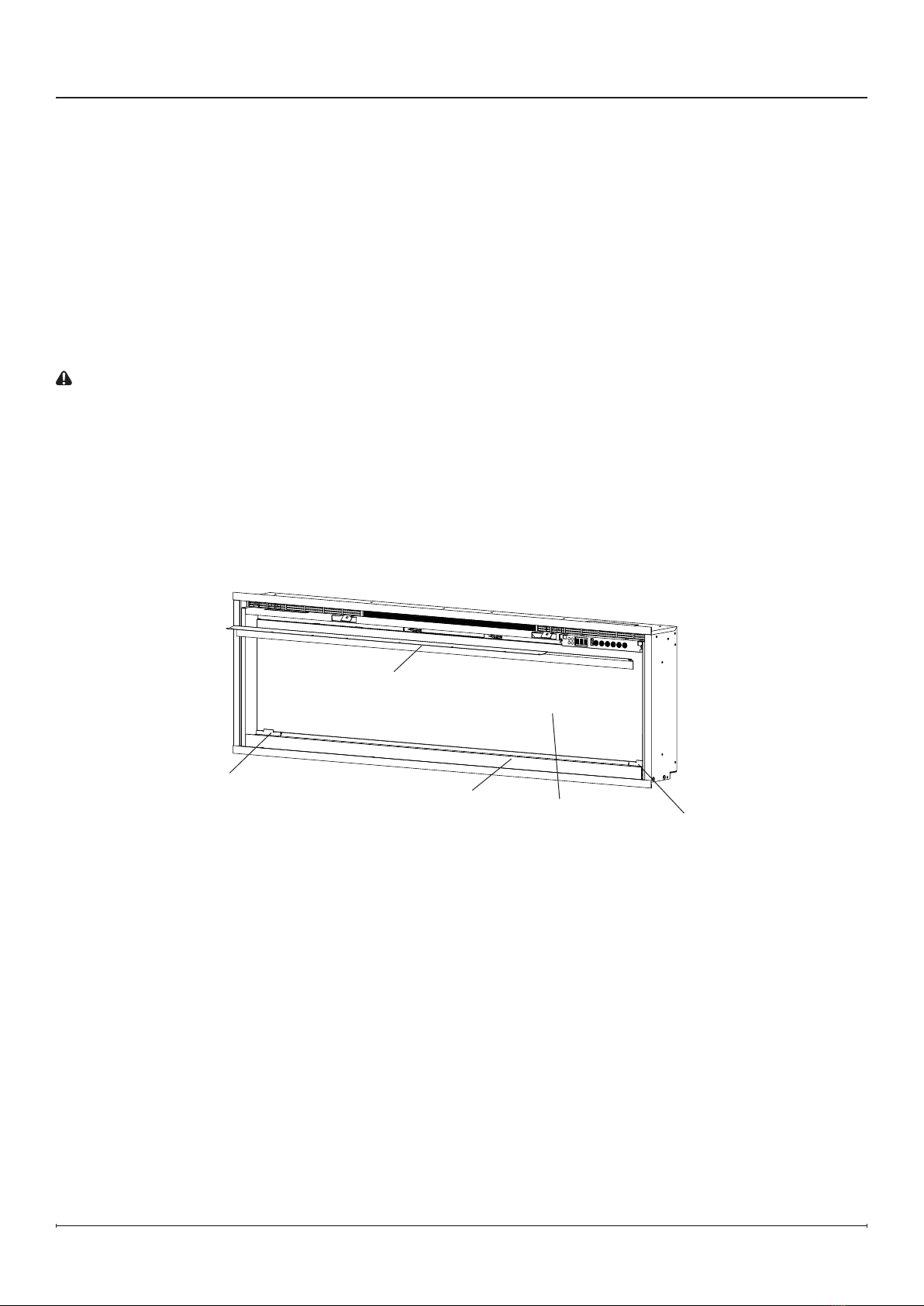

Model and serial
number label
Model MOD
Serial Number
QR Code label
(behind front glass) for
the Flame Connect App

4www.dimplex.com
When using any electrical appliance, basic
precautions should always be followed to reduce
the risk of re, electric shock, and injury to persons.
These precautions include:
①Read all instructions before using this electric
fireplace.
② This fireplace is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. The trim
around the heater outlet becomes hot during
heater operation. Keep combustible materials,
such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m) from
the front of the fireplace.
DANGER: High temperatures may be generated
under certain abnormal conditions. Do not
partially or fully cover orobstruct the front of the
fireplace.
③ Extreme caution is necessary when the fireplace
is used by or near children or people with
disabilities and whenever the fireplace is left
operating and unattended.
④Young children should be supervised to ensure
that they do not play with the appliance.
⑤The appliance is not intended for use by young
children or infirm persons without supervision.
⑥ Do not operate the fireplace after it malfunctions,
has been dropped, or damaged in any manner.
Disconnect power at the service panel and have
the fireplace inspected by a reputable electrician
before using.
⑦ Do not use this fireplace outdoors.
⑧Never locate the fireplace where it may fall into a
bathtub or other water container.
⑨To disconnect the heater, turn the unit off with
the controls and turn off the power to the heater
circuit at the main disconnect panel.
⑩Do not locate the heater immediately below a
fixed socket-outlet.
⑪Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock, fire, or damage to the
fireplace.
⑫To prevent a possible fire, do not block air
intakes or exhaust in any manner.
⑬All electrical heaters have hot and arcing or
sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are
used or stored.
⑭Use this heater only as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or
injury to persons.
⑮ Do not burn wood or other materials in this
electric fireplace.
⑯ Do not strike the fireplace glass.
⑰ Always use a qualified technician or service
agency to repair this fireplace.
⑱ Disconnect all power coming to the fireplace at
the main service panel before performing any
cleaning or maintenance.
⑲ When transporting or storing the fireplace, keep
it in a dry place, free from excessive vibration,
and store to avoid damage.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS

5
FCC CAUTION: Any changes or modications
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate this equipment.
IMPORTANT INSTRUCTIONS
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including
nickel which is known to the State of California to
cause cancer. For more information, visit
www.P65Warnings.ca.gov
WARNING:
Remote control contains a small battery.
Keep away from children. If swallowed, seek
medical attention immediately.
Do not install battery backwards, charge, put
in re or mix with used or other battery types -
may explode or leak causing injury.

6www.dimplex.com
Product Reference
File Number: E71416
SKU UL Model Size
500002573 691408XXXX 50"
500002574 691409XXXX 60"
500002608 691410XXXX 74"
500002563 691411XXXX 100"
*where xxxx is a non-safety critical suffix
Electrical Rating
Voltage: 120 V (3-Wire) or 240 V (4-Wire)
Power: 1500W at 120V, 2500W at 240V
Product Dimensions
Technical Specifications
Figure 1
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
50" model 50.31 in [1278 mm]
60" model 60.31 in [1532 mm]
74" model 74.31 in [1887 mm]
100" model 100.31 in [2548 mm]
50" model 51.41 in [1306 mm]
60" model 61.41 in [1560 mm]
74" model 75.41 in [1941 mm]
100" model 101.41 in [2576 mm]
Figure1

7
Product Reference
File Number: E71416
SKU UL Model Size
500002573 691408XXXX 50"
500002574 691409XXXX 60"
500002608 691410XXXX 74"
500002563 691411XXXX 100"
*where xxxx is a non-safety critical suffix

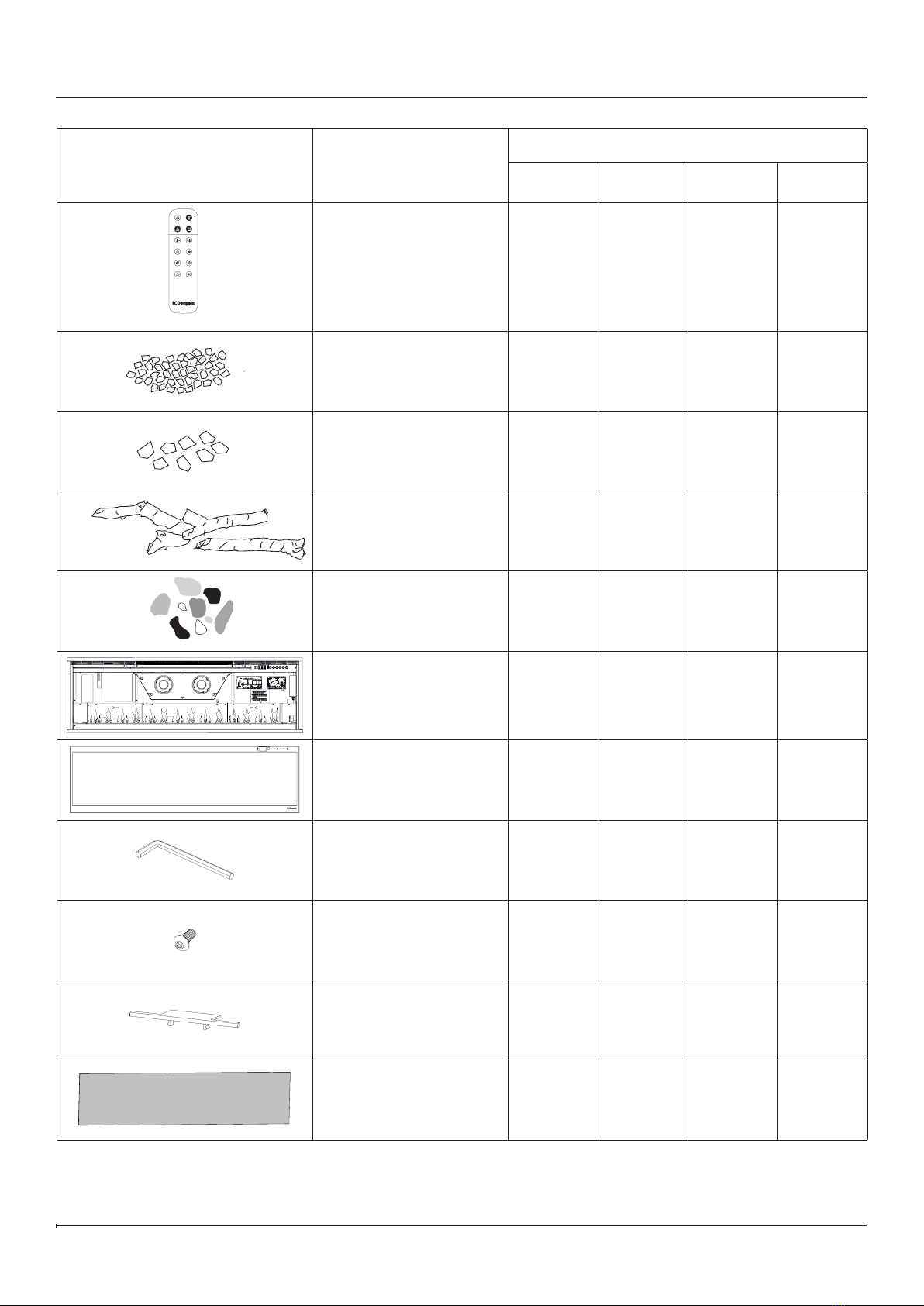

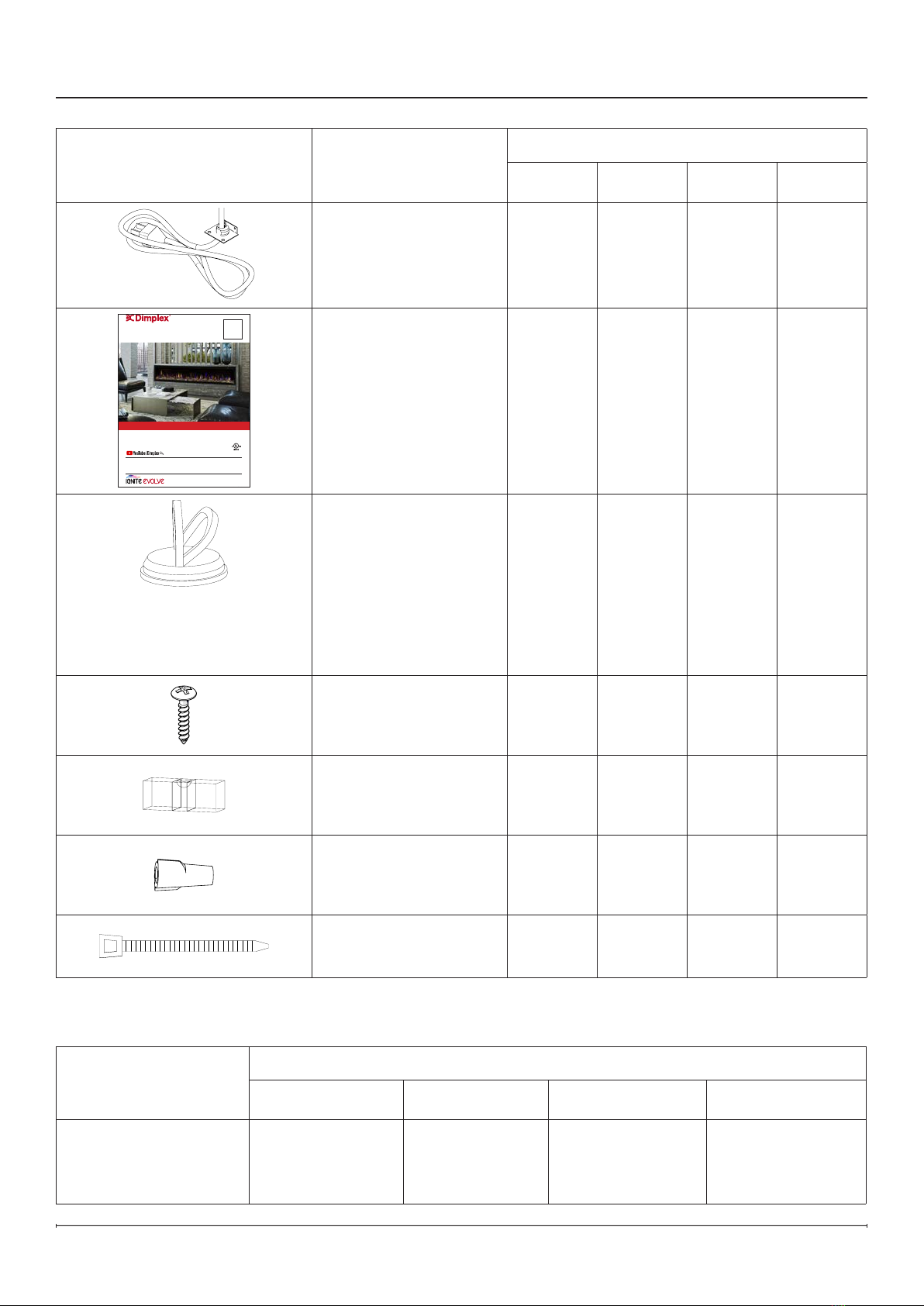

Package Contents
Image Description
Quantity
500002573
Evolve 50
500002574
Evolve 60
500002608
Evolve 74
500002563
Evolve 100
Remote Control 1 1 1 1
Bag of Medium Acrylic
Crystals
~1.2 lb
~0.54 kg
~1.5 lb
~0.68 kg
~1.8 lb
~0.8 kg
~2.4 lb
~1.08 kg
Large Acrylic Crystals 12 14 18 24
Driftwood 8 10 12 16
Tumbled Glass Embers ~2.6 lb
~1.2 kg
~3.3 lb
~1.5 kg
~3.9 lb
~1.8 kg
~5.2 lb
~2.4 kg
Firebox 1 1 1 1
Front Glass 1 1 1 1
7.4X10 Hex Key 1 1 1 1
Black Screws
(M4X10, hex button head) 2244
Screw Covers 2244
Mirrored Glass 1 1 1 1

8www.dimplex.com
Package Contents
Image Description
Quantity
500002573
Evolve 50
500002574
Evolve 60
500002608
Evolve 74
500002563
Evolve 100
Power Cord 1 1 1 1
INSTALLATION AND USER’S GUIDE
7216710100R04
Models
500002573
500002574
500002608
500002563
Your input helps to create even better products and experiences.
Share the warmth and leave a review.
dimplex.com/sharethewarmth
We value your feedback!
IMPORTANT SAFETY INFORMATION:
Read this manual first before attempting to install or use this electric fireplace. Always comply with the warnings and safety
instructions contained in this manual to prevent personal injury or property damage.
To view the full line of Dimplex products,visit www.dimplex.com
Certified to:
UL 2021,4th Ed.
User’s and Installation
Guide 1111
Do not dispose of the suction cup
after installation. Keep it in a secure
location as it will be helpful for
maintenance and service of the unit.
Suction Cup 0 1 1 1
1 ½" Wood Screws 4444
Bubble Level 1 1 1 1
Twist-on
Wire Connectors 4444
Wire Ties 2 2 2 2
*Package contents are subject to change
Description
Model Number
500002573
Evolve 50
500002574
Evolve 60
500002608
Evolve 74
500002563
Evolve 100
XLF Trim Kit
Accessory trim for partially-
recessed installation in 2"x4”
framing.
XLFTRIM50 XLFTRIM60 XLFTRIM74 XLFTRIM100
*Please contact your local Dimplex dealer for inquiries.
Optional Accessories

9
Placement
!NOTE: It is recommended that the bottom of the unit be mounted between 5" (13cm) and 40" (102cm) from the
ground to maintain an optimized viewing angle of the ame.
WARNING: The top of the replace must be installed a minimum of 24" (61cm) from the ceiling.
The replace must be installed a minimum of 5" (13cm) from the ground.
Installation in a Bathroom
If this unit is installed in a bathroom, it must be protected by a GFCI receptacle or circuit. If a receptacle is used, it
must be readily accessible.
This electrical appliance is NOT watertight. To prevent electric shock, it must be installed as to prevent water from
entering unit, or installed away from showers, tubs, etc. Never locate replace where it may fall into a bathtub or
other water container.
Installation
Installation Recommendations for
Overhanging Objects
For overhanging temperature-sensitive objects, such
as a television, a mantel, or artwork, always follow the
recommendations provided by its manufacturer for
installation over a heater.

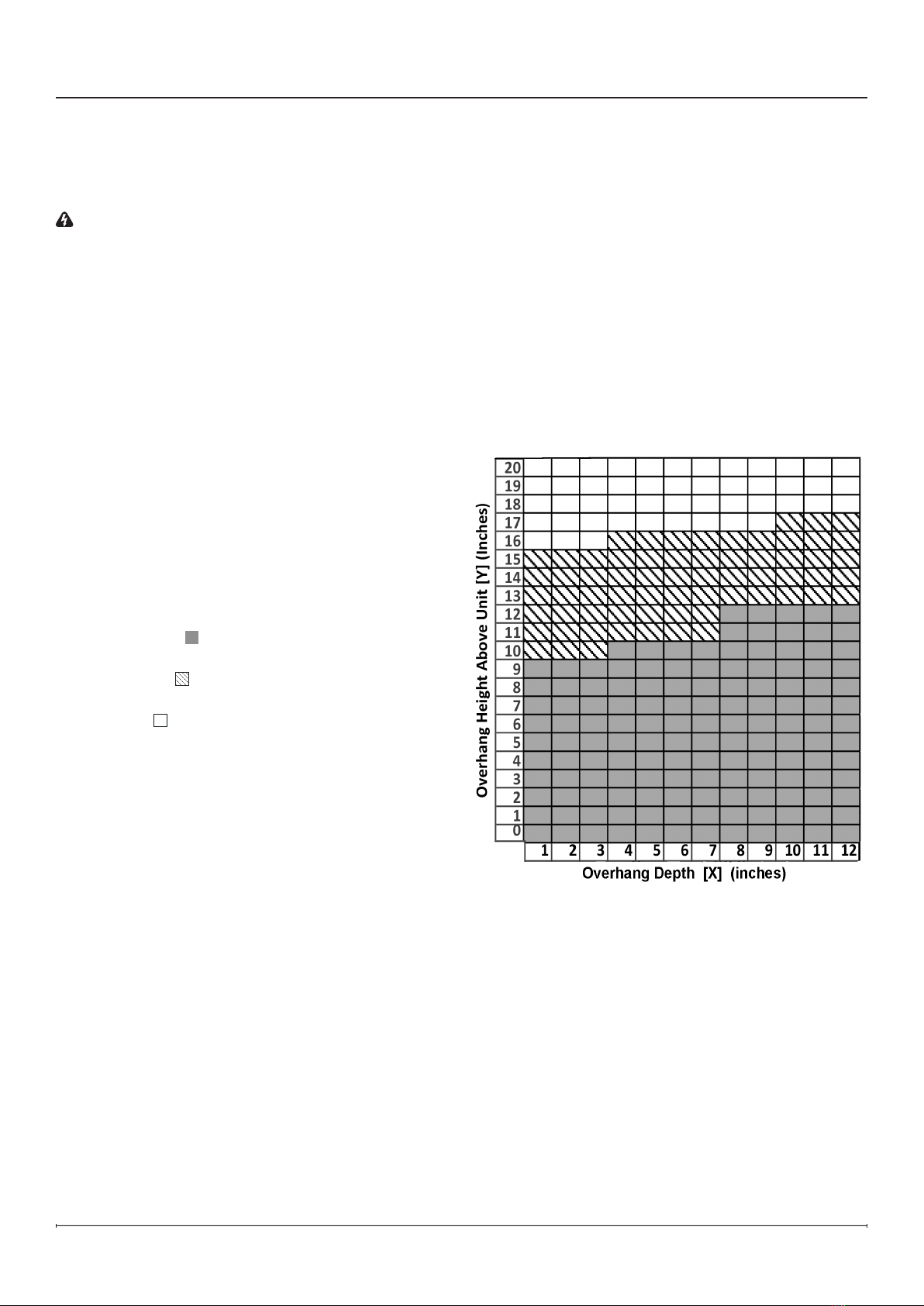

Figure 2 provides the overhang clearance
recommendations for the fireplace. Areas above the
fireplace are marked as follows:
•Solid gray box ( ) is subject to temperatures greater
than 65°C (149° F).
•Hatched box ( ) is subject to temperatures greater
than 40°C (104° F).
•Clear box ( ) is subject to temperatures less than
40°C (104° F).
Figure2

10 www.dimplex.com
Installation Instructions
!NOTE: Two people are required for installation.

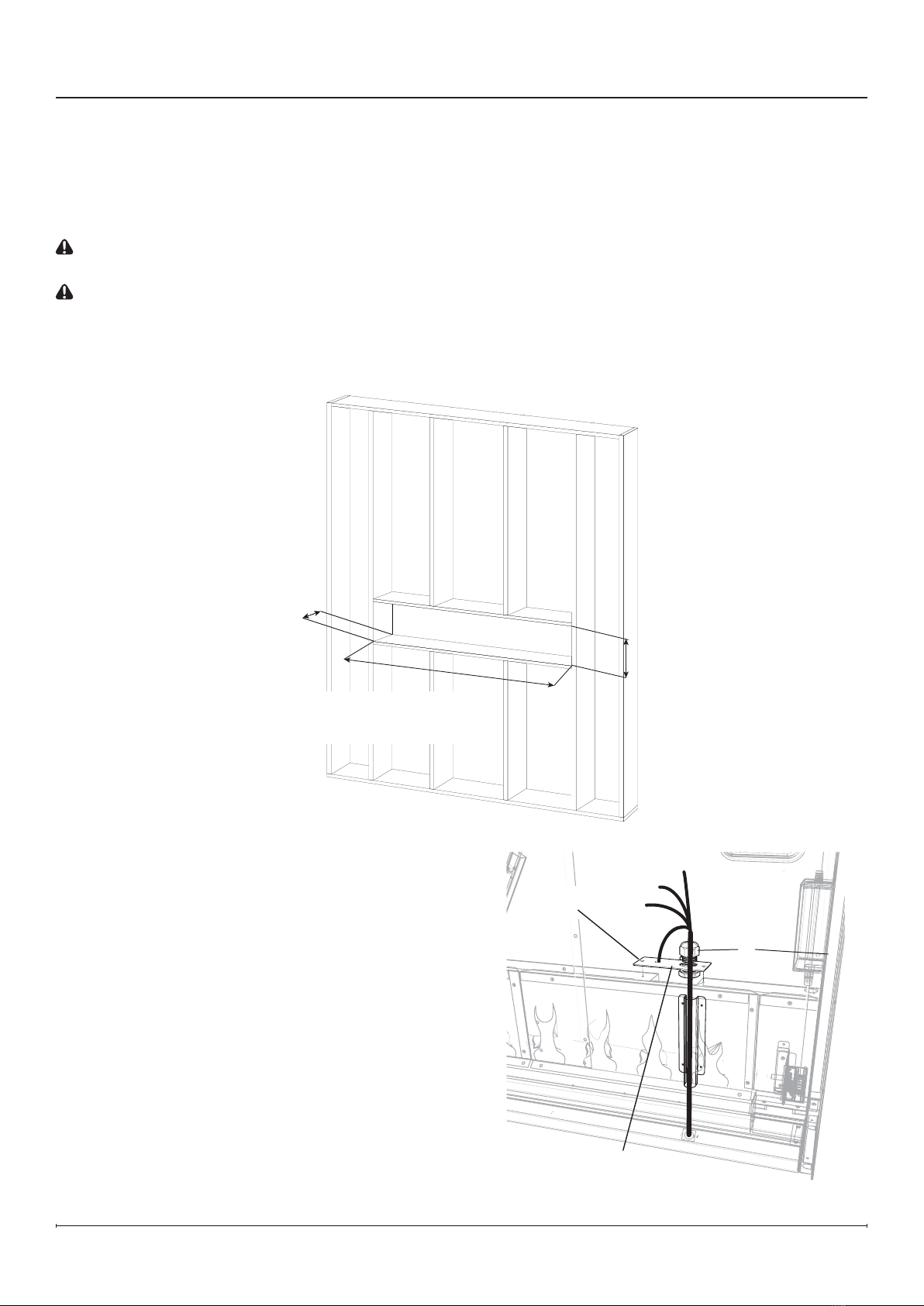

1. Prepare a wall with a framed opening, following the dimensions shown in Figure 3. The replace can either be
installed partially-recessed (2"x4"frame) or ush-mounted (2"x6"frame).
CAUTION: Decorative nishing material (such as brick) should be limited to ½" (13 mm) overhang to ensure
adequate ow of heated air out of the rebox area.
CAUTION: This replace is NOT load-bearing. Ensure the opening for the replace is framed in such a way that
the weight of the building materials will not create pressure on the top of the replace.
!NOTE: For 2"x4" construction where the unit will be partially recessed, it is recommended to use XLFTRIM kit
(sold separately) to accomodate the protruding portion of the replace.
Figure3
Installation
Figure4
!NOTE: Wiring entry is located on the right side at
the bottom of the rebox. Plan the framing to allow
routing of the power cable to this location.
2. If a trimless installation is desired, remove the
factory trim by removing the screws that secure it.
3. Ensuring a minimum of 18" (47 cm) of slack, route
the supply power wire through a cable clamp (not
included) and in the opening in the back of the unit.
(Figure 4)
4. Lift the rebox into the opening in the frame using the
handles on the back of the replace.
5. Using a bubble level (supplied) ensure that the
replace is level within the framing. Adjust as required.
Grounding
Screw
Cable Clamp
500002573: 50 5/8" (128.6 cm)
500002574: 60 5/8"(154 cm)
500002608: 74 5/8" (189.7 cm)
500002563:100 5/8" (255.7 cm)
2" x 6"
5 1/2" (14.0 cm)
2" x 4"
3 1/2" (9.0 cm)
16"
(40.6 cm)

11
Installation

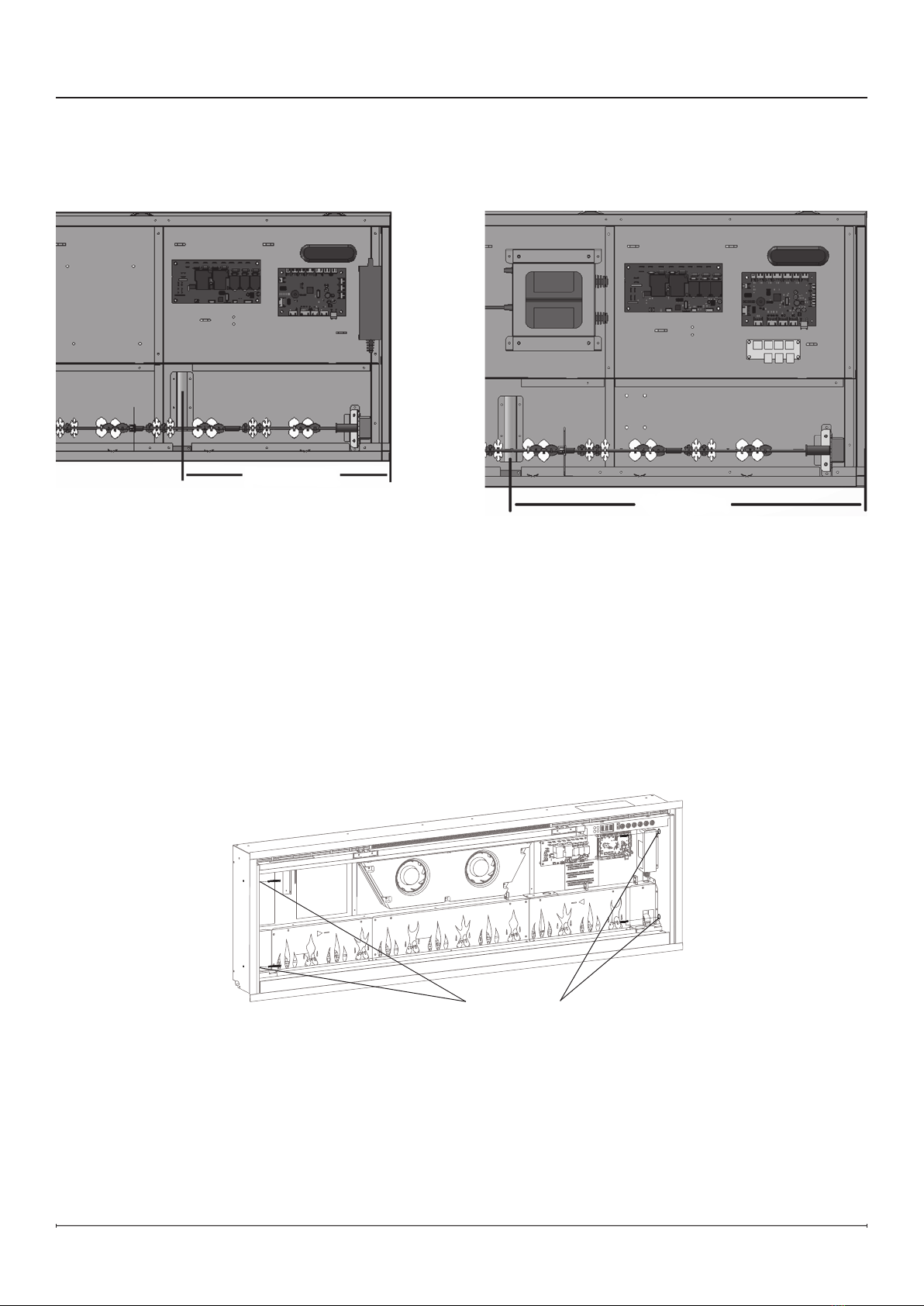

Mounting Holes
6. Drive four supplied mounting screws through the four mounting holes located on the inside surface of the
replace chassis, into wall studs. (Figure 5)
7. Complete the wiring according to instructions in the Electrical Installation section (pages 12–13).
8. Complete the installation using the instructions in the following sections: Mirrored Glass Installation (page15),
Arranging Media (page15), Front Glass Installation (page16).
!NOTE: Install the rebox ush with the surrounding wall/framing. The face of the rebox should not be
recessed. Any overhang from the surrounding framing can result in an error with the heater.
Figure5
13"
(330.25mm) 20"
(508.4mm)
Distance from the right side to the wiring inlet:
500002563 Evolve 100
500002573 Evolve 50, 500002574 Evolve 60,
500002608 Evolve 74

12 www.dimplex.com

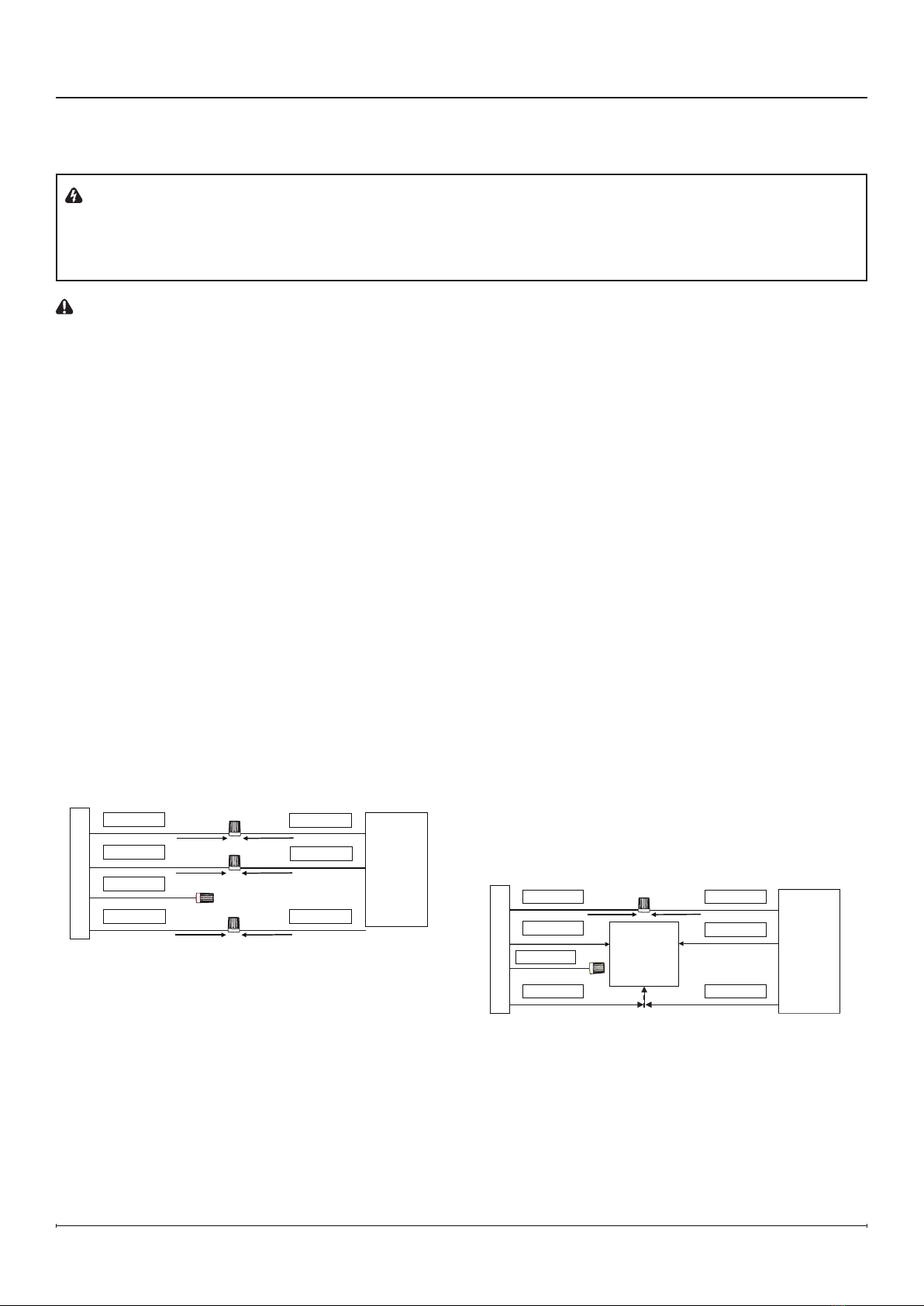

Electrical Installation
Installation
120V Installation—Wall Switch
!NOTE: Use a single pole, single throw (On/Off) wall
switch that is rated for a minimum of 15 amps.
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live
wire from the main power through the wall switch,
ensuring all live connections are connected with a
wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply with a wire connector.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector
or attach the grounding wire to the cover with the
provided grounding screw, by placing the wire in
between screw and lock washer and tighten.
6. Ensure all wire connections are tight and that wires
are secured a with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
120 V Hardwire Installation
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live
wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply with a wire connector.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector
or attach the grounding wire to the cover with the
provided grounding screw, by placing the wire in
between screw and lock washer and tighten.
6. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
WARNING:
The installation of the electric replace must comply with the applicable Local and/or National Electrical Codes
and utility requirements.
Use the appropriate wire to meet local and national electrical codes for rated power consumption.
CAUTION: A dedicated, properly fused 15 Amp circuit is recommended, rated for the appropriate voltage (120V,
240V). A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular
basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of
the circuit breaker.
Figure 6
F I R EPL A C E J U N C T I O N B O X
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
120 V
P O W E R
S U PPL Y
(BRE A K E R
P A N E L )
F I R EPL A C E J U N C T I O N B O X
240 V
P O W E R
S U PPL Y
(BRE A K E R
P A N E L )
RED
–
L2
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
YELLOW- L2
120 V Hardwire Installation
Figure 7
F I R EPL A C E J U N C T I O N B O X
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral W h it e - N e u t ral
B l ack - L
B l ack - L 1
W A L L
S W I T C H
120 V
P O W E R
S U PPL Y
(BRE A K E R
P A N E L )
Y E L L O W - L 2
YELLOW- L2
120 V Wall Switch Installation

13
Power Cord Installation
WARNING: Power cord option is only suitable for
120V installations.
1. Remove the 3 screws that secure the pre-installed
hardwire plate.
2. Connect the black L1 wire from the unit to the black
wire of the plug kit.
3. Connect the white N wire from the replace to the
white wire from the plug kit.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect green G wire from the replace to the green
wire from the plug kit.
6. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
7. Secure the power cord’s pre-installed cover plate
using the screws removed when removing the
hardwire plate. The previously removed electrical
cover plate can be disposed of.
WARNING: This heater is not intended for use with
an extension cord. Plug the cord directly into an
appropriate grounded receptacle.
240V Hardwire Installation
You will need a 4-wire240 V supply (L1, L2, Neutral, and
Ground).
1. Connect the black L1 wire from the unit to the L1 wire
from the power supply with a wire connector.
2. Connect the yellow L2 wire from the unit to the L2
wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply.
4. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector or
attach the grounding wire.
5. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
Installation
Figure 8
F I R EPL A C E J U N C T I O N B O X
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
120 V
P O W E R
S U PPL Y
(BRE A K E R
P A N E L )
F I R EPL A C E J U N C T I O N B O X
240 V
P O W E R
S U PPL Y
(BRE A K E R
P A N E L )
RED
–
L2
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
YELLOW- L2
240 V Hardwire Installation
Figure 9

14 www.dimplex.com



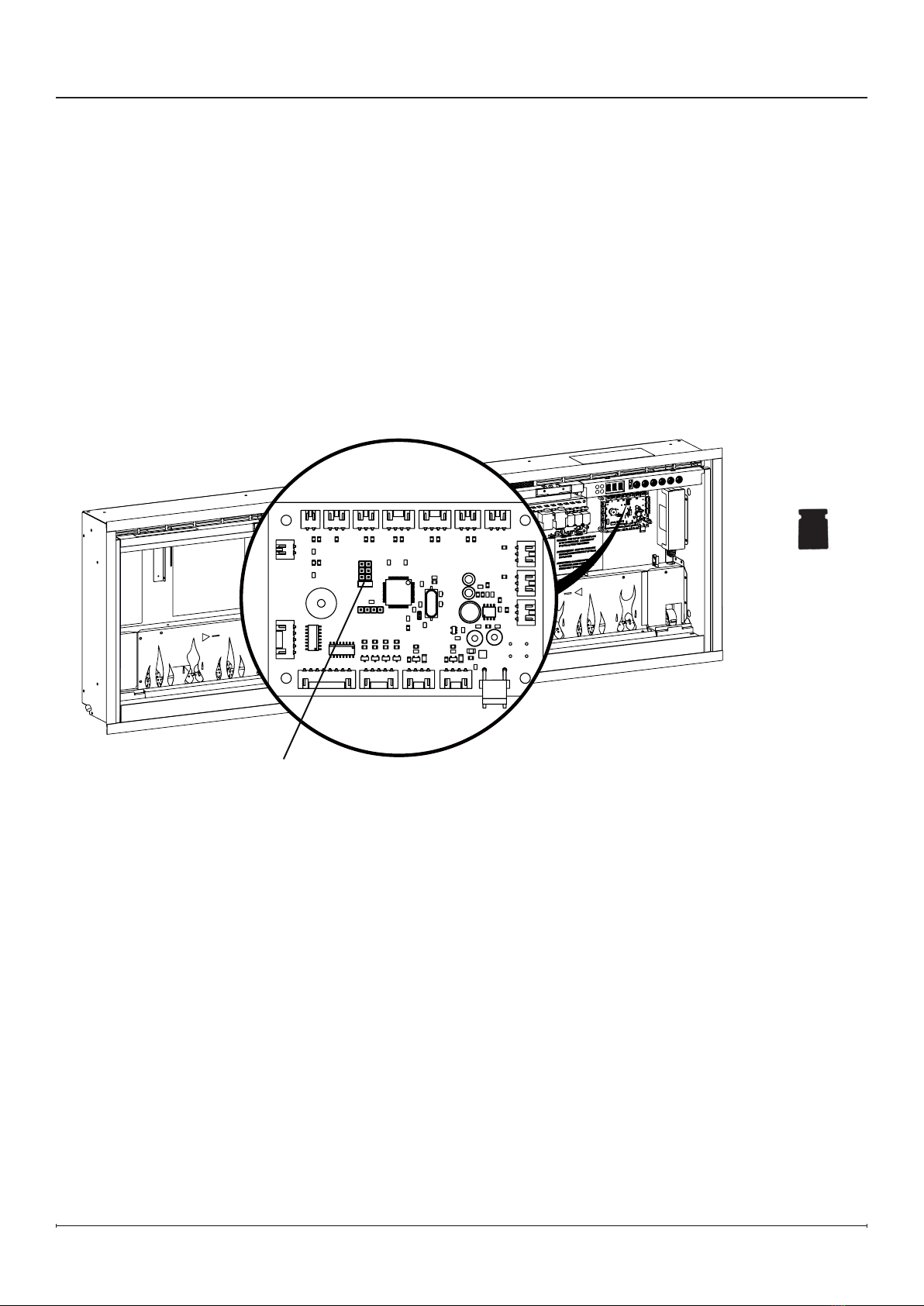

Heater Hardware Disconnect
The replace heater can be permanently disabled by removing the electronic jumper on the control board.
!NOTE: Heater hardware disconnect will permanently disable the heater and fan. Follow these instructions only
when an installation without heat is required. Temporary disabling of the heater can be achieved through the
hidden touch controls. See “Heat Disable” in Operation section (page18) for instructions.
To disconnect the heater and fan permanently:
1. Locate the control board. The heater hardware disconnect jumper location is labeled
“HEAT”. (Figure10)
2. Pull out the heater hardware disconnect jumper. (Figure11)
Figure 10
Installation
Heater Hardware Disconnect
Jumper/Connecter
Figure 11

15
Installation
Mirrored Glass Installation
1. Locate and remove the screws securing the mirrored glass bracket to the unit, along the top of the opening, and
set bracket and screws aside. (Figure12)
2. Remove the provided suction cup from the inside cavity of the unit (not included in Evolve 50" 500002573 units).
3. Ensure that the back of the glass is clean and free from particles and ngerprints.
4. Secure the suction cup to the mirrored glass on the reective side
5. Lift the mirrored glass and place it into the supports on the bottom at both sides of the unit.
6. Tilt the mirrored glass into a vertical position.
7. Secure the mirrored glass bracket to hold the glass in place, using the previously removed screws.
CAUTION: Ensure the mirrored glass does not fall forward while the mirrored glass mounting bracket is being
installed.
8. Remove the suction cup and clean any ngerprints or debris off the glass with a non-abrasive glass cleaner.
!NOTE: Do not dispose of the suction cup! Keep it in a secure location, as it may be needed for maintenance and
service on this replace.
Mirrored Glass
Mirrored Glass
Bracket
Media Tray
Mirrored Glass
Support
Mirrored Glass
Support
Figure 12

16 www.dimplex.com
Installation
Media Arrangement
For the best results when using the supplied media, follow
the instructions below.
Acrylic Media:
1. Evenly space the large media in the media tray along
the back of the media tray.
2. Pour and evenly distribute the smaller crystals into the
media tray. (Figure 13)
Tumbled Glass Media and Driftwood:
!NOTE: The driftwood is fragile. Ensure the diftwood is
secure when placing it in the media bed.
1. Mix the different colours of tumbled glass in a bag or
box of your choice.
1. Evenly disperse the tumbled glass media in the media
tray.
2. Place the driftwood pieces on top. For best results
stack the driftwood as shown in the images below.
Figure 14 can be repeated for the 500002563.
It is possible to use custom media ornaments to decorate
your rebox. The custom media must t easily without
scratching the glass or bowing the media bed, and must
not be composed of sand or liquid, which could interfere
with the safety of the rebox.
Figure 13
Figure 16
Figure 14
Figure 15
Figure 14

17
Installation

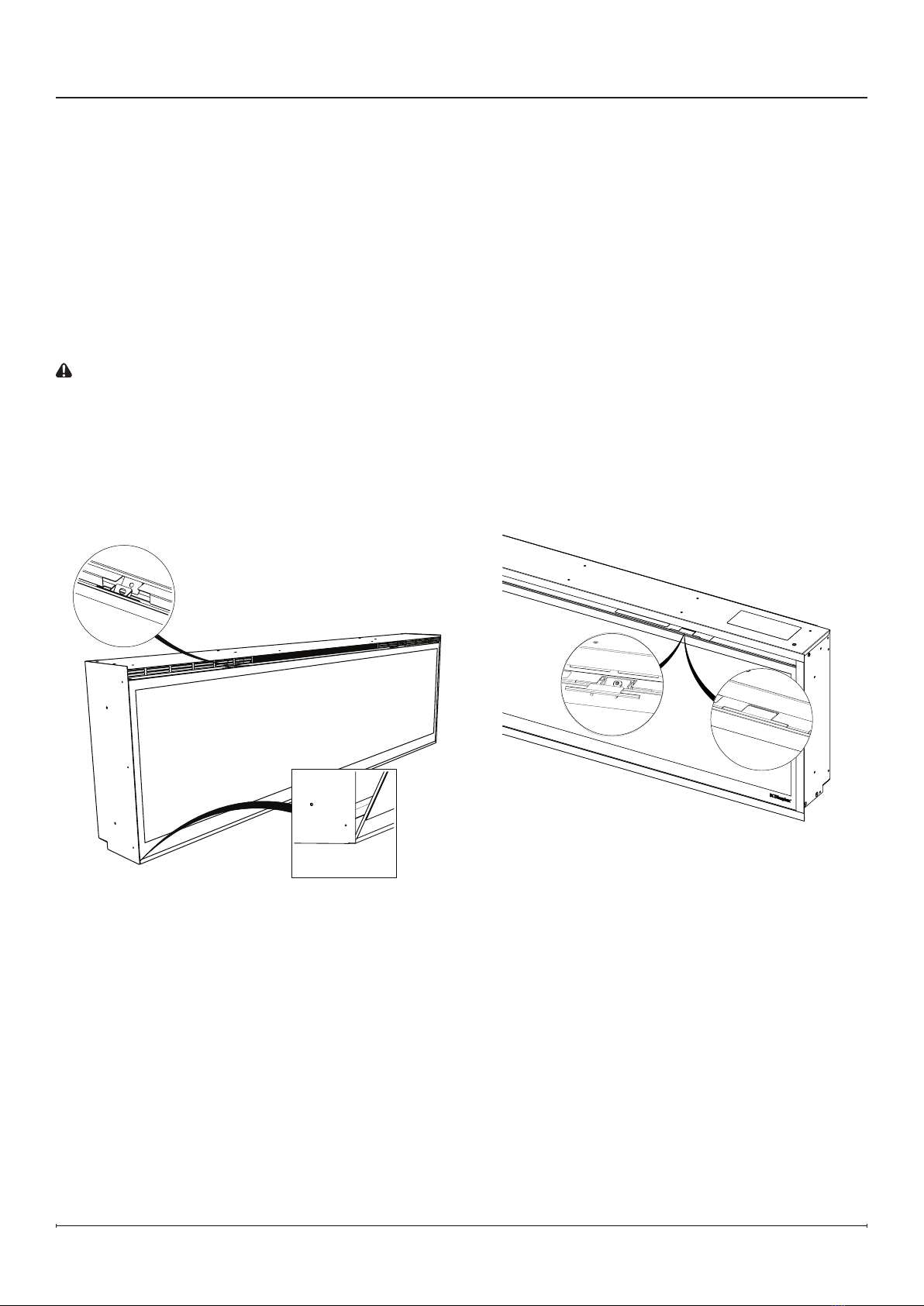

Front Glass Installation
!NOTE: Install the front glass before the replace is powered on. If the unit is powered on before the glass is
installed, a full power reset will be required to activate the hidden touch controls.
1. Ensure that the mirrored glass and the inside of the front glass is clean and free from particles and ngerprints.
2. Secure the suction cup (if provided) to the outside of the front glass.
3. Lift the front glass and carefully place the front glass into the lip located at the bottom of the opening of the
rebox.
4. Tilt the glass into a vertical position.
5. Secure the front glass using the provided screws and hex key.
CAUTION: Ensure the front glass does not fall forward while the securing screws are being installed.
6. Install the provided screw covers by placing the tabs of the screw cover between sides of the front glass bracket.
(Figure18)
!NOTE: Do not dispose of the suction cup and hex key! Keep them in a secure location, as it may be needed for
maintenance and service on this replace.
Figure 17 Figure 18

18 www.dimplex.com
General Operation
WARNING: This electric rebox must be properly installed before it is used.
This rebox operates with Comfort$averTM technology, which automatically adjusts the fan speed and heater wattage
to safely and precisely match the requirements of the room based on the thermostat setting. The heater operates
such that once the room reaches the set point, the fan and heater will continuously run at a low level, to maintain the
desired room temperature. If the temperature in the room rises signicantly, the heater will turn off and periodically
turn back on to circulate the air around the unit, until the room temperature drops and requires the heater to be
on again.
!NOTE: The element retains heat after shutdown. When the heat is turned off, there is a 2-minute cool down period
before the fan shuts off completely.
!NOTE: The replace will retain the previously used settings after a power interruption.
Hidden Touch Controls
The hidden touch controls are located on the upper right of the replace. (Figure19)
Remote Operation
The replace is supplied with a multifunction IR remote control. (Figure20)
!NOTE: To operate correctly, the remote control must be pointed toward the front of the unit.
App
The replace is capable of being controlled using the Flame Connect app for mobile devices. For up-to-date
information about the app, please visit www.dimplex.com/fcapp
Figure 19 Figure 20
Operation

19
Operation
Standby Press to turn on the unit or to put it in standby mode.
When the unit is turned back on, it will retain the previously used settings.
Flame Effect Press to turn the ame effect and media on or off.
Heat
Press to turn the heat on or off. The replace will beep once and the icon will
remain on the display when activated.
The replace can be operated in heat only mode by turning off the ame and color
effects.
Heat Disable
Press and hold and at the same time for 3 seconds to disable or enable the heat
function. This action must be performed on the hidden touch controls.
When the heat is disabled and either the , , or is pressed, --- will appear on the
display.
Temperature
Increase Press to increase the temperature setting.
Temperature
Decrease Press to decrease the temperature setting.
The temperature can be set from 7°C to 30°C (45°F to 86°F).
When the temperature setting is adjusted, the set temperature will ash for 2 seconds,
then the ambient room temperature will be displayed briey.
Temperature
Display
(°C ↔ °F)
Press and hold and at the same time for 3 seconds to toggle between Fahrenheit
and Celcius. This action must be performed on the hidden touch controls.
Flame Speed Press repeatedly to cycle through the 5 different ame speeds.
Heat Mode
Press repeatedly to cycle through the 4 different heater modes:
Normal: The element will automatically adjust itself to achieve and maintain the set
temperature.
Heat Boost: The element will work at maximum power for 20 minutes, then revert to
normal heater mode.
Eco: The element will work at reduced power to save energy.
Fan: The element will turn off and only the fan will run.
Mood Themes
Press repeatedly to cycle through the 8 different Moods, which are different color
options for the media bed lighting.
1 - White
2 - Blue
3 - Violet
4 - Red
5 - Green
6 - Prism — media cycles through colors
7 - Kaleidoscope— media and accents cycle through colors at different rates
8 - Midnight mode — media is off
Press and hold to turn the media accent lights on or off.
Custom Color
Freeze the media and accent lights to a custom color.
When in Prism or Kaleidoscope modes (see Moods), press while the desired color is
displayed to freeze the cycle on that color.
Press again to resume the color cycle.

20 www.dimplex.com
Operation
Brightness
Press repeatedly to cycle through the brightness and icker modes.
Solid H- High Brightness
Solid L- Low Brightness
Cycle H- High Brightness with ickering media and accent lights
Cycle L- Low Brightness with ickering media and accent lights
Flame Themes
Press repeatedly to cycle through the 7 different ame themes:
1 - Base with orange and blue accents
2 - Base with orange accents
3 - Base with blue accents
4 - Blue
5 - Orange
6 - Base
7 - Orange and blue
Ambient Light
Sensor
Press to turn the ambient light sensor on or off.
The ambient light sensor will automatically adjust the brightness of the replace lights
based on the ambient light in the room.
Timer
Press repeatedly until the desired number of hours of the timer is displayed. When
this function is active, the replace will turn off after a set amount of time. The timer
can be set from 30 minutes (display will show .5) to 8 hours in intervals of 30 minutes.
To turn the timer off, press repeatedly until 0appears on the display.
While the timer is active, press the timer button to see the time remaining.
Factory Reset
Press and hold and at the same time for 3 seconds to reset all the settings to
factory default. This action will also disconnect the unit from the Wi-Fi network if
connected. This action must be performed on the hidden touch controls.
