Dimplex Albany Optimyst ABN15-RGB-EU Instruction Manual

These instructions should be read carefully
and retained for future use. Note also the
information presented on the appliance.
Model:
Albany Optimyst ABN15-RGB-EU
OPERATING
INSTRUCTION MANUAL
100001210 Issue A OCN -----
EN: This product is only suitable for well insulated rooms or occasional use. DE: Dieses Produkt ist nur für gut isolierte Bereiche oder
gelegentliche Verwendung geeignet. FR: Ce produit convient uniquement à des endroits bien isolés ou pour un usage occasionnel.
IT: Questo prodotto è adatto solo per spazi ben isolati o per uso occasionale. ES: Este producto sólo es adecuado para espacios
bien aislados o un uso ocasional. NL: Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten of voor sporadisch gebruik.
PL: Produkt ten jest odpowiedni wyłącznie do dobrze odizolowanych miejsc lub do okazjonalnego użytku. NO: Dette produktet
egner seg kun for godt isolerte rom eller sporadisk bruk. RO: Acest produs este adecvat exclusiv spaţiilor bine ventilate sau utilizării
ocazionale. CZ: Tento výrobek je vhodný pouze do dobře izolovaných prostor nebo k příležitostnému použití. DK: Dette produkt
er kun egnet til velisolerede rum eller lejlighedsvis brug. PT: Este produto somente é adequado para espaços bem isolados ou
uso ocasional. SE: Denna produkt är endast avsedd för välisolerade utrymmen eller tillfällig användning. FI: Tämä tuote soveltuu
ainoastaan hyvin eristettyihin tiloihin tai satunnaiseen käyttöön. SK: Tento výrobok je vhodný len pre dobre izolované priestory alebo
na občasné použitie. SI: Ta izdelek je primeren le za dobro izolirane prostore ali za občasno uporabo. HR: Ovaj proizvod je pogodan
samo za dobro izolirane prostore ili povremenu upotrebu. HU: Ez a termék csak jól szigetelt terekhez vagy eseti használatra alkalmas
This product complies with all the required Product Safety, Electromagnetic Compatibility and Environmental
Standards. This product is fully compliant with the LVD, EMC, RoHS and Eco Design Directives.

2
GB .................................................................................................................................... 3
DE.................................................................................................................................TBC
NL.................................................................................................................................TBC
FR .................................................................................................................................TBC
IT..................................................................................................................................... TBC
PL...................................................................................................................................TBC
ES................................................................................................................................... TBC
DK.................................................................................................................................. TBC
PT................................................................................................................................... TBC
TR................................................................................................................................... TBC
NO.................................................................................................................................. TBC

3
IMPORTANT INSTRUCTIONS
Please read this information guide carefully to be able to safely install, use and maintain your product.
Failure to follow these instructions may cause injury and/or damage and may invalidate your guarantee.
When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electrical
shock and injury to persons, including the following:
• If the appliance is damaged, check with the supplier before installation and operation.
• Do not use this appliance if it has been dropped.
• Do not use outdoors.
• Do not use in the immediate surroundings of a bath, shower or swimming pool.
• Do not locate the appliance immediately below a xed socket outlet or connection box.
• Do not use this appliance in series with a thermal control, a program controller, a timer or any other device that
switches on the heat automatically, since a re risk exists when the heater is accidentally covered or displaced.
• Do not block any of the heat outlet or air vents on this product.
• Use this appliance on a horizontal and stable surface.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 years and less than 8 years shall only switch on/o󰀨 the appliance provided that it has been placed
or installed in its intended normal operating position and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the appliance or perform user maintenance.
Children of less than 3 years should be kept away unless continuously supervised.
CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a switch that is regularly switched on
and o󰀨 by the utility.
Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long
hair type of rugs. Ensure that furniture, curtains or other combustible material are positioned no closer than 1 meter
from the appliance.
The appliance must be positioned so that the plug is accessible. In the event of a fault unplug the appliance. Unplug
the appliance when not required for long periods.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualied person
in order to avoid a hazard. Keep the supply cord away from the front of the appliance.
WARNING: This appliance must be earthed.
WARNING: In order to avoid overheating, do not cover the appliance. Do not place material or garments on the
appliance, or obstruct the circulation around the appliance.
The appliance carries a DO NOT COVER warning symbol.
WARNING: Risk of re - We do not recommend the use of this appliance connected through an extension lead or any
external switching device such as a plug in timer or remote control plug in adaptor. All heating appliances draw high
current through the mains supply and any weakness in the design, connections or components in these devices can
easily result in overheating of the connection points resulting in melting, distortion and even the risk of re!
WARNING: Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the
room on their own, unless constant supervision is provided.
Dimplex ABN15-RGB-EU

4
GENERAL INFORMATION
Unpack the appliance carefully and retain the packaging for possible future use, in the event of moving or returning
the re to your supplier.
The appliance incorporates a ame e󰀨ect, which can be used with or without heating, so that the comforting e󰀨ect
may be enjoyed at any time of year. Using the ame e󰀨ect on its own only requires little electricity. The appliance is
designed to be built into a surround or built into a wall.
Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which
is related to the operation of the ame e󰀨ect. This is normal and should not be a cause for concern.
This product contains and utilises water as an aspect of its operation, the adherence to the cleaning requirement
as detailed within the instructions is necessary to ensure that risk/s through bacterial proliferation are minimised.
Please refer to the Maintenance section in the following instruction booklet for details on the cleaning.
Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank.
WATER QUALITY & CLEANING
Normal clean tap water should be used in this device. In areas with hard water, a water softener (decalcier) lter is
recommended and more frequent cleaning and maintenance may be required.
Unltered water supplied from a well or another unmonitored supply is not recommended. The water tank, sump, sump
lid, tank cap and air lters must be cleaned once every week, particularly in hard water areas. This is to remove dirt
and prevent build up of limescale which could damage the product.
If you intend not using the appliance for longer than a week, drain the water from sump and water tank and dry the
sump.
Ensure any soap/cleaning detergents if used are rinsed o󰀨 fully to remove any residue before reusing parts. Do not use
any harsh or corrosive chemicals for cleaning as these could damage the parts.
The sump and the water tank in this product are treated with a biocidal product, Silver Biocide. This conforms to the
latest relevant ISO standard.
Do not drink the water from the sump or from the water tank(s).
Technial Information, Model No: ABN15-RGB
Heat Output 230V 240V
Nominal Heat Output PNom 1.62 1.74 kW
Minimum Heat Output Pmin 0.92 0.99 kW
Maximum Continuous Heat Output Pmax 1.62 1.74 kW
Auxiliary Electricity Consumption ----
In Standby Mode PNom 0.45 0.48 W
Electronic room temperature control plus week timer

5
INSTALLATION INSTRUCTIONS
This section describes how to install and set up your re. Before you start:
• Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible
future use, in the event of moving or returning the appliance to your supplier.
• Before connecting the appliance, check that the supply voltage is the same as that stated on the appliance.

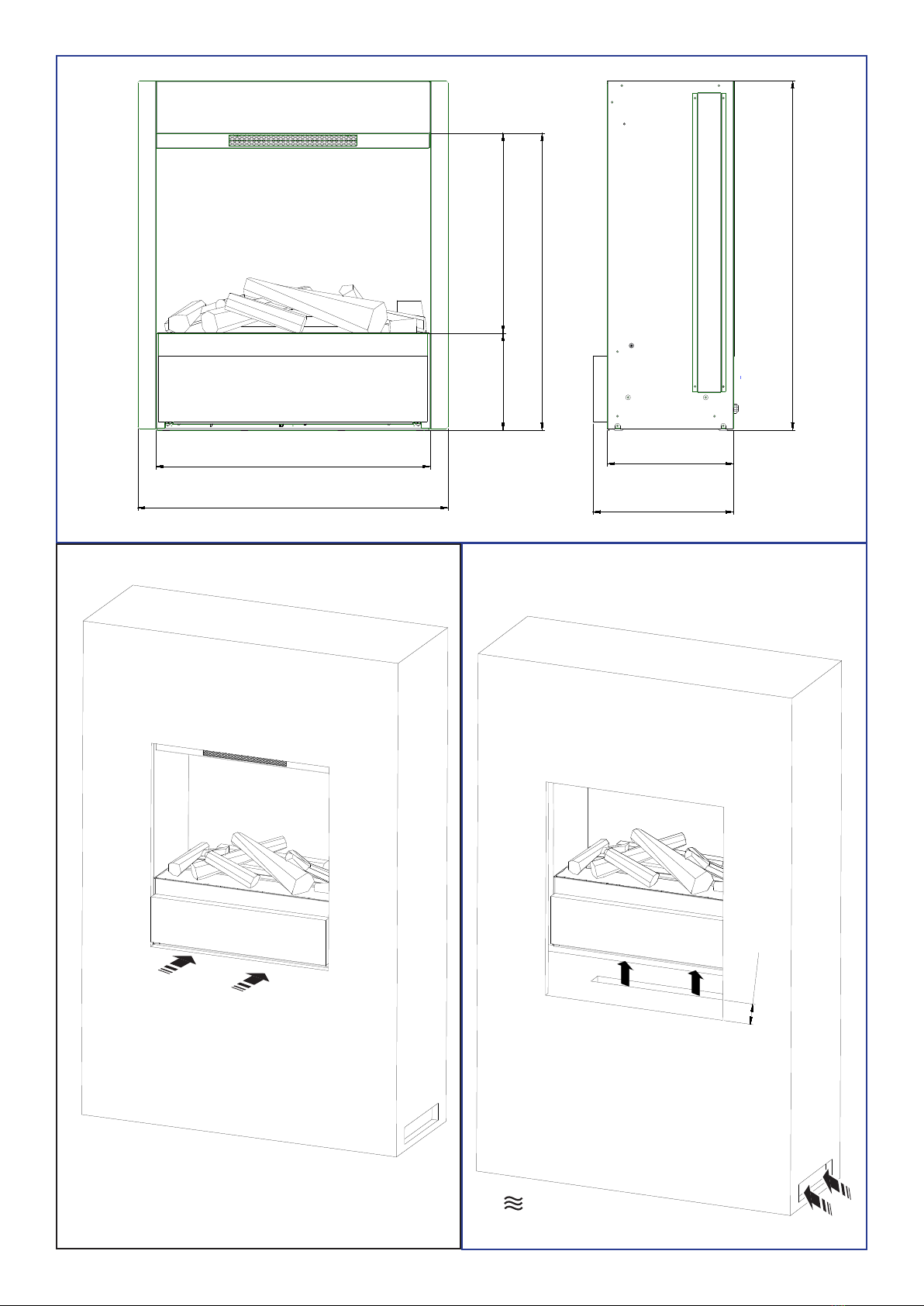

BUILDING THE PRODUCT SURROUND/ENCLOSURE
This product can be built into a wall, surround or structure. Please take note of the product dimensions (Fig.1) and
build your wall, surround or structure accordingly. Suitable clearance should be provided to allow the product to be
installed easily.
When determining a location for the product, ensure that the unit will not be susceptible to drafts, vents, ceiling fans
and other air currents. Similar to a candle, large movements of air will a󰀨ect the unit’s ability to create and maintain
the ame e󰀨ect. If the desired location is susceptible to signicant air movement, i.e. air vents, the installation option
illustrated in (Fig 2) can be used.
If tting this product in a replace opening, we recommend that;
1. You have your chimney cleaned by a competent chimney sweep.
2. You block o󰀨 the chimney ue.
This procedure is important for the e󰀩cient operation of the heating unit and will also reduce heat loss up the chimney.
VENTILATION
This product needs free ventilation from underneath to operate correctly (Fig 3). There are slots on the underside of the
drawer, the rear of the product and along the drawer front to allow this free air through the product. The free ventilation
helps keep the electronic components cool and allows the mist to rise and leave the product. Please take note of the
requirement for ventilation around the product and ensure that vents are not blocked. If tting into a surround/enclosure
ensure that there is a ventillation gap to allow a clear path for the air to get into the product.
ELECTRICAL CONNECTION
Plug the re into a 16amp 230/240 Volt outlet located within 1m of the product. Be sure to have access to the plug after
installation to allow for disconnection. Ensure that the supply cable exits at the back of the re to suit your supply socket
location and is not trapped under the re such that it might cause it to be damaged.
INSTALLING THE PRODUCT INTO SURROUND/ENCLOSURE
Once your enclosure has been built to the required dimensions and the electrical connection has been installed, follow
the steps below to install your product.

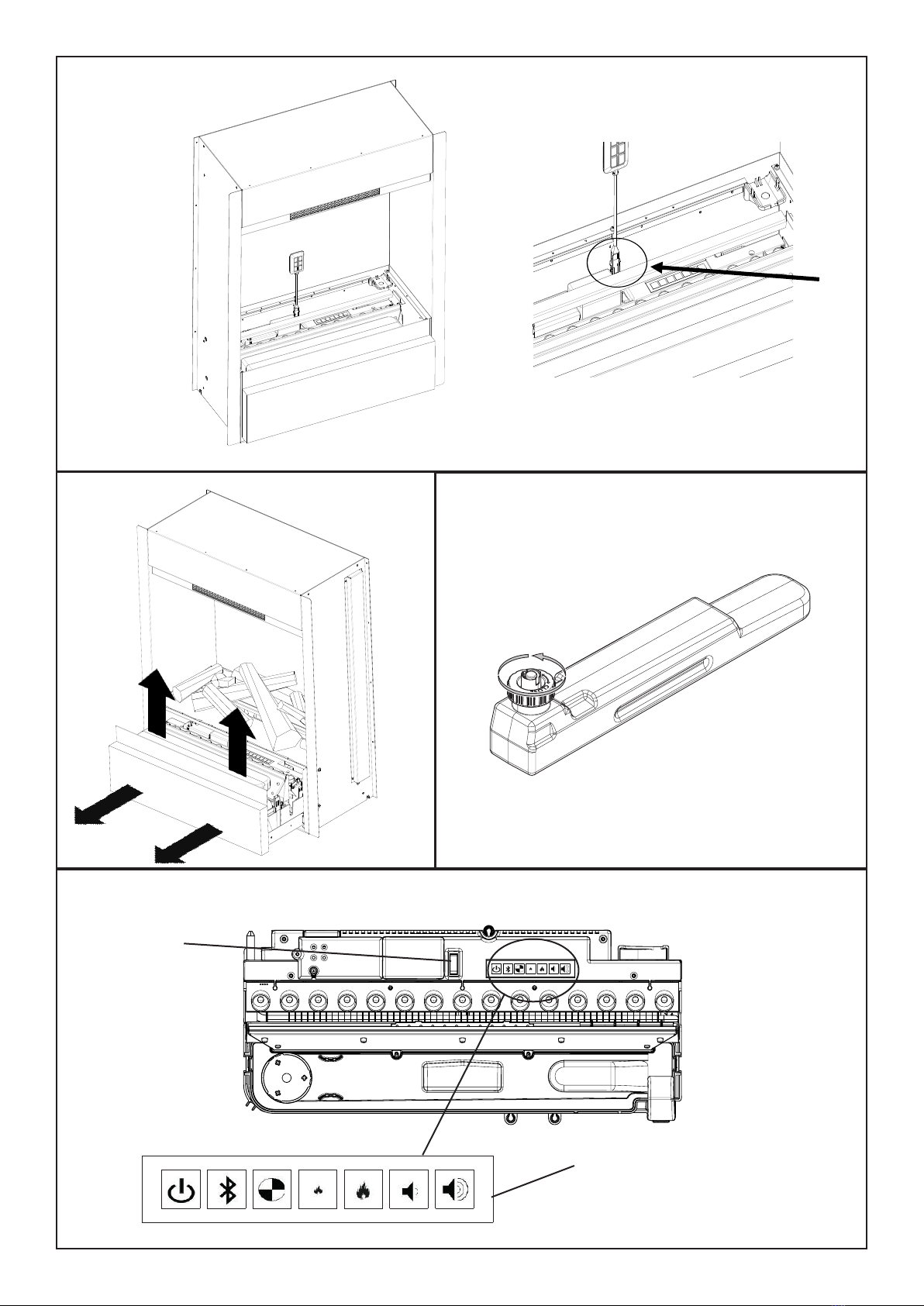

1. Sit the product on the constructed base, ensuring the cable is accessible and not caught under the product.
2. Ensure the product is at the correct height to suit the installation and ensure it is adequately level.
3. Once the product is at the correct height and is level, centre the product within the opening.

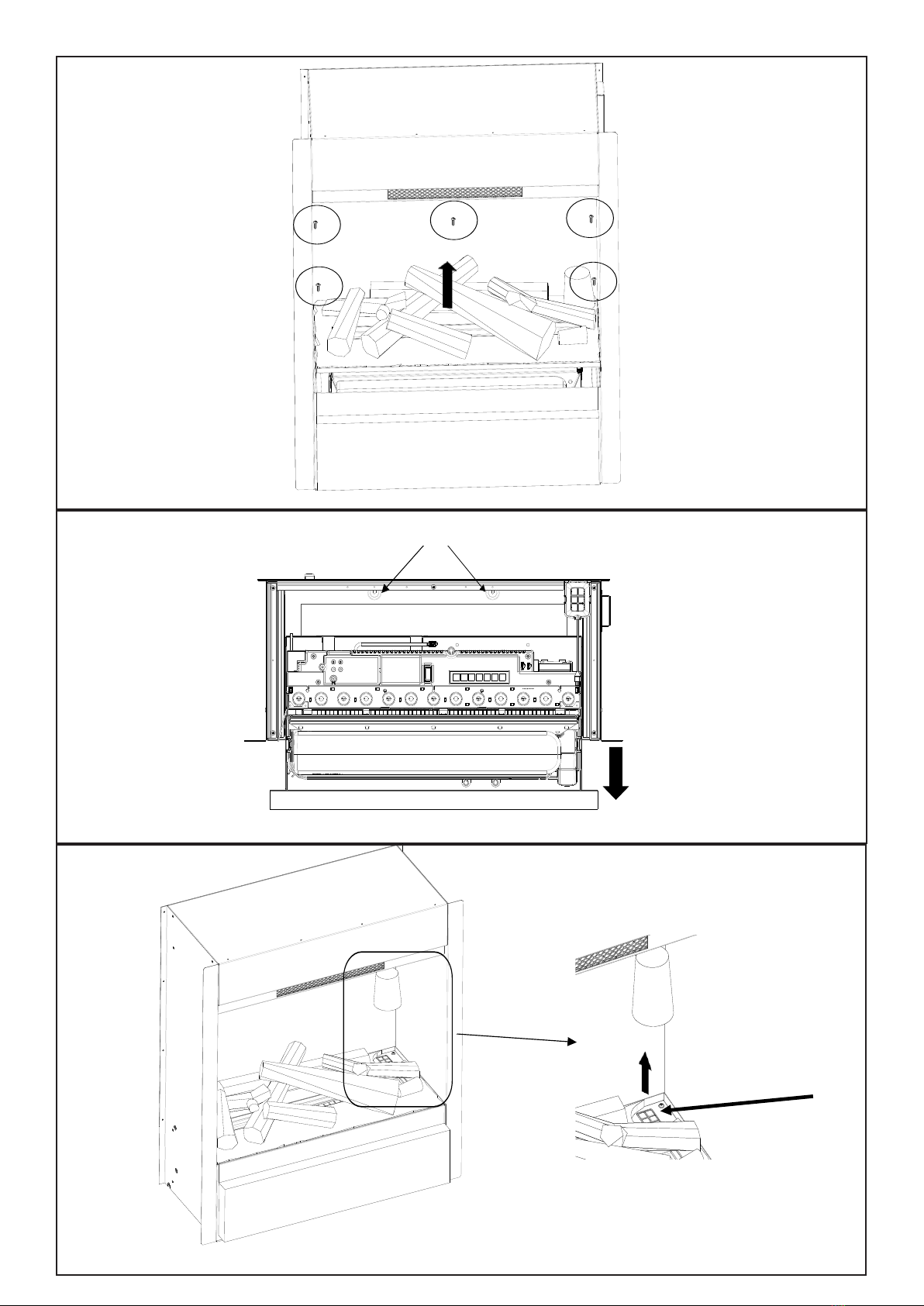

4. With the product in its nal position, unscrew the fuel bed and carefully lift o󰀨 to remove (Fig 4). The fuelbed should
be lifted by holding the metal tray the logs are xed on, not by lifting the top logs as this could damage them.
5. Using xing screw pack provided, screw x the product into position through the xing holes in the base to ensure
it can’t tip over when the drawer is opened (Fig 5).
6. Carefully place the fuelbed back in position, lifting by the metal tray and screw x to secure.
7. The power cord is on the back of the product. Please take note of this when constructing the surround/enclosure
(Fig 1).
FILLING THE WATER TANK
Before powering on the product for the rst time, ensure that a full water tank has been placed on the product. Open the
drawer and remove the water tank from its location on top of the sump (Fig 8) and open it by unscrewing the orange cap
(Fig 9). The tank should be lled with clean (decalcied) water only - Refer to WATER QUALITY & CLEANING for more
details. When the tank is replaced on top of the sump, it will take about one minute for the tank to empty into the sump.
Allow the sump to ll fully before switching on the product. Once lling is complete, the tank can be relled and replaced
on top of the sump. This will allow for the maximum capacity of water to be stored in the product.

6
OPERATING THE PRODUCT
This section describes how to activate your re using either the manual controls or remote control.
MAINS SWITCH
Open the drawer to access the control panel. The mains switch is located on the module and controls the electricity to
the appliance (Fig 10A).
Note: This switch must be in the ‘ON’ ( I ) position for each appliance to operate.
MANUAL CONTROLS (TETHERED RECEIVER UNIT)
The product is tted with manual controls on a tethered receiver unit, which must be connected to operate the product.
This also acts as the receiver unit for the remote control operation. The manual controls are located under the log on
the right hand corner of the fuelbed (Fig 6). Particular care should be given after installation to ensure the receiver jack
is fully connected to ensure the product functions correctly.

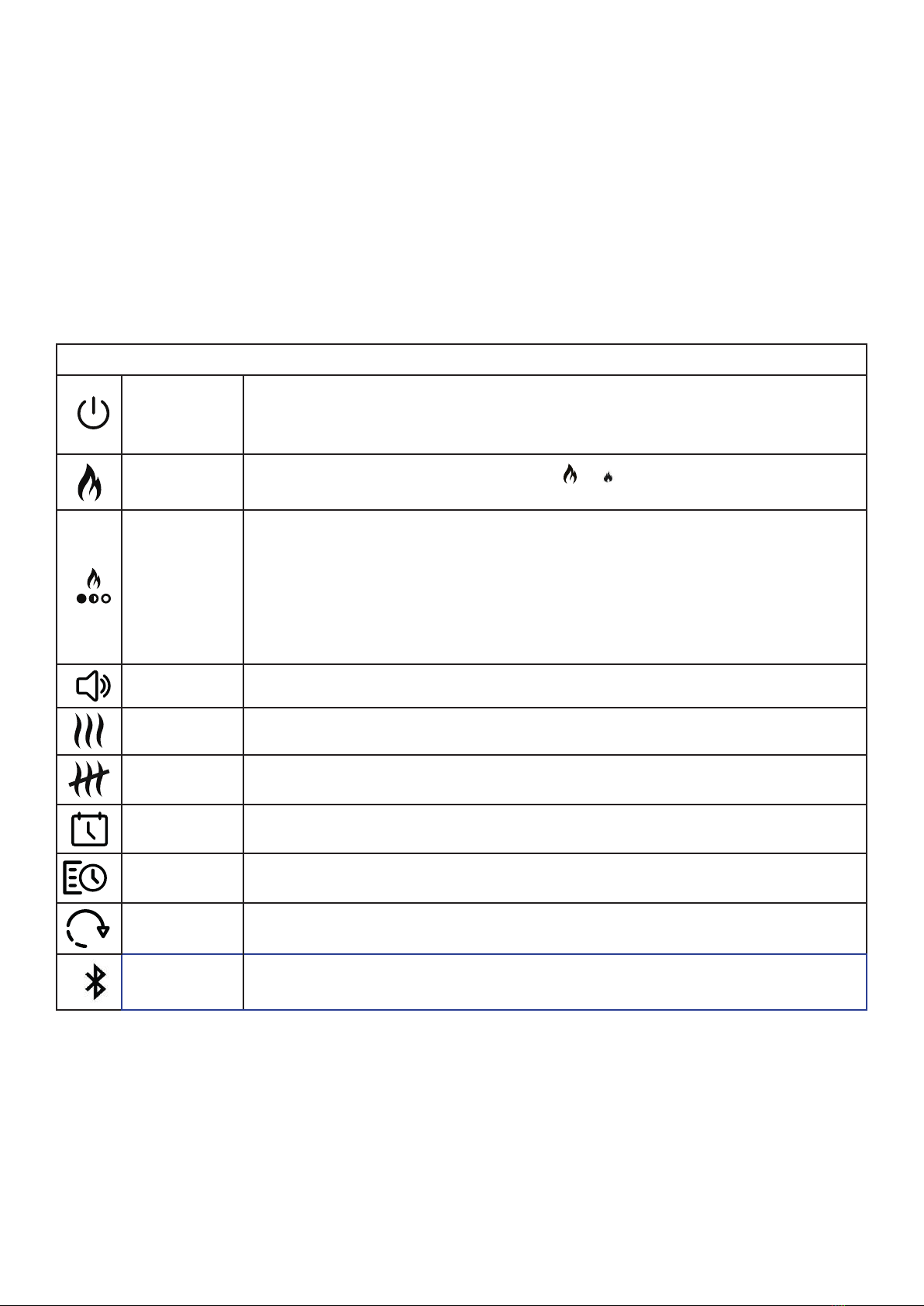

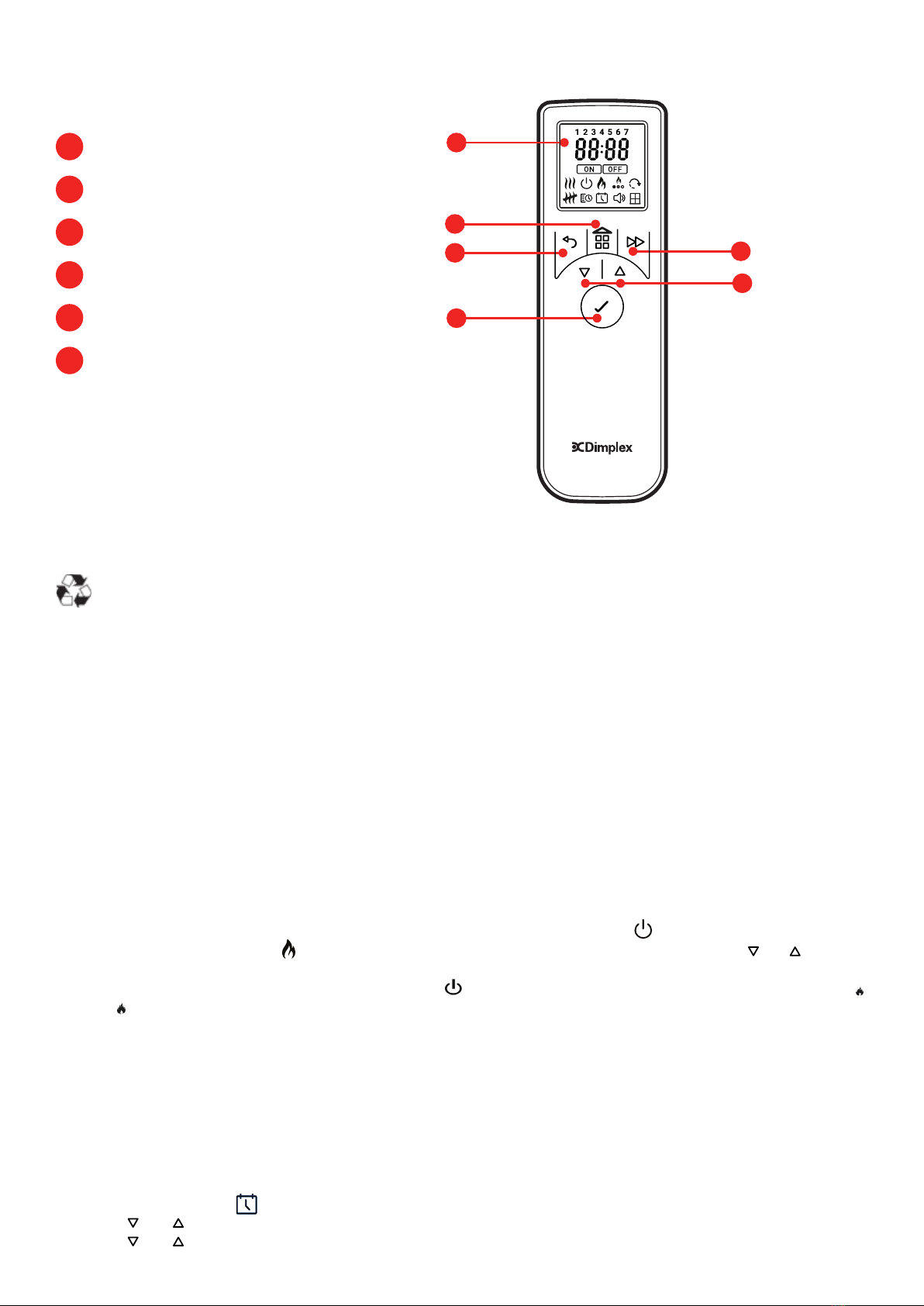

MANUAL & REMOTE CONTROL ICONS
Standby
Press to turn on the unit or to put it into standby mode. There is a brief delay after
pressing this button before the unit turns on.
Note: When the unit is turned on there is a 45 second warm up sequence before the
ame e󰀨ect starts.
Flame Intensity Select on remote to control up/down or press or on manual controls to desired
Flame intensity
Flame Theme
Select on remote to control up/down or press repeatedly on manual controls to cycle
through the di󰀨erent Flame themes below:
1 - Natural Flame
2 - Blue
3 - Violet
4 - Red
5 - Aquamarine
6 - Prism Mode - the ames will cycle through the di󰀨erent colours.
Volume and
crackle sound Press to turn the sound ON/OFF
Heat On /
Manual Mode Press to turn heat on/o󰀨 on manual controls. Press to turn heat on with remote.
Heat O󰀨
(Remote) Press to turn heat o󰀨 with remote.

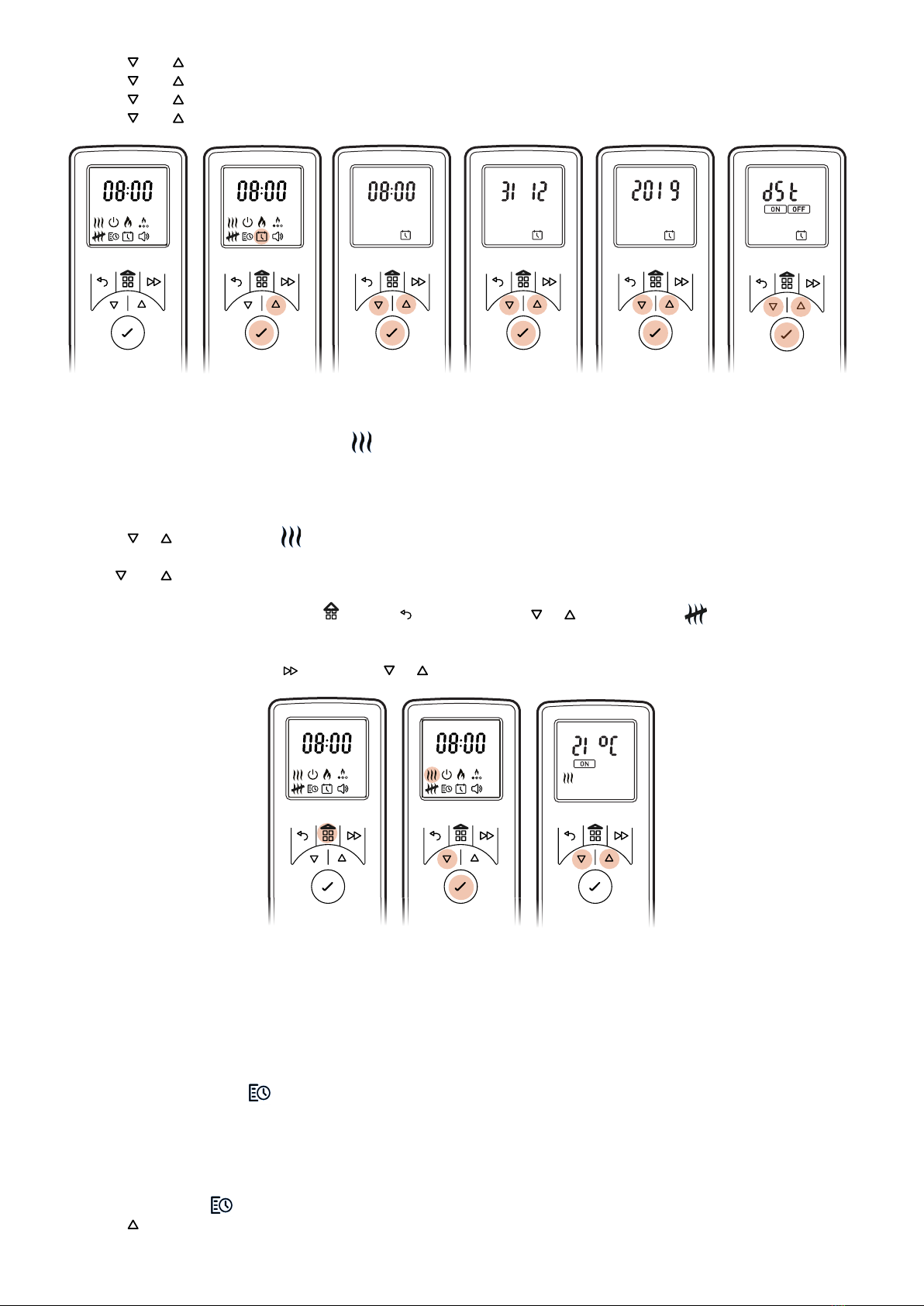

Date/Time
(Remote) Press to adjust Date/Time on Remote handset.

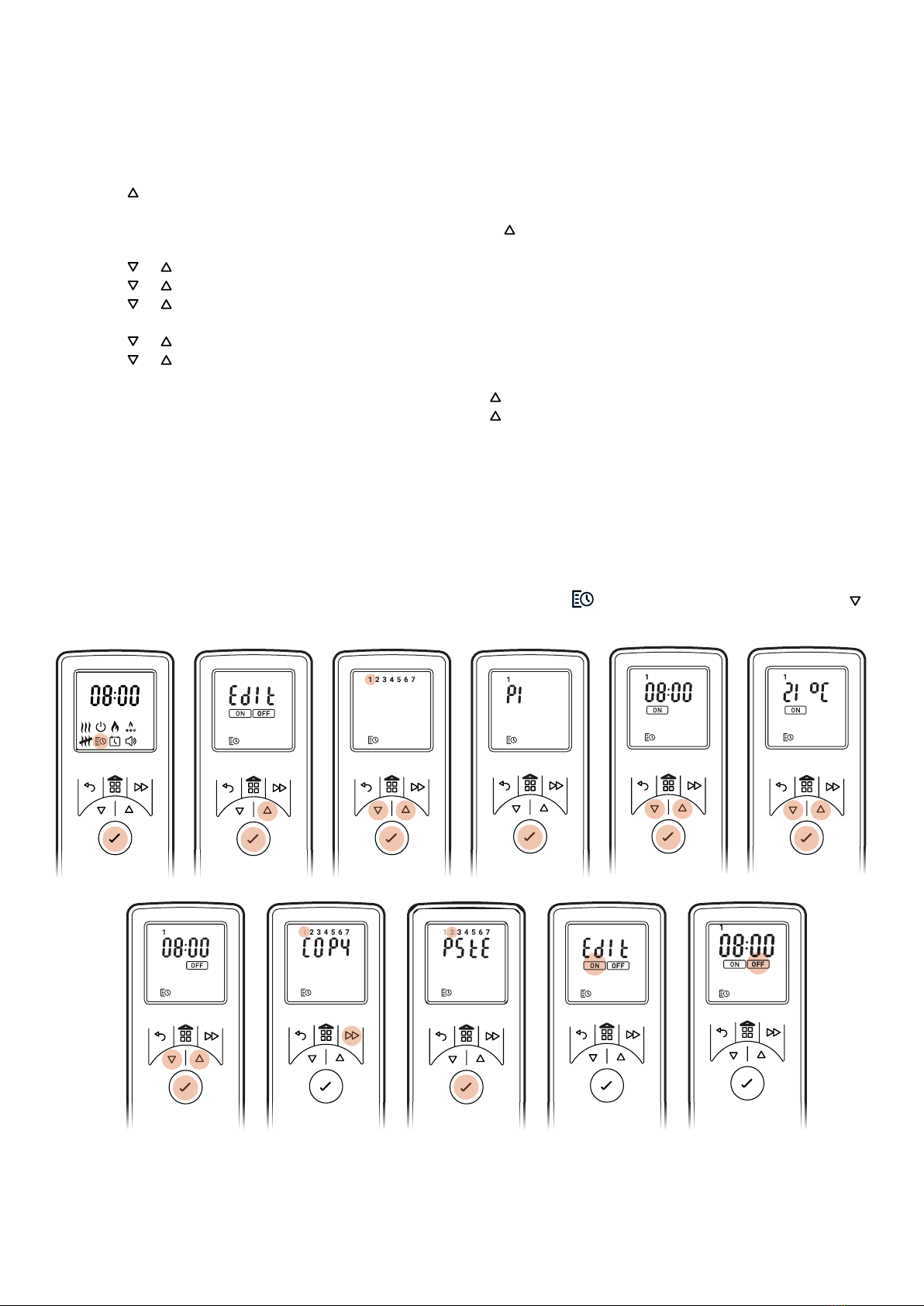

Timer Schedule
(Remote) Press to select Timer Schedule function.
Adaptive Start
(Remote) Indicates if Adaptive Start is enabled on product.
Bluetooth
(main module)
Press this button as alternative method to pairing new handset to the product (the
product will beep and blink). Conrm pairing with Enter button on handset.

7
REMOTE CONTROL
1Display Screen
2 ‘Menu’ Button
3 ‘Back’ Button
4 ‘Advance’ Button(ADV)
5 ‘Up and Down’ Arrows
6 ‘Enter’ Button (Press to
Activate the Remote)
1
2
6
34
5
TO FIT THE BATTERIES
The remote control is supplied with 2xAA batteries in a bag. Lift o󰀨 the battery cover on the back of the remote control
and insert the batteries taking note of the polarity.
Batteries must be recycled or disposed of properly.
Check with your Local Authority or Retailer for recycling advice in your area .
Frequency band(s) this product operates in: 2.4GHz
Maximum radio-frequency power transmitter in the frequency band(s) this product operates in: 2.71dBm
PAIRING THE REMOTE CONTROL
The remote control has already been paired to your product during factory assembly. In the unlikely event that the
remote control disconnects from the product, or you obtain a spare remote control, you will need to complete the pairing
process:
1. Open the drawer and press the rocker switch to the on (I) position (Fig 10A). You should hear an audible beep.
2. Press and hold ‘Button 6’ until PAIR appears on the display
3. Bring the remote control close to the product where the receiver is . See (Fig 6)
4. The product will start to beep and blink
5. Press ‘Button 6’ to complete the pairing process. The product will go into standby mode.
GETTING THE DESIRED FLAME EFFECT
1. Switch the appliance on by pressing the main switch to the on position.
2. Activate the remote by pressing the ENTER button. With the remote activated, on the display will be ashing,
navigate UP button to ash and press ENTER. The current setting will be displayed. Press or to toggle
between F1 and F6. F1 being the lowest setting and F6 being the highest setting.
3. Alternatively if using the Manual controls, Press the button. The ames will start after 45seconds. Press the
and buttons to adjust the ame to your desired level. Please give the ame generator time to react to the changes
you make.
Once you have made your adjustments to both the ame height and crackling sound, the appliance will keep these
settings even if you power o󰀨 the appliance by either the on/standby button or by the main switch. The next time you
switch on the appliance, it will start up as normal, wait 45 seconds for the ames to start and then revert to the adjust-
ed settings.
SETTING THE DATE AND TIME
To set the date and time on the heater; with the remote control activated navigate UP/DOWN button to Date & Time icon
1. Press Enter when the is blinking
2. Press and to set the Hour, press Enter
3. Press and to set the Minutes, press Enter to conrm the time

8
4. Press and to set the Day, press Enter
5. Press and to set the Month, press Enter
6. Press and to set the Year, press Enter to conrm the year
7. Press and to select ON/OFF for the Daylight saving time, press Enter to conrm and returns to home screen.
MODES OF OPERATION
MANUAL MODE (HEAT ON CONSTANT) : Select to choose a constant heat mode. This mode heats the room
to the temperature you have set the remote control to. Note: This mode ignores the User Timer and maintains the
displayed temperature.
1. Press Menu Button
2. Press or to highlight the symbol
3. Press Enter to Conrm
4. Use and to adjust to the desired room temperature. Note the default temperature setting is 21°C and the
maximum temperature set point on the product is 30°C.
5. To turn Heat OFF, Press the Menu or Back button, then use or to highlight the symbol and press
Enter to select.
6. While in Manual mode menu (Temp displayed as below) the user can choose between HI/LO heat output by
pressing the Advance button followed by or to highlight and Enter to select.
THERMAL SAFETY CUT-OUT
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if
the heat outlet was restricted in any way. If the cut-out operates, unplug the heater from the socket outlet and allow
approximately 10 minutes before reconnecting. Before switching the heater back on remove any obstruction that may
be restricting the heat outlet, then continue normal operation.
TIMER SCHEDULE MODE : Provides greatest exibility to the user. Four times slots are available throughout the
day and these can be customised for each day of the week.
CHOOSING AND SETTING A TIMER SCHEDULE.
User Timer - To re-programme the factory default Timer Modes: with the remote control activated, navigate UP/DOWN
button to user timer
1. Press Enter when is blinking
2. Press once EDIT icon blinks then press Enter
*Days of the weeks are now displayed at the top of the screen*

9
Day 1 = Monday
Day 2 = Tuesday
Day 3 = Wednesday
Day 4 = Thursday
Day 5 = Friday
Day 6 = Saturday
Day 7 = Sunday
3. Press to navigate to the desired day and Press Enter to Select
4. P1 will be displayed on screen
5. Press Enter to select P1,or to navigate to P2, P3 or P4 press and press Enter to select
6. ON will be displayed
7. Press or to adjust the ON Hour time, press Enter to Conrm
8. Press or to adjust the ON Minute time, press Enter to Conrm
9. Press or to adjust the Temperature setting, press Enter to Conrm
10. OFF will be displayed
11. Press or to adjust the OFF Hour time, press Enter to Conrm
12. Press or to adjust the OFF Minute time, press Enter to Conrm
Press Enter to modify Programme P2, follow steps 5-12, Press to skip to P3
Press Enter to modify Programme P3, follow steps 5-12, Press to Skip to P4
Press Enter to modify Programme P4, follow steps 5-12
To copy newly programmed P1-P4 heating programmes to other days, press and hold ADV button COPY will be
displayed then navigate UP/DOWN buttons to other days, while the day ashing press and hold ENTER button to
paste, PASTE will be displayed to conrm the setting.
Press BACK button user timer screen is displayed, navigate UP/DOWN button to ash ON and press ENTER to
conrm the user timer setting. During this setting product will turn o󰀨 and turn on for the time you selected.
To turn o󰀨 the User timer, activate the remote control by pressing the ENTER button, heater OFF time will be
displayed, press the MENU buton which takes to home screen, navigate to and press ENTER, ON blinks, press
once while OFF blinks press ENTER to conrm. Now the timer is turned OFF which is incated by one beep sound.

10
ADVANCE MENU OPTIONS
The Eco handset is equiped with advanced menu options to further enhance the product functionality. To access:
Press the Menu to go to the home screen.
Press and Hold the Menu and Advance button at same time for 3 seconds to access the Advance menu options.
Use the or to go to desired menu & press ENTER to select.
RUNBACK TIMER
The product will go to standby after designated period.
Select ON using or (will be ashing) and Enter to go to time menu.
Press or to highlight desired preset time period (30min, 1hr, 1.5hr, 2hr, 4hr, 8hr) and ENTER to select.
Will highlight on screen when active.
SET BACK POINT
The maximum temperature set point on the product is 30°C You have the option to reduce this set point.
ADAPTIVE START
The built-in electronics in this appliance have a learning function with regards to how long it takes to heat up a room.
Having learnt how quickly it can heat up your room, the appliance is able to turn on at just the right time in order to get
the room up to a comfortable temperature when you want it. For example, if you get up at 7am, you would normally have
to guess when to turn the heating on in order for it to pre-heat the room in time. Depending on how cold it is outside, this
could mean the room is still cold when you have to get out of bed, or mean that its been warm for half an hour before
it needed to be. Adaptive Start means that if you select 21°C at 7am, the heater will turn on exactly when it needs to in
order to meet this target, running for shorter periods of time when the weather is mild, and ensuring the room is nice and
warm in the winter. The Adaptive Start function will automatically activate when you use the Timer Mode.
FROST PROTECT
Frost protect mode prevents the room from freezing. The heater will turn on if the room temperature drops below 7ºC.
Will indicate on the screen when active.
TEMPERATURE UNITS DISPLAY
User can change the Units of the temperature (ºC and ºF). Use or to select and ENTER to conrm.
FLAME CONNECT APP
The replace is capable of being controlled using the Flame Connect App for mobile devices. This is available to down-
load to your device from Google Play or Apple App stores. Follow the on screen instructions for set-up.
NOTE: The replace will not operate using the provided remote control when the app is open on a mobile device.
LOW WATER / REFILLING THE WATER TANKS
When the water tanks have emptied and the water level in the product is getting low, the product will ash its LEDs twice
and beep twice. The product will operate for a further 15 minutes before beeping once and switching into low water
mode. For products being operated with the LED log fuel bed, only the fuel bed will remain illuminated while in low water
mode. At this point, the product can either be switched into stand-by mode using the remote control or Bluetooth receiver
or the product can be relled with water. Relling the product with water will cause the product to restart automatically.
To rell the tank, open the drawer and remove the water tank from its position on top of the sump. Rell the water tank
using ltered/decalcied water only. The tank can then be replaced on top of the sump. If the product was not switched
into stand-by mode after experiencing low later, the product will restart automatically after about 20 seconds of relling.

11
MAINTENANCE
GENERAL TIPS
Only use ltered/decalcied water in this appliance.
Always ensure that the appliance is sitting on a level surface.
If you intend not using the appliance for longer than a week, remove and empty the sump and water tank.
Once installed, never move this appliance or lay on its back, without draining the water from sump.
CLEANING
WARNING: Always press Switch ‘A’ to the ‘OFF’ (0) position (Fig 10A) and disconnect from the power supply before
cleaning the re.
We recommend cleaning the following components once every week, particularly in hard water areas:
Sump, Nozzle, Tank cap and seal, Air lter
For general cleaning use a soft clean duster – never use abrasive cleaners.
To remove any accumulation of dust or u󰀨, the soft brush attachment of a vacuum cleaner should occasionally be used.
SUMP
1. Open the drawer & press switch ‘A’ to the ‘OFF’ (0) position (Fig 10A)
2. Remove the water tank from its position on top of the sump.
3. Disconnect the electrical connector to the transducers, located on the right side of the sump. (Fig 12).
4. There are two orange clips holding down the nozzle on the sump; one on the left and one on the right hand side of
the nozzle. On the left side, press in the clip with one hand and with the other lift the nozzle out of the clip. Repeat
this for the right side (Fig 13). The nozzle can now be lifted up and placed aside (Fig 14).
5. Gently lift up the sump (Fig 15), taking care to keep it level so as not to spill any water. Sit the sump in the sink.
6. Carefully empty the sump into the sink taking note that the transducer is held in place by a retaining clip.
7. Put a small amount of washing up liquid into the sump, and using a soft brush, gently clean all surfaces in the sump
and gently clean the transducer including the cone and metal discs located in the top grooved surface.
8. When cleaned, thoroughly rinse the sump with clean water to remove all traces of washing up liquid.
9. Clean the nozzle with a soft brush and ush out thoroughly with water.
10. Reverse the above steps 1 – 6 to reassemble.
TRANSDUCER
The transducer is a consumable item and may need to be replaced through time, depending on its usage. Replacement
transducers can be purchased from your dealer. The transducer is xed in the sump with a plastic clip. If you need to
replace your transducer:
1. Follow the steps 1-5 in the CLEANING - Sump section under ‘Maintenance’ to gain access to the transducer.
2. Press the clip back and lift the transducer upwards out of its holder.
3. Place the new transducer into the sump, ensuring the its cable does not sit over the cone.
4. Reverse the above steps to reassemble the nozzle and sump.
AIR FILTER
1. Open the drawer to access the air lter at the rear of the module.
2. Gently slide the air lter upwards out of its plastic holder. (Fig 16)
3. Gently rinse with water in the sink and dry with fabric towel.
4. Replace the lter making sure that the coarse black lter is facing outwards.
5. Replace the fuel bed.
NOZZLE INSERTS
Nozzle inserts have been supplied and tted to the nozzle opening. These inserts are used to alter the prole of the
ame e󰀨ect. These inserts can be removed if a di󰀨erent ame prole is preferred. In addition to these inserts, inserts for
blocking the ame in certain areas have also been supplied. To t these inserts, remove the exisitng inserts that have
been supplied and tted to the product. Break the blocking inserts into the required length. Snap the inserts into the
nozzle opening in the desired location. See (Fig 11) for further details.

12
ADDITIONAL INFORMATION
AFTER SALES SERVICE
Your product is guaranteed for two years from the date of purchase. Within this period, we undertake to repair or
exchange this product free of charge (excluding transducer discs & subject to availability) provided it has been installed
and operated in accordance with these instructions. Your rights under this guarantee are additional to your statutory
rights, which in turn are not a󰀨ected by this guarantee.
RECYCLING
At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice in your area.
PATENT / PATENT APPLICATION
Products within the Optimyst range are protected by one or more of the following patents and patent applications:
Great Britain GB2460259B, GB2475794B, GB2418014, EP2029941, GB2436212, GB2402206B
United States US8413358, US8136276, US7967690, US8574086
Russia RU2434181
European EP2029941, EP2315976, EP1787063 (A1), EP2388527, EP2029941,
China CN101883953A, CN102105746A, CN101057105 (A), CN101438104
Australia AU2009248743A1, AU2007224634
Canada CA2725214, CA2579444, CA2645939
South Africa ZA2008/08702
Mexico MX2008011712
South Korea KR101364191
Japan JP5281417, JP5496291
Brazil BRP10708894
India 4122/KOLNP/2008
New Zealand NZ571900

13
TROUBLESHOOTING
The product has been designed to highlight particular errors by ashing the on board LED lights. The lights will ash
a number of times corresponding to the error that is occurring. Please see the table below for the explanation of the
errors.
Symptom Cause Corrective Action
Product will not operate. Electrical connection issue
Product not switched on
Ensure product has working electrical con-
nection.
Ensure mains rocker switch on (Fig 10A)
Product will not operate.
The LED fuel bed only op-
erates.
Low water reading
Product is not level
Rell the water tank(s) of the product. See
“Filling the Water Tanks” above.
Ensure the product is level by checking the
on-board level.
LEDs blink twice and prod-
uct beeps twice
Product is approaching low water Rell the water tank(s) of the product. See
“Filling the Water Tanks” above.
Product will not operate.
LEDs continuously blink
twice on one side
Low water reading on side that is blinking Rell the water tank(s) of the product. See
“Filling the Water Tanks” above.
Product will not operate.
LEDs continuously blink
three times
Time from max level to min level is too
short.
Conicting water level readings (min and
max level being read at the same time.)
Ensure there are no leaks in the sump.
Ensure that the oats are moving freely within
the sump.
Ensure the product is level.
Product will not operate.
LEDs continuously blink
four times
Fill time from min to max level has been
exceeded
Rell the water tank(s) of the product. See
“Filling the Water Tanks” above.
Product will not operate.
LEDs continuously blink
once every 8 seconds on
one side
Overow Detection on side that is blink-
ing
Switch o󰀨 the product and the water supply.
Contact your dealer for assistance.
Little or No Mist Genera-
tion
Transducer not operating correctly
Transducer is dirty
Transducer is not sitting correctly in sump
Fan is obstructed or blocked
Nozzle is not on sump correctly
Nozzle is blocked
Check operation of transducer
Clean sump and transducer thoroughly
Switch o󰀨 product, take nozzle o󰀨 sump and
ensure transducer is tted in sump correctly
Remove air lter and clean. Ensure it is placed
back in product correctly.
Ensure Nozzle is sitting on sump correctly
Clean sump, transducer and nozzle thorough-
ly
The ame e󰀨ect has too
much smoke.
Flame e󰀨ect setting is too high Turn down the ame e󰀨ect. Give the product
time to adjust to the new setting
Bluetooth Receiver stops
working
Loose connection Check connection to the receiver (Fig 7)
Remote Control stops
working
Bluetooth range issue
Bluetooth Receiver connection is loose
Remote control batteries need replacing
Check positioning of Bluetooth Receiver. En-
sure it is not encased in metal or concrete.
Check connection to the receiver (Fig 7)
Replace with new batteries of same type.

14
Fig.1
Fig. 2 Fig. 3
640
704
260
402
565
196
598
290
170mm
>210cm2
Eg. 42cm x 5cm

15
Fig.4
Fixing points Fig.5
Fig.6

16
Fig.7
Fig. 9
Fig. 8
A
B
Fig. 10

17
Fig 11
Fig 13 Fig 14
Fig 12
Fig 15 Fig 16
