Dimplex Ignite 50" User manual

Owner’s Manual
Model's
Ignite 50" / XLF50-EU
Ignite 74" / XLF74-EU
Ignite 100" / XLF100-EU
8/53801/0 Iss 3
OCN 10918
The product complies with the European Safety Standards and the European Standard Electromagnetic
Compatibility (EMC). These cover the essential requirements of EEC Directives
EN DE NL FR RO IT PL ES
EN : This product is only suitable for well insulated rooms or occasional use. DE :
Dieses Produkt ist nur für gut isolierte Bereiche oder gelegentliche Verwendung
geeignet. FR : Ce produit convient uniquement à des endroits bien isolés ou pour un
usage occasionnel. IT : Questo prodotto è adatto solo per spazi ben isolati o per uso
occasionale. ES : Este producto sólo es adecuado para espacios bien aislados o un
uso ocasional. NL : Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten
of voor sporadisch gebruik. PL : Produkt ten jest odpowiedni wyłącznie do dobrze
odizolowanych miejsc lub do okazjonalnego użytku. NO : Dette produktet egner seg
kun for godt isolerte rom eller sporadisk bruk. RO : Acest produs este adecvat exclusiv
spaţiilor bine ventilate sau utilizării ocazionale. CZ : Tento výrobek je vhodný pouze do
dobře izolovaných prostor nebo k příležitostnému použití. DK : Dette produkt er kun
egnet til velisolerede rum eller lejlighedsvis brug. PT : Este produto somente é adequado
para espaços bem isolados ou uso ocasional. SE : Denna produkt är endast avsedd för
välisolerade utrymmen eller tillfällig användning. FI : Tämä tuote soveltuu ainoastaan
hyvin eristettyihin tiloihin tai satunnaiseen käyttöön. SK : Tento výrobok je vhodný len pre
dobre izolované priestory alebo na občasné použitie. SI : Ta izdelek je primeren le za
dobro izolirane prostore ali za občasno uporabo. HR : Ovaj proizvod je pogodan samo
za dobro izolirane prostore ili povremenu upotrebu. HU : Ez a termék csak jól szigetelt
terekhez vagy eseti használatra alkalmas. SV : Denna produkt är endast lämplig för
användning i väl isolerade utrymmen eller enstaka användning.

2
Table of Contents
Always use a qualied technician or
service agency to repair this replace.
!NOTE: Procedures and tech-
niques that are considered important
enough to emphasize.
CAUTION: Procedures and tech-
niques which, if not carefully followed,
will result in damage to the equip-
ment.
WARNING: Procedures and
techniques which, if not carefully
followed, will expose the user to
the risk of re, serious injury, or
death.
Welcome & Congratulations ..................3
IMPORTANT INSTRUCTIONS..................4
Quick Reference Guide ......................6
Fireplace Installation ........................7
Operation................................ 11
Maintenance .............................15

3
Welcome & Congratulations
Thank you and congratulations for purchasing an electric replace from
Dimplex. Please take note of the location of the Model & Serial for this
product it is important to be able to locate it in the event of requiring
technical support.
Model and Serial
Number Label
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in
a possible electric shock, re hazard and will void the warranty.

4
Important Safety Advice
When using electrical appliances, basic precautions should
be followed to reduce the risk of re, electric shock, and
injury to persons, including the following:
If the appliance is damaged, check immediately with the
supplier before installation and operation.
Do not use this appliance in the immediate surroundings
of a bath, shower or swimming pool.
Do not use outdoors.
This appliance must not be located immediately above or
below a xed socket outlet or connection box.
WARNING: The appliance carries the Warning Symbol
indicating that it must not be covered or has a Do not cover
label. Do not cover or obstruct in any way the heat outlet
grille located at the top of the appliance overheating will
result if the appliance is accidentally covered. Do not place
material or garments on the appliance, or obstruct the air
circulation around the appliance, for instance by curtains
or furniture, as this could cause overheating and a re risk.
In the event of a fault unplug the heater. Unplug the
appliance when not required for long periods.The supply
cord must be placed on the right hand side of the heater
away from the heat outlet underneath the appliance.
Although this appliance complies with safety standards,
we do not recommend its use on deep pile carpets or on
long hair type of rugs.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experinence and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintaince shall not be made by children
IMPORTANT INSTRUCTIONS

5
SAVE THESE INSTRUCTIONS
without supervision.
Children of less than 3 years should be kept away unless
continuously supervised. Children aged from 3 years and
less than 8 years shall only switch on/off the appliance
provided that it has been placed or installed in its intended
normal operating position and they have been given
supervision or instruction concerning use of the appliance
in a safe way and understanding the hazards involved.
Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform
user maintaince.
The appliance must be positioned so that the plug is
accessible.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or similarly qualied person
in order to avoid a hazard.
CAUTION: In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched
on and off by the utility.
CAUTION - Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICABLE PARTS INSIDE
IMPORTANT INSTRUCTIONS

6
Quick Reference Guide
Figure 1

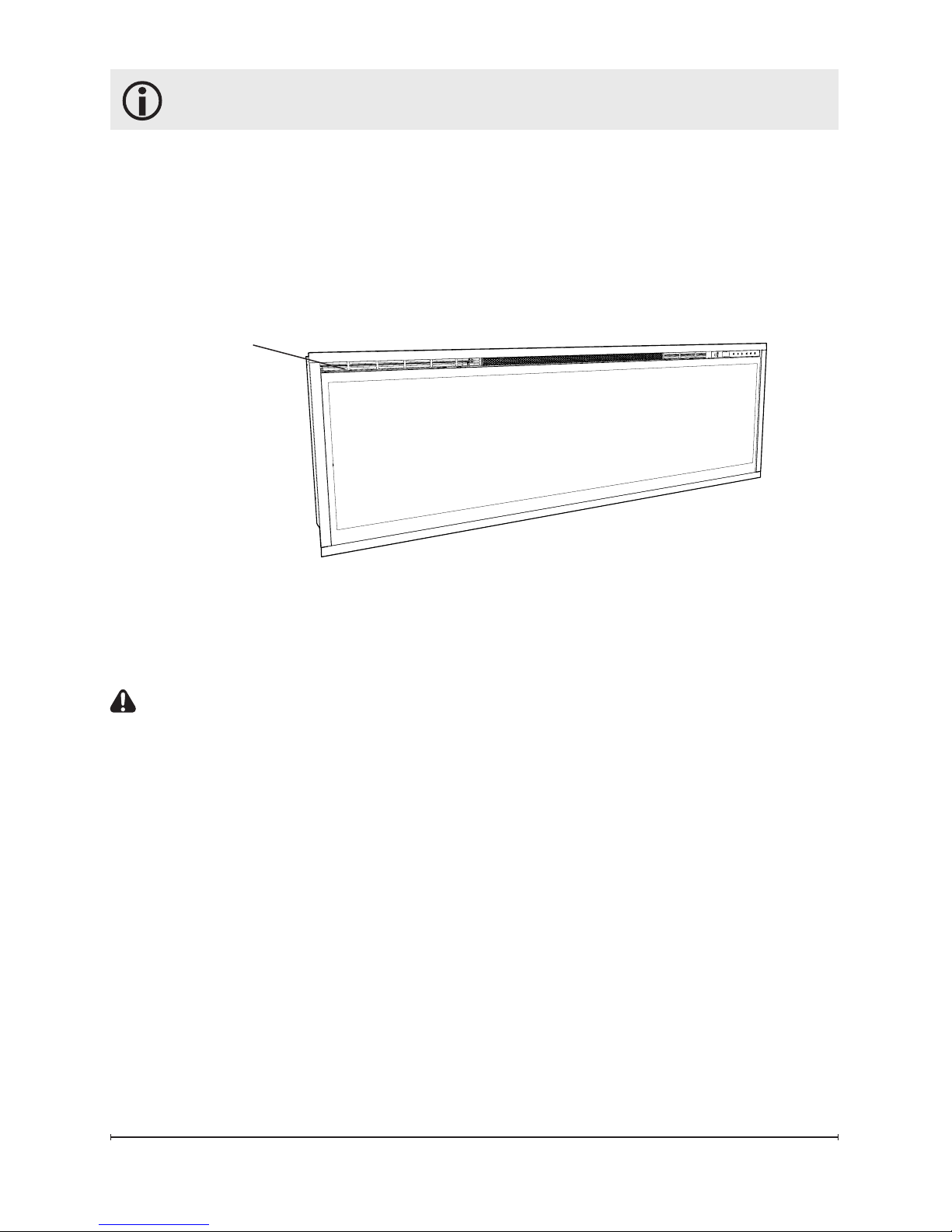

1. The electrical information
regarding your electric replace
can be found on the rating label
located on the top of the unit.
2. If you have any technical
questions or concerns
regarding the operation of your
electric replace, or require
service contact the relavent
customer service as listed on
your warrenty card.

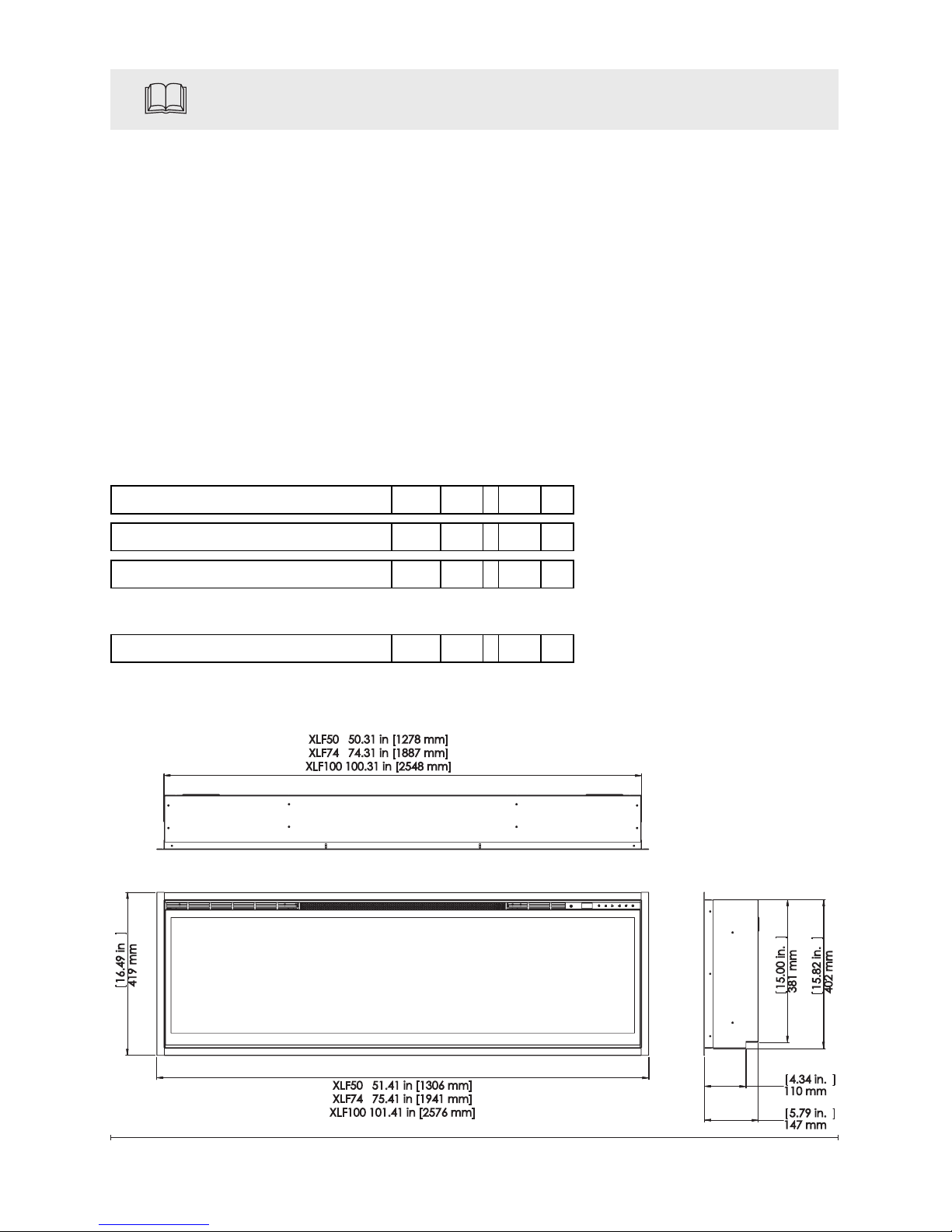

3. For dimensions of your
replace, refer to Figure 1.
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF50 50.31 in [1278 mm]
XLF74 74.31 in [1887 mm]
XLF100 100.31 in [2548 mm]
XLF50 51.41 in [1306 mm]
XLF74 75.41 in [1941 mm]
XLF100 101.41 in [2576 mm]
Model No: XLF50-EU, XLF74-EU, XLF100-EU
Heat Output 230V 240V
Nominal Heat Output P Nom 1.6 -1.6 kW
Minimum Heat Output P min - - - kW
Maximum Continous Heat Output P max,c 1.6 -1.6 kW
Auxiliary Electricity Consumption
In Standby mode el SB 0.47 -0.49 W
Technical Information
with electronic room temperature control

7
CAUTION: Ensure installation
does not allow replace to be in
direct contact with building vapor
barrier or insulation and meets all
local building code.
!NOTE: A dedicated, properly
fused 13 Amp circuit is required,
rated for the appropriate voltage
(230-240V).
WARNING: Construction
and wiring must comply with
local building codes and other
applicable regulations to reduce
the risk of re, electric shock
and injury to persons.
WARNING: To reduce the risk
of re, electric shock or injury to
persons, always use a licensed
electrician.
WARNING: To reduce the risk of
re, do not store or use gasoline or
other ammable vapors or liquids in
the vicinity of the heater.
1. Select a location that is not
susceptible to moisture and is
away from drapes, furniture and
high trafc.
2. Unpack the replace and
hardware from the box.
!NOTE: Leave the front glass
and partially reective glass,
safely, in the box until the time you
Fireplace Installation
are ready to install it.
3. Store the replace in a safe,
dry and dust free location until
you are ready to install the
replace.
Installation
CAUTION: Two people will be
required for various steps of
this procedure.
This design of this unit allows three
options for installation: partial
recess, ush mounted or sub-
surface mounted.
CAUTION: Sub-surface
mounting should be limited to ½
in. (12 mm) to ensure adequate
air ow of heated air out of the
rebox area.
1. Prepare a wall with a framed
opening of 16 in. (40.6 cm)
high,
• XLF50 - 50 ⅝ in. (128.7 cm)
• XLF74 - 74 ⅝ in. (189.7 cm)
• XLF100 - 100 ⅝ in. (255.7
cm) wide, with a bottom sill
that is a minimum of 4 in.
(10.2 cm) deep. The sill can
be constructed to support the
front of the unit to allow the
power supply wires to easily
be run behind or ush with the
back of the unit and a pass thru

8
Fireplace Installation
hole drilled for electrical wire
routing.
!NOTE: It is recommended that
the bottom of the unit be mounted
between 30 in. (76.2 cm) and 40
in. (102 cm) from the ground to
maintain an optimized viewing
angle of the ame.
WARNING: Do not attempt to
wire your own new circuits. To reduce
the risk of re, electric shock or injury
to persons, always use a licensed
electrician.
WARNING: Ensure that the
circuit on which the replace is to
be installed has the power cut off
at the service panel until installation
is complete.
2. The unit is provided with an
installed ¾ in. (2.0 cm) trim.
Depending on the installation,
this trim can be removed by
removing the securing screws
and the 4 trim pieces.
3. Lift replace, from the bottom
and the handles located on the
back, and insert into opening to
the desired depth.
4. Using a bubble level (supplied)
ensure that the replace is level
within the framing. Adjust as
required.
5. Drive four supplied mounting
screwsthroughthefourmounting
holes located on the inside
surface of the replace chassis,
into wall studs (Figure 2).
Figure 2
Mounting Holes
Flame
Panel

9
Fireplace Installation
To prevent electrical shock this
unit is an electrical appliance
that is NOT watertight and must
be installed as to prevent water
from entering unit. This must be
installed away from showers, tubs,
etc. Never locate replace where
it may fall into a bathtub or other
water container.
Final Assembly
1. Locate and remove the
12 screws securing the partially
reflective glass bracket to
the unit, along the top of the
opening, and set bracket and
screws aside.
2. Remove the provided suction
cup from the inside cavity of
the unit (only for XLF74 and
XLF100 units).
3. Before installation ensure that
the front glass and the partially
reective glass are clean.
Particles can be removed by
dusting lightly with a clean dry
cloth. To remove ngerprints
or other marks, the glass
can be cleaned with a damp
cloth. Ensure that the glass
has completely dried before
installation.
4. Carefully secure the suction
cup to the partially reflective
glass, reflective side out, and
place into the openings on
either side of the unit.
5. Tip the glass into the unit and
using the removed screws
secure the glass into the unit
with the provided bracket
(Figure 3). Remove the suction
cup.
Figure 3
Partially Reective Glass
Retaining Bracket
Media Tray
Glass Openings

10
Fireplace Installation
6. Evenly space the large media
in the media tray along the back
of the media tray (for optimum
media effect), then carefully
pour and evenly distribute the
smaller media into the Media
Tray.
7. Carefully place the front glass
into the lip located at the bottom
of the opening of the firebox.
8. Tip the front glass into the
unit and secure using the
provided screws and Allen key.
(Figure 4).
!NOTE: Ensure that the suction
cup and Allen key are kept
for any future maintenance or
service.
Figure 4
Fixed Wiring
In some jurisdictions this appliance
is supplied without a plug this is to
comply with the local regulations.
In such instances this appliance
must be installed by a suitabily
quailied installer and the means for
disconnection must be incorporated
in the xed wiring in accordance
with the local wiring rules.

11
Operation
Remote Operation
The replace is supplied with an IR
multi-function remote control.
!NOTE: To operate correctly, the
remote control must be pointed
towards the front of the unit.
Controls
The unit can be controlled by
either the manual controls which
are located on the upper right of
the replace or the remote (Figure
5 & 6).
A. Standby
Turns the unit On and Off.
→ Activated by pressing the
Standby button on the remote
or the unit.
• The unit will turn On with the
same functions that it was set
to when it was turned Off and
the intake temperature will be
indicated on the Display.
!NOTE: When any button is
pressed on the unit the intake
temperature will be displayed on
the Display for 7 seconds.
B. Flame Effects
Turns the Flame Effect On and Off.
→ Activated by pressing the
button on the remote.
General Operation
WARNING: This electric firebox
must be properly installed before it
is used.
This firebox operates with
Comfort$averTM technology,
which automatically adjusts the
fan speed and heater wattage to
safely and precisely match the
requirements of the room based on
the thermostat setting. The heater
operates such that once the room
reaches the set point, the fan and
heater will continuously run at a low
level, to maintain the desired room
temperature. If the temperature
in the room rises significantly, i.e.
sun coming through a window or a
central furnace turns on, the heater
will turn off and periodically turn
back on to circulate the air around
the unit, until the room temperature
drops and requires the heater to be
constantly on again.
!NOTE: The unit is designed so
that the fan will run continuously
while the heater is on.
!NOTE: The element retains
heat after shutdown, there is a built
in cool down period of 2 minute
before the fan shuts off completely,
when the heat function is turned
Off.

12
Figure 5
A
Display
Figure 6
A
D
BC
E
G
J
F
IHI
Operation
C. Heat ON/OFF
Turns the heater On and Off.
→ Activated by pressing the
button on the remote.
• Indicated by the icon and the
setpoint temperature will ash
on the display, then the intake
temperature will be displayed
before turning off.
!NOTE: After the heater is
switched off, there is a 2 minute fan
delay, where the fan will continue
running before turning off.
!NOTE: The unit can be operated
in Heat Only Mode. When the unit
is only running with the heater,
the icon will continuously be
displayed on the Display.
!NOTE: The heater may emit
a slight, harmless odor when
rst used. This odor is a normal
condition caused by initial heating
of internal heater parts and will not
occur again.
D Temperature Down
Decreases the temperature setting.
→ Adjusted by repeatedly pressing
the corresponding button on the
remote.*
• Indicated by setpoint temperature
on the Display decreasing and
the speed of the fan decreasing
to reduce the amount of heat
being projected into the room.**
E. Temperature Up
Increases the temperature setting.
CJH

13
→ Activated and adjusted by
repeatedly pressing the
corresponding button on the
remote.
• Indicated by the heater running
at full heat, for a user set amount
of time, to quickly heat up a cold
room/space. The Heat Boost
can be set for a maximum of 20
minutes, in 5 minute increments.
Disable Heat
If desired, depending on the
season, the heater on the unit can
be disabled. The function of the
remaining controls will continue to
function as outlined in this manual.
Pressing the and buttons
on the unit at the same time and
holding for 2 seconds will disable
and enable the heater.
!NOTE: When the heater has
been disabled and any of the heat
related functions are used, the
Display will indicate "---".
H. Color Themes
Different presets of lighting color
combinations are available in the
unit.
→ Changed by repeatedly pressing
the corresponding button on the
remote or the unit.
→ Adjusted by repeatedly pressing
the corresponding button on the
remote.*
• Indicated by the setpoint on
the Display increasing and the
speed of the fan increasing to
increase the amount of heat
being projected into the room.
* The rst time the button is pressed
the current temperature set point
will be displayed for 2 seconds.
** The temperature can be adjusted
from 5 °C to 37 °C (41 °F to
99 °F).
!NOTE: Holding the and
the buttons down for two
seconds, on the unit, will change
the temperature scale from °C to
°F, or vice versa.
F. Eco Operation
Runs the heater in a reduced
wattage range when activated.
→ Adjusted by pressing the
corresponding button on the
remote when the heater is on.
• Indicated by the Display and a
reduced fan speed.
G. Heat Boost
Turns the Heater Boost On and
Off. Runs the unit at the full rated
wattage.
Operation

14
repeatedly, until the desired time
is displayed.
• The Display will display the
different times as it is adjusted.
Once the timer has begun,
pressing the button will display
the time remaining before the
unit turns Off.
!NOTE: The Sleep Timer can be
cancelled at any time by pressing
the button repeatedly until the
sleep timer displays nothing.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the whole
unit off and it will not come back on
without being reset. If the button
on the unit is pressed, Er2 will be
displayed on the unit. It can be
reset by turning the unit off at the
main disconnect panel and waiting
5 minutes before turning the unit
back on.
CAUTION: If you need to
continuously reset the heater, turn
the unit off at the main disconnect
panel and call technical support.
• Cycles through the different
preset light settings of the
unit, this includes different
combinations of colors of the
ame base and media lighting.
!NOTE: Two of the themes in
the cycle are a prism where the
unit cycles through a variety of
colors. Pressing the stops the
cycling and holds the unit on the
preferred color, indicated by a solid
circle. When the unit is on prism,
and is cycling through the colors,
a rotating circle will be displayed.
I. Brightness
Changes the Brightness of the
lights in the unit.
→ Adjusted by repeatedly pressing
the corresponding button on the
remote or the unit.
• Indicated by the second digit on
the Display changing to show:
"H" (high), and "L" (low).
J. Sleep Timer
The Sleep Timer can be set to
automatically shut off the replace
after a preset time (from 30 minutes
to 8 hours).
→ To set the timer press the
timer button on the remote,
Operation

15
Operation
Remote Control Battery
Replacement
To replace the Battery:
1. Slide battery cover open on the
remote control.
2. Correctly install one 3 Volt
(CR2032 [longer life] or
CR2025) Battery in the
battery holder.
3. Close the battery cover.
Battery must be recycled or
disposed of properly. Check with
your Local Authority or Retailer
for recycling advice in your area.
Maintenance
 WARNING: Disconnect power
and allow heater to cool before
attempting any maintenance or
cleaning to reduce the risk of
re, electric shock or damage to
persons.
!NOTE: The replace
should not be operated with an
accumulation of dust or dirt on or in
the unit, as this can cause a build
up of heat and eventual damage.
For this reason the heater must
be inspected regularly, depending
upon conditions and at a minimum
yearly intervals.
Partially Reective Glass
Cleaning
The partially reective glass is
cleaned in the factory during
the assembly operation. During
shipment, installation, handling,
etc., the partially reective glass
may collect dust particles; these
can be removed by dusting lightly
with a clean dry cloth.
To remove ngerprints or other
marks, the partially reective
glass can be cleaned with a damp
cloth. The partially reective glass
should be completely dried with
a lint free cloth to prevent water
spots. To prevent scratching, do
not use abrasive cleaners.

16
Fireplace Surface Cleaning
Use only a damp cloth to clean
painted surfaces of the replace.
Do not use abrasive cleaners.
Recycling
For electrical products
sold within the European
Community. At the end
of the electrical products
useful life it should not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice in your
country.
After Sales Service
Your product is guaranteed for one
year from the date of purchase.
Within this period, we undertake
to repair or exchange this product
free of charge (excluding lamps &
subject to availability) provided it
has been installed and operated in
accordance with these instructions.
Your rights under this guarantee are
additional to your statutory rights,
which in turn are not affected by
this guarantee.
Should you require after sales
service you should contact our
customer services the contact
number is located on your warrenty
card. It would assist us if you can
quote the model number, series,
date of purchase, and nature of the
fault at the time of your call. The
customer services help desk will
also be able to advise you should
you need to purchase any spares.
Please do not return a faulty product
to us in the rst instance as this may
result in loss or damage and delay
in providing you with a satisfactory
service.
Please retain your receipt as proof
of purchase.
Maintenance

17
Inhaltsverzeichnis
Beauftragen Sie stets einen
qualizierten Techniker oder
eine Wartungsagentur,um
diesen Kamin zu reparieren.
!HINWEIS: Prozesse und
Verfahren, die als wichtig erachtet
und deshalb speziell hervorgehoben
werden.
VORSICHT: Prozesse und
Verfahren, die zu einer Beschädigung
der Ausrüstung führen, wenn sie nicht
genau beachtet werden.
WARNUNG: Prozesse und
Verfahren, die ein Brandrisiko
darstellen und beim Benutzer
zu ernsthaften Verletzungen
mit möglicher Todesfolge führen
können, wenn sie nicht genau
beachtet werden.
Willkommen und herzlichen Glückwunsch ......18
WICHTIGE ANWEISUNGEN ..................19
Kurzanleitung.............................21
Montage des Kamins ......................22
Betrieb ..................................26
Wartung .................................30
DE

18
Willkommen und herzlichen Glückwunsch
Danke und herzlichen Glückwunsch, dass Sie sich für einen Elektrokamin
von Dimplex entschieden haben. Bitte beachten Sie, wo Modell- und
Seriennummer dieses Produkts angegeben werden. Sie müssen diese
nden können, falls Sie technische Unterstützung benötigen sollten.
Bitte lesen Sie diese Anleitung sorgfältig durch
und bewahren Sie sie sicher auf.
VORSICHT: Lesen Sie alle Anweisungen und Warnhinweise
vor der Montage sorgfältig durch. Bei einer Nichtbeachtung dieser
Anweisungen kann es zu Stromschlägen oder Bränden kommen,
unddie Garantie wird ungültig.
Modell- und
Seriennummernschild

19
Wichtige Sicherheitshinweise
Bei der Benutzung von elektrischen Anwendungen sollten die
grundlegenden Sicherheitsmaßnahmen befolgt werden, um
das Risiko für Feuer, Stromschlag oder die Verletzung von
Personen einschließlich Folgendem zu vermeiden:
Ist das Gerät beschädigt, sprechen Sie unverzüglich mit dem
Zulieferer vor der Montage und Inbetriebnahme.
Dieses Gerät nicht in der unmittelbaren Nähe eines Bades,
einer Dusche oder eines Schwimmbeckens benutzen.
Nicht draußen benutzen.
Platzieren Sie dieses Gerät nicht direkt ober- oder unterhalb
einer Steckdose oder eines Anschlusskastens.
WARNUNG : Das Gerät ist mit einem Warnsymbol versehen,
welches anzeigt, dass das Gerät nicht abgedeckt werden darf,
oder mit einem Etikett mit der Aufschrift „Nicht abdecken“.
Das Gitter des Wärmeabzugs oben am Gerät darf nicht
abgedeckt oder blockiert werden. Das Gerät kann ansonsten
überhitzen. Keine Materialien oder Textilien auf das Gerät
legen oder den Luftuss um das Gerät herum beeinträchtigen,
beispielsweise durch Vorhänge oder Möbelstücke, da dies
zu einer Überhitzung des Geräts führen und Brandgefahr
verursachen kann.
Ziehen Sie im Fall einer Störung des Geräts den Netzstecker.
Ziehen Sie den Netzstecker auch, wenn das Gerät für einen
längeren Zeitraum nicht genutzt wird. Das Stromkabel ist
auf der rechten Seite des Geräts, weg vom Wärmeabzug
unterhalb des Geräts zu platzieren.
Obwohl dieses Gerät den Sicherheitsstandards entspricht,
empfehlen wir, das Gerät nicht auf Hochor-Teppichen zu
benutzen oder auf Teppichen mit langen Fasern.
Dieses Gerät darf von Kindern ab 8 Jahren betrieben werden
sowie von Personen, die verminderte körperliche, sensorische
oder geistige Fähigkeiten haben oder keine Erfahrung oder
Wissen haben, wenn sie die Aufsicht für den sicheren Betrieb
eines Gerätes oder Anweisungen erhalten haben und die
potentiellen Gefahren verstehen. Kinder dürfen nicht mit dem
WICHTIGE ANWEISUNGEN

20
BITTE BEWAHREN SIE DIESE
ANWEISUNGEN SICHER AUF
Gerät spielen. Die Reinigung und Wartung darf nicht von
Kindern ohne Aufsicht erfolgen.
Kinder unter 3 Jahren sollten von dem Gerät ferngehalten
werden, es sei denn, sie sind stets beaufsichtigt. Kinder
ab 3 Jahre und weniger als 8 Jahre dürfen das Gerät nur
an- und ausschalten, wenn es in seiner vorgesehenen
Betriebsposition aufgestellt und montiert wurde und wenn
sie die Aufsicht für den sicheren Betrieb eines Gerätes oder
Anweisungen erhalten haben und die potentiellen Gefahren
verstehen. Kinder ab 3 Jahren und unter 8 Jahren dürfen
das Gerät nicht einstecken, regulieren oder reinigen oder
Wartungsarbeiten vornehmen.
Das Gerät muss so aufgestellt werden, dass der Stecker
zugänglich ist.
Wenn das Stromkabel beschädigt ist, muss es durch den
Hersteller oder Dienstleister oder eine ähnlich qualizierte
Person ersetzt werden, um Gefahren zu vermeiden.
VORSICHT: Um Gefahren aufgrund unbeabsichtigter
Zurücksetzung des Thermoauslösers zu vermeiden, darf
das Gerät nicht an ein externes Schaltgerät angeschlossen
werden, wie etwa ein Zeitschaltgerät oder an einen
Stromkreis, der regelmäßig von der Stromversorgung an- und
ausgeschaltet wird.
VORSICHT - Einige Teile dieses Produkts können sehr
heiß werden und Verbrennungen verursachen. Besondere
Vorsicht ist bei der Anwesenheit von Kindern und verletzlichen
Personen erforderlich.
VORSICHT
STROMSCHLAGGEFAHR
NICHT ÖFFNEN
ES BEFINDEN SICH KEINE TEILE IM GERÄT, DIE VOM
BENUTZER GEWARTET WERDEN KÖNNEN
WICHTIGE ANWEISUNGEN
