Dimplex OptiFlame Cheriton Deluxe Instruction Manual

OPERATING
INSTRUCTION MANUAL
08/54639/0 ISSUE 2 OCN -----
Dimplex Optiame Freestanding Fire
Models:
Cheriton Deluxe, CHT20X, Kingsley, KNG20X,
Castillo Deluxe, CST20X, Detroit Deluxe, DTT20X,
Zamora Deluxe, ZAM20X
This Product complies with all the Product Safety, Electromagnetic Compatibility and Environmental Standards.
This product is fully complient with the LVD, EMC, RoHS and Eco Design Directives.
EN: This product is only suitable for well insulated rooms or occasional use. DE: Dieses Produkt ist nur für gut isolierte Bereiche oder
gelegentliche Verwendung geeignet. FR: Ce produit convient uniquement à des endroits bien isolés ou pour un usage occasionnel.
IT: Questo prodotto è adatto solo per spazi ben isolati o per uso occasionale. ES: Este producto sólo es adecuado para espacios
bien aislados o un uso ocasional. NL: Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten of voor sporadisch gebruik.
PL: Produkt ten jest odpowiedni wyłącznie do dobrze odizolowanych miejsc lub do okazjonalnego użytku. NO: Dette produktet egner
seg kun for godt isolerte rom eller sporadisk bruk. RO: Acest produs este adecvat exclusiv spaţiilor bine ventilate sau utilizării ocazionale.
CZ: Tento výrobek je vhodný pouze do dobře izolovaných prostor nebo k příležitostnému použití. DK: Dette produkt er kun egnet til
velisolerede rum eller lejlighedsvis brug. PT: Este produto somente é adequado para espaços bem isolados ou uso ocasional. SE: Denna
produkt är endast avsedd för välisolerade utrymmen eller tillfällig användning. FI: Tämä tuote soveltuu ainoastaan hyvin eristettyihin tiloihin
tai satunnaiseen käyttöön. SK: Tento výrobok je vhodný len pre dobre izolované priestory alebo na občasné použitie. SI: Ta izdelek je
primeren le za dobro izolirane prostore ali za občasno uporabo. HR: Ovaj proizvod je pogodan samo za dobro izolirane prostore ili
povremenu upotrebu. HU: Ez a termék csak jól szigetelt terekhez vagy eseti használatra alkalmas

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY
AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the
risk of re, electrical shock and injury to persons, including the following:
If the appliance is damaged, check with the supplier before installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the appliance immediately below a xed socket outlet or connection box.
Do not use this heater if it has been dropped.
Do not use if there are visibe signs of damage to the heater.
Use this heater on a horizontal and stable surface, or x it to the wall, as applicable
Warning: This heater must not be used for anything other than normal domestic household
purposes in the country where it was purchased from a recognised commercial retailer.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge as long as they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without supervision.
Children of less than 3 years should be kept away from the appliance unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the appliance, provided
that it has been placed or installed in its intended normal operating position and they have been
given supervision or instruction concerning use of the appliance in a safe way and understanding the
hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.
WARNING: Choking may be caused by swallowing small loose fuel bed media accidently.
Keep them away from children all the time.
Warning: This appliance must be earthed.
The use of an extension lead or multi-plug adaptor is not advised when connecting this product
to the mains. Connection through these devices could lead to a risk of overloading, overheating
and even re at the extension lead or adaptor due to inadequate connection quality.
This heater must be used on an alternating current supply (~) only and the voltage marked on
the heater must correspond to the supply voltage.
Do not use this appliance in series with a thermal control, a program controller, a timer or any
other device that switches on the heat automatically, since a re risk exists when the appliance
is accidentally covered or displaced.
DO NOT use the appliance on deep pile carpets or the long hair type of rugs, or less than
750mm (30”) away from any overhanging surface. Keep combustible materials such as drapes
and other furnishings clear from the front, sides and rear of the heater. Do not use appliance
to dry your laundry.
In the event of a fault, unplug the appliance. Unplug the appliance when not required for long
2

The re incorporates a ame eect, which can be used with or without heating, so that the comforting
eect may be enjoyed at any time of the year.
A fan heater can provide heating in cold weather. A distance of 1 metre (3 feet) must be maintained
between the front of the heater and any surrounding furniture, overhanging curtains or other
obstructions.
Always ensure that the appliance is sitting on a level surface.
Before connecting the appliance, check that the supply voltage is the same as that stated on the
appliance.
Please note: Used in an environment where background noise is very low, it may be possible to hear a
sound which is related to the operation of the ame eect. This is normal and should not be a cause for
concern.
Thank you for choosing a Dimplex electric re.
General Information
periods.
The appliance must be positioned so that the plug is accessible. If the supply cord is damaged
it must be replaced by the manufacturer or service agent or a similarly qualied person in order
to avoid a hazard. Keep the supply cord away from the front of the appliance.
Warning: Do not use this heater in small rooms when they are occupied by persons not
capable of leaving the room on their own, unless constant supervision is provided.
Warning: To reduce the risk of re, keep textiles, curtains, or any other ammable material a minimum
distance of 1m from the air outlet.
Caution: Some parts of this product can become very hot and cause burns. Particular attention has
to be given where children and vulnerable people are present. This instruction can be found at www.
dimplex.co.uk
Warning: In order to avoid overheating, do not cover the heater. Do not place material or garments
on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or
furniture, as this could cause overheating and a re risk.
The appliance carries the Warning Symbol shown here on the right.
This symbol indicates that it must not be covered. Do not cover or obstruct the heat outlet grill
in any way. This is located above the ame window on the appliance.
Warning: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance
must not be supplied through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and o by the utility.
Dimplex Optiame Inset Fire
Models: CHT20X, KNG20X, CST20X, DTT20X, ZAM20X
3

This heater must be used on an AC ~ supply only and the voltage marked on the appliance must
correspond to the supply voltage. Before switching on, please read the safety warnings and
operating instructions. Please retain this user’s guide for future reference
Your electric fire is designed to be used in front of a fireplace opening or placed against a wall
anywhere in the room.
When installing this appliance in front of an existing fireplace opening, we recommend that an
open chimney or flue is blocked off. We recommend that non-flammable materials are used to
block o the chimney ue. This procedure is important for the ecient operation of the heating
unit and will also reduce heat loss up the chimney.
At the rear of the appliance, two adjustable feet are provided for levelling the appliance where the
re is being installed on an uneven surface. You can adjust the foot by removing the two screws
and retting the foot in the required position.
The appliance is supplied with screws and rawl plugs to provide extra stability to prevent it from
accidentally being knocked over. The rawl plug supplied is suitable for use in block walls (other
wall types may need alternative rawl plugs).
To place the appliance ush to a wall please follow these instructions:
1. Drill holes using a 6mm drill as illustrated in Fig. 1.
2. Insert plugs and screws. Do not fully tighten screws, leave the head of the screw at least 10mm
away from the wall.
3. Place the keyhole slots on the appliance over the screws and lower into position.
If the unit is not to be place ush to the wall, the screws can be left protuding further than 10mm
and longer screws can be used as required.
Installation Instructions
With electronic room temperature control.
Heat Output 230V 240V
Nominal Heat Output PNom 1.7 1.8 kW
Minimum Heat Output Pmin 0.9 1.0 kW
Maximum Continuous Heat Output Pmax 1.7 1.8 kW
Auxiliary Electricity Consumption
In Standby Mode PNom 0.02 0.02 W
Technical Information
Model No: Cheriton Deluxe, CHT20X, Kingsley, KNG20X, Castillo Deluxe, CST20X, Detroit Deluxe, DTT20X,
Zamora Deluxe, ZAM20X
4

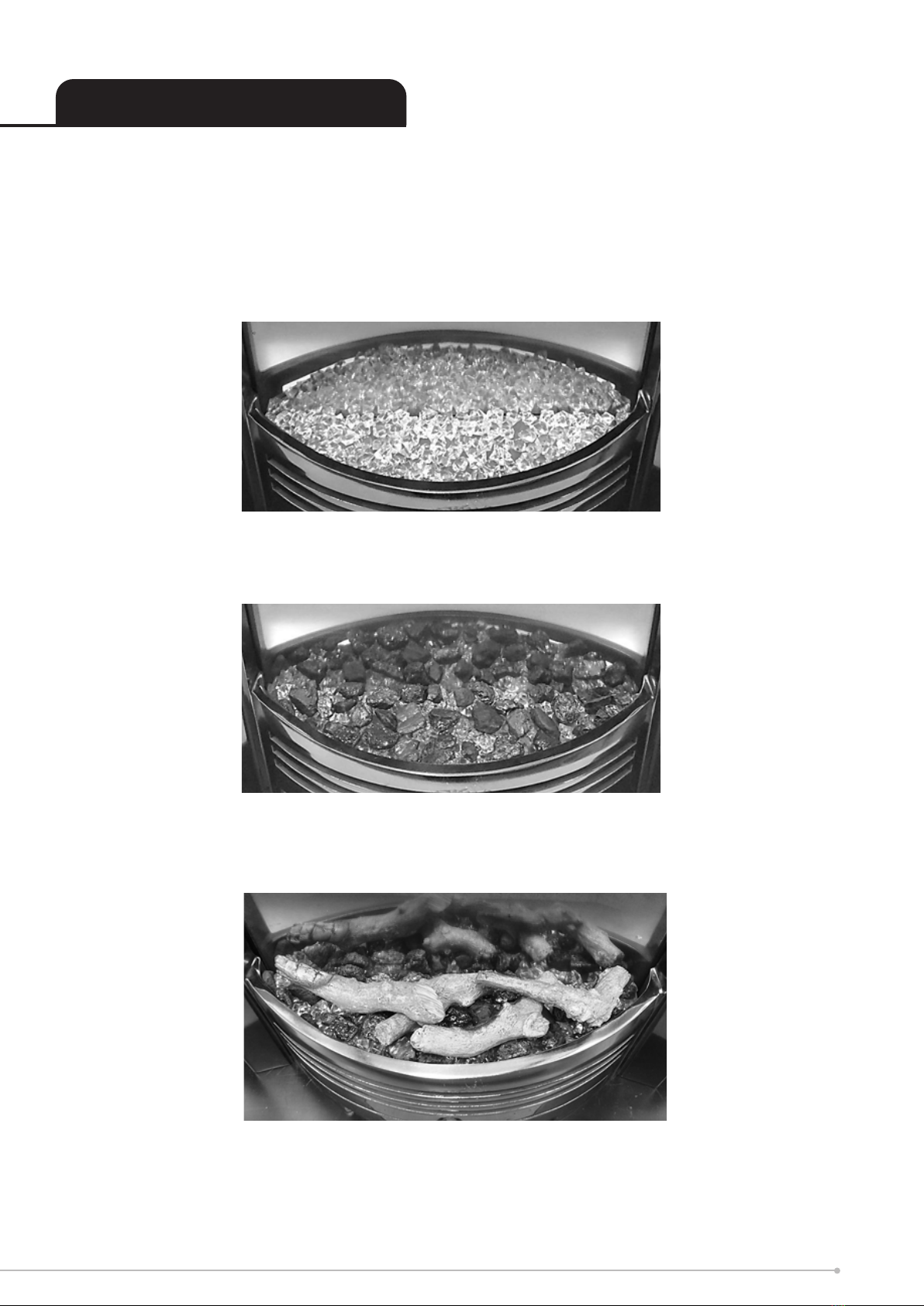

Fuelbed Assembly
Models are supplied with a range of fuelbed media, which you can arrange to your preference.
(Cheriton Deluxe is supplied with coal only) .
Loose coals, crystals, pebbles and logs are packed separately within the carton. When the ap-
pliance is installed, place the fuelbed material on the fuelbed and arrange to your liking. We rec
ommend the following step, in order to acheive the optimal eect.
1. Place crystals on fuelbed, covering the top surface of the fuelbed. These will provide a glowing
embers eect, when the ame eect is operating. See Fig.2 below.
Fig. 2
2. Add coal or pebbles on top of the crystals. Allow for spaces in between coal/pebbles, for the
acrylic crystals (glowing embers). See Fig.3 below.
Fig. 3
3. For product with logs, arrange the logs on top, to your preference. Fig.4 below displays a
representation for log arrangement. You may wish not to use all of the logs provided.
Fig. 4
WARNING: Choking may be caused by swallowing small loose fuel bed media accidently. Keep them
away from children all the time.
5

WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY
AND/OR DAMAGE.
Please Note: The Remote Control is packaged with the bag this Instruction Manual is stored in. The battery for the remote
is already installed, a protective plastic slip must be removed from the remote control before operation.
Operating The Product
Operating Instructions - See Figure 5
Icon Display Funtion Description
A-Power /
Standby
Press Once to turn the product ‘ON’.
Press a second time to put the product into ‘STANDBY’
(When returning from ‘STANDBY’ mode the product will return to previous settings unless
the product has been unplugged, in which case it will reset to factory settings)
B
F1 / F2 /
F3
‘FLAME EFFECT’ button this turns the ame effect ON or OFF independently of the
products other features.
This Button will change the brightness of the ame effect. There are 3 brightness
settings shown as F1, F2, F3.
PFlame
Pulsing
This setting is set by pressing the Flame Up button once more after F3. This will cause the
brightness of the ame effect to cycle randomly, creating a ickering effect.
-Off
If the ame effect is turned off, but the heater is ON, the display will activate and remain
active to read the set temperature and indicate if the product is on LOW HEAT/ HIGH
HEAT/ COOL BLOW.
CSleep
Timer
Press multiple times to change the ‘SLEEP TIMER’ in 0.5 hr increments from 0.5
hr to 8.0 hr before turning off. The remaining time on the ‘SLEEP TIMER’ displays.
(This icon is Green in colour)
D
‘HEAT’ button cycles the unit sequentially through the 4 settings: LOW HEAT, HIGH HEAT,
COOL BLOW and OFF. The heat setting will be indicated by an icon in the display.
When the ame effect is ‘ON’ the display will turn off after 5 seconds, however if the
heater is being used independently of the ame effect. The low heat or high heat icon
will appear continuously in the display.
Low
Heat
This setting will run the heater at ‘LOW HEAT’ this setting will be indicated by the ‘LOW
HEAT’ icon and the letters ‘LO’ appearing in the display. To adjust the temperature
setting the Temp Down or Temp Up buttons described below must be used.
(This icon is Orange in Colour)
High
Heat
This icon in the display indicates ‘HIGH HEAT’ this setting will be indicated by the ‘HIGH
HEAT’ icon and the letters ‘HI’ appearing in the display. To Adjust the temperature setting
the Temp Down or Temp Up buttons described below must be used.
(This icon is Red in Colour)
Cool
Blow
This icon in the oating display indicates ‘COOL BLOW’ this setting will be indicated by
the ‘COOL BLOW’ icon and the letters ‘CB’ appearing in the display.
(This icon is Blue in Colour)
- Off This switches the heater and blower ‘OFF’, no icon will be displayed in the display. Note the blower will run for 5-10 seconds after being turned off, this is to ensure the product
cools down safely.
E30 Temp Up
Press multiple times to increase the heater temperature in 20C increments. The highest
temperature that can be set 300C.
When High Heat is selected, the letters ‘HH’ appear in the display, this means the heat
will remain ON continusously and is not controlled by the thermostat.
F18
Temp
Down
Press multiple times to lower the heater temperature in 20C increments. The lowest
temperature that can be set is180C.
G-Flame
Colour Press to turn ON/OFF the coloured accents within the flame effect.
H-Top-light
Fuel Bed Press to turn ON/OFF the Top light illuminating the fuel bed.
6

Electronic Thermostat
This product is tted with an electronic thermostat. When setting the required temperature, using
the ‘temperature setting switch’ (Switch 3), the chosen setting will appear on the on board display.
This will ash for 3 seconds, then the current room temperature will be shown on the on board
display
Optimal Product Setup
When the product is switched on, the default brightness setting is F3, with all the eects operating.
However, if the product is in a bright room, it is recommended that the toplights are switched o.
If the product is operating in a darker room, it is recommended that the toplights are switched on,
and the brightness eect is changed to Pulsing.
Please note: The product will maintain the most recent brightness settings if switched to standby.
If the product is unplugged at the wall, it will revert to factory setting.
Thermal Safety Cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating.
This can happen if the heat outlet was restricted in any way. If the cut-out operates, unplug the
heater from the socket outlet and allow approximately 10 minutes before reconnecting. Before
switching the heater back on remove any obstruction that may be restricting the heat outlet, then
continue normal operation.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a switch that is regularly switched on and o by the utility.
User Modes:
Mode Name /Discription Action (Actions cannot be input by remote control)
Disable/Enable Heat Options
on product and remote control
Hold both Heat Cycle ( ) and Temp Up ( ), on the product, for 5 seconds,
when the heater has been disabled the display will read “--” and beep. To
enble heat repeat this action.
Disable/Enable Heat Options
on product only
Hold both Heat Cycle ( ) and Temp Down ( ), on the product, for 5 seconds,
when the heater has been disabled the product will beep. This will disable
heat control functions on the product only. To enble heat repeat this action.
Note: the remote control will still be able to operate heat functions.
Operating Instructions (On Board Controls)- See Figure 6
Icon Description
Press Once to turn the product ‘ON’.
Press a second time to put the product into ‘STANDBY’
(When returning from ‘STANDBY’ mode the product will return to previous
settings unless the product has been unplugged, in which case it will reset to
factory settings)
‘HEAT’ switch cycles the unit sequentially through the 4 settings: LOW HEAT,
HIGH HEAT, COOL BLOW and OFF. The heat setting will be indicated by an icon
in the display See table on previous page for further details.
Press multiple times to increase the heater temperature in 20C increments. The
highest temperature that can be set 300C.
When High Heat is selected, the letters ‘HH’ appear in the display, this means
the heat will remain ON continusously and is not controlled by the thermostat.
Press multiple times to lower the heater temperature in 20C increments. The
lowest temperature that can be set is180C.
7

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE
HEATER.
Cleaning
Before commencing cleaning, unplug the heater and allow it to cool.The surfaces of the heater
should be given an occasional wipe with a dry soft cloth. Do not use detergents, abrasive cleaning
powder or furniture polish as this can damage the surface nish of the product.
The glass screen should be cleaned carefully with a chamois leather. Do not use proprietary
cleaners.
To remove any accumulation of dust or u, the soft brush attachment of a vacuum cleaner
should occasionally be used to clean the outlet grille of the fan heater located under the canopy.
To clean the fuel eect, remove the coal/pebbles and wash in warm water. The plastic tray should
be wiped clean with a damp cloth. When dry replace the coal/pebbles and arrange for best eect.
Led Lamps
This re is tted with LED (Light Emitting Diode) lamps in place of traditional incandescent
bulbs. These generate the same light levels as traditional bulbs, but use a fraction of the energy
consumed. These lamps cannot be replaced.
CAUTION: Assembly, installation and repair of this heater must be carried out by Dimplex or its
authorised agent.
CAUTION: We recommend that you arrange for this heater to be checked annually for safety by
a qualied electrician.
After Sales Service
Your product is guaranteed for one year from the date of purchase. Within this period, we
undertake to repair or exchange this product free of charge provided it has been installed and
operated in accordance with these instructions. Your rights under this guarantee are additional
to your statutory rights, which in turn are not aected by this guarantee.
CAUTION: Do not use if the heater’s mains power lead is damaged. Such use may cause a hazard.
If damaged, the mains power lead must be replaced by the manufacturer or its authorised dealer.
Should you require after sales information or assistance with this product please go to www.
dimplex.co.uk and select “Customer Support” or ring our help desk on 0344 879 3588 (UK) or
01 842 8222 (R. O. I.). Spare parts are also available on the web site. Please retain your receipt
as proof of purchase.
Recycling
At the end of the electrical products useful life it not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice in your area.
Additional Information
Maintenance
8

Fig. 1
639
682
194
424
536 A
B
Fig. 5
B
E
H
A
C
D
F
G
Fig. 6
9

10

11

Tel: [phone]
Republic of Ireland Tel: [phone]
www.dimplex.co.uk
Dimplex Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF
© Glen Dimplex Heating and Ventilation.
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen
Dimplex Heating and Ventilation.
