Dimplex RLG25 User manual

7214560100R06
Revillusion®25"Electric Log Set
Model RLG25 (6909760159)
Owner’s Manual
IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting
to install or use the Revillusion® Log Set. Always comply with the warnings and
safety instructions contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products,
visit www.dimplex.com

2 www.dimplex.com
Table of Contents
SAVE THESE INSTRUCTIONS
Conventions used in this manual:
!NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in
damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose
the user to the risk of re, serious injury, or death.
Welcome ............................................................3
IMPORTANT INSTRUCTIONS .......................4
Installation .........................................................6
Operation ...........................................................9
Maintenance .................................................... 11
Warranty ..........................................................12
Technical Support ............................................14

3
Welcome
Thank you for purchasing a Revillusion® Log Set by Dimplex. Please use our
convenient online registration page to record your model and serial numbers for
future reference at:
www.dimplex.com/register
CAUTION: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock or re hazard
and will void the warranty.
Serial Number
Model Number
MOD
MODEL / CAT NO
SERIAL NO
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
In order to better serve you, please have your model and serial numbers
ready or register your product online before calling (see above).

4 www.dimplex.com
Basic Precautions
When using any electrical appliance,
basic precautions should always be
followed to reduce the risk of fire,
electric shock, and injury to persons.
These precautions include:
① Read all instructions before using
the log set.
DANGER: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully
cover or obstruct the front of the log
set.
② Extreme caution is necessary
when any heater is used by or near
children or invalids and whenever
the unit is left operating and
unattended.
③ Always unplug the log set when it is
not in use.
④ Do not operate the log set with
a damaged cord or plug or after
the log set malfunctions, has
been dropped, or damaged in any
manner. Contact Technical Service
at 1-888-346-7539.
⑤ Do not use this log set outdoors.
⑥ This log set is not intended for use
in bathrooms, laundry areas, and
similar indoor locations. Never
locate the log set where it may
fall into a bathtub or other water
container.
IMPORTANT INSTRUCTIONS
⑦ Do not run power cord under
carpeting. Do not cover cord with
throw rugs, runners, or similar
coverings. Do not route cord under
furniture or appliances. Arrange
cord away from traffic area and
where it will not be tripped over.
⑧ To disconnect the log set, turn the
control to Off, then remove plug
from outlet.
⑨ Connect the power cord to a
properly grounded outlet only.
⑩ Do not insert or allow foreign
objects to enter any ventilation or
exhaust opening as this may cause
an electric shock or fire, or damage
the log set. To prevent a possible
fire, do not block air intakes or
exhaust in any manner. Do not use
on soft surfaces, like a bed, where
openings may become blocked.
⑪ This log set has hot and arcing or
sparking parts inside. Do not use
it in areas where gasoline, paint,
or flammable liquids are used or
stored.
⑫ Use this log set only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock, or
injury to persons.
⑬ Always plug the log set directly
into a wall outlet/receptacle. Never
use with an extension cord or
relocatable power tap (outlet/power
strip).
⑭ Do not burn wood or other materials
on the log set.

5
Special Precautions
WARNING: Remote control contains a
small battery. Keep away from children.
If swallowed, seek medical attention
immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types as it
may explode or leak causing injury.
CAUTION: Do not open the unit. There
is a risk of electric shock. There are no
user-serviceable parts inside.
CAUTION: Always use a qualied
technician or service agency to repair
this unit.
IMPORTANT INSTRUCTIONS
FCC Compliance
CAUTION: This unit has been tested
and found to comply with the limits
for Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This unit
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the unit OFF and ON, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the unit
and the receiver.
• Connect the unit into an outlet on a
circuit di󰀨erent from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This unit complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This unit may not cause
harmful interference, and (2) this unit must
accept any interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved
by the party responsible for compliance
could void the user’s authority to
operate this equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
Installation
The Revillusion® Log Set offers an alternative to wood or gas fireplaces. It can
give your existing fireplace new life or transform a cabinet or media center of your
own into a stunning focal point.
Specifications
Electrical
Volts: 120 V, 60 Hz
Amps: 12.5 A
Watts: 1500 W
Wiring: Plug-In
Bulb Type: LED
Approvals
Dimensions
Width: 25.6" (635 mm)
Height: 19.0" (483 mm)
Depth: 13.0" (330 mm)
Weight: 12 lbs (5.4 kg)
Operating Temperature Range:
-4o to 104o F (-20oto 40o C)
NOTE: A 15 Amp, 120 Volt circuit
is required. A dedicated circuit is
preferred, but not essential in all cases.
A dedicated circuit will be required if,
after installation, the circuit breaker
trips or the fuse blows on a regular
basis when the heater is operating.
Additional appliances on the same
circuit may exceed the current rating of
the circuit breaker.
WARNING: Electrical outlet wiring
must comply with local building codes
and other applicable regulations to
reduce the risk of re, electric shock, or
injury to persons.
!
Placement
1. The Revillusion log set does not
require venting. For optimal viewing,
it is recommended to install the unit
in an opening with the following
minimum dimensions:
A. 26" (660 mm) wide,
B. 22" (559 mm) high
C. 15" (381 mm) deep.
2. Make sure there is clearance for air
circulation beneath the unit.
3. If installing in an existing fireplace
opening, seal all drafts and vents
with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
A
B
C

7
Installation
Assembly
1. Place the log set into position.
a. Lift the log set by holding the
sides of the heater box for
stability. Do not lift by gripping
the logs or the grate front legs.
b. If installing the unit in a carpeted
area, place a one-piece, solid,
flat surface under the unit. Make
sure that both of the grate feet
rest securely on this surface.
CAUTION: Each of the Realogs™
contain LEDs that pulse and glow.
Handle the log set carefully. They
are fragile and can crack or break if
dropped.
2. Place the ember mat in front and
below the grate.
3. Connect the wires from the ember
mat to the connector on the right
side of the grate box.
4. Install the Mirage™ Flame Panel by
inserting the bottom edge into the
tabs between the back log and grate
log assemblies.
The painted side should be at the
back and the smooth side to the
front.
Position the screen so that the
cutout in the middle aligns with
the center tab. Start on one end
to insert the screen in all the way
across. When in place, the screen
should be centered and slightly
curved.
5. Plug the unit directly into a wall
outlet.

8 www.dimplex.com
Grounding Instructions
This product must be grounded. If it
should malfunction or break down,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor and a
grounding plug.
The plug must be plugged into an
appropri ate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
DANGER: Improper connec tion of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualied electrician or
serviceman if you are in doubt as
to whether the product is properly
grounded. Do not modify the plug
provided with the product – if it will
not t the outlet, have a proper outlet
installed by a qualied electrician.

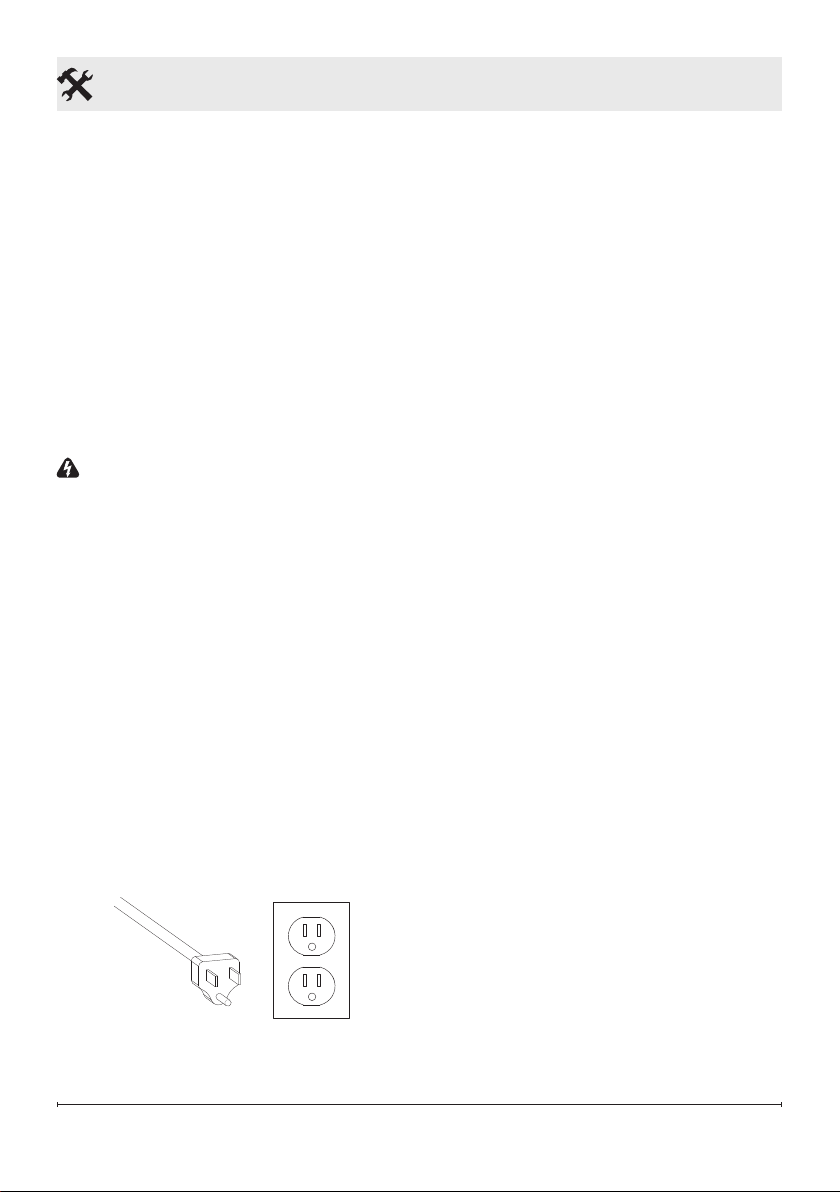

This product is for use on a nominal
120-volt circuit and has a grounding
plug that looks like the plug in the
following figure. Make sure that the
product is connected to an outlet
having the same con figuration as the
plug. No adapter should be used with
this product.
Installation

9
Manual Control
The manual controls for the Revillusion
are located on the right-front leg of the
log grate.
Power
Press to turn the flame effect on
and activate the previous heat
setting (Off, Low, or High). Press
again to put the unit in standby
mode.
Heat
• Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
NOTE: After the heater is
switched o󰀨, the fan will continue on
for 60 seconds before turning o󰀨.
The log LEDs remain On when the
heater is ON and the ame e󰀨ect is
O󰀨.
Color Themes
Press multiple times to change
the LED lights from: flame base
yellow, flame base blue, flame
!
Operation
base yellow with yellow 360
LEDs, flame base blue with 360
LEDs. (Feature is active only
when the flame effect is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.
Remote Control
The replace is supplied with a multi-
function remote control.
The remote control has a range of
approximately 30ft (9m). To operate
correctly, the remote control must be
pointed toward the front of the unit.
Power
Press to activate the current
standby state (On/Off).
• Standby State On
Press to turn everything Off.
Press again to active the
previous flame effect state.
• Standby State Off
Press to activate the previous
flame effect state.

10 www.dimplex.com
- If the flame effect was On, the
previous heat setting will be
activated (High, Low, or Off).
- If the flame effect was Off, the
previous heat setting will be
activated (High or Low).
Press again to turn everything
O󰀨.
Flame
Press to light the back log, grate
log, and ember mat, and start the
flame effect.
Heat
Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
NOTE: After the heater is
switched o󰀨, the fan will continue on
for 60 seconds before turning o󰀨.
The log LEDs remain On when the
heater is ON and the ame e󰀨ect is
O󰀨.
!
Operation
360oLight
Press multiple times to change
the LEDs on the sides and back
of the unit from natural yellow
flickering to yellow solid to white
flickering to white solid to Off.
(Feature is active only when the
flame effect is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.
Color Themes
Press multiple times to change
the flame base colors from
Yellow to Blue to Off. (Feature is
active only when the flame effect
is On.)

11
General Maintenance
Inspect the log set regularly, depending
upon conditions, and at a minimum
yearly intervals. Remove dust and
clean the logs, mat, grate, and base as
required.
Except for installation and cleaning
described in this manual, an authorized
service representative should perform
any other servicing.
WARNING: Disconnect power and
allow heater to cool before attempting
any maintenance or cleaning to reduce
the risk of re, electric shock, or injury.
Clean Logs and Base
The log set should not be operated with
an accumulation of dust or dirt on or in
the unit, as this can cause a build up of
heat and eventual damage.
Dust and vacuum the log set as
needed. Use a damp cloth and a mild
detergent to clean painted surfaces
of the fireplace. Never use abrasive
cleaners.
Maintenance
Clean Mirage™Flame Panel
The Mirage™ Flame Panel is cleaned
in the factory during the assembly
operation. During shipment, installation,
handling, etc., the screen may collect
dust particles; these can be removed
by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks,
clean the Mirage™ Flame Panel with
a damp cloth. Never use abrasive
cleaners. Dry the screen completely
with a lint free cloth to prevent water
spots.
Battery Replacement
To replace the battery:
1. Push the release tab toward the
center and slide the battery cover
open.
2. Install 3V Lithium battery in the
battery holder. The positive (+) side
of the battery faces up.
3. Close the battery cover.
OPEN
CR2025/2032
RELEASE
OPEN
OPEN ---- OUVRIR
PUSH ---- POUSSER
RELEASE ---- DÉGAGER
Lithium Battery--Batterie au lithium
PUSH
Battery must be recycled or
disposed of properly. Check with
your Local Authority or Retailer for
recycling advice in your area.

12 www.dimplex.com
Warranty
Two Year Limited Warranty
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex cassette and to newly
purchased Dimplex replace surrounds
(mantels) and trims. This limited warranty
applies only to purchases made in any
province of Canada except for Yukon
Territory, Nunavut, or Northwest Territories or
in any of the 50 States of the USA (and the
District of Columbia) except for Hawaii and
Alaska. This limited warranty applies to the
original purchaser of the product only and is
not transferable.
Products excluded from this limited warranty
Logset assemblies are only covered for
transportation to the end user and will not
be covered if damage occurs during normal
operation and/or maintenance. Products
purchased in Yukon Territory, Nunavut,
Northwest Territories, Hawaii, or Alaska are
not covered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without warranty
or condition of any kind (including, without
limitation, any implied warranties or conditions
of merchantability or tness for a particular
purpose) and the entire risk of as to the
quality and performance of the products is
with the purchaser, and in the event of a
defect the purchaser assumes the entire cost
of all necessary servicing or repair.
What this limited warranty covers and for how
long
Products, other than replace surrounds
(mantels) and trims, covered by this limited
warranty have been tested and inspected
prior to shipment. Subject to the provisions
of this warranty, Glen Dimplex Americas
Ltd. (herein called Glen Dimplex Americas)
warrants such products to be free from
defects in material and workmanship for a
period of 2 years from the date of the rst
purchase of such products as follows: (a) a
repair or replacement warranty on defective
products or parts, including in-home services,
for the rst year following the date of rst
purchase; and (b) thereafter, a replacement
of parts warranty on defective products and
parts (with no in-home services) for the 1 year
period commencing on the rst anniversary
of rst purchase and ending on the second
anniversary of the date of rst purchase.
Glen Dimplex Americas replace surrounds
(mantels) and trims covered by this limited
warranty have been tested and inspected
prior to shipment and, subject to the
provisions of this warranty, Glen Dimplex
Americas warrants such products to be free
from defects in material and workmanship
for a period of 1 year from the date of rst
purchase of such products. Warranty services
do not include in-home services.
The limited 2 year warranty period for
products other than replace surrounds
(mantels) and trims and the limited 1 year
warranty period for replace surrounds
(mantels) and trims also applies to any
implied warranties that may exist under
applicable law. Some jurisdictions do not
allow limitations on how long an implied
warranty lasts, so the above limitation may
not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Glen Dimplex Americas or its authorized
service representatives) or otherwise altered.
This limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under this
limited warranty
Defects must be brought to the attention of
Technical Service at 1-888-346-7539. Please
have proof of purchase, catalogue/model and
serial numbers available when calling. Limited

13
Warranty
warranty service requires a proof of purchase
of the product.
What Glen Dimplex Americas will do in the
event of a defect
In the event a product or part covered by this
limited warranty is proven to be defective in
material or workmanship during (i) the 2 year
limited warranty period for products other
than replace surrounds (mantels) and trims,
and (ii) the 1 year limited warranty period for
surrounds (mantels) and trims, you have the
following rights:
• Limited warranty service will be performed
solely by dealers or service agents of Glen
Dimplex Americas authorized to provide
limited warranty services.
• For products (other than surrounds
(mantels) and trims) for the period
ending at midnight on the rst
anniversary of the date of rst
purchase, Glen Dimplex Americas will in
its sole discretion either repair or replace
such defective product or part without
charge. If Glen Dimplex Americas is
unable to repair or replace such product
or part, or if repair or replacement is not
commercially practicable or cannot be
timely made, Glen Dimplex Americas may,
in lieu of repair or replacement, choose to
refund the purchase price for such product
or part. This limited warranty entitles the
purchaser to on-site or in-home warranty
services. Accordingly, Glen Dimplex
Americas will be responsible for all labour
and transportation costs associated with
the repair or replacement of the product
or part except as follows: (i) charges may
be levied for travel costs incurred to travel
to the purchaser’s site where the product
is located if the purchaser’s site is beyond
30 miles (48 km) from the closest service
depot of Glen Dimplex Americas dealer
or service agent; and (ii) the purchaser
is solely responsible for providing clear
access to all serviceable parts of the
product.
• For products (other than surrounds
(mantels) and trims) for the period
commencing at 12:01 a.m. on the day
after the rst anniversary of the rst
purchase and ending at midnight on the
second anniversary of the date of rst
purchase,this limited warranty entitles the
purchaser to replacement parts only without
charge. If Glen Dimplex Americas is unable
to replace such part, or if replacement is
not commercially practicable or cannot
be timely made, Glen Dimplex Americas
may, in lieu of replacement, choose to
refund the purchase price for such part.
The purchaser shall not be entitled to
on-site or in-home warranty services.
The purchaser shall be responsible for all
expenses incurred for the removal of the
part and installation of the replacement part
including, without limitation, all shipping
costs and transportation costs to and from
the authorized dealer’s or service agent’s
place of business and all labour costs.
Such costs shall not be the responsibility of
Glen Dimplex Americas.
• For surrounds (mantels) and trims for
the period ending at midnight on the
rst anniversary of the date of rst
purchase, Glen Dimplex Americas will in
its sole discretion either repair or replace
such defective surrounds (mantels) and
trims or part thereof without charge. If
Glen Dimplex Americas is unable to
repair or replace such product or part, or if
repair or replacement is not commercially
practicable or cannot be timely made,
Glen Dimplex Americas may, in lieu of
repair or replacement, choose to refund
the purchase price for such product or
part. The purchaser shall not be entitled to
on-site or in-house services. The purchaser
is responsible for all expenses incurred
for repair or replacement of such product
or part including, without limitation, all
shipping costs and transportation costs to
and from the authorized dealer’s or service
agent’s business and all labour costs. Such

Warranty
costs shall not be the responsibility of Glen
Dimplex Americas.
• On-site or in-home services not provided
under this warranty may be performed
at the purchaser’s specic request and
expense at Glen Dimplex Americas then-
current rates for such services.
What Glen Dimplex Americas and its dealers
and service agents are also not responsible
for:
IN NO EVENT WILL GLEN DIMPLEX
AMERICAS, OR ITS DIRECTORS,
OFFICERS, OR AGENTS, BE LIABLE
TO THE PURCHASER OR ANY THIRD
PARTY. WHETHER IN CONTRACT, IN
TORT, OR ON ANY OTHER BASIS, FOR
ANY INDIRECT, SPECIAL, PUNITIVE,
EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE
ARISING OUT OF OR IN CONNECTION
WITH THE SALE, MAINTENANCE, USE,
OR INABILITY TO USE THE PRODUCT,
EVEN IF GLEN DIMPLEX AMERICAS
OR ITS DIRECTORS, OFFICERS, OR
Technical Support
Technical and troubleshooting support, as well as
a list of replacement parts can be found on:
www.dimplex.com/customer_support.
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL GLEN
DIMPLEX AMERICAS, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE
FOR ANY DIRECT LOSSES, COSTS,
OR DAMAGES THAT EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO THE
PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic legal
rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The
provisions of the United Nations Convention
on Contracts for the Sale of Goods shall not
apply to this limited warranty or the sale of
products covered by this limited warranty.
1-888-346-7539 | www.dimplex.com
In keeping with our policy of continuous product
improvement, we reserve the right to make
changes without notice.
© 2020 Glen Dimplex Americas

7214560100R06
Ensemble de bûches RevillusionMD 25 po.
Modéle RLG25 (6909760159)
Manuel d'utilisation
CONSIGNES DE SÉCURITÉ IMPORTANTES : Lire le présent manuel avant
d’essayer d’installer ou d’utiliser l'ensemble de bûches RevillusionMD. Toujours
respecter les avertissements et suivre les consignes de sécurité comprises dans
le présent manuel an de prévenir les blessures ou les dommages matériels.
Pour découvrir la gamme complète de
produits Dimplex, visitez www.dimplex.com
MD

2www.dimplex.com
Table des matières
CONSERVER CES INSTRUCTIONS
Références utilisées dans le manuel :
!NOTE : Marches à suivre et techniques considérées su󰀩samment importantes pour
qu'on les souligne.
MISE EN GARDE : Marches à suivre et techniques dont le non-respect pourrait
causer des dommages matériels.
AVERTISSEMENT : Marches à suivre et techniques qui, si elles ne sont pas bien
respectées, exposeront l’utilisateur à des risques d’incendie, de blessure grave ou de
décès.
Bienvenue et félicitations ..................................3
Instructions importantes....................................4
Installation.........................................................6
Utilisation ..........................................................9
Entretien.......................................................... 11
Garantie ..........................................................12
Service d’assistance technique.......................14

3
Numéro de série
Numéro de modèle
MOD
MODEL / CAT NO
SERIAL NO
Bienvenue et félicitations
Merci de votre achat de l'ensemble de bûches RevillusionMD de Dimplex. Veuillez
utiliser notre page d'inscription en ligne pour inscrire votre modèle et vos numéros
de série à des ns de référence ultérieure à l'adresse
www.dimplex.com/register
MISE EN GARDE: Lire attentivement toutes les consignes et tous les avertissements
avant de procéder à l'installation. Le non-respect de ces consignes pourrait entraîner
un risque de choc électrique ou d'incendie et annulera la garantie.
IL N'EST PAS NÉCESSAIRE D'ALLER AU MAGASIN
Des questions à propos de l'utilisation ou du montage? Besoin d'information sur les pièces?
Besoin d'information à propos d'un produit sous une garantie du fabricant?
Communiquer avec nous à : www.dimplex.com/customer_support
Pour le dépannage et le Service d'assistance technique
OU Sans frais au 1-888-346-7539
An que nous puissions mieux vous servir, veuillez avoir votre
modèle et votre numéro de série à portée de main ou veuillez inscrire v
otre produit en ligne avant de téléphoner (voir ci-dessus).
ARRÊT

4www.dimplex.com
INSTRUCTIONS IMPORTANTES
Précautions de base
Lorsqu’un appareil électrique est utilisé,
il est important de toujours prendre
des précautions de base pour réduire
les risques d’incendie, de décharges
électriques et de blessures. Ces
précautions incluent les suivantes :
① Lire toutes les instructions avant
d'utiliser l'ensemble de bûches.
DANGER : Dans certaines conditions,
des températures anormalement
élevées peuvent être générées. Ne
pas couvrir ni obstruer partiellement
ou complètement la partie frontale de
l'ensemble de bûches.
② Faire preuve d’une grande
prudence lorsque lorsque tout
appareil de chauffage est utilisé
par des enfants ou des personnes
handicapées, ou s’il est en marche
et laissé sans surveillance.
③ Toujours débrancher l'ensemble de
bûches lorsqu’il n’est pas utilisé.
④Ne pas se servir de l'ensemble
de bûches si la fiche ou le cordon
sont endommagés, si l'ensemble
de bûches fonctionne mal ou s'il
a été échappé ou endommagé
de quelque manière que ce soit.
Communiquer avec le service
technique au 1 888 346-7539.
⑤ Ne pas utiliser l'ensemble de
bûches à l’extérieur.
⑥ Cet ensemble de bûches n’est pas
conçu pour être utilisé dans une
salle de bain, une salle de lavage
ou autres endroits semblables
à l’intérieur. Ne jamais installer
l'ensemble de bûches à un endroit
où il pourrait tomber dans une
baignoire ou dans tout autre
réservoir d’eau.
⑦Ne pas faire passer le cordon
d'alimentation sous un tapis. Ne
pas couvrir le cordon de carpettes,
de tapis de couloir ou autres
recouvrements de sol. Ne pas faire
passer le cordon sous des meubles
ou des appareils. Éloigner le cordon
des endroits passants et éviter de
le placer là où il pourrait provoquer
la chute d’une personne.
⑧ Pour débrancher l'ensemble de
bûches, éteindre l’appareil, puis
retirer la fiche de la prise de
courant.
⑨ Brancher le cordon d'alimentation
dans une prise de courant mise à
terre seulement.
⑩ Ne pas introduire ou permettre
l'introduction de corps étrangers
dans la prise d’air de ventilation ou
la bouche de sortie d’air, car cela
peut occasionner des décharges
électriques, provoquer un incendie
ou endommager l'ensemble de
bûches. Pour éviter un incendie,
ne pas obstruer l’entrée ou la sortie
d’air d’aucune façon. Ne pas utiliser
sur des surfaces instables, comme
un lit, où les ouvertures risquent de
se bloquer.
⑪ Cet ensemble de bûches contient
des pièces qui chauffent et
produisent un arc électrique ou
des étincelles. Ne pas utiliser dans
des endroits où de l’essence, de
la peinture ou d'autres produits
inflammables sont utilisés ou
entreposés.

5
INSTRUCTIONSIMPORTANTES
MISE EN GARDE
RISQUE DE DÉCHARGE ÉLECTRIQUE NE PAS OUVRIR
AUCUNE PIÈCE DONT L'ENTRETIEN PEUT ÊTRE EFFECTUÉ
PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR
⑫ Se servir de l'ensemble de bûches
uniquement de la façon décrite
dans le présent manuel. Toute
autre utilisation non recommandée
par le fabricant pourrait causer
un incendie, des décharges
électriques ou des blessures.
⑬Toujours brancher l'ensemble de
bûches directement dans une
prise de courant murale. Ne jamais
utiliser de rallonge ou de barre
d'alimentation portative.
⑭ Ne pas brûler de bois ni d’autres
matériaux dans l'ensemble de
bûches.
Précautions spéciales
AVERTISSEMENT : La télécommande
contient une petite pile. Garder hors de
la portée des enfants. Si elle est avalée,
consulter immédiatement un médecin.
AVERTISSEMENT : Ne pas installer
la pile à l'envers, la recharger, la mettre
au feu ou l'utiliser avec des piles usées
ou un autre type de pile, car cela risque
d'entraîner une explosion ou une fuite
pouvant causer des blessures.
MISE EN GARDE : Ne pas ouvrir
l'ensemble de bûches. Risque de
décharges électriques. Aucune pièce
dont l'entretien peut être e󰀨ectué par
l'utilisateur ne se trouve à l'intérieur.
MISE EN GARDE : Toujours recourir
aux services d’un technicien qualié ou
d’une entreprise de services d'entretien
pour faire réparer cet appareil.
Conformité à la FCC
MISE EN GARDE : Cet appareil a été testé
et jugé conforme aux limites autorisées pour
un dispositif numérique de classe B, en vertu
de la partie 15 des règlements de la FCC.
Ces limites visent à o󰀨rir une protection
raisonnable contre les interférences nuisibles
dans une installation résidentielle. Cet
appareil génère, utilise et peut émettre de
l’énergie radioélectrique. S’il n’est pas installé
et utilisé selon les instructions, il peut causer
des interférences nuisibles à la réception des
signaux de radio ou de télévision, ce qui peut
être vérié en mettant le commutateur de
l’appareil en position de marche, puis d’arrêt.
Nous recommandons à l’utilisateur de tenter
d’éliminer les interférences à l’aide d’une ou
de plusieurs des mesures suivantes :
• Changer l’orientation ou l’emplacement de
l’antenne réceptrice.
• Augmenter la distance entre l'appareil et le
récepteur.
• Brancher l’appareil dans une prise sur un
circuit autre que celui où le récepteur est
branché.
• Consulter le détaillant ou un technicien radio/
télévision expérimenté pour obtenir de l’aide.
L'appareil est conforme à la partie 15 des
règlements de la FCC. L’utilisation de l’appareil
est assujettie aux deux conditions suivantes :
(1) L’appareil ne doit pas causer d’interférences
nuisibles. (2) L’appareil doit accepter toute
interférence captée, y compris les interférences
susceptibles de causer un fonctionnement
indésirable.
MISE EN GARDE DE LA FCC : Les
changements ou les modications n’ayant
pas fait l’objet d’une approbation expresse
de la partie responsable de la conformité
auront pour e󰀨et d’annuler le droit
d’utilisation de l’appareil par l’utilisateur.

6www.dimplex.com
Installation
L'ensemble de bûches RevillusionMD offre une solution rechange aux foyers au
bois ou au gaz. Il peut redonner vie à votre foyer existant ou transformer un
caisson ou un centre multimédia en un point d'attraction percutant.
Fiche technique
Alimentation électrique
Volts : 120 V, 60 Hz
Ampères : 12,5 A
Watts : 1500 W
Câblage : Prêt à brancher
Type d'ampoule : DEL
Approbations
Dimensions
Largeur : 25,6 po (635 mm)
Hauteur : 19 po (483 mm)
Profondeur : 13 po (330 mm)
Poids : 12 lb (5,4 kg)
Plage de températures :
-4° à 104° F (-20° à 40° C)
NOTE: Un circuit de 15 ampères
et de 120 volts est requis. Un circuit
spécialisé est préférable, mais pas
essentiel dans tous les cas. Un
circuit spécialisé sera requis si,
après l’installation, le disjoncteur
se déclenche ou si le fusible
saute régulièrement pendant le
fonctionnement. L’ajout d’appareils
sur le même circuit risque d’excéder la
puissance nominale du disjoncteur.
AVERTISSEMENT : An de réduire
les risques d’incendie, de décharges
électriques ou de blessures, le câblage
électrique doit être conforme au
Code du bâtiment local et aux autres
règlements en vigueur.
!
Emplacement
1. Aucune ventilation n’est requise
pour l'ensemble de bûches
Revillusion. Pour une apparence
optimale, il est recommander
d'installer le foyer dans une
ouverture ayant les dimensions
minimales suivantes :
A. Largeur de 26 po (660 mm),
B. Hauteur de 22 po (559 mm)
C. Profondeur de 15 po (381 mm).
2. S'assurer qu'un dégagement est
prévu pour la circulation de l’air
sous le foyer.
3. Si le foyer est installé dans une
ouverture existante, sceller toutes
les ouvertures de ventilation à
l’aide de matériaux d’isolation non
fibreux afin d’empêcher tout débris
de la cheminée de tomber sur le
foyer. Ne pas installer le foyer dans
une ouverture existante exposée à
l'humidité.
A
B
C
