Dimplex THWG XLF50 User manual

Installation and User’s Guide
7215520100R04
Models
XLF50
XLF60
XLF74
XLF100
Share the warmth and leave a review.
dimplex.com/sharethewarmth
Your input helps to create even
better products and experiences.
We value your feedback!
IMPORTANT SAFETY INFORMATION:
Read this manual first before attempting to install or use this electric fireplace. Always comply with the
warnings and safety instructions contained in this manual to prevent personal injury or property damage.
To view the full line of Dimplex products, visit www.dimplex.com

2www.dimplex.com
Welcome ....................................................................3
IMPORTANT INSTRUCTIONS ................................................4
Technical Specifications .......................................................6
Electrical Rating .............................................................6
UL Listing ..................................................................6
Product Dimensions ..........................................................6
Package Contents ............................................................7
Installation...................................................................9
Placement..................................................................9
Installation Instructions.......................................................10
Electrical Installation.........................................................12
Heater Hardware Disconnect ..................................................14
Mirrored Glass Installation ....................................................15
Media Arrangement .........................................................15
Front Glass Installation .......................................................16
Operation ..................................................................17
General Operation ..........................................................17
Hidden Touch Controls.......................................................17
Remote Operation ..........................................................17
Resetting the Temperature Cutoff Switch.........................................19
Maintenance ................................................................20
Remote Control Battery Replacement ...........................................20
Cleaning ..................................................................20
Servicing ..................................................................20
Troubleshooting .............................................................21
Wiring Diagrams .............................................................22
Warranty ...................................................................23
Conventions used in this manual:
!NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re,
serious injury, or death.
Table of Contents

3
NO NEED TO RETURN TO THE STORE
If you have questions regarding the operation of this product or if you require
service, before returning this product to the place of purchase,
Contact us at: www.dimplex.com/support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
Please have your model number and product serial number ready.
Welcome
Thank you and congratulations for choosing to purchase a Dimplex replace.
Please carefully read and save these instructions.
WARNING: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers for future reference. Model and serial numbers can be found on the
label located behind the front glass of your replace.
Model and serial
number label
Model MOD
Serial Number

4www.dimplex.com
When using any electrical appliance, basic
precautions should always be followed to reduce
the risk of re, electric shock, and injury to persons.
These precautions include:
①Read all instructions before using this electric
fireplace.
② This fireplace is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. The trim
around the heater outlet becomes hot during
heater operation. Keep combustible materials,
such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m) from
the front of the fireplace.
DANGER: High temperatures may be generated
under certain abnormal conditions. Do not
partially or fully cover orobstruct the front of the
fireplace.
③ Extreme caution is necessary when the fireplace
is used by or near children or people with
disabilities and whenever the fireplace is left
operating and unattended.
④Young children should be supervised to ensure
that they do not play with the appliance.
⑤The appliance is not intended for use by young
children or infirmed persons without supervision.
⑥ Do not operate the fireplace after it malfunctions,
has been dropped, or damaged in any manner.
Disconnect power at the service panel and have
the fireplace inspected by a reputable electrician
before using.
⑦ Do not use this fireplace outdoors.
⑧Never locate the fireplace where it may fall into a
bathtub or other water container.
⑨ To disconnect the heater, turn the unit off with
the controls and turn off the power to the heater
circuit at the main disconnect panel.
⑩Do not locate the heater immediately below a
fixed socket-outlet.
⑪Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock, fire, or damage to the
fireplace.
⑫ To prevent a possible fire, do not block air
intakes or exhaust in any manner.
⑬All electrical heaters have hot and arcing or
sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are
used or stored.
⑭Use this heater only as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or
injury to persons.
⑮ Do not burn wood or other materials in this
electric fireplace.
⑯ Do not strike the fireplace glass.
⑰ Always use a qualified technician or service
agency to repair this fireplace.
⑱ Disconnect all power coming to the fireplace at
the main service panel before performing any
cleaning or maintenance.
⑲ When transporting or storing the fireplace, keep
it in a dry place, free from excessive vibration,
and store to avoid damage.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS

5
FCC CAUTION: Any changes or modications
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate this equipment.
IMPORTANT INSTRUCTIONS
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including
nickel which is known to the State of California to
cause cancer. For more information, visit
www.P65Warnings.ca.gov
WARNING:
Remote control contains small batteries.
Keep away from children. If swallowed, seek
medical attention immediately.
Do not install battery backwards, charge, put
in re or mix with used or other battery types -
may explode or leak causing injury.

6www.dimplex.com
UL Listing
File Number: E71416
Model Reference
XLF50 690963XXXX
XLF60 691000XXXX
XLF74 690969XXXX
XLF100 690970XXXX
*XXXX indicates a non-safety critical suffix.
Electrical Rating
Voltage: 120 V (3-Wire) or 240 V (4-Wire)
Power: 1500W at 120V, 2500W at 240V

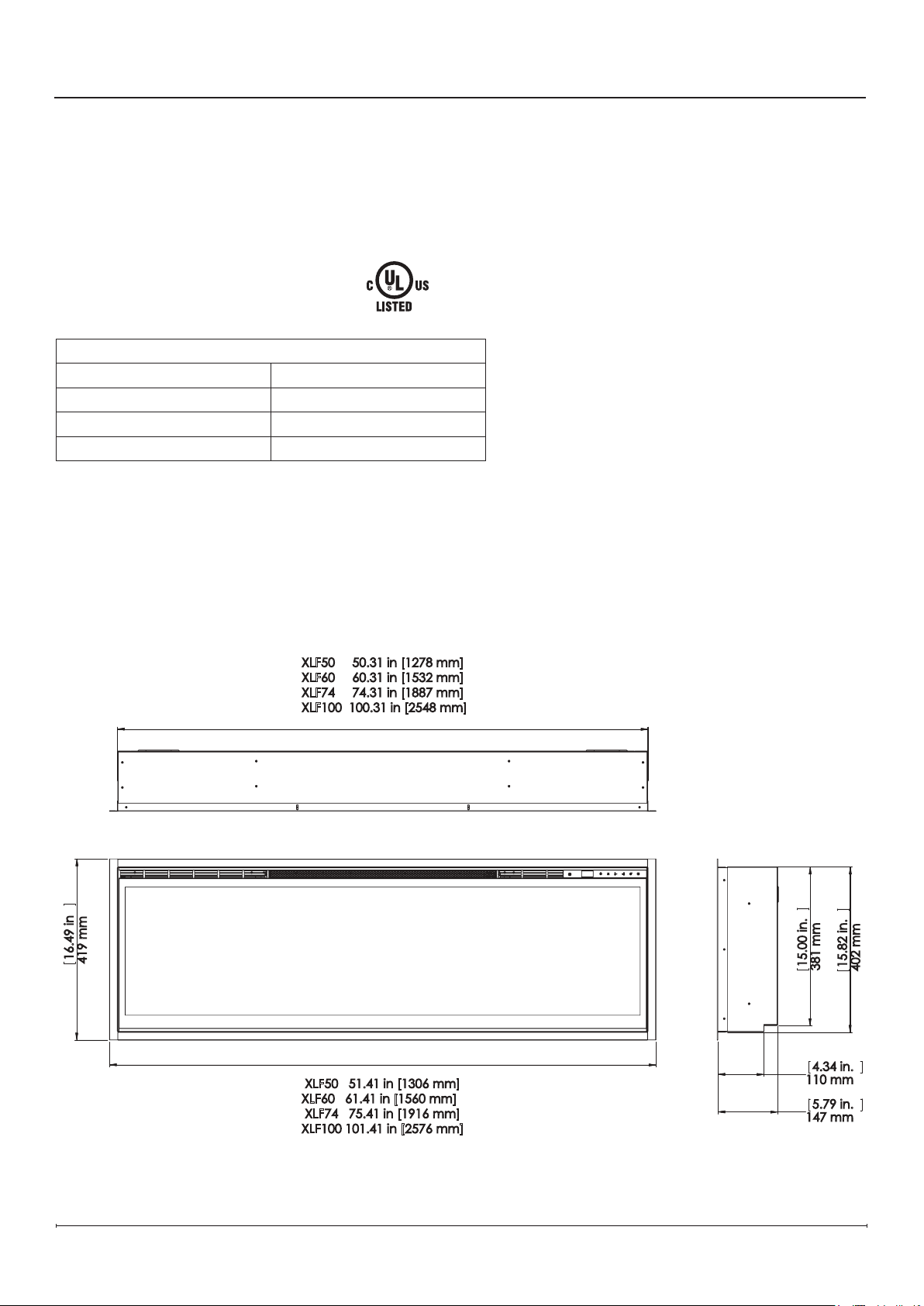

Product Dimensions
Technical Specifications
Figure 1
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF50 50.31 in [1278 mm]
XLF60 60.31 in [1532 mm]
XLF74 74.31 in [1887 mm]
XLF100 100.31 in [2548 mm]
XLF50 51.41 in [1306 mm]
XLF60 61.41 in [1560 mm]
XLF74 75.41 in [1916 mm]
XLF100 101.41 in [2576 mm]
Figure1

7

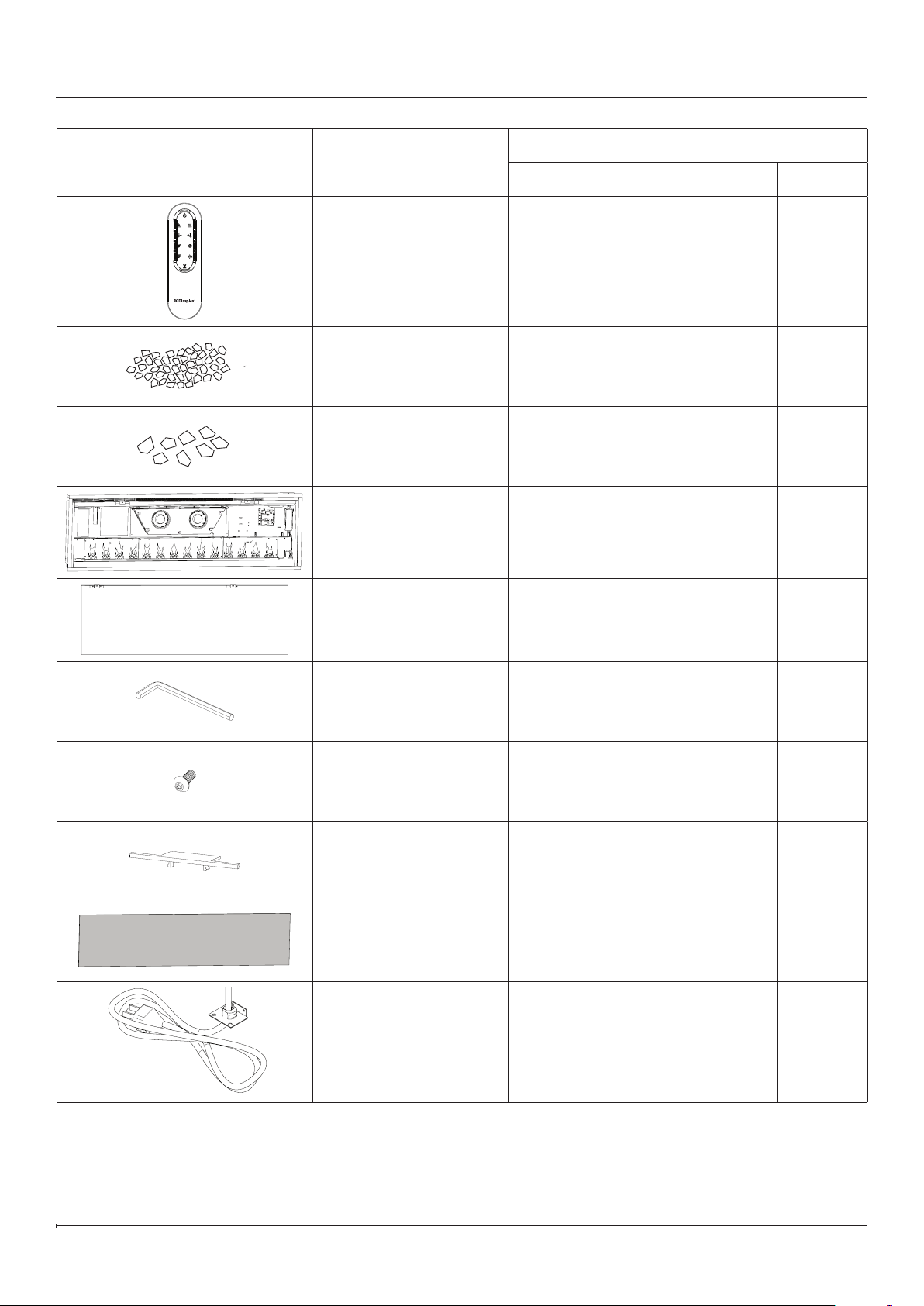

Package Contents
Image Description Quantity
XLF50 XLF60 XLF74 XLF100
Remote Control 1 1 1 1
Bag of Medium Acrylic
Crystals 3456
Large Acrylic Crystals 12 14 18 24
Firebox 1 1 1 1
Front Glass 1 1 1 1
Hex Key 1 1 1 1
Black Screws
(M4X10, button head) 2244
Screw Covers 2244
Mirrored Glass 1 1 1 1
Power Cord 1 1 1 1

8www.dimplex.com
Package Contents
Image Description Quantity
XLF50 XLF60 XLF74 XLF100
Owner’s Manual
IMPORTANT SAFETY INFORMATION:
Read this manual rst before attempting to install or use this electric heater. Always
comply with the warnings and safety instructions contained in this manual to prevent
personal injury or property damage.
To view the full line of Dimplex products, visit www.dimplex.com
7215520100R03
Share the warmth and leave
a review.
dimplex.com/sharethewarmth
Your input helps to create even
better products and experiences.
We value your feedback!
Models
XLF50
XLF60
XLF74
XLF100
User’s and Installation
Guide 1111
Do not dispose of the suction cup
after installation. Keep it in a secure
location as it will be helpful for
maintenance and service of the unit.
Suction Cup 0 1 1 1
1 ½" Wood Screws 4444
Bubble Level 1 1 1 1
Twist-on
Wire Connectors 4444
Wire Ties 2 2 2 2
*Package contents are subject to change

9
Placement
!NOTE: It is recommended that the bottom of the unit be mounted between 5" (13cm) and 40" (102cm) from the
ground to maintain an optimized viewing angle of the ame.
WARNING: The top of the replace must be installed a minimum of 24" (61cm) from the ceiling.
The replace must be installed a minimum of 5" (13cm) from the ground.
Installation in a Bathroom
If this unit is installed in a bathroom, it must be protected by a GFCI receptacle or circuit. If a receptacle is used, it
must be readily accessible.
This electrical appliance is NOT watertight. To prevent electric shock, it must be installed as to prevent water from
entering unit, or installed away from showers, tubs, etc. Never locate replace where it may fall into a bathtub or
other water container.
Installation
Installation Recommendations for
Overhanging Objects
For overhanging temperature-sensitive objects, such
as a television, a mantel, or artwork, always follow the
recommendations provided by its manufacturer for
installation over a heater.

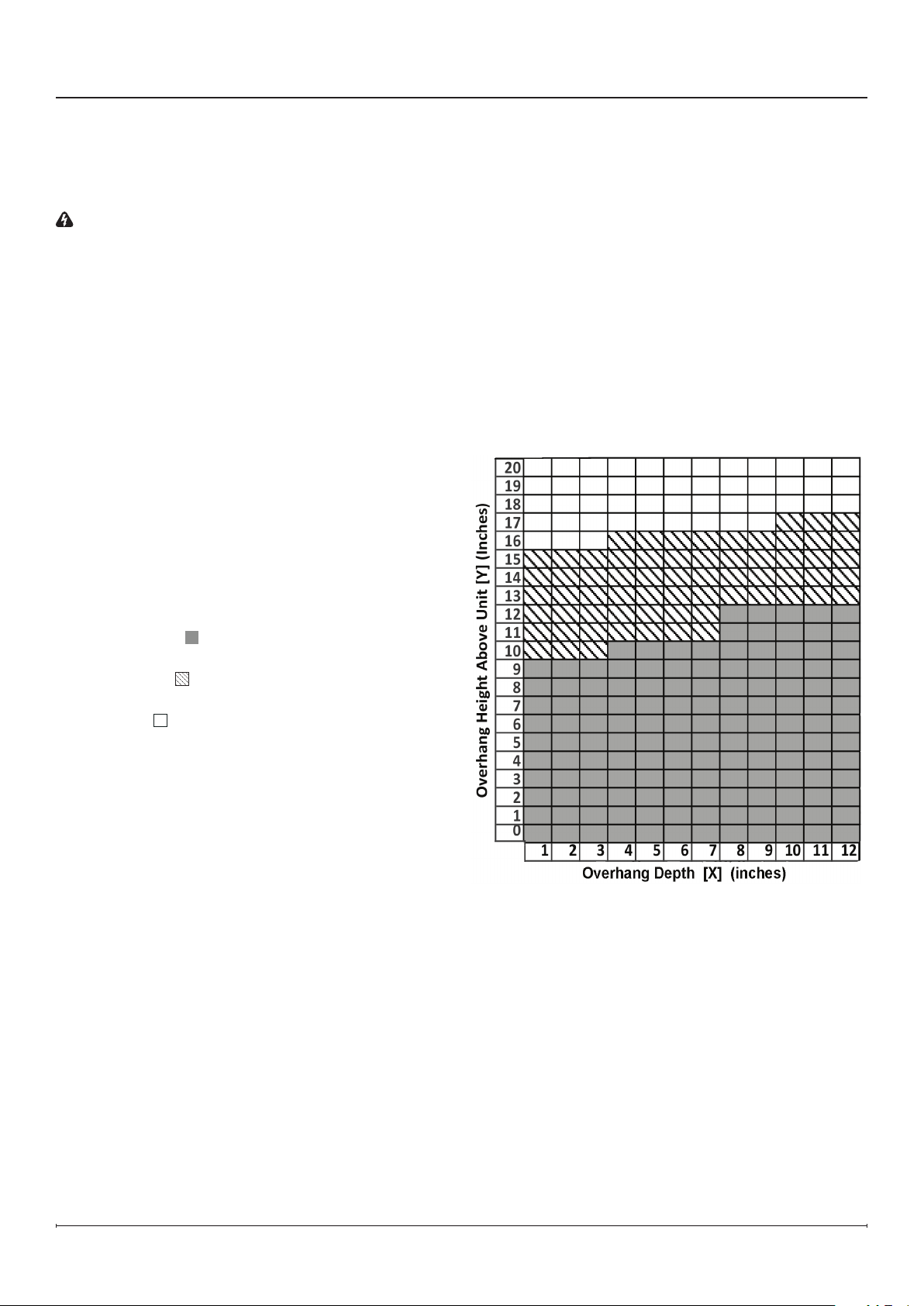

Figure 2 provides the overhang clearance
recommendations for the fireplace. Areas above the
fireplace are marked as follows:
•Solid gray box ( ) is subject to temperatures greater
than 65°C (149° F).
•Hatched box ( ) is subject to temperatures greater
than 40°C (104° F).
•Clear box ( ) is subject to temperatures less than
40°C (104° F).
Figure2

10 www.dimplex.com
Installation Instructions
!NOTE: Two people are required for installation.
1. Prepare a wall with a framed opening, following the dimensions shown in Figure 3. The replace can either be
installed partially-recessed (2x4 frame) or ush-mounted (2x6 frame).
CAUTION: Decorative nishing material (such as brick) should be limited to ½" (13 mm) overhang to ensure
adequate ow of heated air out of the rebox area.
CAUTION: This replace is NOT load-bearing. Ensure the opening for the replace is framed in such a way that
the weight of the building materials will not create pressure on the top of the replace.
!NOTE: For 2"x4" construction where the unit will be partially recessed, it is recommended to use XLFTRIM kit
(sold separately) to accomodate the protruing portion of the replace.
Figure3
Installation
2” x 6”
5 1/2" (14.0 cm)
16"
(40.6 cm)
2” x 4”
3 1/2" (9.0 cm)
XLF50: 50 5/8" (128.7 cm)
XLF74: 74 5/8" (189.7 cm)
XLF100: 100 5/8" (255.7 cm)
XLF60: 60 5/8" (154.0 cm)
Figure4
!NOTE: Wiring entry is located on the right side at
the bottom of the rebox. Plan the framing to allow
routing of the power cable to this location.
2. If a trimless installation is desired, remove the
factory trim by removing the screws that secure it.
3. Ensuring a minimum of 18" (47 cm) of slack, route
the supply power wire through a cable clamp (not
included) and in the opening in the back of the unit.
(Figure 4)
4. Lift the rebox into the opening in the frame using the
handles on the back of the replace.
5. Using a bubble level (supplied) ensure that the
replace is level within the framing. Adjust as required.
Grounding
Screw
Cable Clamp

11
Installation
Mounting Holes
Main Control Board
Flame Panel
6. Drive four supplied mounting screws through the four mounting holes located on the inside surface of the
replace chassis, into wall studs. (Figure 5)
7. Complete the wiring according to instructions in the Electrical Installation section (pages 12–13).
8. Complete the installation using the instructions in the following sections: Mirrored Glass Installation (page15),
Arranging Media (page15), Front Glass Installation (page16).
Figure5

12 www.dimplex.com

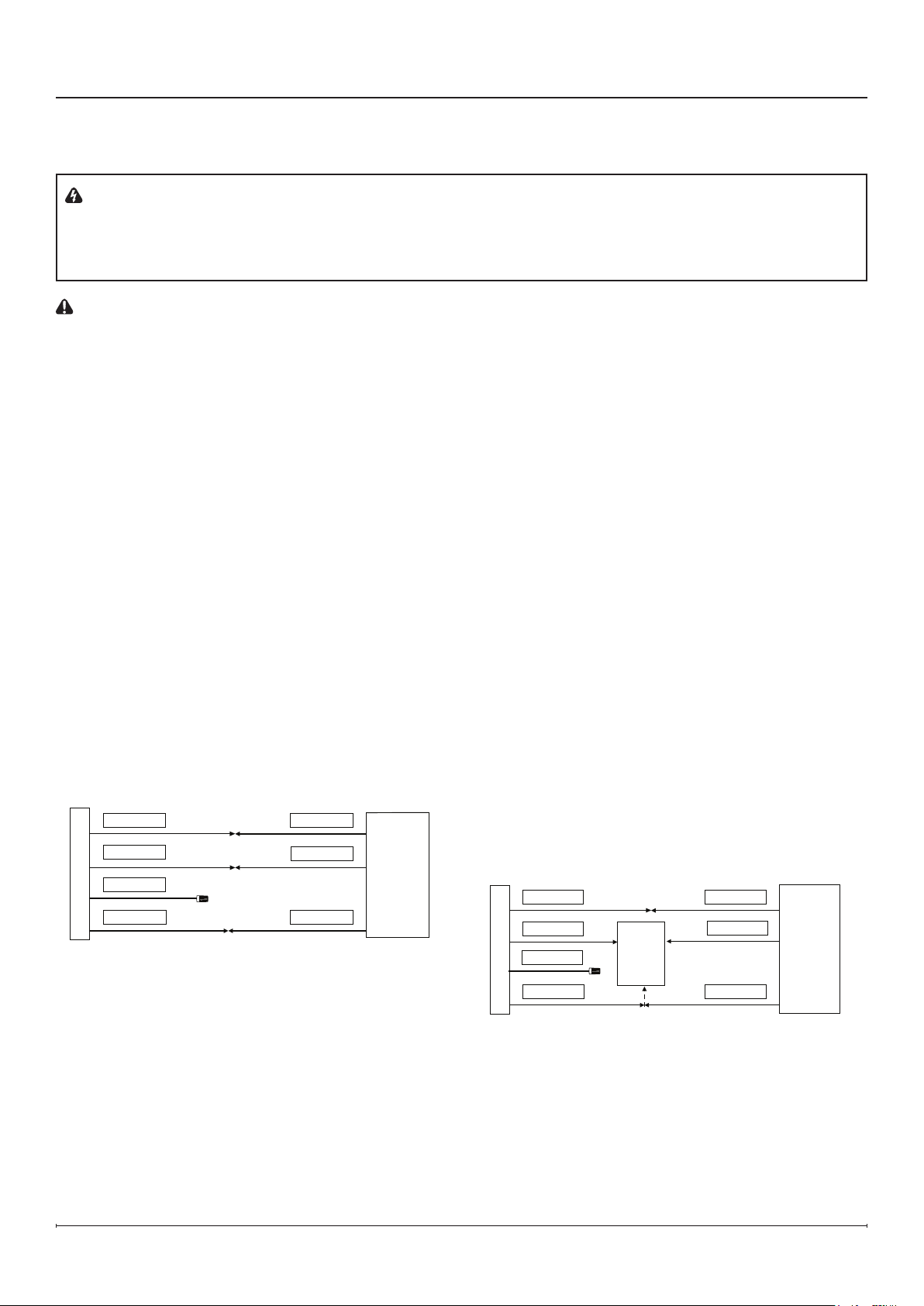

Electrical Installation
Installation
120V Installation—Wall Switch
!NOTE: Use a single pole, single throw (On/Off) wall
switch that is rated for a minimum of 15 amps.
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live
wire from the main power through the wall switch,
ensuring all live connections are connected with a
wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply with a wire connector.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector
or attach the grounding wire to the cover with the
provided grounding screw, by placing the wire in
between screw and lock washer and tighten.
6. Ensure all wire connections are tight and that wires
are secured a with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
120 V Hardwire Installation
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live
wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply with a wire connector.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector
or attach the grounding wire to the cover with the
provided grounding screw, by placing the wire in
between screw and lock washer and tighten.
6. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
WARNING:
The installation of the electric replace must comply with the applicable Local and/or National Electrical Codes
and utility requirements.
Use the appropriate wire to meet local and national electrical codes for rated power consumption.
CAUTION: A dedicated, properly fused 15 Amp circuit is recommended, rated for the appropriate voltage (120V,
240V). A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular
basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of
the circuit breaker.
Figure 6
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
FIREPLACE JUNCTION BOX
240 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
GREEN
-
G
GREEN
-
G
GREEN
-
G
GREEN
-
G
YELLOW- L2
120 V Hardwire Installation
Figure 7
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
BLACK – L1
WHITE – N
BLACK – L
WALL
SWITCH
RED
–
L2
GREEN
-
G
GREEN
-
G
YELLOW- L2
120 V Wall Switch Installation

13
Power Cord Installation
WARNING: Power cord option is only suitable for
120V installations.
1. Remove the 3 screws that secure the pre-installed
hardwire plate.
2. Connect the black L1 wire from the unit to the black
wire of the plug kit.
3. Connect the white N wire from the replace to the
white wire from the plug kit.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect green G wire from the replace to the green
wire from the plug kit.
6. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
7. Secure the power cord’s pre-installed cover plate
using the screws removed when removing the
hardwire plate. The previously removed electrical
cover plate can be disposed of.
WARNING: This heater is not intended for use with
an extension cord. Plug the cord directly into an
appropriate grounded receptacle.
240V Hardwire Installation
You will need a 4-wire240 V supply (L1, L2, Neutral, and
Ground).
1. Connect the black L1 wire from the unit to the L1 wire
from the power supply with a wire connector.
2. Connect the yellow L2 wire from the unit to the L2
wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply.
4. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector or
attach the grounding wire.
5. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
Installation
Figure 8
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
FIREPLACE JUNCTION BOX
240 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
GREEN
-
G
GREEN
-
G
GREEN
-
G
GREEN
-
G
YELLOW- L2
240 V Hardwire Installation
Figure 9

14 www.dimplex.com
HT EN

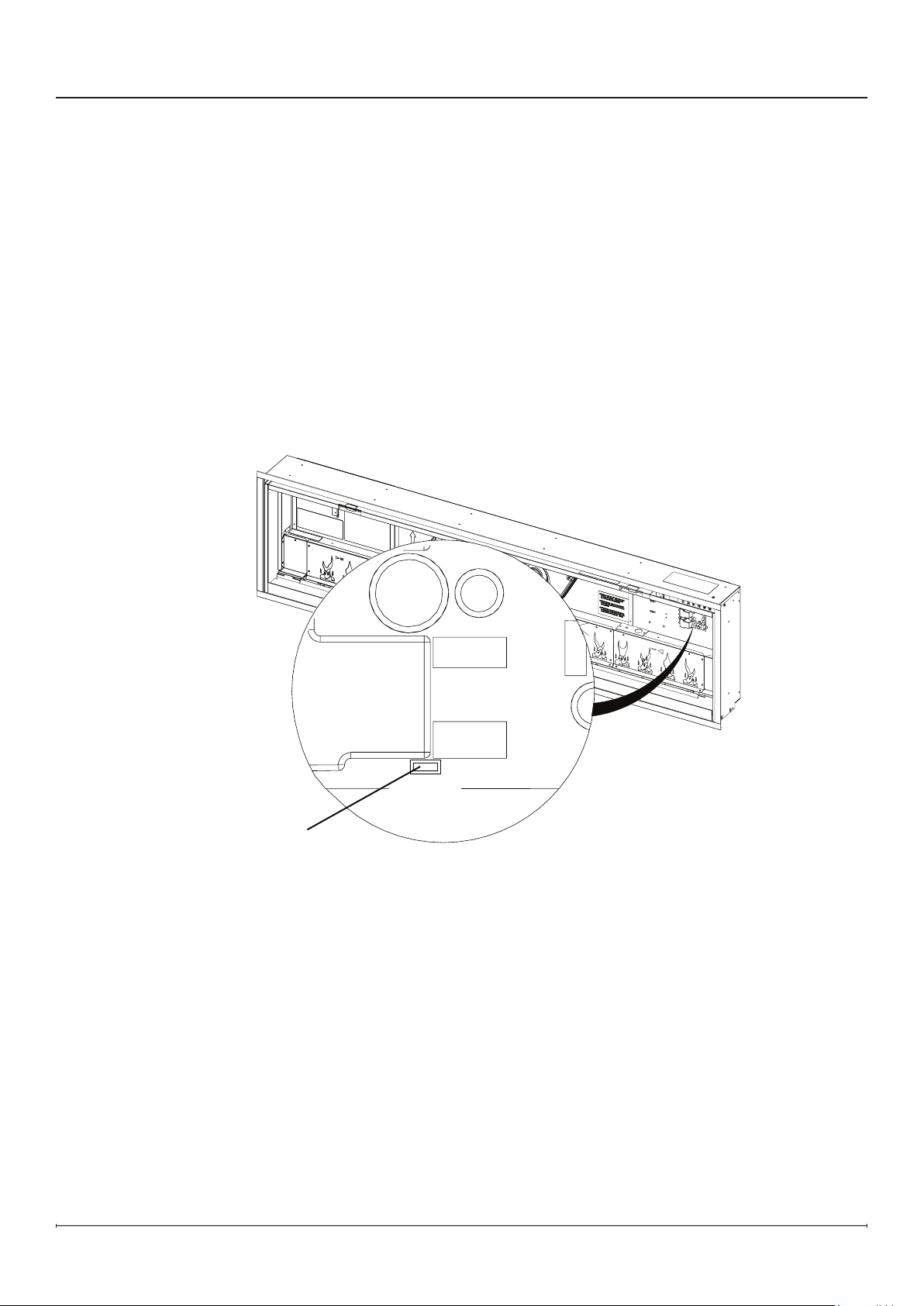

Heater Hardware Disconnect
The replace heater can be permanently disabled by removing the electronic jumper on the main control board.
!NOTE: Heater hardware disconnect will permanently disable the heater and fan. Follow these instructions only
when an installation without heat is required. Temporary disabling of the heater can be achieved through the
hidden touch controls. See “Heat Disable” in Operation section (page18) for instructions.
To disconnect the heater and fan permanently:
1. Locate the main control board. The heater hardware disconnect jumper location is labeled
“HT EN”. (Figure10)
2. Pull out the heater hardware disconnect jumper.
Figure 10
Installation
Heater Hardware
Disconnect Jumper

15
Media Arrangement
For best results when using the supplied media, arrange
as follows:
1. Evenly space the large media in the media tray along
the back of the media tray
2. Pour and evenly distribute the smaller crystals into the
media tray.
3. If using the optional driftwood and river rock kit,
evenly disperse the river rocks and place the
driftwood pieces on top.
It is possible to use custom media ornaments to decorate
your rebox. The custom media must t easily without
scratching the glass or bowing the media bed, and must
not be composed of sand or liquid, which could interfere
with the safety of the rebox.
Figure 11
Figure 12
Installation

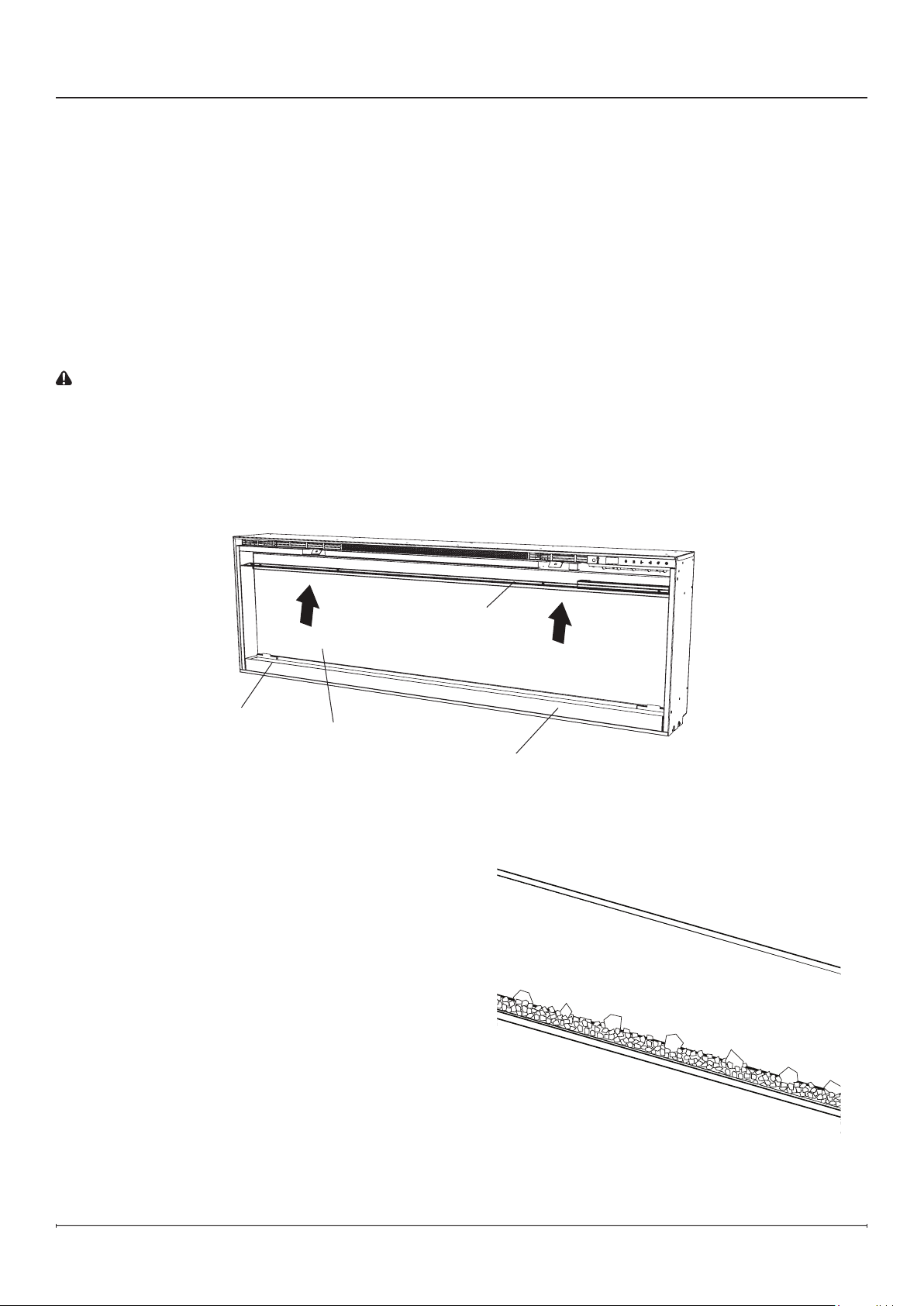

Mirrored Glass Installation
1. Locate and remove the screws securing the mirrored glass bracket to the unit, along the top of the opening, and
set bracket and screws aside. (Figure11)
2. Remove the provided suction cup from the inside cavity of the unit (not found in XLF50 units).
3. Ensure that the back of the glass is clean and free from particles and ngerprints.
4. Secure the suction cup to the mirrored glass on the reective side
5. Lift the mirrored glass and place it into the supports on the bottom at either side of the unit.
6. Tilt the mirrored glass into a vertical position.
7. Secure the mirrored glass bracket to hold the glass in place, using the previously removed screws.
CAUTION: Ensure the mirrored glass does not fall forward while the mirrored glass mounting bracket is being
installed.
8. Remove the suction cup and clean any ngerprints or debris off the glass with a non-abrasive glass cleaner.
!NOTE: Do not dispose of the suction cup! Keep it in a secure location, as it may be needed for maintenance and
service on this replace.
Mirrored Glass
Mirrored Glass
Bracket
Media Tray
Mirrored Glass
Supports

16 www.dimplex.com
Installation
Front Glass Installation
1. Ensure that the mirrored glass and the inside of the front glass is clean and free from particles and ngerprints.
2. Secure the suction cup (if provided) to the outside of the front glass.
3. Lift the front glass and carefully place the front glass into the lip located at the bottom of the opening of the
rebox.
4. Tilt the glass into a vertical position.
5. Secure the front glass using the provided screws and hex key. (Figure13)
CAUTION: Ensure the front glass does not fall forward while the securing screws are being installed.
6. Install the provided screw covers by placing the tabs of the screw cover between sides of the front glass bracket.
(Figure14)
!NOTE: Do not dispose of the suction cup and hex key! Keep them in a secure location, as it may be needed for
maintenance and service on this replace.
Figure 13 Figure 14

17
General Operation
WARNING: This electric rebox must be properly installed before it is used.
This rebox operates with Comfort$averTM technology, which automatically adjusts the fan speed and heater wattage
to safely and precisely match the requirements of the room based on the thermostat setting. The heater operates
such that once the room reaches the set point, the fan and heater will continuously run at a low level, to maintain the
desired room temperature. If the temperature in the room rises signicantly, the heater will turn off and periodically
turn back on to circulate the air around the unit, until the room temperature drops and requires the heater to be
on again.
!NOTE: The element retains heat after shutdown. When the heat is turned off, there is a 2-minute cool down period
before the fan shuts off completely.
!NOTE: The replace will retain the previously used settings after a power interruption.
Hidden Touch Controls
The hidden touch controls are located on the upper right of the replace. (Figure15)
Remote Operation
The replace is supplied with a multifunction IR remote control. (Figure16)
!NOTE: To operate correctly, the remote control must be pointed toward the front of the unit.
Figure 15 Figure 16
Operation

18 www.dimplex.com
Operation
Standby Press to turn the unit on or put it in standby mode.
When the unit is turned back on, it will retain the previously used settings.
Flame Effect Press to turn the ame effect on or off.
Heat
Press to turn the heat on or off.
The replace can be operated in heat only mode by turning off the ame and color
effects.
Heat Disable
Press and hold and at the same time for 3 seconds to disable or enable the heat
function. This action must be performed on the hidden touch controls.
When the heat is disabled and either the , , or is pressed, --- will appear on the
display.
Thermostat
Control
Press or to adjust the temperature setting of the thermostat.
When the temperature setting is adjusted, the set temperature will ash for 2 seconds,
then the ambient room temperature will be displayed briey.
The temperature can be set from 5°C to 37°C (41°F to 99°F).
Temperature
Display
(°C ↔ °F)
Press and hold and at the same time for 3 seconds. This action must be
performed on the hidden touch controls.
Eco Mode Press to activate Eco mode. In Eco Mode, the heater runs at reduced power to
save energy.
Heat Boost Press to activate Heat Boost and adjust the duration by 5 minute increments,
up to 20 minutes. In Heat Boost, the heater runs at maximum power to quickly
heat the space.
Themes
Press repeatedly to cycle through the 8 different Themes:
1 - White
2 - White with orange accents
3 - White with blue accents
4 - Red
5 - Blue
6 - Prism — media bed cycles through colors
7 - Kaleidoscope— media bed cycles through colors at different rates
8 - Midnight mode — media bed lights are off
Custom Color
Freeze the media lights to a custom color.
When in Prism or Kaleidoscope modes (see Themes), press while the desired color
is displayed to freeze the cycle on that color.
Press again to resume the color cycle.

19
Operation
Resetting the Temperature Cutoff Switch
Should the heater overheat, a manual limit cut-out will turn the unit off and it will not come back on without being
reset. If the button on the unit is pressed, Er2 will be displayed on the unit. It can be reset by turning the unit off at
the main disconnect panel and waiting 5 minutes before turning the unit back on.
CAUTION: If you need to continuously reset the heater, turn the unit off at the main disconnect panel and call
technical support at: 1-888-346-7539.
Brightness
Press repeatedly to cycle through the brightness and icker modes.
Solid H- High Brightness
Solid L- Low Brightness
Cycle H- High Brightness with ickering media
Cycle L- Low Brightness with ickering media
Timer
Press repeatedly until the desired number of hours of the timer is displayed. When
this function is active, the replace will turn off after a set amount of time. The timer
can be set from 30 minutes to 8 hours in intervals of 30 minutes.
To turn the timer off, press repeatedly until 0appears on the display.
While the timer is active, press the timer button to see the time remaining.
Factory Reset Press and hold and at the same time for 3 seconds to restore the unit to its
factory default settings.

20 www.dimplex.com
Remote Control Battery Replacement
To replace the battery:
1. Slide battery cover open on the remote control.
2. Correctly install one 3 Volt (CR2032 [longer life] or CR2025) battery in the battery holder with the + side facing up.
3. Close the battery cover.
The battery must be recycled or disposed of properly. Check with your Local Authority or Retailer for recycling
advice in your area.
Cleaning
Mirrored Glass Cleaning
The mirrored glass is cleaned in the factory during the assembly operation. During shipment, installation, handling,
etc., the mirrored glass may collect dust particles; these can be removed by dusting lightly with a clean dry cloth.
To remove ngerprints or other marks, the mirrored glass can be cleaned with a damp cloth. The mirrored glass
should be completely dried with a lint-free cloth to prevent water spots. To prevent scratching, do not use abrasive
cleaners.
Fireplace Surface Cleaning
Use only a damp cloth to clean painted surfaces of the fireplace. Do not use abrasive cleaners.
The replace should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause a build-
up of heat and eventual damage. For this reason the heater must be inspected regularly, depending upon conditions
and at a minimum yearly intervals.
Servicing
Except for installation and cleaning described in this manual, an authorized service representative should perform
any other servicing.
Maintenance
WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to
reduce the risk of re, electric shock or damage to persons.
