Direct Healthcare Group EASY HighBack User manual

EASY HighBack
User Manual
Technical Manual
Service Manual
DIRECTHEALTHCAREGROUP.COM Manual no: 806 rev. 1 210609
SWL: 150 kg/ 330 lbs
56-271
56-271-CS
56-271-CS-WIBU
56-271/100-CS-
WIBU

EASY HIGHBACK
2DIRECTHEALTHCAREGROUP.COM
Contents
1. Intended Use 03
2. Contraindications, Precautions and Warnings 03
3. Changing Seat Height and Tilt Angle 06
4. Battery Charging 07
5. Battery On/Off 07
6. Driving the Chair 07
7. Adjusting the Neck Support 07
8. Armrest Lock 07
9. Installing Seat with the Rear Opening (Accessory) 08
10. Sanitary Pan 08
11. Footrest/Heel Restraint 08
12. Castors 08
13. Calibrating the Actuators 08
14. Reset Service Indicator 09
15. Cleaning 09
16. Troubleshooting when the Chair is Inoperable 09
17. Replacement of Remote Control 10
18. Recycling/Disposal 10
19. Warranty 10
20. Maintenance 11
21. Technical Specification 11
22. Dimensions 13
23. Information on EMC 14
24. Further Information om EMC, Advanced 14

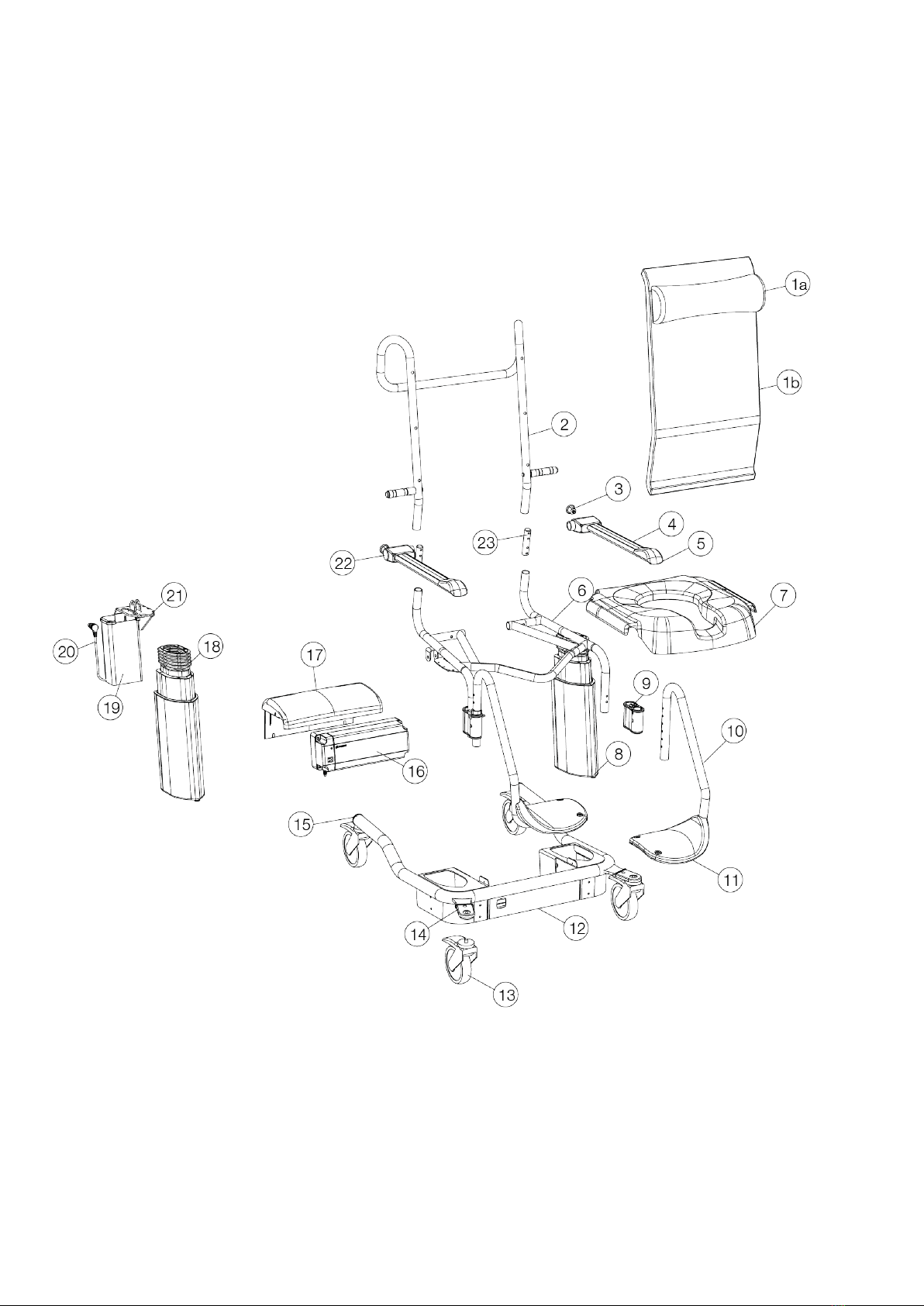

25. Parts List 17
26. Spare Parts 17
27. Accessories 19
28. Table of Symbols 19

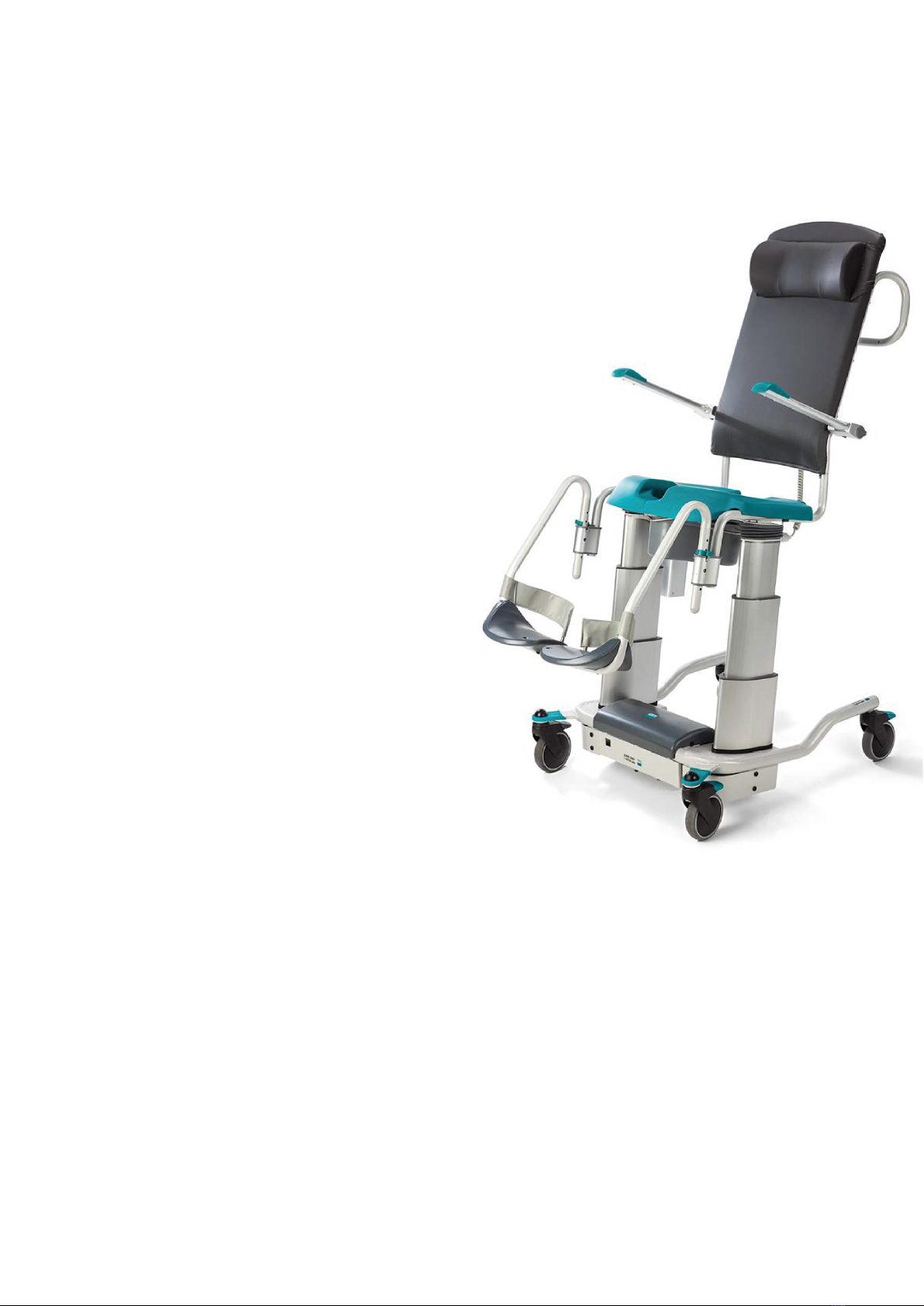

EASY in the high-back version (HB) is a development of the conventional concept using the back strap/neck
support already available. This Hygiene Chair is fitted with a high, padded, water-repellent back complete
with neck support (available in two versions). The high backrest provides soft yet stable support and its lower
section is fitted with a pliant lumbar support for additional comfort.
EASY HB is designed with telescoping pillars to create as much space and flexibility as possible for care
personnel in the performance of their work.
EASY is available with our new, soft Comfort seat with an opening at the rear for a more natural, hygienic
working method.
EASY HighBack

1. Intended Use
The Hygiene chair allows the user physical support during showering, washing, drying and dressing in safe and
comfortable seated position. Hygiene chair and accessories are intended to be use in dry and wet rooms (not
immersed in water), in Home Healthcare environment and Professional Healthcare facility environment.
2. Contraindications, Precautions and Warnings
We hope our product meets or exceeds your expectations. These Instructions for Use contain the information
users of the product need to know for its safe operation. In addition to the instructions for use, there is a
technical manual that describes the chair’s structure and which includes information of a more technical nature
and a spare parts list.
READ THESE INSTRUCTIONS FOR USE BEFORE USING THE PRODUCT.
The Hygiene Chair has a fixed battery that is charged via a connection in the remote control. The time required
for a discharged battery to reach an 80% charge is around 12 hours. The remote control has a charging
indicator that will show whether or not the battery needs to be charged. Make a habit of always charging the
battery if at the end of the day it has dropped to level 1 (one green bar on the battery indicator). If the Hygiene
Chair will not be used for a few days, we recommend switching off the battery by means of the Off button
located on the battery.
The Hygiene Chair also has a service indicator that lights up after around 11 months’ operation as a reminder
regarding the scheduled service that must be carried out at least once per year. Information about how to reset
the service indicator can be found in the technical manual.
The Hygiene Chair has a number of functions to enhance safety. When tilting forward or back, the chair will
always stop when the horizontal position is reached. The chair cannot be tilted forward if the seat height is
greater than 65cm. In order to raise the chair higher than 65cm, the seat must be horizontal or tilted to the
rear. It is not possible to use the chair while charging the battery.
Users will experience a soft start of around 5 seconds when the chair is raised or lowered. This is normal and
takes place in order to synchronize the two height adjustment actuators.
The Hygiene Chair is raised and lowered through telescopic pillars with built-in motors. The pillars have an
open design which allows water and dirt to run through internally. When necessary, clean the pillars and the
bottom surfaces with cleaning agent. The cleaning agents dissolve dirt and grease and break down any
organic substances. Rinse with water. Note that the pillar base plates are accessible for
mechanical cleaning.
Bear in mind the crush risk that is always present when hands and feet get in the way of chair movement,
especially when tilting forward or when the chair is lowered to its lowest level. Depending on the setting, the
foot rest may touch the floor or the chair frame.
Before you begin using your chair, the battery must be activated. Do this by pressing the battery ON button
(see section in these instructions for use).
3
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK

EASY HIGHBACK
4DIRECTHEALTHCAREGROUP.COM
Contraindications
The Hygiene Chair may not be used by patients above the maximum weight indicated on the
labels and in this manual.
The tilt mechanism should only be operated by the caregiver.
The chair is not designed to be used as seating for extended periods.
This Hygiene Chair is designed for indoor use on level surfaces and in wet spaces.
Precautions
The caregiver must be able to read and understand the IFU of the product. This IFU should be available to
the caregiver at all times.
Check the charging cable is not plugged in, prior to use. It is not possible to operate the chair
while charging the battery.
Make sure the remote control socket/charge is always covered/plugged in when using the
chair. Otherwise water may get in and damage the remote control.
Emergency lowering: if battery charge is insufficient for chair operation or if the proximity sensor on the height
adjustment actuator is defective, the Emergency lowering button must be used (see manual; section 3).
Check the condition of snap locks and castors frequently, keep them free of hair and soap
deposits, etc.
Keep fingers away from the armrest joints to avoid pinching during raising and lowering.
To avoid injury, do not insert fingers or toes into the drainage holes in the backrest or foot
rests.
Check the Hygiene Chair is correctly mounted/assembled before its first use, after every folding/disassembly
and after any transport.
Check the battery status prior to and after each use.
It is important to never leave the user alone during the transfer.
Only transfer the user from or to the chair when the seat frame and backrest are set in an
upright position.
Inspect the Hygiene Chair once per year to detect any signs of damage. Check that the hand
control does not show signs of wear.
Check the tilting motion and inspect the actuators full range regularly.
Handle the battery with care. Do not drop. Use only batteries and cables that are intended for
the hygiene chair.
Activate the brakes whenever the hygiene chair is not in use.
Avoid placing / using the chair less than 0.35m from other medical equipment and / or mobile
phones (or other transmitting equipment).
Do not store the chair in direct sunlight as the black surface may become hot and uncomfor
table for the user.
Charging the battery should always be done in a dry area to avoid dangerous situations with electricity and
wet areas.
The chair should be pulled backwards over thresholds. For optimal caregiver ergonomics, the handlebars
should be at elbow height.
Always use the chair with armrests in place (folded down). Armrests (and footrests, if present) should only be
flipped up during transfer to and from the chair.
Insert or remove the sanitary pan/bucket when the chair is not in use.
The product can be raised, lowered, or tilted with the aid of encapsulated, concealed electronics. The prod-
uct may thus NOT be immersed or used under water.
The product may not be used in a sauna or cleaned with steam.

5
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
Warnings
Do not use the chair when defective or malfunctioning.
All castor locks are foot-operated. – Do not operate the castor locks by hand.
Never stand on the foot supports as there is a risk of tipping.
The battery can be damaged if not charged at least every 14 days in the “On” position or at
least every three months in the “Off” position.
Make sure protective covers are always put back in place after cleaning activities.
Always replace the Hygiene Chair’s electrical components or cabling with original parts from supplier. Failure
to do so may affect the product’s EMC approval.
The product must be repaired by a qualified technician. Damaged parts must be replaced by a qualified tech-
nician.
Warranty applies only if repairs or alterations are made by personnel who are authorized by Direct Healthcare
Group.

EASY HIGHBACK
6DIRECTHEALTHCAREGROUP.COM
3. Changing Seat Height and Tilt Angle
Normal up/down; Rapid up/down. NOTE! The seat has a soft start for
around 5 sec. before the correct speed is achieved. Make sure the footrest
does not touch the floor when the seat is at lower levels – this can happen if
the footrest is set for a tall user.
Tilting forwards/rearwards: The chair can be tilted 5 degrees forwards*
and 30 degrees rearwards. When tilting, the chair will always stop at the
horizontal position. Thus to continue tilting forwards or rearwards, the
forwards/rearwards button must be pressed again. When tilting forwards,
make sure the footrest does not touch the floor or frame – this can happen if
the footrest is set for a tall user.
(*In certain markets, the chair can be tilted further to 6 degrees forwards.
Note: Crush risk if this is done.).
Emergency lowering: if battery charge is insufficient for chair
operation or if the proximity sensor on the height adjustment
actuator is defective, the Emergency lowering button must be used.
Upon activation, the chair will revert to the horizontal position and
then to the lowest seat height. Exercise caution when activating as
the system safety sensors are bypassed. In particular, make sure the
chair proceeds evenly to its minimum height to prevent skewing.
Service indicator – the lamp will flash at 4 sec. intervals when actual
operating time reaches 11 months from the last reset. After 12 months, the
lamp will remain on. This indicates the need for scheduled maintenance
(page 8). Resetting the service indicator – see technical manual.
Battery indicator – shows current battery status; 3 bars indicate full charge.
When a single bar shows, the chair should be charged that same day. When
a red bar shows, stop using the chair and charge the battery. Make a habit
of always charging the battery if at the end of the day it has dropped to level
1 (one green bar on the battery indicator). If the Hygiene Chair will not be
used for a few days, we recommend switching off the battery by means of
the Off button located on the battery.
NOTE: The battery can be damaged if not charged at least every 14 days in
the On position or at least every three months in the Off position.
The remote control enters sleep mode 30 sec. after the last activation.
Snabb
ned
Ned
Bakåt
Service-
indikator
Snabb
upp
Upp
Framåt
Nöd-
sänkning
Batteri-
indikator

7
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
4. Battery Charging
Charge the battery by connecting the charger supplied to a wall socket and
the remote control connector. A discharged battery takes around 12 hours
to charge to 80% and 24 hours to reach 100% charge. While the battery is
charging, the battery indicator will flash showing actual charge level. All three
bars will show a constant green light when the battery is fully charged. We
recommend the battery always be charged to at least 80% – once begun,
charging should not be interrupted before an 80% charge is achieved.
NOTE: The battery can be damaged if not charged at least every 14 days in
the On position or at least every three months in the Off position.
For safety reasons, chair electronics cannot be used while the battery is
charging. Avoid charging in wet spaces. Make a habit of always charging
the battery if at the end of the day it has dropped to level 1 (one green bar
on the battery indicator). If the Hygiene Chair will not be used for a few days,
we recommend switching off the battery by means of the Off button located
on the battery
Make sure the remote control socket/charge is always covered
plugged in when using the chair. Otherwise water may get in and
damage the remote control.
5. Battery On/Off
The battery is located under a protective cover at the base of the chair. The
battery has On/Off buttons that are reached through an opening at the lower
front part of the chair. Operate the buttons by pressing them with a pointed
object (not sharp). When delivered, the battery is switched off. Activate the
battery by pressing the On button or connecting the charger to the remote
control. To one side of the buttons, there is also an LED indicator that shows
battery charge.
6. Driving the Chair
We recommend using the handlebar whenever the chair must be moved
(with/without a patient). The handlebar is designed so that the chair can be
moved forwards and turned easily and with the use of little force.

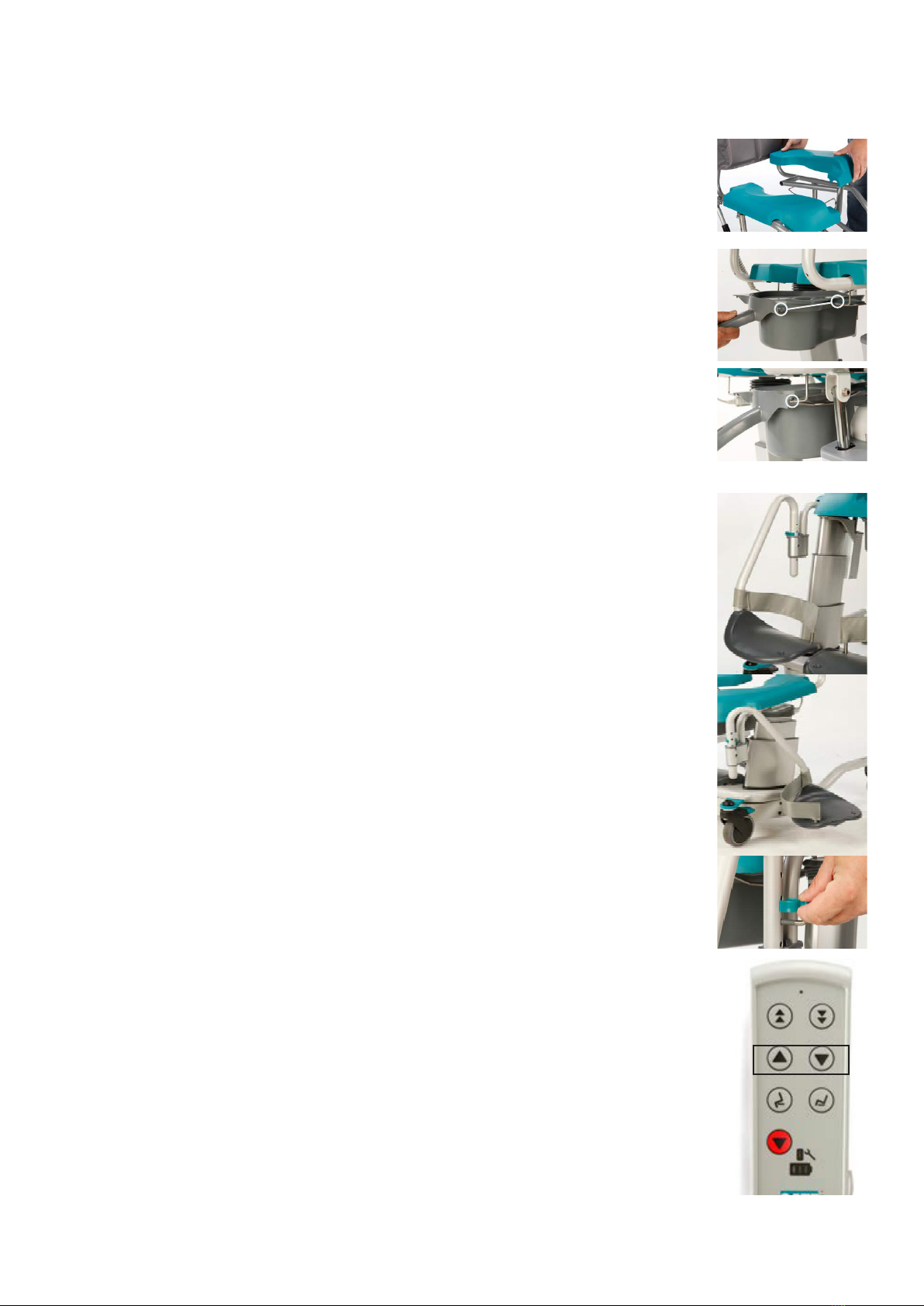

7. Adjusting the Neck Support
Set the neck support in the desired position by sliding it up/down. Next
supports are available in other sizes as accessories.
8. Armrest Lock
The armrest is locked in the extended position. To lift the armrest, pull out
the pin and raise the armrest.
4
5
6
7
8

9
EASY HIGHBACK
8DIRECTHEALTHCAREGROUP.COM
9. Installing Seat with the Rear Opening (Accessory)
The seat comprises two halves that are snapped in place with the aid of clamps
on the seat’s underside.
10. Sanitary Pan
The sanitary pan is slid into position from behind between the seat and wire
guides as shown in fig. 10. Make sure the sanitary pan is slid into position above
the wire guides. Also make sure that the pan assumes the right position in relation
to the cutout/seat and that the pan’s rear hook locks into the guide.
11. Footrest/Heel Restraint
The foot rest can be easily set to the preferred height, swung aside (lift/swing) or
removed (lift away). Set footrest height by moving the green clip to the preferred
hole.
12. Castors
The Easy Hygiene Chair can feature 2 different types of wheels. The images show
the options.
A) Single wheel 125mm
The Hygiene Chair has 4 wheels (full brakes). The wheel on the right-hand front
side (grey brake pad) also features a directional lock.
B) Double wheel, 100mm
The Hygiene Chair has 4 wheels, of which the one on the righthand front side
features a directional lock and the other 3 are fitted with full brakes.
When the directional lock is activated, wheels cannot be turned. This is
particularly useful when moving heavier patients. The chair is thus significantly
easier for staff to push and control. The directional lock should be released
when manoeuvring in tight spaces. The other wheels (x 3)/green brake pad are
conventional wheels that lock both directionally and rotationally when the brakes
are applied.
13. Calibrating the Actuators
The calibration of the actuators (height / lowering only) is normally done fully
automatically each time the chair reaches its end positions (min height, max tilt).
If the chair still does not go in parallel or if the tilt function does not seem to work,
an ACTIVE calibration can be done. This is done by holding down <button-slow /
up> + <button-slow / down> simultaneously.
After about 15 seconds the chair will be moved to its end positions ie. my height
and maximum slope backwards. Hold down the buttons until the end positions
are reached. Release the buttons and wait 5 seconds. The chair is now calibrated
and can be used again.
Calibration should NOT be done with user in chair. Note that all 3 actuators move
during the calibration phase. Otherwise, cancel the calibration immediately and
contact Customer Service.
b
ab
10
11

9
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
14. Reset Service Indicator
The remote control has a service indicator for periodic maintenance reminder (min once
a year). The service indicator measures voltage and is activated after 11 months (flashes
every 4 seconds). After 12 months the indicator will glow steadily.
The indicator is reset by holding down buttons on the remote control (top line, <fast up>,
<fast down>) for 30 seconds.
15. Cleaning
Clean the Easy Hygiene Chair with detergent/disinfectants commonly used in healthcare
(alcohol-based). The pillars should be cleaned with agents that dissolve grease and also
remove lime stains. Raise the chair to maximum height when cleaning the pillars. Apply the
cleaning agent and leave it to work according to the instructions (also allow it to run down
inside the pillars); flush out. NOTE: Also clean the pillar base plate periodically. Do so by
removing the bottom plug and applying cleaning agent directly in the pillar. Allow to work;
flush out.
Read the warning text on the packaging/cleaning agents and in their data sheets.
NOTE: To avoid crush injuries, make sure protective covers (fig. 19) are always put back
16. Troubleshooting when the Chair is Inoperable
NOTE: Chair cannot be operated above 65 cm seat height if the chair is tilted forward, nor
can the seat be tilted forward if seat height is greater than 65 cm.
Before troubleshooting begins, always restart the battery. Hold in the battery’s OFF button
for approx. 5 seconds. Wait for one minute. Activate the battery using the ON button).
1 Check the battery charge via
the remote control’s battery
indicator (if necessary, activate
the remote control by pressing
any button).
2 Switch off the battery manually
using the battery Off button.
Wait one minute. Activate the
battery by pressing its On
button. Check that the battery
indicator lamp is lit or flashing
Indicator lamp lit/flashing == >
Replace remote control
and charge the battery as per
the instructions.
Indicator lamp not lit, not
flashing ==> Replace the
battery
1a Indicator shows green ==>
Calibrate the chair.
1b Indicator shows red == >
Charge the battery
1c Indicator lamp out ==>
Connect the remote
control to the charger. If
charging is indicated in the
remote control, charge the
battery as per instructions. If
charging is not indicated,
proceed to 2.
If the chair remains in operable following completion of the above, contact customer
service

17. Replacement of Remote Control
Incorrect remote control is easily changed by releasing the contact/ remote control
on the left pillar - new remote control is mounted in the same way.
NOTE: It is important that contact is locked with the clamp lock to ensure IP X5
18. Recycling/Disposal
When the product is no longer usable it should be recycled in accordance with
legislation and regulations in the country concerned. All electrical parts including
batteries must be removed and recycled as electrical components. (Ask your local
recycling station for further information about how the different materials in the
product (metals, plastics, electronics) should be recycled).
19. Warranty
We normally provide a 2-year warranty on manufacturing defects (does not apply to
wear details or battery).
The battery is given a 6 month warranty on manufacturing defects.
For more information or questions please contact:
Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[e-mail]
www.directhealthcaregroup.com
EASY HIGHBACK
10 DIRECTHEALTHCAREGROUP.COM

11
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
20. Maintenance
The chair is made from stainless steel/powder coated tubing and aluminium.
Exposed, unpainted parts are made of aluminium or stainless steel. Make sure the
product feels firm and stable – no fasteners may be loose. Damaged or defective
parts should be replaced as soon as possible.
Cleaning, general
• Clean the chair by wiping with regular cleaning agent (NOT Pentanol based) or
use a washer/autoclave (max 85 C).
• Remove the seat and clean it separately or use a washer/autoclave (max 85 C).
NOTE: The remote control/control box (or the connector/
female connector if the remote control is removed before
washing) must be protected from high pressure water.
Use a plastic bag or similar that can withstand washer water pressure.
Place the remote control/control box or the connector/female
connector so that running watercannot force its way in.
• Clean the pillars with detergent/disinfectants
commonly used in healthcare (alcohol-based).
• Make sure the protective cover is installed at the
bottom of each pillar.
Special checks (at least once per year)
1. Armrest – check that slip protection/wrist protection
are intact and secured.
2. Pillars (electric actuator/raise-lower) + electric actuator/
tilt: check the function of the remote control and that
the electric actuator attachment devices are not loose.
3. Seat/stopped seat – whole and without cracks. No sharp edges may be
present.
4. Footrest platforms – whole and adjustable in the intended manner. Check that
the clips are whole and properly fastened. Heel restraints must be in position at
the back of each footrest platform.
5. Wheels – may not be stiff or loose. Also check that the brakes work.
Back strap; the back strap must be intact and may not have any holes or other
damage to the belts and anchors.
6
1
3
2
4
5
21. Technical Specifications
Material
Aluminium
Plastic (PP, PP/GS, PA, PA/GS, TPE, Silicone)
Textile Dartex
Foam (PUR)
Steel (Stainless)
Frame / stand Powder coating (polyester)
Specification power system

Actuator Raise/lower/pillars Tilt function
Voltage 24V 24V
Lift 100kg/pelare 150 kg
Stroke 400 mm 75 mm
Installation dimensions 377 mm 198 mm
Protection class N/A IP66W
Protection class pillars IPX5
Speed - without load 32 mm/s 11,5 mm/s
Speed - full load 19 mm/s 7 mm/s
Blocking when lifting 100 kg 150 kg
Operating temperature 5-45°C 5-45°C
Battery TBB6
Voltage 24 V
Capacity 5 Ah
Type Pb
Protection class IP66W
Battery charger TP9
Voltage in 100-240V 50/60 Hz
Voltage 29V
Control box TC14
Processor MCU 3 motors
Protection class IP66W
Wiring Diagrams / Control box
1. The control box is reached by removing the protective cap - 4 screws.
2. Control box with battery with removed cover.
3. Actuators (2x up / down and 1x tilt), The actuators are connected directly to
the control box as below. Remote control and battery are connected via spindle
cable to control box as below.
EASY HIGHBACK
12 DIRECTHEALTHCAREGROUP.COM
2
1

5Control box (A): Spindle cable (B):
1Connection connector # 1 / Spindle cable 1Connects to input # 1 on control box
2Actuators up / down - left 5Remote control
3Actuators up / down - right 6Battery
4Actuators tilt 7Connects to outgoing connector on control box
7Connected to spindle cable # 7
22. Dimensions
All dimensions in millimeters and with 125 mm wheels. When using Double wheels / 100mm, width over
wheels increases by + 30mm.
5
13
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
7
A
B
1
1
6
7
2 3 4

EASY HIGHBACK
14 DIRECTHEALTHCAREGROUP.COM
23. Information on EMC
The Easy Hygiene Chair has been tested to work in Hospitals and Home Health Care environments.
The main function of the Hygiene Chair is to be able to operate upwards / downwards, backwards / forwards
as well as charging the battery. Testing has shown that as long as the chair is subject to interference within the
limits of this standard, no loss of main functions can be detected. Disturbances that are more powerful than
these tests show, can affect the functions of the Hygiene Chair in such a way that they are manoeuvrable.
The Hygiene Chair consists of the following cables:
• AC cable for charger, 3 conductors, 2.0 m
• DC cable between charger and remote control, 2 split, 1.0m
• Signal - cable between control box and remote control, 2.5m
WARNING: Always replace the Hygiene Chair’s electrical components or cabling with original parts
from supplier. Failure to do so may affect the product’s EMC approval.
Avoid placing / using the chair less than 0.35m from other medical equipment and / or mobile phones (or other
transmitting equipment). This is because there is then a risk that the main functions of the product will not work
as intended or that our product may interfere with other medical equipment.
24. Further Information on EMC, Advanced
The Easy Hygiene Chair (“product”) is intended for use in the electromagnetic environment specified
below. The customer or the user of the product should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11 Group 1
The product uses RF energy only for
its internal function. Therefore, its RF
emissions are very low and are not likely
to cause any interference in nearby
electronic equipment.
RF emissions
CISPR 11 Class B The product is suitable for use in all
establishments including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic purposes.
Harmonic emissions
IEC 61000-3-2 Class A
Voltage fluctuations/ flicker
emissions
IEC 61000-3-3
Complies

15
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
The product is intended for use in the electromagnetic environment specified below. The customer
or the user of the product should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic
environment - guidance
Electrostatic discharge
(ESD)
IEC 61000-4-2
+/- 8 kV contact
+/- 2,4,8,15 kV air
+/- 8 kV contact
+/- 2,4,8,15 kV air
Floors should be wood,
concrete or ceramic
tile.
If floors are covered
with synthetic material,
the relative humidity
should be at least 30
%.
Electrical fast transient /
Burst
IEC 61000-4-4
+/- 2 kV for power
supply lines
+/- 1 kV for input/
output lines
+/- 2 kV for power
supply lines
n/a. for input/output
lines
Mains power quality
should be that of a
typical commercial or
hospital environment.
Surge
IEC 61000-4-5
+/- 1 kV differential
mode
+/- 2 kV common
mode
+/- 1 kV differential
mode
n/a. for common mode
Mains power quality
should be that of a
typical commercial or
hospital environment.
Voltage dips, short
interruptions and voltage
variations on power
supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT))
for 5 sec
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT))
for 5 sec
Mains power quality
should be that of
a typical commercial
or hospital environment.
If the user of the
[Equipment or System]
requires continued
operation during power
mains interruptions, it is
recommended that the
[Equipment or System]
be powered from an
uninterruptible power
supply or battery.
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
30 A/m 30 A/m
Power frequency
magnetic fields should be
at levels characteristic
of a typical location in
a typical commercial or
hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

EASY HIGHBACK
16 DIRECTHEALTHCAREGROUP.COM
The product is intended for use in the electromagnetic environment specified below.
The customer or the user of the product should assure that it is used in such an environment.
Immunity test IEC 60601 test
level
Compliance level Electromagnetic environment - guidance
Portable and mobile RF communications
equipment should be used no closer than
0,35m to any part of the product,
including
cables, than the recommended separation
distance calculated from the equation
applicable
to the frequency of the transmitter.
Recommended separation distance
d = 1,2√p 80 MHz to 800 MHz
d = 2,3√p 800 MHz to 2.5 GHz
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters,
as determined by an electromagnetic site
survey, a should be less than the
compliance level in each frequency range.
b
Interference may occur in the vicinity of
equipment marked with the following
symbol.
NOTE 1 At 80MHz and 800MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflected from structures, objects and people.
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which the
product is used exceeds the applicable RF compliance level above, the product should be observed to verify
normal operation. If abnormal performance is observed, additional measures may be necessary, such as
reorienting or relocating the product.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 10 V/m.

17
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
25. Parts List
1a 58-248-M Headrest M
1a 58-248-L Headrest L
1b 58-247-FLEX-1 Back/Foam-Flex
258-295-1 Backrest HB
357-288-2 Armrest lock
458-294-L/R Armrest HB (left/right), alloy only
558-209 Handrest
658-284-1 Seat frame HB
757-250-1 Plastic seat
756-233 Plastics/keyhole, green
858-280-L/R Pillars, complete (left/right)
958-277 Holder/footrest
10 58-283-1-L/R Footrest tube (left/right)
11 58-296-1 Footrest
12 58-281-1 Bottom frame
13 57-049-RF Wheel with bolt - fully braked
13 57-040-RF Wheel with bolt - directional lock and fully braked
14 58-360 Cover
15 57-793 End plug
16 58-253 Battery Pb 5,0 Ah
17 58-291 Cover, control box
18 58-293 Bellows (silicone)
19 58-282 Cap/tilt actuator
20 58-252 Actuator TA16
21 58-290 Cover plate, left
21 58-289 Cover plate, right, incl. holder tilt actuator
22 57-235 Cover/armrest
23 58-243-1 Connectors
26. Spare Parts
Part no. Description
58-255 Charger, universal volt
58-255-1/2/3/4 Cable for 58-255 (EU; UK; US; AUS)
58-254 Remote control for Easy

EASY HIGHBACK
18 DIRECTHEALTHCAREGROUP.COM

19
DIRECTHEALTHCAREGROUP.COM
EASY HIGHBACK
27. Accessories
Part no. Description
56-205 Shower seat around hole
56-206 Soft PU seat
56-209 Sanitary Pan
56-212-EASY Barrier (52cm), Easy
56-213 Splashback
56-214 Armrest lock (M8)
56-216 Infill
56-217 Waist belt/thigh belt
56-218 Slides
56-220-EASY Heel strap kit (pair), Easy
56-221-HB Width kit (+50mm) Easy HB
56-227-L Calf rest, left
56-227-R Calf rest, right
56-229 Chest belt
56-232 Plug, soft seat
56-234 Comfort seat/back opening, green, Easy
56-259-L Calf rest left, Easy
56-259-R Calf rest right, Easy
56-260-L Footrest, left
56-260-R Footrest, right
This product complies with the
requirements of the Medical Device
Regulation 2017/745
Visual Inspection
Medical Device Read the manual
Caution Product Code
Manufacturer information Batch Code
Type BF, according to the degree of
protection against electric shock
The device is intended for indoor use
WEEE Symbol
May not be discarded in domestic
waste
Class II Equipment
Duty Cycle:
2 min in active (ON) mode.
18 min in rest (OFF) mode.
28. Table of Symbols

Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: [phone]
[email protected]
www.directhealthcaregroup.com
Medical Device Class I. The product complies with the re-
quirements of the Medical Devices Regulation 2017/745.
Medical Device Class I
