MacElite Setup Guide
2
FOREWORD
It is illegal to duplicate copyrighted discs for any reason other than personal use, unless you happen to
be the copyright owner. The MacElite recording unit is intended for use only by those identities that are
the owners of the copyright or are properly licensed to use the copyright.
Copyright, Trademark and Service Mark Acknowledgment
Manual Revision 070704
AMTREN and the AMTREN logo © AMTREN
Plextor is a registered trademark of Plextor Corporation.
Pioneer is a registered trademark of Pioneer Electronics.
Sanyo is a registered trademark of Sanyo Corporation.
Discus is a trademark of Magic Mouse Productions, Inc.
MacElite is a trademark of Disc Makers.
Discribe is a trademark of CharisMac Engineering.
All other trademarks and registered trademarks are the property of their respective owners.
This manual and its contents © 2001 2002 2003 2004 Amtren Corporation
The MacElite is manufactured under license of Patent 6,141,298 and other Patents Pending

MacElite Setup Guide
Table of Contents
Welcome and Introduction 4
HardwareOverview 5
Minimum Hardware & Software Requirements 6
Unpacking the Hardware (Step 1) 7
Installation of CD Pick Arm (Step 2) 8
Installation of CD Printer and Ink Cartridges (Step 3) 9
Connection of AC Power, FireWire®
and Serial Adapter (Step 4) 10-11
Installation of Discribe, CD Printer & USB/Serial
Adaptor Drivers (Step 5) 12
Resetting the Ink Monitor &
Aligning Printer Cartridges (Step 6) 13-14
Setting Paper Type & Print Quality (Step 7) 15
Installation of the Discus CD Label Making Software
(Step 8) 16
Using Discus to Design CD/DVD Labels (Step 9) 17-19
Using Discribe to Duplicate CD/DVDs (Step 10) 20-22
Using Discribe to Author new CD/DVDs (Step 11) 23-24
Using Discribe for a “Print Only” Job 25
Troubleshooting Guide 26
3

MacElite Setup Guide
Welcome
Thank you for purchasing the MacElite CDR/DVDR publisher. This system has been designed and is
manufactured under strict quality guidelines. This product will provide years of dependable and trouble
free operation.
Description
125/200 Piece Input CDR or DVDR Drives 2-Year Warranty on Robotics
The MacElite is a multi writer desktop CD-R or DVD/CD-R copying and printing solution in a single
footprint. As the most versatile duplication system on the market today, MacElite offers you endless
possibilities to meet your CD-R or DVD/CD-R duplication and printing needs.
The fast and advanced Center-Pick autoloading mechanism will provide ease of use and trouble-free
operation. The MacElite components are based on industrial design technology that will provide years
of trouble-free operation.
The MacElite is equipped with all the hardware and software necessary for easy installation with the
customer's computer hardware. Please be sure to review the minimum computer requirements.
Failure to observe these requirements could affect the performance of your MacElite and quality of
your recorded product.
The MacElite comes standard with CDR or DVDR/CDR combo writers which are controlled by
CharisMac's® award winning Discribe® recording software. The recording software provides a
smooth duplication process with trouble-free operation. The Discribe® software is firmly embedded
within the MacElite™ Autoloader providing a seamless and reliable solution to the user.
Discus© labeling software is included to enhance your product. The Discus© label making software is
a simple and easy to use program that will enable you to create professional quality CD/DVD labels.
4

MacElite Setup Guide
Hardware Overview
Before starting the installation, please review the MacElite Hardware and Functions
Note that the front CD ROM and Hard Drive light
are only available on SA models.
5

MacElite Setup Guide
Customer Minimum Hardware and Software Requirements
Desktop systems change rapidly and the MacElite was designed for use with Macintosh systems that
are relatively new. It is recommended that you operate your new MacElite with the best possible
hardware. This will ensure that your recording and printing system will operate smoothly and efficiently.
The following are minimum requirements for the Macintosh to which the MacElite is to be connected.
These are very important. Due to the high speed of the writers, sufficient memory and FAST hard
drives are required.
Minimum PC Requirements:
MacElite1 / MacElite2 MacElite3 / MacElite4
800 MHz PowerPC G4® Processor or better. 800 MHz PowerPC G4® Processor or better.
256 MB RAM. 512 MB RAM.
7200 RPM 20 GB hard drive with 50% free
space for CDR unit.
7200 RPM 20 GB hard drive with 50% free
space for CDR unit.
7200 RPM 40 GB hard drive with 70% free
space for DVDR unit
7200 RPM 40 GB hard drive with 70% free
space for DVDR unit
Two available USB ports Two available USB ports
At least one available FireWire® port At least one available FireWire® port
Software Requirements:
Mac OS X version 10.2 or later.
QuickTime 5 or later.
6

MacElite Setup Guide
This brief setup guide is provided to get the MacElite operational out of the box. Once you get the
system operational, complete on line help can be accessed from the PDF manual located in the
Discribe application folder.
Step 1
Unpacking the Hardware:
Your system was shipped in 1 box containing the MacElite unit, USB to serial adapter, software and
cables. If you purchased the CD Printer, it was shipped in a separate box.
Carefully open the box and remove the top protective cardboard sheet. You will then be able to remove
the following:
1. CD Pick Arm
2. Printer Control Cable
3. Printer USB Cable
4. USB to Serial adapter with attached USB Cable
5. DB9 Serial Cable (attached to the USB to Serial adapter)
6. FireWire Cable
7. AC Power Cord
8. Software and Manual
Set the components on the table that will hold both the MacElite unit and your Macintosh. Next, by
lifting straight up, carefully remove the foam container and foam protection over the MacElite unit. You
will see the MacElite in a plastic bag. The MacElite has lifting hand holders on either side. Use these to
remove the MacElite from the box and place it on the table. Remove the MacElite from its bag. Place all
shipping components back into the shipping carton for future use.
NOTE: It is important to always ship the MacElite in its proper container; so, storage of the box and
accessories is necessary. In the event you misplace your packaging and need to ship the MacElite,
contact the service department. A new shipping container will be shipped out; however there will be a
small charge for it.
Next, remove the printer from its shipping carton. Place all these components on the table.
Account for all the components and proceed to installation of the CD Pick Arm.
Main box opened -
parts located in top section
Remove foam sections and
access the MacElite main unit
Locate lifting handles on
the MacElite unit and lift out
7

MacElite Setup Guide
Step 2
Installation of CD Pick Arm
The CD pick arm needs to be installed onto the rotate arm. Remove the pick arm from the bubble wrap
packaging. Included with the arm will be a bag containing two black plastic retainers. These retainers
are used to hold the pick arm onto the rotate arm.
Hold the pick arm in one hand. Place the arm onto the slotted resting tray on the upper section of the
column. Plug in the RJ12 (telephone) type connector. (NOTE: MAKE SURE THE CONNECTOR
RETAINER HAS SNAPPED INTO PLACE BY PULLING GENTLY ON THE CABLE.) Then secure the
arm into place by pressing a retainer into each side of the pick arm. These steps can be reviewed in the
pictures shown below.
The pick arm should freely float or pivot from the point where the retainers were installed
`
Locate Pick Arm & Retainers
Step 1
Hold Pick Arm in Place & Connect
RJ12 Connector
Step 2
Install / Press in the Black
Plastic Retainers
Step 3
`
The Pick Arm after Installation
Step 4
If you did not purchase a CD Printer with your MacElite, you may proceed to Step 4. Otherwise, please
read Step 3, Installation of the CD Printer.
8

MacElite Setup Guide
Step 3
Installation of the CD Printer and Ink Cartridges.
Place the printer into the printer holding tray located at the top of the drive stack. Holding the printer
with a hand on each side, insert the front of the printer while elevating the back. Then let the back
section “drop into” place softly and slowly. The printer should be securely inserted into the printer
holding tray and should be completely level.
Make certain that your Macintosh is OFF. Plug the USB printer cable provided with the MacElite into
the rear of the printer and into one of your Macintosh's available USB ports.
Plug in the printer mini DIN control cable (This is similar to a keyboard cable and has connectors on
both ends.) into matching connectors on the rear of the printer and the rear of the MacElite.
Place the AC power adapter that was provided with the CD printer next to the rear of the printer and
plug into a standard 115V AC outlet. Plug the other end into the power connector on the rear of the
printer. The printer will perform a basic internal test and then wait for additional commands from the
operator or the software.
The top button turns the printer on and off. Use the lower button to open and close the CD tray.
When you lift up the front plastic cover of the printer while it is on, the ink cartridge holder will slide into
the center of the opening enabling you to replace the ink cartridges. If the pickarm will not allow the
front plastic cover to open, then you may gently push the pickarm downward by applying downward
pressure at the base of the pickarm where it wraps around the column. Never attempt to rotate or push
down on top of the pickarm. Unpack the included ink cartridges. Be sure to remove the tape from the
cartridges. Do not touch the metal contacts or ink nozzles. Release the latches on the cartridge
holders. Place the ink cartridges in their respective color-coded holders. Then snap the cartridge holder
latches down on the cartridges. Close the front plastic cover.
Install printer by allowing front section
to rest in place, then lower the
rear section into the tray.
Connect the printer USB
cable to the printer
Connect the printer DIN control cable
from the printer to the MacElite
9

MacElite Setup Guide
Step 4
Connection of AC Power, FireWire® and Serial Adapter
Place your Macintosh on the same table as your MacElite unit if you have not already done so. Plug the
FireWire® cable into its identified connector located on the rear of the MacElite unit. Connect the other
end of the FireWire® cable into your Macintosh's FireWire® port. If you have multiple recorders, short
FireWire® cables are used to link each recorder to the next. The long FireWire® cable connects the
chain of recorders to your Macintosh's FireWire® port. It does not matter which recorder is linked to
this port.
Next, plug the male end of your serial cable into the port on the back of the MacElite that is labeled
“Serial to PC.” The other end of this serial cable is already plugged into the USB to serial adapter. DO
NOT plug the USB cable from the USB to serial adapter into your Macintosh at this time.
Plug the power cord into the power supply of the MacElite, also located on the rear side. Plug into a
standard 115VAC outlet.
It is recommended to plug these components into a common plug strip with AC filtering, as is common
with most high-end computers. Also if the unit is to be located in an area where the utility or power
company experiences frequent outages, utilizing a UPS is strongly recommended.

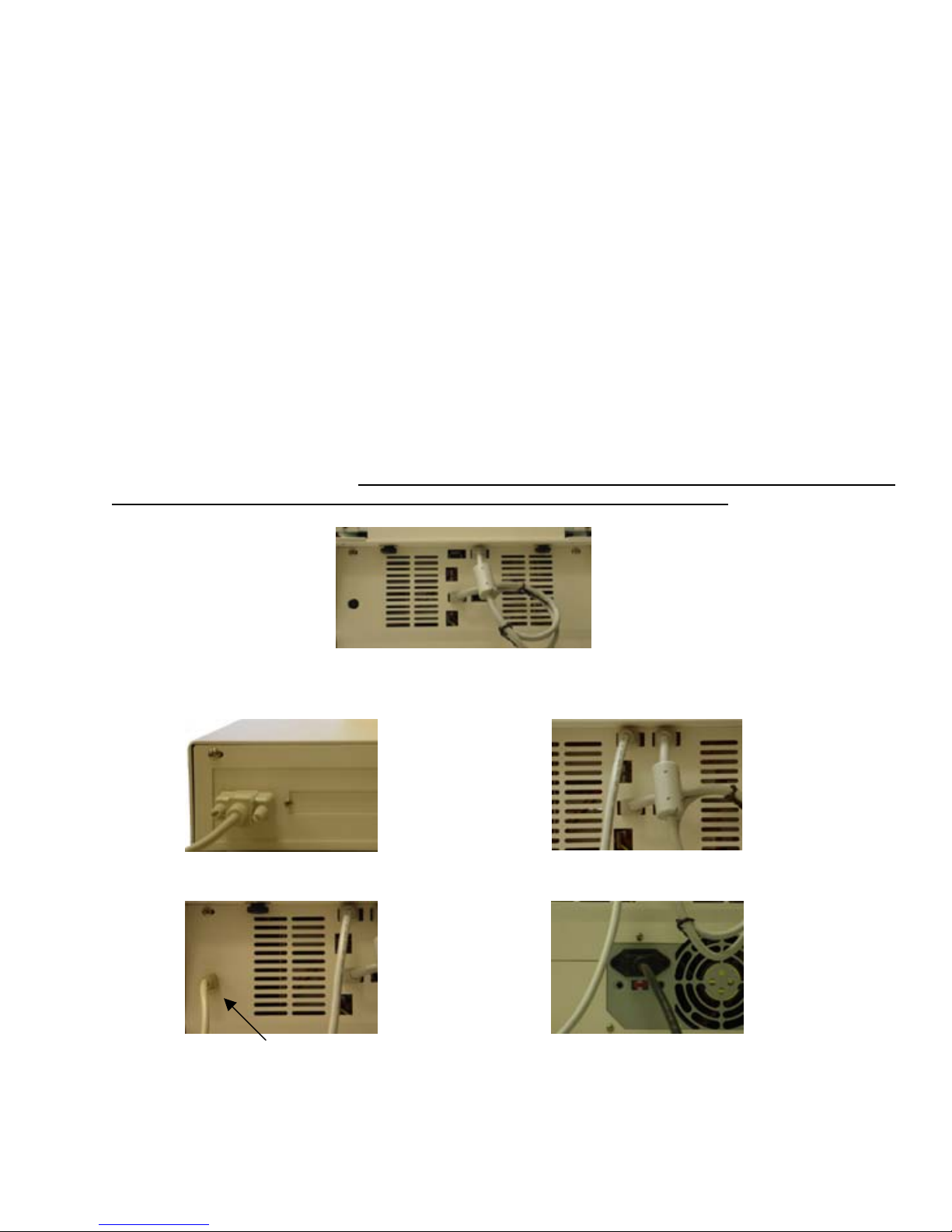

Rear View of FireWire® Connections
Loader Serial Connection
Drive FireWire® Connection
Printer Control Connection AC Power Connection
10

MacElite Setup Guide
Please review your entire unit and be sure that you have the following:
Four cables connected to the MacElite unit
1. Serial cable running from your USB to serial adapter to the serial port on the rear of the MacElite.
2. Printer control cable running from the rear of the MacElite to your CD printer.
3. FireWire® cable running from your Mac's FireWire® port to the FireWire® connector of
the CD recorder on the rear of the MacElite. Note that if you have multiple recorders, additional
FireWire® cables are used to “chain” the drives together.
4. AC power cable from the power supply on the rear of the MacElite to a standard wall outlet.
Three cables connected to the printer
1. Printer control cable from your MacElite unit.
2. USB printer cable from your Macintosh.
3. Power cable from a standard wall outlet.
Two cables connected to your Macintosh
1. FireWire® cable running to a recorder on the MacElite unit.
2. USB printer cable running to the CD printer.
Do not plug the USB cable running to the USB to serial adapter in to your Macintosh until after the
adaptor's drivers are installed in step 5.
11

MacElite Setup Guide
Step 5
Installation of Discribe, CD Printer and USB to Serial Adaptor Drivers
If you have not already done so, connect your CD printer to your Macintosh using the provided USB
cable. Turn on your Macintosh. Turn on your CD printer if it is not already on. Verify that you have NOT
plugged the USB to serial adaptor into your Macintosh yet. If you have done so, unplug it now before
proceeding.
Locate the Discribe Robotics Version install CD. Insert the CD into your
Macintosh's CD ROM drive. The CD should mount on your Desktop. Double click
on the CD and double click on the “Discribe for Disc Makers” icon that appears.
Discribe will be installed to a folder called
Discribe Robot within your Applications
directory.
Follow the on screen directions to install the Discribe duplication software, CD printer and USB to serial
adaptor drivers. Once the installation is complete and your Macintosh has rebooted, plug the USB
cable from the USB to serial adaptor into an available USB port on your Macintosh. The green LED on
the adaptor should blink.
The Discribe duplication software was installed in a folder called “Discribe Robot” in your Applications
directory. For convenient access, you may wish to drag the Discribe application to your Dock.
Alternately, you may create an alias by dragging it to your Desktop while holding the option-command
keys.
Remove the Discribe Robotics Version CD from your Macintosh's CD ROM drive and proceed to the
next step, Aligning Printer Cartridges.
12

MacElite Setup Guide
Step 6
Resetting the Ink Monitor and Aligning Printer Cartridges
Check to see that your CD printer is turned on. Open
the printer tray by pressing the lower button on the front
face of the printer and place a printable CD or cardboard disk
in the CD tray. Close the tray by pressing the lower button
again.
Open the Applications folder and then the Utilities folder.
Find the icon for the Print Center and double click on it.
The window shown below will open.
Highlight the Lexmark Z55 printer and click on the
Configure button. The window to the right will open.
Click on the Install/Change Cartridge button.
The window shown below will open.
Since you installed the cartridges earlier, click Continue. The window shown above will open. Select
the option, “No, it is new” for each cartridge and click OK. This will reset the ink level monitor and will
bring up the cartridge alignment screen. It is suggested that you follow these steps for each ink
cartridge that you replace.
13

MacElite Setup Guide
The Cartridge Alignment Screen will open.
Select Manual Alignment. Be certain that you
have a printable CD in the printer’s CD tray and
that the tray is closed. Then click on the button
labeled Continue. The CD printer will print a
pattern on the CD and the window shown below
will open.
Follow the directions printed on the CD to complete the
alignment test. Then click on the OK button when
finished. You may then close the Print Center program
as well.
This product is based on the Lexmark©55SE©Inkjet Printer. Amtren Corporation, in integrating the
Lexmark Printer into this platform, assumes all responsibility for support and warranty of this product
and the supporting drivers. After over 3 years of research and development, Amtren’s final product
design uses the Lexmark©Printer because of the quality of printing for printing onto CD-Rs and DVD-
Rs. Lexmark©Corporation does not offer support for this product. Please contact Amtren Corporation
Customer Service or an authorized dealer for support.
14

MacElite Setup Guide
Step 7
Setting Paper Type & Print Quality
Optimum printing results on CDs are obtained when the paper type is set to Coated and the print
quality is set to Better. The following steps will guide you through making these necessary changes.
This only needs to be done once.
A. Launch any program that can print, such as TextEdit or Apple Works.
B. Click on “File” and “Print.”
C. Select Quality and Media in the third drop down menu.
D. Select Coated as the paper type and Better as the print quality.
E. In the Presets drop down menu shown above, select Save As and type Autograph VI. Then click on
the OK button. This will save these settings as the default.
You may then click on the Cancel button to close the Print dialogue box. Close down the application
that you opened and proceed to the next step, installing the Discus label making software.
15

MacElite Setup Guide
Step 8
Installation of the Discus CD Label Making Software
Insert the Discus CD into the CD ROM drive of your Macintosh. Open your Applications folder and
create a folder named Discus. Double click on the icon of the mounted Discus CD on your desktop.
Copy all of the files from the CD to your new Discus folder. You may wish to make an alias for the
Discus application (not the art file) and place the alias on your Desktop or program Dock for easy
access. Remove the Discus CD from your computer's CD ROM drive and store it with your other CDs in
a safe place.
The first time Discus is launched, please enter your Discus key in the window shown below. The key is
in the form of XXX-XXX-XXX.
Congratulations! You have finished setting up and installing all of your hardware and software.
16

MacElite Setup Guide
Step 9
Using Discus to Design CD/DVD Labels
If you did not purchase a CD printer, then you may skip ahead to the next step.
If you wish to print a label on your CDs, then you will need to prepare it before you begin duplicating
your CDs.
The easy to use Discus software can be used to design great labels for your CDs. Double click on the
Discus application icon. You will see the following screen.
Click on the CD/DVD label type. The following screen will appear.
17

MacElite Setup Guide
The Canvas tab allows you to select various
background designs that are included with
Discus for your label.
The Paint tab allows you to paint and draw
with different colors and gradients, as well as
stamp various designs on your label.
The Photo tab allows you to import pictures
into your Discus label. In this way, you can use
existing labels that are in standard graphical
formats.
The Text tab allows you to add text to your
labels. There are a wide variety of founts and
effects to choose from.
The Print tab allows you to adjust the size of the
inner and outer boundaries of your label as well as
“nudge” the position of the label. Note that it is
necessary to save the label AFTER making these
adjustments.
Please note that the software is calibrated to create
labels to use during automated duplication with the
Discribe software. To print directly from Discus to
the CD printer, it is necessary to select “format for
Lexmark Z55” and select the “CD/DVD” paper size
under the setup button. It may also be necessary to
shift the image’s position slightly. Be certain to shift
the image back to its original position AND SAVE
IT before using automated printing.
18

MacElite Setup Guide
Experiment with all of your various creative options. Once you have designed your label, click on File,
Save,and save your label to a convenient location. This will create both, a Discus label file that you can
edit later and a bitmap file for use in automated printing.
Now you are ready to begin automated CD/DVD duplication and printing!
Note that if you have designed your CD labels using other software, it is recommended that you save
them in a standard graphical format and import them into Discus using the Photo tab. This will ensure
proper alignment and sizing when the labels are printed onto the media.
19

MacElite Setup Guide
Step 10
Using Discribe to Duplicate Existing CD/DVDs
The following pages provide a guide for using the Discribe software to duplicate an existing CD/DVD.
Ensure that all the cables are properly connected. Turn on the MacElite by pressing the power switch
located on the unit’s front right side. A small green LED located on the front of the unit should light up.
If not, check to see that the power supply located at the rear of the unit is turned on and that it is
properly connected to a standard working 115V power outlet.
A. First, place the number of blank media that you wish to burn in the input spindle. This has three
silver rods located around the outside edge of the media. Please be sure that the media lays flat and
does not stick together.
B. Place your master on top of your blank media. If you have several masters you wish to duplicate at
once, you may place different masters between the appropriate number of blank media. For example,
you can put Master B on top of 10 blank disks, set five more blanks on top of that, and place Master A
on top of those. This will produce five copies of Master A and 10 copies of Master B.
C. Ensure that your MacElite and CD printer are turned on, properly connected to your Mac, and that
your Mac is on.
D. Launch the Discribe Robot application by double clicking on its icon.
E. Click on any of the three buttons displayed in the Quick Start window shown
below.
F. Click on the top most drop down menu and select Stream.
20
