Ditek DTK-LC2 User manual

DTK-LC2
User Guide
DITEK CORPORATION
One DITEK Center 1720 Starkey Road Largo, Fl 33771
1-800-753-2345 www.diteksurgeprotection.com
191625 INT-100188-001 Rev 1
DITEK CORPORATION
One DITEK Center 1720 Starkey Road Largo, Fl 33771
1-800-753-2345 www.diteksurgeprotection.com
DTK-LC2
(Mounting Dimensions)
DITEK
Surge Protection
R
MADE IN USA
DTK-LC2
LINE CONDITIONER
120VAC @ 15A
10GbE
I
N
O
U
T
8.00 APPROX
32.00 APPROX
4.98
7.50
120VAC @ 15A
LINE CONDITIONER
DTK-LC2
MADE IN USA
R
Surge Protection
DITEK
6.50
2.34
Overall Footprint
Keyhole Mounting Slots

DTK-LC2
General Specifications
DTK-LC2 (120V 15A Cord Connected SPD/EMI Filter)
CAUTION: To Reduce The Risk of Electric Shock, Use Only in Dry Locations
Indoors.
Warning: Turn power off at the main circuit breaker panel before beginning install.
Note: Connect this device in series between the 120VAC, 15A supply and the
equipment to be protected.
1. Unplug the NEMA 5-15P (Plug), for your equipment, from the grounded house
NEMA 5-15R (Receptacle). Both Plug and Receptacle must be grounded for the
DTK-LC2 to perform as designed.
2. Insert the NEMA 5-15P from the DTK-LC2 into the grounded house NEMA 5-15R.
3. Insert the NEMA 5-15P for your equipment into the DTK-LC2’s Fixed Reptacle or
Output Corded Receptacle. Either or both may be used but you are limited to 15A
total current draw.
4. Mount this device in accordance with the dimensions posted on the back page of
this guide.
5. After all connections have been made and no hazards exist, restore power.
NEMA 5-15R
Fixed Receptacle
T
U
O
N
I
10GbE
120VAC @ 15A
LINE CONDITIONER
DTK-LC2
MADE IN USA
R
Surge Protection
DITEK
DTK-LC2
NEMA 5-15P
NEMA 5-15R
Output Corded
Receptacle

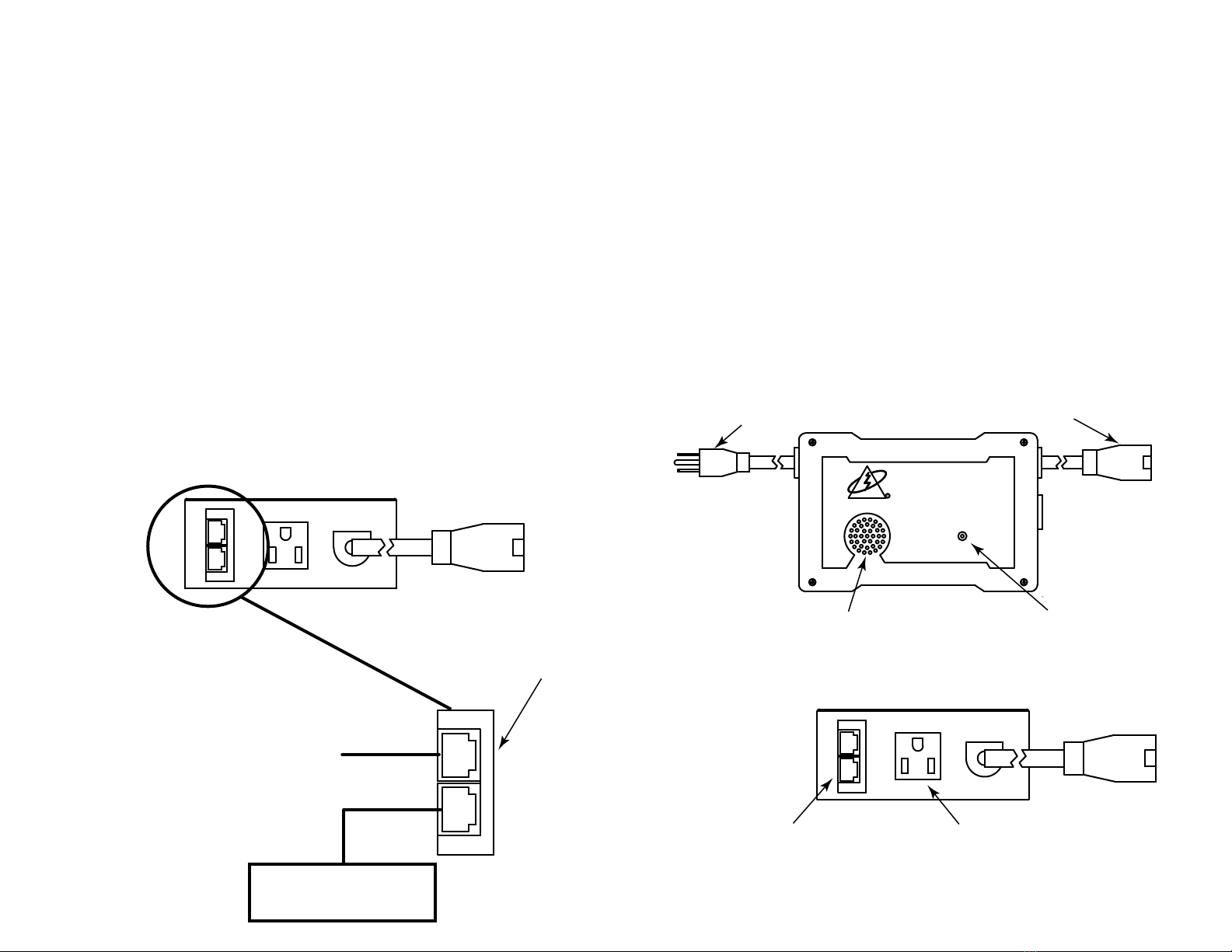

Audible Alarm LED Diagnostic
Single Channel
Ethernet/PoE SPD
T
U
O
N
I
10GbE
DTK-LC2 is a 120V 15A Cord Connected SPD/EMI Filter.
This device will provide surge protection for your critical equipment. It
will also provide EMI filtering to assure clean power is delivered to your
equipment.
The DTK-LC2 is equipped with an audible alarm that will provide an
audible alert as to the status, or health, of your surge protection, as well
as a diagnostic LED that provides a visual alert as to the status of your
surge protection. When the LED has turned off and your audible alarm
is sounding, your surge protector has gone end of life. There are no
user serviceable parts for this model and it should be discarded and
replaced with a new unit.
The DTK-LC2 is also equipped with a single channel Ethernet/PoE
protection port. This can be used to protect the network connection of
your equipment.
Single Channel
Ethernet/PoE SPD
T
U
O
N
I
10GbE
IN=Input Patch Cable From The Field Or Supply
OUT=Output Patch Cable To Equipment
(3’ Foot Minimum)
Protected Equipment
