INSTALLATION OF STI-SA5500 SELECT ALERT SIREN/STROBE
All specications and information shown were current as of publication and are subject to change without notice.
SA5500IS JAN2021
2306 Airport Road
Waterford • Michigan • 48327-1209
Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
BATTERY INSTALLATION/REPLACEMENT
1. Unscrew lens to remove.
2. Loosen PCB screws (do not remove).
3. Gently rotate PCB without touching LED’s and
without damaging the reflectors.
4. Connect battery and slide under retainer.
5. Re-install PCB and tighten screws.
NOTES
1. Internal battery will provide backup power if loss of external power.
2. If no internal battery is used, remove all power and move S1-1 to
“OFF” position (see detail S1).
LOW BATTERY OPERATON
Replace battery when low battery condition occurs,
Low battery LED flashes 1x per 1 minute and sounder
beeps 1x per 3 minutes
WARNING: This product can expose you to chemicals including Dichloromethane, which is
known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products.
See website for details. Electronic warranty form at www.sti-usa.com/wc14.
DETAIL A
SCALE 5 : 1
A
B
PCB SCREWS
9 VDC BATTERY
9 VDC BATTERY CONNECTOR
CIRCUIT BOARD
LENS
LENS
#6 x 2 1/2 in. SCREW
(2) PROVIDED
O-RING (2) PROVIDED
ELECTRONIC BASE
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN USING ANCHORS
DRILL 4/64 DIA. HOLES 1 1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#8-10 WALL ANCHOR (2) PROVIDED
3.73 in.
(94.6 mm)
.94 in.
(23.8 mm)
2.83 in.
(71.8 mm)
1.02 in.
(26.0 mm)
3.87 in.
( 98.2 mm)
3.73 in.
(94.6 mm)
.94 in.
(23.8 mm)
2.83 in.
(71.8 mm)
1.02 in.
(26.0 mm)
3.87 in.
( 98.2 mm)
1 2 3 4 FUNCTION
1 LOW BATTERY NOTIFICATION ON
* 0 LOW BATTERY NOTIFICATION OFF
* 0 0 0 CONTINUOUS “ON”
0 0 1 DOUBLE LED ROTATION
0 1 0 3 FLASH - DELAY - 3 FLASH
0 1 1 SINGLE LED ROTATION (FAST)
1 0 0 FLASHING
1 0 1 INTENSITY RAMPING UP & DOWN
1 1 0 SINGLE LED ROTATION (SLOW)
1 1 1 RIGHT/LEFT ROTATION
S1 - LOW BAT. NOTIFICATION/STROBE CONTROL
1 2 3 4
1 ON
0 OFF
*Default Settings
INPUT
9 VDC, 527 mA Max
12-24 VDC, 402 mA Max.
OPERATING TEMPERATURE
-4°F to 140°F (-20°C to 60°C)
DETAIL S1
See pg. 2
DETAIL S2
PCB SCREWS
9 VDC BATTERY (NOT INCLUDED)
9 VDC BATTERY CONNECTOR
CIRCUIT BOARD
LENS
LENS
#6 x 2 1/2 in. SCREW
(2) PROVIDED
O-RING (2) PROVIDED
ELECTRONIC BASE
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1 1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#8-10 WALL ANCHOR (2) PROVIDED
S1 S2
REFLECTORS
LOW BATTERY
LED
FLASH RATE ADJUSTMENT
2020_V1.6
ON
OFF
SIRENVOL
1 2 3 4 5 6
1 2 3 4 5 6
ON DIP
ON
OFF
STROBE
LOW
BAT
12 3 4
1 2 3 4
ON DIP
ON
OFF
LOW
BAT
1
S1
STROBE
2 3 4
SLOW
FAST
VR1
5501
2020_v1.7
ON
OFF
S2
4 5 61 2 3
VOL SIREN
LOW BATTERY LED
DETAILS S1 DETAILS S2
S2
S1
FLASH RATE
ADJUSTMENT
FAST
SLOW
Don’t Touch LED
Don’t Touch LED
1Siren Volume
23456
ON
OFF
1
Strobe
LOW
BAT
23
ON
OFF
4
5500
V1.3_x1
Slow
Fast
PCB SCREWS
9 VDC BATTERY (NOT INCLUDED)
9 VDC BATTERY CONNECTOR
CIRCUIT BOARD
LENS
LENS
#6 x 2 1/2 in. SCREW
(2) PROVIDED
O-RING (2) PROVIDED
ELECTRONIC BASE
DRILL 3/16 DIA. HOLES
1 1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES 1 1/4 in. DEEP
WHEN ANCHORS ARE NOT USED
#8-10 WALL ANCHOR (2) PROVIDED
S1 S2
REFLECTORS
LOW BATTERY
LED
FLASH RATE ADJUSTMENT
2020_V1.6
ON
OFF
SIRENVOL
1
2
3
4
5
6
1
2
3
4
5
6
DIP
ON
OFF
STROBE
LOW
BAT
12 3 4
1 2 3 4
ON DIP
ON
OFF
LOW
BAT
1
S1
STROBE
2 3 4
SLOW
FAST
VR1
5501
2020_v1.6
ON
OFF
S2
4
5
61
2
3
VOL SIREN
LOW BATTERY LED
DETAILS S1 DETAILS S2
S2
S1
FLASH RATE
ADJUSTMENT
FAST
SLOW
Don’t Touch LED
Don’t Touch LED
1Siren Volume
23456
ON
OFF
1
Strobe
LOW
BAT
23
ON
OFF
4
5500
V1.3_x1
Slow
Fast

2306 Airport Road
Waterford • Michigan • 48327-1209
Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
INSTALLATION OF STI-SA5500 SELECT ALERT SIREN/STROBE
All specications and information shown were current as of publication and are subject to change without notice.
SA5500IS JAN2021

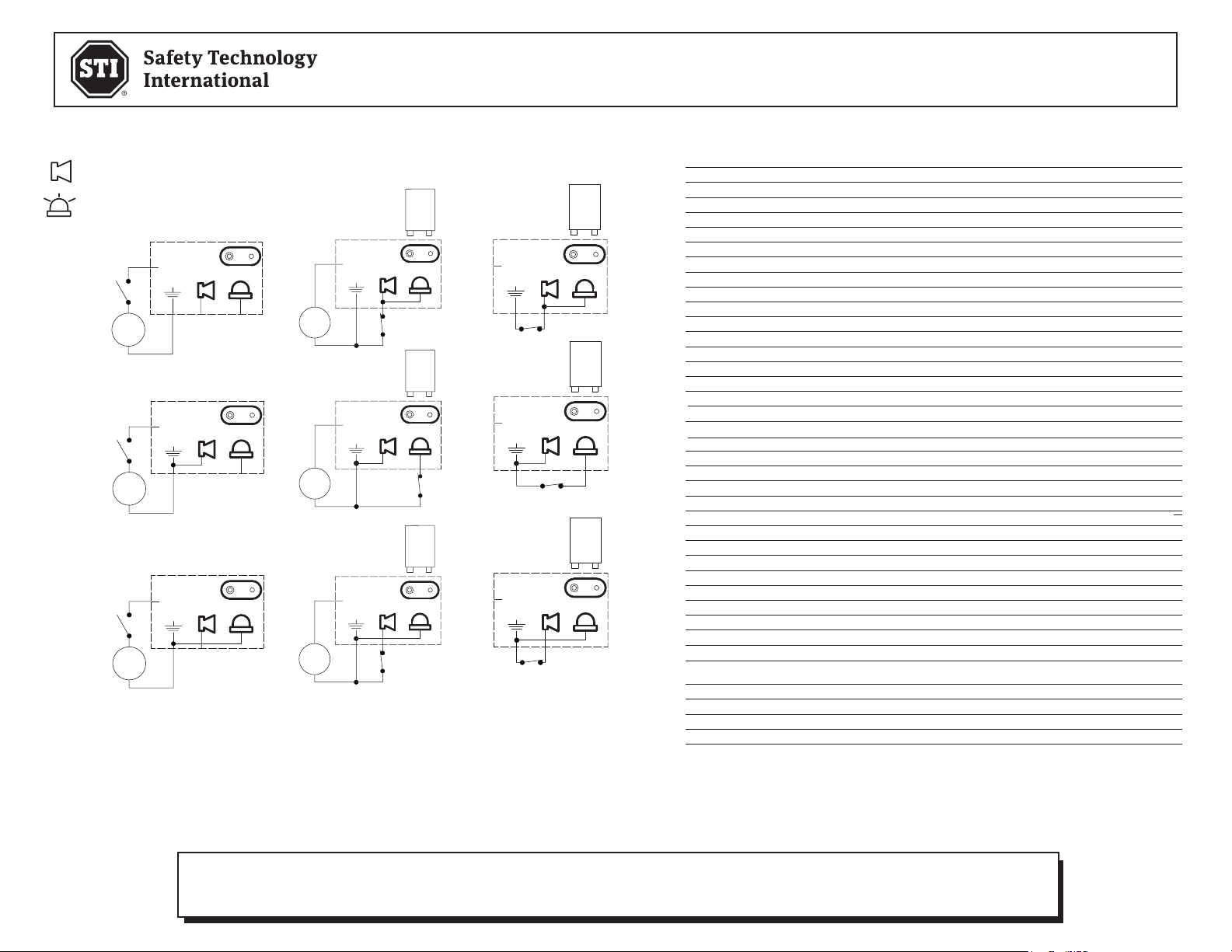

BLK (-)
RED (+)
9VDC
YEL
+
-
BLU
STROBE & SIREN
TRIGGER
(NOT PROVIDED)
BLK (-)
RED (+)
9VDC
YEL
+
-
BLU
TRIGGER
(NOT PROVIDED)
BLK (-)
RED (+)
9VDC
YEL
+
-
BLU
TRIGGER
(NOT PROVIDED)
SIREN ONLY
STROBE ONLY
Control with Power Supply
- Not supervised
- Alarm on close
- Cannot use battery
turn off Low Battery Detect
YEL
RED (+)
9VDC
BLU
-
+
BLK (-)
STROBE & SIREN
TRIGGER
(NOT PROVIDED)
YEL
RED (+)
9VDC
BLU
-
+
BLK (-)
SIREN ONLY
TRIGGER
(NOT PROVIDED)
YEL
RED (+)
9VDC
BLU
-
+
BLK (-)
STROBE ONLY
TRIGGER
(NOT PROVIDED)
Power Supply Plus Battery
- Supervised trigger
- Alarm on open trigger
- Low battery alert
(Turn off if battery not used)
RED (+)
YEL
9VDC
BLU
BLK (-)
STROBE & SIREN
TRIGGER
(NOT PROVIDED)
RED (+)
YEL
9VDC
BLU
BLK (-)
SIREN ONLY
TRIGGER
(NOT PROVIDED)
RED (+)
YEL
9VDC
BLU
BLK (-)
STROBE ONLY
TRIGGER
(NOT PROVIDED)
Battery Only
- Supervised trigger
- Alarm on open
trigger
- Low battery alert
SIREN
STROBE
* Default Settings
S2 ALARM TONES
1 2 3 4 5 FUNCTION
1 1 1 1 1 1800Hz - 3300Hz @ 150ms
0 1 1 1 1 500Hz - 1200Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF (AS1670 EVACUATION)
1 0 1 1 1 520Hz, 0.5s / 0.5s OFF x 3/1.5s OFF (FIRE)
0 0 1 1 1 1200Hz - 500Hz @ 1Hz (DIN 33 404)
1 1 0 1 1 500Hz - 1200Hz, 3.75s ON / 0.25s OFF (AS2220)
0 1 0 1 1 550Hz/440Hz @ 0.5 Hz
1 0 0 1 1 970Hz, 0.5s/ 630Hz, 0.5s
0 0 0 1 1 800Hz / 1000Hz 0.5s each (1Hz)
1 1 1 0 1 1500Hz - 2700Hz @ 3Hz
0 1 1 0 1 800Hz / 970Hz @2Hz
1 0 1 0 1 800Hz, 0.25s ON/ 1s OFF
0 0 1 0 1 2400Hz - 2900Hz @ 9 Hz
1 1 0 0 1 750Hz
0 1 0 0 1 970Hz
1 0 0 0 1 970Hz, 1s OFF/1s ON
0 0 0 0 1 500Hz - 1200Hz, 3.5s ON/ 0.5s OFF (NEN 2575:2000 DUTCH SLOW WHOOP)
1 1 1 1 0 800Hz - 970Hz @1Hz
0 1 1 1 0 1000-2500Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF (AS1670 EVACUATION)
1 0 1 1 0 2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201)
0 0 1 1 0 660Hz 1.8s ON/1.8s OFF
1 1 0 1 0 500Hz - 1200Hz @ 0.33Hz
0 1 0 1 0 250Hz - 1200Hz @ 12Hz
1 0 0 1 0 2400Hz
0 0 0 1 0 800Hz - 970Hz @ 9Hz
1 1 1 0 0 510Hz, 0.25s/ 610Hz, 0.25s
0 1 1 0 0 550Hz, 0.7s/1000Hz, 0.33s
1 0 1 0 0 660Hz 0.15s ON/0.15s OFF
0 0 1 0 0 800Hz - 970Hz @ 3Hz
1 1 0 0 0 420Hz 0.625s ON/0.625s OFF (AUSTRALIA AS1670 ALERT TONE)
0 1 0 0 0 554Hz, 0.1s/440Hz, 0.4s (AFNOR NF S 32 001)
1 0 0 0 0 970Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201)
* 0 0 0 0 0 2400Hz - 2900Hz @ 3 Hz
S2 VOLUME
6 FUNCTION
1 High volume
* 0 Low volume
