Dixon F100 User manual

BAND CLAMP TOOL
F100
Jack-type tool

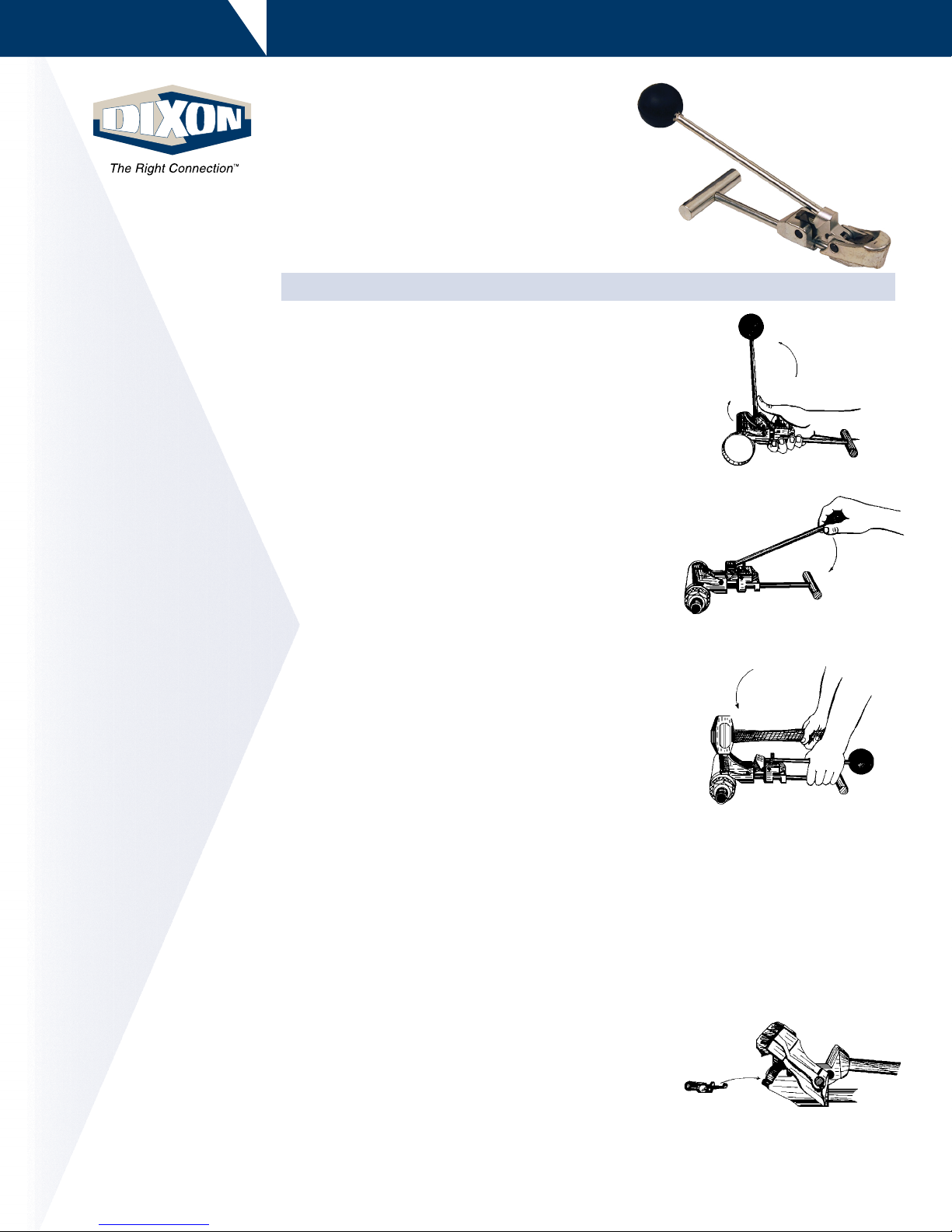

Operating Instructions for the F100 Installation Tool
Hold tool as shown with ball handle all the way
forward. Insert clamp and push the end entirely
into the tool until the lock is held in pusher housing
jaws.
Slip the hose with nipple inserted into the clamp
and locate clamp directly over groove - (position of
groove can be laid out on hose with chalk), tighten
the clamp with downward strokes of ball handle,
using short strokes after initial slack is out so that
ball handle nishes in down position.
Hold the tool with clamp resting on Vee block, vise
or other solid surface. Swing punch head down
against lock and strike hard with mallet; this locks
the clamp. Raise punch head to free punch. Hold
hose to keep from turning and raise both handles of
tool up together which will break off band at lock.
To remove cut off end from tool, operate ball handle
to work it through holding dog. Then press release
lever and pull strip out toward rear of tool.
The F100 tool described above, as shipped, is
ready for use in applying all sizes of 5/8" standard
and heavy duty hose clamps. To apply the 3/8"
wide clamps use the adapter (F-229).
To insert the adapter, hold the tool with the punch
head (FX-201) raised as shown and place the
adapter under the pusher nose with the bent ends
up and push back until the shoulder rests against
the front of the pusher nose. The F-229 clamp
adapter under the pusher nose ( F-206) centers the
narrower clamp in the tool.
Instructions for using adapter to apply 3/8" width clamps
1
2
3
4
For applying 3/8" and 5/8" width band clamps

Dixon Valve & Coupling Co.
800 High Street
Chestertown, MD 21620
ph 877.963.4966
fx 800.283.4966
dixonvalve.com
© 2011 DVCC F100 - INHOUSE01211
Part Identication for the F100 Installation Tool
For applying 3/8" and 5/8" band clamps
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
3
1
1
Qty
Per Tool
Part
Description Part #
Punch head
Punch
Punch head pin
Pusher nose
Holding dog
Pusher nose pin
Holding dog spring
Puller links
Puller links
Puller link pin
Pulling dog
Pulling dog spring
Pulling dog pin
Ball handle assembly
3/8" clamp adapter
Pusher puller assembly
Retaining rings
Crescent ring
Punch retainer ring
FX-201
F-202
F-233
F-206
F-207
F-208
F-209
FX-211A
FX-211B
F-212
FY-214
FY-217
F-233
FA-220
F-229HT
FA-231
F-242
F-232
F-235
Illustrations are not in correct proportion to one another.
F-235F-232
FY-217FY-214F-212FX-211B
F-207 F-208 FX-211AF-209
FX-201 F-202 F-206F-233
FA-231F-229HTFA-220F-233
F-242
Sliding Jack Replacement Kit
FY205K
FY-214 FY-217 FX-211A FX-211B
(Kit ts the F100, C2 and F175 tools)
